Tms320dm365

TMS320DM365

Stephanie Evans

DM3x Marketing Manager, Texas Instruments

Embargoed until March 3, 2009


Pixel perfect 1080p hd video flexibility
Pixel-perfect 1080p HD video flexibility

EMAC, USB 2.0, RTC, DDR2 . . .

Multi-format HD video with H.264 up to 1080p

H.264, MPEG-4, MPEG-2, MJPEG & VC1

  • 1080p H.264 at 10 fps optimized for video surveillance

  • 1080p MPEG-4 at 24 fps

  • 720p H.264, MPEG-4 at 30 fps

Flexibility without complexity

Face detection

Noise filtering

Video stabilizer

Auto white balance

Auto focus

Auto exposure

  • Integrated Image Signal Processing (ISP)

  • Multi-format, multi-rate, multi-stream, multi-channel

  • Production-ready codec bundles

Edge enhancement

Up to 25% system cost savings

  • Peripheral integration

  • ISP eliminates use of expensive optics


Multi-format HD video jumpstarts camera- and playback- driven designs

Multi-channel DVR

  • MPEG-4 at 1080p

  • H.264 at 720p

Baby monitor

IP security camera

  • MPEG-4 at 1080p

  • H.264 at 720p

  • H.264 1080p at 10 fps

HD multi-format video

Advanced image processing

Multimedia

Connectivity

Video

doorbell

Digital

signage

  • MPEG-4 at 1080p

  • H.264 at 720p

  • MPEG-4 at 1080p

  • H.264 at 720p

Personal media player

HD web cam

  • MPEG-4 at 1080p

  • H.264 at 720p

  • MPEG-2, VC1

  • MPEG-4 at 1080p

  • H.264 at 720p


Dm365 digital media processor multi format video hd h 264 mpeg 4 vc1 video

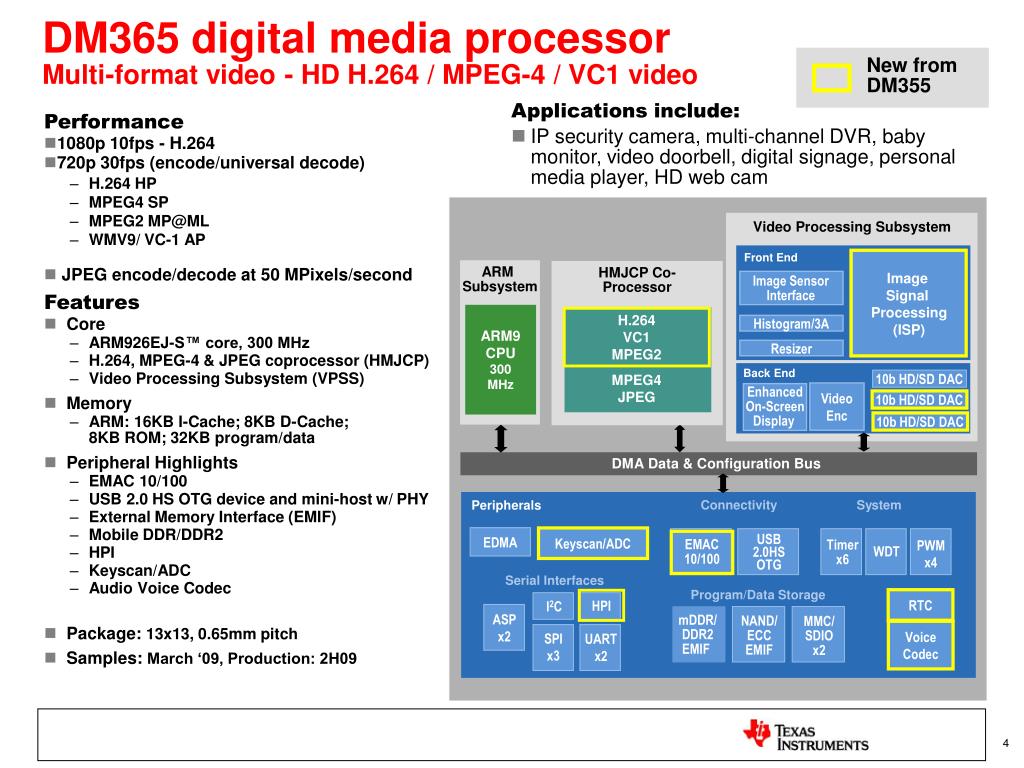

DM365 digital media processor driven designs Multi-format video - HD H.264 / MPEG-4 / VC1 video

ARM Subsystem

ARM9 CPU

300 MHz

New from DM355

Applications include:

  • IP security camera, multi-channel DVR, baby monitor, video doorbell, digital signage, personal media player, HD web cam

  • Performance

  • 1080p 10fps - H.264

  • 720p 30fps (encode/universal decode)

    • H.264 HP

    • MPEG4 SP

    • MPEG2 [email protected]

    • WMV9/ VC-1 AP

  • JPEG encode/decode at 50 MPixels/second

    Features

  • Core

    • ARM926EJ-S™ core, 300 MHz

    • H.264, MPEG-4 & JPEG coprocessor (HMJCP)

    • Video Processing Subsystem (VPSS)

  • Memory

    • ARM: 16KB I-Cache; 8KB D-Cache; 8KB ROM; 32KB program/data

  • Peripheral Highlights

    • EMAC 10/100

    • USB 2.0 HS OTG device and mini-host w/ PHY

    • External Memory Interface (EMIF)

    • Mobile DDR/DDR2

    • HPI

    • Keyscan/ADC

    • Audio Voice Codec

  • Package: 13x13, 0.65mm pitch

  • Samples: March ‘09, Production: 2H09

Video Processing Subsystem

Front End

Image Signal Processing(ISP)

HMJCP Co-Processor

Image Sensor Interface

H.264

VC1

MPEG2

MPEG4

JPEG

Histogram/3A

Resizer

Back End

10b HD/SD DAC

Video

Enc

Enhanced

On-Screen

Display

10b HD/SD DAC

10b HD/SD DAC

DMA Data & Configuration Bus

Connectivity

System

Peripherals

EDMA

Keyscan/ADC

USB 2.0HS OTG

PWMx4

WDT

Timerx6

EMAC

10/100

Serial Interfaces

Program/Data Storage

RTC

HPI

I2C

ASPx2

mDDR/DDR2

EMIF

NAND/

ECC

EMIF

MMC/

SDIO

x2

Voice

Codec

SPI

x3

UART

x2

4


Dm365 video processing sub system

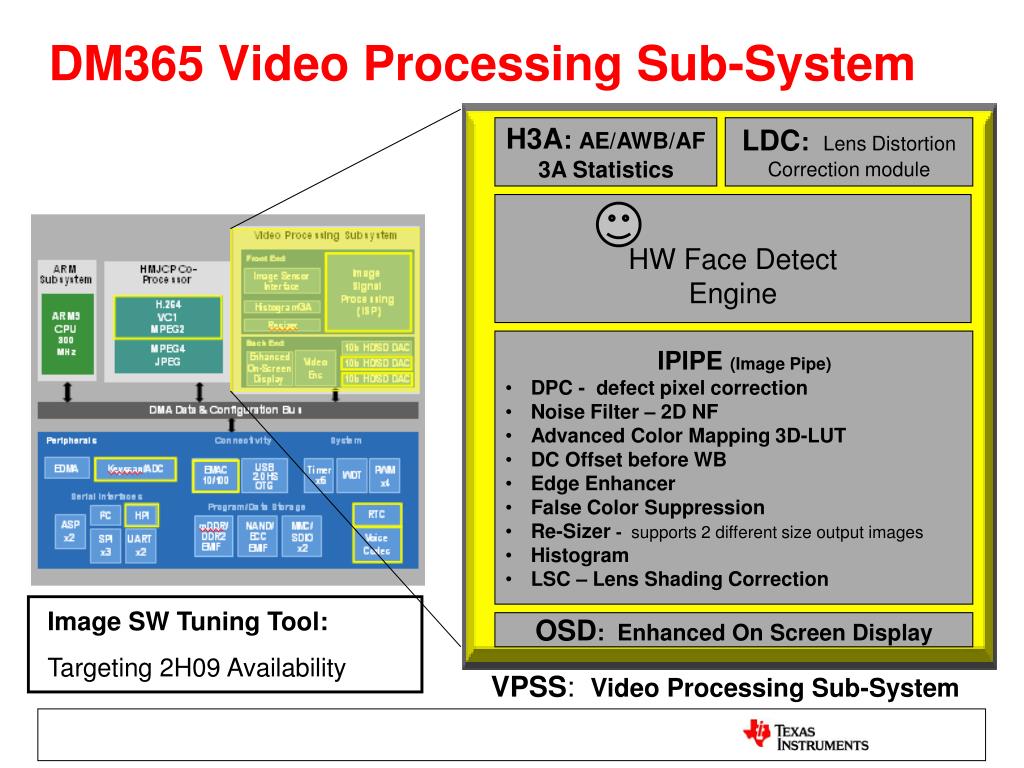

DM365 Video Processing Sub-System driven designs

H3A: AE/AWB/AF

3A Statistics

LDC: Lens Distortion

Correction module

HW Face Detect

Engine

  • IPIPE (Image Pipe)

  • DPC - defect pixel correction

  • Noise Filter – 2D NF

  • Advanced Color Mapping 3D-LUT

  • DC Offset before WB

  • Edge Enhancer

  • False Color Suppression

  • Re-Sizer - supports 2 different size output images

  • Histogram

  • LSC – Lens Shading Correction

Image SW Tuning Tool:

Targeting 2H09 Availability

OSD: Enhanced On Screen Display

VPSS: Video Processing Sub-System


Multi format flexibility the right format for your application

DM365 driven designs

Multi-format flexibility – The right format for your application

Constrained networkIncreased storage

H.264

Mainstream

MPEG-4

Interoperability with legacy video decode

MPEG-2

Simplicity

MJPEG

H.264, VC1

Flexibility to decode any format

MPEG-4

MPEG-2


Flexibility to meet product requirements

DM365 driven designs

DM365

DM365

Internet

Storage

Storage

Storage

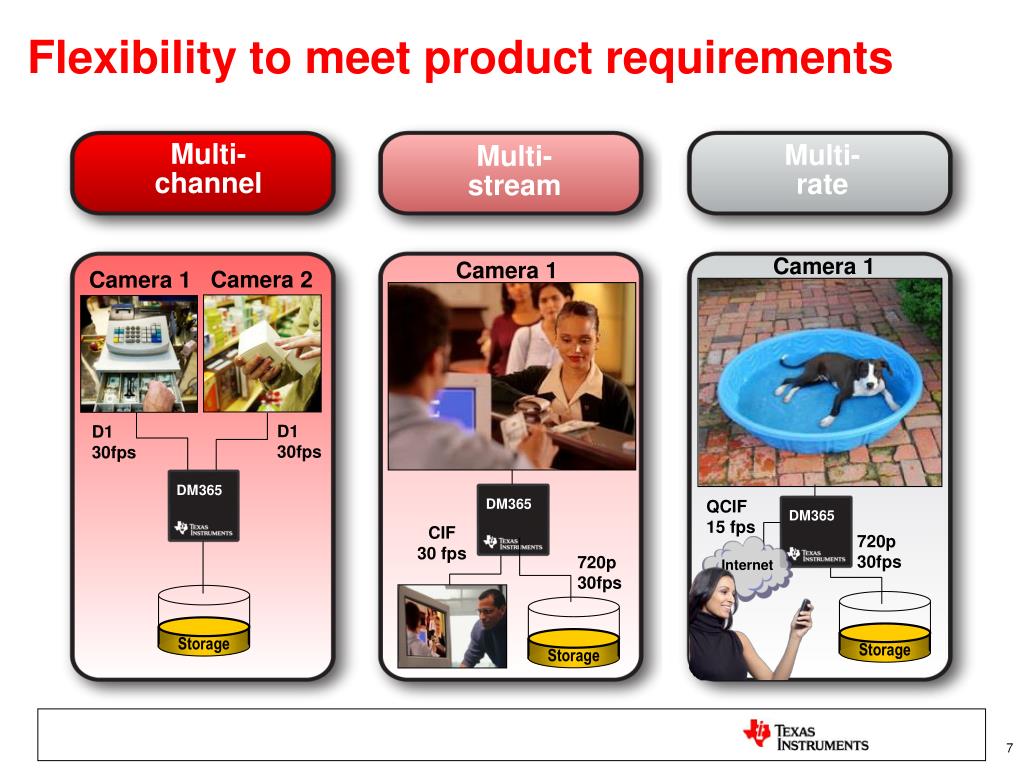

Flexibility to meet product requirements

Multi-channel

Multi-rate

Multi-stream

Camera 1

Camera 1

Camera 2

Camera 1

D1 30fps

D130fps

QCIF15 fps

CIF30 fps

720p30fps

720p30fps


Imaging flexibility with integrated image signal processing isp
Imaging flexibility with integrated driven designs Image Signal Processing (ISP)

Face detection

Defect pixel correction

before

Video stabilization

after


Software flexibility without the complexity driven designs

DM365

Additional codecs available

Bundled codecs

H.264

MPEG-2

AAC

MP3

MPEG-4

VC1

$1

$2

WMA

JPEG

G.711

WMV9

AEC

AAC

MPEG-2

VC1

$2.50

WMA

WMV9

AEC

Available for price adder embedded in chip costDownload from TI via click wrap license Configurable/ not programmable

No royalty to TI

No license feeConfigurable/ not programmable

  • Ease-of-use codecs are black-boxed in a systems solutions approach for faster time-to-market


Up to 25 system cost savings
Up to 25% system cost savings driven designs

DM365

Saves > $1.00

Saves > $2.00

Integration

Image Signal Processing (ISP)

EMAC

Saves $1.00

USB 2.0 with Phy

Built-in ISP eliminates need for:

SoC sensor or

Separate ISP chip

Saves $1.00

16-bit DDR2 memory interface

Saves $2.20

Real-time clock

Higher quality lens

Saves $0.30

Voice codec

Saves $1.30

3 Video DACs

Saves $2.00


Get started today
Get started today! driven designs

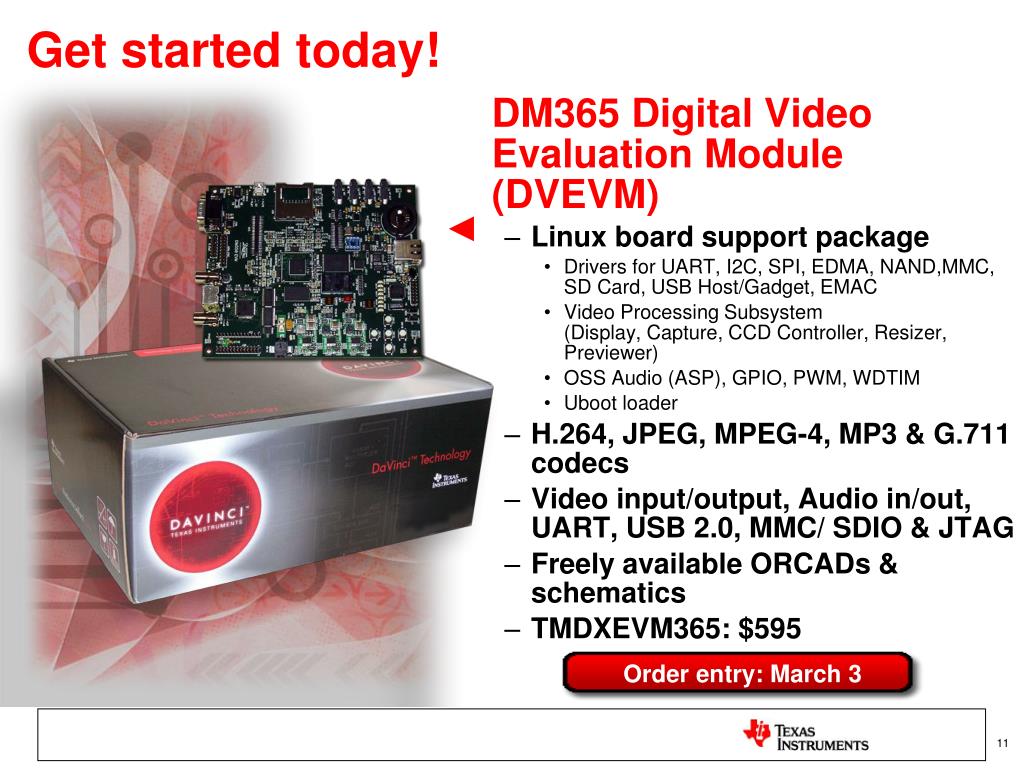

DM365 Digital Video Evaluation Module (DVEVM)

  • Linux board support package

    • Drivers for UART, I2C, SPI, EDMA, NAND,MMC, SD Card, USB Host/Gadget, EMAC

    • Video Processing Subsystem (Display, Capture, CCD Controller, Resizer, Previewer)

    • OSS Audio (ASP), GPIO, PWM, WDTIM

    • Uboot loader

  • H.264, JPEG, MPEG-4, MP3 & G.711 codecs

  • Video input/output, Audio in/out, UART, USB 2.0, MMC/ SDIO & JTAG

  • Freely available ORCADs & schematics

  • TMDXEVM365: $595

Order entry: March 3


Dm365 schedule
DM365 Schedule driven designs

  • Schedules

    • Announcement March 3, 2009

    • Open Order Entry (silicon and starter kit) March 3, 2009

    • DVEVM

      • Order March 3, 2009

      • Delivery May 2009

  • Sample Part Number: TMX320DM365AZCE

  • EVM Part Number: TMXEVM365BET


Dm365 schedule updates
DM365 Schedule Updates driven designs

Announcement on March 3rd

Silicon:

Order Entry - March 3rd with 6 – 8 week lead times

  • Part Number TMX320DM365AZCE

  • Preproduction quantities will be the superset device at 300MHz

  • Targeting Qualification in September 2009 with production quantities shipping within 6 weeks

  • Two separate speed grades will be offered in production

    • 300MHz (1.35V supply)

    • 270MHz

      Beta EVMs:

  • Open Order Entry – March 3rd with up to 12 week lead times

  • Part Number: TMDXEVM365BET  -- will be populated with 300MHz device

  • At launch, the first EVMs will offer a Beta LSP only.  This allows the earliest possible delivery of EVMs.  In the Read Me 1st card, it will direct customers to MyRegisteredSW for Beta DVSDK (with codecs) when available (see SW schedule below).


Dm365 software schedule
DM365 Software Schedule driven designs

Beta SW:

  • Beta DVSDK  (available for download - targeting April ‘09)

    • Full DVSDK demos (Encode, Decode, Encode + Decode)

    • Beta Codecs (Max Performance at 300MHz)

      • H.264 HP Limited High Profile (Progressive only, No B frames) Encode/ Universal Decode (except no interlace)

        • 720p (1280x720)

      • MPEG4 SP Encode/ SP Closed Loop Decode (will be universal in Release 2 of DVSDK targeted for May)

        • 720p 30fps

        • SXVGA 30fps

      • JPEG

        • BP Encode 66MPs / BP Decode 60MPs

    • Production Ready DVSDK (targeting May ’09)

      Additional Beta Release Schedules:

  • MPEG-4 Decoder – ASP Universal Decode

    • May ‘09

  • H.264 Decoder – Universal MP Decode

    • May ’09,

  • MPEG-2 Universal Decode

    • June ’09

  • MPEG-2 Encoder (With Interlace support, No B pictures)

    • June ’09

  • VC-1 MP Universal Decoder

    • June ’09
