Making xml technology easier to use

Session id: 40108

Making XML Technology Easier to Use

X M L T O T H E P O W E R O F S Q L

Jinyu WangSenior Product Manager Oracle Corporation

Scott BrewtonPrincipal InstructorOracle Corporation


Xml widely accepted

XML Widely Accepted

  • Expanding the business

    • XML is widely accepted as the standard data exchange format for B2B, B2C and EAI applications

  • Making use of the legacy applications

    • XML incorporates metadata with data facilitating cross platform data exchange

  • Building e-business applications over the Internet

    • XML provides powerful data abstraction for transaction data management and exchange

  • Publishing content across media and device types

    • XML provides flexible content representations and easy transformations


Why simplify the use of xml

Why Simplify the Use of XML

  • XML is not easy to pick up

    • Complex XML syntax

    • Bewildering array of new specs and APIs

  • XML is not straightforward to process

    • Lack of business logic in the document-centric APIs

    • Difficult to connect XML resources

  • XML is overly extensible

    • Many different ways to extend

    • Lack of design guidance

    • XML metadata processing inefficient


Xdk simplify the xml development

XDK Simplify the XML Development

  • Simplifies XML parsing

    • New DOM 3.0 support

    • New Built-in SAX output interface

  • Provides simple and powerful XSL transformations

    • New XSLT 2.0 and XPath 2.0 support

  • Easily uses Java with XML binding to Java Objects

    • New JAXB Class Generator

  • Uses the stream-based XML metadata processing

    • New XML Schema validation interfaces

  • Declaratively connects XML processing resources

    • New XML Pipeline Processor


Dom xml parsing

Document

Entity Ref

Element

Element

Element

CDATA

Text

Attr

XML

DOM

Parser

DOM XML Parsing

  • A set of object-based APIs that loads an XML document into the memory and represents it as a DOM tree

DOM Tree


Dom 3 0 load and save

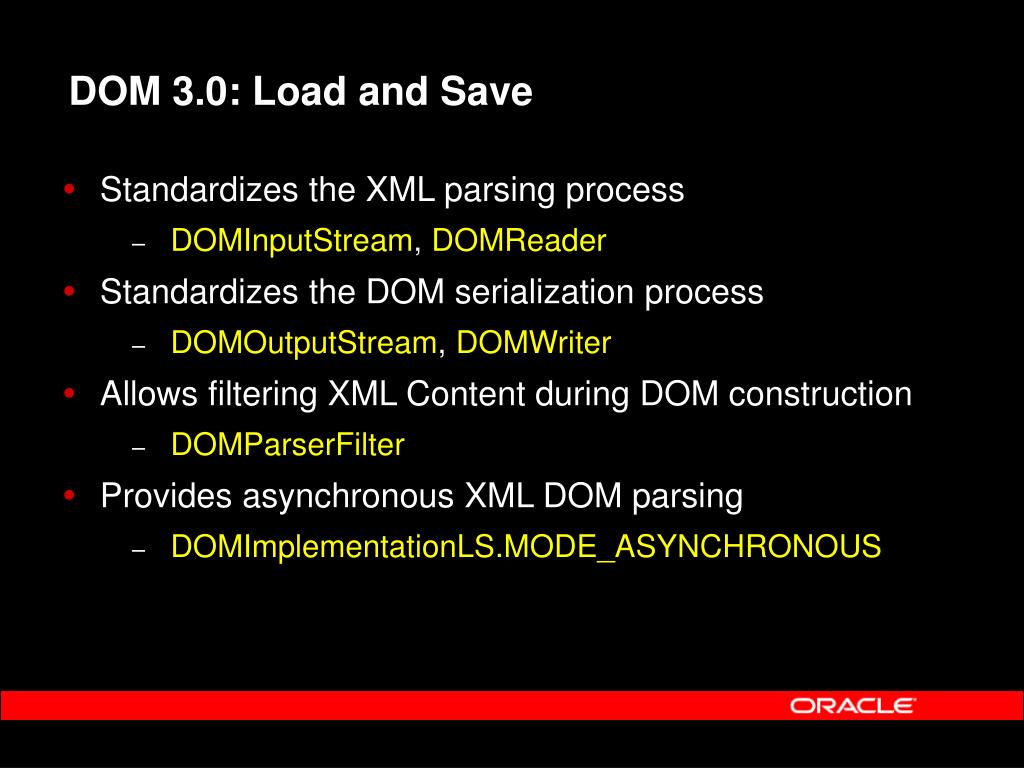

DOM 3.0: Load and Save

  • Standardizes the XML parsing process

    • DOMInputStream, DOMReader

  • Standardizes the DOM serialization process

    • DOMOutputStream, DOMWriter

  • Allows filtering XML Content during DOM construction

    • DOMParserFilter

  • Provides asynchronous XML DOM parsing

    • DOMImplementationLS.MODE_ASYNCHRONOUS


Dom ls standard and flexible dom parsing

XML

XML*

DOM

Parser

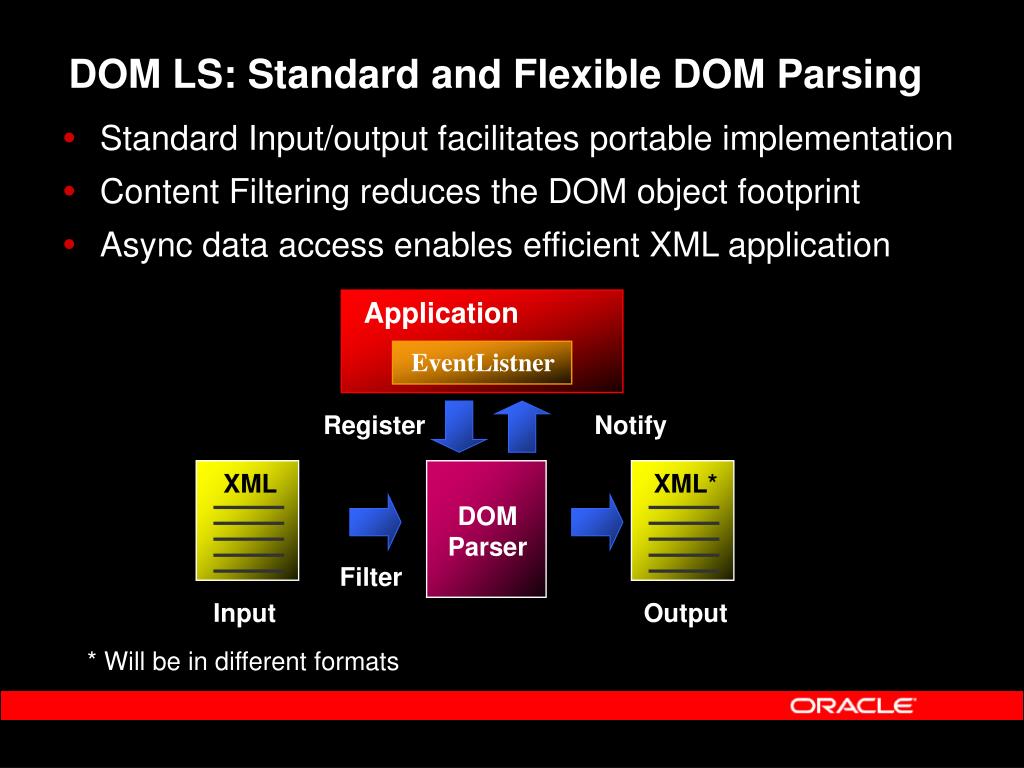

DOM LS: Standard and Flexible DOM Parsing

  • Standard Input/output facilitates portable implementation

  • Content Filtering reduces the DOM object footprint

  • Async data access enables efficient XML application

Application

EventListner

Register

Notify

Filter

Input

Output

* Will be in different formats


Making xml technology easier to use

D E M O N S T R A T I O N

DOM 3.0 Load and Save


Dom 3 0 validation

DOM 3.0: Validation

  • Retrieves Metadata Definitions in XML Schema

    • getDefinedElements

    • getDefaultValue

    • getAllowedParents, getAllowedChildren etc.

    • getContentType

  • Responds to queries for DOM update operations

    • canAppendChild, canReplaceChild, canRemoveChild, canInsertBefore()

  • Validates the DOM document and DOM fragments

    • validateDocument, nodeValidity


Dom validation simplify xml editing

Document

Entity Ref

Element

Element

Element

CDATA

Text

Attr

XSD

XSD

DOM

Parser

DOM Validation: Simplify XML Editing

  • XML Schema provides guidance when updating XML

  • Validation ensures valid structure of XML documents

User

DOM Tree


Making xml technology easier to use

D E M O N S T R A T I O N

DOM 3.0 Validation


Sax xml parsing

StartDocument

EndDocument

StartElement

EndElement

XML

SAX

Parser

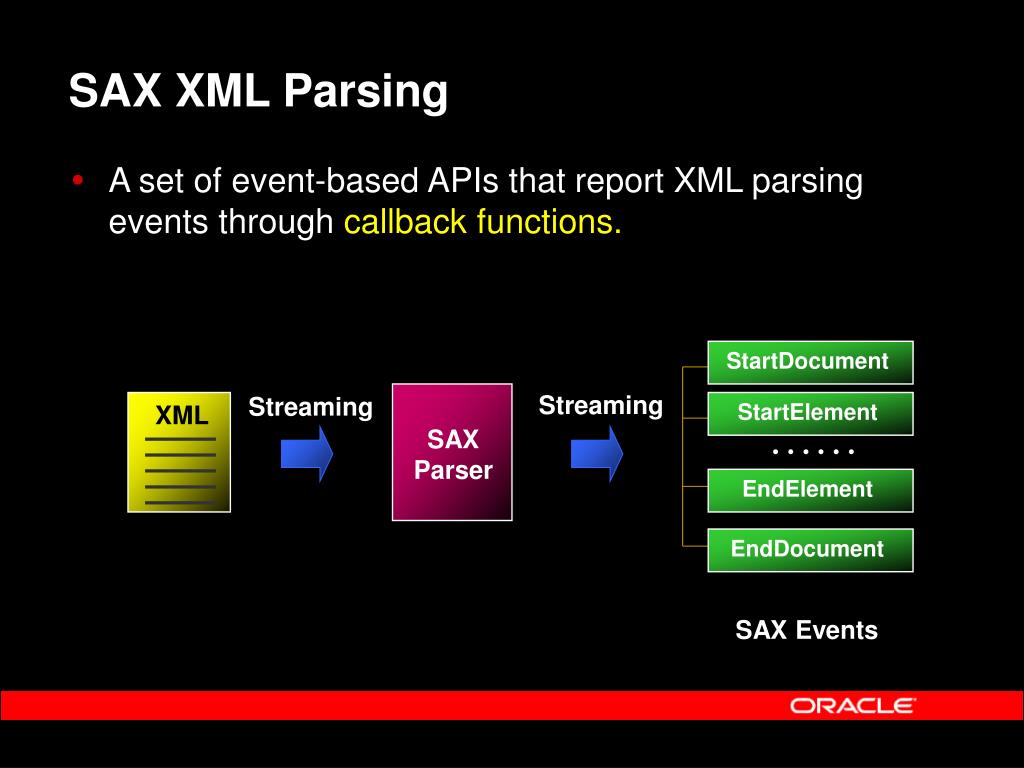

SAX XML Parsing

  • A set of event-based APIs that report XML parsing events through callback functions.

Streaming

Streaming

……

SAX Events


Sax output serialization

SAX Output Serialization

  • Build-in Java class handles the SAX output serialization

    • oracle.xml.parser.v2.SAXPrintDriver

  • Flexible output options for the SAX output

    • Pretty printing or indenting

    • XML Encoding

    • XML declaration

    • CDATA elements

    • DTD system-id and public-id

  • Simple interface as a SAX Content Handler

    • OracleXMLQuery.getXMLSAX(sample);


Simplify the output of sax steaming

StartDocument

EndDocument

StartElement

EndElement

XML

XSU

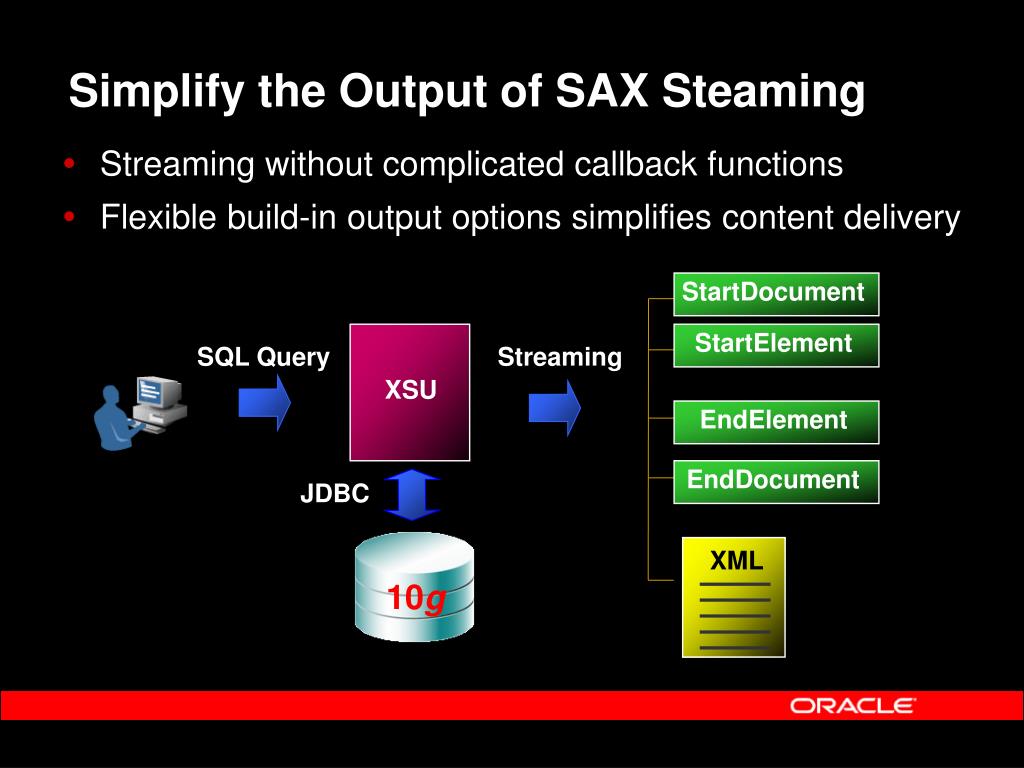

Simplify the Output of SAX Steaming

  • Streaming without complicated callback functions

  • Flexible build-in output options simplifies content delivery

SQL Query

Streaming

……

JDBC

10g


Example for new sax output

Example for New SAX Output

import oracle.xml.parser.v2.XMLSAXPrintDriver;

//Open a File

OutputStream out=new FileOutputStream("out.xml");

DriverManager.registerDriver( new oracle.jdbc.driver.OracleDriver());

conn= DriverManager.getConnection(thinConn, “SH”, “SH”);

XMLSAXPrintDriver sample=new XMLSAXPrintDriver(out);

// Initialized the OracleXMLQuery

OracleXMLQuery qry=new OracleXMLQuery(conn, "select * from sales");

qry.getXMLSAX(sample);

sample.flush();

  • Hands-on Lab: Build Database Applications Lesson 9


Xslt transformation

JSP, SQL…

HTML

SVG

PDF

XML

XSL

XML

XSL

XSLT Transformation

  • Transforms and formats one or more XML documents to text-based outputs through XSLT Stylesheets

……

XSLT

Processor

Text Outputs


Simplify xslt with xslt 2 0

Simplify XSLT with XSLT 2.0

  • Enables efficient content grouping with simple syntax

    • New built-in grouping support

  • Eliminates node-set conversion

    • New temporary tree support

  • Permits flexible content delivery

    • New multiple output serialization

  • Avoids error-prone character escaping

    • New character mapping support


Grouping

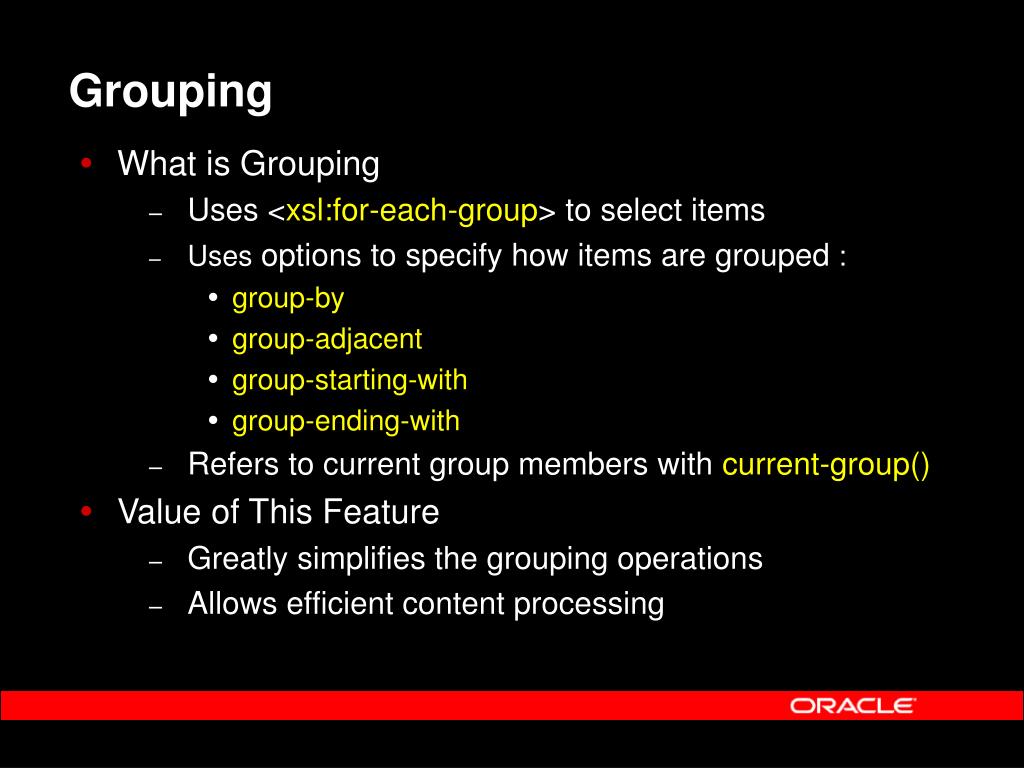

Grouping

  • What is Grouping

    • Uses <xsl:for-each-group> to select items

    • Uses options to specify how items are grouped :

      • group-by

      • group-adjacent

      • group-starting-with

      • group-ending-with

    • Refers to current group members with current-group()

  • Value of This Feature

    • Greatly simplifies the grouping operations

    • Allows efficient content processing


Example for grouping

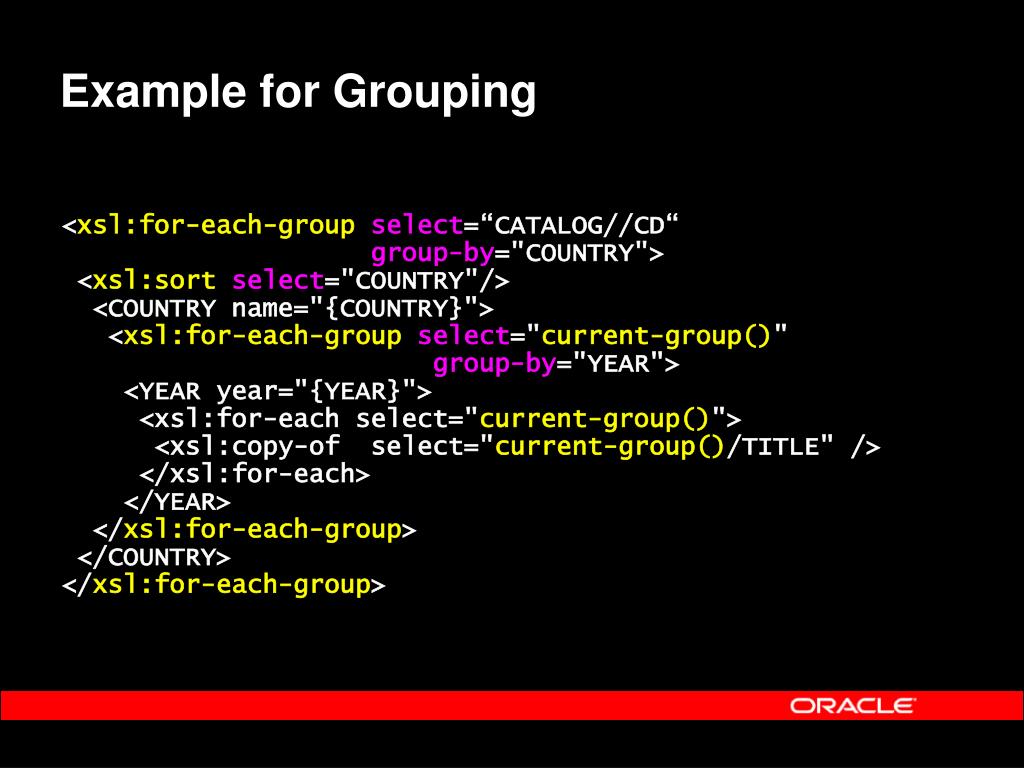

Example for Grouping

<xsl:for-each-groupselect=“CATALOG//CD“group-by="COUNTRY">

<xsl:sortselect="COUNTRY"/>

<COUNTRY name="{COUNTRY}">

<xsl:for-each-groupselect="current-group()" group-by="YEAR">

<YEAR year="{YEAR}">

<xsl:for-each select="current-group()">

<xsl:copy-of select="current-group()/TITLE" />

</xsl:for-each>

</YEAR>

</xsl:for-each-group>

</COUNTRY>

</xsl:for-each-group>


Making xml technology easier to use

D E M O N S T R A T I O N

XSLT 2.0: Grouping


Temporary tree

Temporary Tree

  • What is Temporary Tree

    • Constructed by evaluating an <xsl:variable>, <xsl:param> or <xsl:with-param>

    • Accessible using XPath expressions

    • Processed by the <xsl:apply-templates>, <xsl:for-each> instructions

    • Processed by Key() and id()XPath functions

  • Value of this Feature

    • Eliminates node set conversions

    • Breaks up complex transformation into several steps

    • Allows iterative processing on XML documents


Example for temporary tree

Example for Temporary Tree

<xsl:variable name="catalog">

<CATALOG>

<CD>

<TITLE>Empire</TITLE>…

<YEAR>1985</YEAR>

</CD>

<CD>

<TITLE>Still got the blues</TITLE>…

<YEAR>1990</YEAR>

</CD>

</CATALOG>

</xsl:variable>

<xsl:apply-templatesselect="$catalog//CD[number(YEAR)>=1988]/TITLE"/>


Making xml technology easier to use

D E M O N S T R A T I O N

XSLT 2.0: Temporary Tree


Multiple output serialization

Multiple Output Serialization

  • What is Multiple Output Serialization

    • Creating multiple results from one XSLT Stylesheet

    • Using <xsl:result-document>

  • Value of this Feature

    • Paginates output

    • Generates pages using HTML Frames

    • Creates HTML, SVG and CSS document at one step


Example for multiple result documents

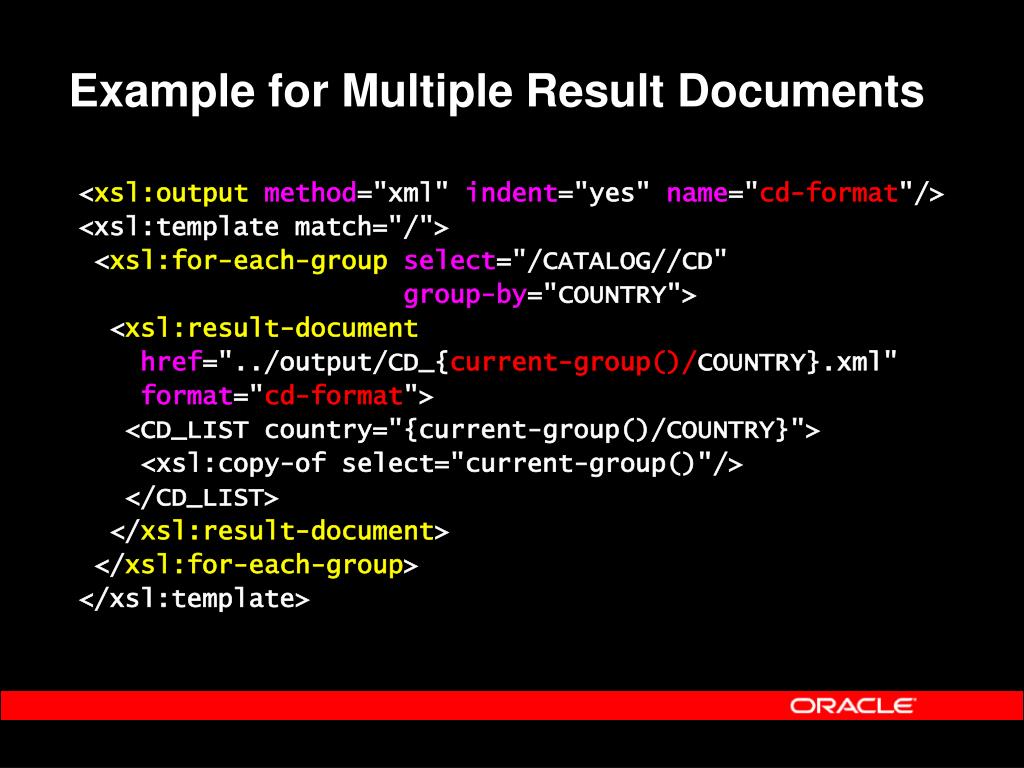

Example for Multiple Result Documents

<xsl:output method="xml" indent="yes" name="cd-format"/>

<xsl:template match="/">

<xsl:for-each-groupselect="/CATALOG//CD" group-by="COUNTRY">

<xsl:result-document

href="../output/CD_{current-group()/COUNTRY}.xml"

format="cd-format">

<CD_LIST country="{current-group()/COUNTRY}">

<xsl:copy-of select="current-group()"/>

</CD_LIST>

</xsl:result-document>

</xsl:for-each-group>

</xsl:template>


Making xml technology easier to use

D E M O N S T R A T I O N

XSLT 2.0: Multiple Outputs


Flexible character mapping

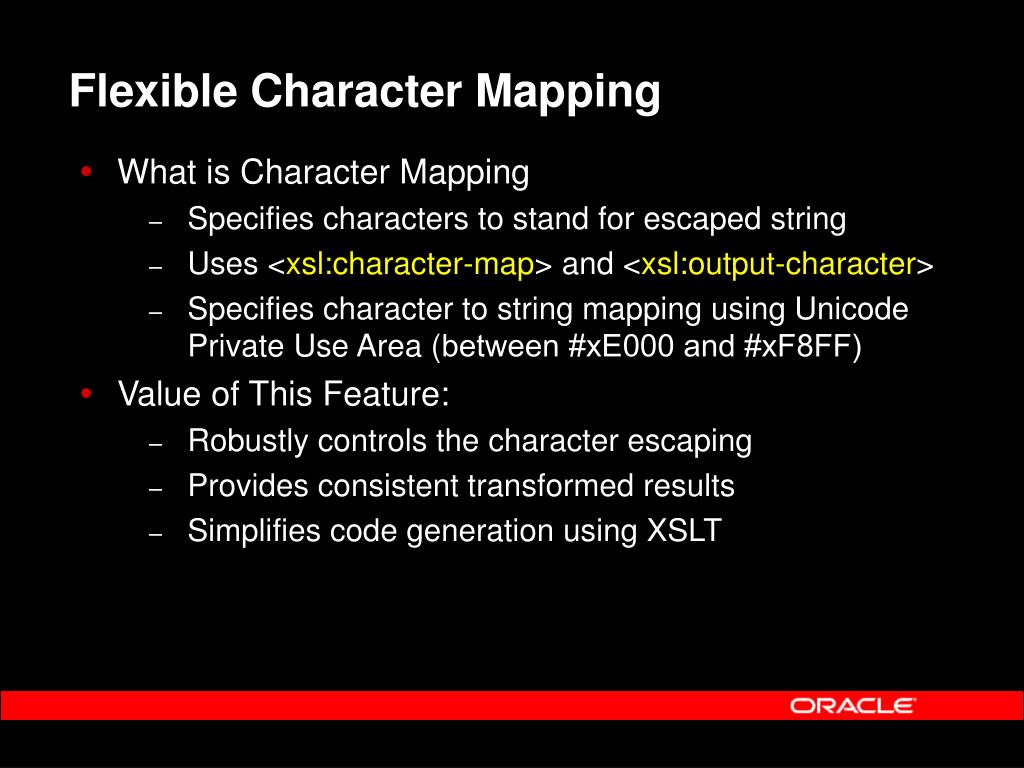

Flexible Character Mapping

  • What is Character Mapping

    • Specifies characters to stand for escaped string

    • Uses <xsl:character-map> and <xsl:output-character>

    • Specifies character to string mapping using Unicode Private Use Area (between #xE000 and #xF8FF)

  • Value of This Feature:

    • Robustly controls the character escaping

    • Provides consistent transformed results

    • Simplifies code generation using XSLT


Example for character mapping

Example for Character Mapping

<xsl:outputuse-character-maps="jsp"/>

<xsl:character-mapname="jsp">

<xsl:output-charactercharacter="&#xE001;" string="&lt;%"/>

<xsl:output-charactercharacter="&#xE002;" string="%&gt;"/>

</xsl:character-map>

<xsl:template match="/">&#xE001;@ page language="java" &#xE002;

<HTML>

<BODY>&#xE001; myvariable String; &#xE002;</BODY>

</HTML>

</xsl:template>


Making xml technology easier to use

D E M O N S T R A T I O N

XSLT 2.0: Character Mapping


Xml schema processor

XML Schema Processor

  • Validates the XML documents against XML schemas

  • Supports LAX and STRICT validation modes

    • XMLParser.SCHEMA_LAX_VALIDATION

    • XMLParser.SCHEMA_STRICT_VALIDATION

  • Supports simple datatypes and complex structures within XML documents


New xml schema validation apis

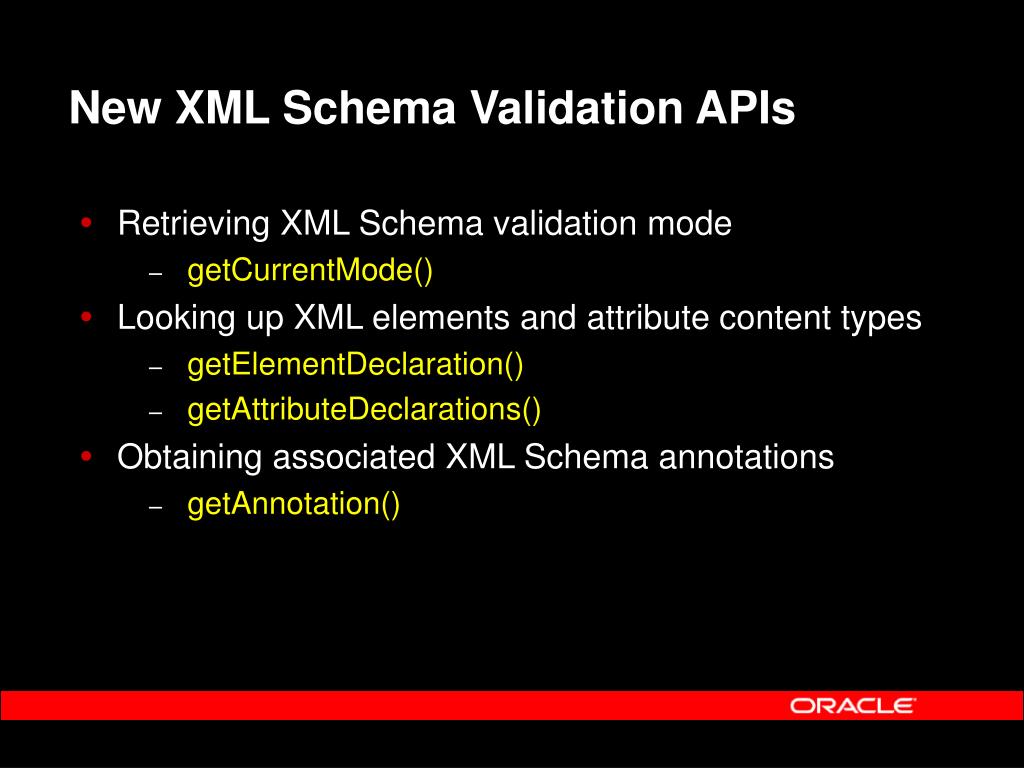

New XML Schema Validation APIs

  • Retrieving XML Schema validation mode

    • getCurrentMode()

  • Looking up XML elements and attribute content types

    • getElementDeclaration()

    • getAttributeDeclarations()

  • Obtaining associated XML Schema annotations

    • getAnnotation()


Streaming xml schema processing

XML

XML

XSD

XML Schema Processor

User

Applications

Streaming XML Schema Processing

  • New APIs allow synchronized metadata retrieval during SAX Streaming

SAX

SAX

Query


Example for xml schema validation apis

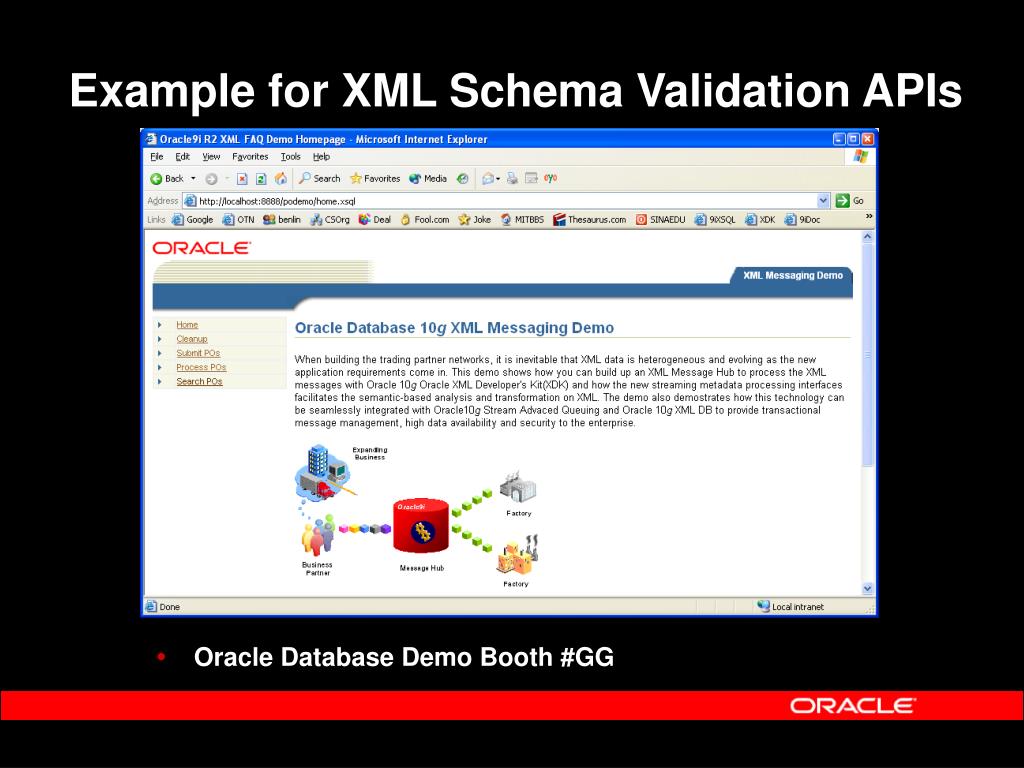

Example for XML Schema Validation APIs

  • Oracle Database Demo Booth #GG


Java architecture for xml binding

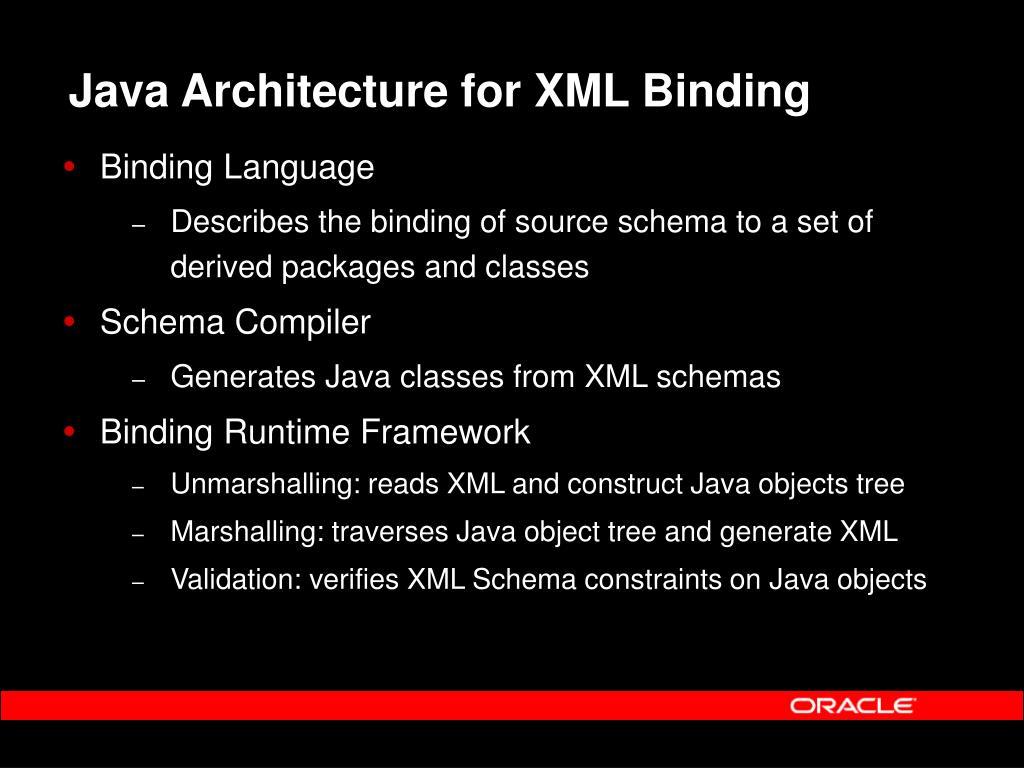

Java Architecture for XML Binding

  • Binding Language

    • Describes the binding of source schema to a set of derived packages and classes

  • Schema Compiler

    • Generates Java classes from XML schemas

  • Binding Runtime Framework

    • Unmarshalling: reads XML and construct Java objects tree

    • Marshalling: traverses Java object tree and generate XML

    • Validation: verifies XML Schema constraints on Java objects


Jaxb easy to manipulate xml content

ARTIST

PRICE

TITLE

YEAR

CD

JAXB: Easy to Manipulate XML Content

Create XML using DOM :

Element Title, cd;

Text txt;

Title = CreateElement(“Title”);

cd.appendChild(title);

txt=CreateTextElement(“…”);

Title.appendChild(txt);

Unmarshalling XML using JAXB:

CDRecord.setTitle(…)


Making xml technology easier to use

D E M O N S T R A T I O N

JAXB Class Binding


Xml pipeline processing

XML Pipeline Processing

  • Pipeline Document in XML Vocabulary

    • Specifies the inputs and outputs for XML processes

    • Describes the processing relationships

    • Supports XML Parsing, XSD Validation, XSL Transformation and XML compression

  • Pipeline Controller

    • Establishes a reusable component framework

    • Executes the chains of XML processing

    • Returns the a particular results

    • Optimizes the XML processing


Xml pipeline declarative programming

XML Pipeline: Declarative programming

Declaration

1

<pipelinexmlns="http://www.w3.org/2002/02/xml-pipeline“>

<paramname="target" select="myresult.html"/>

<processdef name="domparser.p“ definition="oracle.xml.pipeline.processes.DOMParserProcess"/>

<processdef name="xslstylesheet.p“

definition="oracle.xml.pipeline.processes.XSLStylesheetProcess"/>

<processdef name="xslprocess.p“

definition="oracle.xml.pipeline.processes.XSLProcess"/>

<process id="p2" type="xslstylesheet.p" ignore-errors="false">

<input name="xsl" label="book.xsl"/>

<outparam name="stylesheet" label="xslstyle"/>

</process>…

</pipeline>

Processing Definitions

2

3

Processing Flow


Xml pipeline simplify xml processing

XSL

XML

XSD

Out

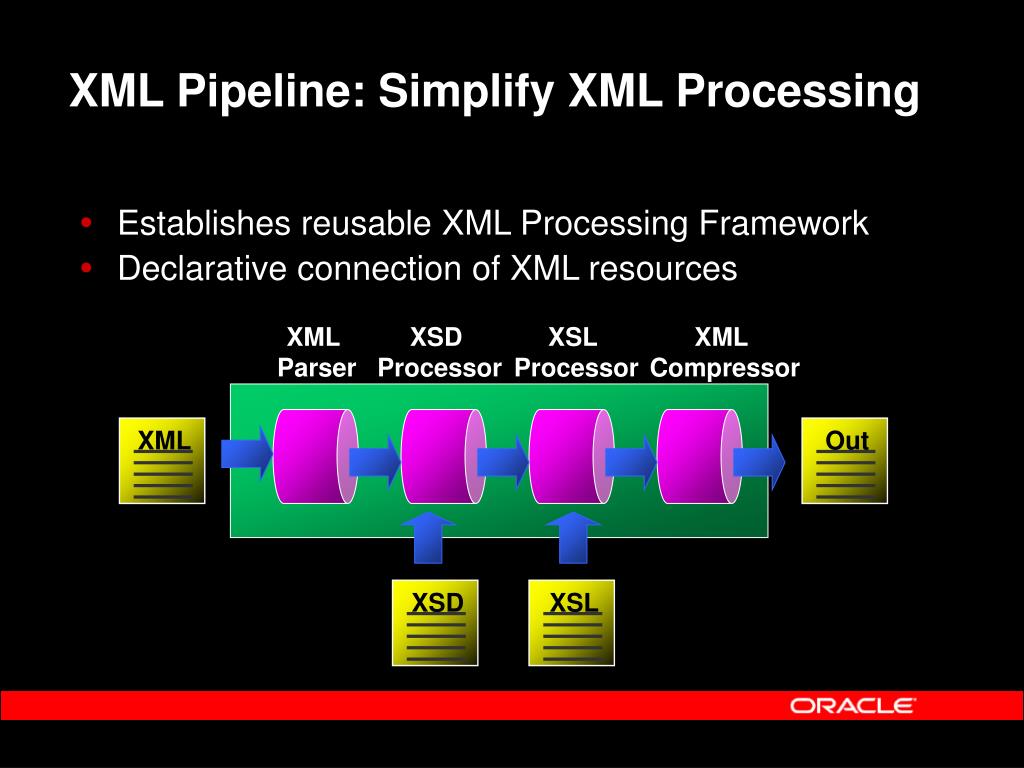

XML Pipeline: Simplify XML Processing

  • Establishes reusable XML Processing Framework

  • Declarative connection of XML resources

XML

Parser

XSD

Processor

XSL

Processor

XML

Compressor


Making xml technology easier to use

D E M O N S T R A T I O N

XML Pipeline Processing


Next steps

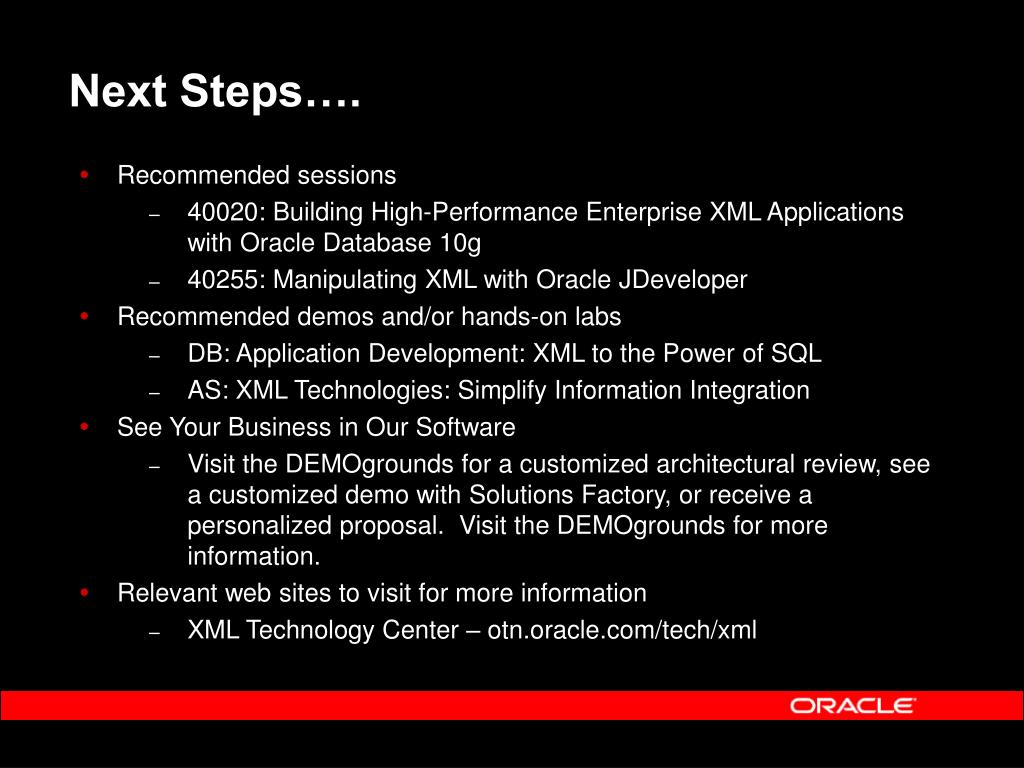

Next Steps….

  • Recommended sessions

    • 40020: Building High-Performance Enterprise XML Applications with Oracle Database 10g

    • 40255: Manipulating XML with Oracle JDeveloper

  • Recommended demos and/or hands-on labs

    • DB: Application Development: XML to the Power of SQL

    • AS: XML Technologies: Simplify Information Integration

  • See Your Business in Our Software

    • Visit the DEMOgrounds for a customized architectural review, see a customized demo with Solutions Factory, or receive a personalized proposal. Visit the DEMOgrounds for more information.

  • Relevant web sites to visit for more information

    • XML Technology Center – otn.oracle.com/tech/xml


Making xml technology easier to use

Q

&

Q U E S T I O N S

A N S W E R S

A


Reminder please complete the oracleworld online session survey thank you

Reminder – please complete the OracleWorld online session surveyThank you.


Making xml technology easier to use

XML Developer’s Kit

XML TO THE POWER OF SQL


  • Login
