COMPANY PRESENTATION & IMPROVEMENTS

1. COMPANY PRESENTATION & IMPROVEMENTS November 2013 Suat Sağıroğlu

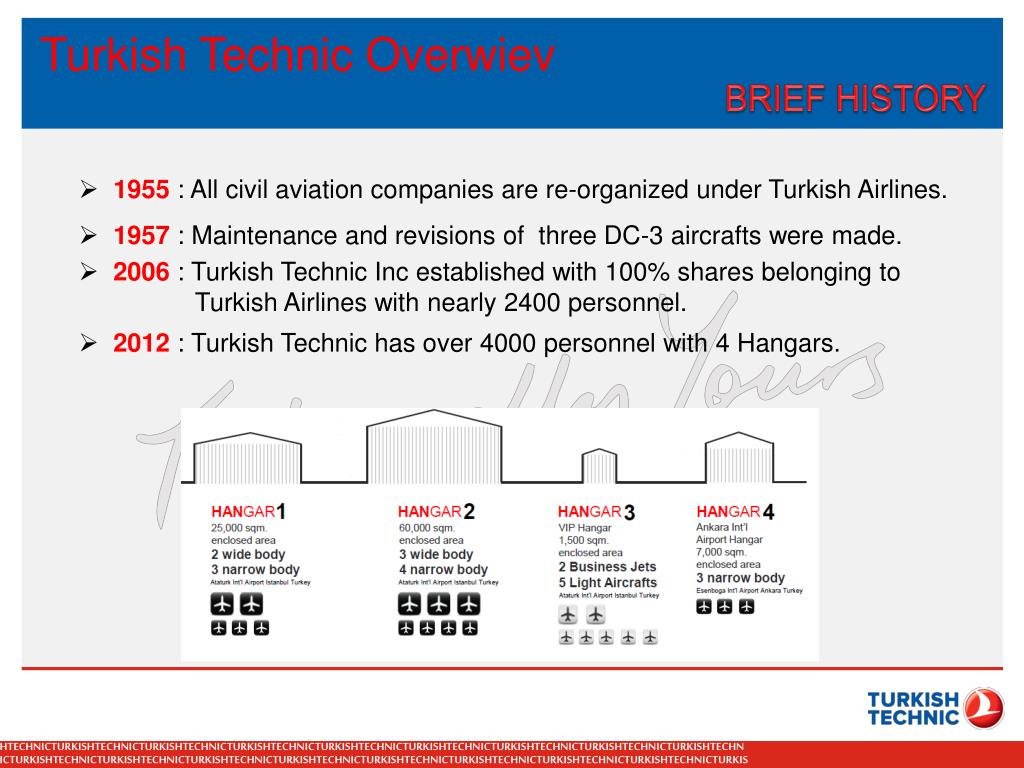

2. Turkish Technic Overwiev BRIEF HISTORY • 1955: Allcivilaviationcompaniesare re-organizedunderTurkishAirlines. • 1957 : Maintenanceandrevisions of three DC-3 aircraftsweremade. • 2006 : TurkishTechnicIncestablishedwith 100% sharesbelongingtoTurkishAirlineswithnearly 2400 personnel. • 2012 : Turkish Technic has over 4000 personnel with 4 Hangars.

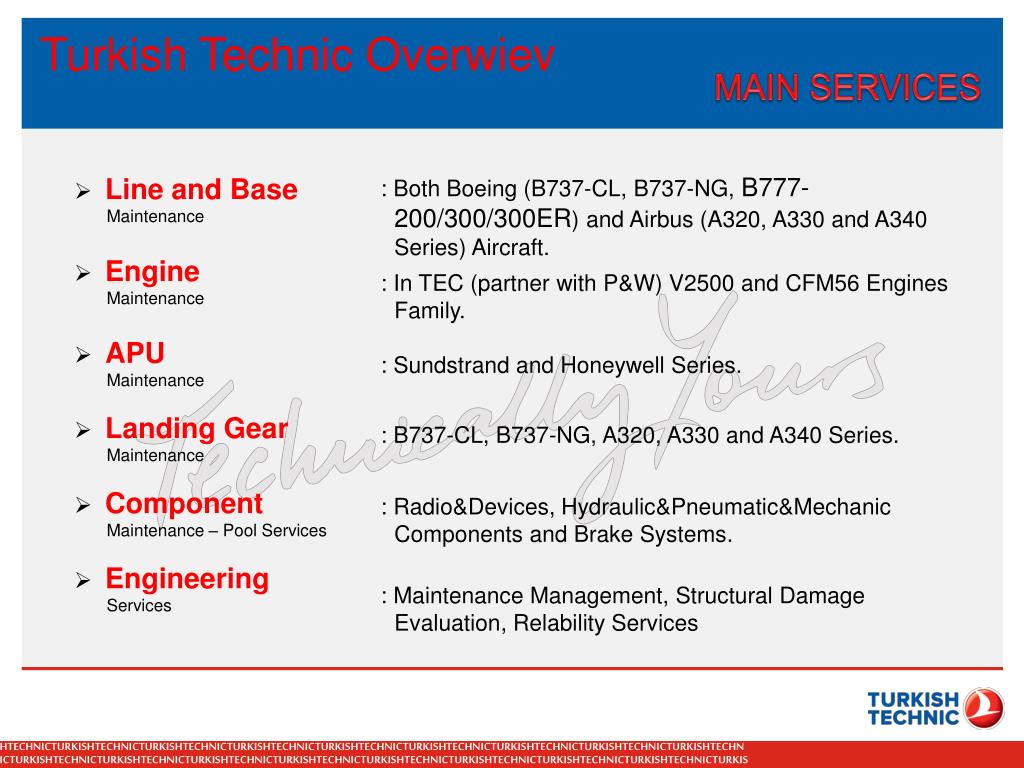

3. Turkish Technic Overwiev MAIN SERVICES • LineandBase • Maintenance • Engine • Maintenance • APU • Maintenance • LandingGear • Maintenance • Component • Maintenance – PoolServices • Engineering • Services : BothBoeing (B737-CL, B737-NG, B777-200/300/300ER) and Airbus (A320, A330 and A340 Series) Aircraft. : In TEC (partner with P&W) V2500 and CFM56 EnginesFamily. : SundstrandandHoneywellSeries. : B737-CL, B737-NG, A320, A330 and A340 Series. : Radio&Devices, Hydraulic&Pneumatic&MechanicComponentsandBrakeSystems. : MaintenanceManagement, StructuralDamageEvaluation, RelabilityServices

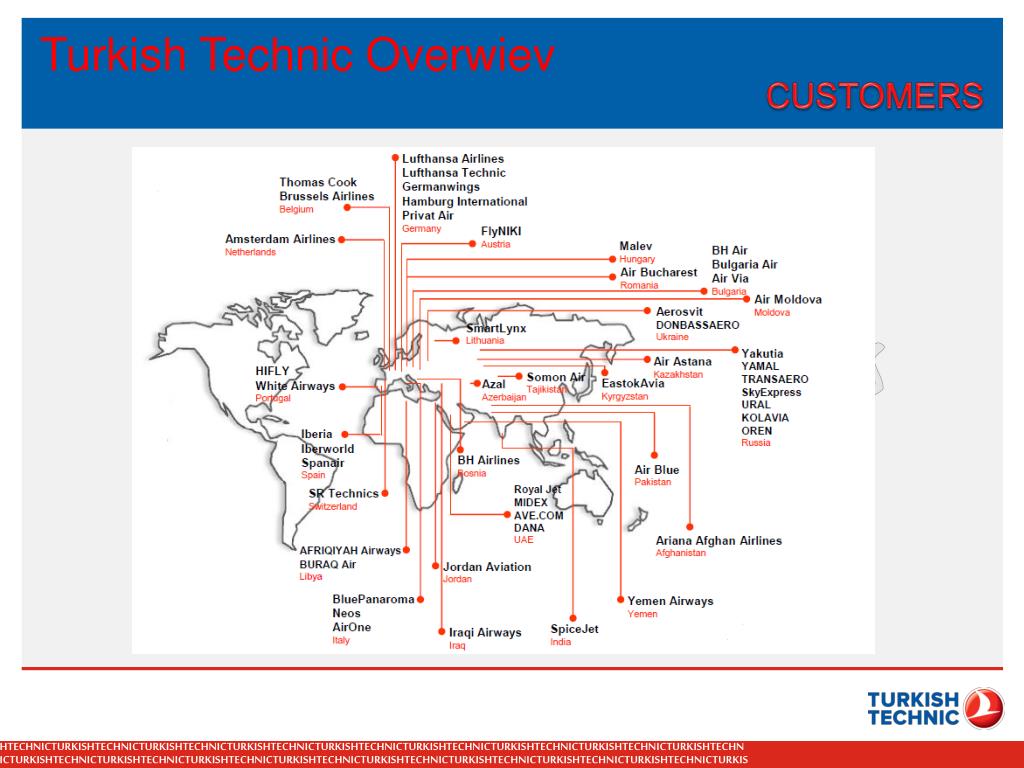

4. Turkish Technic Overwiev CUSTOMERS

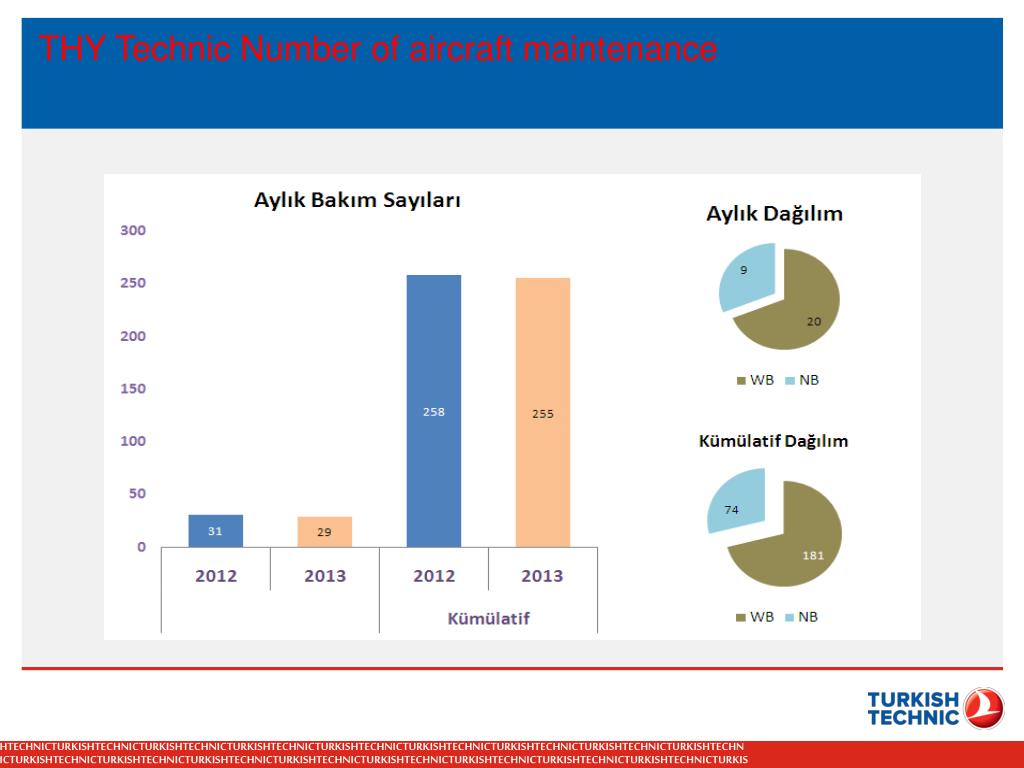

5. THY Technic Number of aircraft maintenance

6. THY Technic Number of aircraft maintenance 2013 - Monthly

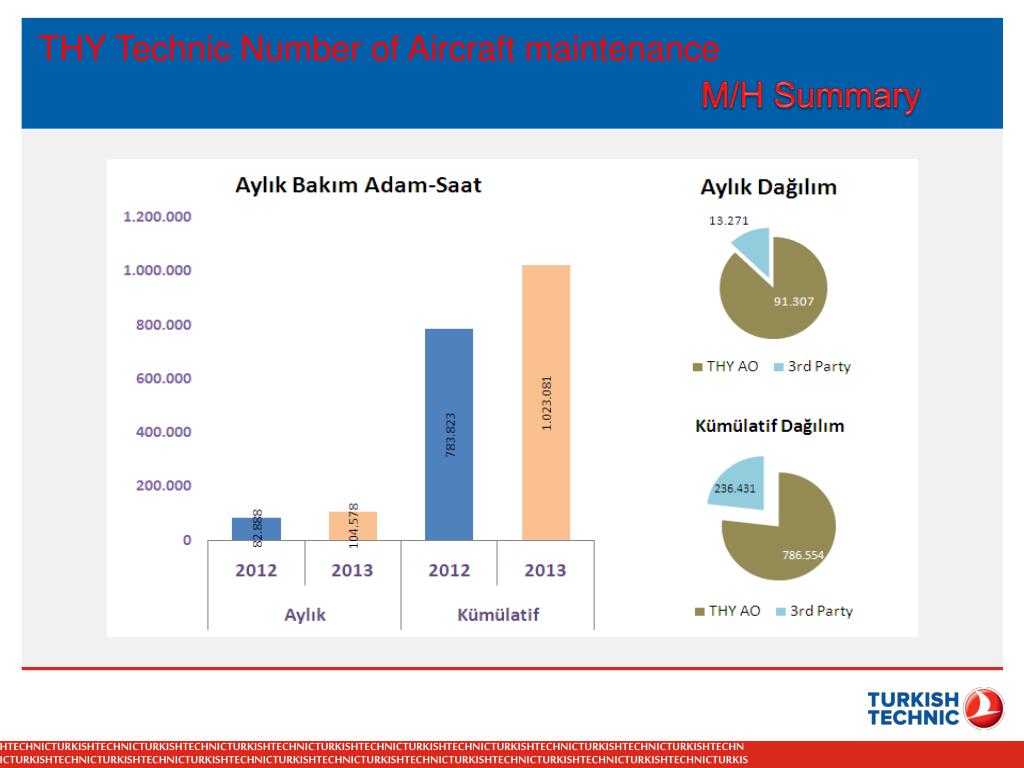

7. THY Technic Number of Aircraft maintenance M/H Summary

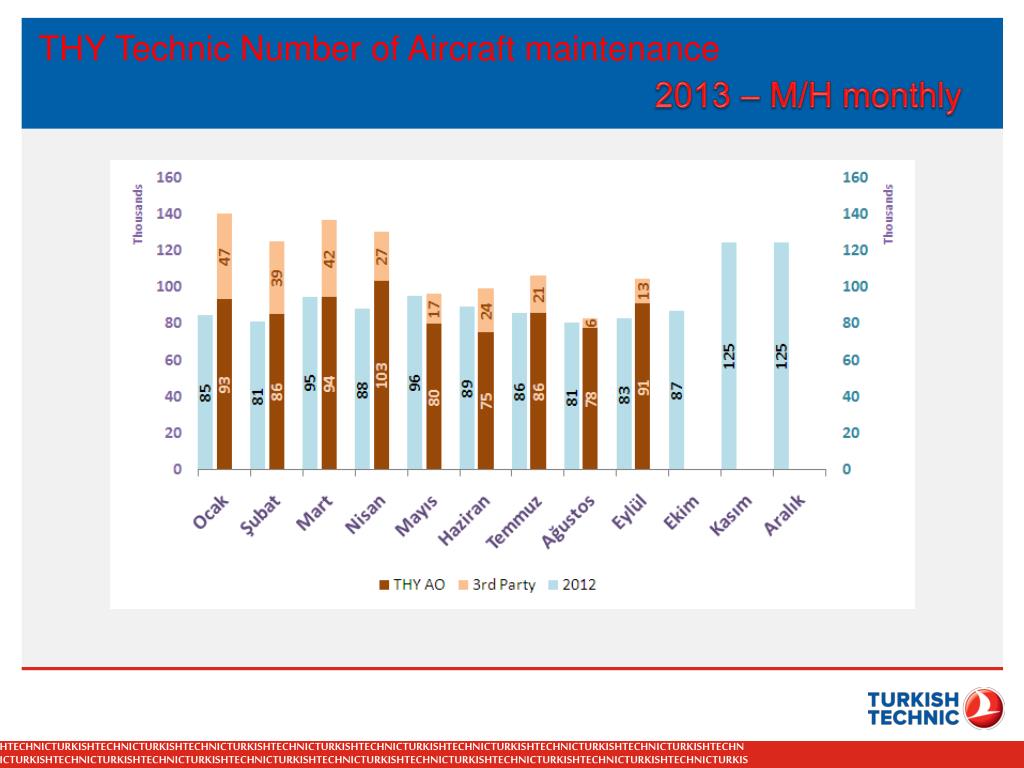

8. THY Technic Number of Aircraft maintenance 2013 – M/H monthly

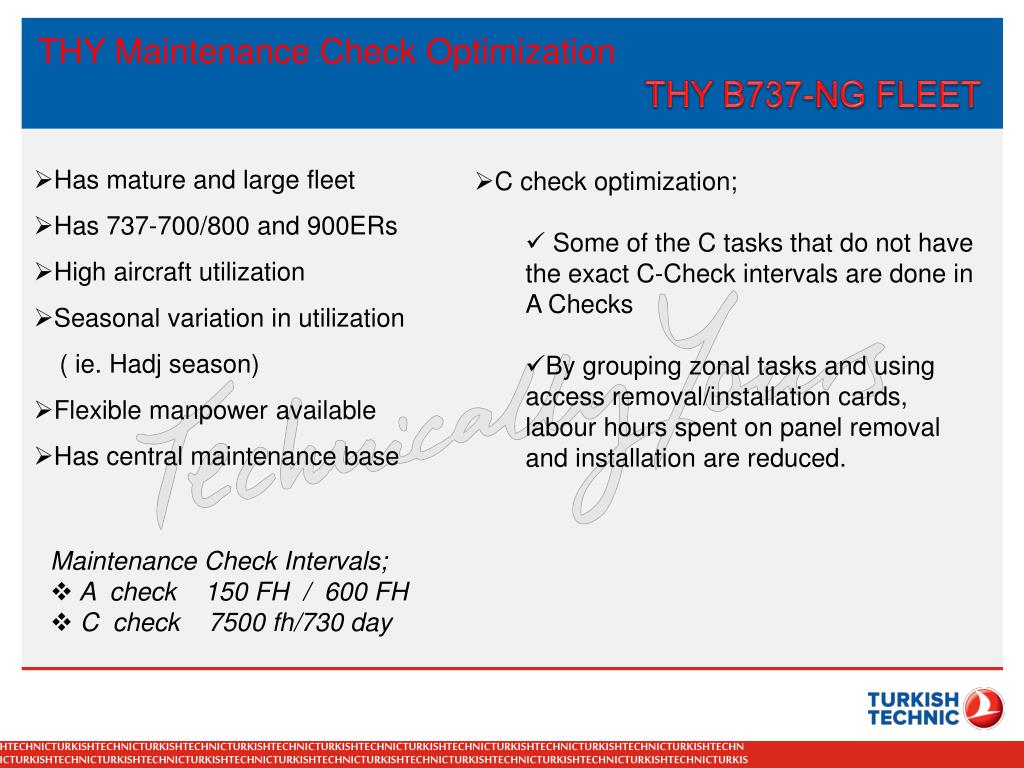

9. THY Maintenance Check Optimization THY B737-NG FLEET • Has mature and large fleet • Has 737-700/800 and 900ERs • High aircraft utilization • Seasonal variation in utilization • ( ie. Hadjseason) • Flexiblemanpoweravailable • Has centralmaintenancebase • C check optimization; • Some of the C tasks that do not have the exact C-Check intervals are done in A Checks • By grouping zonal tasks and using access removal/installation cards, labour hours spent on panel removal and installation are reduced. • Maintenance Check Intervals; • A check 150 FH / 600 FH • C check 7500 fh/730 day

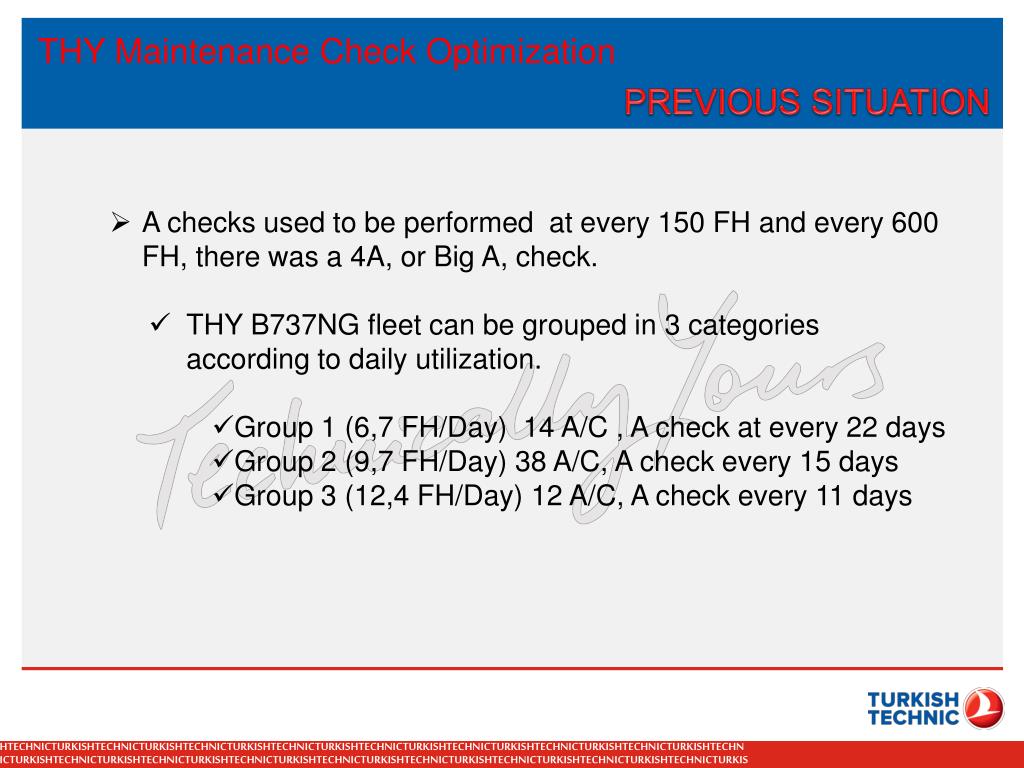

10. THY Maintenance Check Optimization PREVIOUS SITUATION • A checks used to be performed at every 150 FH and every 600 FH, there was a 4A, or Big A, check. • THY B737NG fleet can be grouped in 3 categoriesaccordingtodailyutilization. • Group 1 (6,7 FH/Day) 14 A/C , A check at every 22 days • Group 2 (9,7 FH/Day) 38 A/C, A check every 15 days • Group 3 (12,4 FH/Day)12 A/C, A check every 11 days

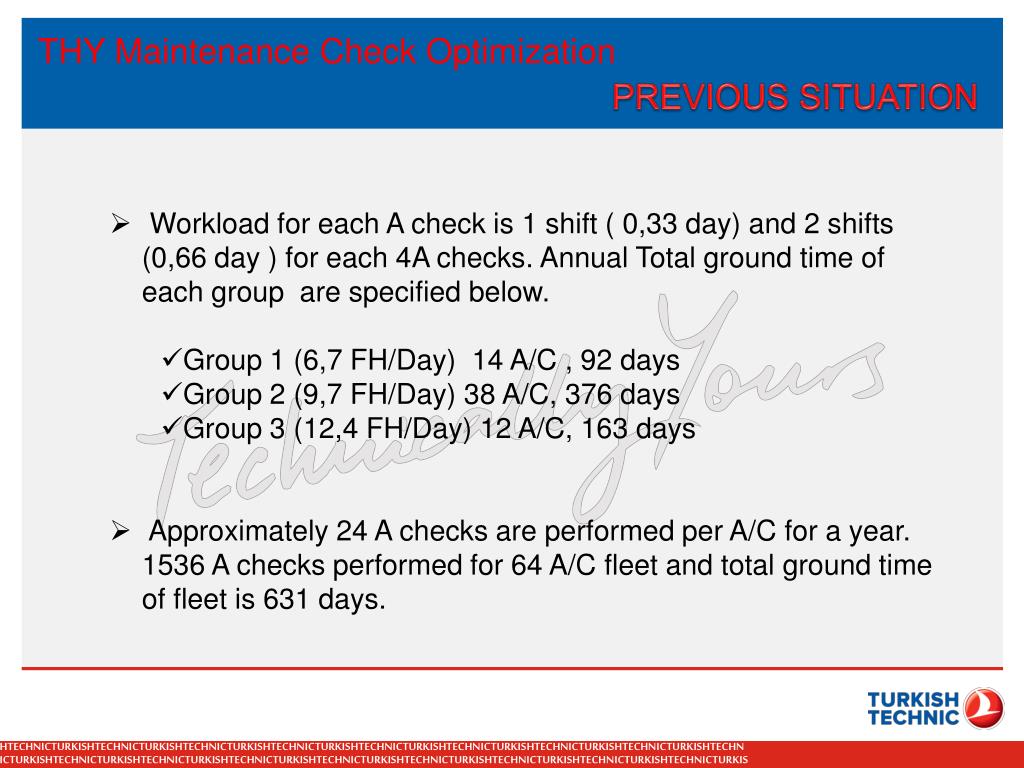

11. THY Maintenance Check Optimization PREVIOUS SITUATION • Workload for each A check is 1 shift ( 0,33 day) and 2 shifts (0,66 day ) for each 4A checks. Annual Total ground time of eachgrouparespecifiedbelow. • Group 1(6,7 FH/Day) 14 A/C , 92 days • Group 2 (9,7 FH/Day) 38 A/C, 376 days • Group 3(12,4 FH/Day) 12 A/C, 163 days • Approximately 24 A checks are performed per A/C for a year. 1536 A checks performed for 64 A/C fleet and total ground time of fleet is 631 days.

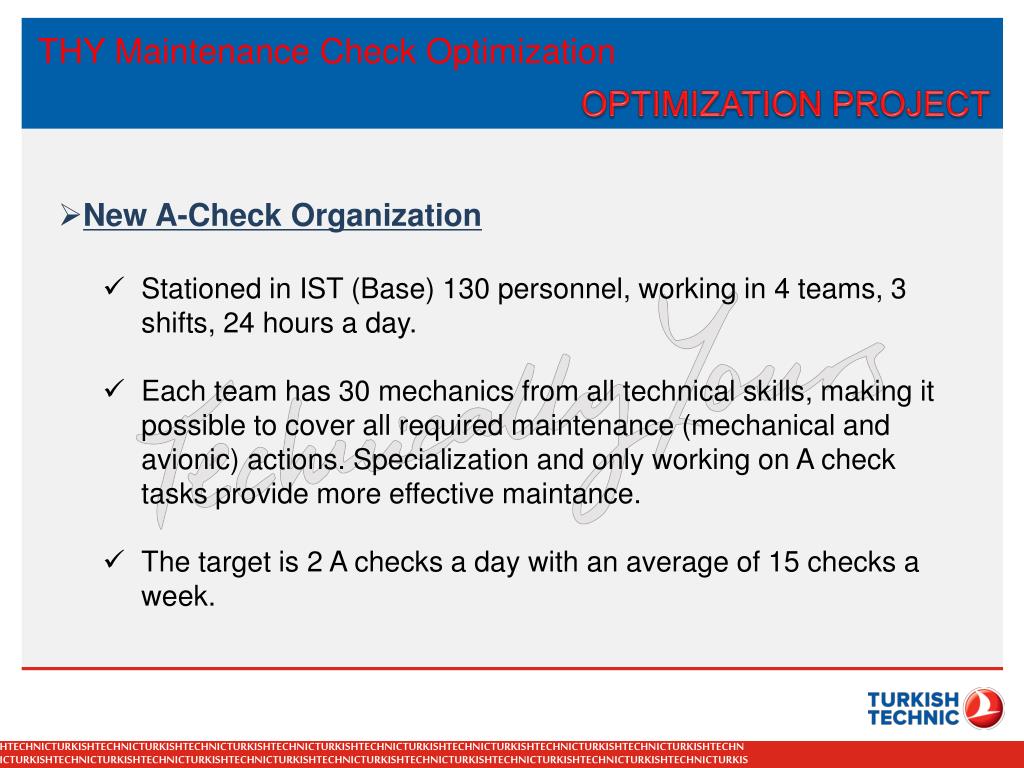

12. THY Maintenance Check Optimization OPTIMIZATION PROJECT • New A-Check Organization • Stationed in IST (Base) 130 personnel, working in 4 teams, 3 shifts, 24 hours a day. • Each team has 30 mechanics from all technical skills, making it possible to cover all required maintenance (mechanical and avionic) actions. Specialization and only working on A check tasks provide more effective maintance. • The target is 2 A checks a day with an average of 15 checks a week.

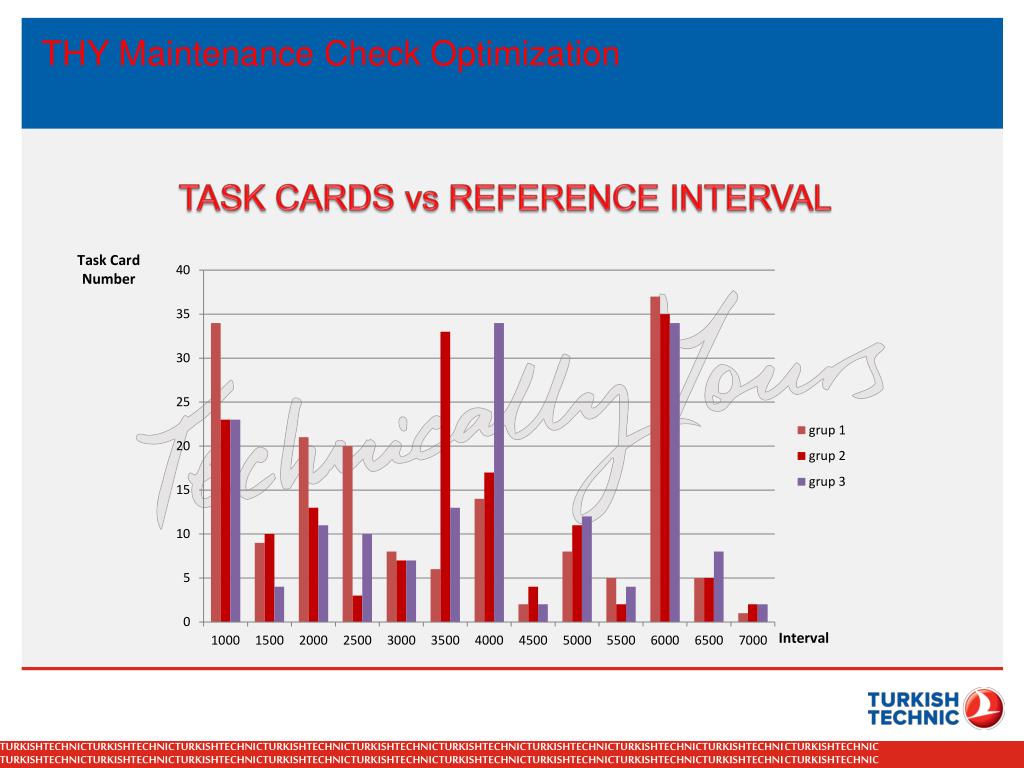

13. THY Maintenance Check Optimization TASK CARDS vs REFERENCE INTERVAL TaskCardNumber

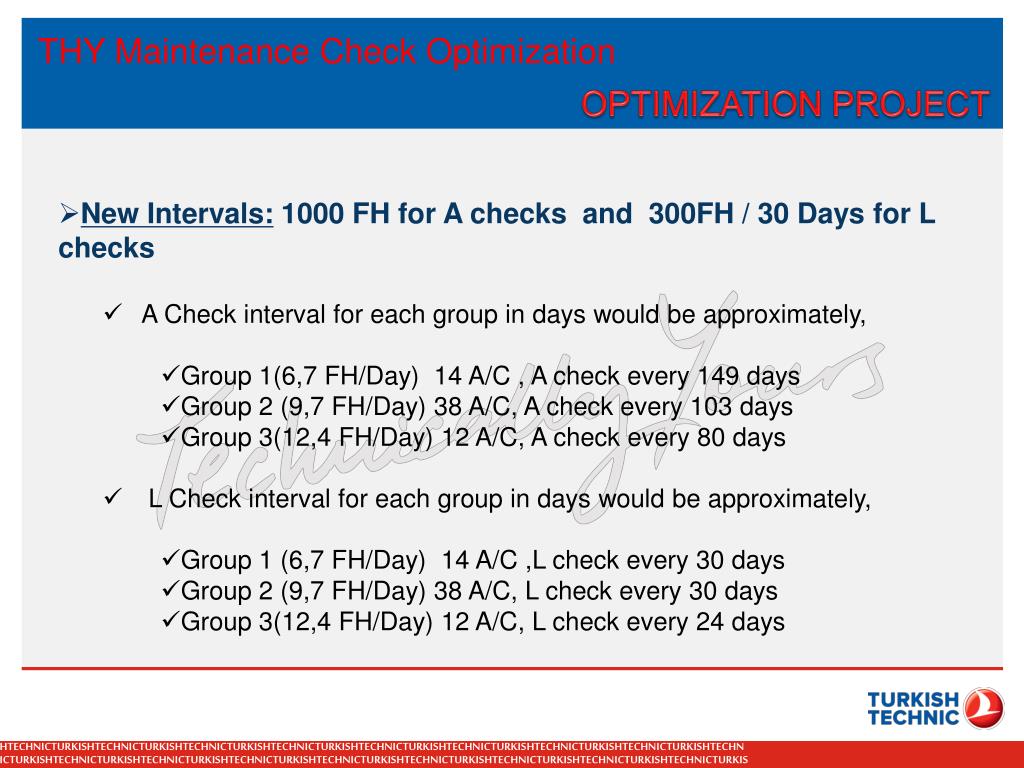

14. THY Maintenance Check Optimization OPTIMIZATION PROJECT • New Intervals: 1000 FH for A checks and 300FH / 30 Days for L checks • A Check interval for each group in days would be approximately, • Group 1(6,7 FH/Day) 14 A/C , A check every 149 days • Group 2 (9,7 FH/Day) 38 A/C, A check every 103 days • Group 3(12,4 FH/Day) 12 A/C, A check every 80 days • L Checkintervalforeachgroup in dayswould be approximately, • Group 1 (6,7 FH/Day) 14 A/C ,L check every 30 days • Group 2 (9,7 FH/Day) 38 A/C, L check every 30 days • Group 3(12,4 FH/Day) 12 A/C, L check every 24 days

15. THY Maintenance Check Optimization EQUALIZED A CHECKS EQUALIZED L CHECKS Total M/H Total M/H

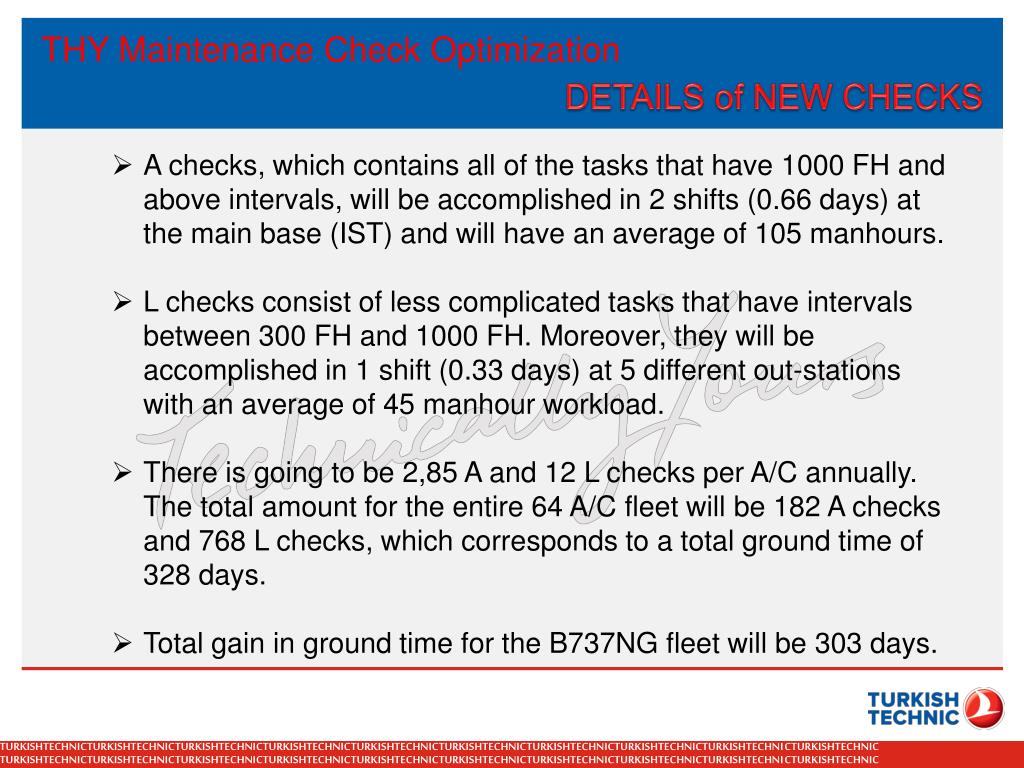

16. THY Maintenance Check Optimization DETAILS of NEW CHECKS • A checks, which contains all of the tasks that have 1000 FH and above intervals, will be accomplished in 2 shifts (0.66 days) at the main base (IST) and will have an average of 105 manhours. • L checks consist of less complicated tasks that have intervals between 300 FH and 1000 FH. Moreover, they will be accomplished in 1 shift (0.33 days) at 5 different out-stations with an average of 45 manhour workload. • There is going to be 2,85 A and 12 L checks per A/C annually. The total amount for the entire 64 A/C fleet will be 182 A checks and 768 L checks, which corresponds to a total ground time of 328 days. • Total gain in ground time for the B737NG fleet will be 303 days.

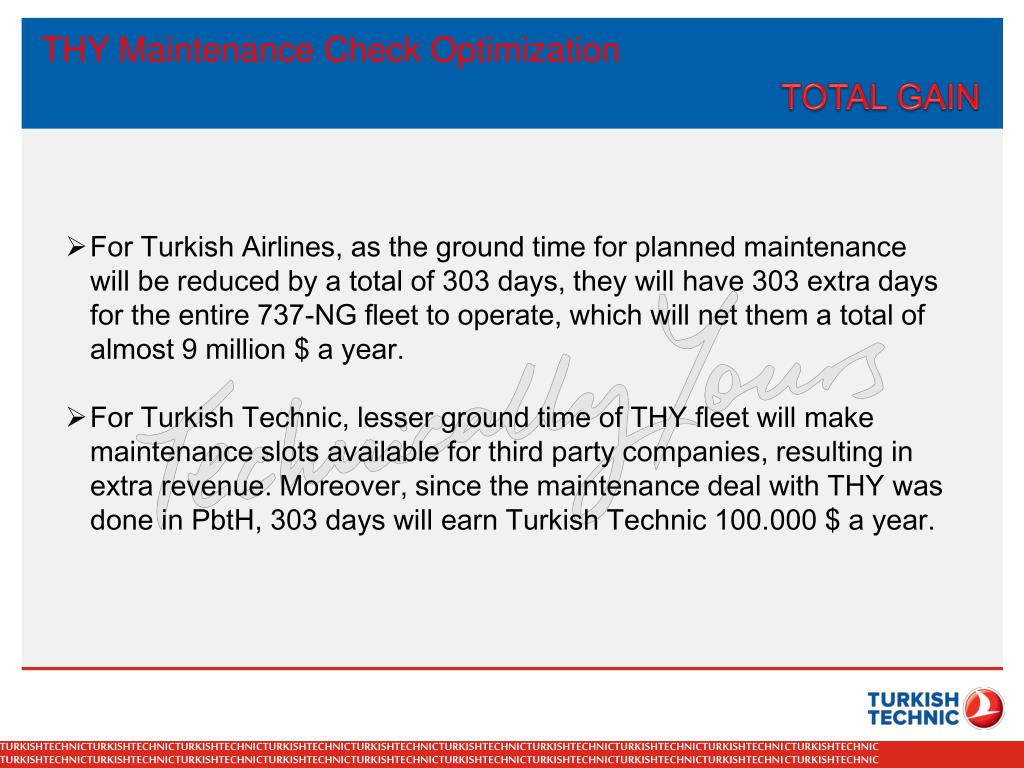

17. THY Maintenance Check Optimization TOTAL GAIN • For Turkish Airlines, as the ground time for planned maintenance will be reduced by a total of 303 days, they will have 303 extra days for the entire 737-NG fleet to operate, which will net them a total of almost 9 million $ a year. • ForTurkishTechnic, lesserground time of THY fleetwillmakemaintenanceslotsavailableforthirdpartycompanies, resulting in extrarevenue. Moreover, since the maintenance deal with THY was done in PbtH, 303 days will earn Turkish Technic 100.000 $ a year.

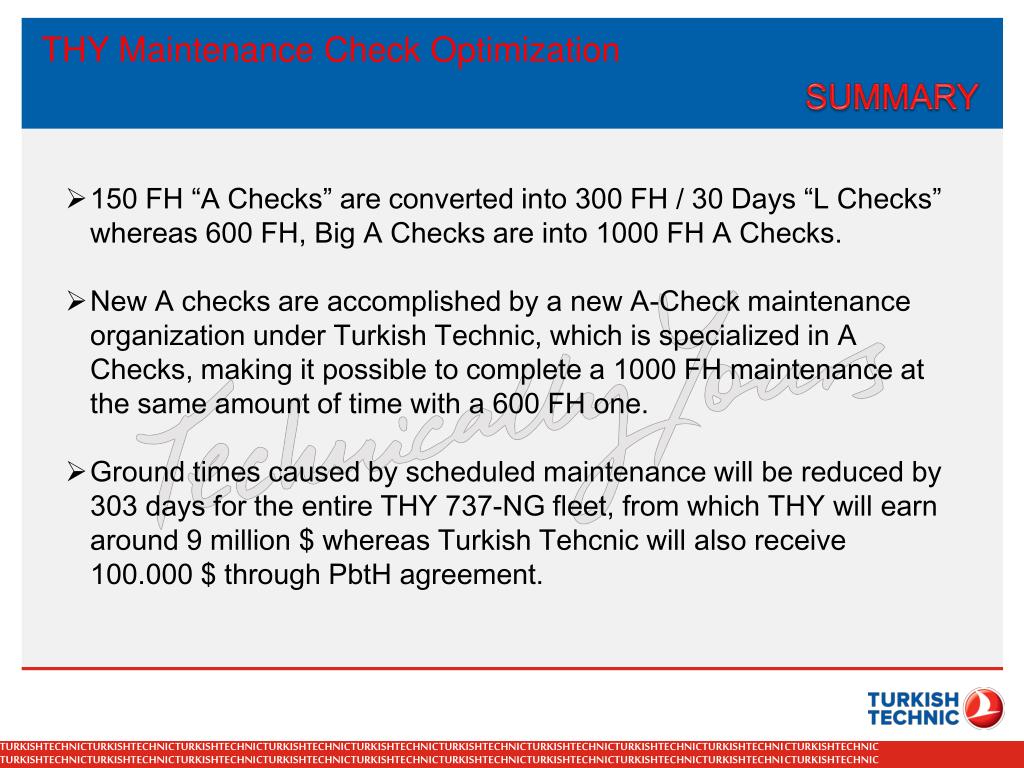

18. THY Maintenance Check Optimization SUMMARY • 150 FH “A Checks” are converted into 300 FH / 30 Days “L Checks” whereas 600 FH, Big A Checks are into 1000 FH A Checks. • New A checks are accomplished by a new A-Check maintenance organization under Turkish Technic, which is specialized in A Checks, making it possible to complete a 1000 FH maintenance at the same amount of time with a 600 FH one. • Ground times caused by scheduled maintenance will be reduced by 303 days for the entire THY 737-NG fleet, from which THY will earn around 9 million $ whereas Turkish Tehcnic will also receive 100.000 $ through PbtH agreement.

19. Access Panel solution General • THY Tecnich Job cards are prepared to base on the original manufacturer’s document by Maintenance Engineering Dept. Most of the job cards consist of the access panel lists which will be used for to access some maintenance areas. • In previous Situation; job cards are distributed to the technicians who would be work on the aircraft by supervisor. Supervisors also tried to grouping them for preventing to duplication of the opening and closing the panels. But it was not work all the time because of 3-shift working system.

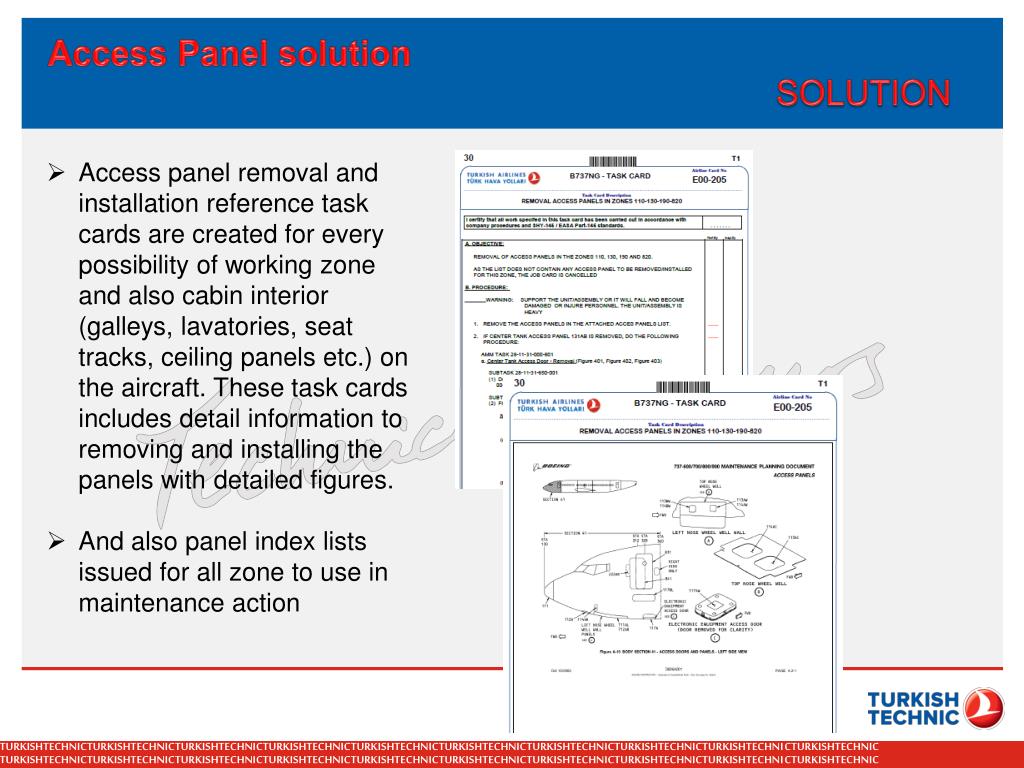

20. Access Panel solution SOLUTION • Access panel removal and installation reference task cards are created for every possibility of working zone and also cabin interior (galleys, lavatories, seat tracks, ceiling panels etc.) on the aircraft. These task cards includes detail information to removing and installing the panels with detailed figures. • And also panel index lists issued for all zone to use in maintenance action

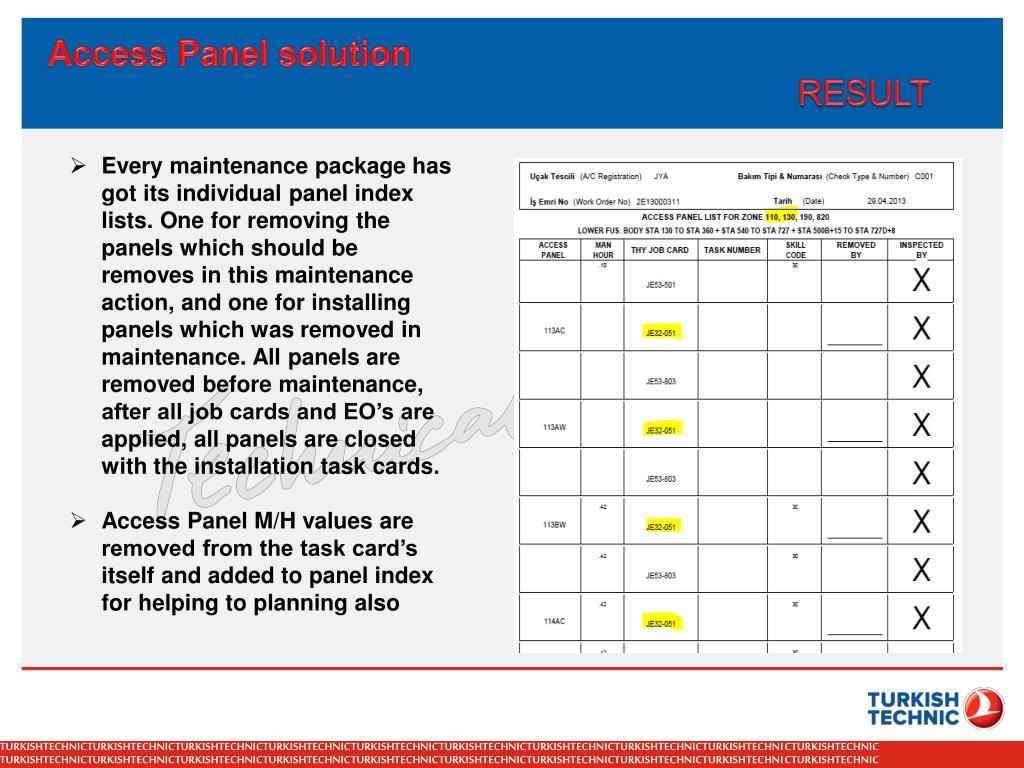

21. Access Panel solution RESULT • Every maintenance package has got its individual panel index lists. One for removing the panels which should be removes in this maintenance action, and one for installing panels which was removed in maintenance. All panels are removed before maintenance, after all job cards and EO’s are applied, all panels are closed with the installation task cards. • Access Panel M/H values are removed from the task card’s itself and added to panel index for helping to planning also

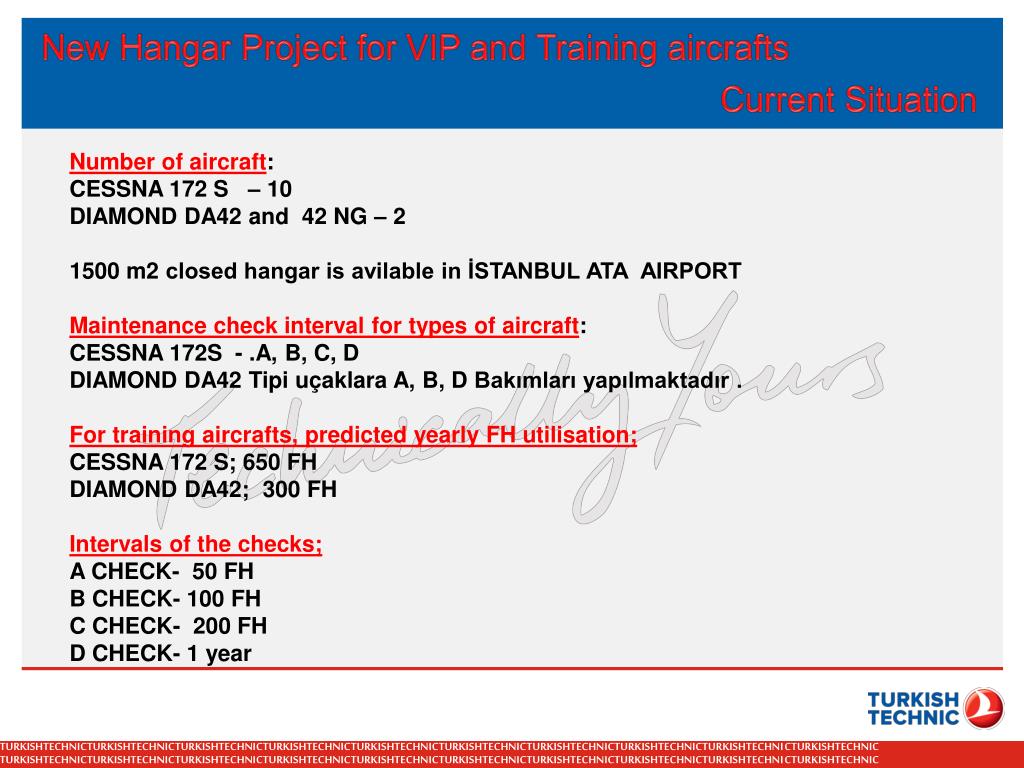

22. New Hangar Project for VIP and Training aircrafts Current Situation Number of aircraft: CESSNA 172 S – 10 DIAMOND DA42 and 42 NG – 2 1500 m2 closed hangar is avilable in İSTANBUL ATA AIRPORT Maintenance check interval for types of aircraft: CESSNA 172S - .A, B, C, D DIAMOND DA42 Tipi uçaklara A, B, D Bakımları yapılmaktadır . For training aircrafts, predicted yearly FH utilisation; CESSNA 172 S; 650 FH DIAMOND DA42; 300 FH Intervals of the checks; A CHECK- 50 FH B CHECK- 100 FH C CHECK- 200 FH D CHECK- 1 year

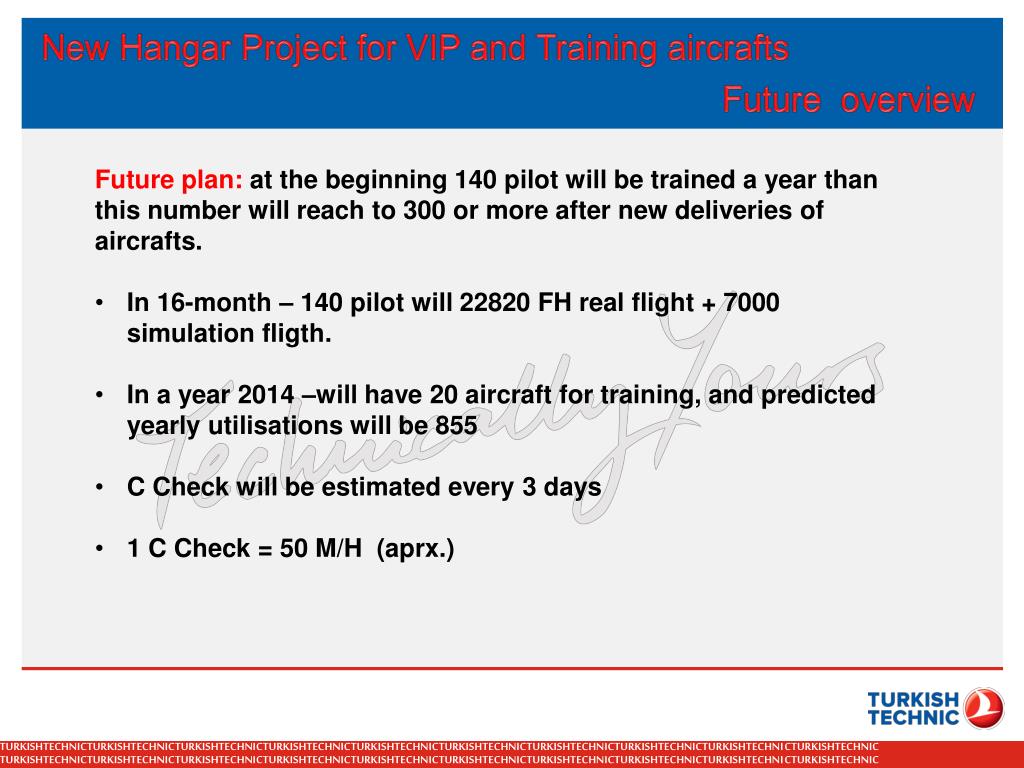

23. New Hangar Project for VIP and Training aircrafts Future overview • Future plan: at the beginning 140 pilot will be trained a year than this number will reach to 300 or more after new deliveries of aircrafts. • In 16-month – 140 pilot will 22820 FH real flight + 7000 simulation fligth. • In a year 2014 –will have 20 aircraft for training, and predicted yearly utilisations will be 855 • C Check will be estimated every 3 days • 1 C Check = 50 M/H (aprx.)

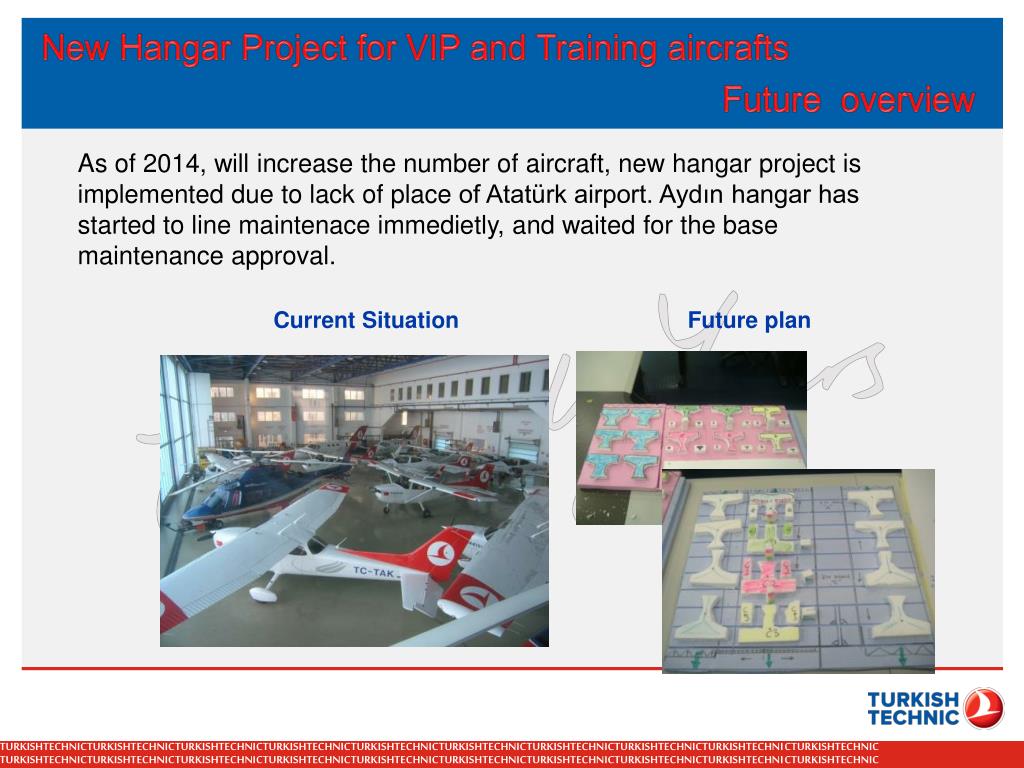

24. New Hangar Project for VIP and Training aircrafts Future overview • As of 2014, will increase the number of aircraft, new hangar project is implemented due to lack of place of Atatürk airport. Aydın hangar has started to line maintenace immedietly, and waited for the base maintenance approval. Current Situation Future plan

25. Studies of A and C check shortening the TAT of B737NG Within the context of the continuous improvement of business development carried out by the unit according to the needs of the units, to include all the processes are carried out maintenance or overhaul. Studies of A and C checkshortening the duration of B737NG TAT; New material and toll kits Keep ready to use be used materials, tools and kits before the maintenance People organized for erranding the material and tool to the technichian who is still work on the aircraft in maintenance action. Put the board with PC for easy access to maintenance docments (AMM, IPC, CMM etc.) for every aircraft which is in maintenance action. with above type actions, all working distances are shorthend for technician in maintenance action then gained up to %40 time for TAT.

26. THANK YOU
