Presentation Transcript
slide1

Chapter 4

overview

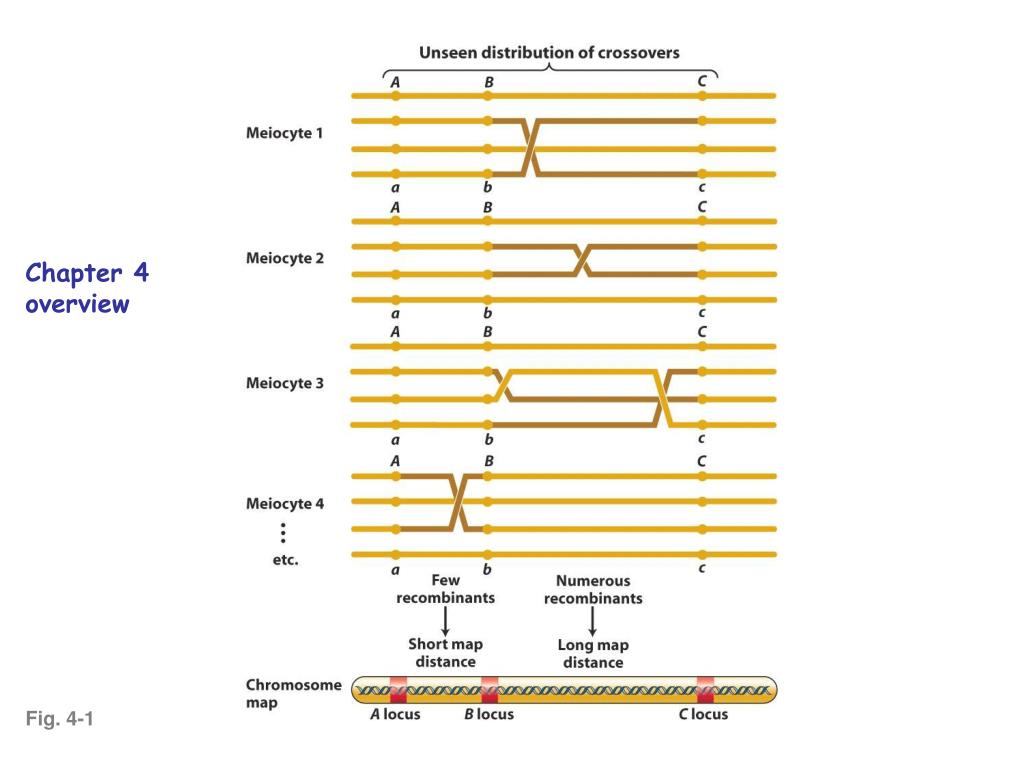

Fig. 4-1

slide2

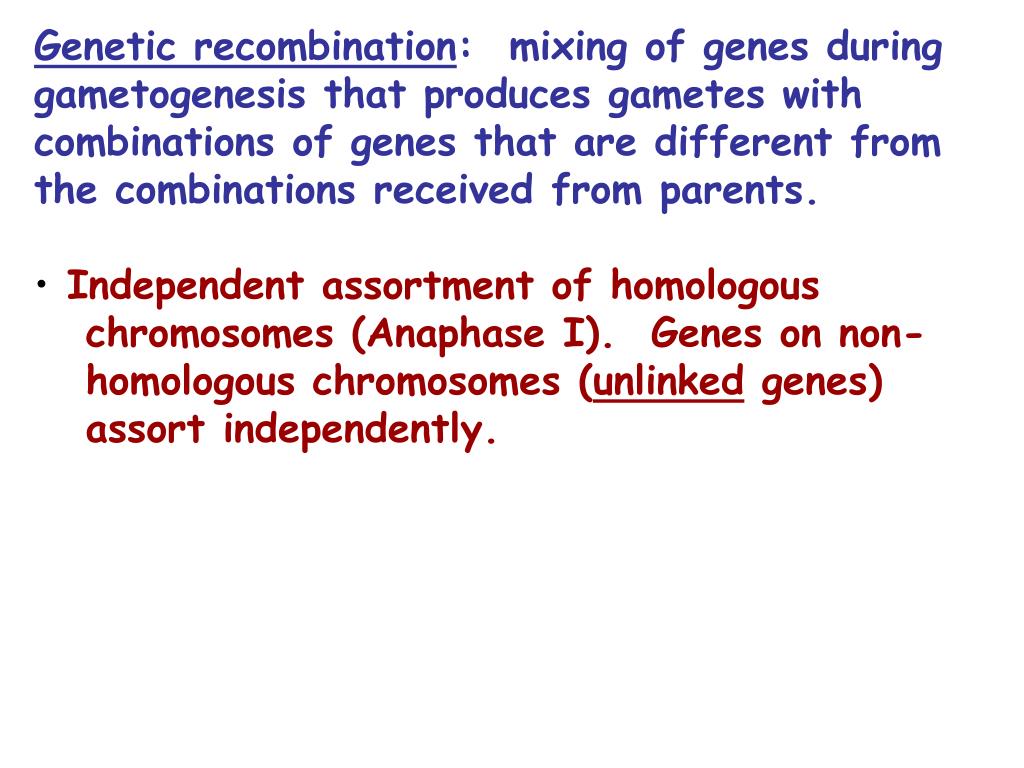

Genetic recombination: mixing of genes during

  • gametogenesis that produces gametes with
  • combinations of genes that are different from
  • the combinations received from parents.
  • Independent assortment of homologous
  • chromosomes (Anaphase I). Genes on non-
  • homologous chromosomes (unlinked genes)
  • assort independently.
slide4

Using a testcross

to distinguish gamete genotypes

Fig. 4-7

slide5

50% = independent

assortment

(genes are not linked)

Fig. 4-8

slide6

Genetic recombination: mixing of genes during

  • gametogenesis that produces gametes with
  • combinations of genes that are different from
  • the combinations received from parents.
  • Independent assortment of homologous
  • chromosomes (Anaphase I). Genes on non-
  • homologous chromosomes (unlinked genes)
  • assort independently.
  • Crossing over (recombination among linked
  • genes)
slide7

cis linked: both dominant alleles on the same homolog

trans linked: dominant alleles on different homologs

Fig. 4-2

slide9

Crossing over

  • Physical exchanges among non-sister chromatids;
  • visualized cytologically as chiasmata
  • Typically, several crossing over events occur within
  • each tetrad in each meiosis (chiasmata physically
  • hold homologous chromosome together and assure
  • proper segregation at Anaphase I)

p. 115

slide10

Crossing over occurs at the four-strand stage

(pre-meiotic G2 or very early prophase I)

Fig. 4-4

slide12

Crossing over

  • Physical exchanges among non-sister chromatids;
  • visualized cytologically as chiasmata
  • Typically, several crossing over events occur within
  • each tetrad in each meiosis (chiasmata physically
  • hold homologous chromosome together and assure
  • proper segregation at Anaphase I)
  • The sites at which crossing over occur are random
  • The likelihood that a crossover occurs between any
  • two particular sites (genes) is a function of the
  • physical distance between those two sites
slide13

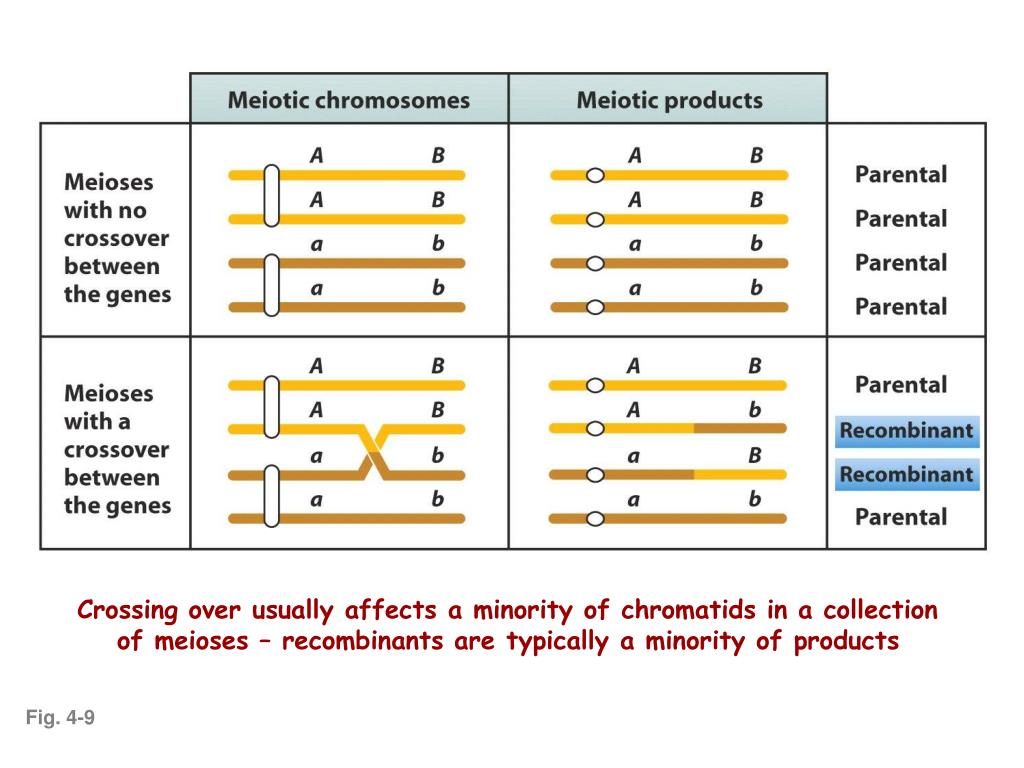

Crossing over usually affects a minority of chromatids in a collection of meioses – recombinants are typically a minority of products

Fig. 4-9

slide15

A.H. Sturtevant (1911-3): frequency of crossing over

between two genes is a function of their distance

apart on the chromosome; created the first genetic map

number of recombinants

Recombination frequency =

total number of progeny

One map unit = one centimorgan = 1% recombinants

slide16

Rationales:

    • Crossover events are random
    • Greater separation, greater likelihood that crossover will occur
    • Map distance should be sum of smaller intervals
    • Construct entire chromosome maps by mapping intervals
    • Linear map correlates with linear chromosome

Fig. 4-11

slide17

Markers used in trihybrid testcross

in Drosophila

v = vermilion eyes (red eyes; v+are red-brown)

cv = crossveinless (cv+ wings have crossveins)

ct = cut wing (ct+ wings have regular margins)

slide18

Data from three-point testcross

v+/ v cv+/ cv ct+/ ct X v / v cv / cv ct / ct

(trihybrid) (tester)

Progeny phenotypes

v cv+ ct+ 580

v+ cv ct 592

v cv ct+ 45

v+ cv+ ct 40

v cv ct 89

v+ cv+ ct+ 94

v cv+ ct 3

v+ cv ct+ 5

1448

slide19

Steps in solving three-point testcross problem

  • Anticipate and identify eight types of products (23)
  • Identify pairs of reciprocal products
slide20

Data from three-point testcross

v+/ v cv+/ cv ct+/ ct X v / v cv / cv ct / ct

(trihybrid) (tester)

Progeny phenotypes

v cv+ ct+ 580

v+ cv ct 592

v cv ct+ 45

v+ cv+ ct 40

v cv ct 89

v+ cv+ ct+ 94

v cv+ ct 3

v+ cv ct+ 5

1448

slide21

Steps in solving three-point testcross problem

  • Anticipate and identify eight types of products (23)
  • Identify pairs of reciprocal products
  • Identify parental types as the most frequent pair of
  • products
  • Identify double crossover products as least frequent
  • pair of products
slide22

Data from three-point testcross

v+/ v cv+/ cv ct+/ ct X v / v cv / cv ct / ct

(trihybrid) (tester)

Progeny phenotypes

v cv+ ct+ 580

v+ cv ct 592

v cv ct+ 45

v+ cv+ ct 40

v cv ct 89

v+ cv+ ct+ 94

v cv+ ct 3

v+ cv ct+ 5

1448

Parental types - nco

sco

sco

dco

slide23

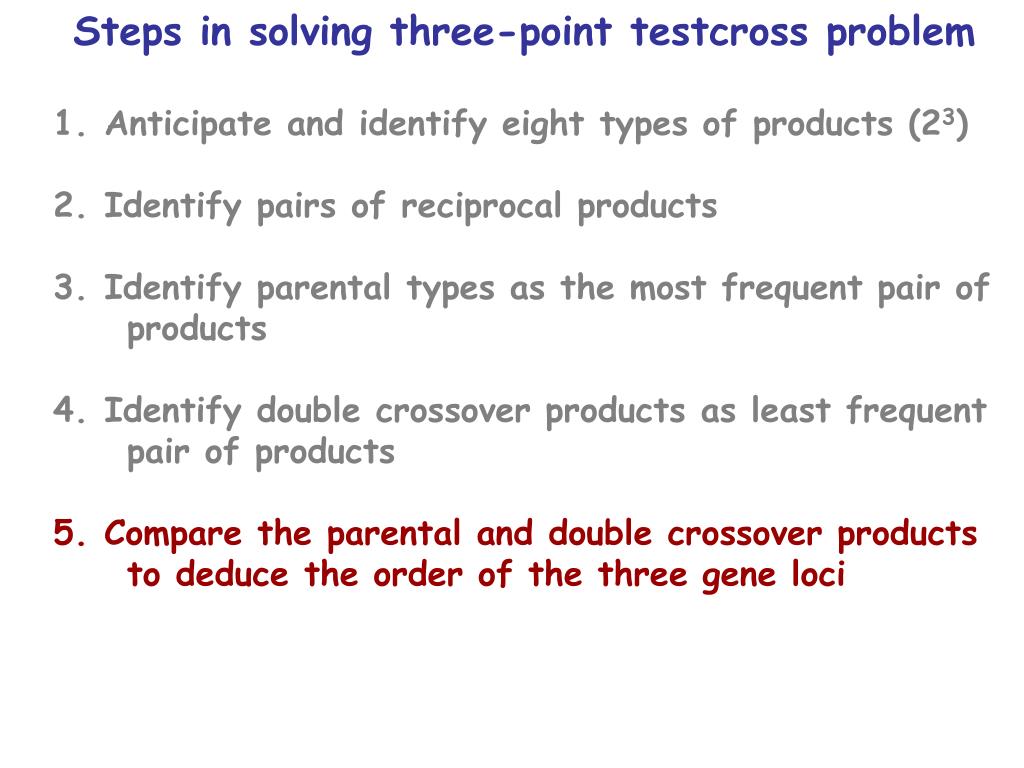

Steps in solving three-point testcross problem

  • Anticipate and identify eight types of products (23)
  • Identify pairs of reciprocal products
  • Identify parental types as the most frequent pair of
  • products
  • Identify double crossover products as least frequent
  • pair of products
  • Compare the parental and double crossover products
  • to deduce the order of the three gene loci
slide24

Fig. 4-12

In dco products, the central marker is displaced

relative to the parental types

slide26

Steps in solving three-point testcross problem

  • Anticipate and identify eight types of products (23)
  • Identify pairs of reciprocal products
  • Identify parental types as the most frequent pair of
  • products
  • Identify double crossover products as least frequent
  • pair of products
  • Compare the parental and double crossover products
  • to deduce the order of the three gene loci
  • Compute map distances by breaking down the
  • results for each interval
slide27

Fig. 4-12

85 + 8

1448

(0.064)

183 + 8

1448

(0.132)

RF =

slide28

Fig. 4-12

85 + 8

1448

(0.064)

183 + 8

1448

(0.132)

RF =

13.2 m.u. 6.4 m.u.

v ct cv

slide29

Interference: crossing over in one region

interferes with simultaneous crossing over in

adjacent regions

Expected frequency of dco = product of frequency crossovers in two regions

0.132 X 0.064 = 0.0084

0.084 X 1448 = 12 expected (if two sco are independent events)

slide30

Interference: crossing over in one region

interferes with simultaneous crossing over in

adjacent regions

Expected frequency of dco = product of frequency crossovers in two regions

0.132 X 0.064 = 0.0084

0.084 X 1448 = 12 expected (if two sco are independent events)

Coefficient of coincidence = observed dco / expected dco

8 / 12 = 0.667

Interference = 1 – coefficient of coincidence

1 – 0.667 = 0.333

slide31

Fig. 4-14

Tomato karyotype (n=12)

slide32

Tomato linkage map

(1952)

Fig. 4-14
