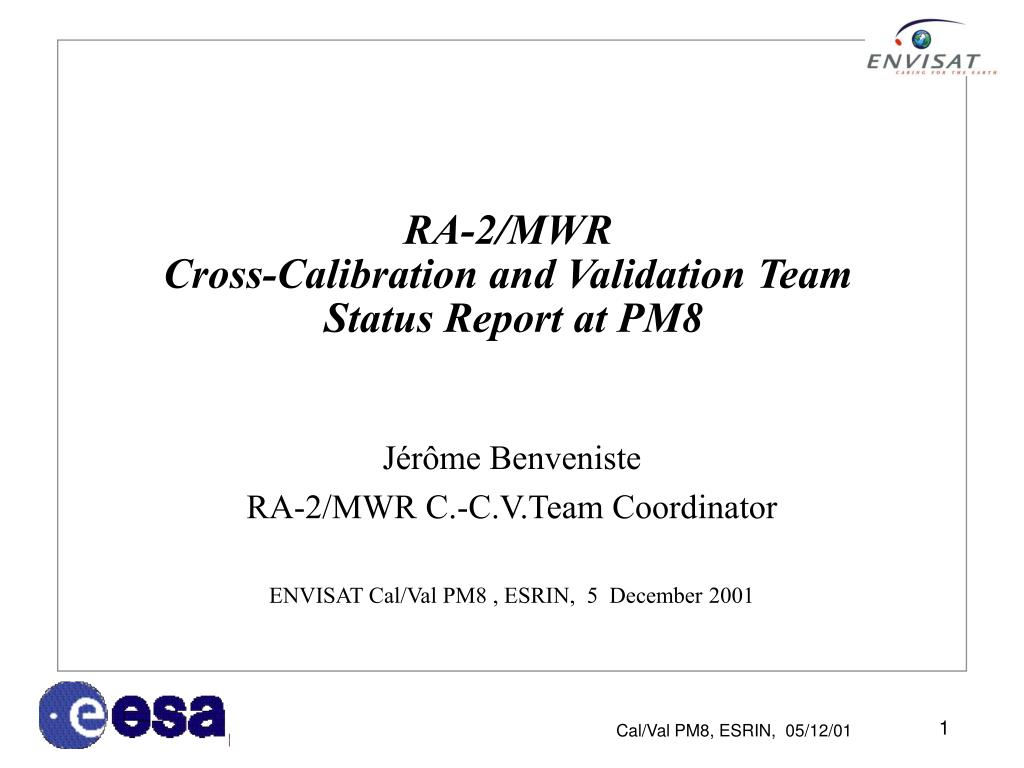

RA-2/MWR Cross-Calibration and Validation Team Status Report at PM8

Jérôme Benveniste

RA-2/MWR C.-C.V.Team Coordinator

ENVISAT Cal/Val PM8 , ESRIN, 5 December 2001


Ra 2 mwr ccvt status report for envisat cal val pm8 5 12 01

RA-2/MWR CCVT status report for ENVISAT Cal/Val PM8 (5/12/01)

Table of Content

  • Recall of CCVT objectives

  • Status of completion of the actions from PM7

  • Cal/Val SoW's

  • Logical approach and schedule

  • RA-2/MWR CCVT Readiness Review

  • Level 2 Algorithm Verification Subgroup’s report by Maria Pilar Milagro-Perez

  • Data circulation coordinator’s report by Luciano Rempicci

  • MWR Subgroup’s report by Pierre Femenias (ill today)


Objectives for ra 2 mwr ccvt

Objectives for RA-2/MWR CCVT

  • Cross-calibrated data products

    • WRT ERS or other altimeters (T-P, GFO, Jason)

    • Ensure ESA data products consistency

  • Validated data products

    • geophysical validation of the data products content and the processing models

    • Authorizing distribution to all users

      • Within 6 months of launch


Cal val activities planned

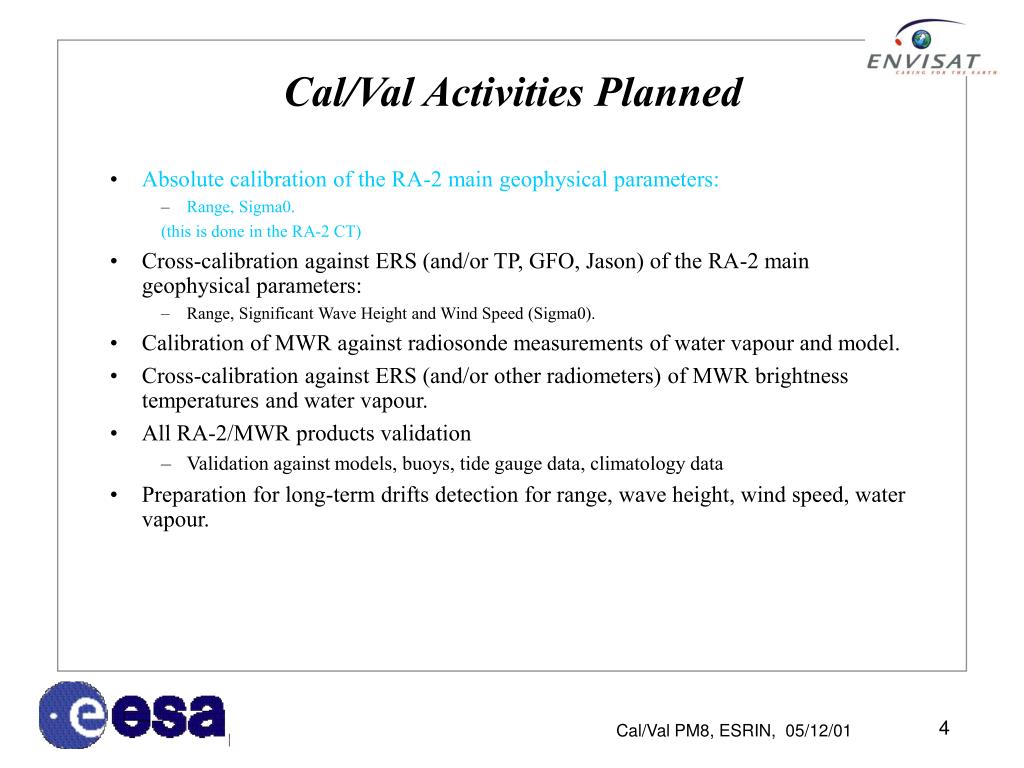

Cal/Val Activities Planned

  • Absolute calibration of the RA-2 main geophysical parameters:

    • Range, Sigma0.

      (this is done in the RA-2 CT)

  • Cross-calibration against ERS (and/or TP, GFO, Jason) of the RA-2 main geophysical parameters:

    • Range, Significant Wave Height and Wind Speed (Sigma0).

  • Calibration of MWR against radiosonde measurements of water vapour and model.

  • Cross-calibration against ERS (and/or other radiometers) of MWR brightness temperatures and water vapour.

  • All RA-2/MWR products validation

    • Validation against models, buoys, tide gauge data, climatology data

  • Preparation for long-term drifts detection for range, wave height, wind speed, water vapour.


Status of completion of the actions from pm7

Status of completion of the actions from PM7

  • Action 7.1: Next rehearsal

    • E-mail to PSnoeij on 30 November

      cf. Data Circulation coordinator presentation

  • Action 7.2: SoWs and Contracts

    • See next slide


Ccvteam members sows and contracts

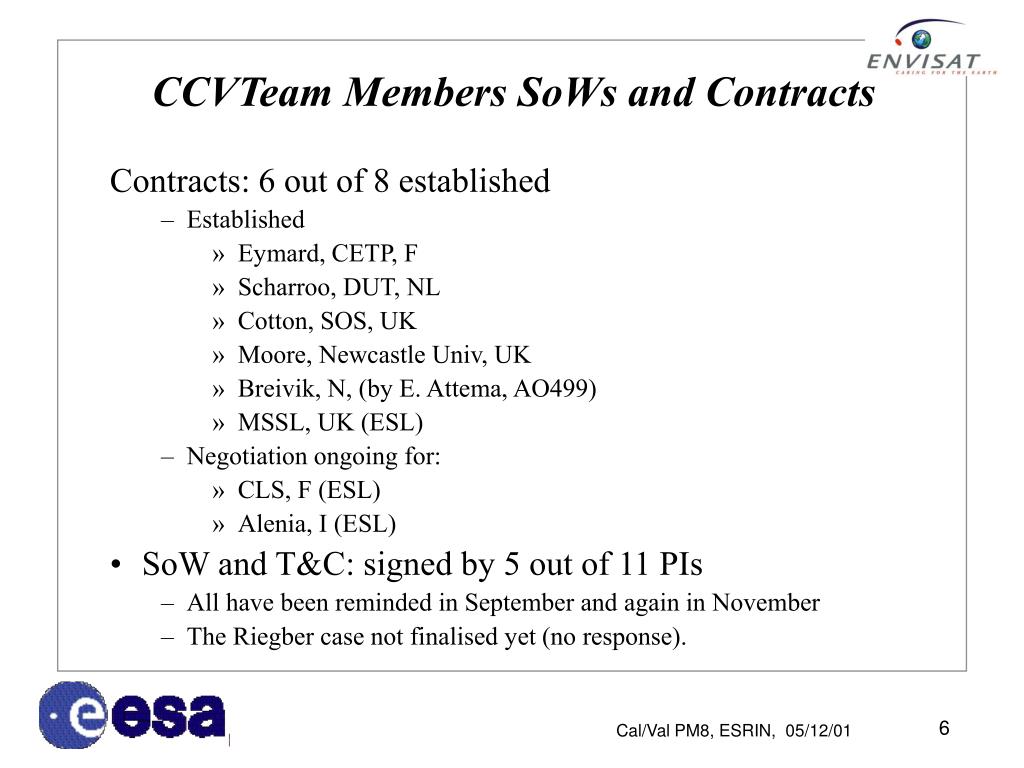

CCVTeam Members SoWs and Contracts

Contracts: 6 out of 8 established

  • Established

    • Eymard, CETP, F

    • Scharroo, DUT, NL

    • Cotton, SOS, UK

    • Moore, Newcastle Univ, UK

    • Breivik, N, (by E. Attema, AO499)

    • MSSL, UK (ESL)

  • Negotiation ongoing for:

    • CLS, F (ESL)

    • Alenia, I (ESL)

  • SoW and T&C: signed by 5 out of 11 PIs

    • All have been reminded in September and again in November

    • The Riegber case not finalised yet (no response).


  • Logical approach and schedule

    Logical Approach and Schedule


    Logical approach overview and two examples

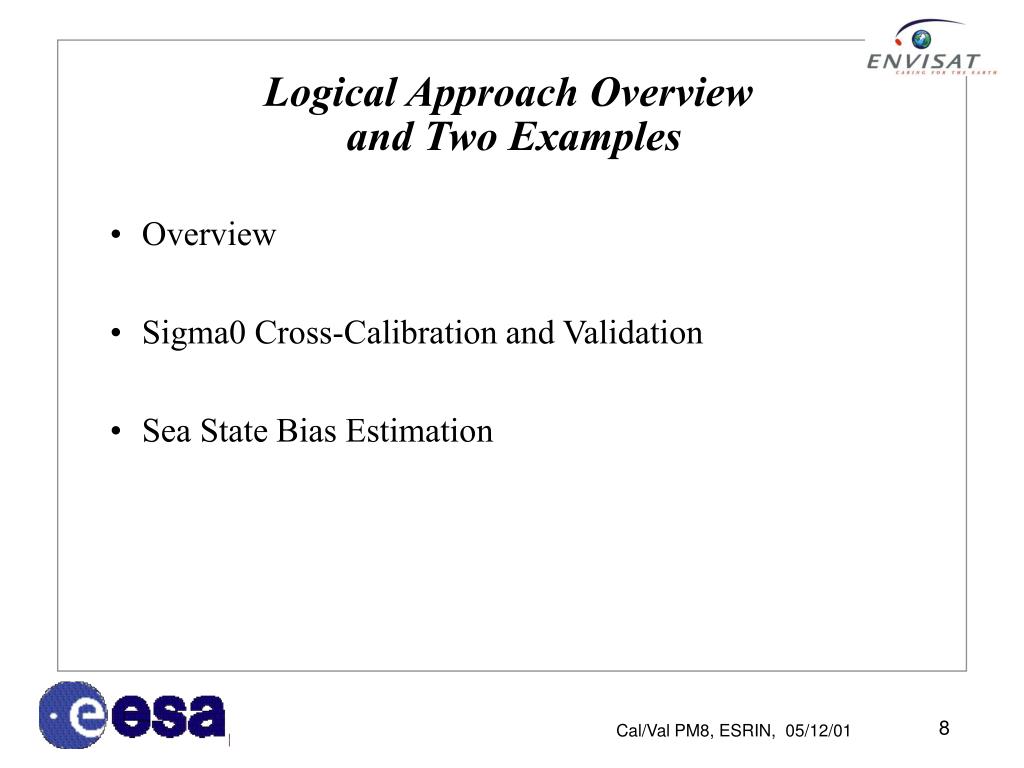

    Logical Approach Overview and Two Examples

    • Overview

    • Sigma0 Cross-Calibration and Validation

    • Sea State Bias Estimation


    Ccvt logical approach overview

    CCVT Logical Approach Overview

    SODAP

    Instrument and L1B verif

    L2 verif

    Cross-Calibration

    Validation

    Long term drift monitoring

    USERS


    Sigma0 cross calibration and validation

    Sigma0 Cross-Calibration and Validation

    Ku-Sigma0 Global Assessement

    S-Sigma0 Global Assessement

    Before L1b Verification

    (< L+3)

    Adjust Ku-Sigma0 wrt ERS-2

    Wind Speed valid with Buoys

    Wind Speed valid with METEO

    Rain Flag Coeff Determin.

    Sigma0 Monitoring over sea

    Sigma0 Monitoring over land

    After L1b Verification (L+3/L+6)


    Sea state bias estimation validation

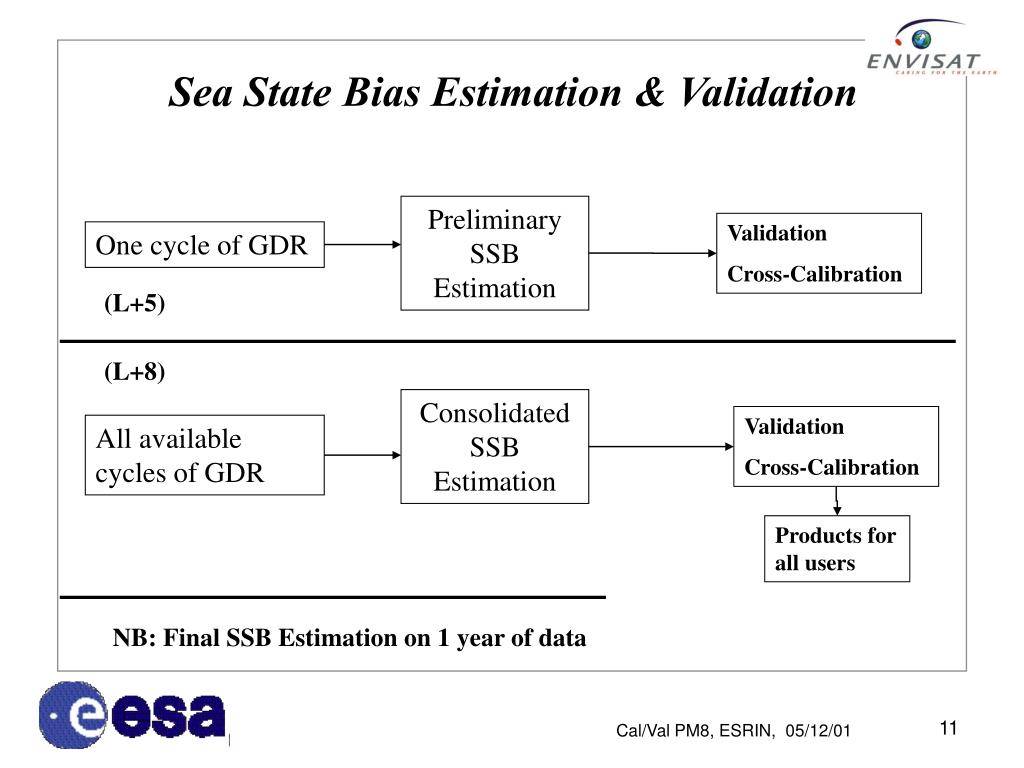

    Sea State Bias Estimation & Validation

    Preliminary SSB Estimation

    Validation

    Cross-Calibration

    One cycle of GDR

    (L+5)

    (L+8)

    Consolidated SSB Estimation

    Validation

    Cross-Calibration

    All available cycles of GDR

    Products for all users

    NB: Final SSB Estimation on 1 year of data


    Ra 2 mwr ccvteam activity

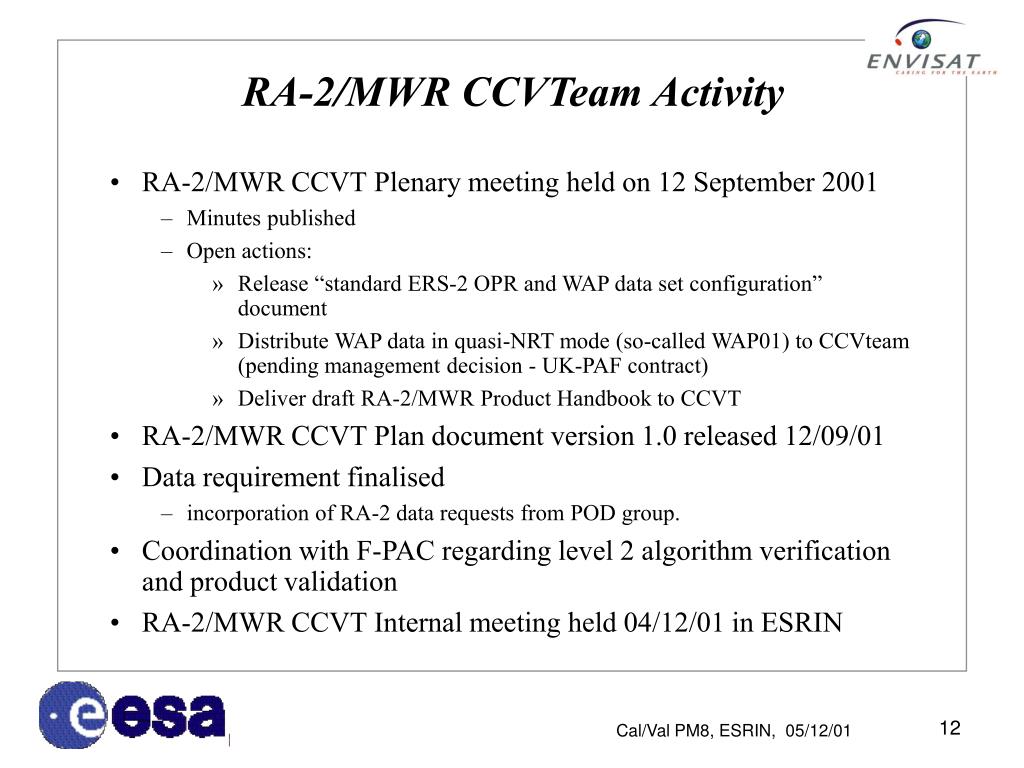

    RA-2/MWR CCVTeam Activity

    • RA-2/MWR CCVT Plenary meeting held on 12 September 2001

      • Minutes published

      • Open actions:

        • Release “standard ERS-2 OPR and WAP data set configuration” document

        • Distribute WAP data in quasi-NRT mode (so-called WAP01) to CCVteam (pending management decision - UK-PAF contract)

        • Deliver draft RA-2/MWR Product Handbook to CCVT

    • RA-2/MWR CCVT Plan document version 1.0 released 12/09/01

    • Data requirement finalised

      • incorporation of RA-2 data requests from POD group.

    • Coordination with F-PAC regarding level 2 algorithm verification and product validation

    • RA-2/MWR CCVT Internal meeting held 04/12/01 in ESRIN


    Ra 2 mwr ccvteam readiness

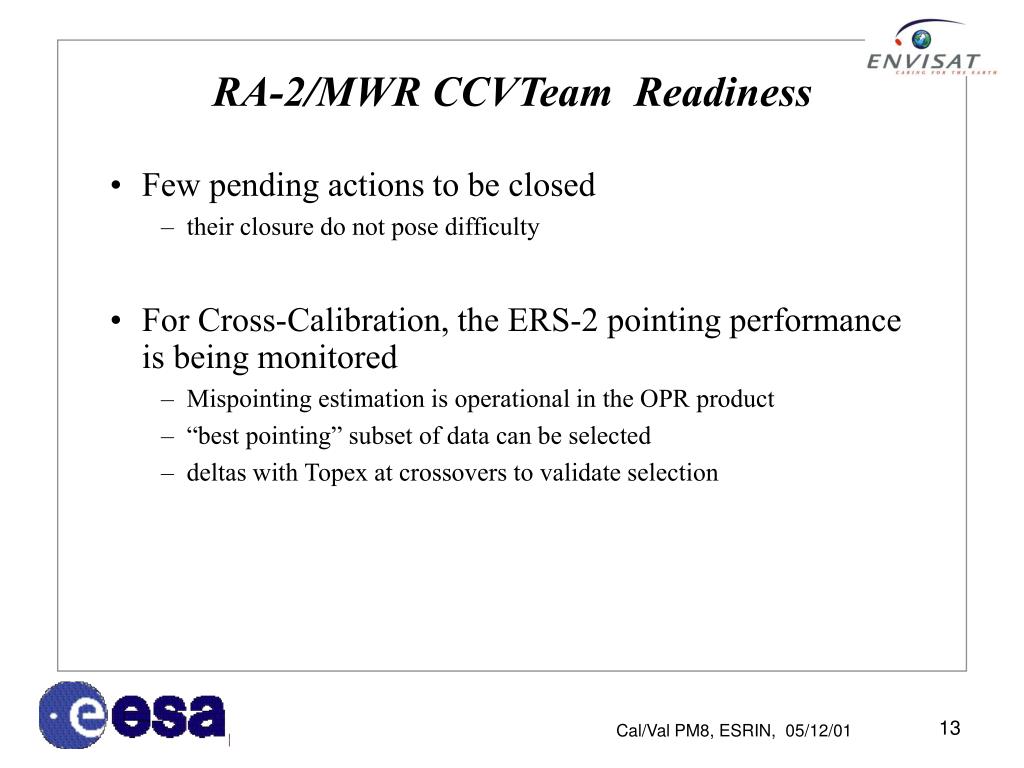

    RA-2/MWR CCVTeam Readiness

    • Few pending actions to be closed

      • their closure do not pose difficulty

    • For Cross-Calibration, the ERS-2 pointing performance is being monitored

      • Mispointing estimation is operational in the OPR product

      • “best pointing” subset of data can be selected

      • deltas with Topex at crossovers to validate selection


    Ers 2 mispointing from ra

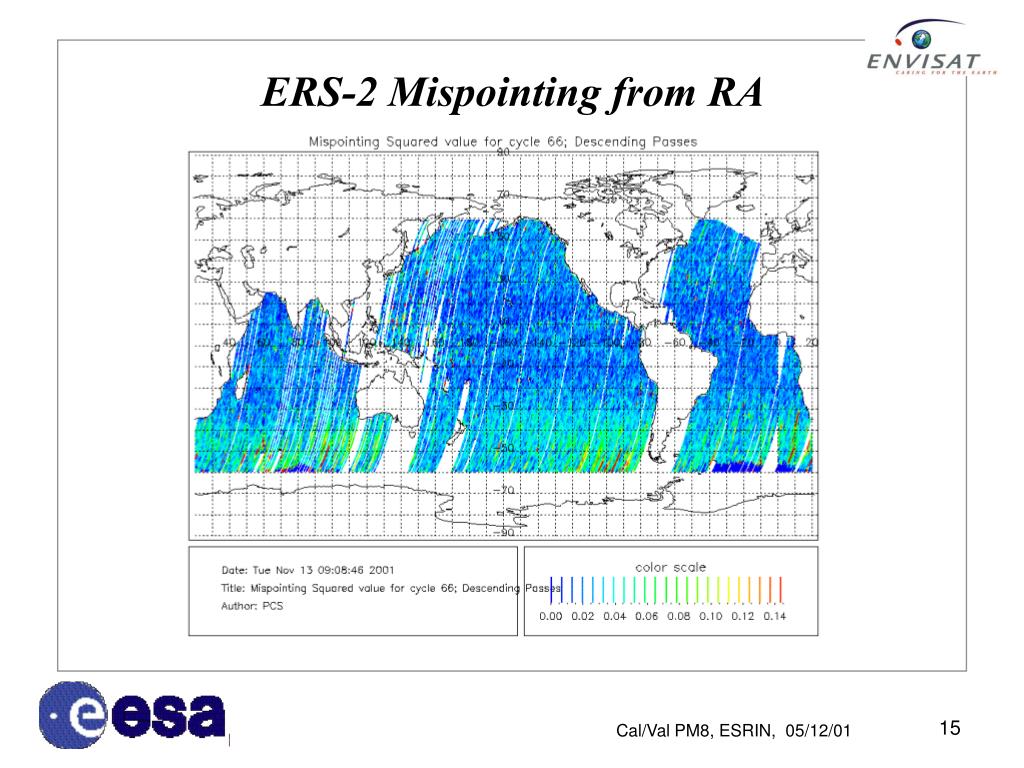

    ERS-2 Mispointing from RA


    Ers 2 mispointing from ra1

    ERS-2 Mispointing from RA


    Ra 2 mwr ccvteam readiness1

    RA-2/MWR CCVTeam Readiness

    • The RA-2/MWR CCVTeam is ready for the Launch
