The Brain & Cranial Nerves PowerPoint PPT Presentation


  • 96 Views
  • Uploaded on
  • Presentation posted in: General

The Brain & Cranial Nerves. Ch 14. spine. brain. Development of the neural tube from embryonic ectoderm. Embryonic Development. Brain Development. Coverings of the Brain- Meninges. skin. skull. dura mater. arachnoid layer. pia mater. cerebral cortex. Menenges:

Download Presentation

The Brain & Cranial Nerves

An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -

Presentation Transcript


Slide1 l.jpg

The Brain & Cranial Nerves

Ch 14


Slide2 l.jpg

spine

brain


Slide3 l.jpg

Development of the neural tube from embryonic ectoderm


Slide4 l.jpg

Embryonic Development


Slide5 l.jpg

Brain Development


Coverings of the brain meninges l.jpg

Coverings of the Brain-Meninges

skin

skull

dura mater

arachnoid layer

pia mater

cerebral cortex


Slide7 l.jpg

  • Menenges:

  • Covers and protects CNS

  • Protects blood vessels and encloses venus sinuses

  • Contains CSF

  • Forms partition within the skull


Slide8 l.jpg

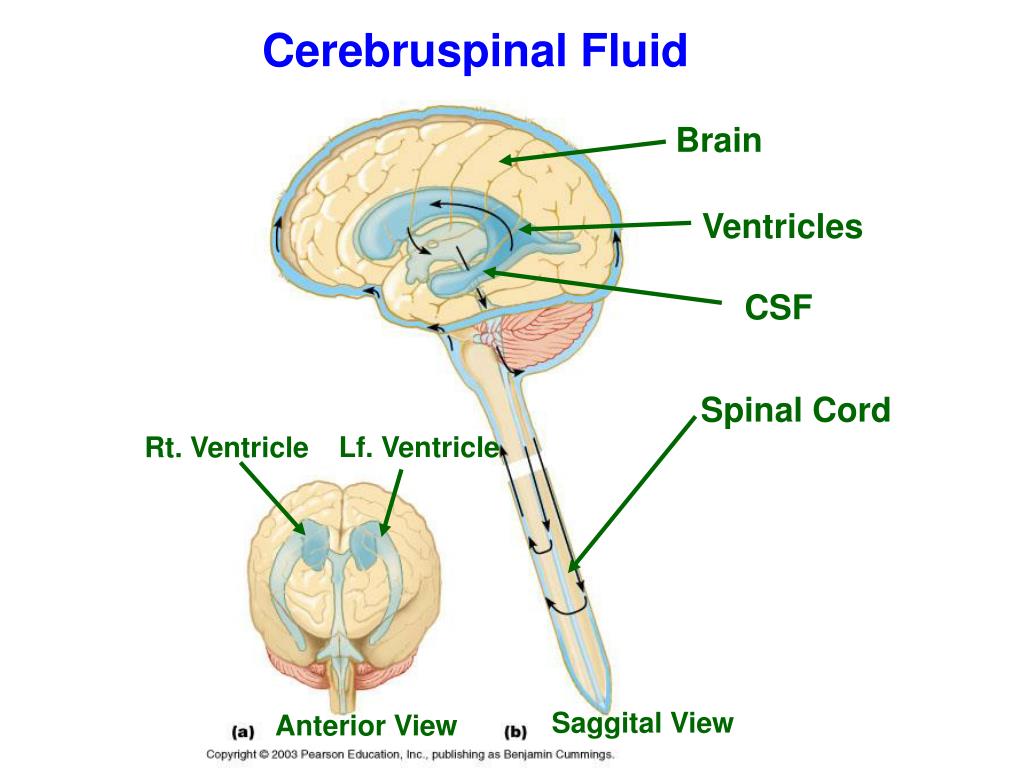

Cerebruspinal Fluid

Brain

Ventricles

CSF

Spinal Cord

Lf. Ventricle

Rt. Ventricle

Saggital View

Anterior View


Slide9 l.jpg

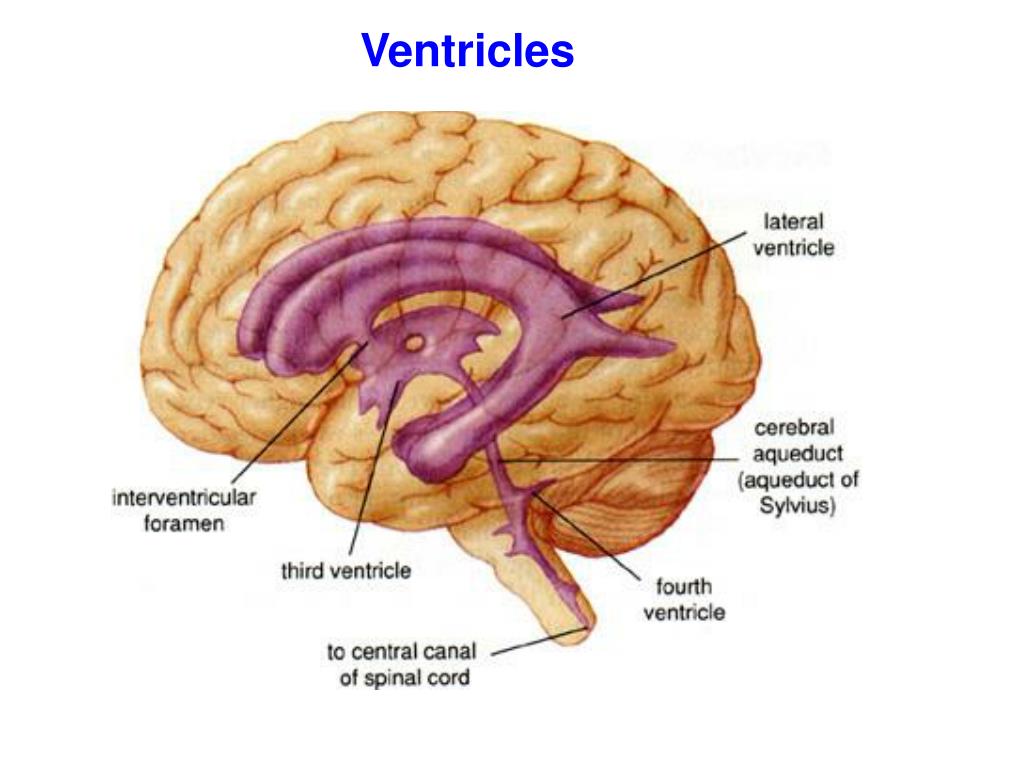

Ventricles


Slide10 l.jpg

  • CSF

    • 150 ml in adult

    • contains: glucose, proteins,lactic acid, urea, cations, anions, WBC

  • Functions:

    • Reduces wt. of brain by 97%

    • Prevents head injury

    • Supplies brain with nutrition

    • Transports hormones along ventricular channels


The brain l.jpg

Occipital Lobe

The Cerebrum

Brainstem

Cerebellum

The Brain

Parietal Lobe

Frontal Lobe

Temporal Lobe


Slide12 l.jpg

corpus callosum

cerebrum

thalamus

hypothalamus

pituitary

pons

medulla oblongata

spinal cord

Pineal gland

cerebellum


Cerebrum l.jpg

Cerebrum

  • Involved with higher brain functions.

  • Processes sensory information.

  • Initiates motor functions.

  • Integrates information.


Cerebrum cross section l.jpg

cerebral cortex

white matter

corpus callosum

basal ganglia

ventricles

Cerebrum Cross-Section


Motor sensory association cortex l.jpg

Motor, Sensory & Association Cortex


Primary sensory cortex l.jpg

Primary Sensory Cortex


Primary motor cortex l.jpg

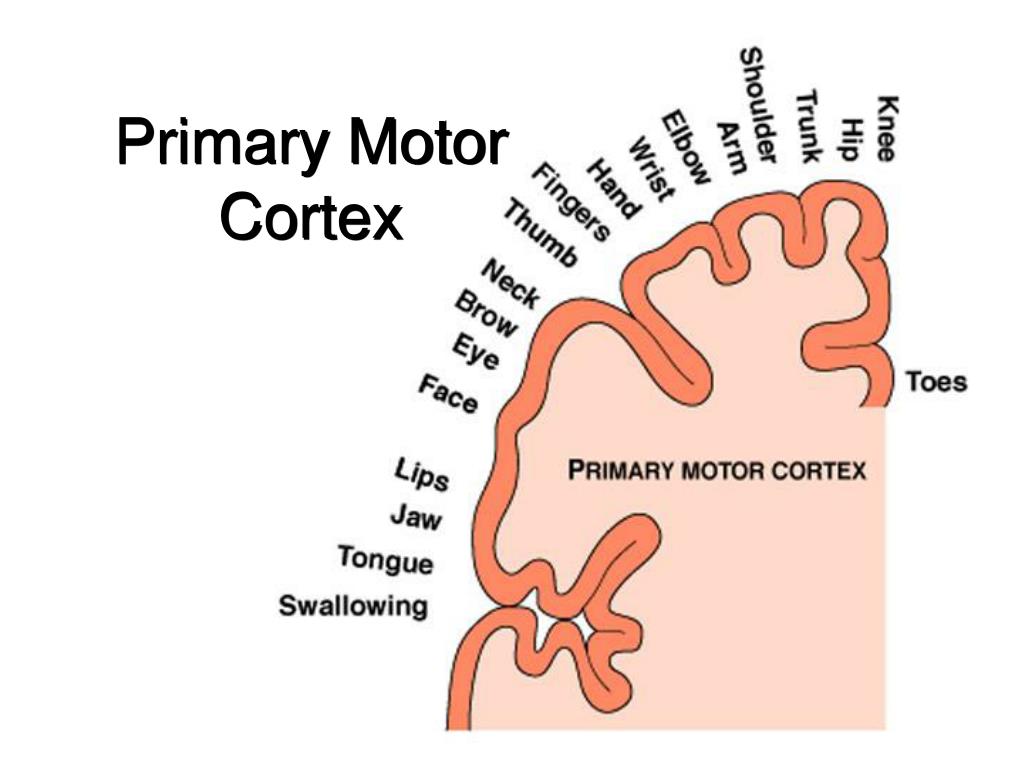

Primary Motor Cortex


Right left specialization of the cerebrum l.jpg

Right-Left Specialization of the Cerebrum

left side

  • language development

  • mathematical & learning capabilities

  • sequential thought processes

    right side

  • visual spatial skills

  • musical and artistic activities

  • intuitive abilities


Slide19 l.jpg

Diencephalon

hypothalamus

thalamus

pituitary


Slide20 l.jpg

Diencephalon


Thalamus l.jpg

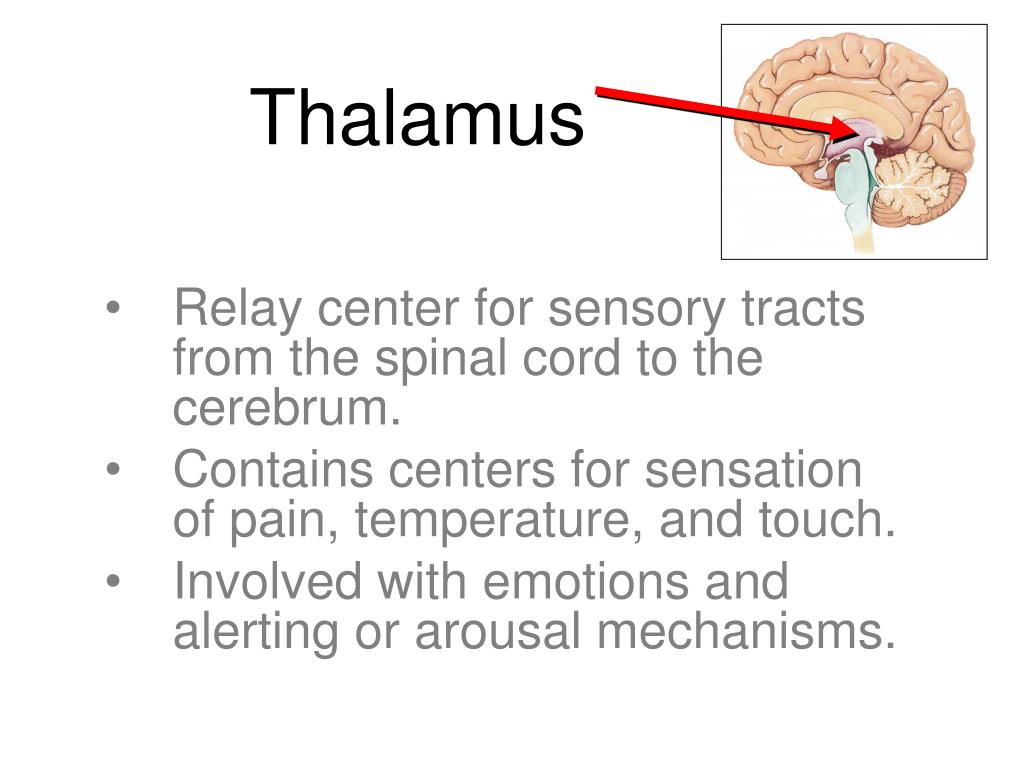

Thalamus

  • Relay center for sensory tracts from the spinal cord to the cerebrum.

  • Contains centers for sensation of pain, temperature, and touch.

  • Involved with emotions and alerting or arousal mechanisms.


Slide22 l.jpg

The Reticular Formation


Hypothalamus l.jpg

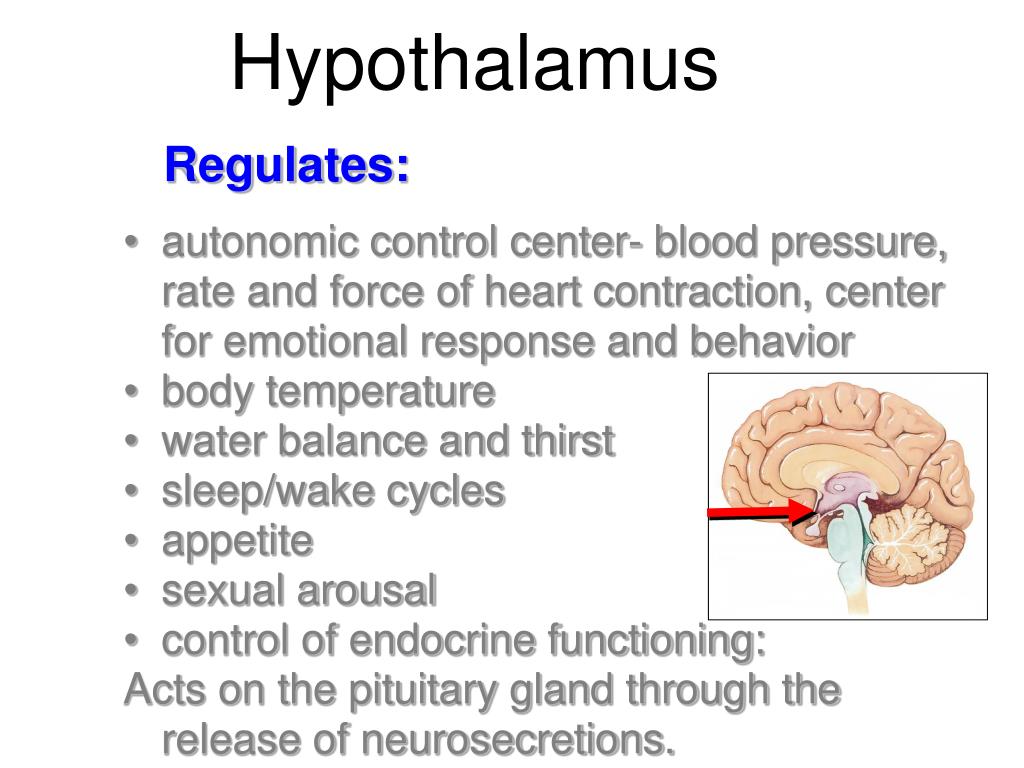

Hypothalamus

Regulates:

  • autonomic control center- blood pressure, rate and force of heart contraction, center for emotional response and behavior

  • body temperature

  • water balance and thirst

  • sleep/wake cycles

  • appetite

  • sexual arousal

  • control of endocrine functioning:

  • Acts on the pituitary gland through the release of neurosecretions.


Slide24 l.jpg

Hypothalamus


The limbic system l.jpg

The Limbic System

The Limbic System


Midbrain l.jpg

Midbrain

  • Contains ascending and descending tracts to the cerebrum and thalamus.

  • Reflex center for eye muscles.

  • Also involved with processing visual and auditory information (connects head movements with visual and auditory stimuli).


Slide27 l.jpg

Pons

  • Connects the two halves of the cerebellum.

  • Regulates breathing.


Medulla oblongata l.jpg

Medulla Oblongata

  • Composed of nerve tracts to and from the brain (these tracts cross over left to right and right to left)

  • May be regarded as an extension of the spinal cord

  • Almost all of the cranial nerves arise from this region


Medulla oblongata29 l.jpg

Medulla Oblongata

  • Contains control centers for many subconscious activities

  • Respiratory rate

  • Heart rate

  • Arteriole constriction

  • Swallowing

  • Hiccupping

  • Coughing

  • Sneezing


Cerebellum l.jpg

Cerebellum

  • Controls and coordinates muscular activity.

  • Important in equilibrium, posture and movement.


Slide31 l.jpg

Cranial Nerves

  • On OldOlympus Towering Tops A Fat Voracious German Viewed A Hop

  • Olfactory- smell

  • Optic- vision

  • Oculomotor- 4 of the 6 extrinsic eye muscles

  • Trochlear- extrinsic eye muscles

  • Trigeminal- sensory fibers to the face and motor fibers to the chewing muscles

  • Abducens- controls eye muscles that turn the eye laterally

  • Facial- facial expression

  • Vestibulocochlear- hearing and balance

  • Glosopharyngeal- tongue and pharynx

  • Vagus- from medulla- acetylcholine slows heart & breathing

  • Accessory- accessory part of vagus nerve

  • Hypoglossal- moves muscles under tongue


Slide32 l.jpg

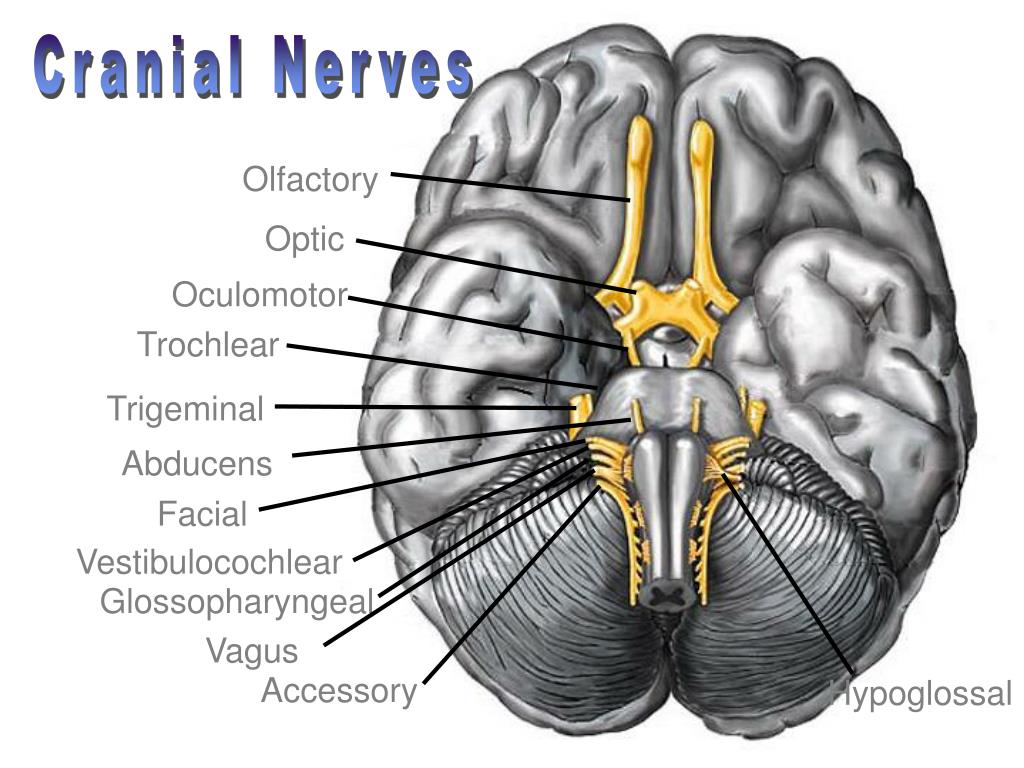

Cranial Nerves

Olfactory

Optic

Oculomotor

Trochlear

Trigeminal

Abducens

Facial

Vestibulocochlear

Glossopharyngeal

Vagus

Accessory

Hypoglossal


Slide33 l.jpg

Olfactory Nerves I

Olfactory bulb

Olfactory tract

Filaments of olfactory nerve

Olfactory receptor cell


Slide34 l.jpg

Optic Nerves II


Slide35 l.jpg

Oculomotor Nerves III


Slide36 l.jpg

Trochlear Nerves IV


Slide37 l.jpg

Trigeminal Nerves V


Slide38 l.jpg

Abducens Nerves VI


Slide39 l.jpg

Facial Nerves VII


Slide40 l.jpg

Vestibulochoclear Nerves VIII


Slide41 l.jpg

Glosopharyngeal Nerves IX


Slide42 l.jpg

Vagus Nerves X


Slide43 l.jpg

Accessory Nerves XI


Slide44 l.jpg

Hypoglossal Nerves XII


Slide45 l.jpg

Traumatic Brain Injuries

  • Concussion

  • Contusion

  • Subdural or subarachnoid hemorrhage

  • Contrecoup injury


Slide46 l.jpg

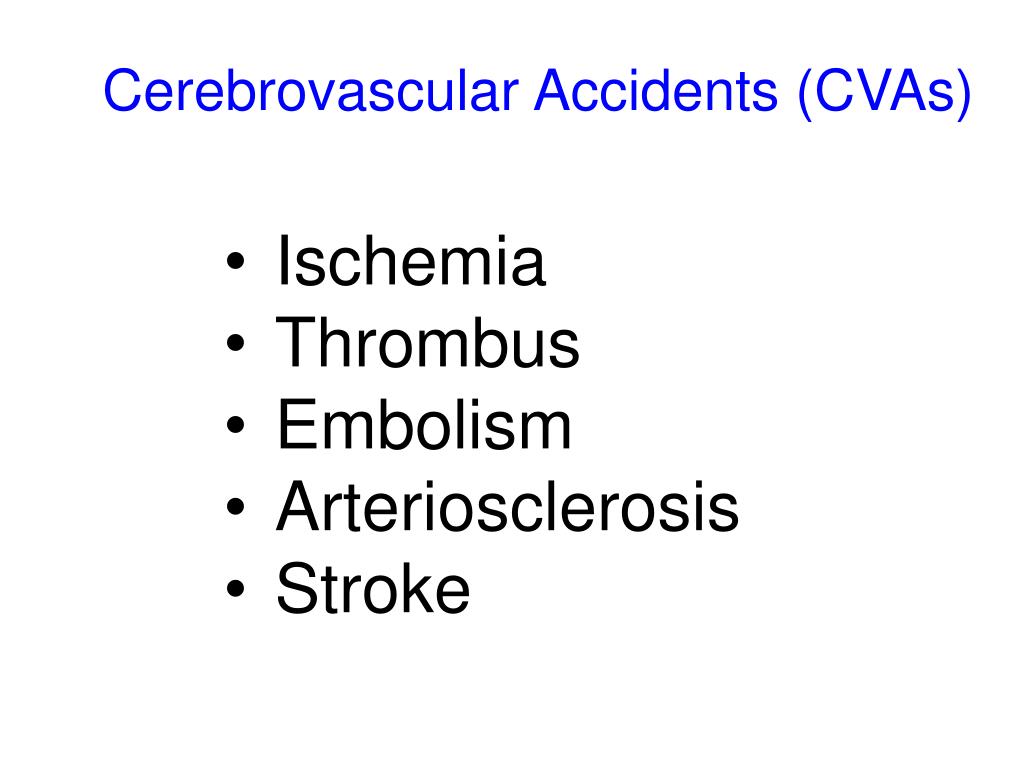

Cerebrovascular Accidents (CVAs)

  • Ischemia

  • Thrombus

  • Embolism

  • Arteriosclerosis

  • Stroke


Slide48 l.jpg

Degenerative brain diseases

  • Alzheimer’s

  • Down’s

  • Parkinson’s

  • Huntington’s Chorea

  • MS

  • Epilepsy

  • Schizophrenia


Slide50 l.jpg

PET Scans

F-Dopa deficiency
