  1. Product Updates/Overviews and Training – 2004 C.B. Associates and Landis + Gyr

  2. Landis+GyrResidential Metering

  3. Landis + GyrResidential Metering • Altimus Family • AL Kwh Only • AXL Kwh only/Upgradeable • AX Demand/Tou • RX Reactive • Service Disconnect

  4. Landis + GyrResidential Metering • Altimus Communications • Optical Port • Modem • DCSI

  5. Landis+GyrResidential Metering • Altimus with DCSI • Altimus Kwh Only, Demand, TOU • Altimus Disconnect with DCSI • - 200 Amp BLP Switch • - Remote Arming with • Onsite Activation • - Load Side Sensing • - Current Limiting

  6. Landis+GyrResidential Metering The FOCUS Family of Residential Meters

  7. Landis+GyrResidential Metering • FOCUS Family Objective • “To provide the utility industry with a reliable, quality, low cost solid state kWh meter platform that is easily adaptable to various AMR technologies.”

  8. Landis+GyrResidential Metering • FOCUS Family Vision • “To be the supplier of choice for solid state residential AMR metering products.”

  9. Landis+GyrResidential Metering • FOCUS kWh Technology • Digital Multiplication Measurement • Single Circuit Board Design • Landis+Gyr ASIC • Supports NET metering • Non-volatile Memory • Designed for 15+ Year Life

  10. Landis+GyrResidential Metering • FOCUS Available Meter Forms • 2S, 2SE, 4S and 2K 240V • 1S 120V • 3S 120V and 240V • 12S and 25S 120/208V

  11. Landis+GyrResidential Metering • FOCUS Meter Specifications • Operating Temperature Range -40°C to +85°C • Load Performance Accuracy Class .2% • Starting Load 50 mA or 12 Watts (2S) • Burden < 1.8 Watts (2S) • Meets ANSI Standards • ANSI protocol

  12. Landis+GyrResidential Metering • FOCUS kWh Meter Features • Selectable Metrics • Flexible Display Functionality • Optional KYZ Output • Configuration Port • Factory Programming Available • Polycarbonate and Glass Covers available • Sealed using T-seal and wire seal methods

  13. Landis+GyrResidential Metering • FOCUS kWh Meter Displayable Metrics • (any or all) • + kWh • - kWh • Net kWh • Added kWh (Security) • Line Voltage • Diagnostic Flags

  14. Landis+GyrResidential Metering • FOCUS kWh Flexible Display Functionality • Easily Readable8-digit LCD • Power Consumption Indicator (DRI, DPI) • 4x1, 4x10, 5x1 and 6x1 metric display • Selectable Meter Multiplier up to 240 (1200:5 CT) • Scroll sequence can include Diagnostic Flags and Line Voltage • Display scroll - Programmable from 1 to 15 seconds

  15. Landis+GyrResidential Metering • FOCUSkWh Configuration Port Capabilities • Designed for meter shop environment • Configuration can be done without removing cover • Set or reconfigure display metrics, multipliers etc. • Reset register to zero (also preset specific value) • KYZ Output selectable (1/12 increment of Kh) +kWh, -kWh or Added kWh

  16. Landis+GyrResidential Metering • FOCUS Road Map • kWh AMR  Dem/TOU/LP

  17. Landis+GyrResidential Metering • FOCUSkWh Only Availability • Forms 1S, 2S, 2SE, 3S (120 & 240 volts) and 4S - Available Now • Forms 12S and 25S (Network) - Available Now • Form 2K - Available by June ’04 • KYZ Output - Available by March ’04 • Forms 2s, 2se and 12s - Available with and without external potential link

  18. Landis+GyrResidential Metering • FOCUS Planned AMR Technologies • Focus SL-1 (StatSignal) KWH Only+ 2-way RF (900 MHz Mesh Technology) Integrated AMR Enhanced feature capabilities Available by May ‘04

  19. Landis+GyrResidential Metering • FOCUS Planned AMR Technologies • Focus TS-1 (Hunt Technologies) KWH Only 1-way PLC Modular Design (Plug & Play) Available by July ‘04

  20. Landis+GyrResidential Metering • FOCUS Planned AMR Technologies • FOCUS TS-2 (Hunt Technologies) kWh Only+ 2-way PLC Integrated Design Available by Sept ‘04

  21. Landis+GyrResidential Metering • FOCUS Planned AMR Technologies • FOCUS DCSI (TWACS) kWh Only+ 2-way PLC Integrated AMR Enhanced Feature Set Available June ‘04

  22. Landis+GyrS4 Family News

  23. Landis+Gyr C&I Metering: S4 Features • Build a meter concept - Software upgrade: AXL to AX to RX • Output relay flexibility - 4 out, 2 in • Up to 128k ram with 15 programmable channels of load profile and up to 6 Self-Reads • Modem, RS232, RS485, AMR module • High sampling rate - 3 MHz for V and I pairs • Simultaneous utilization of modem, LP, KYZ, TOU • Real-time Rate activation • Largest space “under cover” for AMR applications

  24. Enhancements To S4 – S4e • Customer’s investment protected -Flash memory *Allows upgrades and feature enhancements -128k ram – On board (15 LP channels) -Firmware versions available for ANSI tables or DGCOM protocols -Transformer Loss Compensation (available in ANSI version)

  25. ServiceScantm Displays NOTE: Continuous Display of Nominal Voltage and Service NOTE: Electronic Disk Emulator NOTE: Continuous Display GyrPyetm Power Quad Indicator

  26. S4 and S4e New Hybrid Cover

  27. New Hybrid Cover Features • Superior Design • Improved reset switch – easier to use • Non-yellowing automotive headlamp grade acrylic window molded into polycarbonate cover. • Window strength superior to competition cover • Existing optical port design • Keylock available • In production now

  28. Landis+Gyr - C&I Metering • S4 AMR Technologies • DCSI (“under-the-cover) – Now • PLC • SIMS (“under-the-cover”) - Now • Skytel pager network • Envoy (“under-the-cover”) – Now • Skytel pager network • Innovatech (External) – Now • RS232 output from meter • Comverge CDMA cellular (External) – Now • RS232 output from meter • Hunt (External) – Now • Pulse output from meter

  29. Landis+GyrS4 Family News Communicating S4 Meter Status • CDMA/GPRS (undercover) • June 04 • S4-Pager (ENVOY) – Released to Production (Offers Ultracap/No Btry) • IP module (undercover) • Development in works • 1- Field BETA test site now • DCSI CMT-S4 Module Released • 1-port, 3-port and 480V Versions

  30. Landis+GyrS4 Family News Additional S4 Communication OptionsUnder Development • StatSignal two-way 900 Mhz RF mesh technology – April 04 • Smart Synch Telephone Modem – Sample Stage Now • Hunt Technologies TS2 two-way module

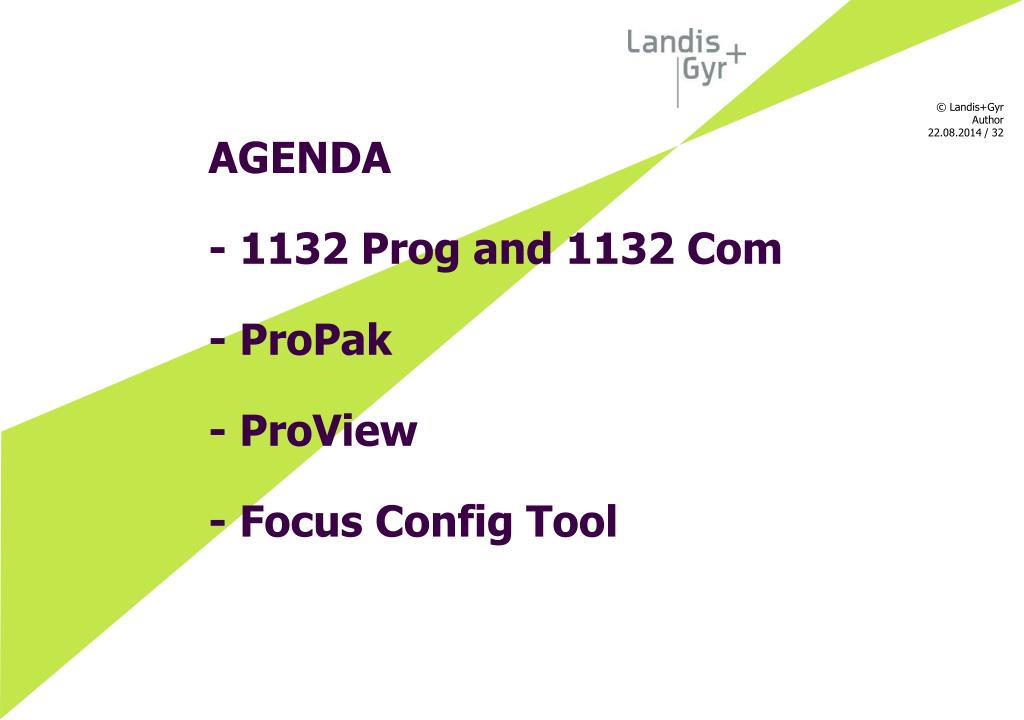

  31. AGENDA- 1132 Prog and 1132 Com - ProPak - ProView- Focus Config Tool

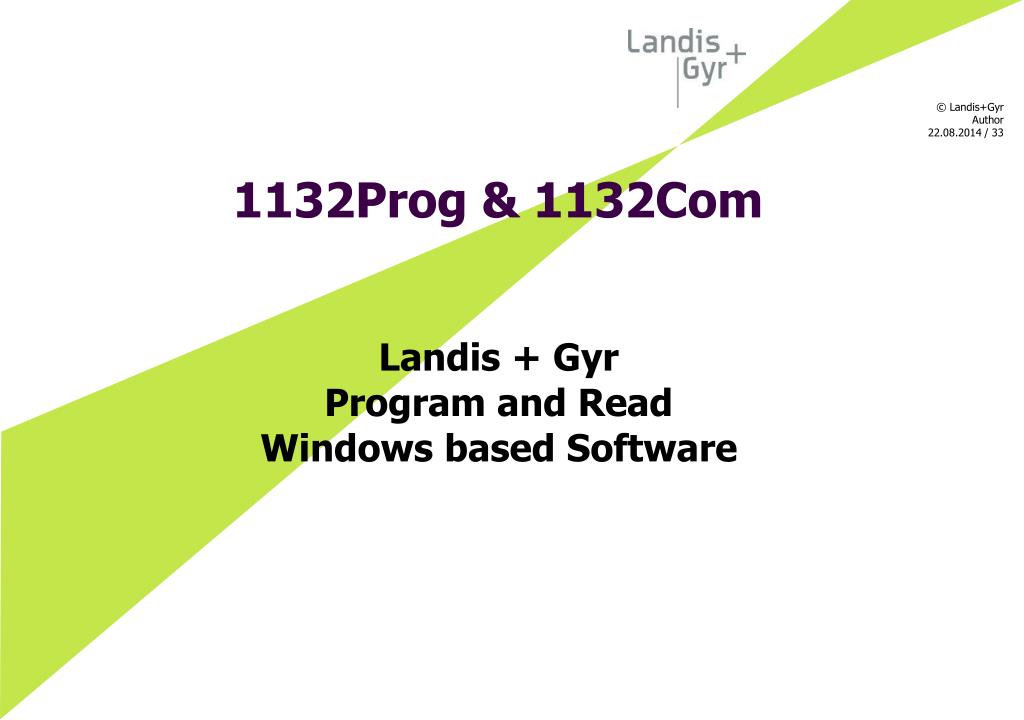

  32. 1132Prog & 1132Com Landis + Gyr Program and Read Windows based Software

  33. Training Agenda • This Presentation • Load Software • Demo 1132Prog • Demo 1132Com

  34. Products Supported? • DGCOM Protocol • -DXS2 Meters • -RDS3 Meters • -AX/RX S4 & AX/RX Altimus Meters • -DXMX Meters • ANSI Protocol • -AX/RXS4 Meters

  35. Products Not Supported • Optocom Protocol (Early to Mid 80’s) • CTR Registers • DD Registers • DG-100 Recorders • DC/DCR • PDR Family (Early 80’s)

  36. Cables Supported • Siemens Optical Probe • PM-500 Series Probes • GE Smartcoupler • Ametek Probe being investigated

  37. Operating Systems • We are committed to the following: • -Windows ’98 – Second Addition • -Windows NT • -Windows ME • -Windows 2000 • -Windows XP

  38. Database • MS Office Access 2000 • -Can use existing Access 2000 • - We provide RT MS Office Access 2000

  39. 1132Prog Functional Differences • 1132Prog is built as a project on an MS Access database • You can have multiple databases • Each database can have multiple field packages • Meter Upgrades are NOT part of 1132Prog/1132Com • Done with a utility called ProPak • Communication setup done within 1132Com • Field packages only for program availability and menu choices

  40. More 1132Prog Functional Differences • Two levels of Users in 1132Prog • Programmer • Cannot Edit Users or Security • Administrator • Can Edit everything • Sample programs never lost

  41. 1132Com Features • Probe/Protocol independent (you do not need to specify, but you can set which to try first) • PC serial port and modem setup within 1132Com • -Does not affect Operating System settings • -Uses ‘normal’ Windows GUI • Retains more device information • More extensive On Line information

  42. 1132Com Features Cont’d • Retains Communications Log and Trace Log • Can see Load Profile via View Data • More information available during comm sessions • Task Bar can be customized • V & A can be displayed & printed as vectoral diagram • Much more complete on-line help • Wizard tool for programming

  43. 1132 Installation • There are two down loads: 1132Prog and 1132Com • 1132Prog installation • - Do not have Access at all and need Access 2000 RT (70MB) • - Have Access ’97 and need Access 2000 RT (10MB)

  44. 1132Com Installation • Can be loaded independent of 1132Prog • It is a separate install • Requires about 15MB (plus ‘room’ for data)

  45. 1132Prog to 1132Com • If on same PC, run 1132Com from 1132Prog • If on a different PC, load 1132Com and then simply copy needed Access databases (*.mdb) to 1132Com • Source directory (default) • C:\Program Files\Siemens\1132Prog\Meter Files • Default destination directory is the same

  46. Reporting • ProView, with a ‘new’ LPFILES, will support DGCOM files • MAXtrac, when updated, will support both ANSI and DGCOM • MV-90 is able to handle DGCOM now • Working with MV-90 on the ANSI support

  47. Migration from DG1100 • Programs built in DG1100 cannot be migrated! • Too many differences in the data structures • Good opportunity to clean them up

  48. Support • Call your local Salesperson • Call the Siemens Metering Help Desk (800) 777-2774

  49. Problem Reporting • Call the help desk (800) 777-2774 • Be prepared to provide: • Good problem description • Operating system • Version in question • Meter type & firmware • Database and data directory on request
