  1. Leveraging User Interactions forIn-Depth Testing of Web Applications Sean McAllister, EnginKirda, and Christopher Kruegel RAID ’08 Seoyeon Kang November 4, 2008

  2. Introduction • Complexity ↑ • Bugs ↑ • Vulnerability ↑ Static  Dynamic

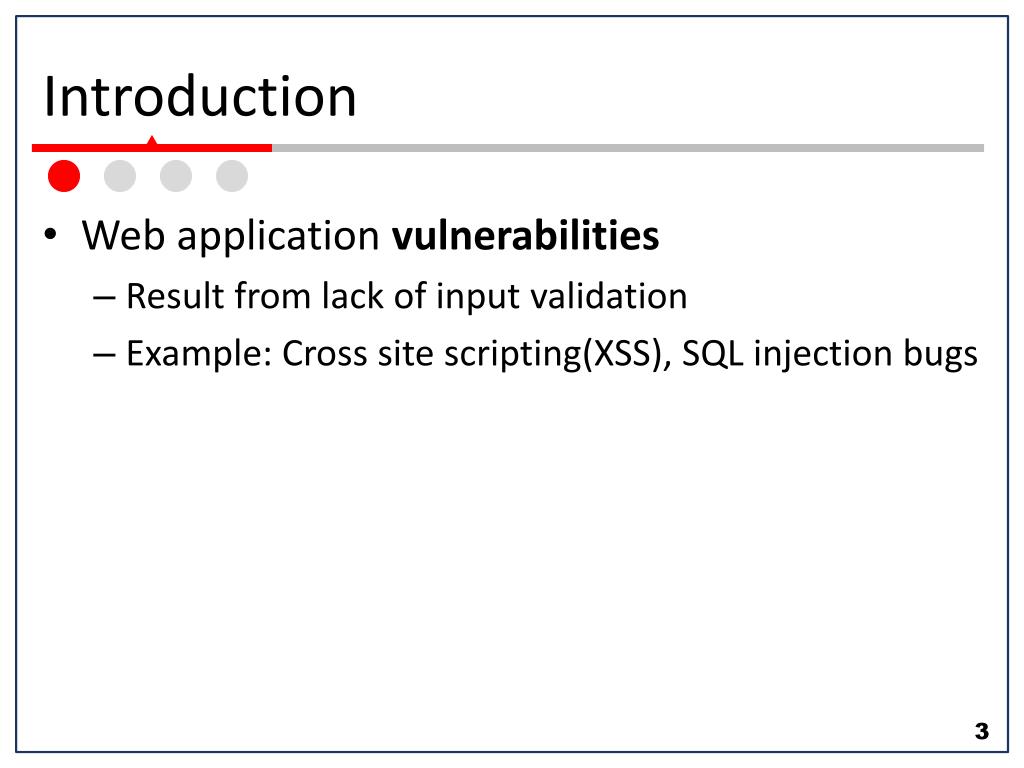

  3. Introduction • Web application vulnerabilities • Result from lack of input validation • Example: Cross site scripting(XSS), SQL injection bugs

  4. Review (1) • Cross site scripting(XSS) • Malicious scripting code which transfers sensitive information to the attacker is injectedinto the output of an application • Stored XSS: Attacker persistently stores the malicious code in a resource such as a database. • Reflected XSS: Script is reflected to the victim.

  5. Review (2) • SQL injection • Malicious input can reacha DB query and modify the intended semantics of this query

  6. Background (1) • Testing tool • White box testing : the source code of the application is analyzed to indicate errors or vulnerabilities. • Black box testing : Special input test cases are generated and sent to the application. Then, the results are analyzed.

  7. Background (2) • Testing tool

  8. Background (3) • Vulnerability scanner • An automated security program that searches for software vulnerabilities within web applications

  9. Background (4) • Steps of vulnerability scanner • Web spider finds valid injection points • Provide a variety of specially-crafted, malformed input values that trigger certain classes of vulnerabilities • Analyze response that web application returns

  10. Limitations • Fail case : To leave a comment in blogging site

  11. Limitations • Code coverage • Scanner does not have any knowledge about use cases • Built-in web spider is insufficient

  12. Goal • Improve the effectiveness of web vulnerability scanners • Increase test coverage

  13. Approach • Leverage input from real users as a starting point for testing • Generate test cases that can be replayed • Interact with the web application in a more meaningful fashion • For detection of stored XSS vulnerability

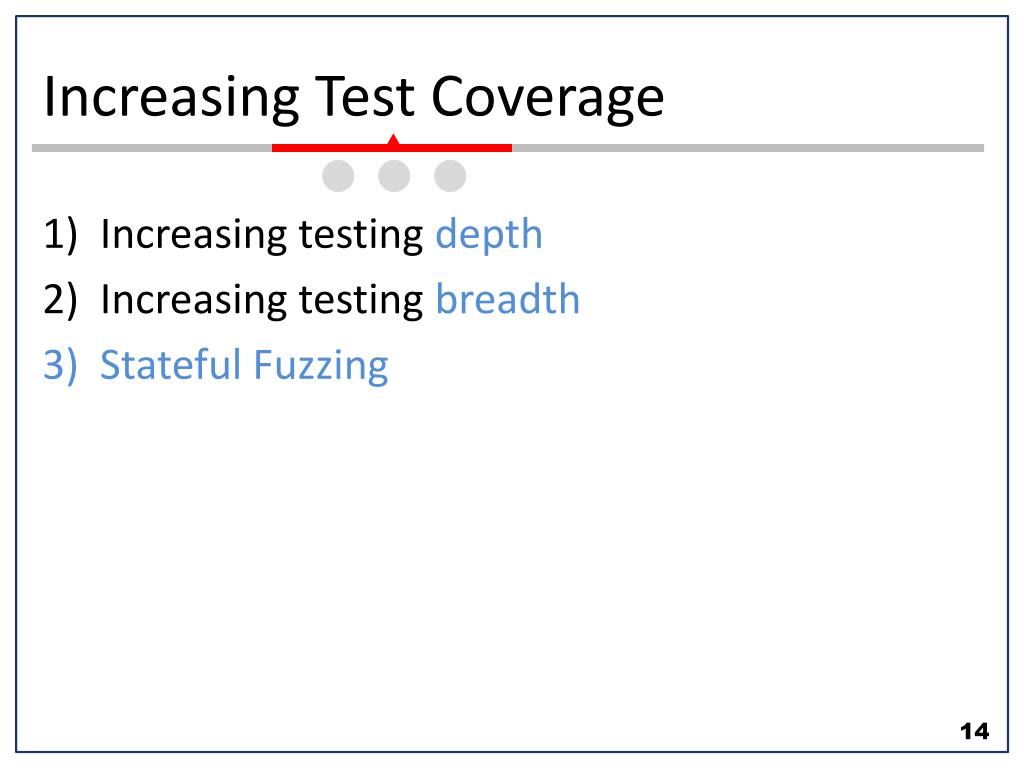

  14. Increasing Test Coverage Increasing testing depth Increasing testing breadth Stateful Fuzzing

  15. 1) Increasing testing depth • Leverage actual user input • Collecting input • Record requests directly at the server • Replaying input • Execute one step • Fuzzer replace the valid inputs to malformed values in database • Previously recorded input values are used for the next step. • Guided fuzzing : process of using previously collected traces

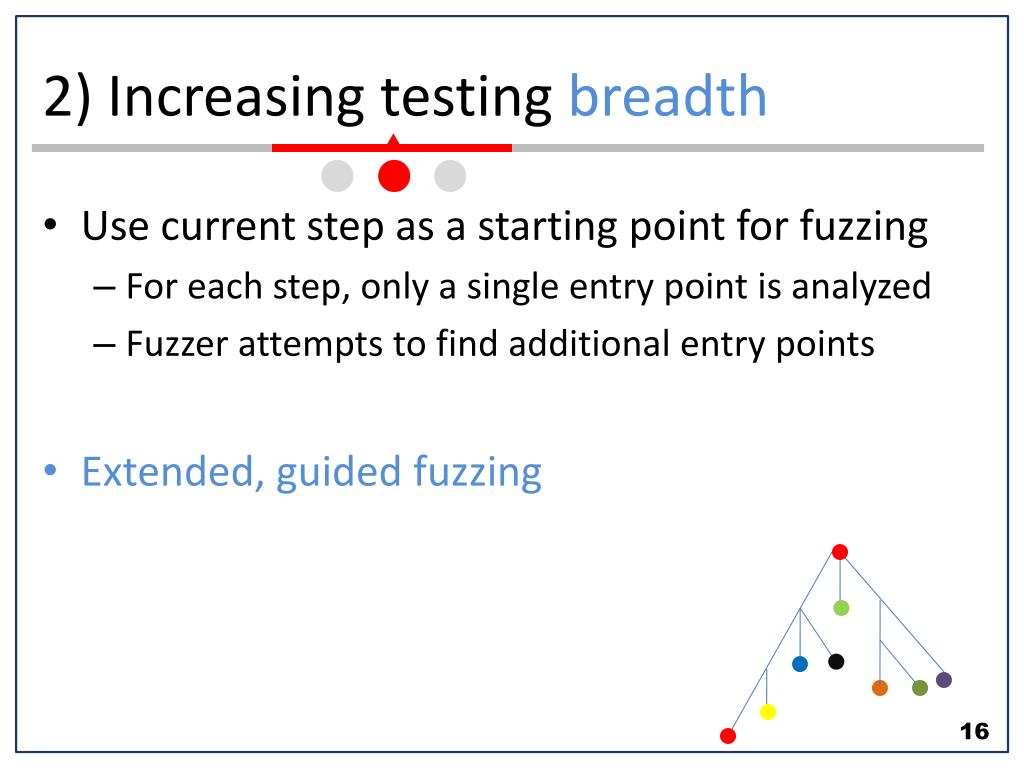

  16. 2) Increasing testing breadth • Use current step as a starting point for fuzzing • For each step, only a single entry point is analyzed • Fuzzer attempts to find additional entry points • Extended, guided fuzzing

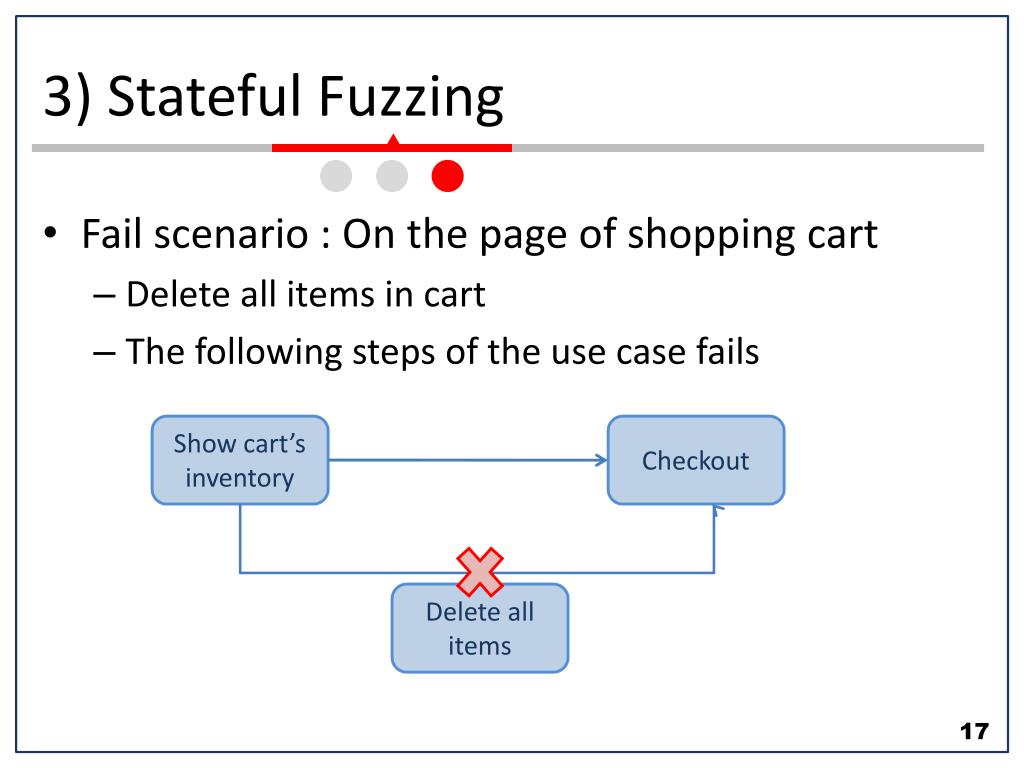

  17. 3) Stateful Fuzzing Show cart’s inventory Checkout Delete all items • Fail scenario : On the page of shopping cart • Delete all items in cart • The following steps of the use case fails

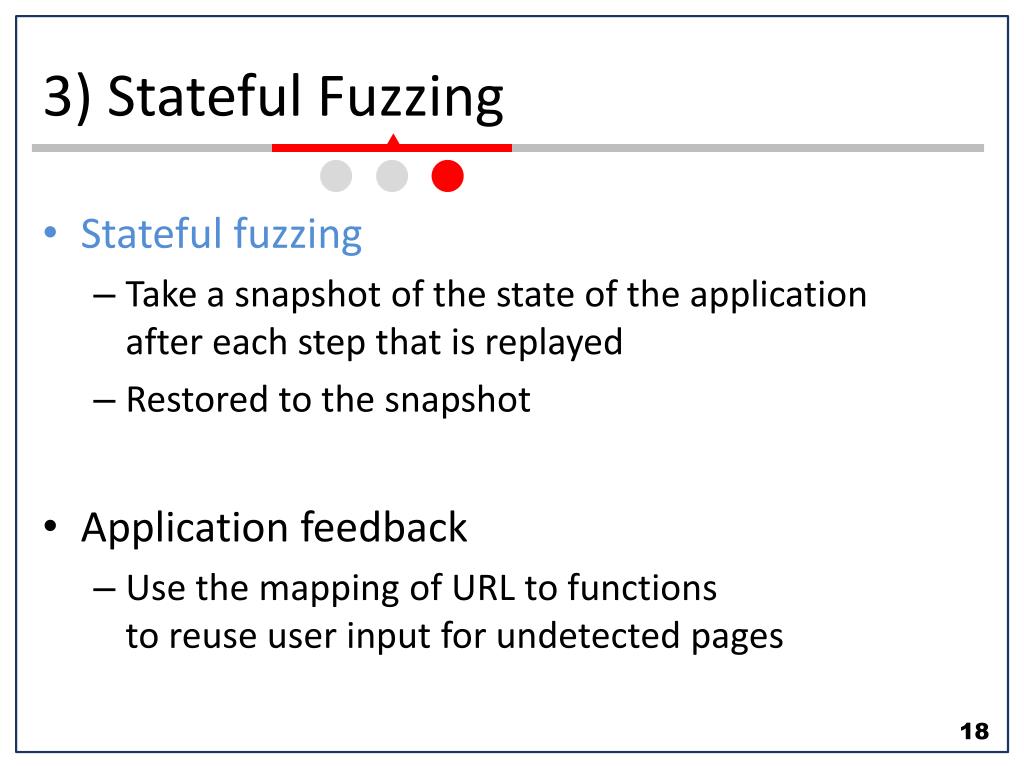

  18. 3) Stateful Fuzzing • Stateful fuzzing • Take a snapshot of the state of the application after each step that is replayed • Restored to the snapshot • Application feedback • Use the mapping of URL to functions to reuse user input for undetected pages

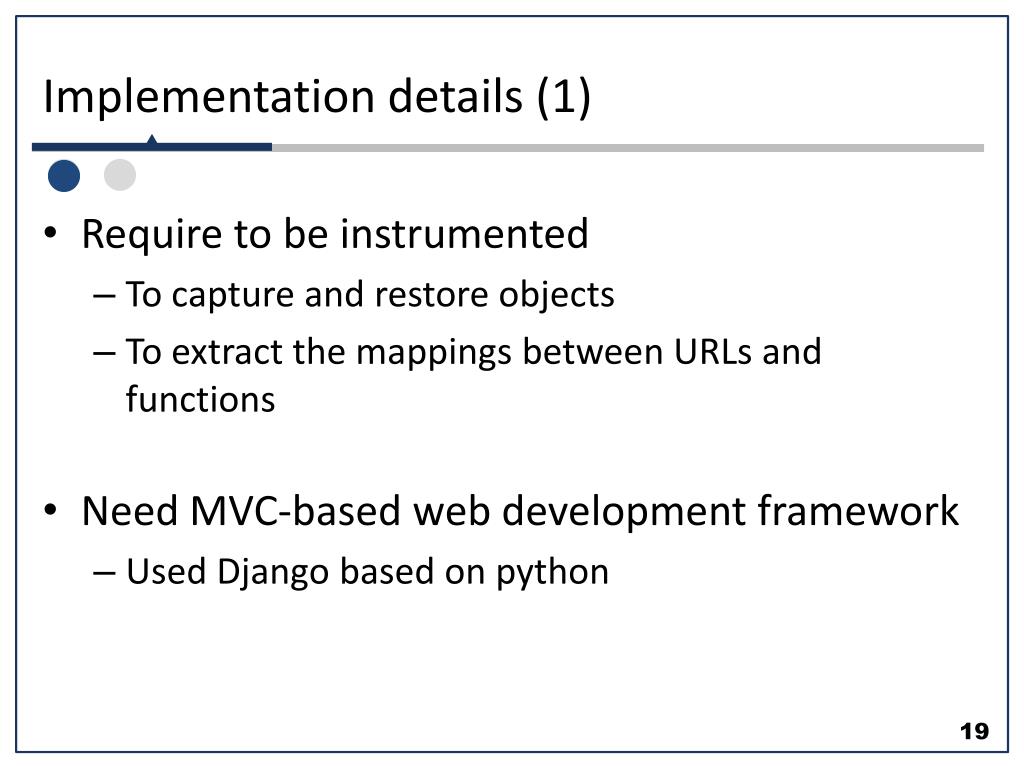

  19. Implementation details (1) • Require to be instrumented • To capture and restore objects • To extract the mappings between URLs and functions • Need MVC-based web development framework • Used Django based on python

  20. Implementation details (2) • Capturing web requests • Log all incoming requests and mappings b/w URL and functions through the URL dispatcher class • Replaying use cases • Analyze a page and find the form elements • Capturing object manipulations • Attach event listeners that wait for signals that are raised when an object is created, updated, or deleted • Fuzzer component • Use existing fuzzer component

  21. Evaluation • 3 publicly available, real-world web applications based on Django • Blogging application • Forum software • Web shop • simple web spider and 3 existing web vulnerability scanners • Burp Spider • W3af spider • Acunetix Web Vulnerability Scanner

  22. Test methodology • Way to assess the effectiveness orcoverage • Number of vulnerabilities • Number of locations that a scanner visits  Number of vulnerable injection points  Number of created different database objects (for detecting stored XSS) • Only tested for XSS vulnerabilities

  23. Experimental results • 1) Blogging application • 2) Forum software • 3) Web shop

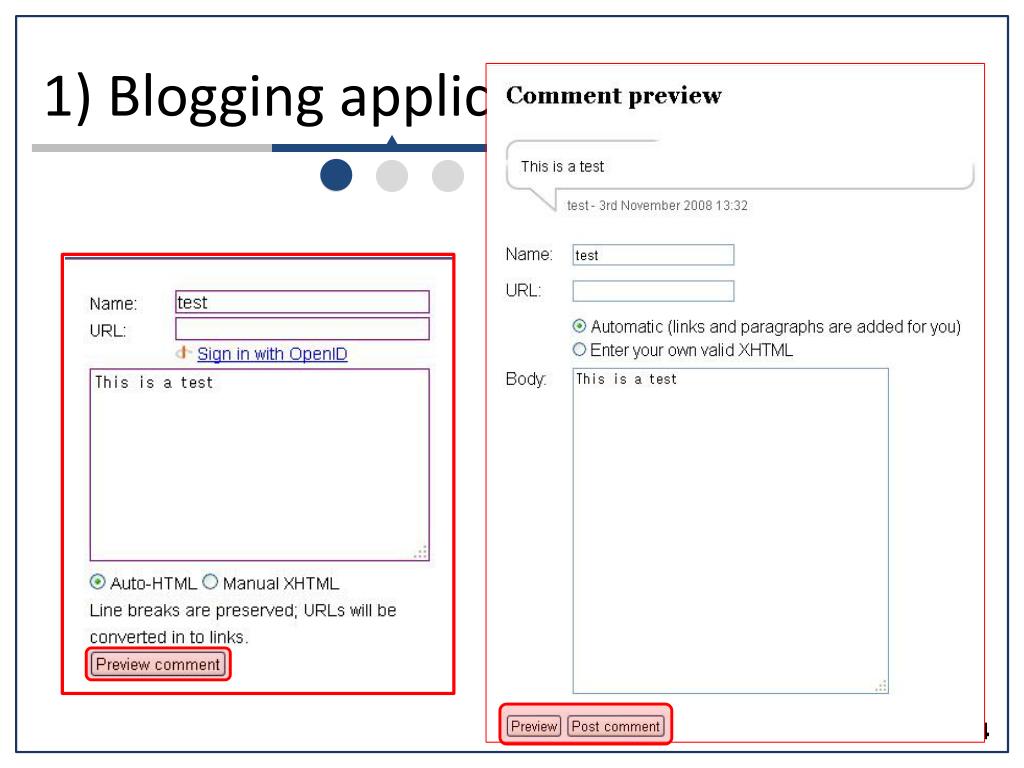

  24. 1) Blogging application

  25. 1) Bloggingapplication Scanner effectiveness for blog application

  26. 2) Forumapplication Scanner effectiveness for forum application

  27. 3) Online shopping application Scanner effectiveness for online shopping application

  28. 3) Online shopping application Object creation statistics (Acunetix vs. this )

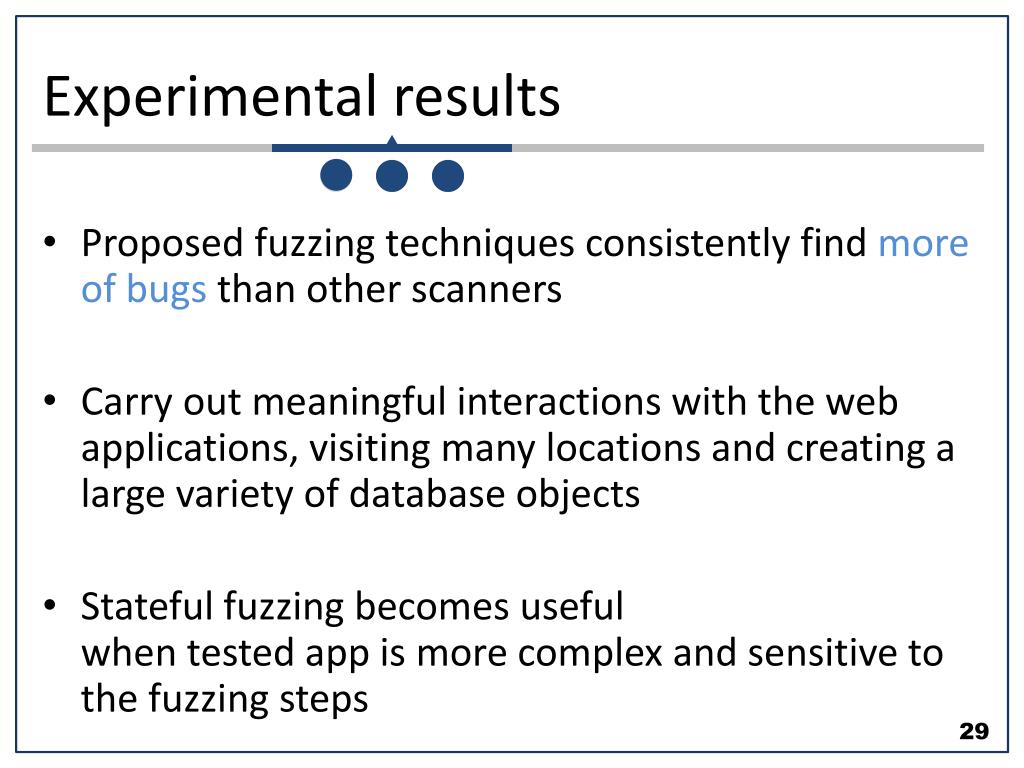

  29. Experimental results • Proposed fuzzing techniques consistently find more of bugs than other scanners • Carry out meaningful interactions with the web applications, visiting many locations and creating a large variety of database objects • Stateful fuzzing becomes useful when tested app is more complex and sensitive to the fuzzing steps

  30. Related work • Black box scanner • SecuBat- coverage limitation • General vulnerability detection tool • Nikto, Nessus - use known velnerability DB • Automated test case generator • Random test case generation - depth limitation

  31. Summary • The core of system is a black-box vulnerability scanner • Proposed approaches to allow the scanner to reach deeper into application • Guided fuzzing • Extended, guided fuzzing • Stateful fuzzing • This approach can identify more vulnerabilities than several open-source and commercial web vulnerability scanners

  32. Thank you
