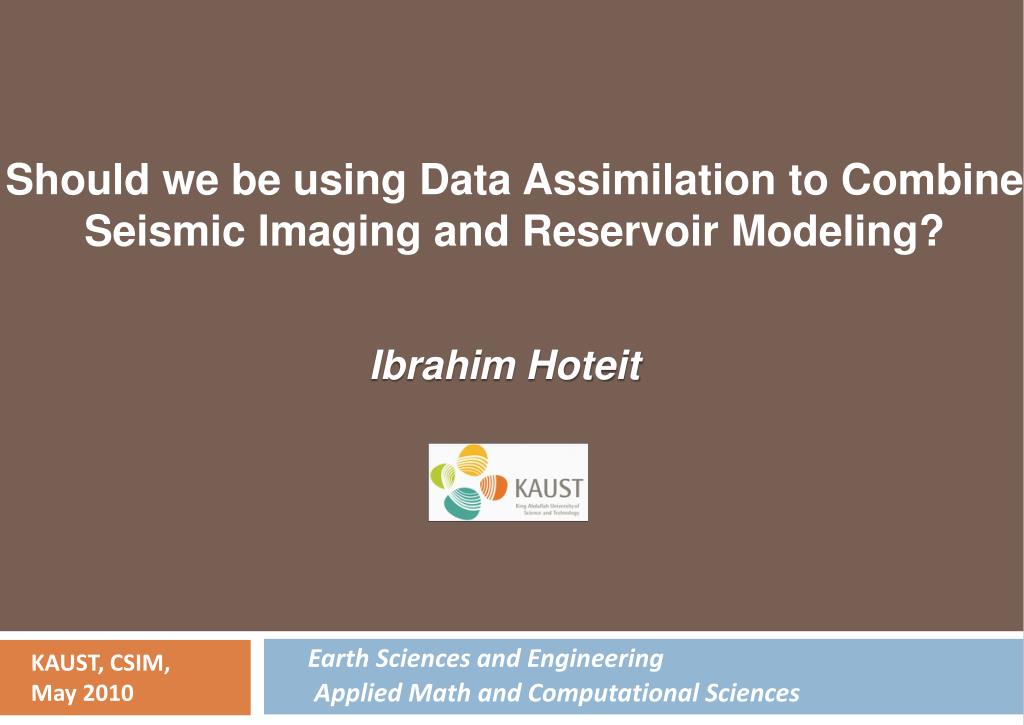

  1. Should we be using Data Assimilation to Combine Seismic Imaging and Reservoir Modeling? Earth Sciences and Engineering Applied Math and Computational Sciences Ibrahim Hoteit KAUST, CSIM, May 2010

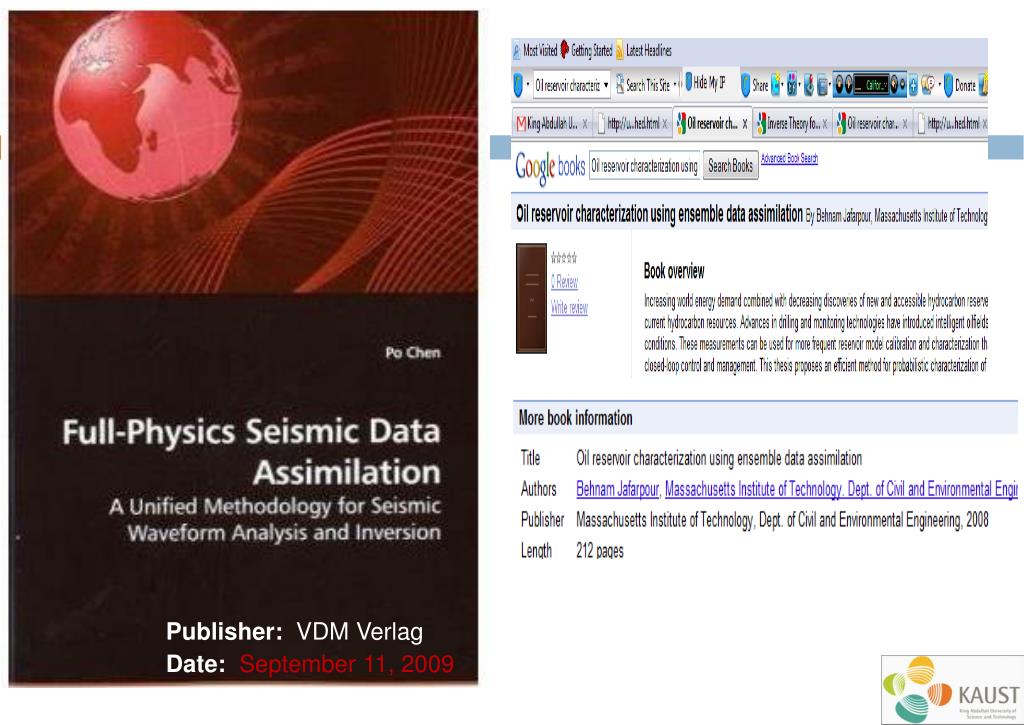

  2. Publisher: VDM Verlag Date: September 11, 2009

  3. Outline • What is Data Assimilation? • Methods of Data Assimilation Least-Squares & Bayesian methods • Ensemble Kalman Filtering An Example (ocean - but related - application …) • Discussion

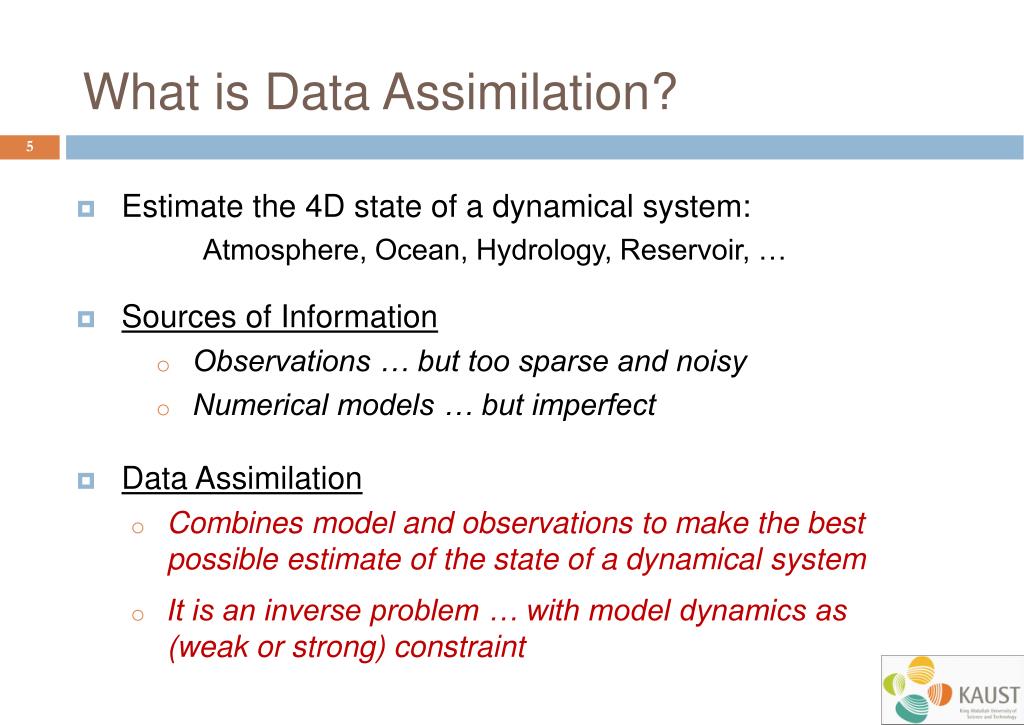

  4. What is Data Assimilation? • Estimate the 4D state of a dynamical system: Atmosphere, Ocean, Hydrology, Reservoir, … • Sources of Information • Observations … but too sparse and noisy • Numerical models … but imperfect • Data Assimilation • Combines model and observations to make the best possibleestimate of the state of a dynamical system • It is an inverse problem … with model dynamics as (weak or strong) constraint

  5. Context in Reservoir-Seismic 6 4D Seismic Time Reservoir model Poroelasticity model

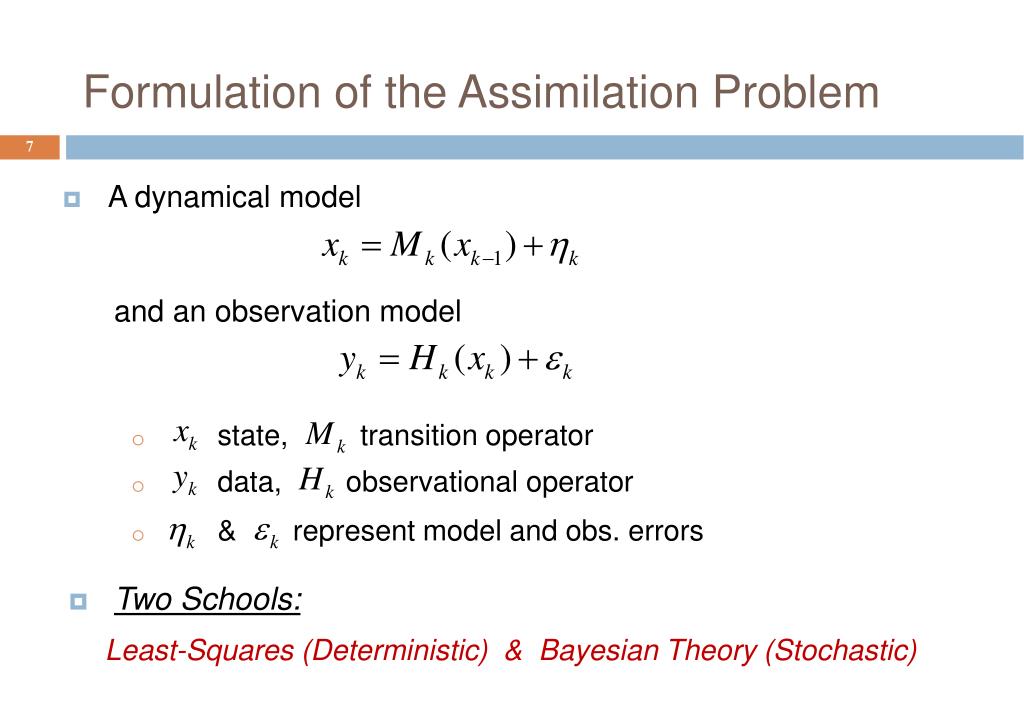

  6. Formulation of the Assimilation Problem • A dynamical model • and an observation model • state, transition operator • data, observational operator • & represent model and obs. errors • TwoSchools: • Least-Squares (Deterministic) & Bayesian Theory (Stochastic)

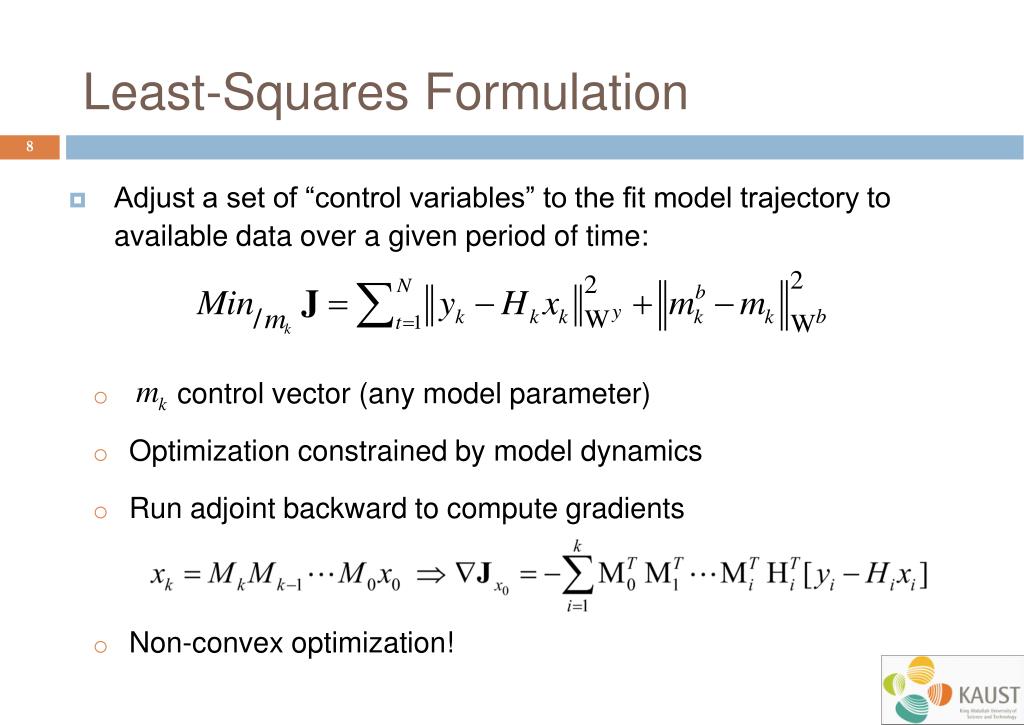

  7. Least-Squares Formulation • control vector (any model parameter) • Optimization constrained by model dynamics • Run adjoint backward to compute gradients • Non-convex optimization! • Adjust a set of “control variables” to the fit model trajectory to available data over a given period of time:

  8. Recursive Bayesian Formulation 9 • Determine the pdf of the state given all observations up to the estimation time • Forecast step: Integrate analysis pdfwith the model • Correction step: Update forecast pdfwith the new obs

  9. Least-Squares vs. Bayesian • Same solution when the system is linear and perfect • Geosciences applications: • Nonlinear and imperfect system • Huge dimension (~ 108) and costly models •  Different solutions! • Which one is more appropriate? • Least-Squares • Requires adjoint models • Non-convopti when nonlinear • Not suitable for forecasting • Bayesian • Only forward models • Better with nonlinear systems • Estimates of uncertainties

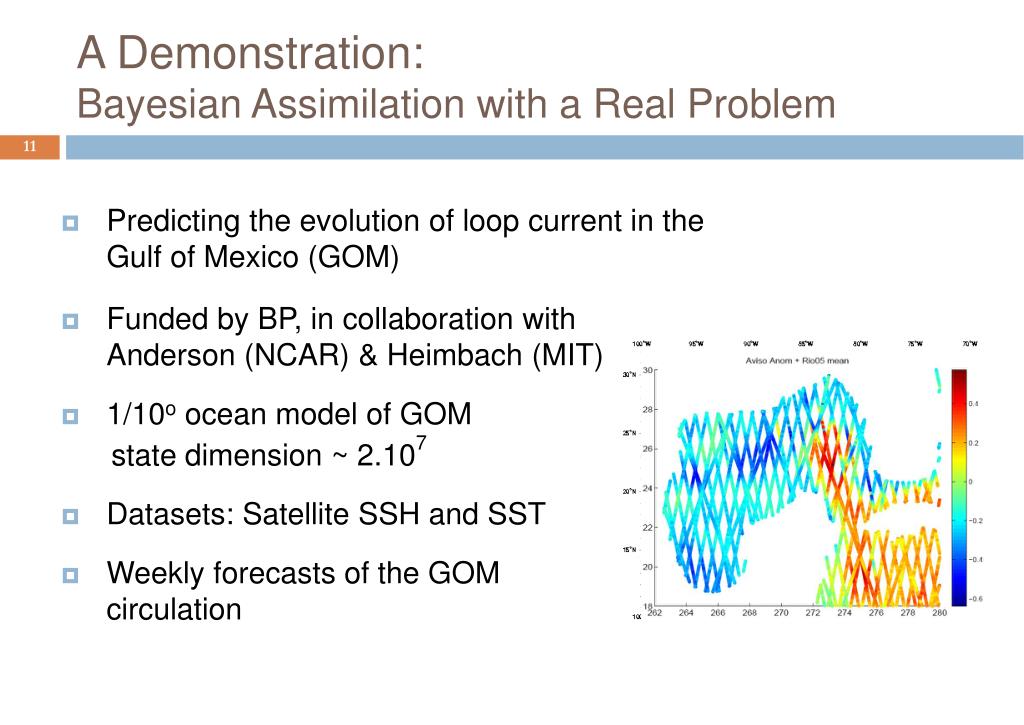

  10. A Demonstration: Bayesian Assimilation with a Real Problem • Predicting the evolution of loop current in the Gulf of Mexico (GOM) • Funded by BP, in collaboration with Anderson (NCAR) & Heimbach (MIT) • 1/10o ocean model of GOM • state dimension ~ 2.107 • Datasets: Satellite SSH and SST • Weekly forecasts of the GOM circulation

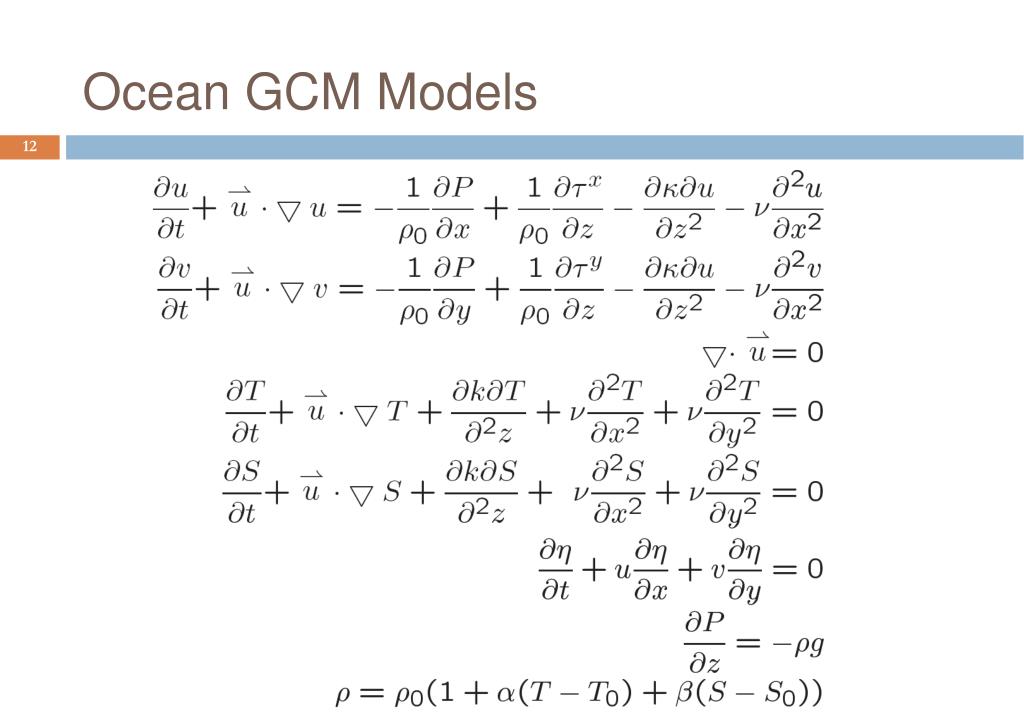

  11. Ocean GCM Models

  12. Bayesian Solution - Kalman Filtering • State pdf is Gaussian for linear models with Gaussian noise • Need to determine mean and covariance of the pdf only • In this case, the Kalman filter recursively provides the BLUE estimate of the state given previous observations • Two steps: • Forecast step to propagate estimate and uncertainties • Analysis step to correct forecast with the new observation

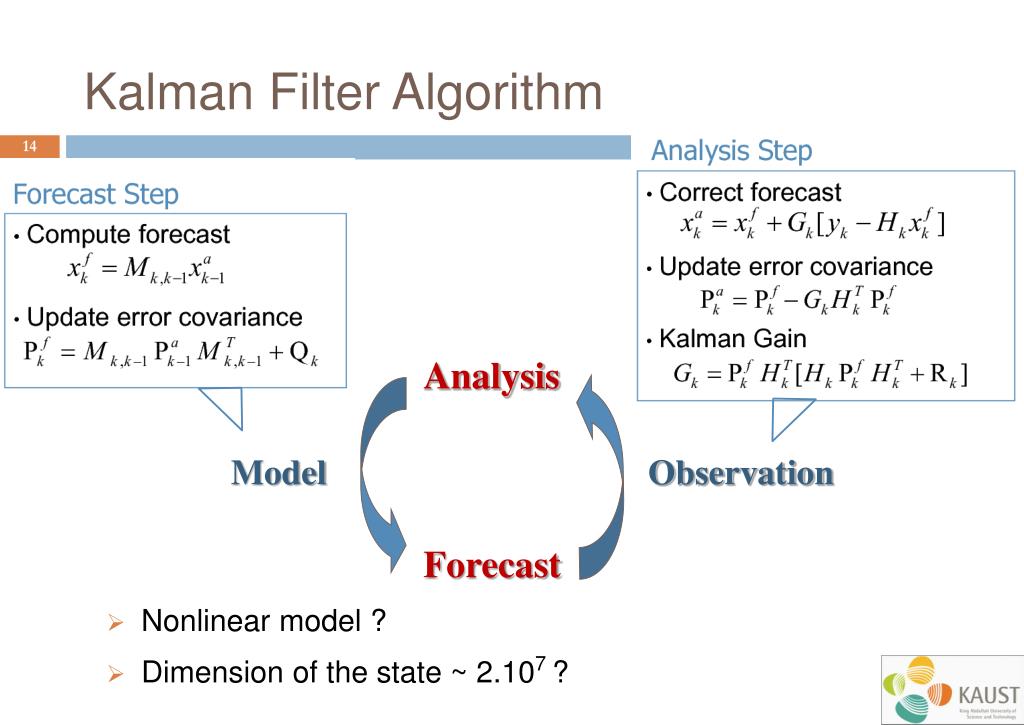

  13. Kalman Filter Algorithm Analysis Model Observation Forecast • Nonlinear model ? • Dimension of the state ~ 2.107?

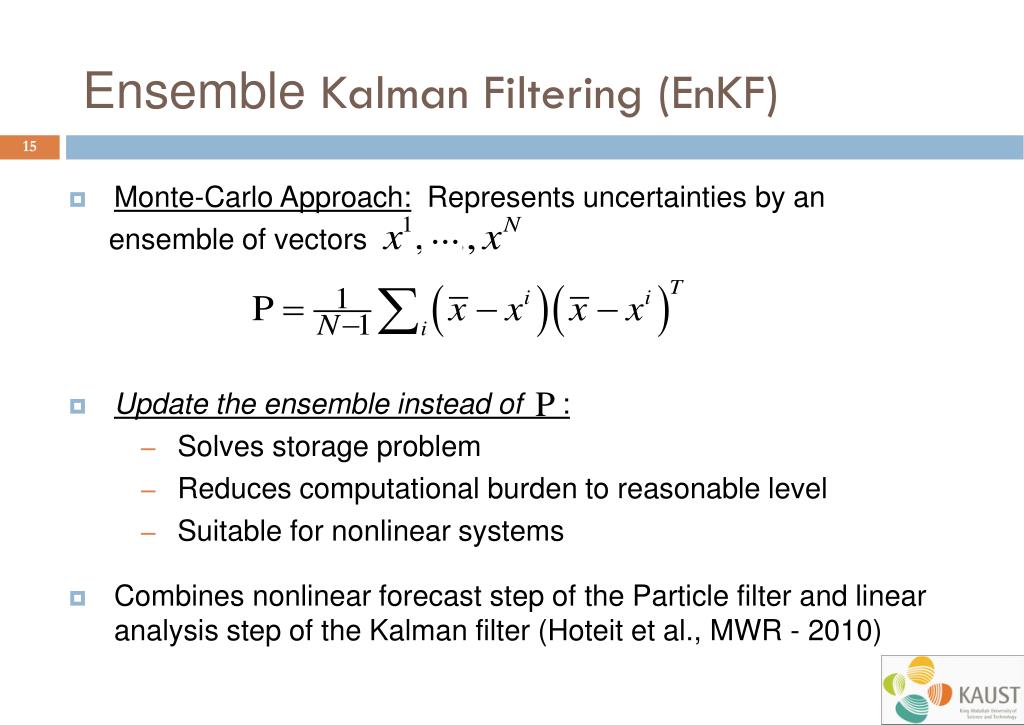

  14. Ensemble Kalman Filtering (EnKF) • Monte-Carlo Approach: Represents uncertainties by an • ensemble of vectors • Update the ensemble instead of : • Solves storage problem • Reduces computational burden to reasonable level • Suitable for nonlinear systems • Combines nonlinear forecast step of the Particle filter and linear analysis step of the Kalman filter (Hoteit et al., MWR - 2010) …

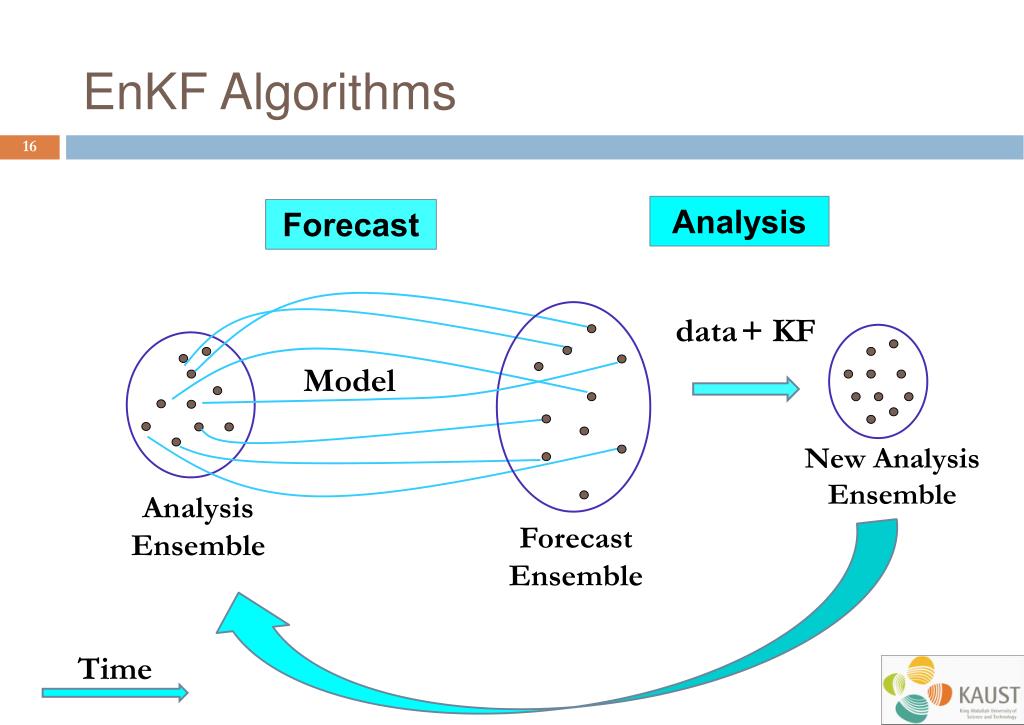

  15. EnKF Algorithms Analysis Forecast data + KF Model New Analysis Ensemble Analysis Ensemble Forecast Ensemble Time

  16. Weekly SSH Estimates Satellite SSH Forecast Analysis 50 ensemble members

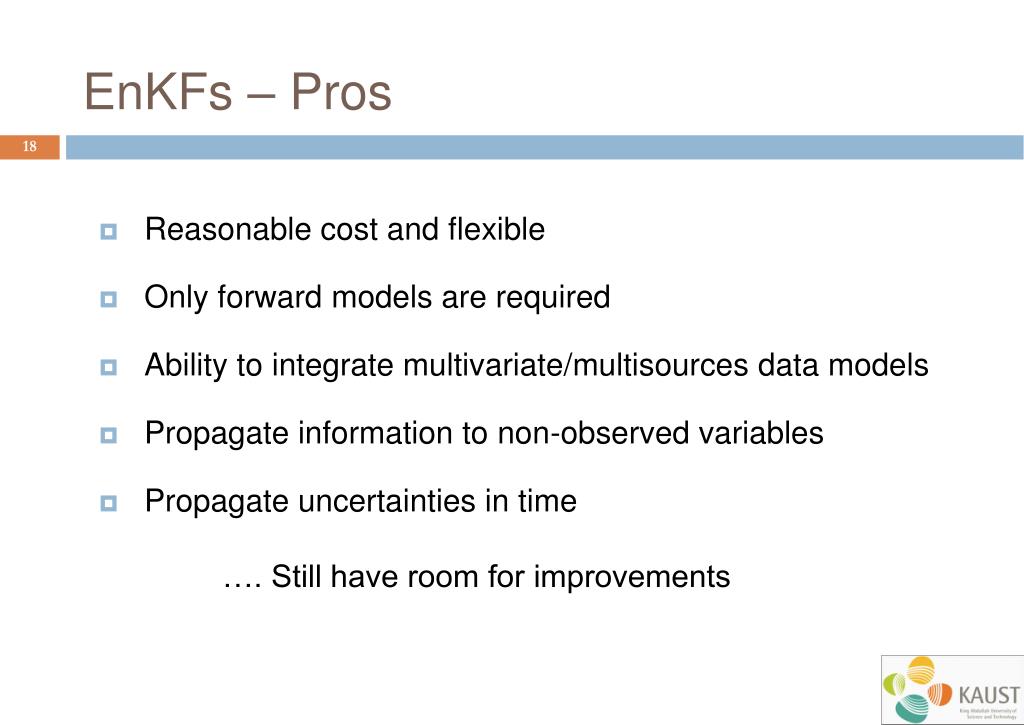

  17. EnKFs – Pros • Reasonable cost and flexible • Only forward models are required • Ability to integrate multivariate/multisources data models • Propagate information to non-observed variables • Propagate uncertainties in time • …. Still have room for improvements

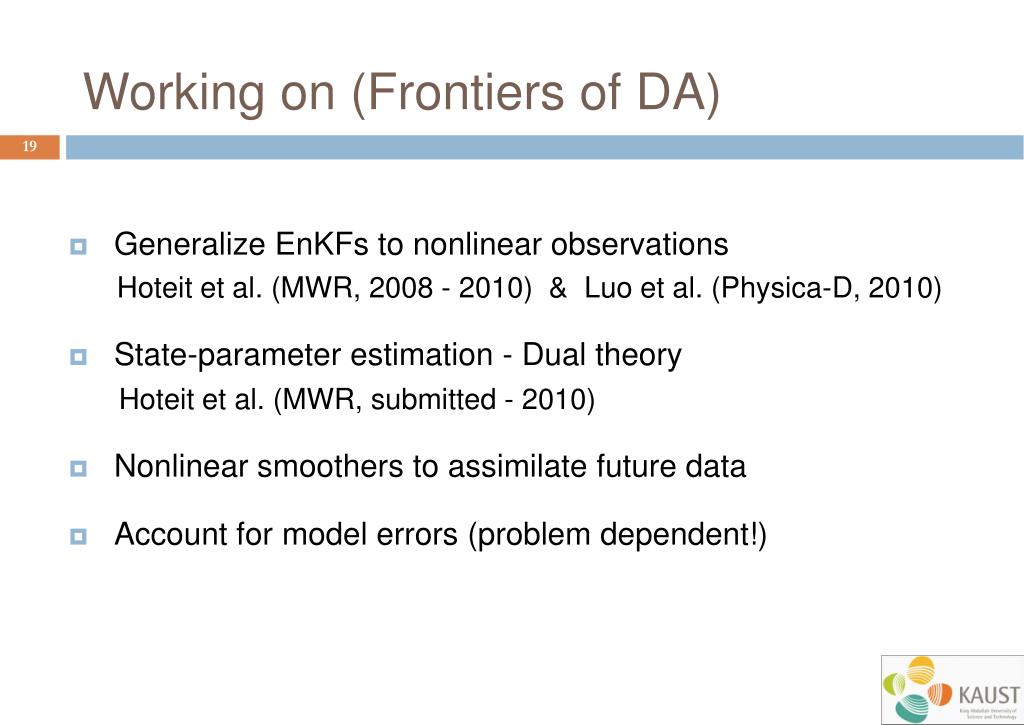

  18. Working on (Frontiers of DA) • Generalize EnKFs to nonlinear observations • Hoteit et al. (MWR, 2008 - 2010) & Luo et al. (Physica-D, 2010) • State-parameter estimation - Dual theory • Hoteit et al. (MWR, submitted - 2010) • Nonlinear smoothers to assimilate future data • Account for model errors (problem dependent!)

  19. Discussion • Bayesian assimilation methods were proven efficient to constrain large dimensional nonlinear models with measurements • A framework to integrate different/multi observation models • A framework to deal with different uncertainties • Should we be using data assimilation in seismic imaging and reservoir modeling? • If we want to use 4D seismic data to constrain the reservoir state, the answer is definitely yes!

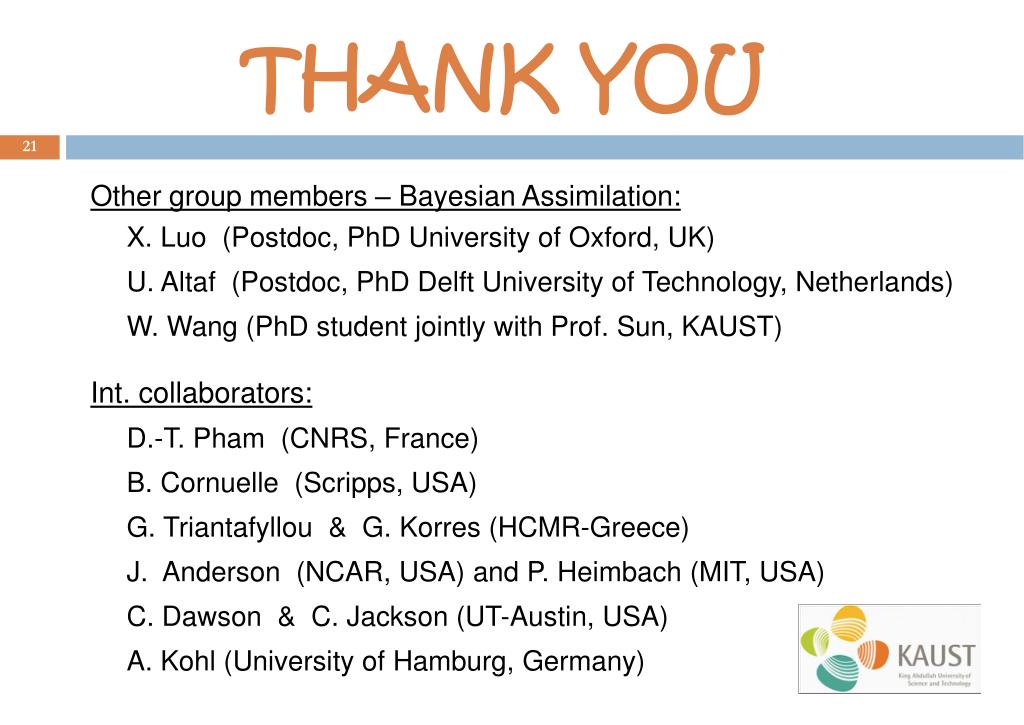

  20. THANK YOU Other group members – Bayesian Assimilation: X. Luo (Postdoc, PhD University of Oxford, UK) U. Altaf (Postdoc, PhD Delft University of Technology, Netherlands) W. Wang (PhD student jointly with Prof. Sun, KAUST) Int. collaborators: D.-T. Pham (CNRS, France) B. Cornuelle (Scripps, USA) G. Triantafyllou & G. Korres (HCMR-Greece) J. Anderson (NCAR, USA) and P. Heimbach (MIT, USA) C. Dawson & C. Jackson (UT-Austin, USA) A. Kohl (University of Hamburg, Germany)

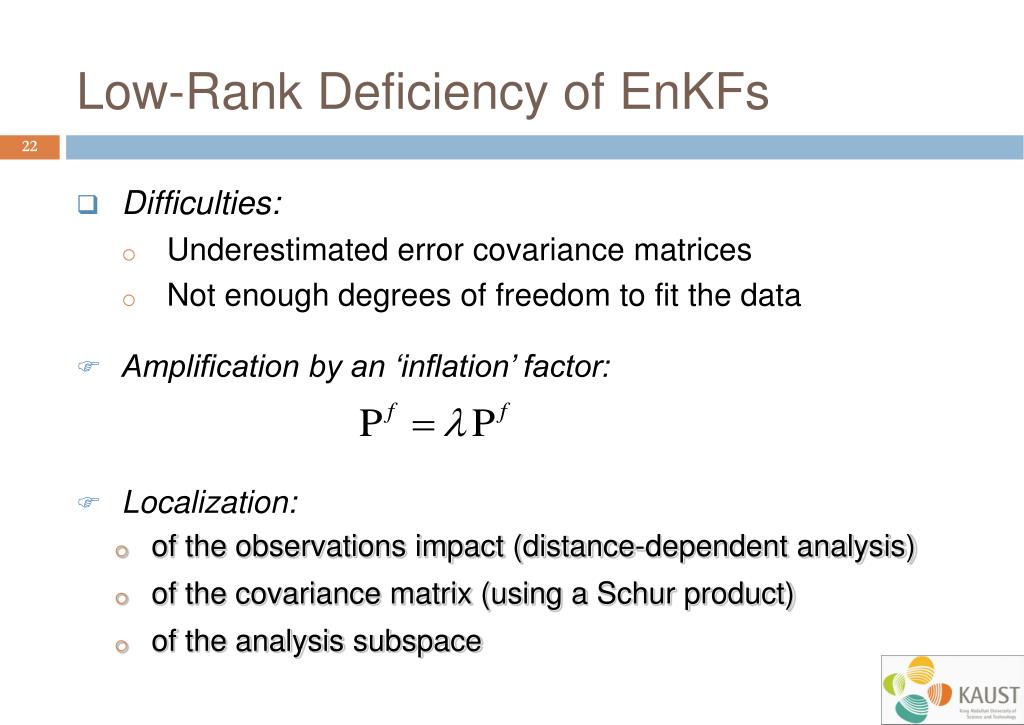

  21. Low-Rank Deficiency of EnKFs • Difficulties: • Underestimated error covariance matrices • Not enough degrees of freedom to fit the data • Amplification by an ‘inflation’ factor: • Localization: • of the observations impact (distance-dependent analysis) • of the covariance matrix (using a Schur product) • of the analysis subspace

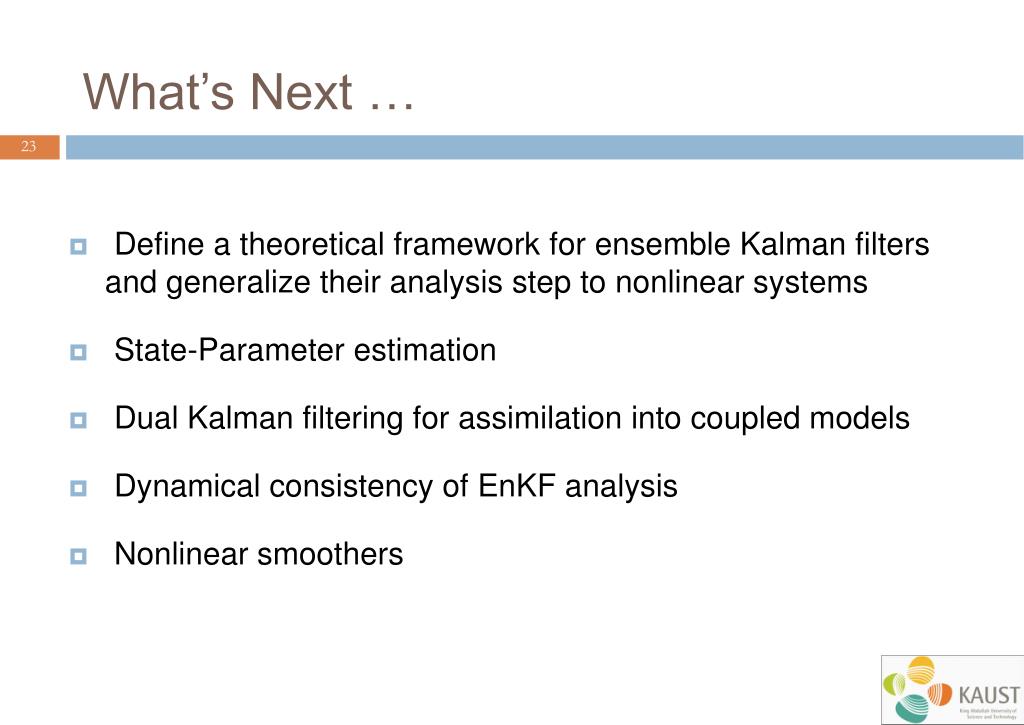

  22. What’s Next … • Define a theoretical framework for ensemble Kalman filters and generalize their analysis step to nonlinear systems • State-Parameter estimation • Dual Kalman filtering for assimilation into coupled models • Dynamical consistency of EnKF analysis • Nonlinear smoothers
