Presentation Transcript


Vnc virtual network computing

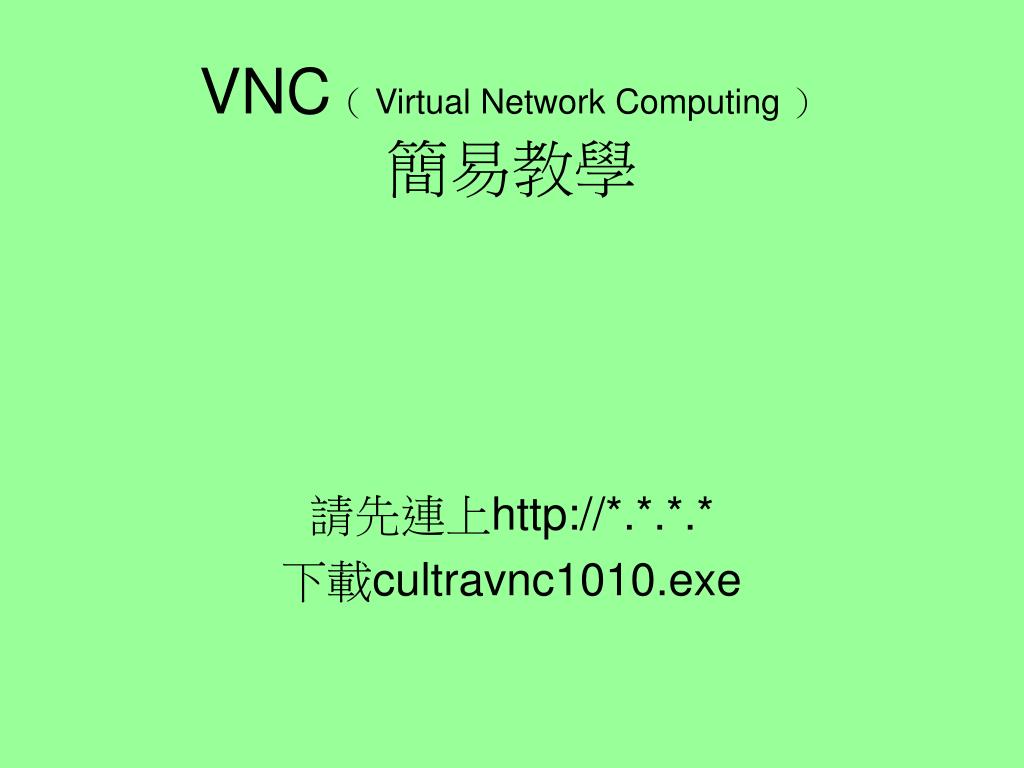

VNC( Virtual Network Computing )簡易教學

請先連上http://*.*.*.*

下載cultravnc1010.exe


Vnc virtual network computing

什麼是VNC

優點:

  • VNC是一套免費且開放原始碼的遠端遙控工具

  • 支援的平台眾多,計有:Mac ,Windows xx , Solaris Linux RPMs & Debian packages , Acorn RISC OS , Amiga , BeOS , BSDI , Cygwin32 , DOS , FreeBSD , Geos , GGI , HPUX , KDE , NetBSD , NetWinder , Nokia 9000 ,OpenStep/Mach , OS/2 , PalmPilot , SCO OpenServer , SGI Irix 6.2 , SPARC Linux , SunOS 4.1.3 , SVGALIB (Linux without an X server) , VMS , Windows CE , Windows NT/Alpha

  • 只要使用支援JAVA的瀏覽器即可充當客戶端,並不需要特別安裝VNC VIEWER

  • 登入對方電腦時,對方也可正常使用

    缺點

  • 速度慢

  • 本身沒有檔案傳輸功能

    [email protected]


Vnc virtual network computing

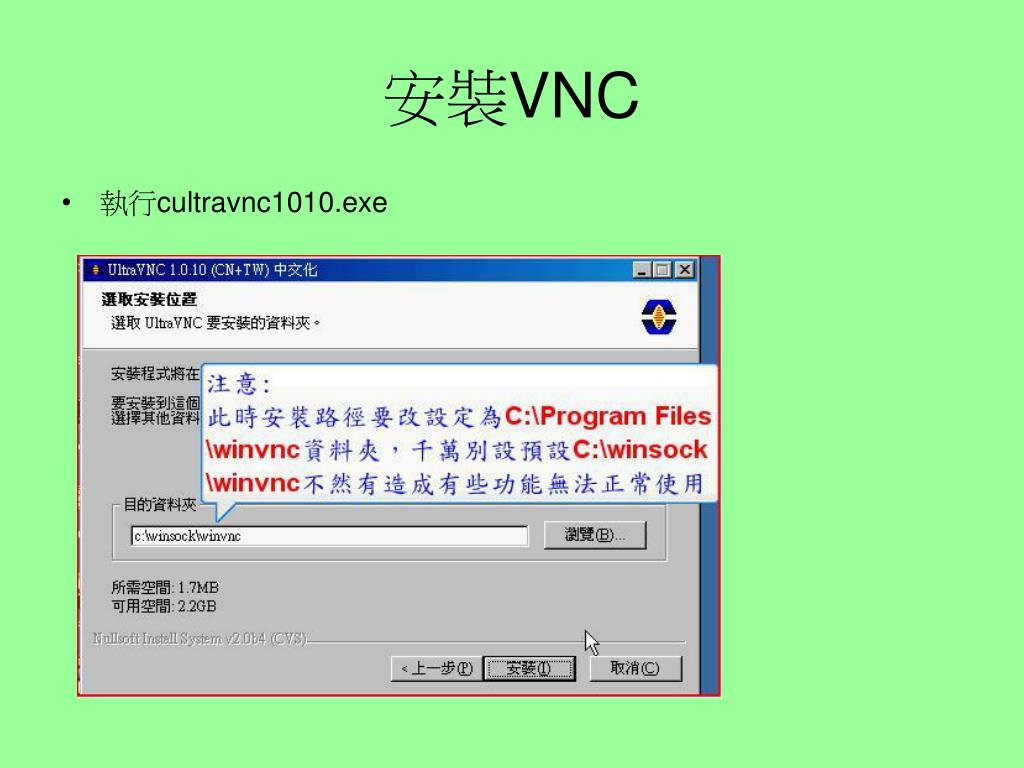

安裝VNC

  • 執行cultravnc1010.exe


Vnc virtual network computing

先不要勾選這兩項

請按”是”


Vnc server

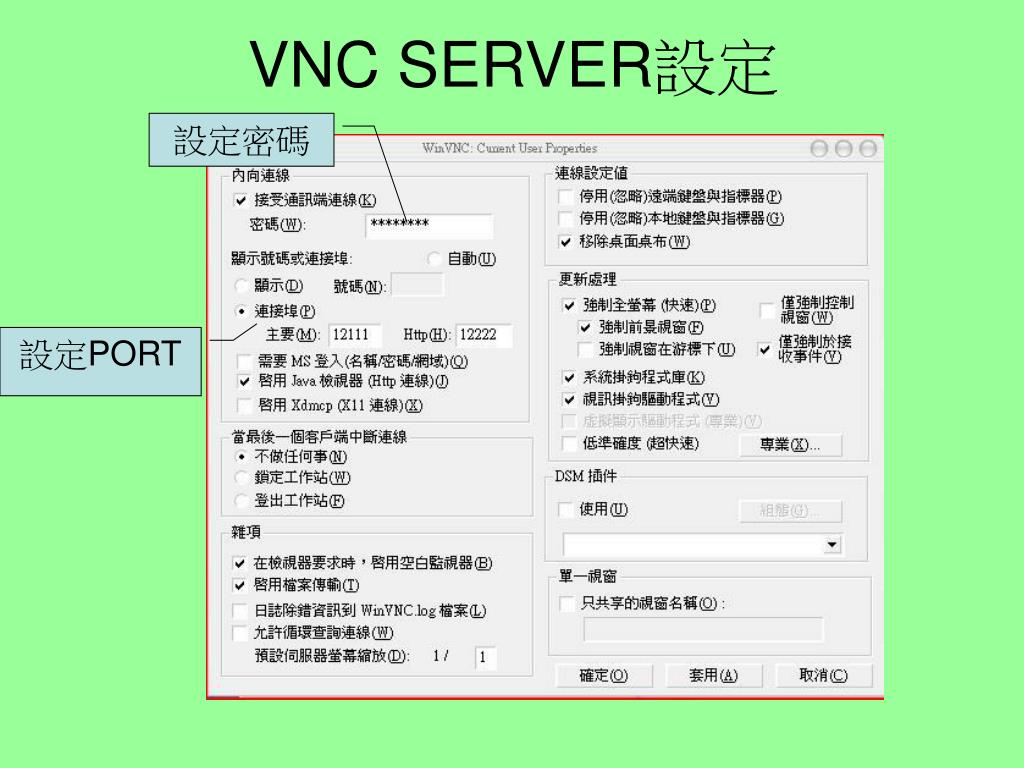

VNC SERVER設定

設定密碼

設定PORT


Vnc viewer

VNC VIEWER設定

輸入被控端IP


Vnc virtual network computing

輸入Ctrl+Alt+Delete

對談功能


Ie vnc

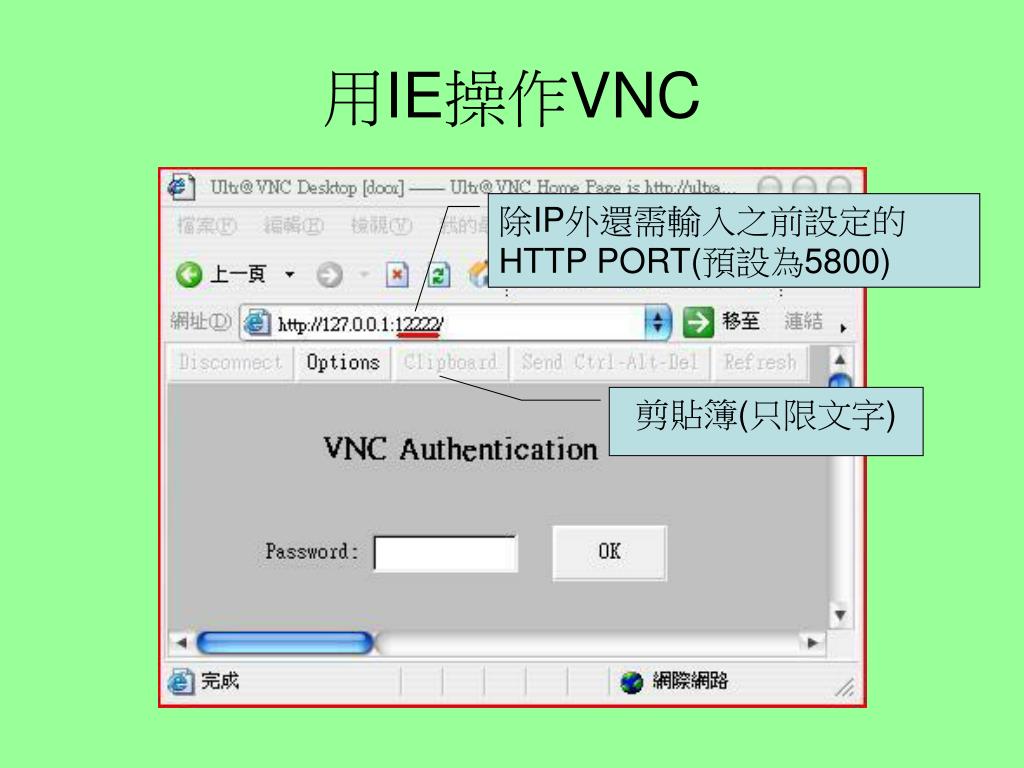

用IE操作VNC

除IP外還需輸入之前設定的HTTP PORT(預設為5800)

剪貼簿(只限文字)


Vnc virtual network computing

如果無法連線,請:

1.確認被遙控端有開啟VNC SERVER

2.確認被遙控端的防火牆有開啟對應的 PORT

3.若是瀏覽器無法連線,請確認是否有安裝JAVA VM


Vnc listen mode

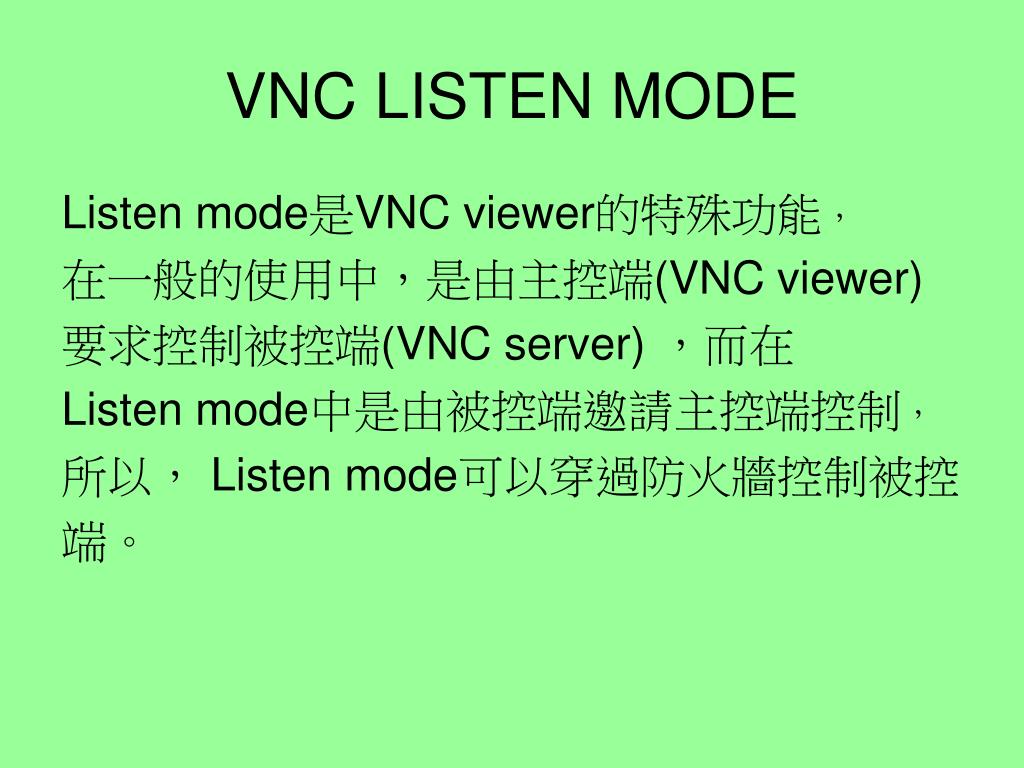

VNC LISTEN MODE

Listen mode是VNC viewer的特殊功能,

在一般的使用中,是由主控端(VNC viewer)

要求控制被控端(VNC server) ,而在

Listen mode中是由被控端邀請主控端控制,

所以, Listen mode可以穿過防火牆控制被控

端。


Vnc listen mode1

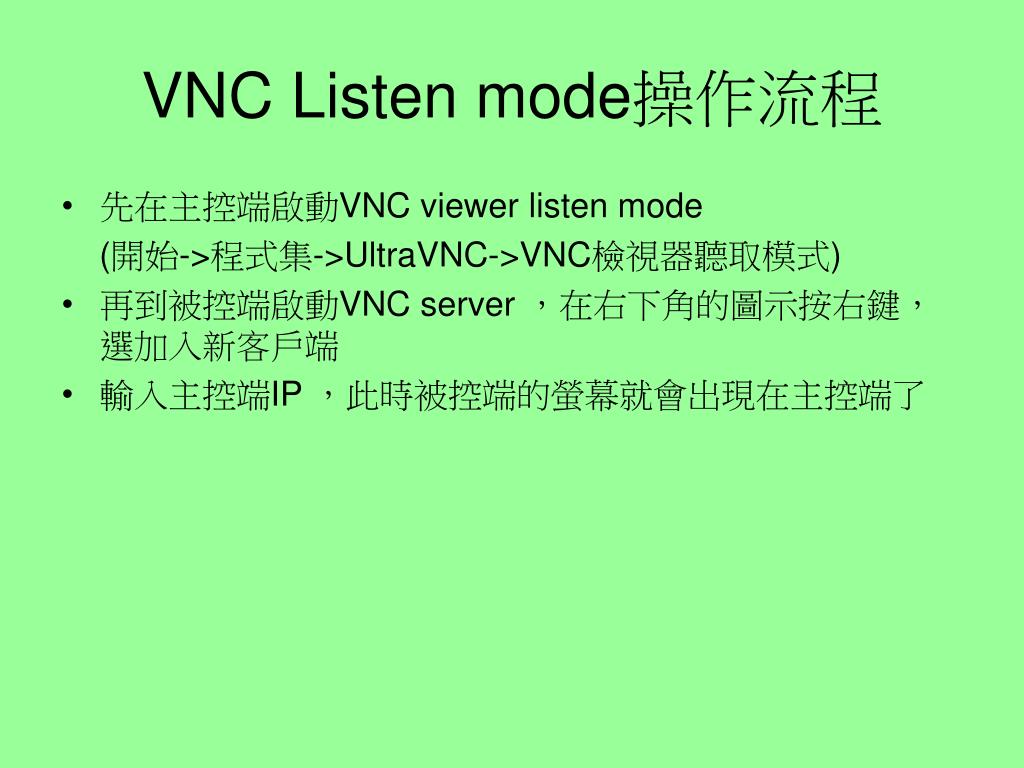

VNC Listen mode操作流程

  • 先在主控端啟動VNC viewer listen mode

    (開始->程式集->UltraVNC->VNC檢視器聽取模式)

  • 再到被控端啟動VNC server ,在右下角的圖示按右鍵,選加入新客戶端

  • 輸入主控端IP ,此時被控端的螢幕就會出現在主控端了


  • Login
