  1. Integrated Nuclear Security Network (INSN) Centralized Data Acquisition and Analysis System for Radiation Portal Monitors (RPM)

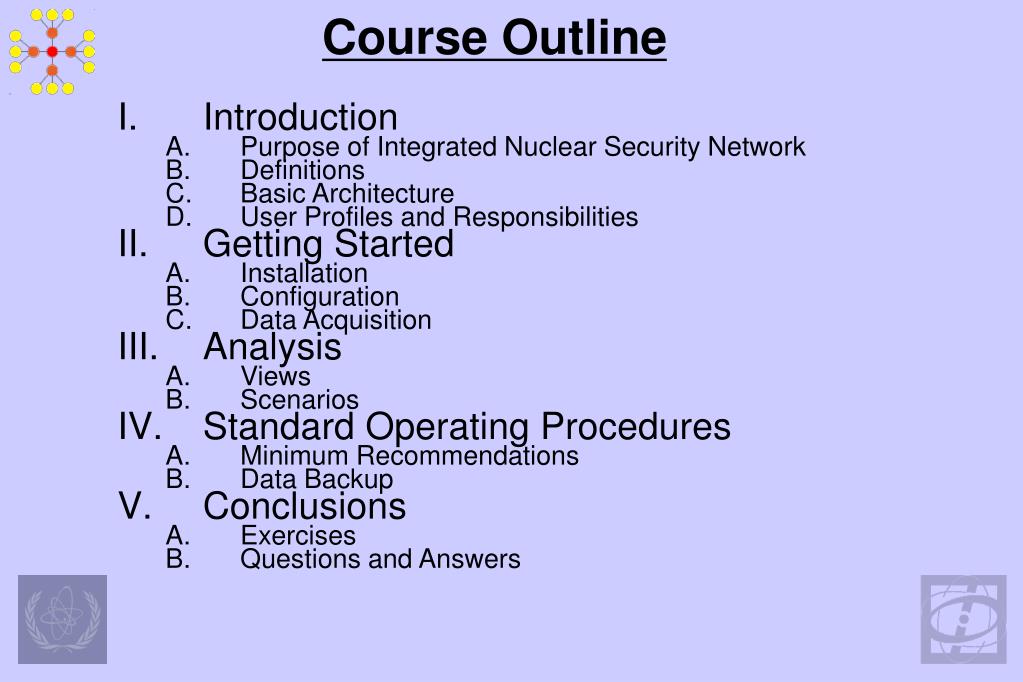

  2. Course Outline • Introduction • Purpose of Integrated Nuclear Security Network • Definitions • Basic Architecture • User Profiles and Responsibilities • Getting Started • Installation • Configuration • Data Acquisition • Analysis • Views • Scenarios • Standard Operating Procedures • Minimum Recommendations • Data Backup • Conclusions • Exercises • Questions and Answers

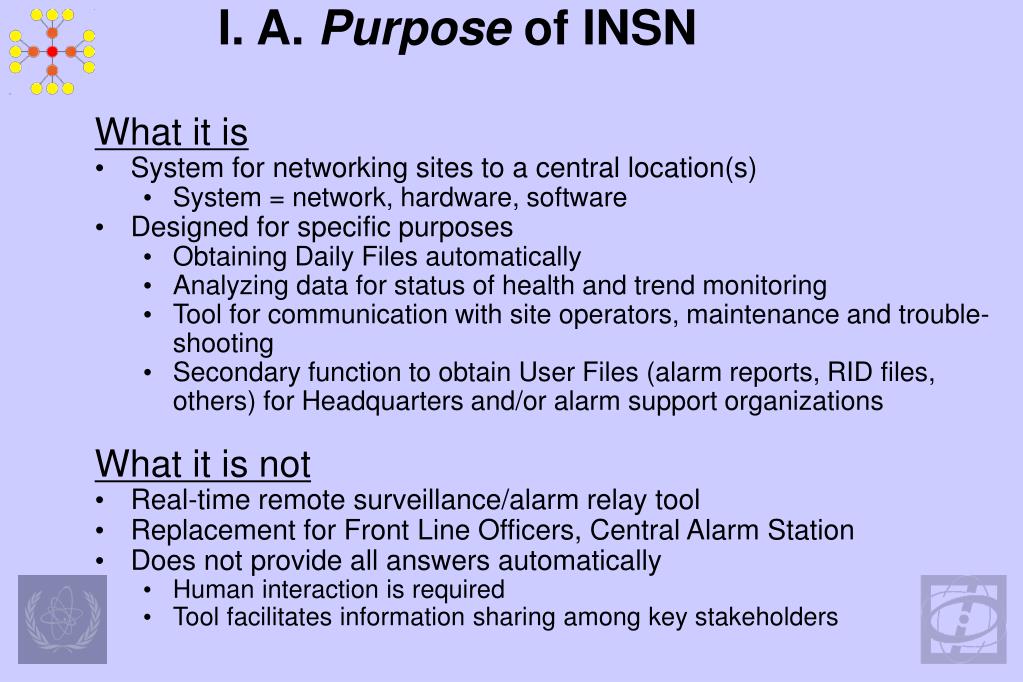

  3. I. A. Purpose of INSN • What it is • System for networking sites to a central location(s) • System = network, hardware, software • Designed for specific purposes • Obtaining Daily Files automatically • Analyzing data for status of health and trend monitoring • Tool for communication with site operators, maintenance and trouble-shooting • Secondary function to obtain User Files (alarm reports, RID files, others) for Headquarters and/or alarm support organizations What it is not • Real-time remote surveillance/alarm relay tool • Replacement for Front Line Officers, Central Alarm Station • Does not provide all answers automatically • Human interaction is required • Tool facilitates information sharing among key stakeholders

  4. I. A. Purpose (Cont’d) • What it is • System for networking sites to a central location(s) • System = network, hardware, software • Designed for specific purposes • Obtaining Daily Files automatically • Analyzing data for status of health and trend monitoring • Tool for communication with site operators, maintenance and trouble-shooting • Secondary function to obtain User Files (alarm reports, RID files, others) for Headquarters and/or alarm support organizations What it is not • Real-time remote surveillance/alarm relay tool • Replacement for FLOs/FLO training • Does not provide all answers automatically • Human interaction is required • Tool facilitates information sharing among key stakeholders

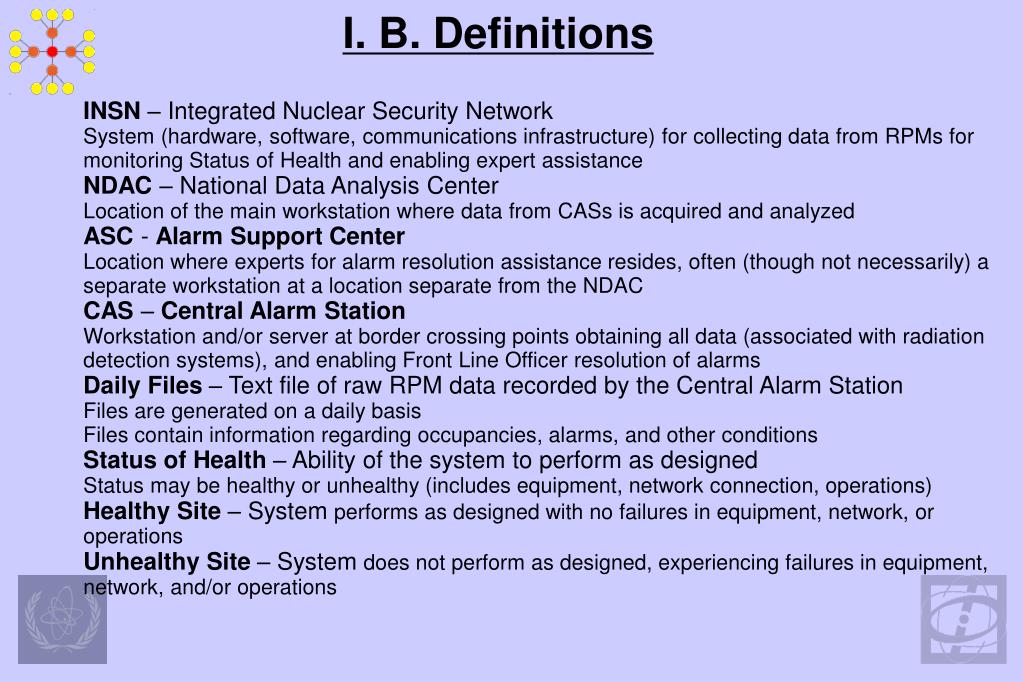

  5. I. B. Definitions INSN – Integrated Nuclear Security Network System (hardware, software, communications infrastructure) for collecting data from RPMs for monitoring Status of Health and enabling expert assistance NDAC – National Data Analysis Center Location of the main workstation where data from CASs is acquired and analyzed ASC - Alarm Support Center Location where experts for alarm resolution assistance resides, often (though not necessarily) a separate workstation at a location separate from the NDAC CAS – Central Alarm Station Workstation and/or server at border crossing points obtaining all data (associated with radiation detection systems), and enabling Front Line Officer resolution of alarms Daily Files – Text file of raw RPM data recorded by the Central Alarm Station Files are generated on a daily basis Files contain information regarding occupancies, alarms, and other conditions Status of Health – Ability of the system to perform as designed Status may be healthy or unhealthy (includes equipment, network connection, operations) Healthy Site – System performs as designed with no failures in equipment, network, or operations Unhealthy Site – System does not perform as designed, experiencing failures in equipment, network, and/or operations

  6. I. C. Basic Architecture

  7. I. D. INSN User Profiles & Responsibilities

  8. Alarm Support Centre(ASC) Working with ASC is similar to working with the NDAC client • Can display and analyze data received from NDAC • User Files view and analysis received by NDAC • Generation and printing of general and events reports

  9. II. Getting Started: A. Installation • Before NDAC configuration it is necessary to have a list of all CAS with the following parameters: • Daily Files prefix assigned to the given CAS • IP-address of CAS-server where INSN service is installed • Access port number for INSN-service • Phone number (in case if modem is required for connection with CAS) • Lists of all radiation monitors for each CAS with indication of: • Daily Files prefix assigned to the given monitor • Number of counting gamma and neutron channels with indication of their location on pillars • Daily Files format

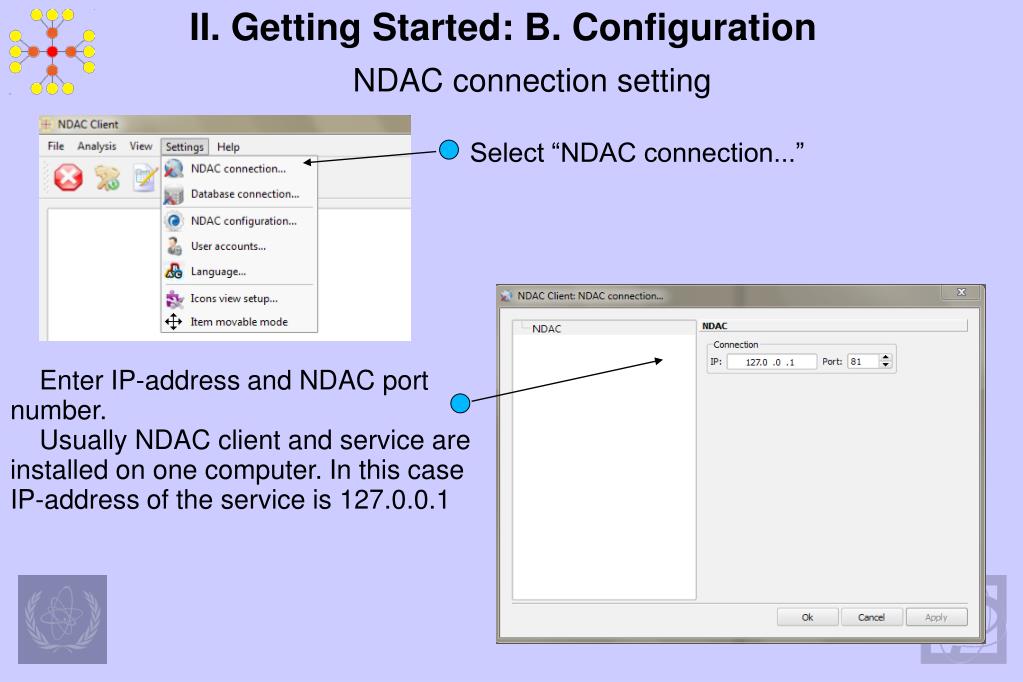

  10. II. Getting Started: B. Configuration NDAC connection setting Select “NDAC connection...” Enter IP-address and NDAC port number. Usually NDAC client and service are installed on one computer. In this case IP-address of the service is 127.0.0.1

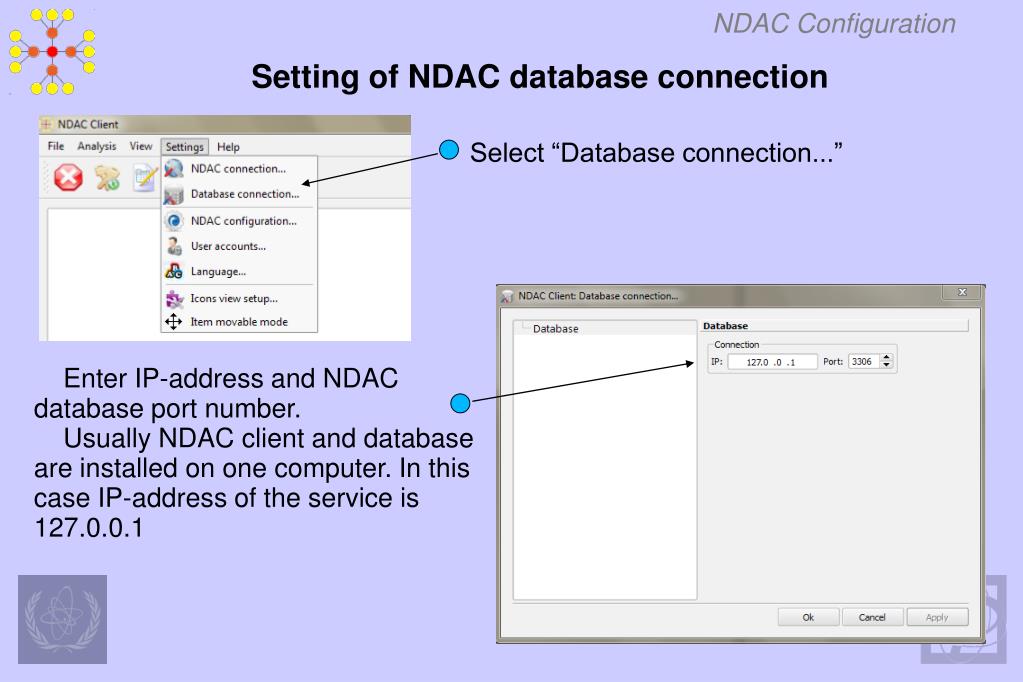

  11. NDAC Configuration Setting of NDAC database connection Select “Database connection...” Enter IP-address and NDAC database port number. Usually NDAC client and database are installed on one computer. In this case IP-address of the service is 127.0.0.1

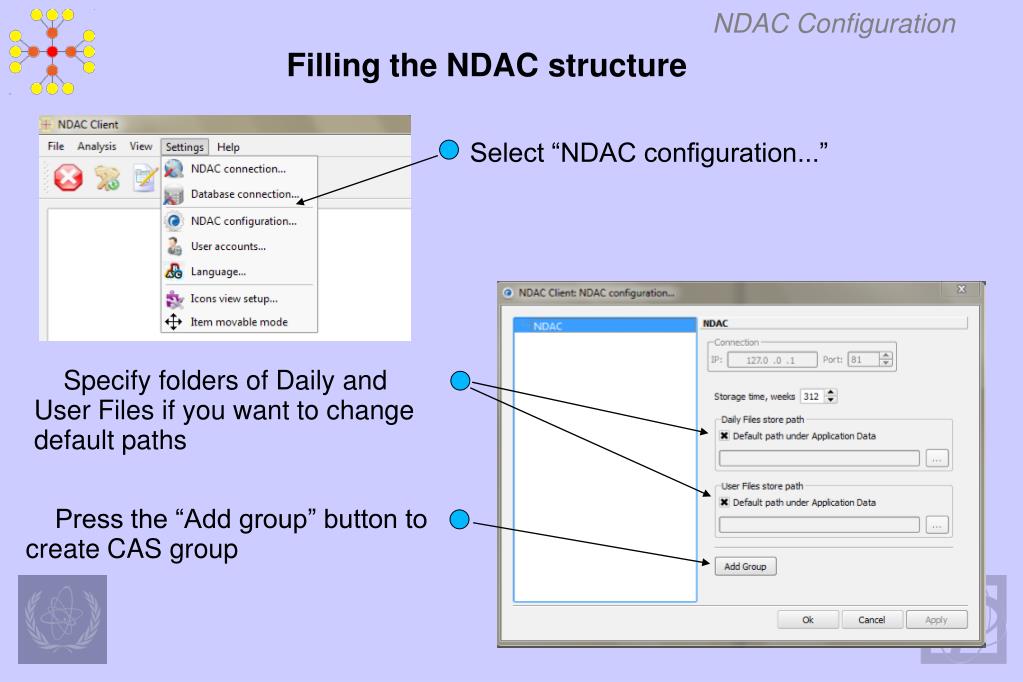

  12. NDAC Configuration Filling the NDAC structure Select “NDAC configuration...” Specify folders of Daily and User Files if you want to change default paths Press the “Add group” button to create CAS group

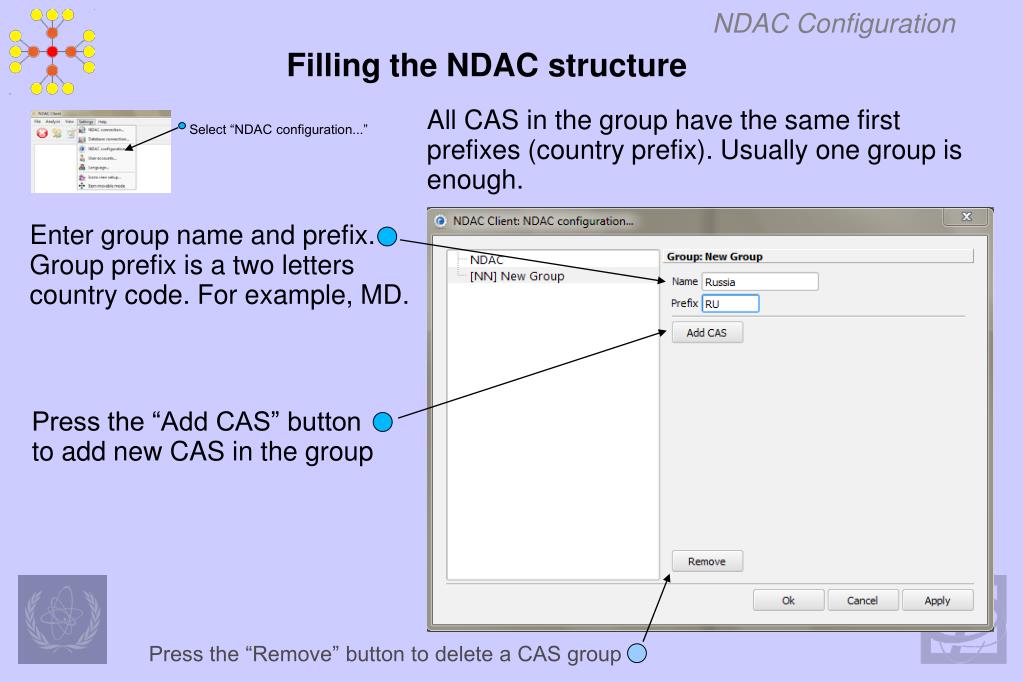

  13. NDAC Configuration Filling the NDAC structure All CAS in the group have the same first prefixes (country prefix). Usually one group is enough. Select “NDAC configuration...” Enter group name and prefix. Group prefix is a two letters country code. For example, MD. Press the “Add CAS” button to add new CAS in the group Press the “Remove” button to delete a CAS group

  14. NDAC Configuration Filling the NDAC structure Enter name and CAS prefix and parameters of INSN connection Select “NDAC configuration...” Mark the Box and enter CAS phone number if CAS uses modem connection Press the “Add RPM” button to create new monitor for a given CAS Press the “Remove” button to delete CAS

  15. NDAC Configuration Filling the NDAC structure Select “NDAC configuration...” Enter the RPM name and prefix Select Daily Files format for the given RPM Enter number of gamma and neutron counting channels with indication of their location on pillars Press the “Apply” button to assign RPM parameters Press the “Remove” button to delete RPM

  16. NDAC Configuration User’s account manager Select “User accounts...” There are two access levels in the program – Administrator and Operator Press the “Add” button to add new user

  17. NDAC Configuration User’s account manager System settings can be changed only by administrator, not by operator Select “User accounts...” Enter login and access level Enter user password Press the “OK” button

  18. NDAC Configuration User’s account manager Select “User accounts...” Administrator only can edit user’s account list Use the “Edit” button if you want to change password or user’s access level Use the “Lock” button if you want to temporally lock user’s access Press the “OK” button to apply changes Press the “Remove” button to delete user

  19. II. Getting Started: C. Data Acquisition • The NDAC software will connect to the CAS on startup • Connection will be maintained as long as the network allows • The NDAC software will look for new Daily Files on connection • Only new Daily Files will be updated from the CAS • Received data as stored in the database • Each CAS is displayed as an icon with general information • Name of the location • Connection status • Date of last successful download of Daily File • Time of next Daily File update

  20. II. Getting Started: C. Data Acquisition CAS Connection States Ready The last CAS connection was successful Error The last CAS connection was unsuccessful Undefined Current data on CAS connection state are out-of-date Busy CAS data transfer in progress

  21. Data Acquisition Data acquisition from CAS Right-click the mouse on the CAS icon in order to call a pop-up command menu Check connection test of connection between NDAC and CAS Synchronize Daily Files request Daily Files update Query User Files request User Files Note: Daily Files are synchronized automatically, but can be synchronized manually

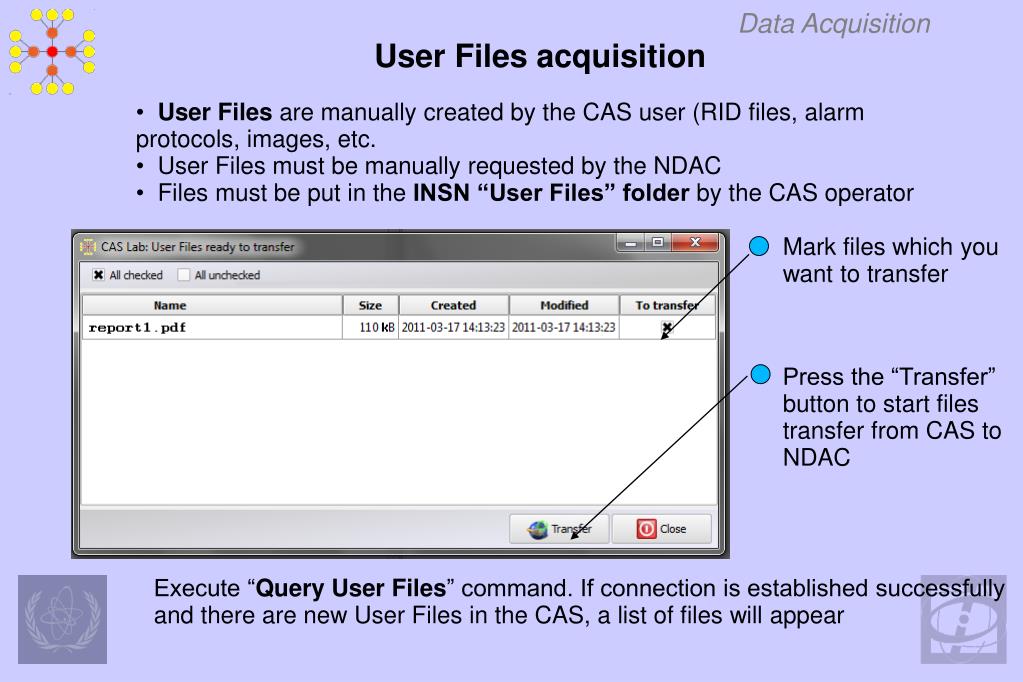

  22. Data Acquisition User Files acquisition • User Files are manually created by the CAS user (RID files, alarm protocols, images, etc. • User Files must be manually requested by the NDAC • Files must be put in the INSN “User Files” folder by the CAS operator Mark files which you want to transfer Press the “Transfer” button to start files transfer from CAS to NDAC Execute “Query User Files” command. If connection is established successfully and there are new User Files in the CAS, a list of files will appear

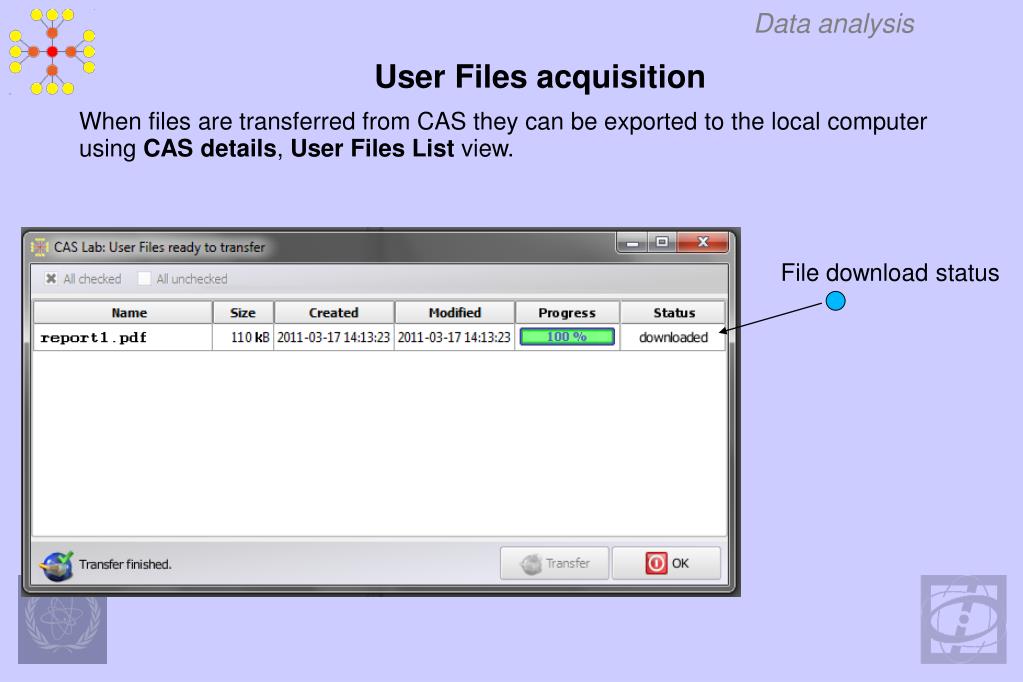

  23. Data analysis User Files acquisition When files are transferred from CAS they can be exported to the local computer using CAS details, User Files List view. File download status

  24. III. Analysis: A. Views • The NDAC software will connect to the CAS on startup • Connection will be maintained as long as the network allows • The NDAC software will look for new Daily Files on connection • Only new Daily Files will be updated from the CAS • Received data as stored in the database • Each CAS is displayed as an icon with general information • Name of the location • Connection status • Date of last successful download of Daily File • Time of next Daily File update

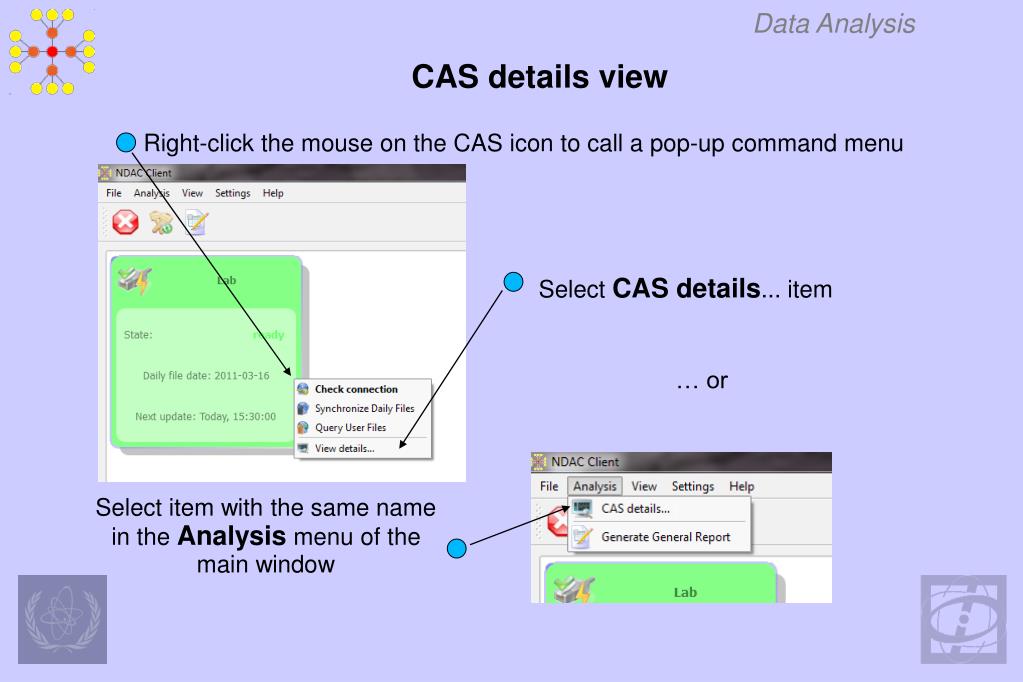

  25. Data Analysis CAS details view Right-click the mouse on the CAS icon to call a pop-up command menu Select CAS details... item … or Select item with the same name in the Analysis menu of the main window

  26. Data analysis CAS details view • To see general overview and access for information, open the CAS details view • The CAS current state view shows general information for each monitor connected to the CAS. The the Occupancy count, Alarms count, and name of the last transferred Daily File are displayed. Pressing this icon generates a report which can be printed or saved in a PDF file This button brings up a window with detailed information about a given monitor A pop-up list for selecting of the information type

  27. Data analysis CAS details view Select “Daily Files” list to view the list of Daily files received from the given CAS A protocol is generated by pressing this icon Marked files are saved in a user-specified folder by pressing the “Export to disk” button

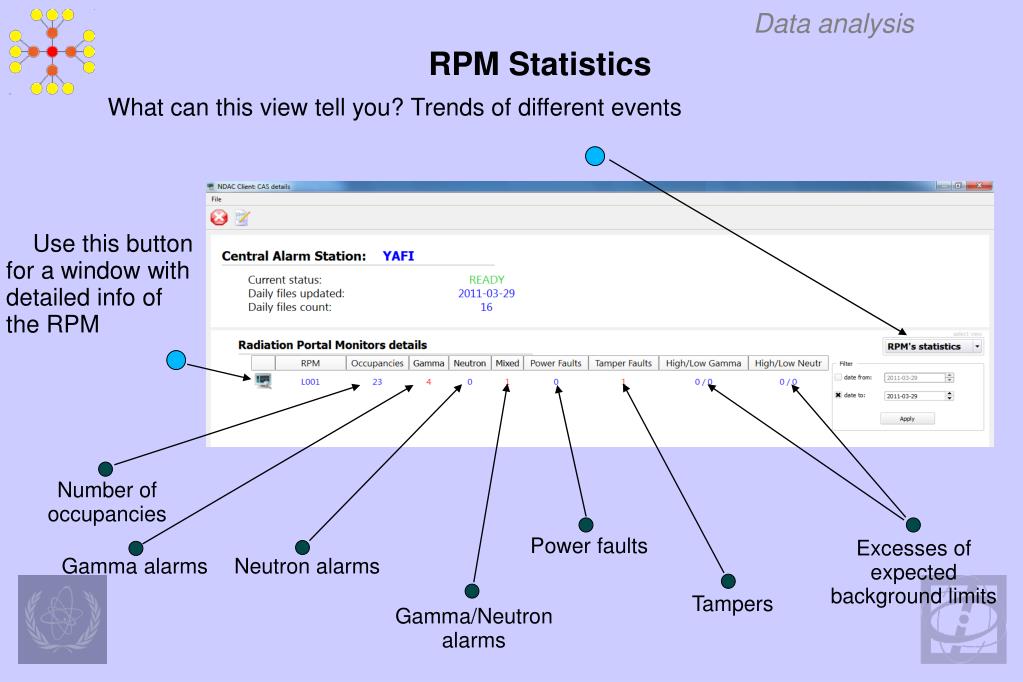

  28. Data analysis RPM Statistics What can this view tell you? Trends of different events Use this button for a window with detailed info of the RPM Number of occupancies Power faults Excesses of expected background limits Gamma alarms Neutron alarms Tampers Gamma/Neutron alarms

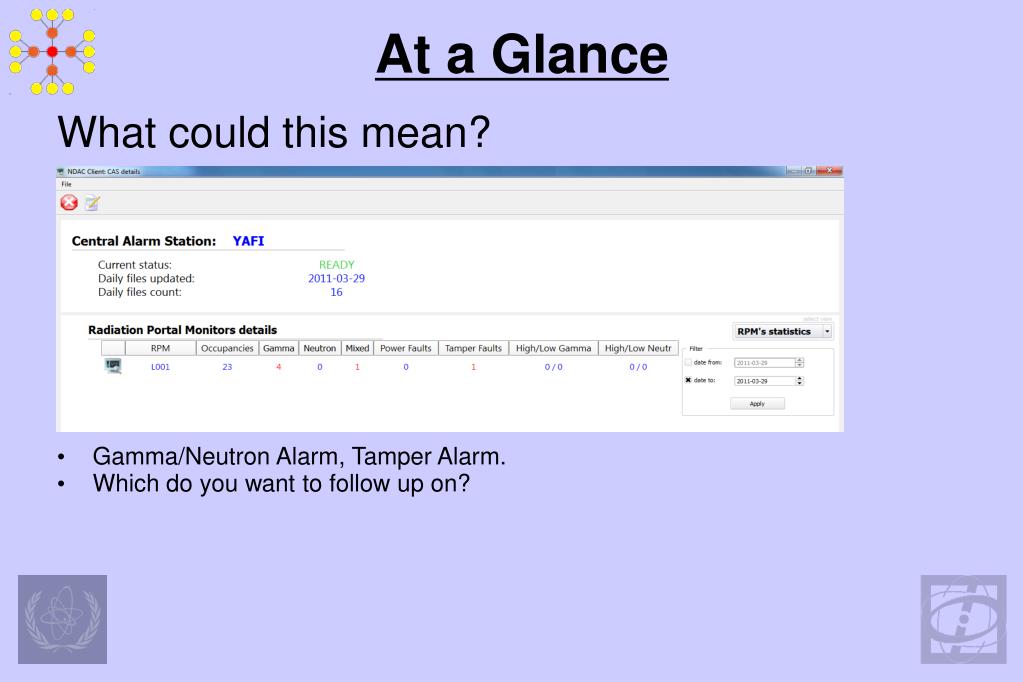

  29. At a Glance • What could this mean? • Gamma/Neutron Alarm, Tamper Alarm. • Which do you want to follow up on?

  30. Site Profiling • What could this mean? • Relatively high number of alarms as percent of occupancies. • Does this site see a lot of NORM cargo? • Is this the typical volume of traffic for this site? • Does this site get a lot of tamper alarms? Any pattern to when they occur?

  31. Data analysis Site Profiling (Continued) Detailed information on a given monitor Select the event type to view Specify filter of events on date Then press the “Apply” button

  32. Data analysis CAS Data View Detailed information on the monitor: Alarms Select the event Press the “Show Alarm” button Channel count upper gamma lower gamma neutron left pillar right pillar

  33. Data analysis CAS Data View Detailed information on the monitor: Alarms Press the icon to generate a protocol – alarms list Press the icon to generate a protocol on the specified alarm

  34. Data analysis CAS Data View Detailed information on the monitor: Occupancies Select the event Press the “Show Occup.” button Channel count upper gamma lower gamma neutron left pillar right pillar

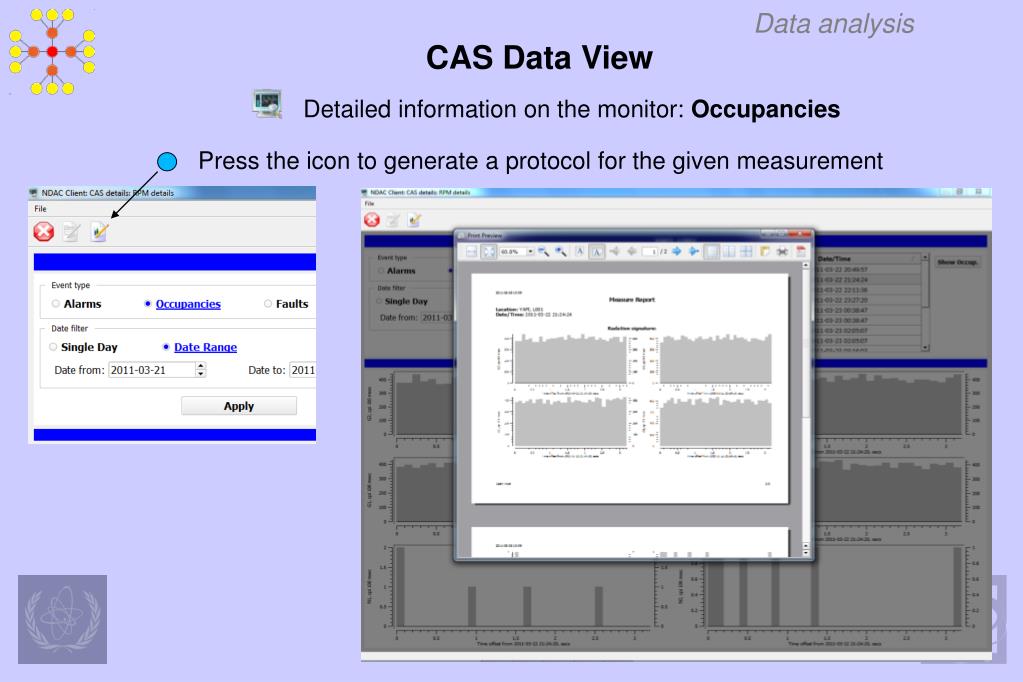

  35. Data analysis CAS Data View Detailed information on the monitor: Occupancies Press the icon to generate a protocol for the given measurement

  36. Data analysis CAS Data View Detailed information on the monitor: Faults Select type of the event Press the “Show” button

  37. Data analysis CAS Data View Detailed information on the monitor: Background Note: When specifying date interval, consider that background data sampling for the long interval requires some time

  38. Data analysis General Report Select appropriate item in the “Analysis” menu Enter date interval and press the “Generate” button

  39. Data analysis User Files Can Help • Request spectra and alarm protocols to assess individual events and build site profiles Marked files will be saved in a user-specified folder on pressing the “Export to disk” button

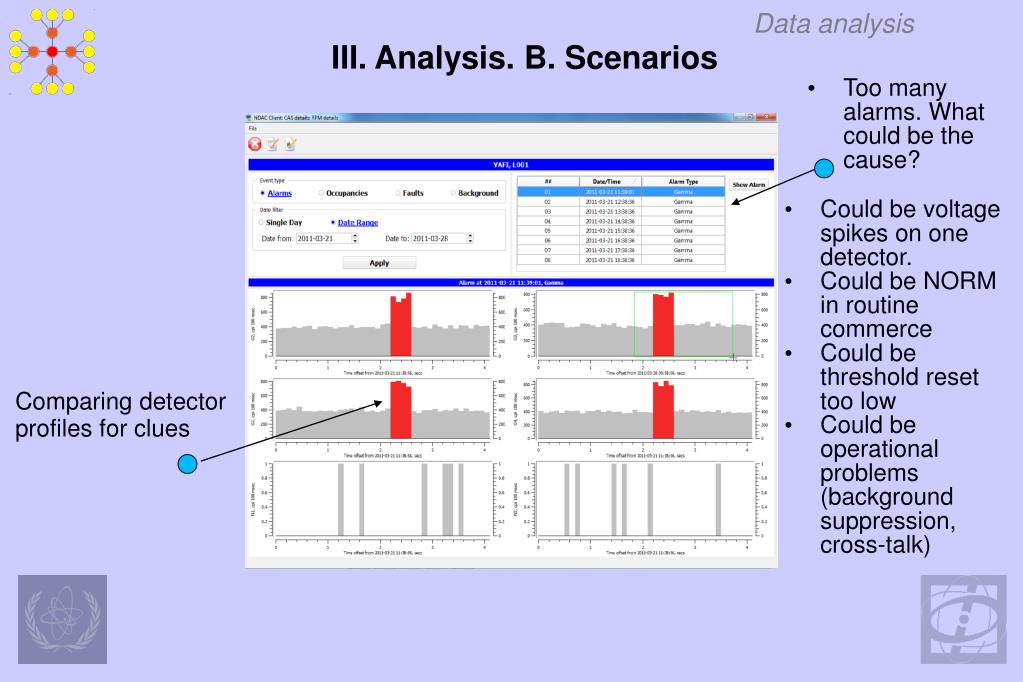

  40. Data analysis III. Analysis. B. Scenarios • Too many alarms. What could be the cause? • Could be voltage spikes on one detector. • Could be NORM in routine commerce • Could be threshold reset too low • Could be operational problems (background suppression, cross-talk) Comparing detector profiles for clues

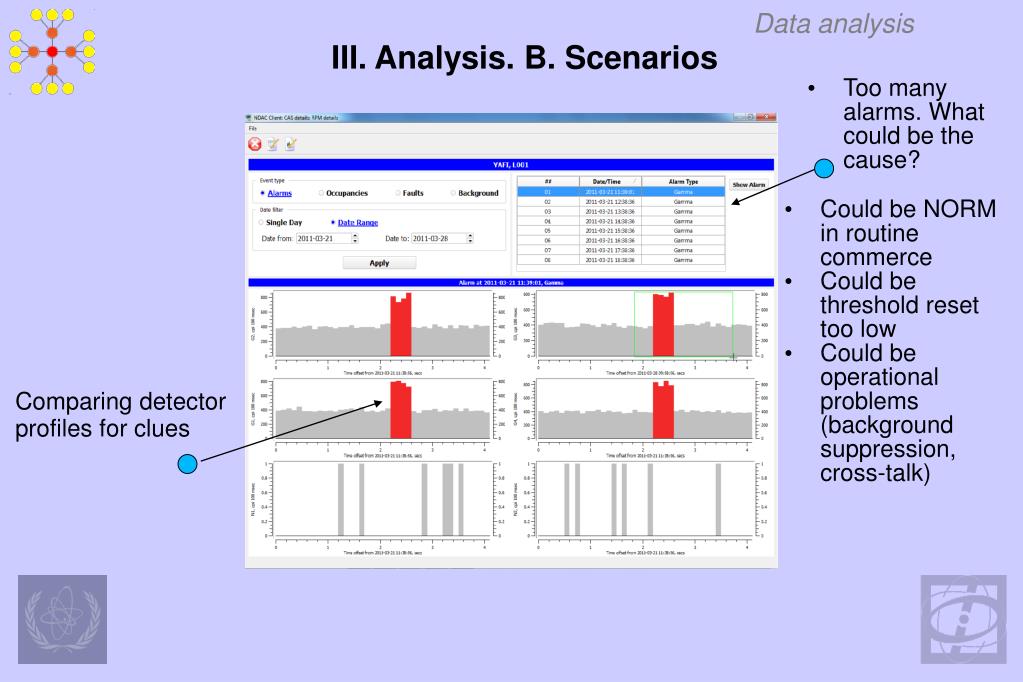

  41. Data analysis III. Analysis. B. Scenarios • Too many alarms. What could be the cause? • Could be NORM in routine commerce • Could be threshold reset too low • Could be operational problems (background suppression, cross-talk) Comparing detector profiles for clues

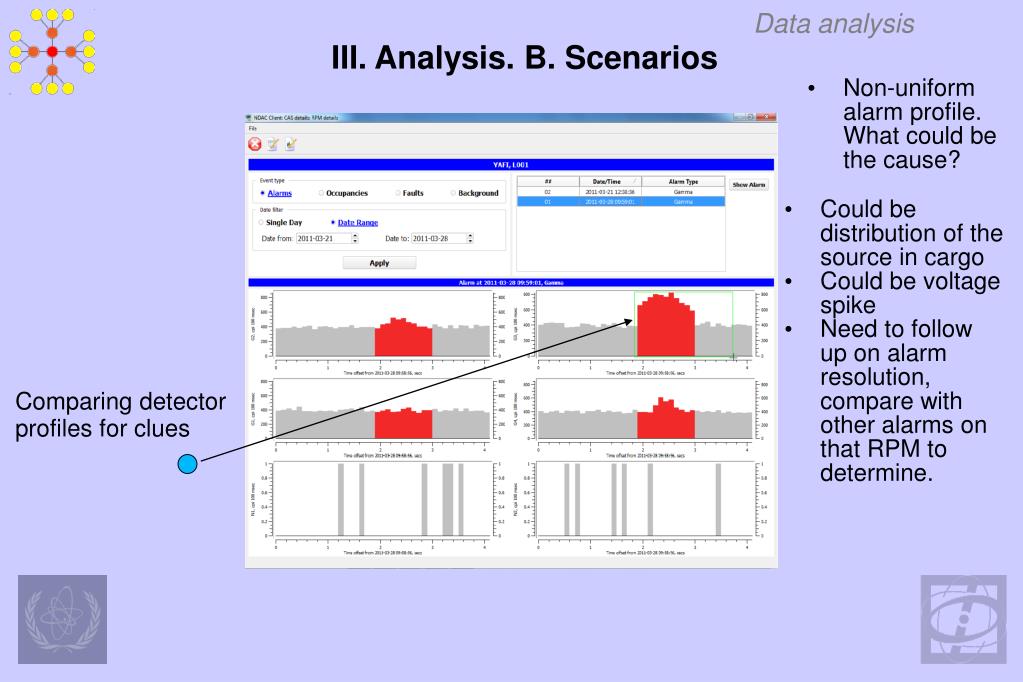

  42. Data analysis III. Analysis. B. Scenarios • Non-uniform alarm profile. What could be the cause? • Could be distribution of the source in cargo • Could be voltage spike • Need to follow up on alarm resolution, compare with other alarms on that RPM to determine. Comparing detector profiles for clues

  43. Data analysis III. Analysis. B. Scenarios • Non-uniform alarm profile. What could be the cause? • Could be distribution of the source in cargo • Could be voltage spike • Need to follow up on alarm resolution, compare with other alarms on that RPM to determine. Comparing detector profiles for clues

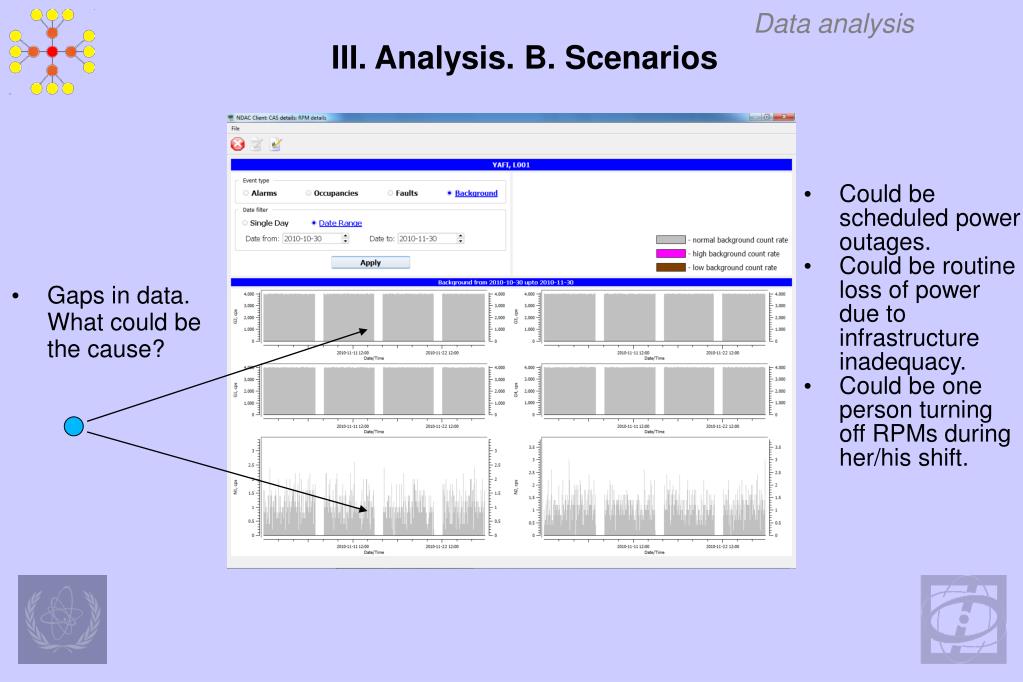

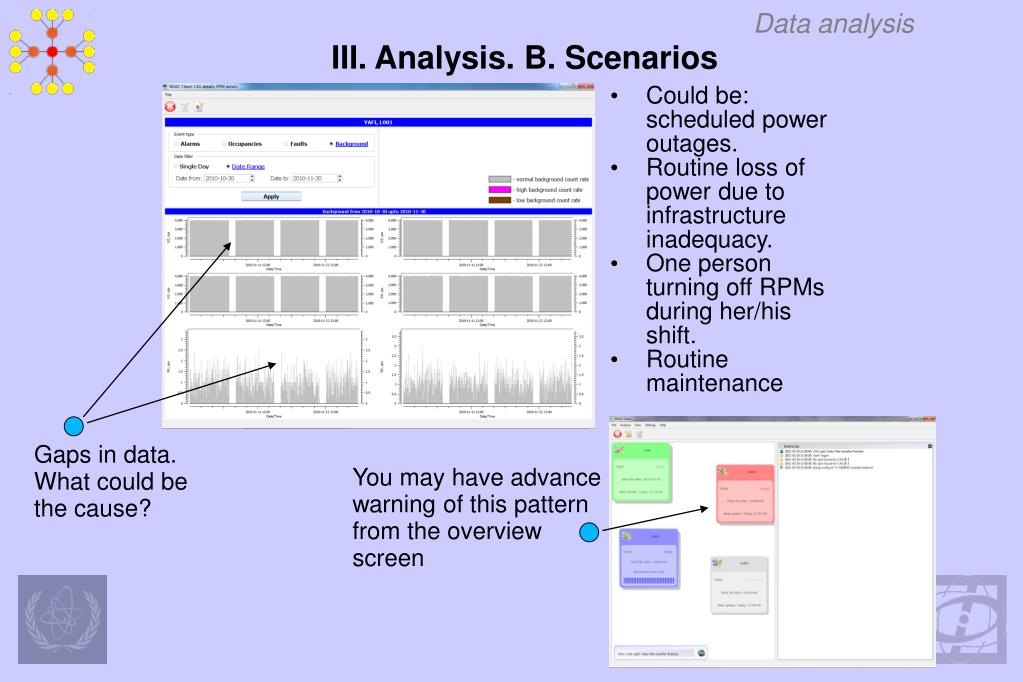

  44. Data analysis III. Analysis. B. Scenarios • Could be scheduled power outages. • Could be routine loss of power due to infrastructure inadequacy. • Could be one person turning off RPMs during her/his shift. • Gaps in data. What could be the cause?

  45. Data analysis III. Analysis. B. Scenarios • Could be: scheduled power outages. • Routine loss of power due to infrastructure inadequacy. • One person turning off RPMs during her/his shift. • Routine maintenance Gaps in data. What could be the cause? You may have advance warning of this pattern from the overview screen

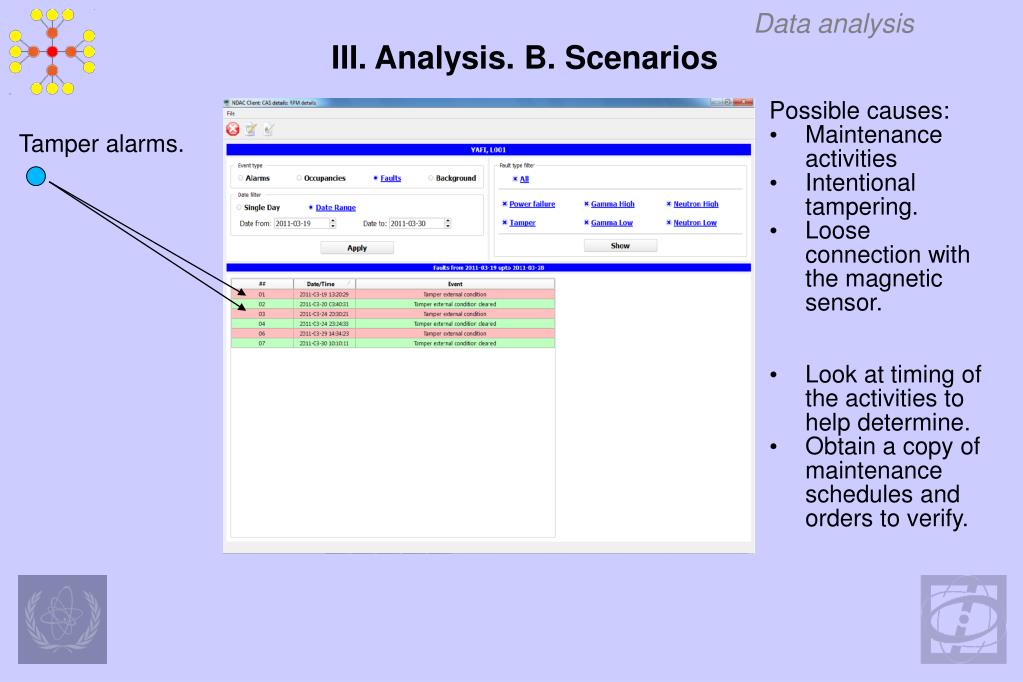

  46. Data analysis III. Analysis. B. Scenarios • Possible causes: • Maintenance activities • Intentional tampering. • Loose connection with the magnetic sensor. • Look at timing of the activities to help determine. • Obtain a copy of maintenance schedules and orders to verify. Tamper alarms.

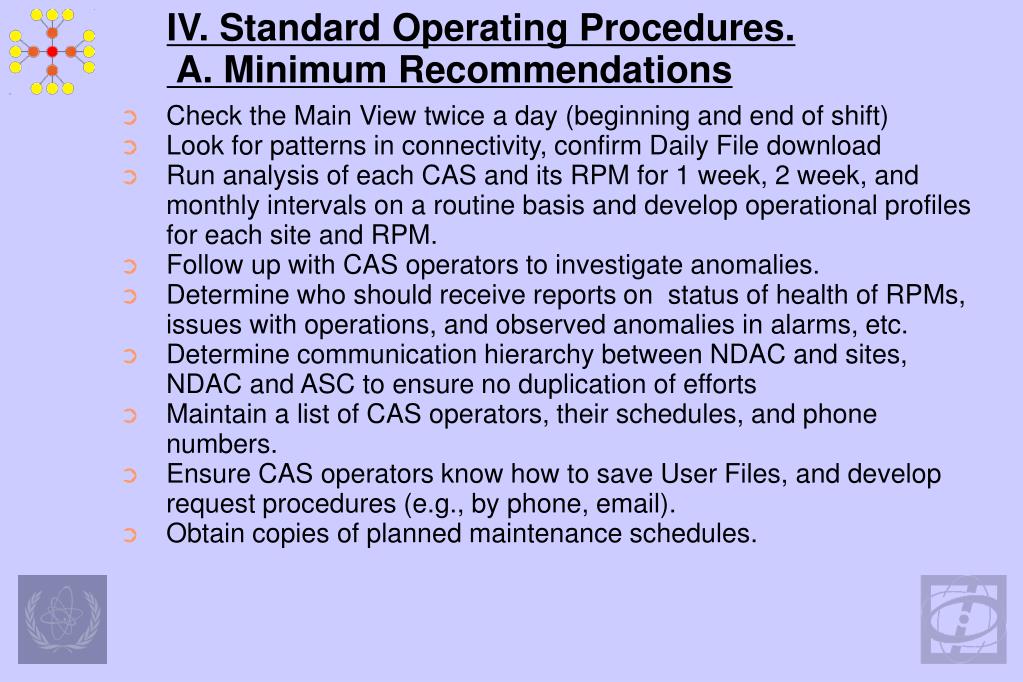

  47. IV. Standard Operating Procedures. A. Minimum Recommendations • Check the Main View twice a day (beginning and end of shift) • Look for patterns in connectivity, confirm Daily File download • Run analysis of each CAS and its RPM for 1 week, 2 week, and monthly intervals on a routine basis and develop operational profiles for each site and RPM. • Follow up with CAS operators to investigate anomalies. • Determine who should receive reports on status of health of RPMs, issues with operations, and observed anomalies in alarms, etc. • Determine communication hierarchy between NDAC and sites, NDAC and ASC to ensure no duplication of efforts • Maintain a list of CAS operators, their schedules, and phone numbers. • Ensure CAS operators know how to save User Files, and develop request procedures (e.g., by phone, email). • Obtain copies of planned maintenance schedules.

  48. IV. Standard Operating Procedures. B. Data backup Data backup and Archiving is recommended Daily and User Files from the CAS are stored in the directories specified during system configuration. Default paths are: %ALLUSERSAPPDATA%\YaNDACServer\daily_files and %ALLUSERSAPPDATA%\YaNDACServer\user_files, correspondingly. It is recommended that these directories be copied to external storage (external HDD, USB flash, or other storage media) at least once per week.

  49. V. Conclusion: A. Exercises • Exercises are intended for practice. There are no wrong answers, just opportunities for discovery.

  50. A hypothetical Member State ABC has the following: • 1 NDAC • 1 ASC • 7 CAS • 2-4 RPM per CAS CASs are located at: • Airports • Dry ports • Seaports • Land borders
