101970 leveraging integration broker to increase availability and throughput

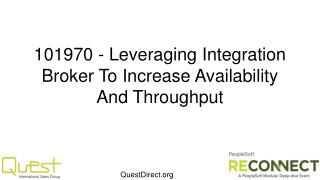

101970 - Leveraging Integration Broker To Increase Availability And Throughput


Top reasons to use ib

Top Reasons to Use IB

10 Endorsed by Prof. Axe Emel at Whatsamatta U.

9 Dealing with a Broker makes you feel richer

8 Same initials as Irritable Bowel

7 It’s better than a Disintegration Broker

6 Less Prone to Inappropriate comments than App Package

5 One more thing to pad your resume with

4 It’s sure to impress the babes

3 Moderately Cool Sounding

2 Buzz words have hypnotic effect on management

1 A bad day with IB is better than a good day with COBOL


Introductions

Introductions

Sam Pred

Applications System Engineer

Located in Minneapolis

Currently supporting Benefits and 9.2 upgrade

Wayne Fuller

Applications System Engineer

Located in Minneapolis

Technology Lead for 9.2 Upgrade


Agenda

Agenda

  • About Wells Fargo

  • High Volume

  • High Availability

  • Messaging Architecture

  • When to Message?


Wells fargo population

Wells Fargo Population

  • Wells Fargo & Company (NYSE: WFC) Wells Fargo & Company is a diversified financial services company providing banking, insurance, investments, mortgage, and consumer and commercial finance through more than 9,000 stores and more than 12,000 ATMs and the Internet (wellsfargo.com) across North America and internationally serving over 70 million customers.

  • We employ over 282,000 team members in more than 35 countries across our 80+ businesses

  • Current US population consists of

    • 265,000 full-time employees

    • 16,000 part-time employees

    • 1800 flexible employees

    • 38,000 Managers


High volume

High Volume

  • Alternative to traditional Batch processing

  • Concurrent Processing

  • Reduced Contention

  • Restartability

  • Business Logic Reuse


High volume1

High Volume

  • Annual Merit Increase Load

PS HRMS

IB

CompEx

AppEngine

File

CI

JOB


High volume2

High Volume

  • Annual Merit Increase Load

    • 200,000+ via JOB_DATA CI.

    • Approx. 5 seconds per transaction.

    • 11.5 days to single thread.

    • Reduced to 14 hours via messaging.

    • Respond to errors as they occur.


High volume3

High Volume

  • HRA Compensation Category

PS HRMS

HRA Cat

SavePost Change

JOB

IB

AppEngine


High volume4

High Volume

  • HRA Compensation Category

  • ~280,000 processed in 168 minutes

    • 1,667/min or 28/sec

  • Multiple sources of input (batch/real time)


High volume5

High Volume

  • Other Uses

    • Automated Benefits Reprocessing (single thread 3 to 4 hours, down to 30 minutes)

    • Quarterly ABBR Calc

    • Reorgs (dept/company changes)

    • Acquisition Loads


High availability

High Availability

  • Staff Management

PS HRMS

Handler

IB

Asynch

Staff Mgmt

POS Data

CI

JOB Data

CI


High availability1

High Availability

  • Staff Management

    • 38,000 managers

    • 24/7 Access

    • Decouple request from fulfillment

    • Asynch to Synch (commit points)


High availability2

High Availability

  • Employee Self Service

    • W4, Direct Deposit (future)

    • No need to lock Team Members out

    • Improve satisfaction levels


Messaging architecture

Messaging Architecture

  • Two dedicated servers

    • Runs only messaging, services and gateway, no application servers

    • Gateway load balanced, allows sync services to run balanced

    • Node load balanced through Gateway setup

    • 2 CPU/2.27 gHz 16 core machines with 24 GB of memory

    • Average daily use < 15% of capacity

  • Method to use multi-queues

    • Delivered doesn’t work

    • Helps with contention and partitioning the work

    • Only with unordered queues

  • ig.connection property in integration.properties

    • Maximum cached connections, connection time is costly when hit heavily with synchronous services

    • Default is 10, changed to 200


Messaging architecture1

Messaging Architecture

F5 – Load Balancer

Server A

Server B

Physical Gateway

Physical Gateway

Async Master

Async Slave

Sync Domain 1

Sync Domain 1

Sync Domain 2

Sync Domain 2


Messaging architecture2

Messaging Architecture

  • Current

    • Async 7 dedicated servers on master, only default goes to slave

    • Sync 4 domains load balanced with 2 gateways, 10 appservs each

  • Future

    • Sync stays the same

    • Slave processing takes place of dedicated servers, will try using only default


Some numbers

Some Numbers

  • Synchronous services

    • TurboTax W2 service

      • 1,000 to 2,000 daily, avg. of .5 seconds. Utilized Datapower transformation

    • Job Agent service

      • 35,000 daily, avg < .3 seconds.

  • Asynchronous

    • Identity management message

      • 5000 daily, < .13 seconds

    • Guaranteed email

      • 35000 daily

    • Staff Management

      • 7500 daily


When to message

When to Message?

  • High Volume Concurrent Processing

    • Ability to pause processing, scheduling flexibility.

  • High Availability (decoupling)

  • Transactions from multiple sources (internal/external/batch/online).

  • Error Handling

    • Can respond to errors while transactions continue processing


Questions

Questions??
