Safety, Reliability, and Robust Design in Embedded Systems

1. Safety, Reliability, and Robust Design in Embedded Systems

2. Risk analysis: managing uncertainty GOAL: be prepared for whatever happens Risk analysis should be done for ALL PHASES of a project: ---planning phase ---development phase ---the product itself Identify risks: What could you have done during the planning stage to manage each of these “risks”? How likely is it (what is probability) each one will occur? How likely is it (what is probability) more than one will occur? What actions will best manage the risk if it occurs?

3. risk management—identify, plan for risks During planning, a Risk Table can be generated: Risks Type* Probability Impact Plan (Pointer) System not available Hardware failure Color printer unavailable Personnel absent (one meeting) Personnel unavailable (several meetings) Personnel have left project *Type: Performance (product won’t meet requirements); Cost (budget overruns); Support (project can’t be maintained as planned); Schedule (project will fall behind) Probability: of this risk occurring Impact: e.g., catastrophic, critical, marginal, negligible

4. Then table is sorted by probability and impact and a “cutoff line” is defined. Everything above this line must be managed (with a management plan pointed to in the last column). Useful reference: Embedded Syst. Prog. Nov. 00--examples: http://www.embedded.com/2000/0011/0011feat1.htm Additional interesting reference: H. Petroski, To Engineer is Human: The Role of Failure in Successful Design, Vintage, 1992. . risk management—identify, plan for risks

5. professionalrisk analysis is proactive, not reactive

6. Important concepts for embedded systems:: Risk = (Probability of failure) * Severity Increased risk  decreased safety Safety failures—possible causes: incorrect or incomplete specification bad design improper implementation faulty component improper use RELIABILITY: “what is the probability of failure?”

7. Some ways to determine reliability: --product performs consistently as expected --MTBF (mean time between failures) is long --system behavior is DETERMINISTIC --system responds or FAILS GRACEFULLY to out-of-bounds or unexpected conditions and recovers if possible

8. Definitions: Fault: incorrect or unacceptable state or condition Fault duration and frequency determines clasification: transient—from unexpected external condition-”soft” intermittent—unstable hardware or marginal design periodic / aperiodic permanent—failed component, e.g.—”hard” Error: static, inherent characteristic of system Failure: dynamic, occurs at specific time Possible fault consequences: inappropriate action timing—event occurs too early or too late sequence of events incorrect quantity—wrong amount of energy or substance used

9. Achieving reliability: • safe design • fault detection • fault management • fault tolerant—system recovers, fault not detected • e.g., packet transfers • Definition of reliability for embedded system: probability that a failure is detected by the user is less than a specified threshold

10. Examples—section 8.5—read these carefully! Ariane 5 rocket: register overflow—64-bit word assigned to 16-bit register in a reused subsystem Mars Pathfinder mission 1997—lower priority tasks were allowed to hog resources, higher priority tasks could not execute 2004 Mars mission—file management problems Many more examples in articles at embedded.com

11. How do we define safety? One criterion: “single point”: failure of a single component will not lead to unsafe condition “common-mode failure”: failure of multiple components due to a single failure event will not lead to an unsafe condition Safety must be considered THROUGHOUT the project

12. Analysis Design Implement Test Maintain • Embedded system design—project components • Development process (“waterfall model”): • Alternative process models: Need risk analysis AT EACH INCREMENT • (A=analysis, D=design, I=implement, T=test, M=maintenance) • Basic waterfall model: A-->D-->I-->T-->M • Prototyping: A-->D-->I-->T-->M • Incremental: A-->D-->I-->T-->M-->A-->D-->I-->T--> ……-->M • Component based: A-->D-->Library-->Integrate-->T-->M • I fig_08_00 fig_08_00

13. Specifications: Identify hazards Calculate risk Define safety measures Specification document should include safety standards and guidelines which system complies with e.g.: Underwriters Laboratory, FCC, FDA, FAA, AEC, NASA, ISO, NHTSA, etc. Some industry standards / procedures: FAA: DO178B (and newer Do178C). Medical device industry: ISO 14971 Nuclear power industry (& others): IEC 61508, "Functional Safety of Electrical/Electronic/Programmable Electronic Safety-related Systems (E/E/PE, or E/E/PES)" areas:

14. Methods --Process and Tool Chain evaluation (this is the main focus of DO178B) --Probability-based models --Formal methods --Traditional methods for code testing, e.g., basis path testing --Standard code-checking tools (e.g., avoiding inclusion of redundant code)

15. fig_08_01 Design and review process: steps fig_08_01

16. fig_08_02 • Coding: • Trade-off: • traditional efficiency (speed/space) vs better reliability • Some examples: • Array declarations: const may not be required but is preferred, e.g.: • const int size = 5; int myarray[size]; • Make sure initialization is explicit, do not depend on compiler, e.g.: • int tot =0; for (int j=0; j<10; j++) tot = tot + j; • Do not depend on lazy evaluation, e.g.: • if (( a != 0) && (b/a < 0)) if (a!=0) • if (b/a < 0)

17. fig_08_02 Primitive C error-handling: May not be sufficient for embedded system Assert: fig_08_02

18. fig_08_03 Example: Good for debugging stage, allows “controlled crash” Not robust enough for final code fig_08_03

19. fig_08_04 Jump statements: consequences may not be acceptable fig_08_04

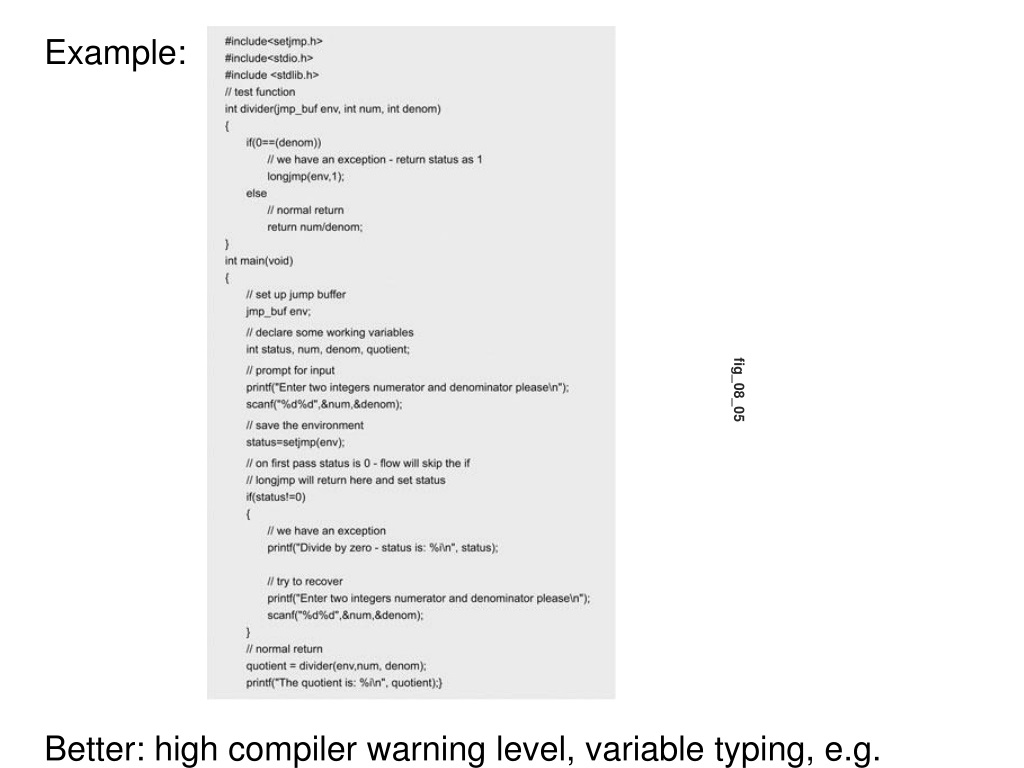

20. Example: Better: high compiler warning level, variable typing, e.g. fig_08_05 fig_08_05

21. Example system: Control Memory Data / comm Power / reset Peripherals Clock fig_08_06 fig_08_06

22. Basic method: redundancy (triple): fig_08_07 fig_08_07

23. fig_08_08 Higher redundancy: fig_08_08

24. fig_08_09 Reduced capability in case of failure / error: fig_08_09

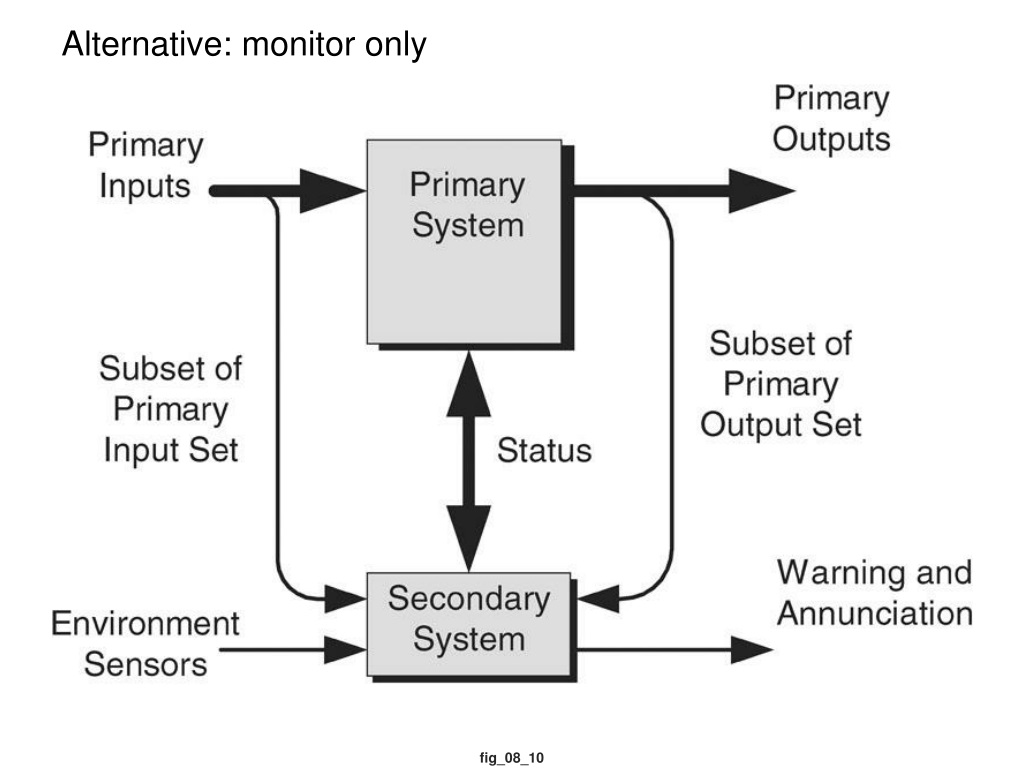

25. Alternative: monitor only fig_08_10 fig_08_10

26. fig_08_11 Bussing; interconnection architectures fig_08_11

27. fig_08_12 Sequential: still can fail at one point fig_08_12

28. fig_08_13 Better: ring fig_08_13

29. fig_08_14 Even better: ring with redundancy fig_08_14

30. fig_08_15 Signal values: magnitude & duration: ignore detect / warn react fig_08_15

31. fig_08_16 Data errors: detect / correct Example: errors in 3 bits fig_08_16

32. fig_08_17 Error detection example fig_08_17

33. fig_08_18 Hamming code (review): fig_08_18

34. fig_08_22 Block codes: example Lateral & longitudinal parity fig_08_22

35. fig_08_23 fig_08_23

36. fig_08_24 More complex codes: use the field Z2 fig_08_24

37. fig_08_25 Shift register for encoding, decoding: fig_08_25

38. fig_08_26 Checking data: fig_08_26

39. fig_08_27 “syndrome” calculator: fig_08_27

40. fig_08_28 Encoding: fig_08_28

41. fig_08_29 Some polynomials: must choose correct one fig_08_29

42. Power system: fig_08_30 fig_08_30

43. fig_08_31 Redundancy and power monitoring: fig_08_31

44. fig_08_32 Potential actions: fig_08_32

45. fig_08_33 Using backups: fig_08_33

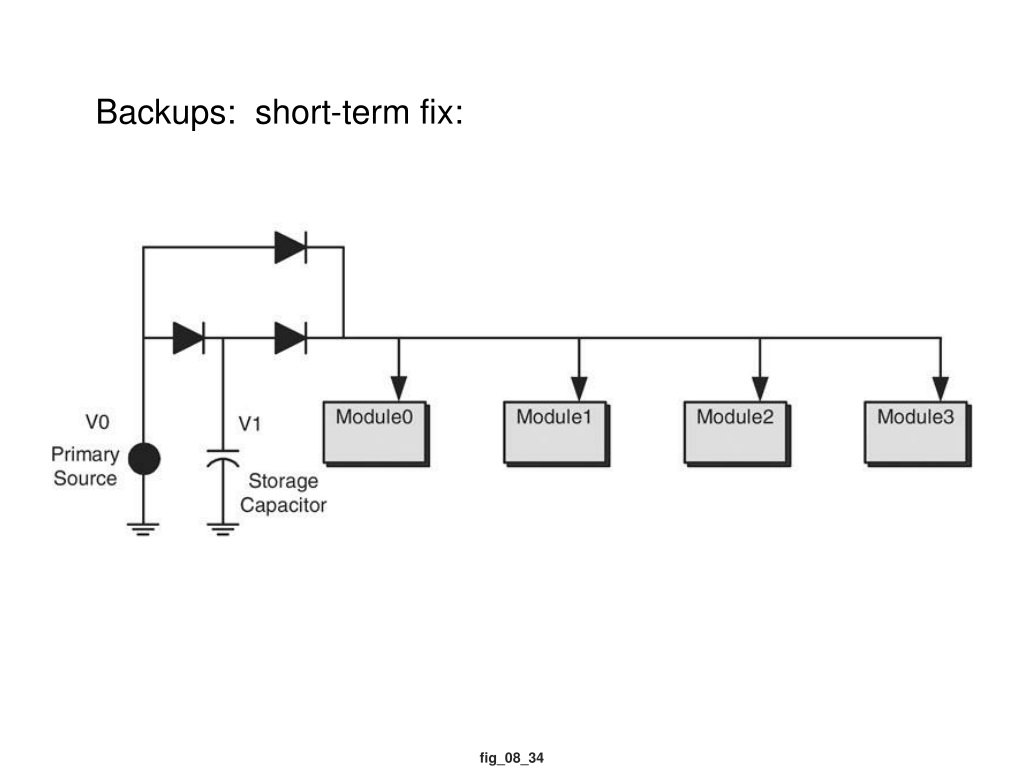

46. fig_08_34 Backups: short-term fix: fig_08_34

47. fig_08_35 Bus faults: buffering fig_08_35

48. fig_08_36 Bus testing: fig_08_36

49. Interface system monitoring and testing: fig_08_37 fig_08_37

50. Example: common fault analysis table_08_00 table_08_00
