NEW CONSTRUCTION OR RETROFIT Make any existing lighting array LED

21 LED.HEX. Phone (281) 419-7600 Email: info@trinity-led.com www.trinity-led.com. Possible Applications:. NEW CONSTRUCTION OR RETROFIT Make any existing lighting array LED

valora
Download Presentation

NEW CONSTRUCTION OR RETROFIT Make any existing lighting array LED

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

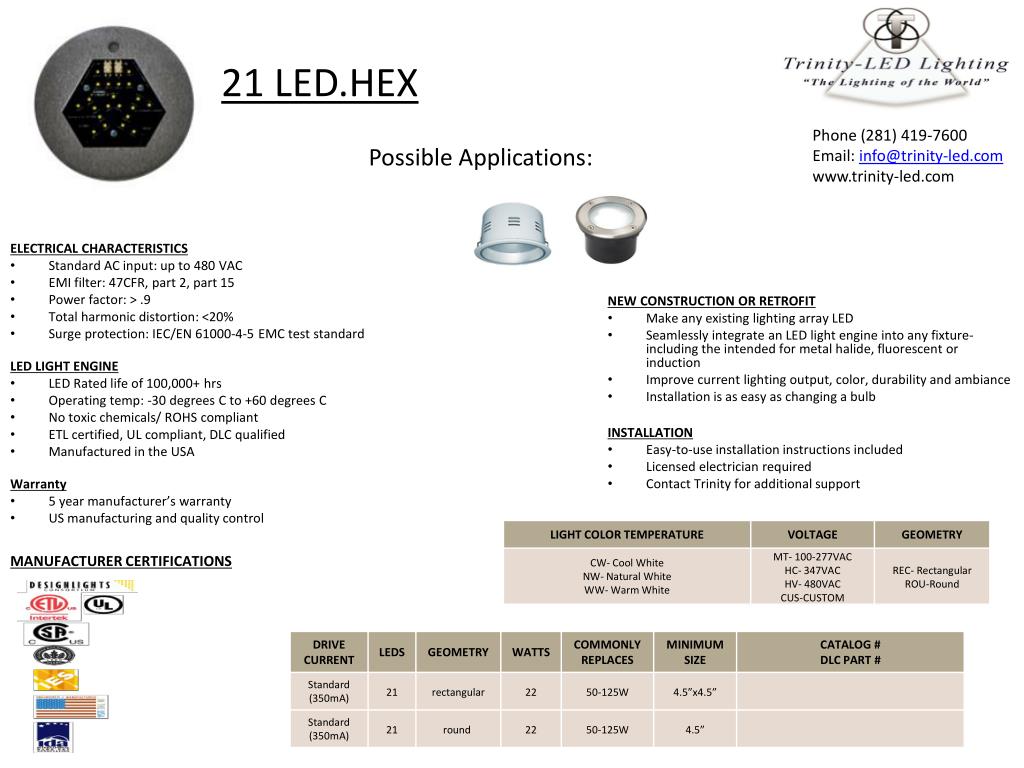

  1. 21 LED.HEX Phone (281) 419-7600 Email: info@trinity-led.com www.trinity-led.com Possible Applications: NEW CONSTRUCTION OR RETROFIT • Make any existing lighting array LED • Seamlessly integrate an LED light engine into any fixture-including the intended for metal halide, fluorescent or induction • Improve current lighting output, color, durability and ambiance • Installation is as easy as changing a bulb INSTALLATION • Easy-to-use installation instructions included • Licensed electrician required • Contact Trinity for additional support ELECTRICAL CHARACTERISTICS • Standard AC input: up to 480 VAC • EMI filter: 47CFR, part 2, part 15 • Power factor: > .9 • Total harmonic distortion: <20% • Surge protection: IEC/EN 61000-4-5 EMC test standard LED LIGHT ENGINE • LED Rated life of 100,000+ hrs • Operating temp: -30 degrees C to +60 degrees C • No toxic chemicals/ ROHS compliant • ETL certified, UL compliant, DLC qualified • Manufactured in the USA Warranty • 5 year manufacturer’s warranty • US manufacturing and quality control MANUFACTURER CERTIFICATIONS
