Loose ends and magnetic fields in astronomy

Loose ends and Magnetic Fields in Astronomy

  • Exam tips – come to class!- Course Evaluations – come to class!- energy in fields- magnetism in matter

  • - astronomical applications


Energy density in em waves

Energy Density in EM Waves

  • The energy density, u, is the energy per unit volume

  • For the electric field, uE= ½ εoE2

  • For the magnetic field, uB = ½ μoB2

  • Since B = E/c and


Energy density

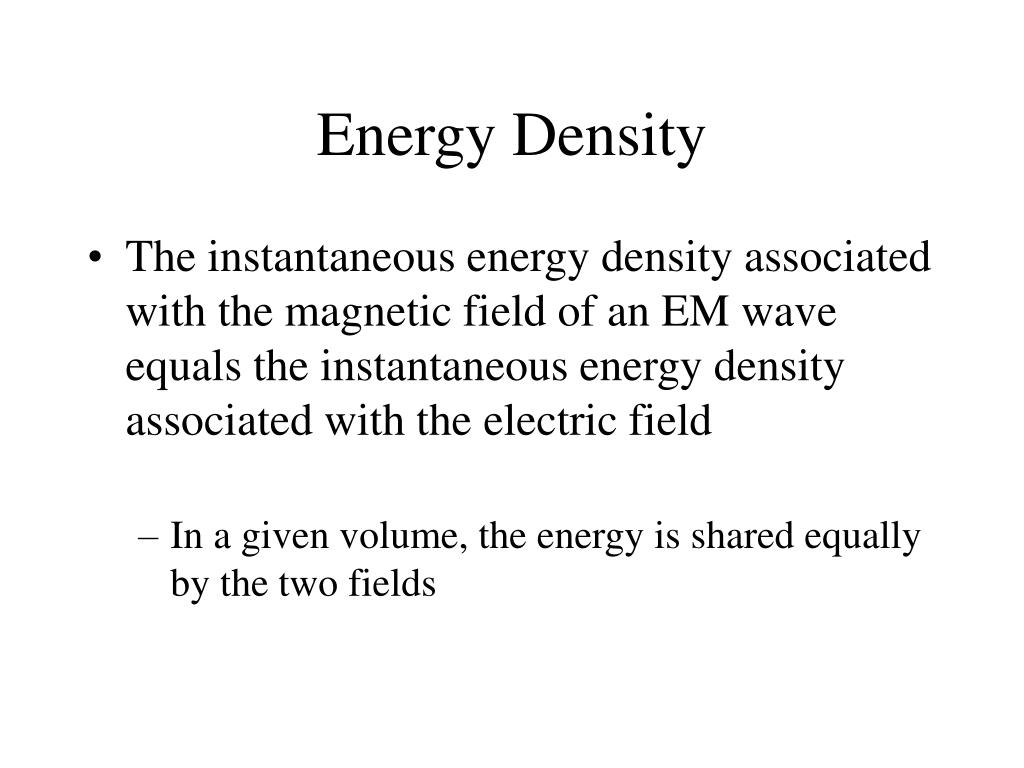

Energy Density

  • The instantaneous energy density associated with the magnetic field of an EM wave equals the instantaneous energy density associated with the electric field

    • In a given volume, the energy is shared equally by the two fields


Energy density1

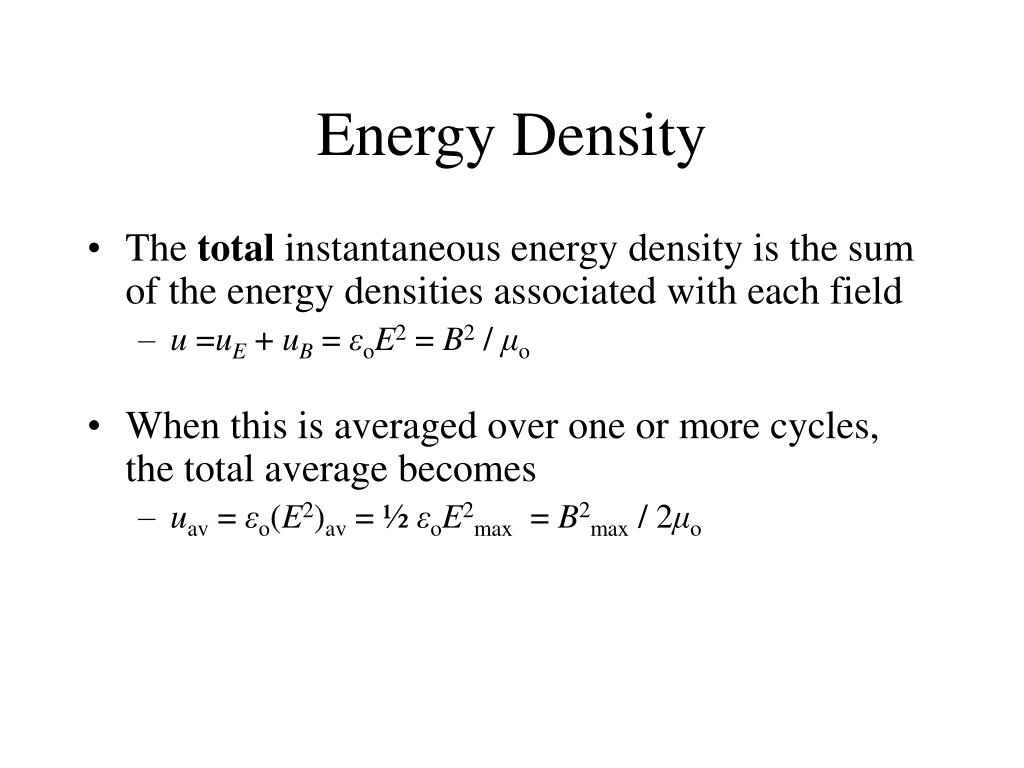

Energy Density

  • The total instantaneous energy density is the sum of the energy densities associated with each field

    • u =uE + uB = εoE2 = B2 / μo

  • When this is averaged over one or more cycles, the total average becomes

    • uav = εo(E2)av = ½ εoE2max = B2max / 2μo


Loose ends and magnetic fields in astronomy

Where does magnetism come from ????

Recall these equations:I=Q/t

T=2πr/vL=mvrμ=IA (sub in the above, and A=πr2)Imagine a little circuit with an electron moving at a distance

r from the nucleus of an atom. Combining these, we can

show that:

This is the magnetic moment of anelectron


Loose ends and magnetic fields in astronomy

Where does magnetism come from ????

Now, because the angular momentum L for electrons isquantized, L=The smallest possible non-zero value of the magnetic

moment is :

Q: So, if all electrons have this unit of magnetic moment,

why are not all substances magnetic ???


Em in astronomy

EM in Astronomy


Loose ends and magnetic fields in astronomy

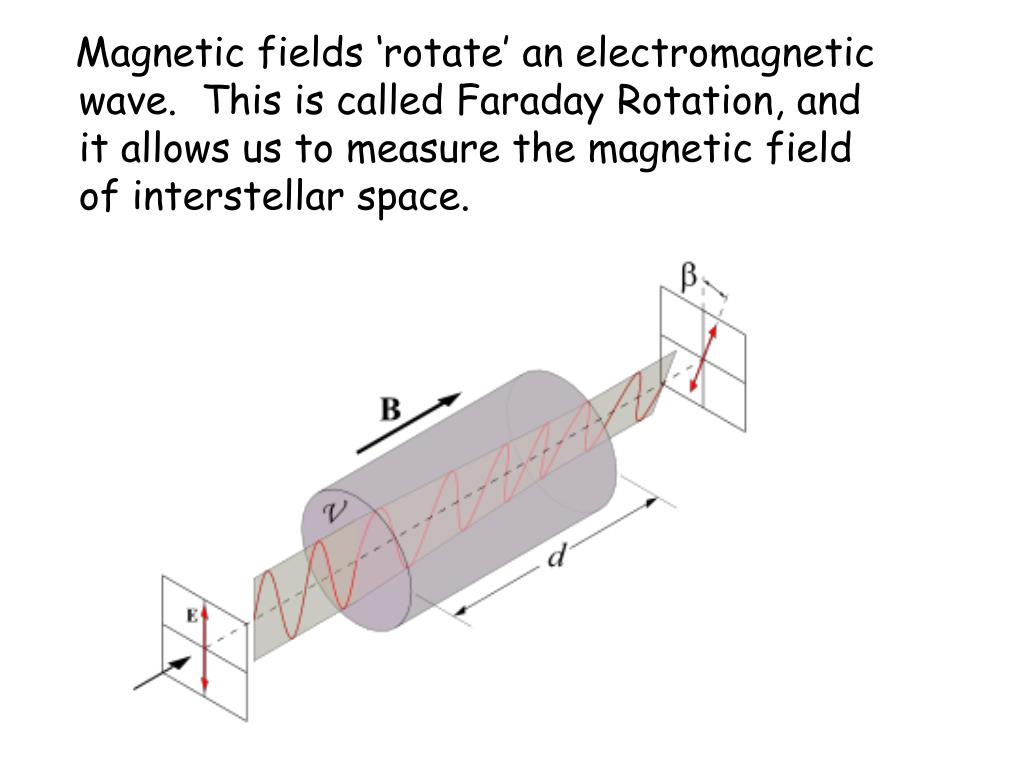

Magnetic fields ‘rotate’ an electromagnetic wave. This is called Faraday Rotation, and it allows us to measure the magnetic field of interstellar space.


Loose ends and magnetic fields in astronomy

This is the spiral

galaxy M51 and its

magnetic field.

Studying the fields

helps us understand

how galaxies form and

evolve.


Loose ends and magnetic fields in astronomy

This is the jet of M87,

evidence for a super

massive black hole at

the center of this

galaxy.


Loose ends and magnetic fields in astronomy

Sunspots are caused by

strong magnetic fields on

the surface of the sun.

We can detect them on other

stars currently!


Loose ends and magnetic fields in astronomy

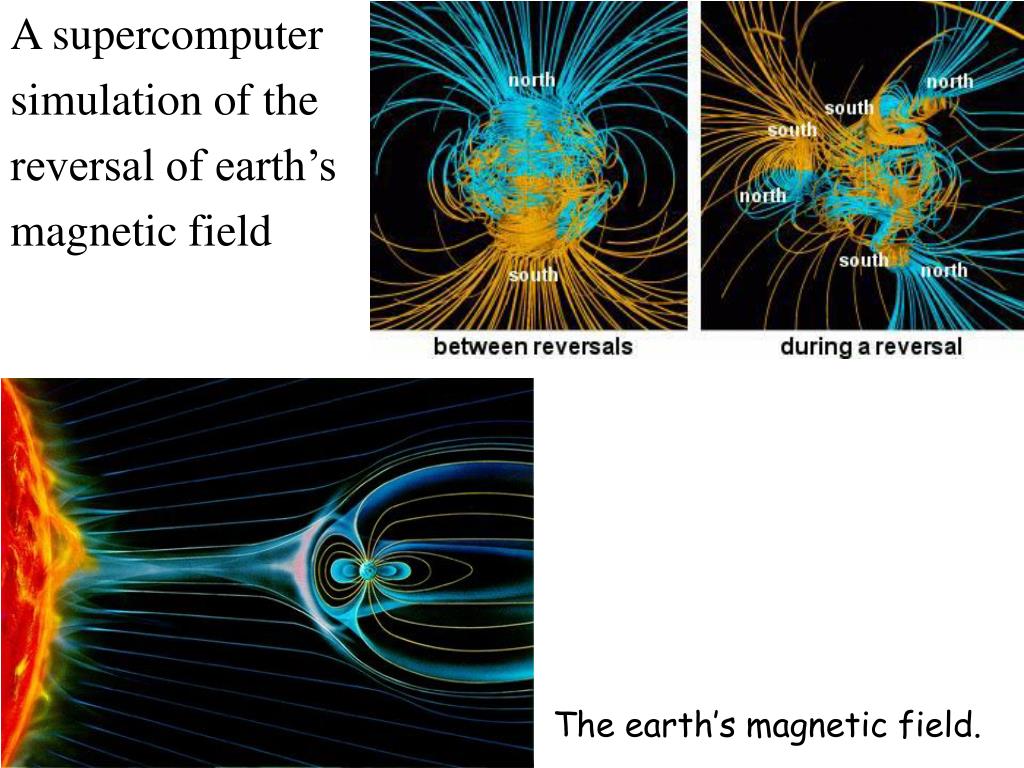

A supercomputer

simulation of the

reversal of earth’s

magnetic field

The earth’s magnetic field.


Loose ends and magnetic fields in astronomy

Planetary formation needs to incorporate magnetic fields in the ‘protoplanetary’ disc.

These are called MHD (magneto-hydro-dynamics simulations.


Redshift of em waves

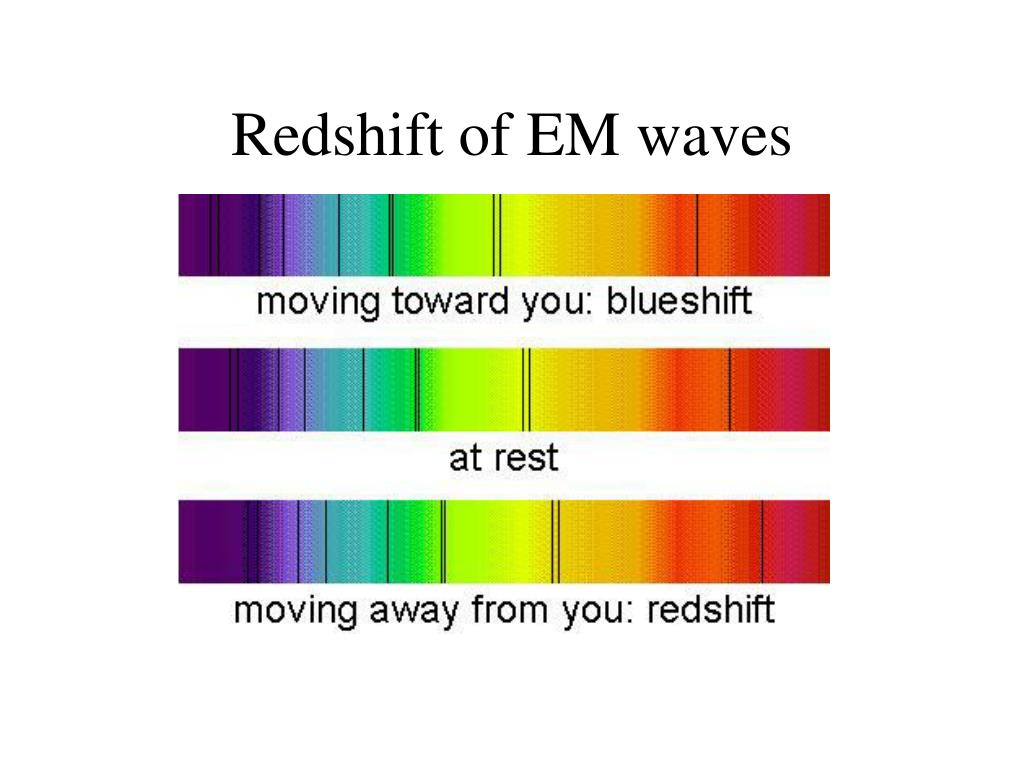

Redshift of EM waves


Loose ends and magnetic fields in astronomy

Galaxy distribution


Loose ends and magnetic fields in astronomy

Large Scale Galaxy

Distribution


Loose ends and magnetic fields in astronomy

Computer simulations of large scale structure formation


Loose ends and magnetic fields in astronomy

HDF and early

galaxy formation
