Spin dependent transport properties of magnetic nanostructures
Spin Dependent Transport Properties of Magnetic Nanostructures

Amédée d’Aboville,

with Dr. J. Philip, Dr. S. Kang,

J. Battogtokh


Outline
Outline Nanostructures

  • Introduction to Nanostructures

  • Magnetic Nanostructures

    • Growth

    • Properties

    • Device fabrication

    • Device characterization


What is nano
What is Nano? Nanostructures

  • SI unit of length = 1m

  • Other units are the millimeter: 1x 10-3 m

    micrometer : 1 x 10-6 m

    nanometer : 1 x 10-9 m

    1 meter = 1 billion nanometers

  • The width of a hair is about 50 000 nm

  • Nanostructures have at least one dimension less than 100nm


What is nanotechnology
What is Nanotechnology? Nanostructures

  • Nanotechnology is the manipulation, fabrication, and characterization of nanostructures


What are the applications of nanotechnology

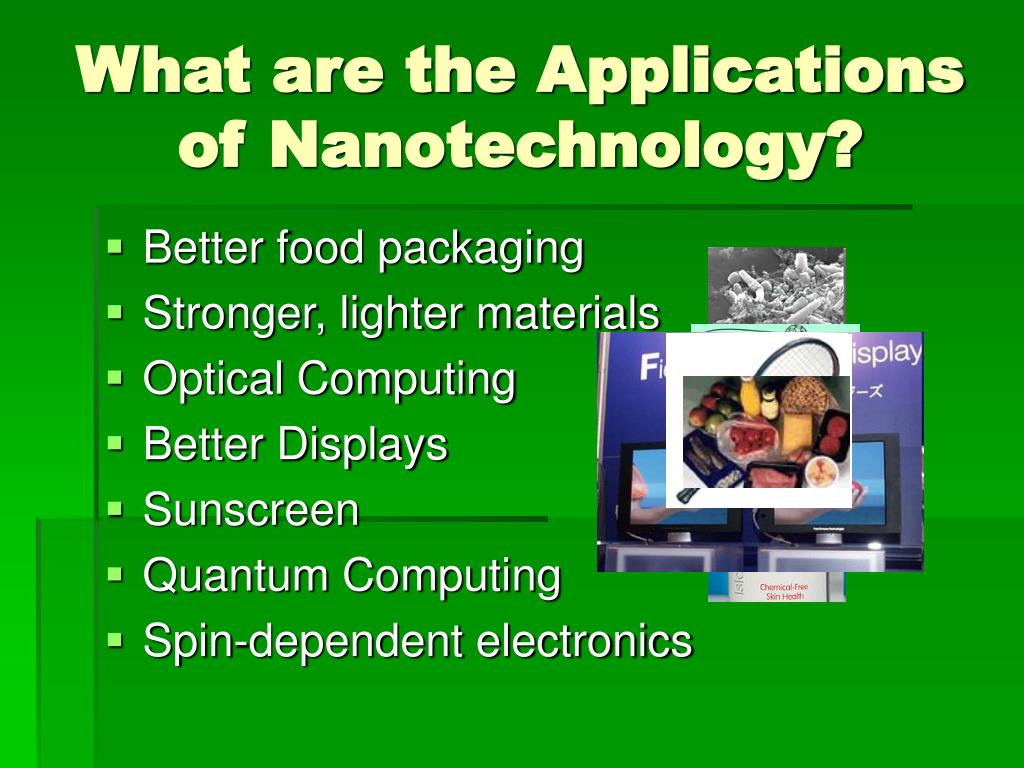

What are the Applications of Nanotechnology? Nanostructures

  • Better food packaging

  • Stronger, lighter materials

  • Optical Computing

  • Better Displays

  • Sunscreen

  • Quantum Computing

  • Spin-dependent electronics


Galfenol
Galfenol Nanostructures

  • Galfenol is a Gallium Iron compound with a specific stoichiometric composition (Ga0.2Fe0.8)

  • Galfenol is ferromagnetic, and has a Curie Temperature of 1000 K

  • There are also a range of interesting properties (ie. Magnetostriction).


Nanowire growth electro spinning
Nanowire Growth: Electro-Spinning Nanostructures

  • A syringe is filled with a solution of correct stochiometric compositions

  • A high potential is applied between the tip of the needle and the collector

  • Nanowires spin out of the syringe



Sample preparation sonication
Sample Preparation: Sonication Nanostructures

  • Nanowires are separated from the substrate by placing in an ultrasonic bath

  • The Nanowires are left in an IPA solution


Preparation
Preparation Nanostructures

  • Coordinates of the NW are obtained using an SEM

  • Electrodes designed are designed using a Computer Aided Design program

  • The CAD file is fed into a computer

  • The computer controls a finely focused electron beam


Lithography

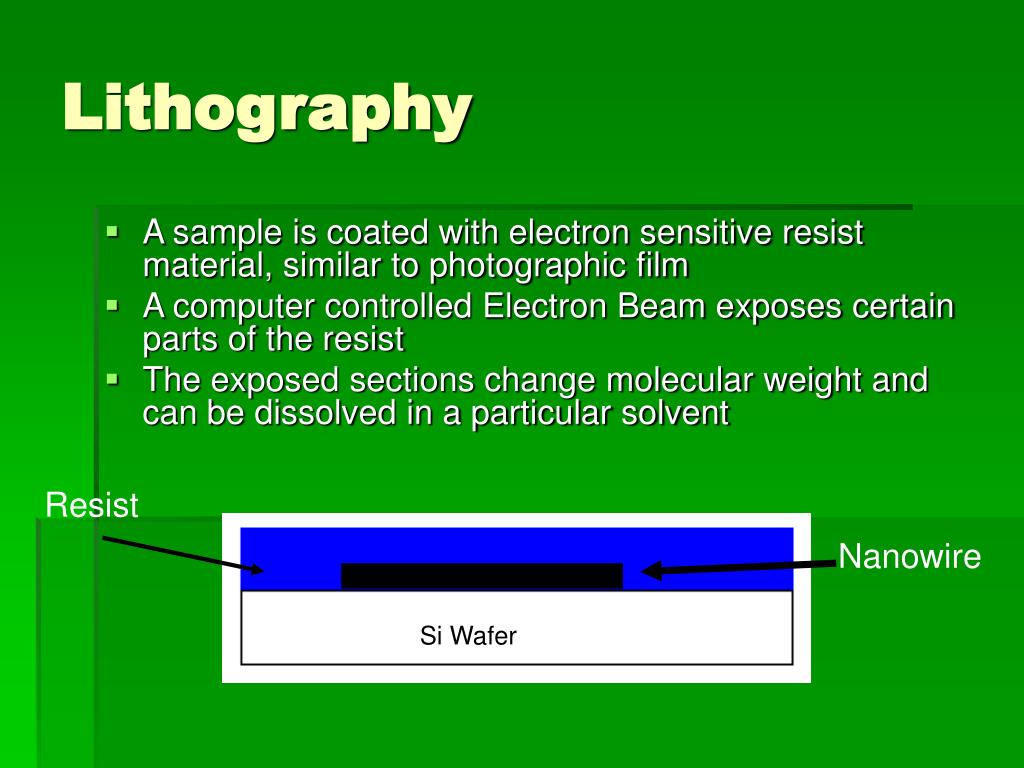

Lithography Nanostructures

  • A sample is coated with electron sensitive resist material, similar to photographic film

  • A computer controlled Electron Beam exposes certain parts of the resist

  • The exposed sections change molecular weight and can be dissolved in a particular solvent

Resist

Nanowire

Si Wafer


Ultra high vacuum deposition
Ultra-High Vacuum Deposition Nanostructures

  • State of the art technique to deposit high quality material

  • High vacuum can be achieved ( up to 10-10 torr)

  • Ti and Cu electrodes are deposited in thin sheets ( 5nm and 100nm, respectively)


Metallization and liftoff

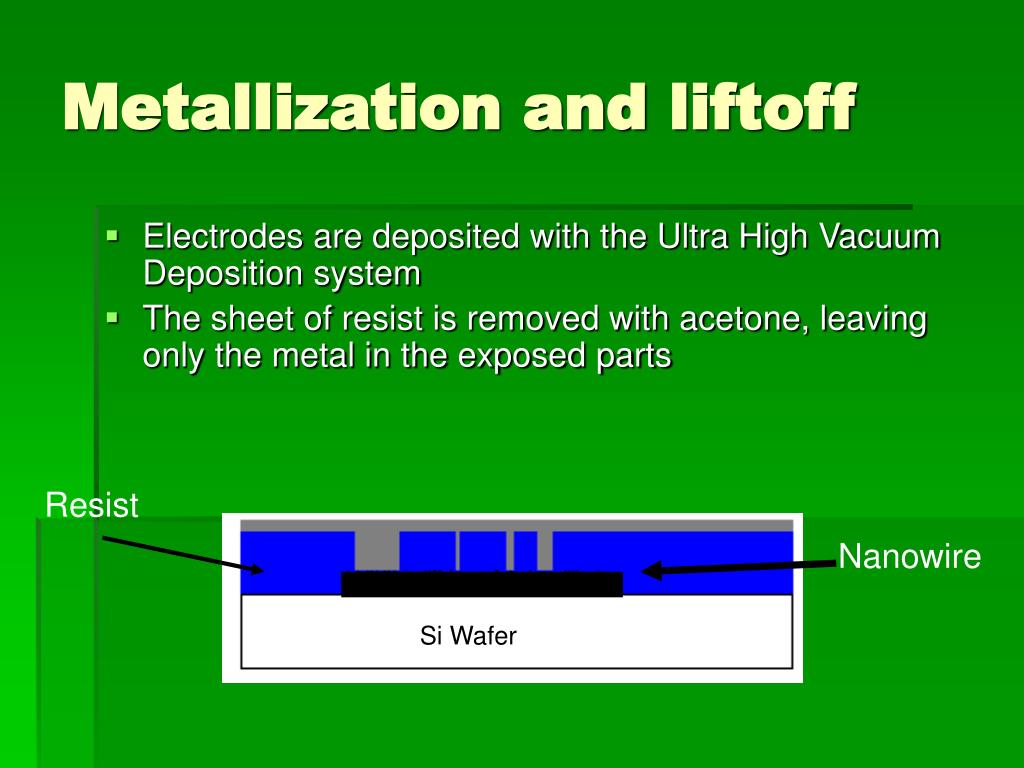

Metallization and liftoff Nanostructures

  • Electrodes are deposited with the Ultra High Vacuum Deposition system

  • The sheet of resist is removed with acetone, leaving only the metal in the exposed parts

Resist

Nanowire

Si Wafer



Spin dependent transport properties
Spin Dependent Transport Properties Nanostructures

  • Placing Galfenol NW in an external field can orient its electron spin in the desired direction

  • The NW resistance changes with the orientation of its electrons relative to the current


Property measurements
Property Measurements Nanostructures

  • We apply a voltage and measure the resultant drain to source current

Nanowire acts as a channel

Drain

Source

Wafer acts as gate


Expected results
Expected Results Nanostructures

  • There is a thin sheet of oxide on top of the nanowire which acts as an insulator

  • The electrons get through the sheet by quantum tunneling

  • The oxide is a Quantum Tunneling Barrier

GaFe Oxide

Drain

Source

Nanowire

Wafer


Measured properties

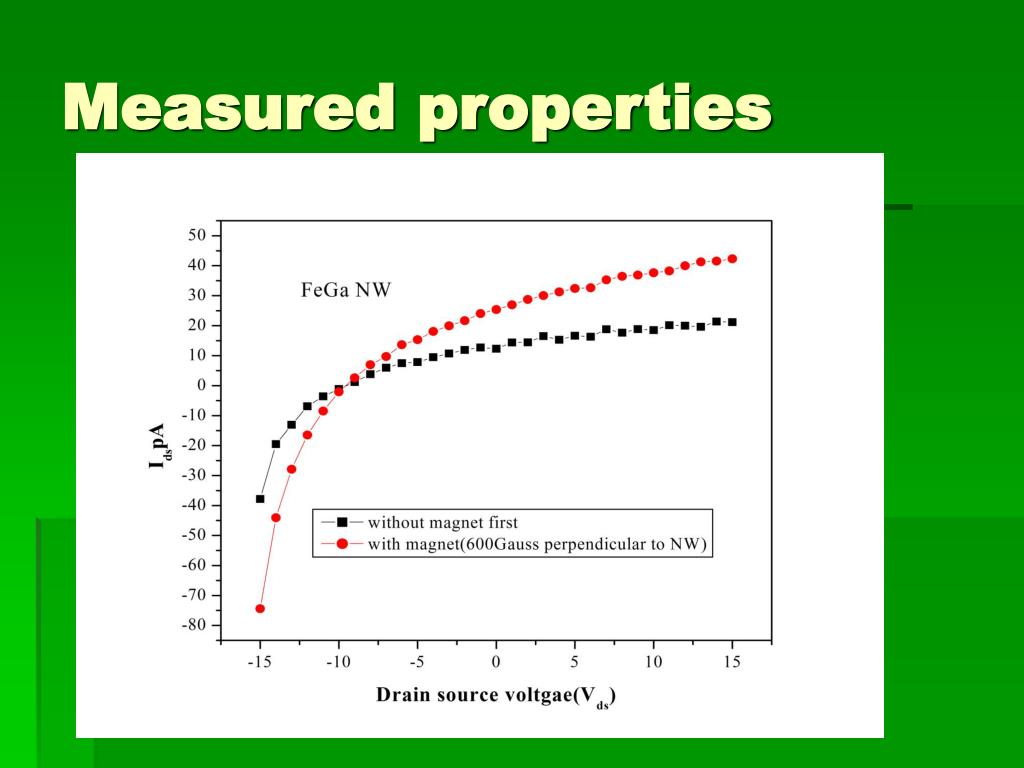

Measured properties Nanostructures


Conclusion
Conclusion Nanostructures

  • We have grown Galfenol NW

  • Analyzed their structure

  • Built devices out of single NWs

  • Measured these device properties

  • Analyzed these device measurements
