EXAMPLE 3

o. ALGEBRA Given that m LKN =145 , find m LKM and m MKN. STEP 1. Write and solve an equation to find the value of x. m LKN = m LKM + m MKN. o. o. o. 145 = (2 x + 10) + (4 x – 3). EXAMPLE 3. Find angle measures. SOLUTION. Angle Addition Postulate.

val
Download Presentation

EXAMPLE 3

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. o ALGEBRAGiven that m LKN =145 , find m LKM andm MKN. STEP 1 Write and solve an equation to find the value of x. mLKN = m LKM + mMKN o o o 145 = (2x + 10)+ (4x – 3) EXAMPLE 3 Find angle measures SOLUTION Angle Addition Postulate Substitute angle measures. 145 = 6x + 7 Combine like terms. 138 = 6x Subtract 7 from each side. 23 = x Divide each side by 6.

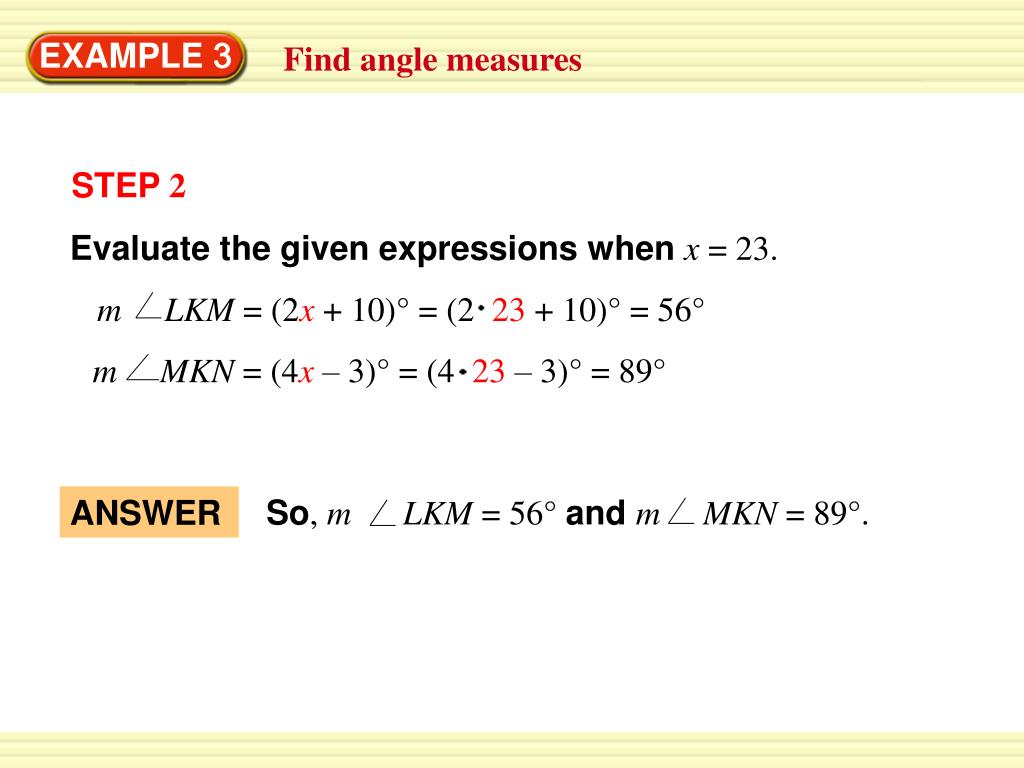

  2. STEP 2 Evaluate the given expressions when x = 23. mLKM = (2x+ 10)° = (2 23+ 10)° = 56° mMKN = (4x– 3)° = (4 23– 3)° = 89° So, m LKM = 56°and m MKN = 89°. ANSWER EXAMPLE 3 Find angle measures

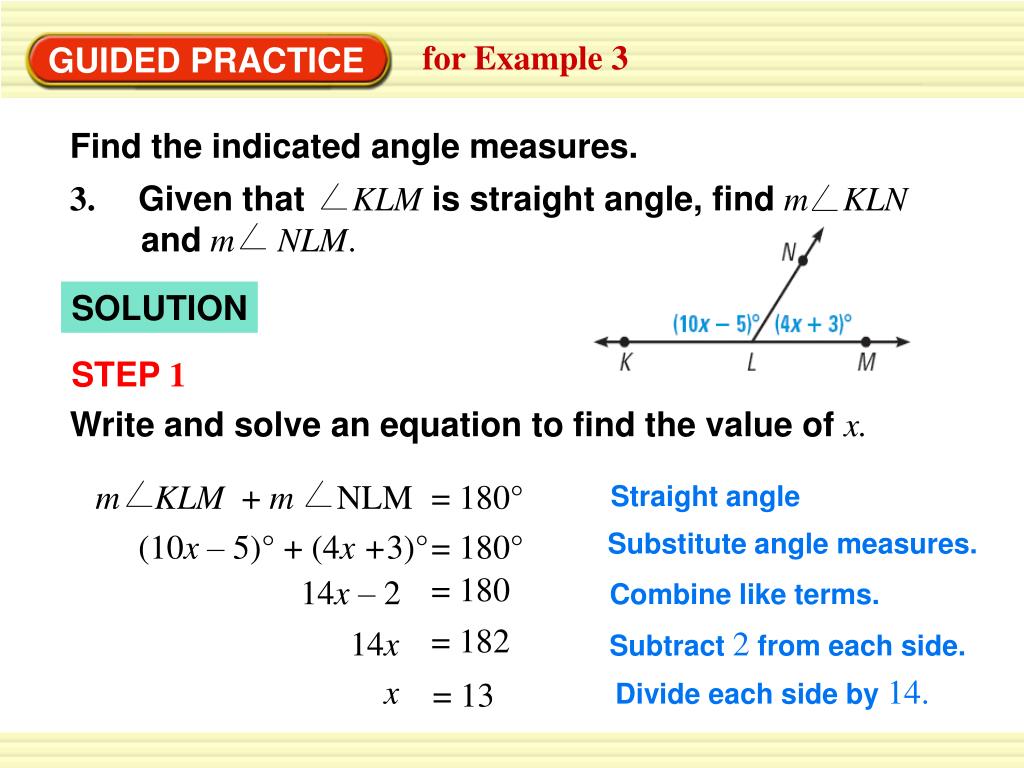

  3. 3. Given that KLMis straight angle, find mKLN andm NLM. STEP 1 Write and solve an equation to find the value of x. m KLM + m NLM = 180° (10x – 5)° + (4x +3)° = 180° = 180 14x – 2 = 182 14x x = 13 for Example 3 GUIDED PRACTICE Find the indicated angle measures. SOLUTION Straight angle Substitute angle measures. Combine like terms. Subtract 2 from each side. Divide each side by 14.

  4. STEP 2 Evaluate the given expressions when x = 13. mKLM = (10x– 5)° = (10 13– 5)° = 125° mNLM = (4x+ 3)° = (4 13+ 3)° = 55° mKLM = 125° mNLM = 55° ANSWER for Example 3 GUIDED PRACTICE

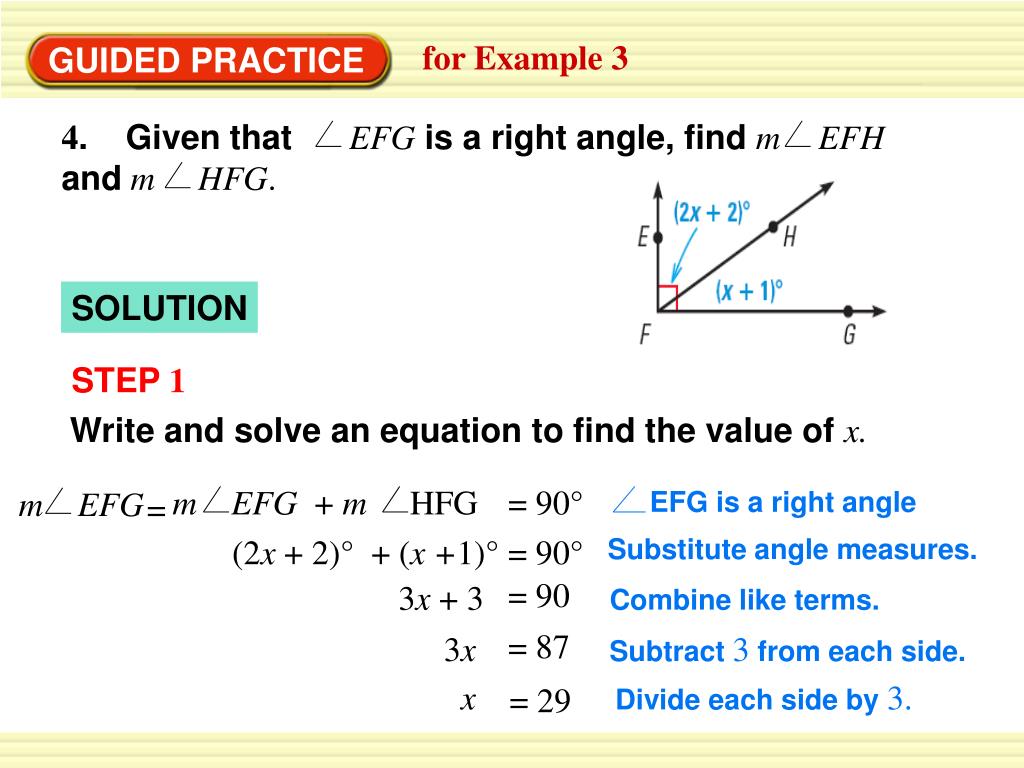

  5. STEP 1 Write and solve an equation to find the value of x. m EFG + m HFG m EFG EFG is a right angle = = 90° (2x + 2)° + (x +1)° = 90° = 90 3x + 3 = 87 3x x = 29 for Example 3 GUIDED PRACTICE 4. Given that EFGis a right angle, find mEFH andm HFG. SOLUTION Substitute angle measures. Combine like terms. Subtract 3 from each side. Divide each side by 3.

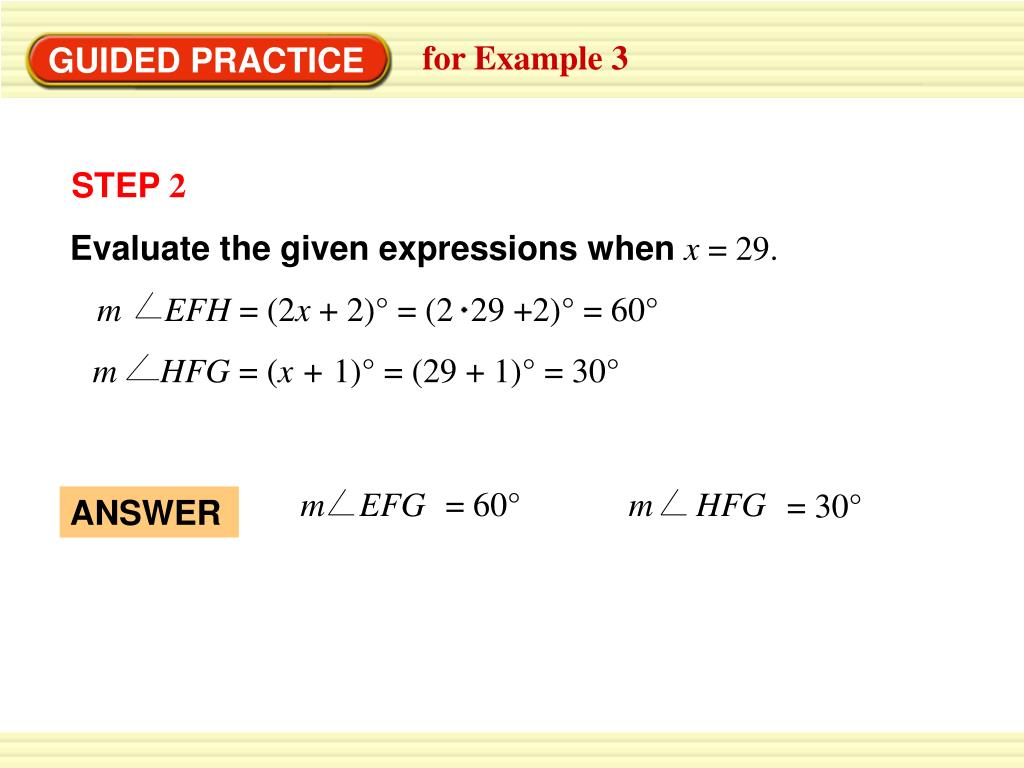

  6. STEP 2 Evaluate the given expressions when x = 29. mEFH = (2x+ 2)° = (2 29 +2)° = 60° mHFG = (x+ 1)° = (29+ 1)° = 30° mEFG = 60° mHFG = 30° ANSWER for Example 3 GUIDED PRACTICE
