  1. 고급운영체제론 Memory Resource Management in Vmware ESX Server 2011년 03월 21일 박 영 웅 santapark5 at gmail.com

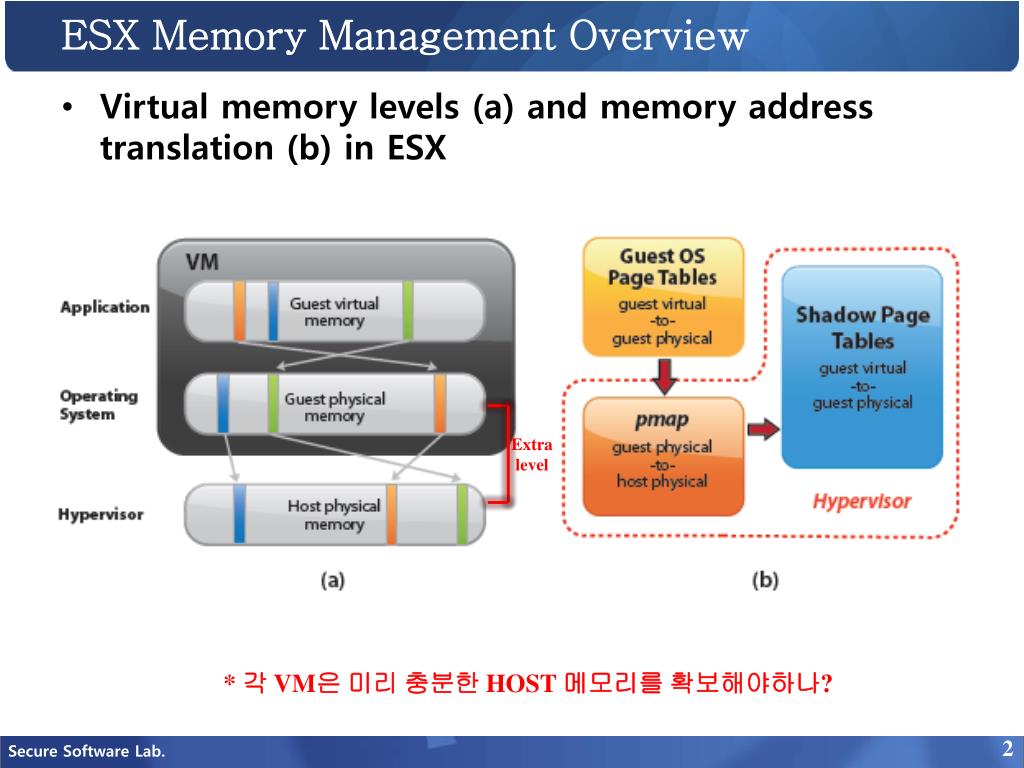

  2. ESX Memory Management Overview • Virtual memory levels (a) and memory address translation (b) in ESX Extra level * 각 VM은 미리 충분한 HOST 메모리를 확보해야하나?

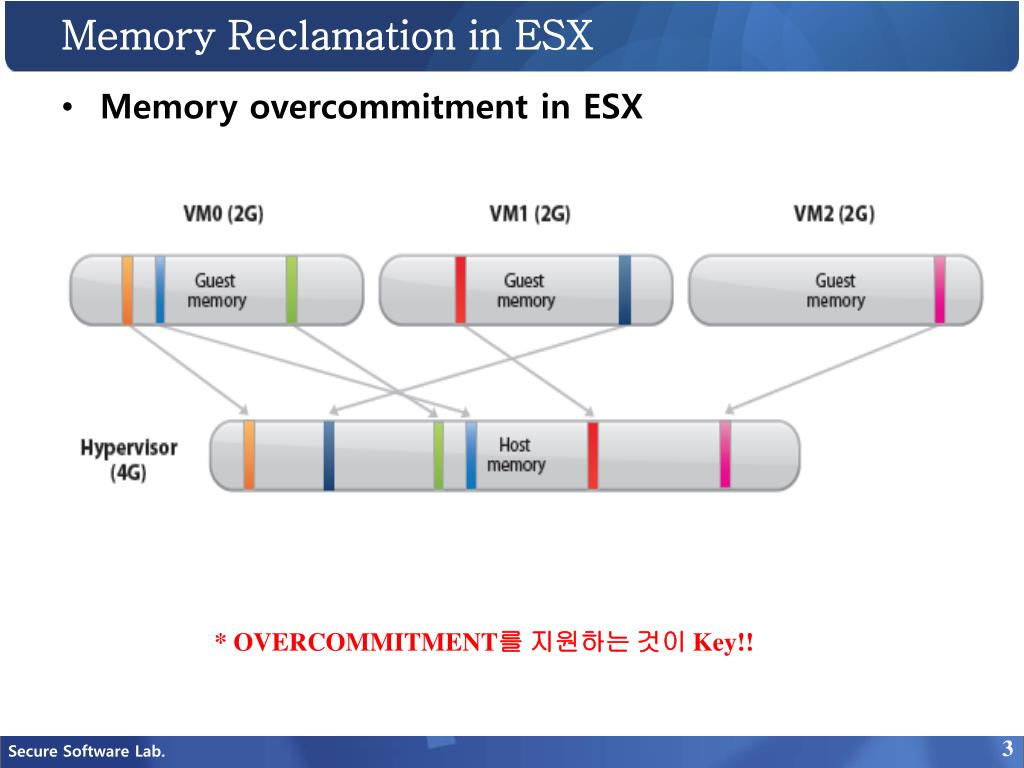

  3. Memory Reclamation in ESX • Memory overcommitment in ESX * OVERCOMMITMENT를 지원하는 것이 Key!!

  4. Transparent Page Sharing • Content based page sharing in ESX * 어떤/언제/ 게스트 물리 페이지를 스캔해야하지??

  5. Page Sharing Performace

  6. Ballooning Techinque • Inflating the balloon in a virtual machine on ESX * Ballooning 기술은 결국 게스트에게 메모리 압박 전가

  7. Balloon Performance

  8. Hypervisor Swapping • Swapping * 가장 확실하면서 가장 성능부하가 심하다-최후의 방법

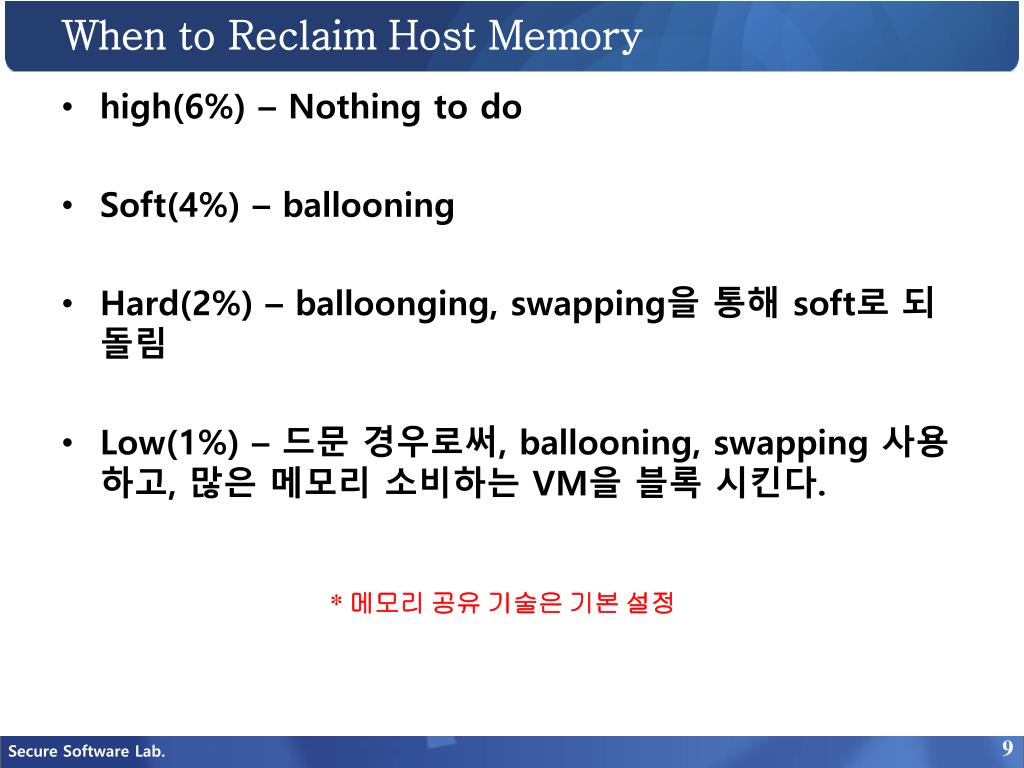

  9. When to Reclaim Host Memory • high(6%) – Nothing to do • Soft(4%) – ballooning • Hard(2%) – balloonging, swapping을 통해 soft로 되돌림 • Low(1%) – 드문 경우로써, ballooning, swapping 사용하고, 많은 메모리 소비하는 VM을 블록 시킨다. * 메모리 공유 기술은 기본 설정

  10. ㅠ_ㅠ

  11. Q & A thank you
