  1. Polymerisation

  2. Plastics Plastics are substances made from alkenes. Common plastics are: Polythene or poly(ethene) Used for plastic bags.

  3. Plastics polystyrene: Used for damage protection in packaging and insulation.

  4. Nylon and polyester are both used in clothing. nylon polyester

  5. Nylon and Gore-Tex® Both nylon and Gore-Tex are used in waterproof clothing such as jackets.

  6. Nylon is... • waterproof • tough • lightweight • keeps ultraviolet light out But it does not let water vapour through, so sweat condenses.

  7. Gore-Tex... has all the properties of nylon. But it is breathable – it allows water vapour through. Active outdoor walkers etc. do not suffer from perspiration wetness

  8. Polymers • Plastics are examples of polymers. • Polymers are substances made of very large molecules. • The molecules are made from many smaller molecules (monomers) joined together. • The process of making a polymer is called polymerisation.

  9. Polymerisation Most polymers are made by addition polymerisation. A catalyst and a high pressure are needed. A polystyrene plant

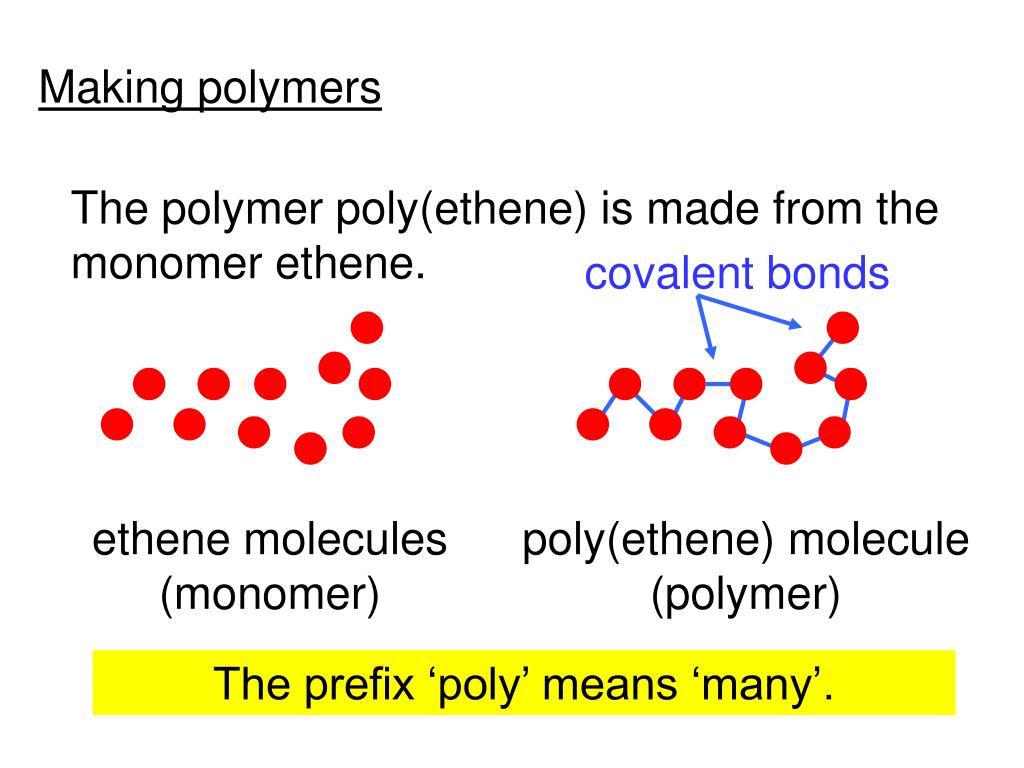

  10. Making polymers The polymer poly(ethene) is made from the monomer ethene. covalent bonds ethene molecules (monomer) poly(ethene) molecule (polymer) The prefix ‘poly’ means ‘many’.

  11. Have a go at completing the following table: polypropene styrene polychloroethene* * also known as pvc or ‘vinyl’

  12. Polymerisation equations When ethene molecules react the double covalent bonds break. The product – poly(ethene) – is saturated. poly(ethene) ethene

  13. Polymerisation equations Notice the repeating unit:

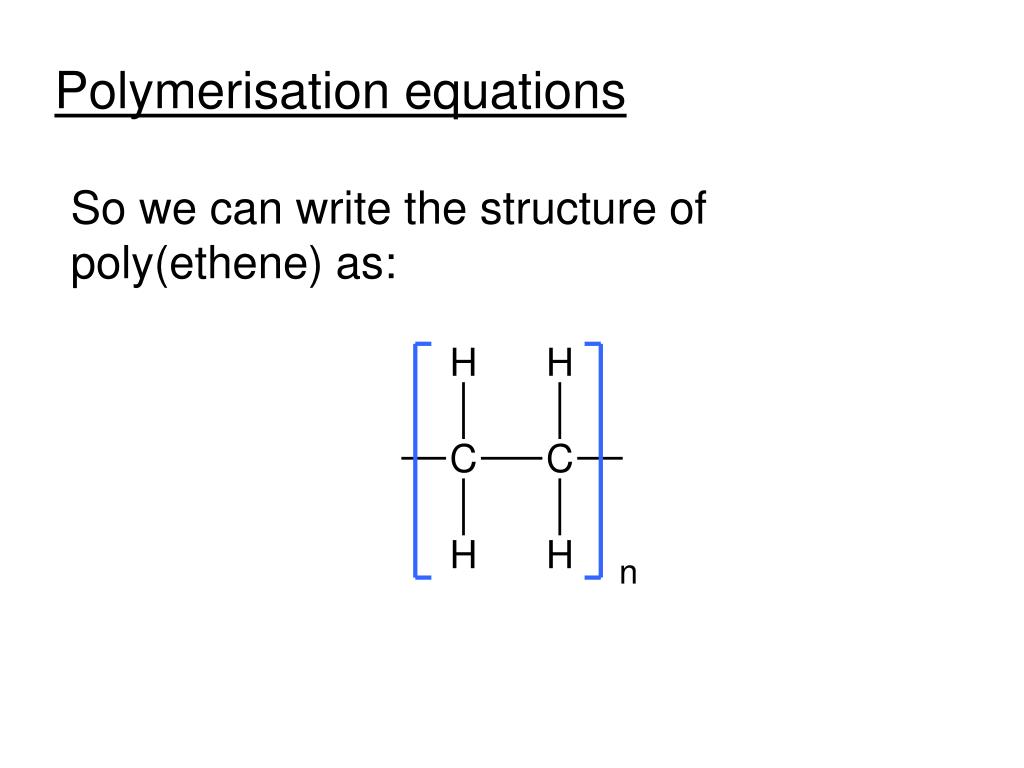

  14. n Polymerisation equations So we can write the structure of poly(ethene) as:

  15. n n n Polymerisation equations Complete the following equations: n

  16. Draw the displayed formula for the monomer of this polymer: repeating unit
