Presentation Transcript


Grape physiology

Grape Physiology

Plant Growth Regulators

[email protected]

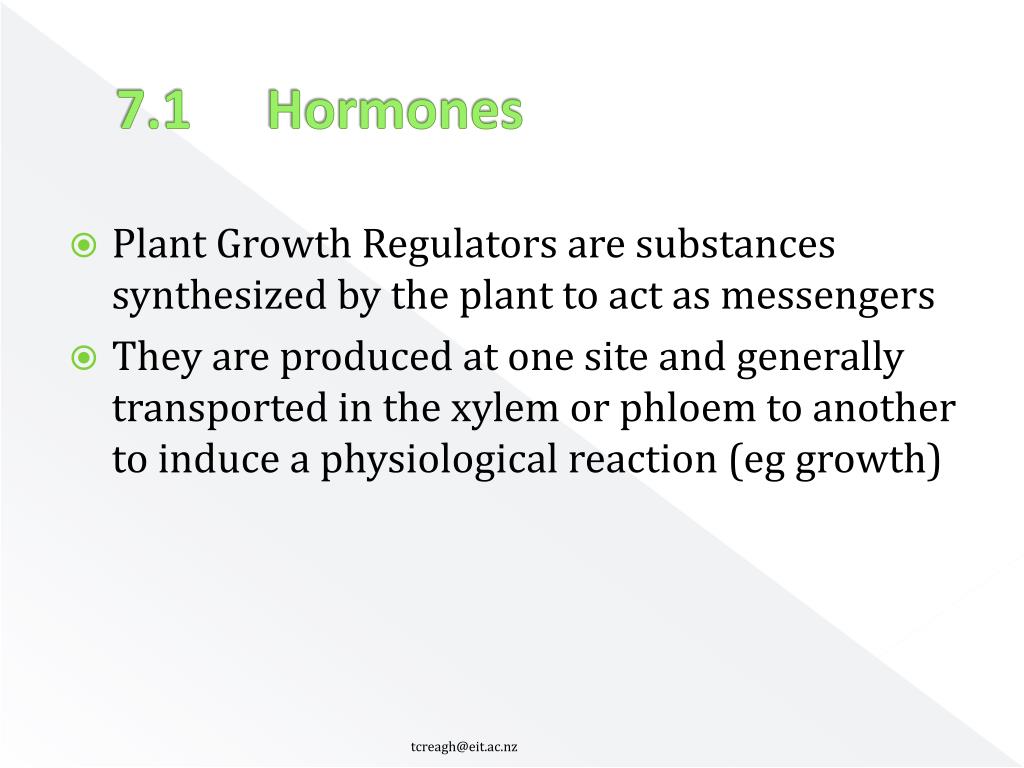

7 1 hormones

7.1Hormones

  • Plant Growth Regulators are substances synthesized by the plant to act as messengers

  • They are produced at one site and generally transported in the xylem or phloem to another to induce a physiological reaction (eg growth)

[email protected]


7 1 hormones1

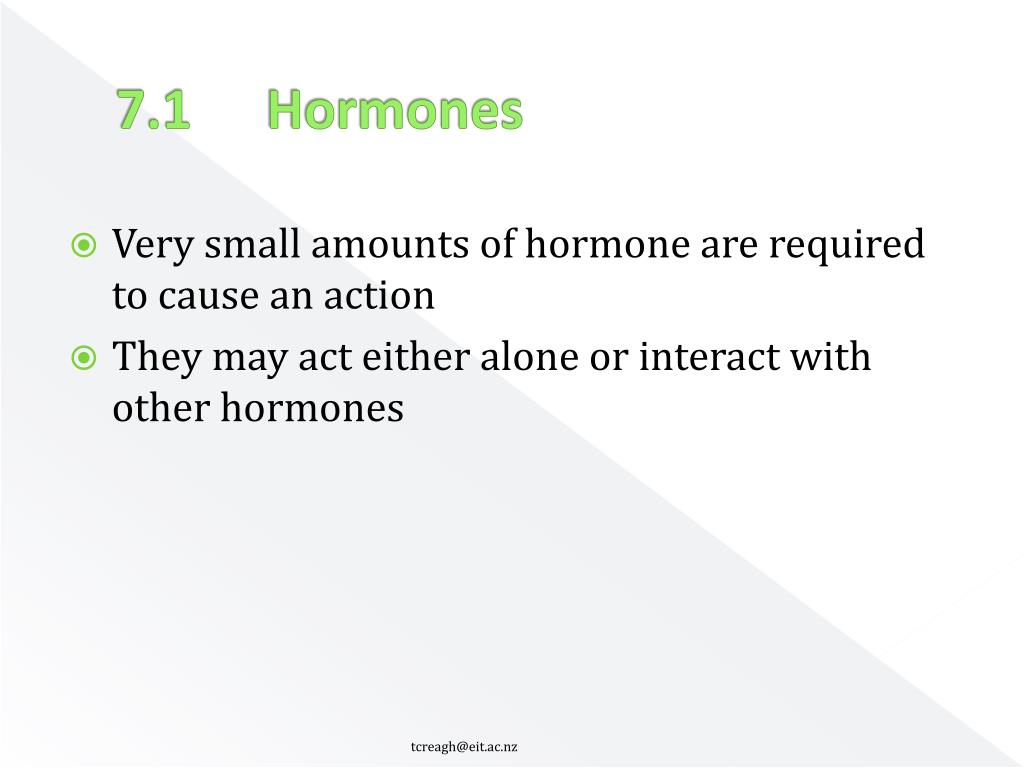

7.1Hormones

  • Very small amounts of hormone are required to cause an action

  • They may act either alone or interact with other hormones

[email protected]

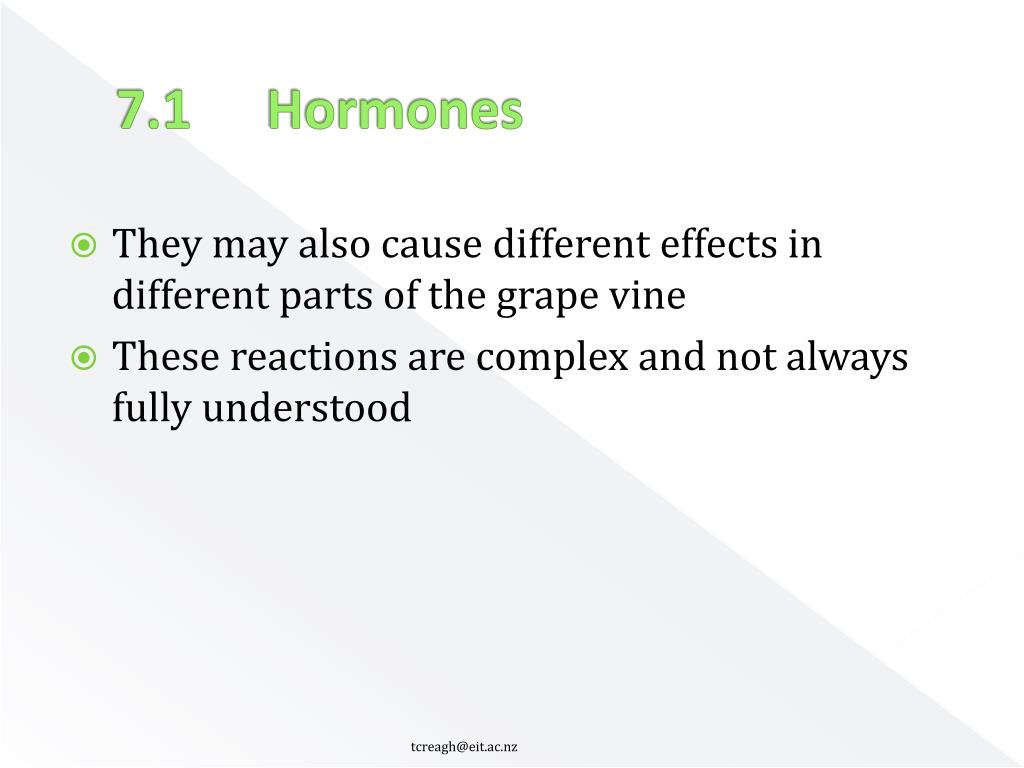

7 1 hormones2

7.1Hormones

  • They may also cause different effects in different parts of the grape vine

  • These reactions are complex and not always fully understood

[email protected]


7 1 hormones3

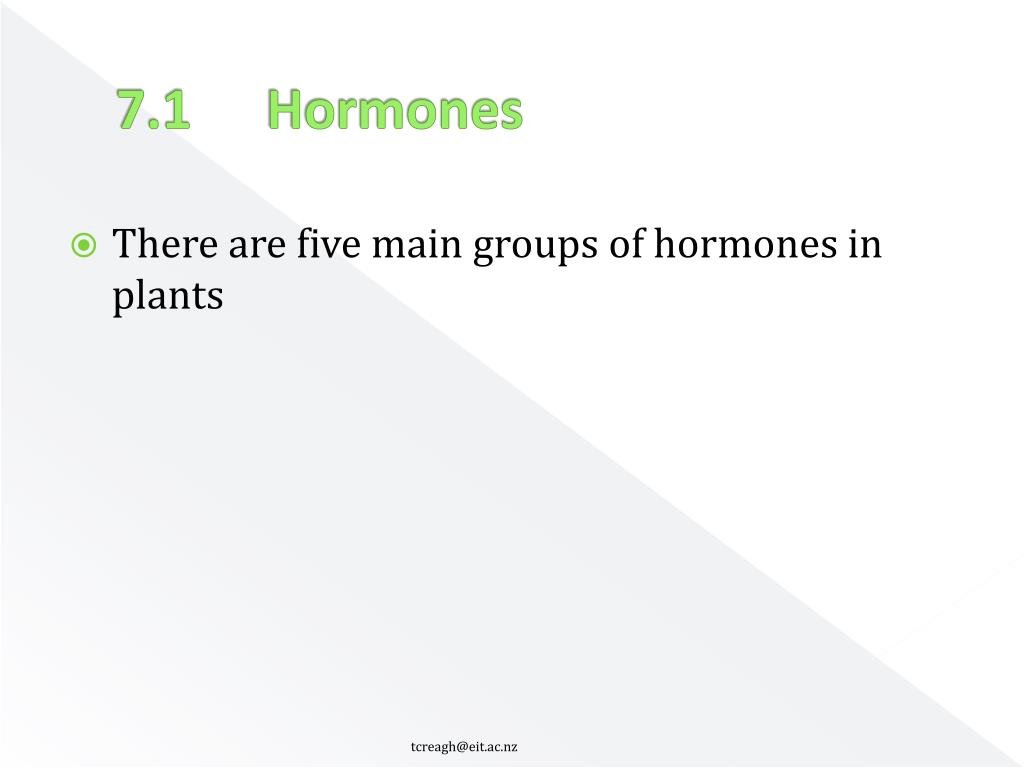

7.1Hormones

  • There are five main groups of hormones in plants

[email protected]


Auxins

Auxins

[email protected]

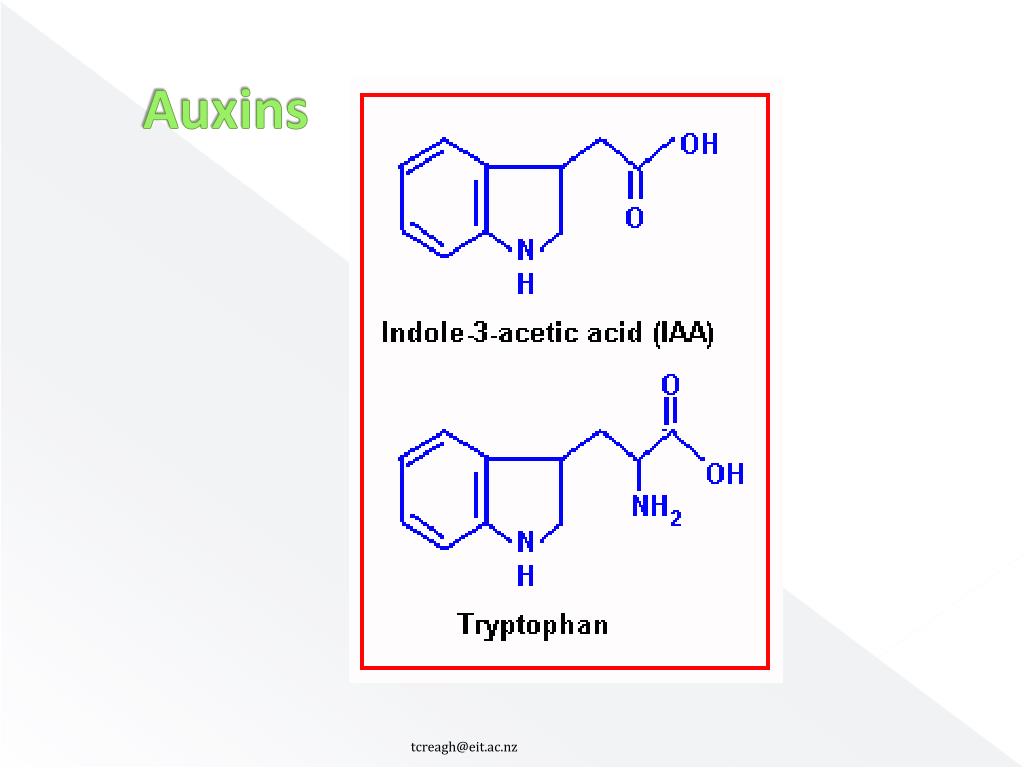

Auxins1

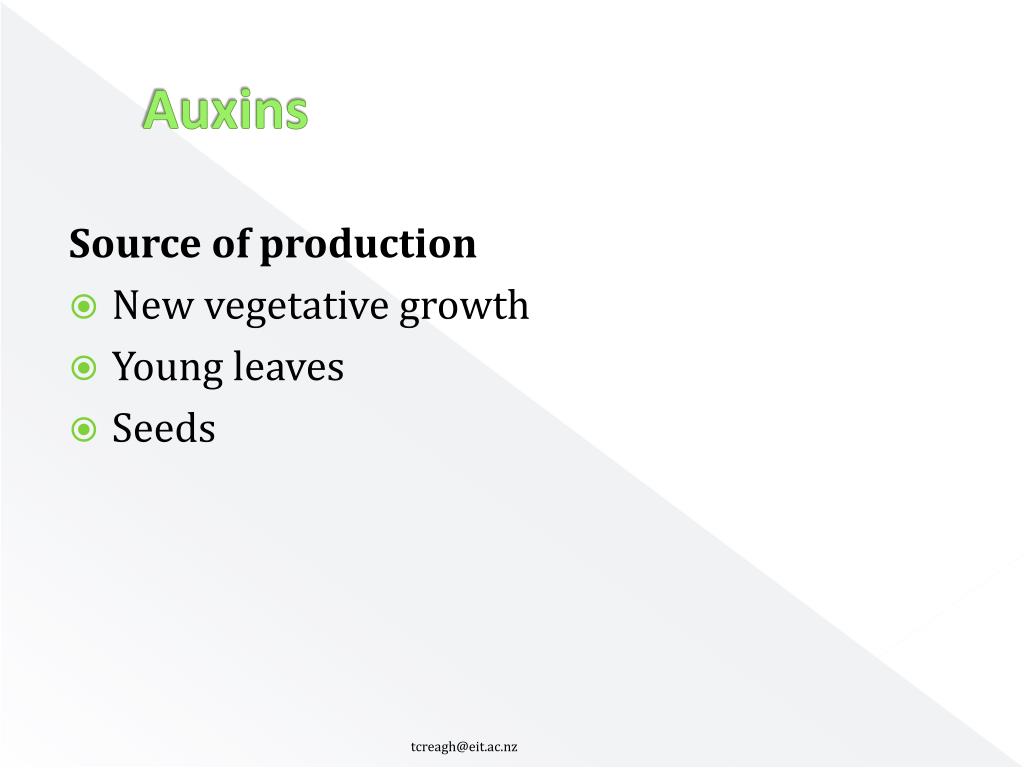

Auxins

Source of production

  • New vegetative growth

  • Young leaves

  • Seeds

[email protected]

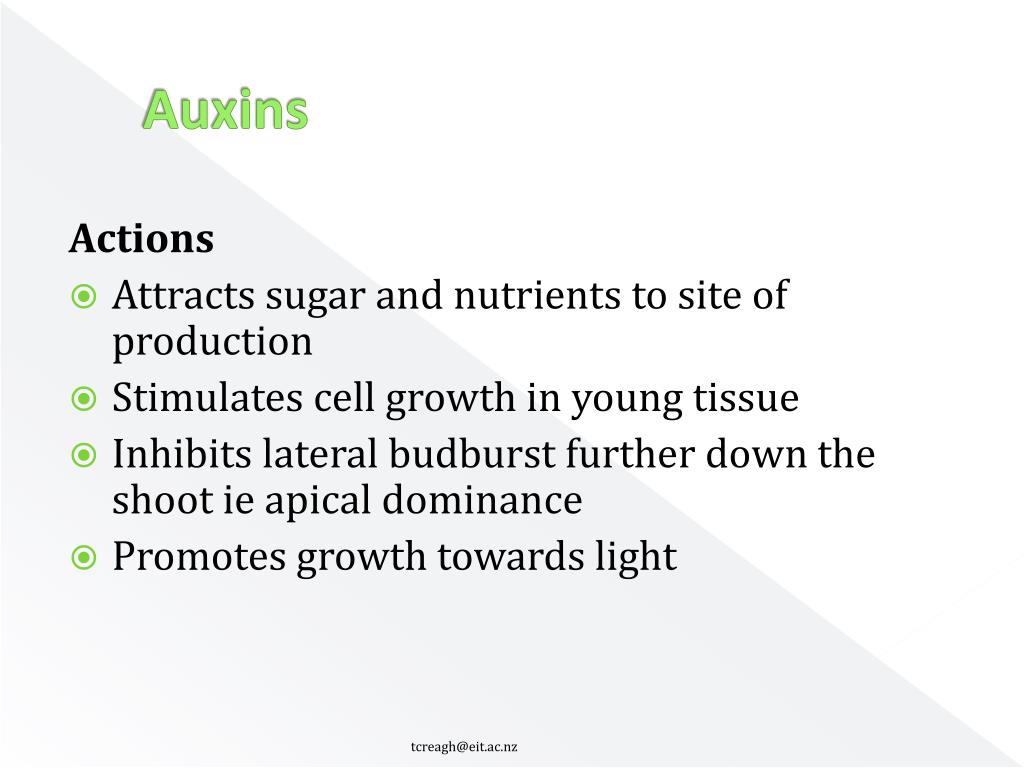

Auxins2

Auxins

Actions

  • Attracts sugar and nutrients to site of production

  • Stimulates cell growth in young tissue

  • Inhibits lateral budburst further down the shoot ie apical dominance

  • Promotes growth towards light

[email protected]


Gibberellins

Gibberellins

[email protected]

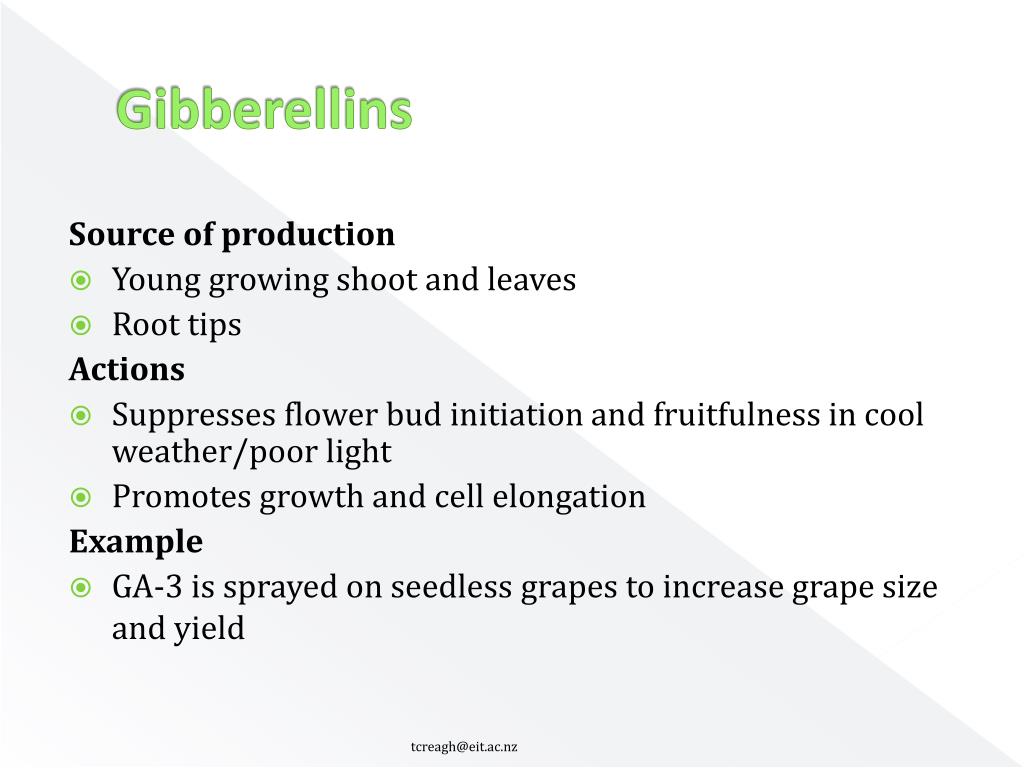

Gibberellins1

Gibberellins

Source of production

  • Young growing shoot and leaves

  • Root tips

    Actions

  • Suppresses flower bud initiation and fruitfulness in cool weather/poor light

  • Promotes growth and cell elongation

    Example

  • GA-3 is sprayed on seedless grapes to increase grape size and yield

[email protected]


Cytokinins

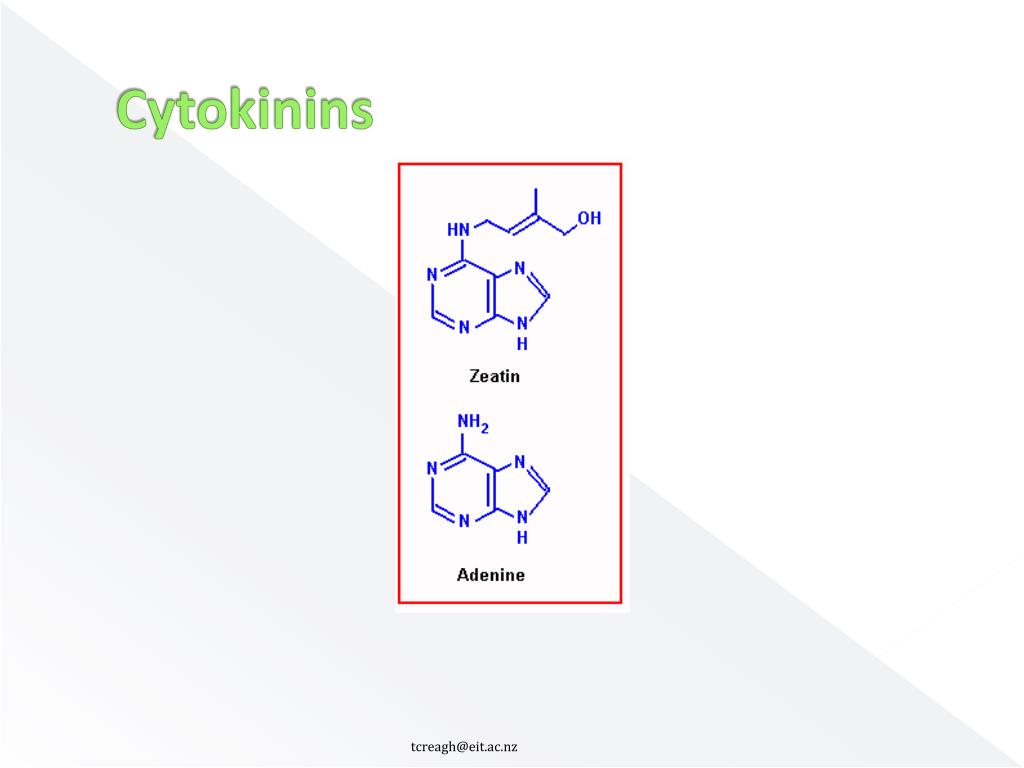

Cytokinins

[email protected]

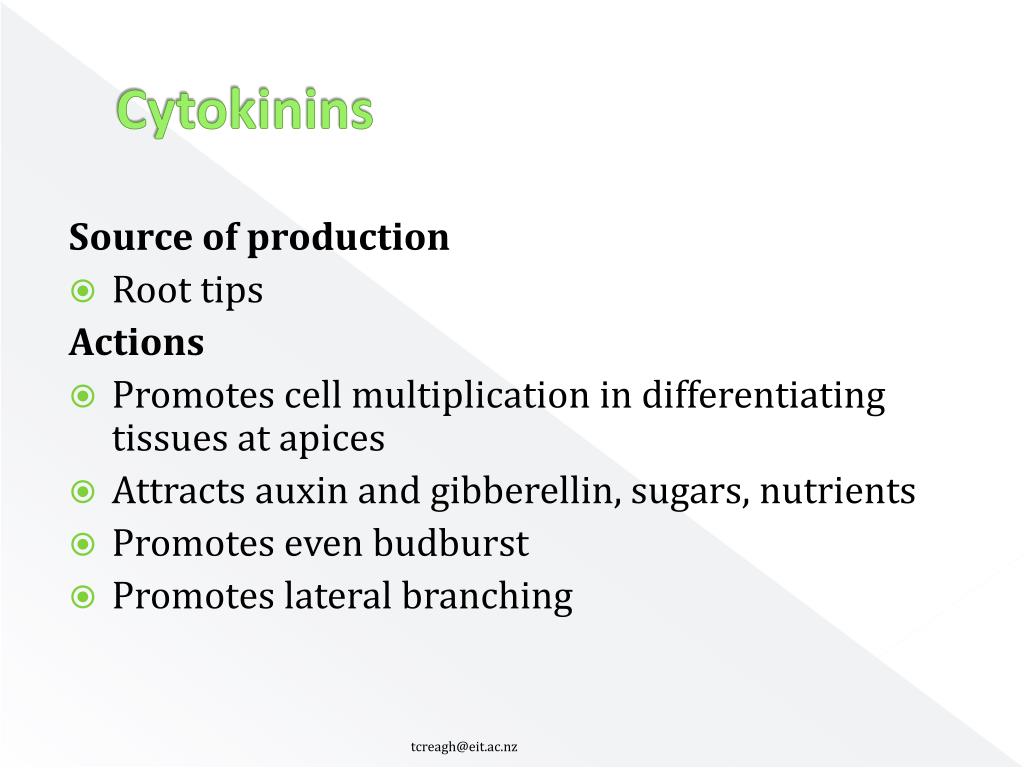

Cytokinins1

Cytokinins

Source of production

  • Root tips

    Actions

  • Promotes cell multiplication in differentiating tissues at apices

  • Attracts auxin and gibberellin, sugars, nutrients

  • Promotes even budburst

  • Promotes lateral branching

[email protected]


Cytokinins2

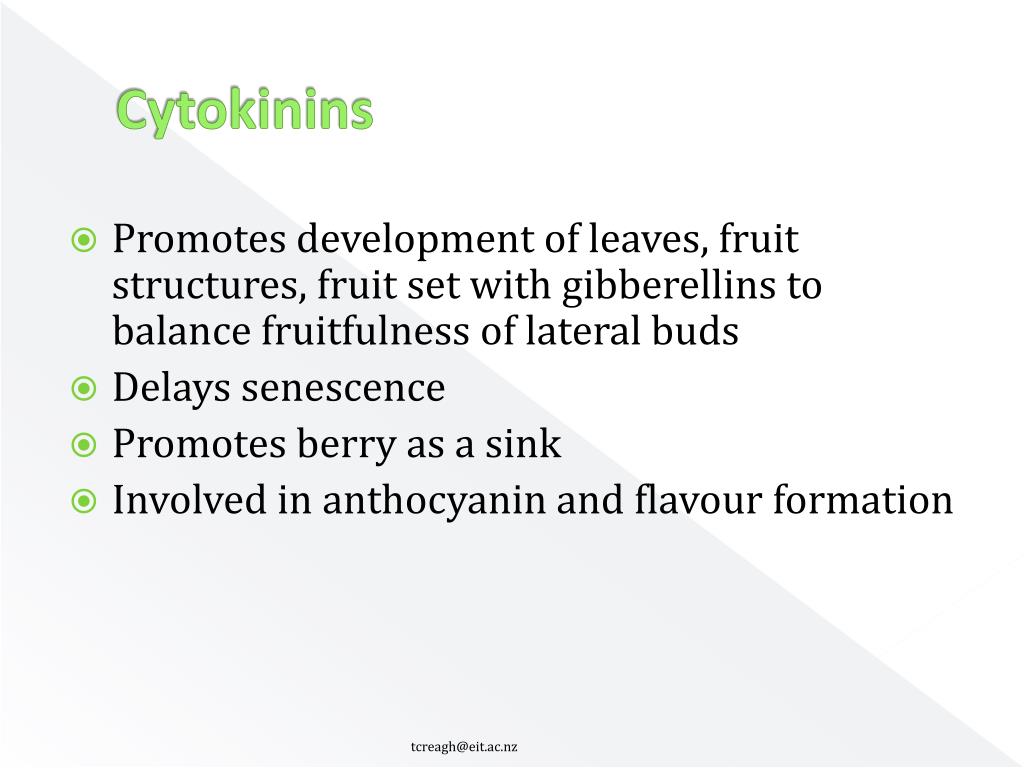

Cytokinins

  • Promotes development of leaves, fruit structures, fruit set with gibberellins to balance fruitfulness of lateral buds

  • Delays senescence

  • Promotes berry as a sink

  • Involved in anthocyanin and flavour formation

[email protected]


Abscissic acid

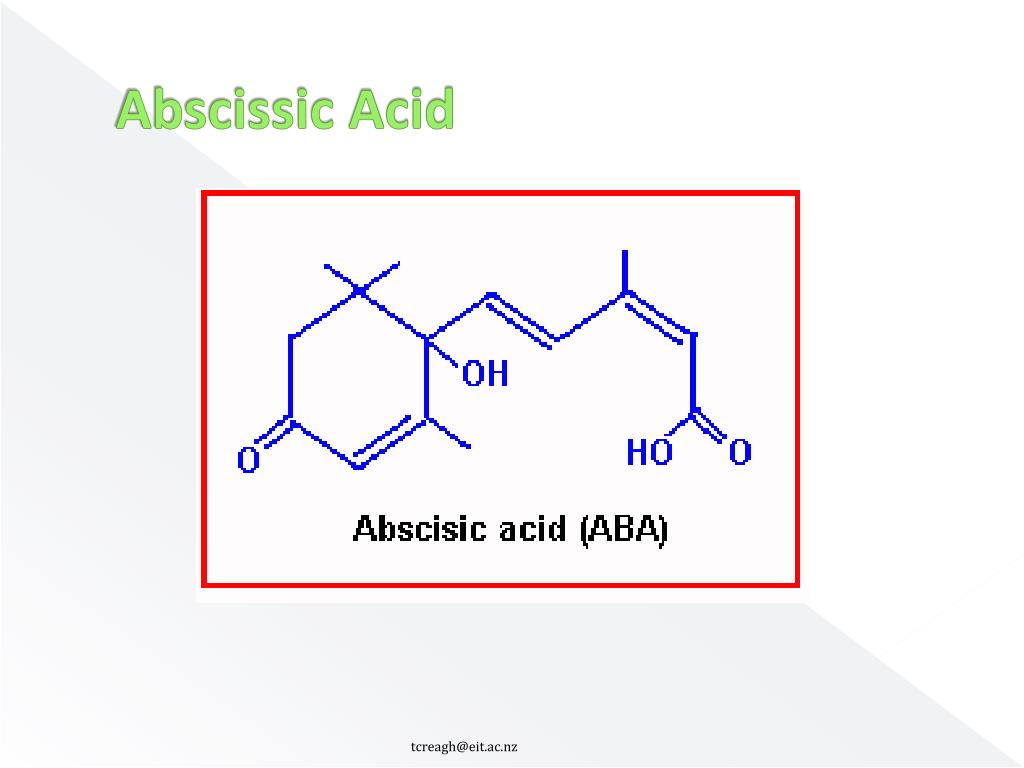

Abscissic Acid

[email protected]


Abscissic acid1

Abscissic Acid

Source of production

  • Mature leaves

  • Seeds, roots

[email protected]

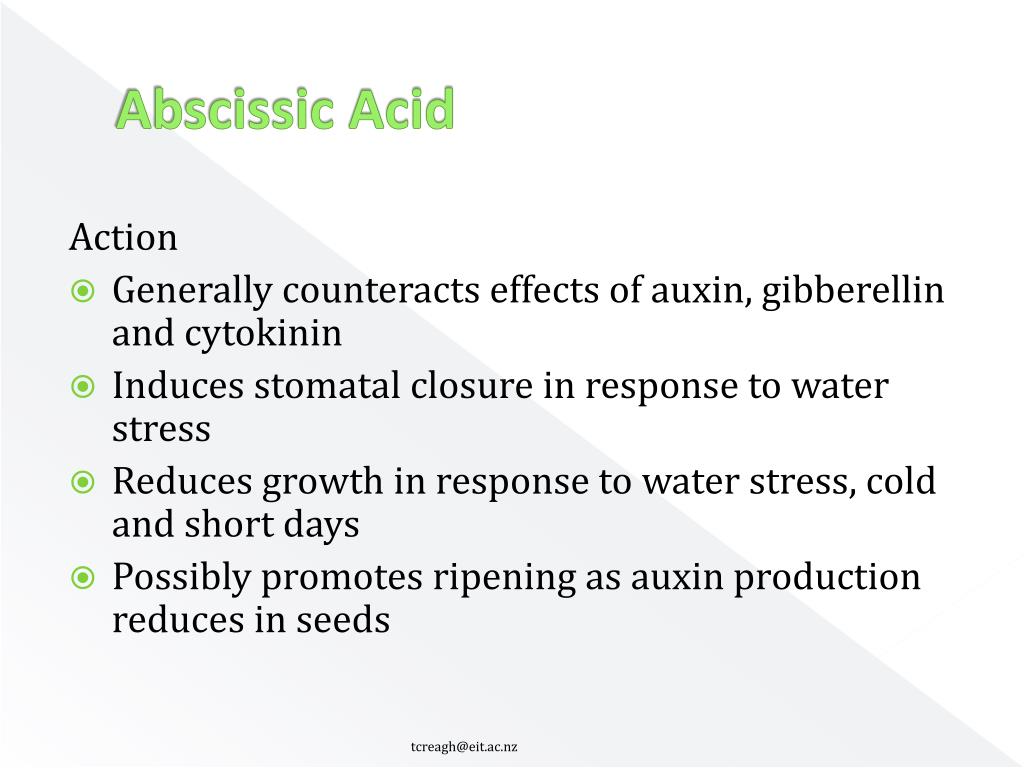

Abscissic acid2

Abscissic Acid

Action

  • Generally counteracts effects of auxin, gibberellin and cytokinin

  • Induces stomatal closure in response to water stress

  • Reduces growth in response to water stress, cold and short days

  • Possibly promotes ripening as auxin production reduces in seeds

[email protected]


Ethylene

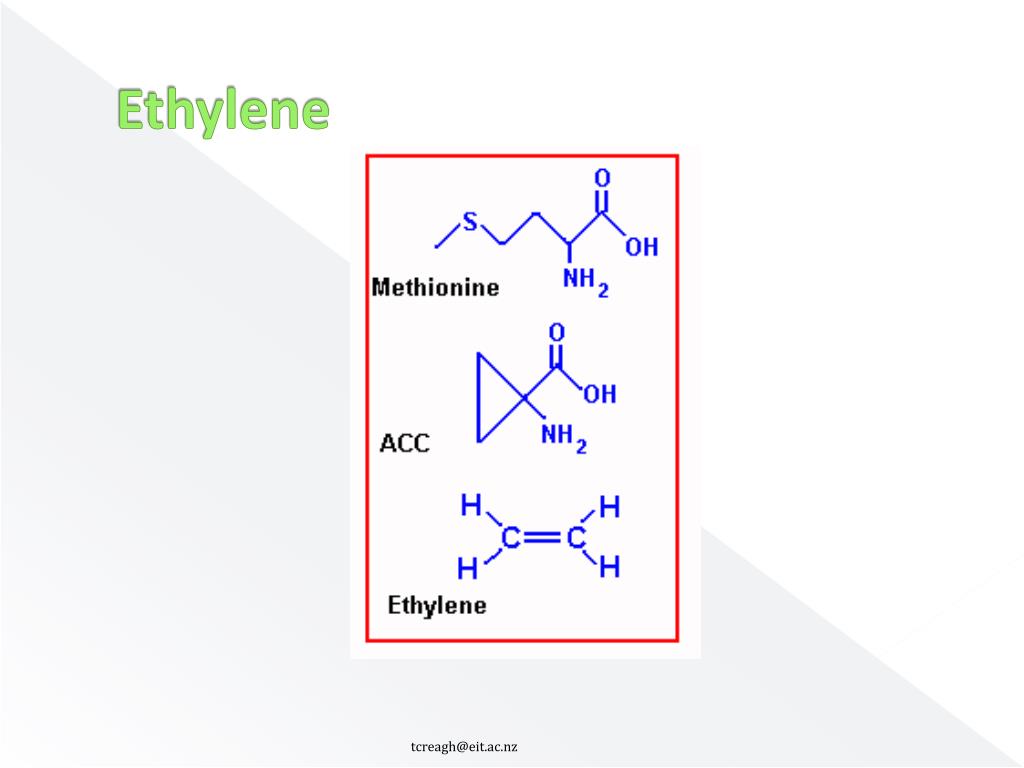

Ethylene

[email protected]

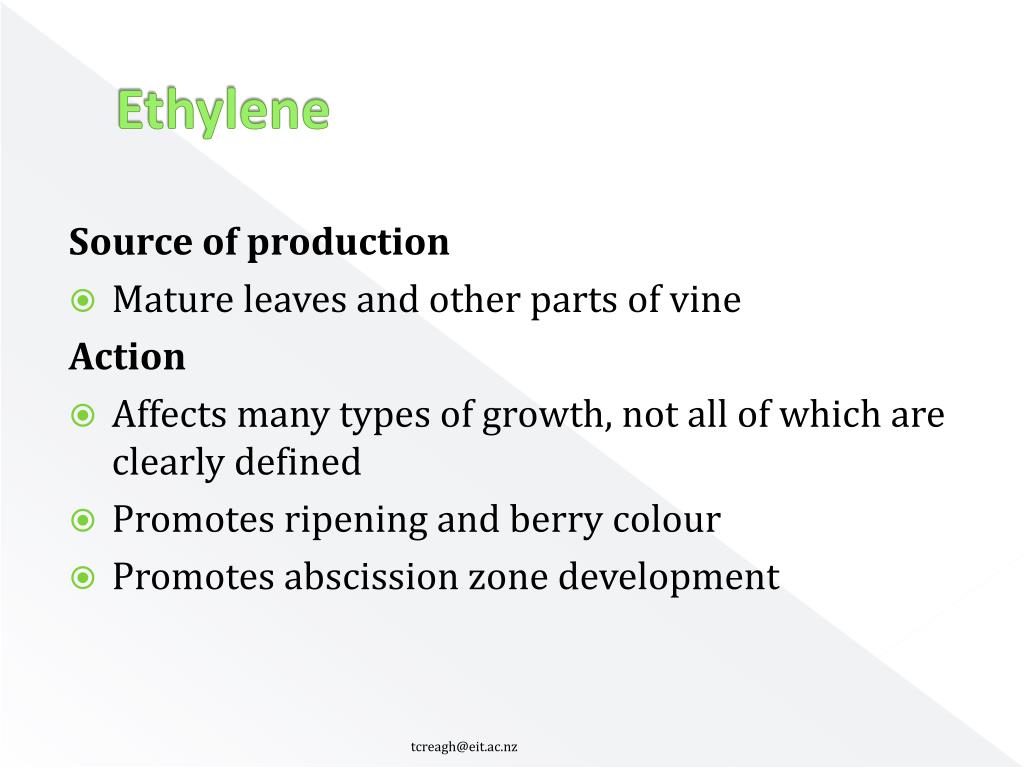

Ethylene1

Ethylene

Source of production

  • Mature leaves and other parts of vine

    Action

  • Affects many types of growth, not all of which are clearly defined

  • Promotes ripening and berry colour

  • Promotes abscission zone development

[email protected]


7 1 hormones4

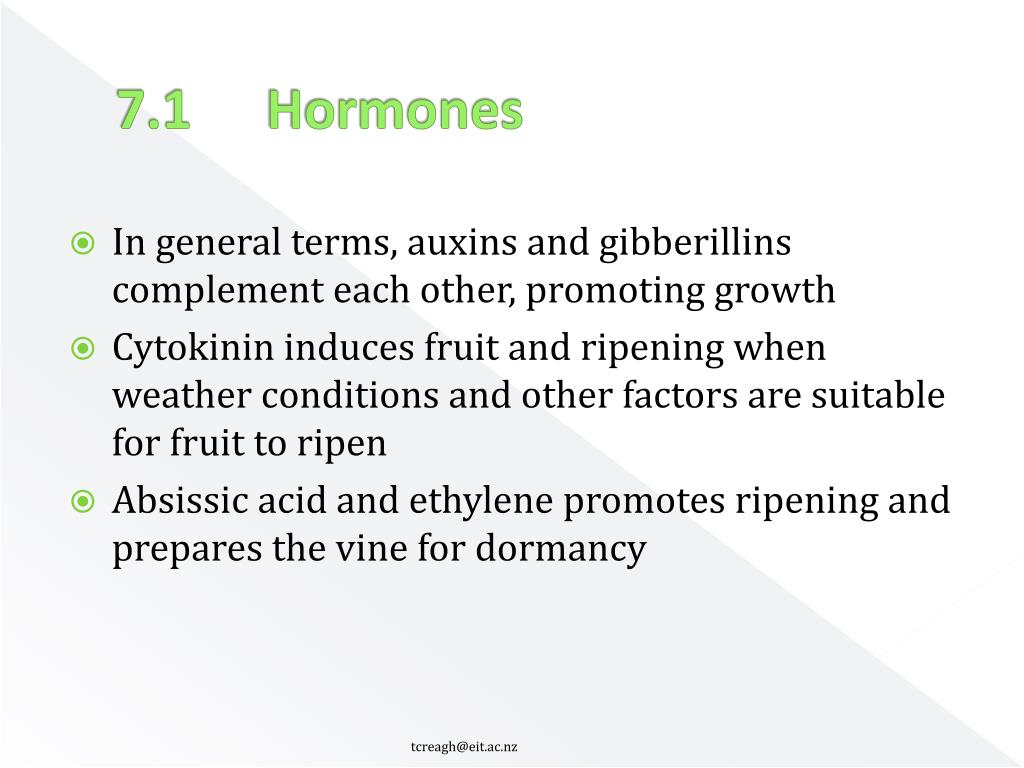

7.1Hormones

  • In general terms, auxins and gibberillins complement each other, promoting growth

  • Cytokinin induces fruit and ripening when weather conditions and other factors are suitable for fruit to ripen

  • Absissic acid and ethylene promotes ripening and prepares the vine for dormancy

[email protected]


Hormones

Hormones

  • Table 7.2: factors affecting hormone production

[email protected]


Some practical implications of plant growth regulators

Some Practical Implications of Plant Growth Regulators

  • Auxin is produced in the growing tips and travels downwards

  • To prevent uneven budburst and end point principle, where the end bud bursts first, canes are arched during pruning to slow the movement of auxin along the cane

  • Spur pruning is not subject to uneven budburst

[email protected]


Some practical implications of plant growth regulators1

Some Practical Implications of Plant Growth Regulators

  • Removal of the growing tip will promote lateral growth, as the site of auxin inhibition of budburst is removed

[email protected]


Some practical implications of plant growth regulators2

Some Practical Implications of Plant Growth Regulators

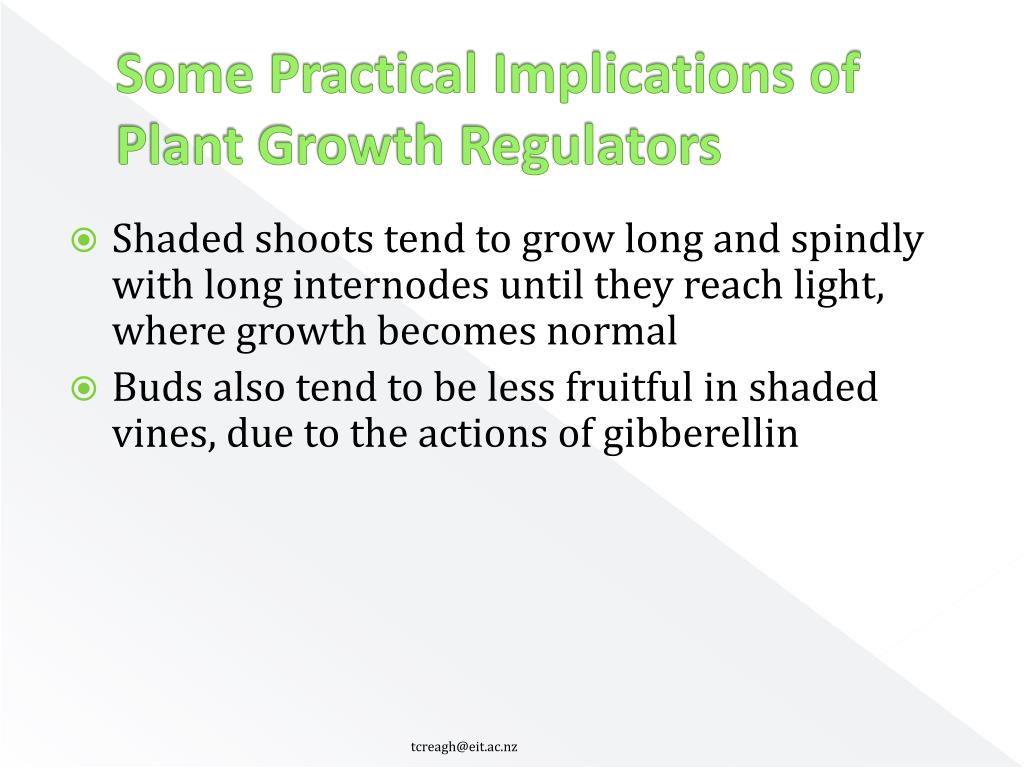

  • Shaded shoots tend to grow long and spindly with long internodes until they reach light, where growth becomes normal

  • Buds also tend to be less fruitful in shaded vines, due to the actions of gibberellin

[email protected]


Some practical implications of plant growth regulators3

Some Practical Implications of Plant Growth Regulators

  • Berry size is related to the number of seeds (developed embryos) due partly to hormone production, increasing the berry as a sink

[email protected]


Some practical implications of plant growth regulators4

Some Practical Implications of Plant Growth Regulators

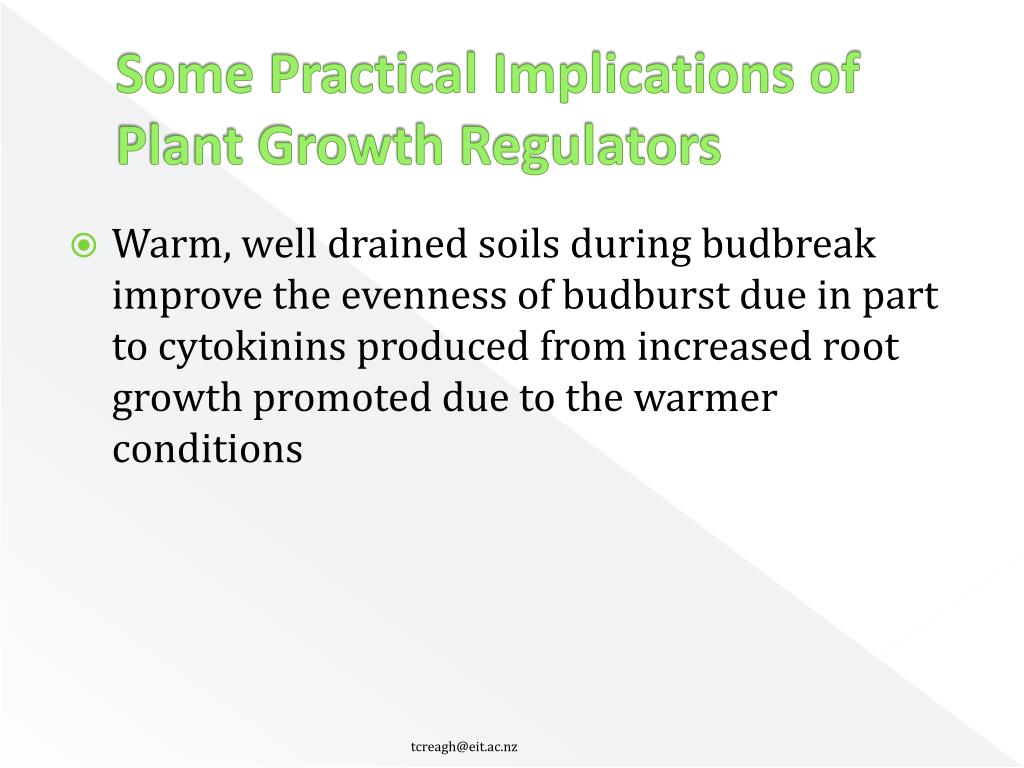

  • Warm, well drained soils during budbreak improve the evenness of budburst due in part to cytokinins produced from increased root growth promoted due to the warmer conditions

[email protected]


Some practical implications of plant growth regulators5

Some Practical Implications of Plant Growth Regulators

  • Fruitfulness

  • The number of clusters is increased with warmer temperatures due to cytokinin production

  • Whereas in shaded or cool situations gibberellins tends to promote tendril formation

[email protected]

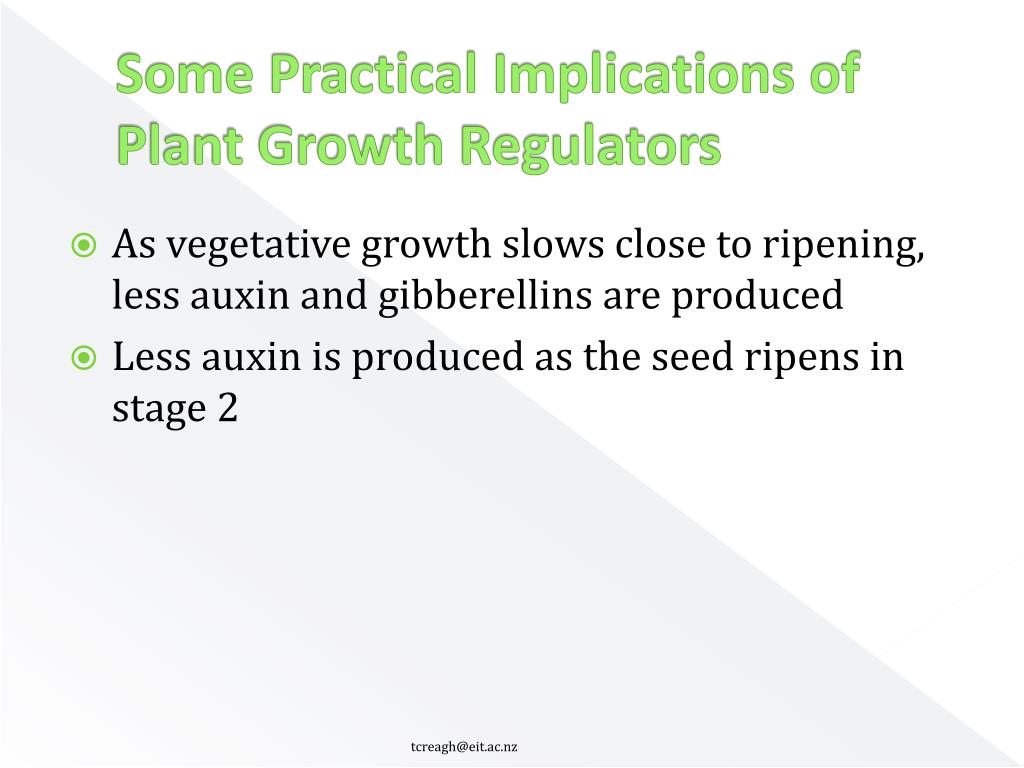

Some practical implications of plant growth regulators6

Some Practical Implications of Plant Growth Regulators

  • As vegetative growth slows close to ripening, less auxin and gibberellins are produced

  • Less auxin is produced as the seed ripens in stage 2

[email protected]


Some practical implications of plant growth regulators7

Some Practical Implications of Plant Growth Regulators

  • Abscissic acid increases in proportion inducing véraison and the berry becomes a major sink

[email protected]

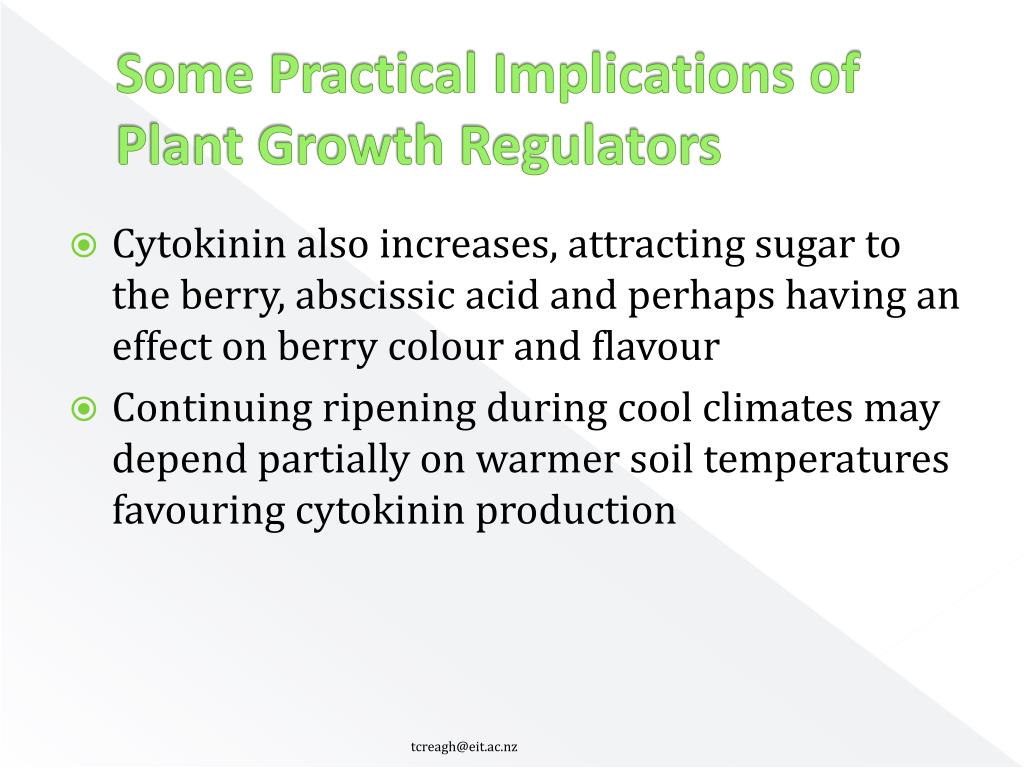

Some practical implications of plant growth regulators8

Some Practical Implications of Plant Growth Regulators

  • Cytokinin also increases, attracting sugar to the berry, abscissic acid and perhaps having an effect on berry colour and flavour

  • Continuing ripening during cool climates may depend partially on warmer soil temperatures favouring cytokinin production

[email protected]

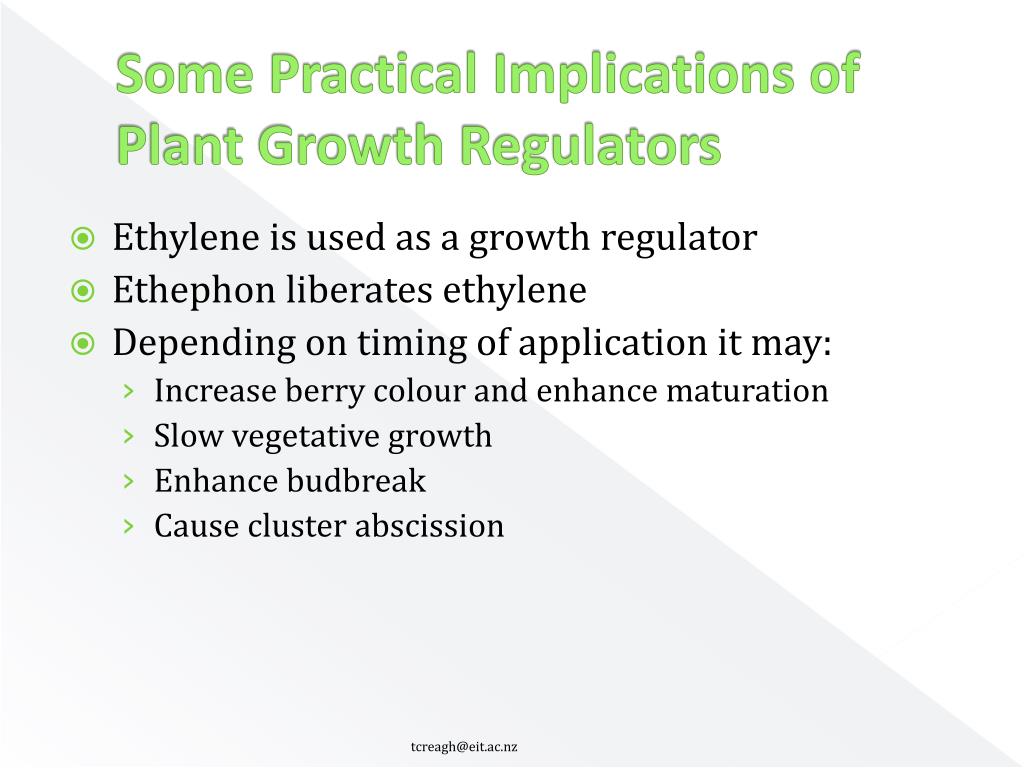

Some practical implications of plant growth regulators9

Some Practical Implications of Plant Growth Regulators

  • Ethylene is used as a growth regulator

  • Ethephon liberates ethylene

  • Depending on timing of application it may:

    • Increase berry colour and enhance maturation

    • Slow vegetative growth

    • Enhance budbreak

    • Cause cluster abscission

[email protected]


Some practical implications of plant growth regulators10

Some Practical Implications of Plant Growth Regulators

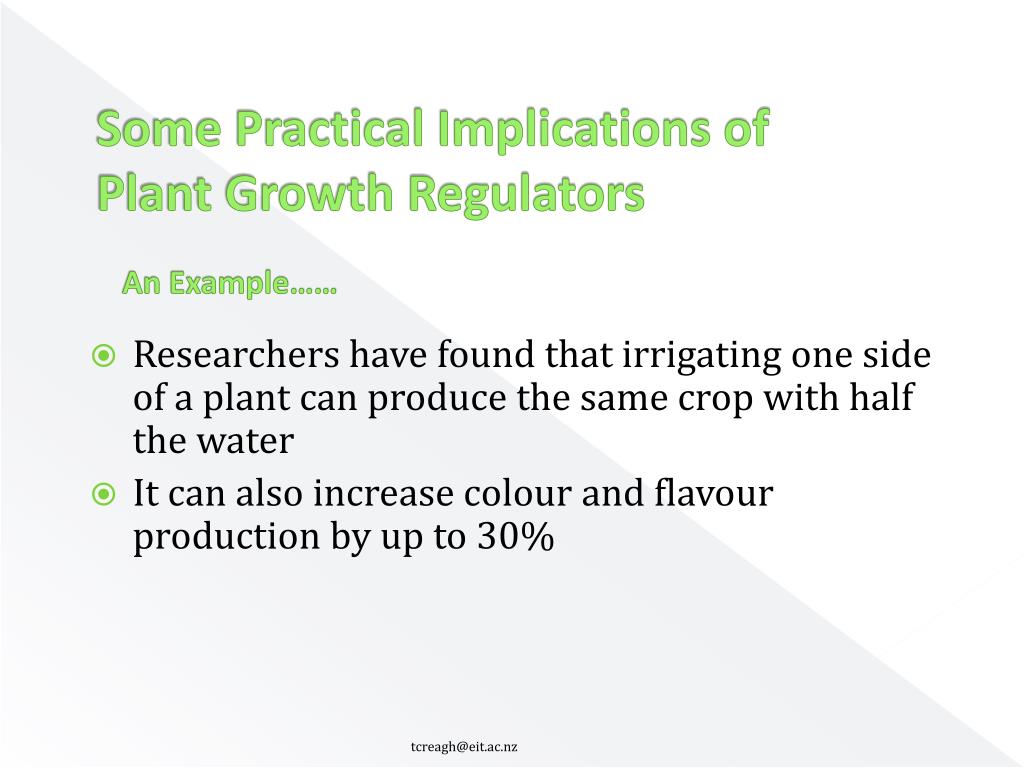

  • Researchers have found that irrigating one side of a plant can produce the same crop with half the water

  • It can also increase colour and flavour production by up to 30%

An Example……

[email protected]


Some practical implications of plant growth regulators11

Some Practical Implications of Plant Growth Regulators

  • As one half of the vine's root system is watered, the other half begins to dry out

  • This stimulates the production of abscissic acid

  • This causes the leaves to partly close their stomata and the shoot growth to uniformly slow down, thereby conserving water

[email protected]


Some practical implications of plant growth regulators12

Some Practical Implications of Plant Growth Regulators

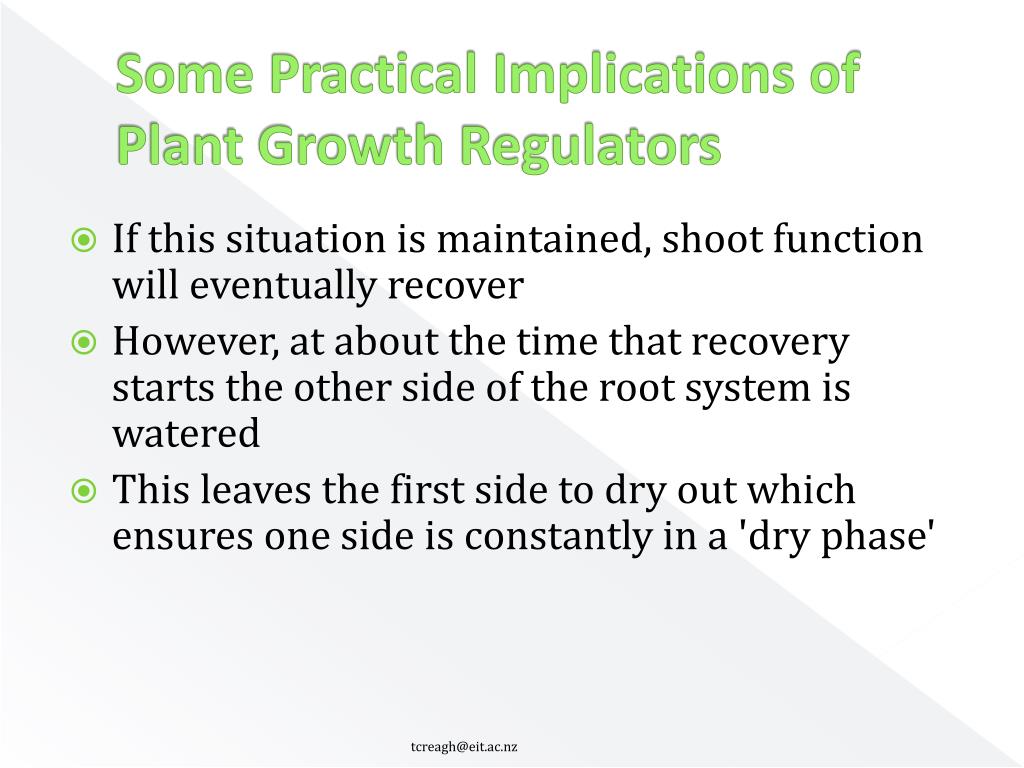

  • If this situation is maintained, shoot function will eventually recover

  • However, at about the time that recovery starts the other side of the root system is watered

  • This leaves the first side to dry out which ensures one side is constantly in a 'dry phase'

[email protected]


Hormones and initiation of inflorescence primordia

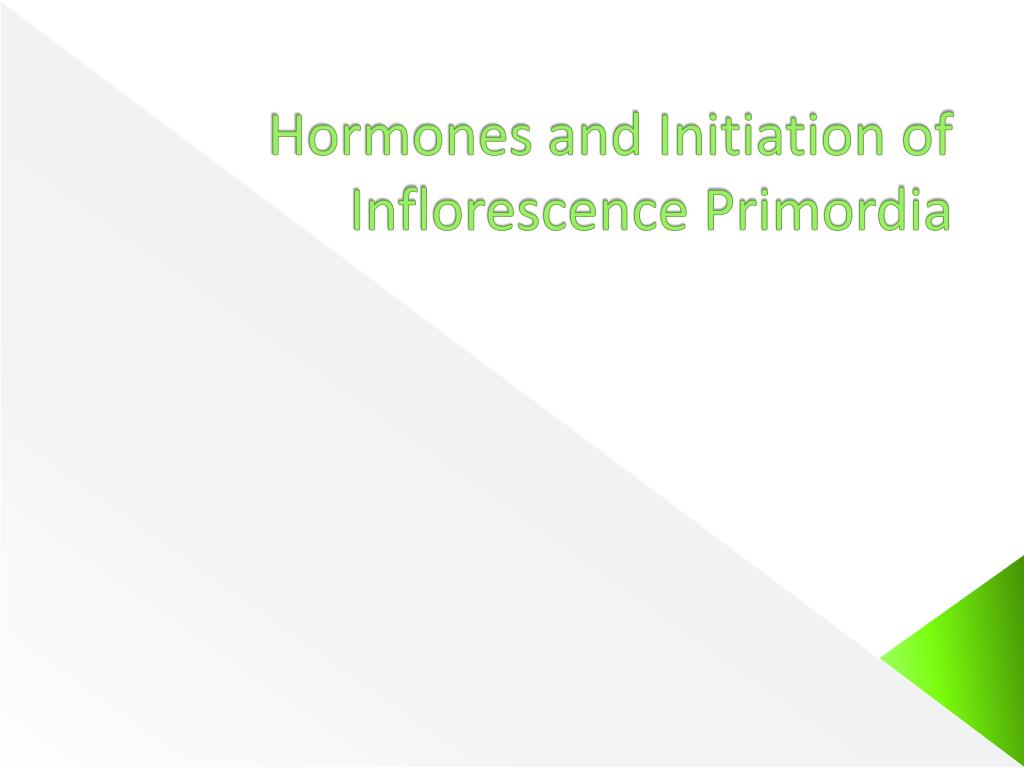

Hormones and Initiation of Inflorescence Primordia

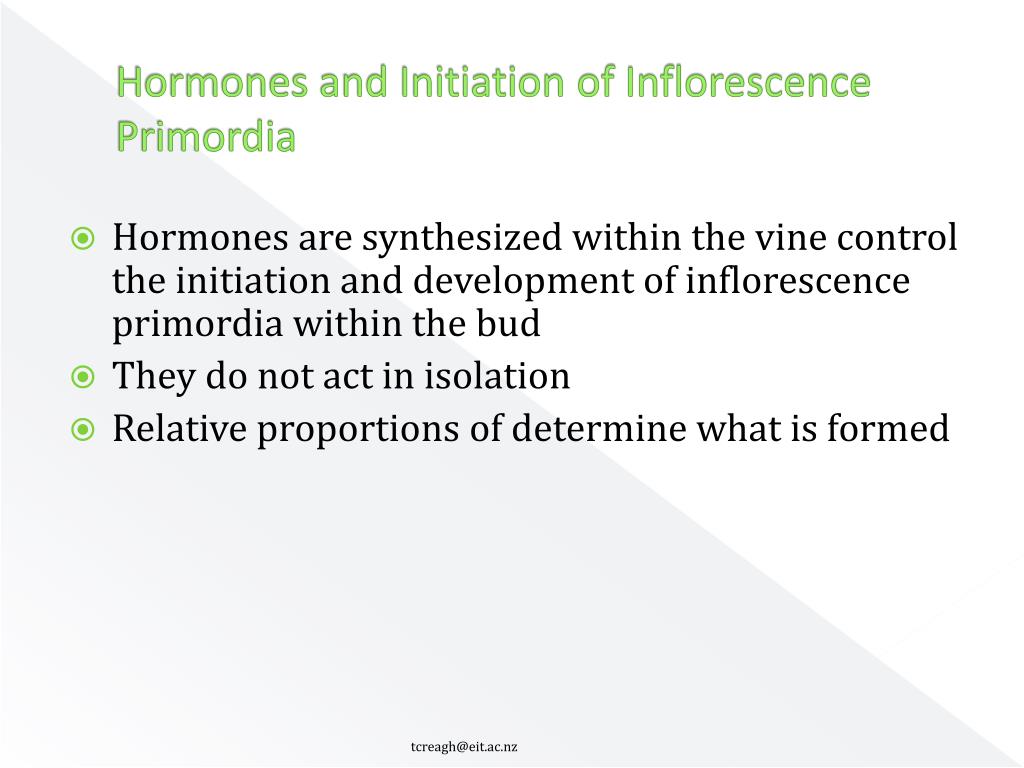

Hormones and initiation of inflorescence primordia1

Hormones and Initiation of Inflorescence Primordia

  • Hormones are synthesized within the vine control the initiation and development of inflorescence primordia within the bud

  • They do not act in isolation

  • Relative proportions of determine what is formed

[email protected]

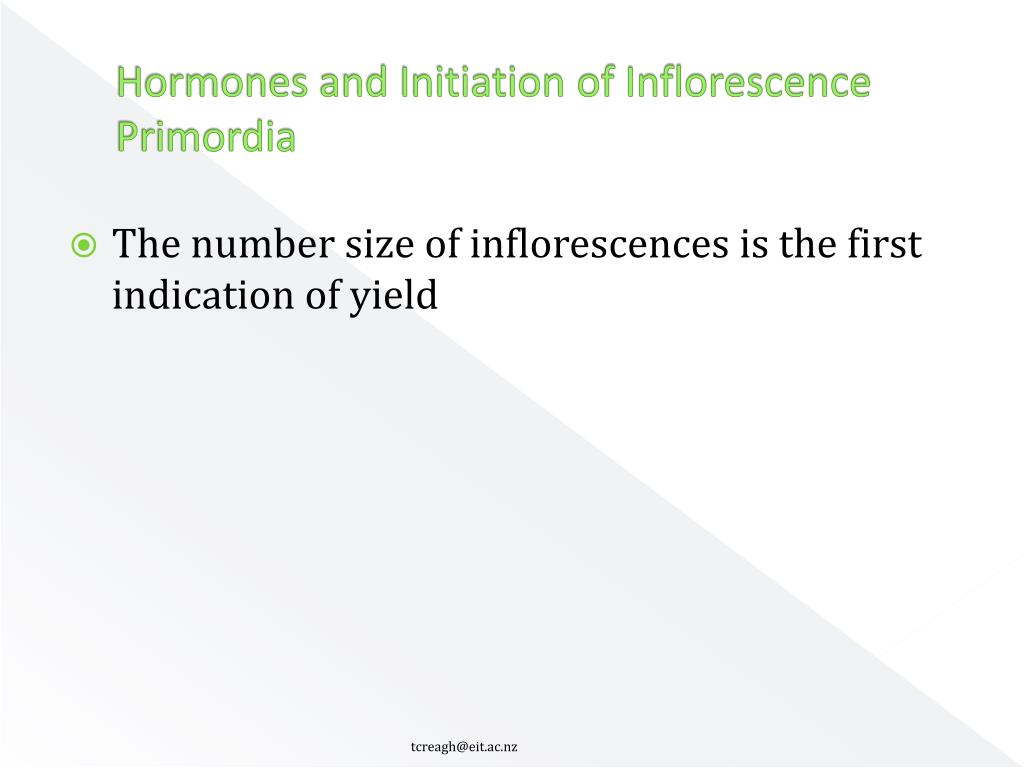

Hormones and initiation of inflorescence primordia2

Hormones and Initiation of Inflorescence Primordia

  • The number size of inflorescences is the first indication of yield

[email protected]


Yield components

Yield components

[email protected]

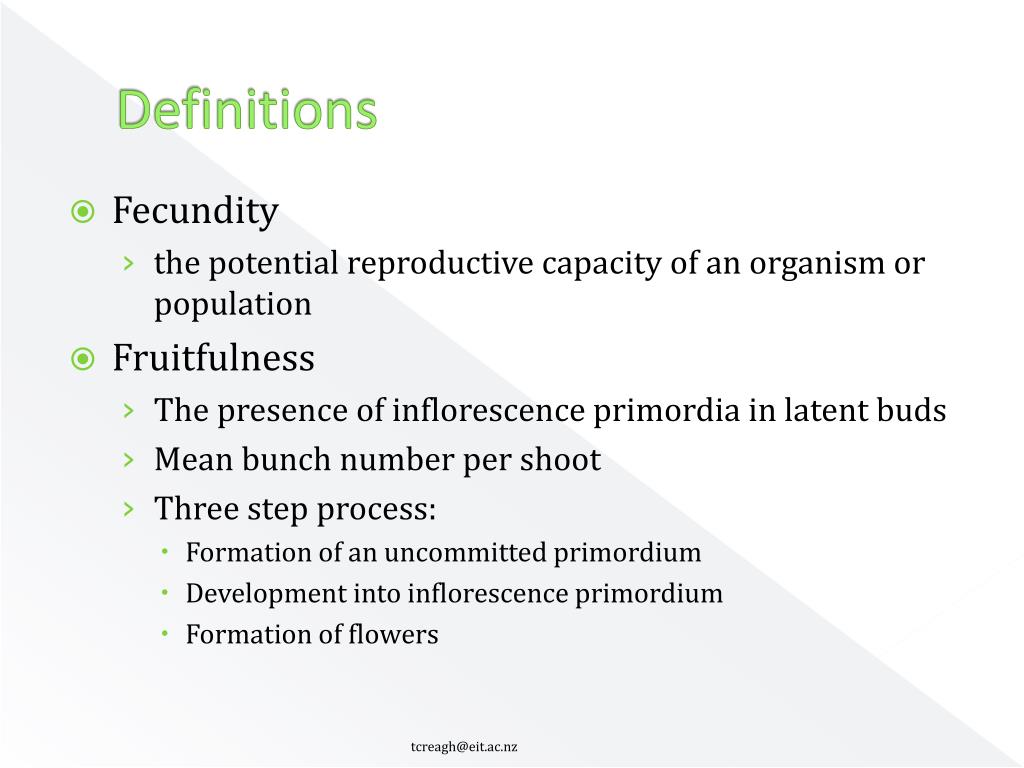

Definitions

Definitions

  • Fecundity

    • the potential reproductive capacity of an organism or population

  • Fruitfulness

    • The presence of inflorescence primordia in latent buds

    • Mean bunch number per shoot

    • Three step process:

      • Formation of an uncommitted primordium

      • Development into inflorescence primordium

      • Formation of flowers

[email protected]


Grape physiology

Buds

[email protected]

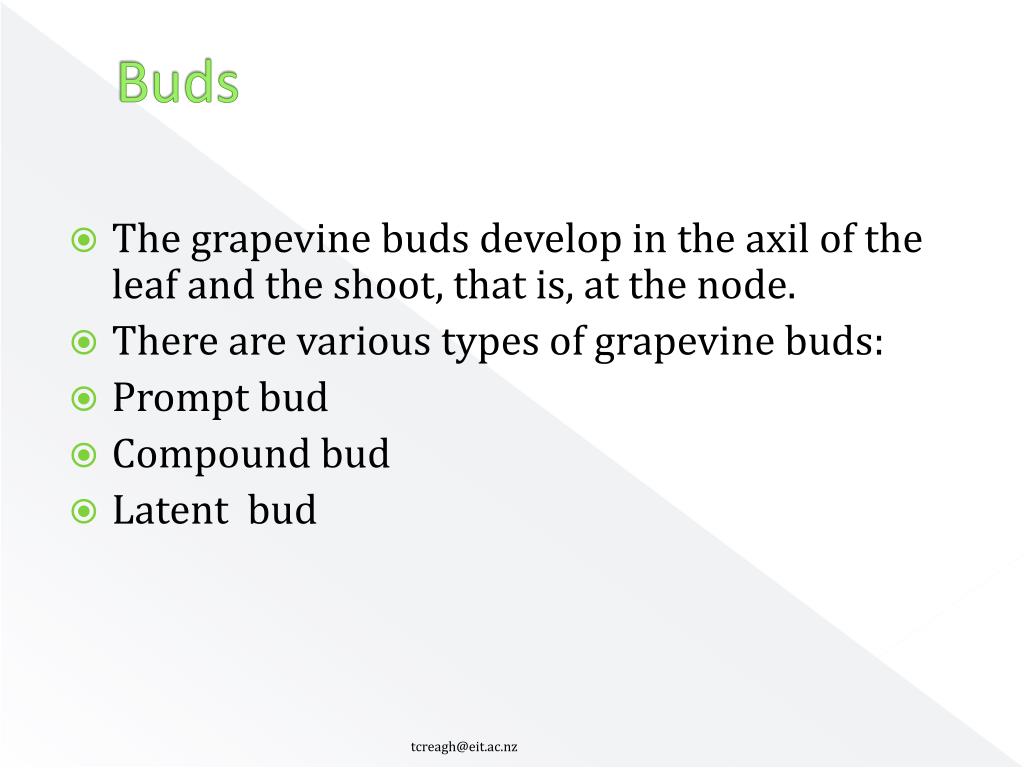

Grape physiology

Buds

  • The grapevine buds develop in the axil of the leaf and the shoot, that is, at the node.

  • There are various types of grapevine buds:

  • Prompt bud

  • Compound bud

  • Latent bud

[email protected]


Grape physiology

[email protected]

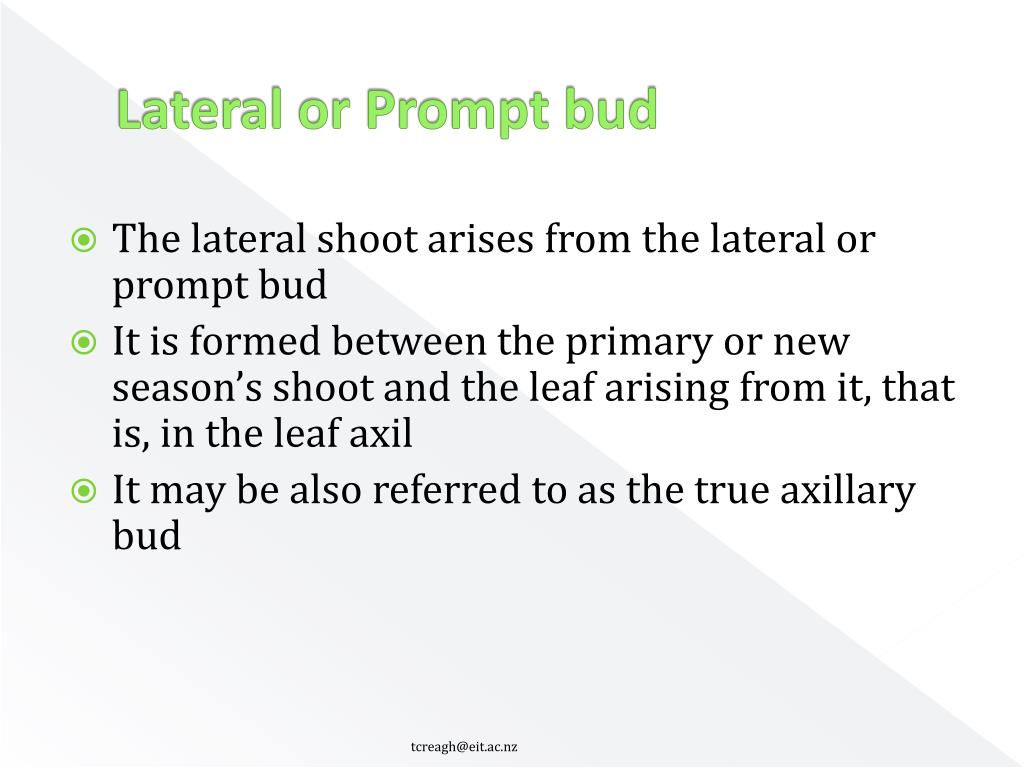

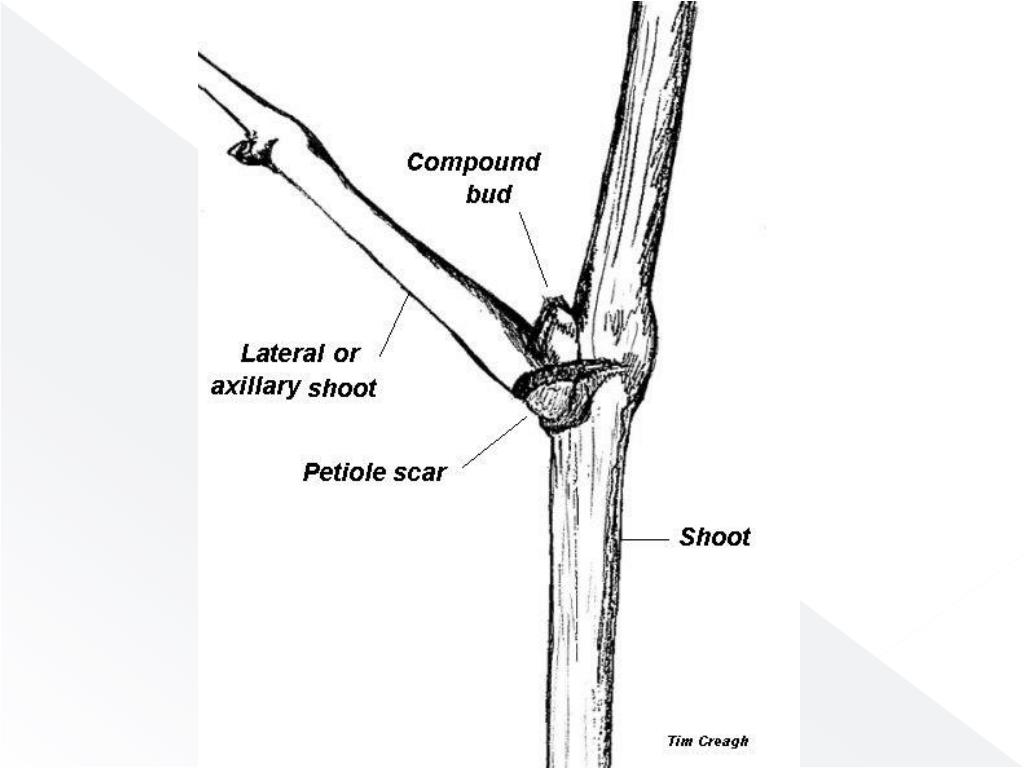

Lateral or prompt bud

Lateral or Prompt bud

  • The lateral shoot arises from the lateral or prompt bud

  • It is formed between the primary or new season’s shoot and the leaf arising from it, that is, in the leaf axil

  • It may be also referred to as the true axillary bud

[email protected]


Grape physiology

[email protected]


Lateral or prompt bud1

Lateral or Prompt bud

  • The prompt bud can burst in the current season to produce short shoot known as the lateral

  • However, lateral shoots will form only under certain conditions

  • Vigorous vines or if topping occurs early in the season

[email protected]


Lateral or prompt bud2

Lateral or Prompt bud

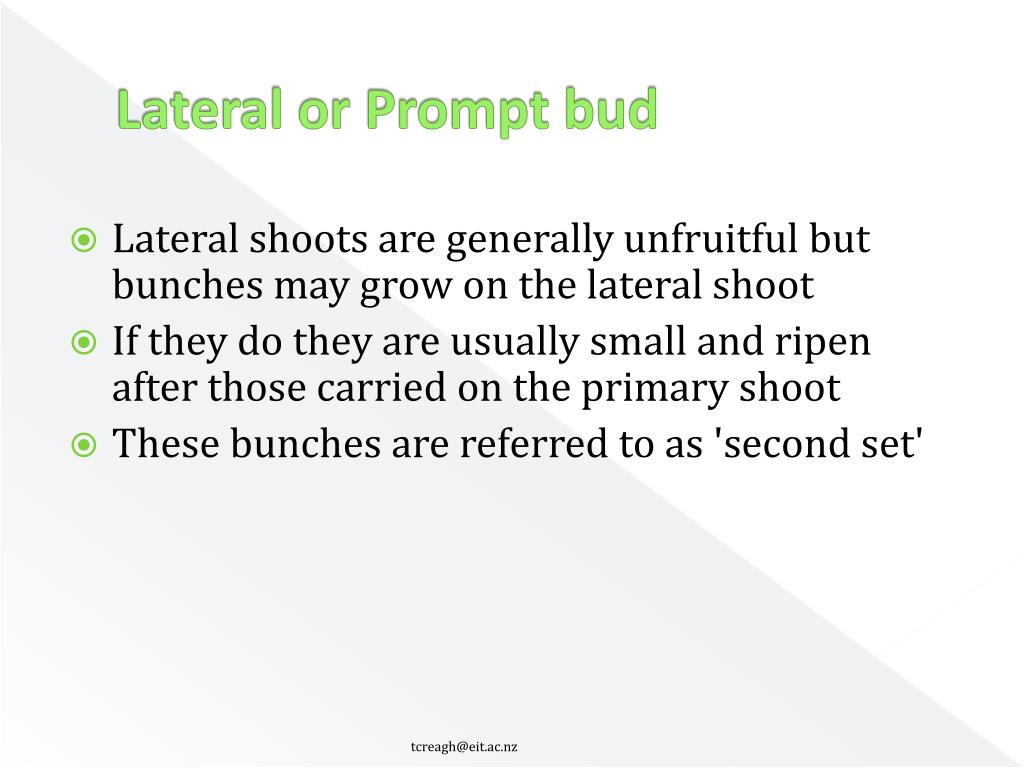

  • Lateral shoots are generally unfruitful but bunches may grow on the lateral shoot

  • If they do they are usually small and ripen after those carried on the primary shoot

  • These bunches are referred to as 'second set'

[email protected]

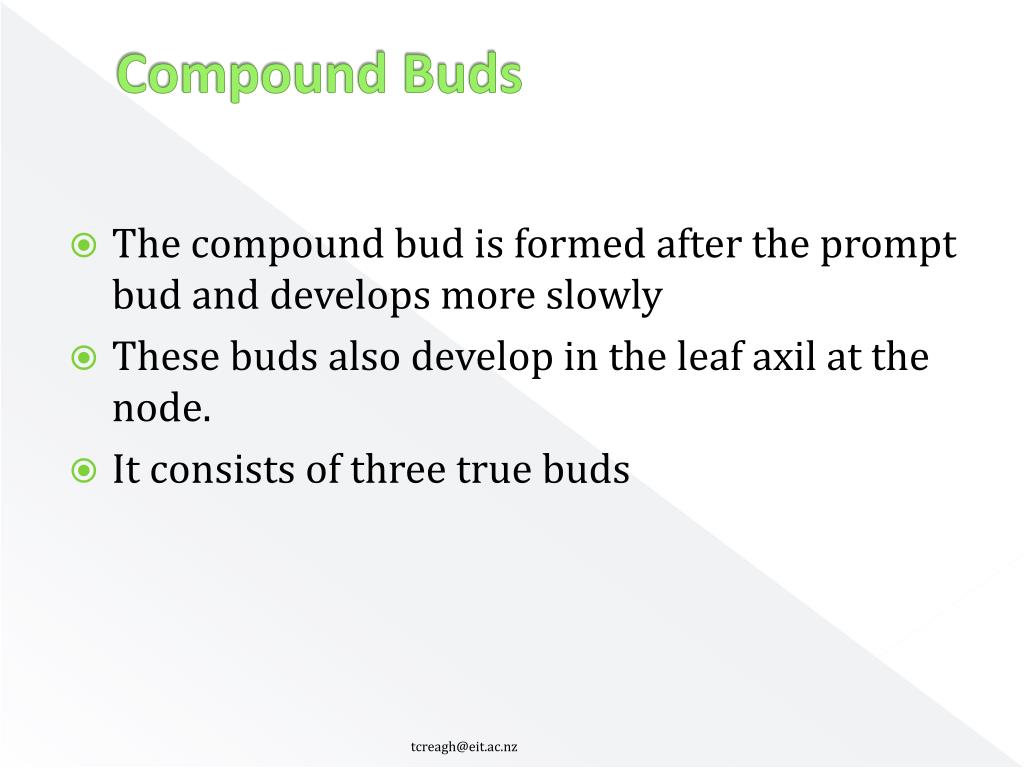

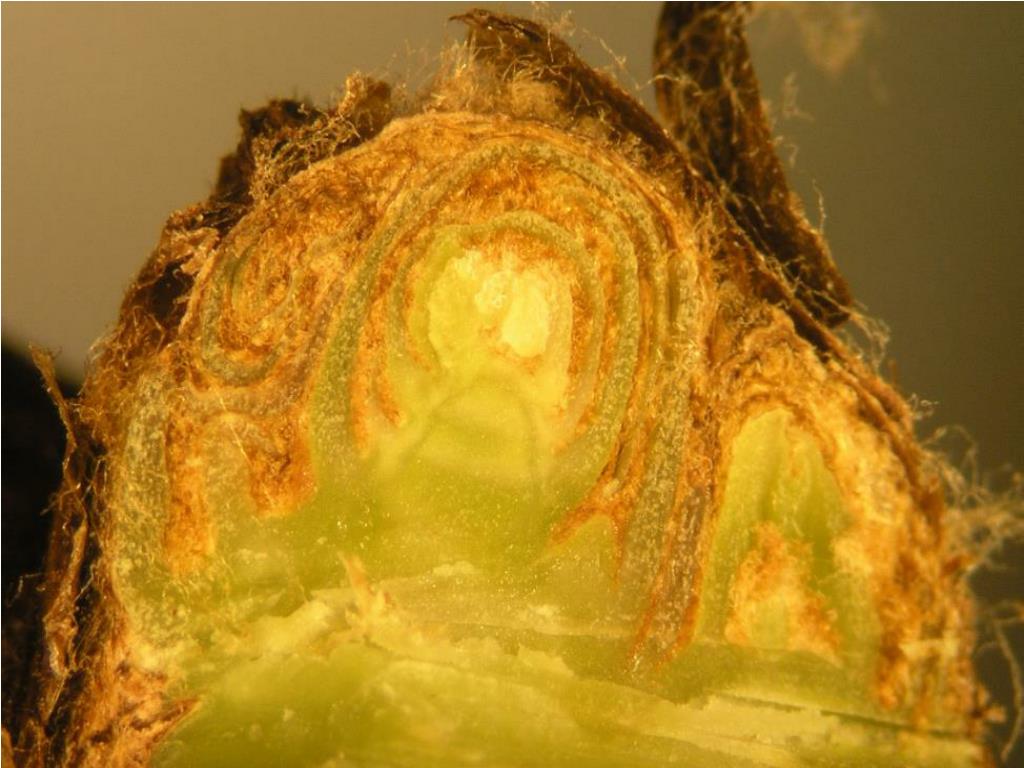

Compound buds

Compound Buds

  • The compound bud is formed after the prompt bud and develops more slowly

  • These buds also develop in the leaf axil at the node.

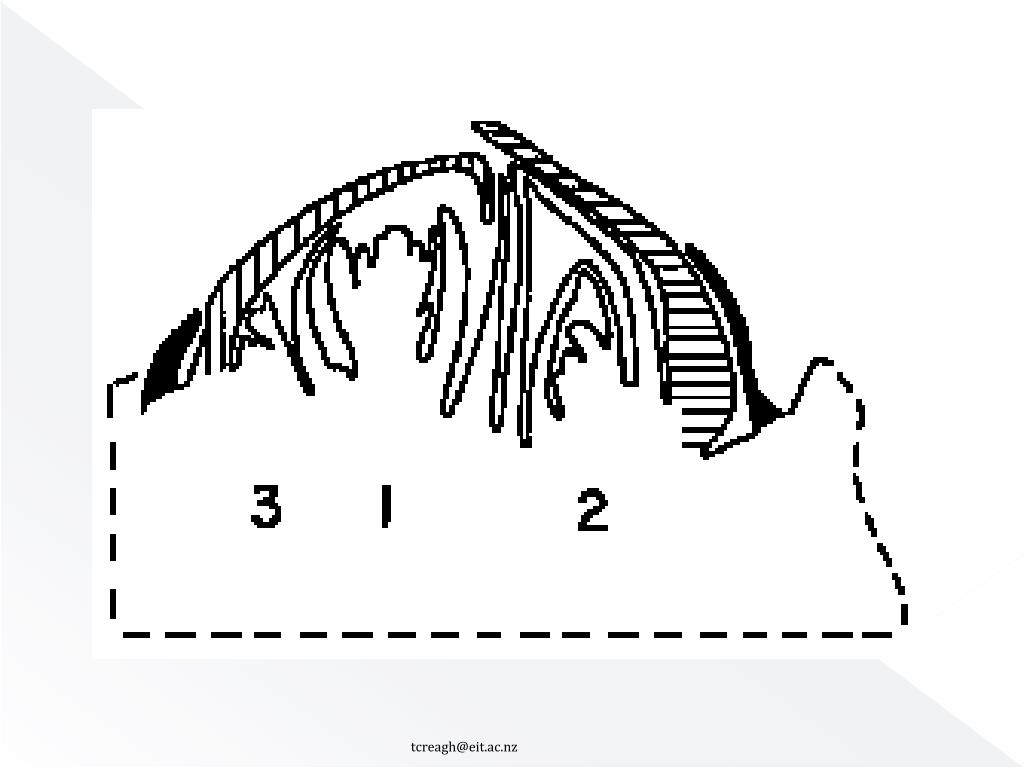

  • It consists of three true buds

[email protected]


Grape physiology

[email protected]


Grape physiology

[email protected]


Compound buds1

Compound Buds

  • The compound bud does not burst until the season after its development

  • Generally only the middle, or primary, bud bursts to develop the primary (main) shoot

  • If this is damaged (wind, frost, etc) then the secondary or tertiary buds may burst

  • However, these buds are generally less fruitful, that is they have fewer bunches per shoot

[email protected]


Compound buds2

Compound Buds

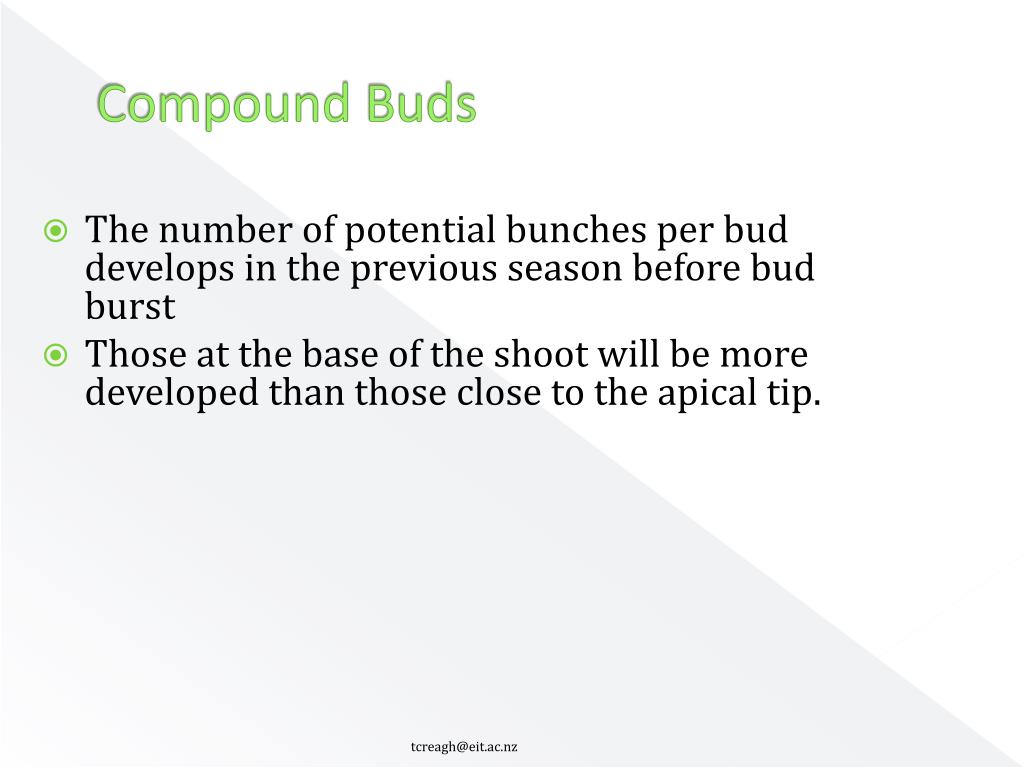

  • The number of potential bunches per bud develops in the previous season before bud burst

  • Those at the base of the shoot will be more developed than those close to the apical tip.

[email protected]


Compound buds3

Compound Buds

  • Environmental factors during bud development influence the potential crop in 18 months time

  • A major influence is light interception at the bud and the temperature; increased light and temperature has been shown to result in greater fruitfulness.

[email protected]


Latent bud

Latentbud

  • These are buds that may be any type of bud that do not burst in the season that they are formed

  • Instead they remain dormant and viable and at some later stage may burst. Latent buds may take several seasons to burst, often as a result of vine damage or heavy pruning

[email protected]


Grape physiology

[email protected]


Bud initiation

Bud Initiation

  • Buds undergo differentiation

  • That is, primordial structures within the bud change depending on plant growth regulators that these structures receive

  • The level of plant growth regulators that the bud receives is dependant on climatic conditions during differentiation

[email protected]


Bud initiation1

Bud Initiation

  • Differentiation coincides with flowering

  • And the slowing down of vegetative growth

  • Very sensitive to water stress

[email protected]


Bud initiation2

Bud Initiation

  • Anlagen is a primordia that can become

  • Inflorescences

    • Repeated branching

  • Tendrils

    • Few branches

[email protected]


The effect of plant growth regulators gibberellins

The Effect of Plant Growth RegulatorsGibberellins

  • Enhance initiation of anlagen

  • Encourage tendril formation as opposed to inflorescence formation

  • Recall…

  • Promote cell elongation so

  • Possibly a mechanism to promote vegetative growth over reproductive?

[email protected]


The effect of plant growth regulators cytokinnins

The Effect of Plant Growth RegulatorsCytokinnins

  • Enhance initiation of anlagen

  • Encourage inflorescence formation as opposed to tendril formation

  • Recall…

  • Promote cell division

  • Produced in warm conditions

[email protected]


The effect of plant growth regulators abscissic acid

The Effect of Plant Growth RegulatorsAbscissic Acid

  • Discourage the initiation of anlagen

  • Recall…

  • Produced by the roots in response to water stress

  • The process is very sensitive to water stress

[email protected]


  • Login
