representation and evaluation of security policies for distributed system services

Representation and Evaluation of Security Policies for Distributed System Services

Presentation

By

Girija Gavankar

outline
Outline
  • Abstract, Motivation
  • Framework
  • Policy Language,generic conditions
  • EACL, EACL Rules and Evaluation, Credentials
  • GAA-API Approach
  • GAA-API components
  • Conclusion
  • Status
abstract

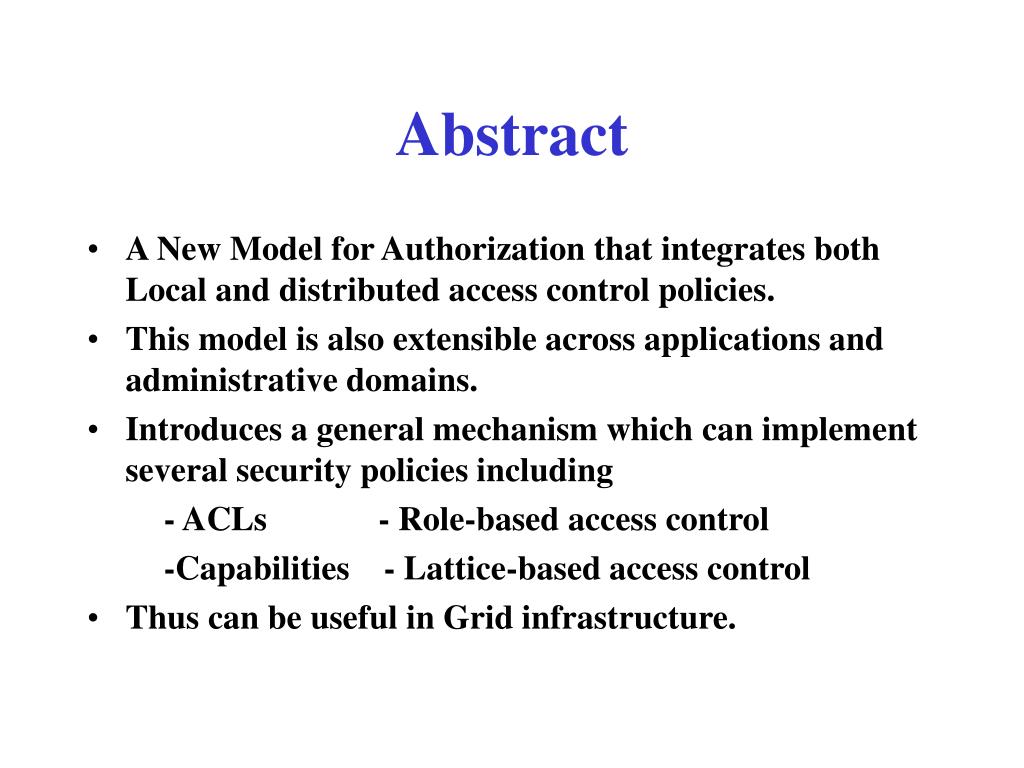

Abstract
  • A New Model for Authorization that integrates both Local and distributed access control policies.
  • This model is also extensible across applications and administrative domains.
  • Introduces a general mechanism which can implement several security policies including

- ACLs - Role-based access control

-Capabilities - Lattice-based access control

  • Thus can be useful in Grid infrastructure.
motivation

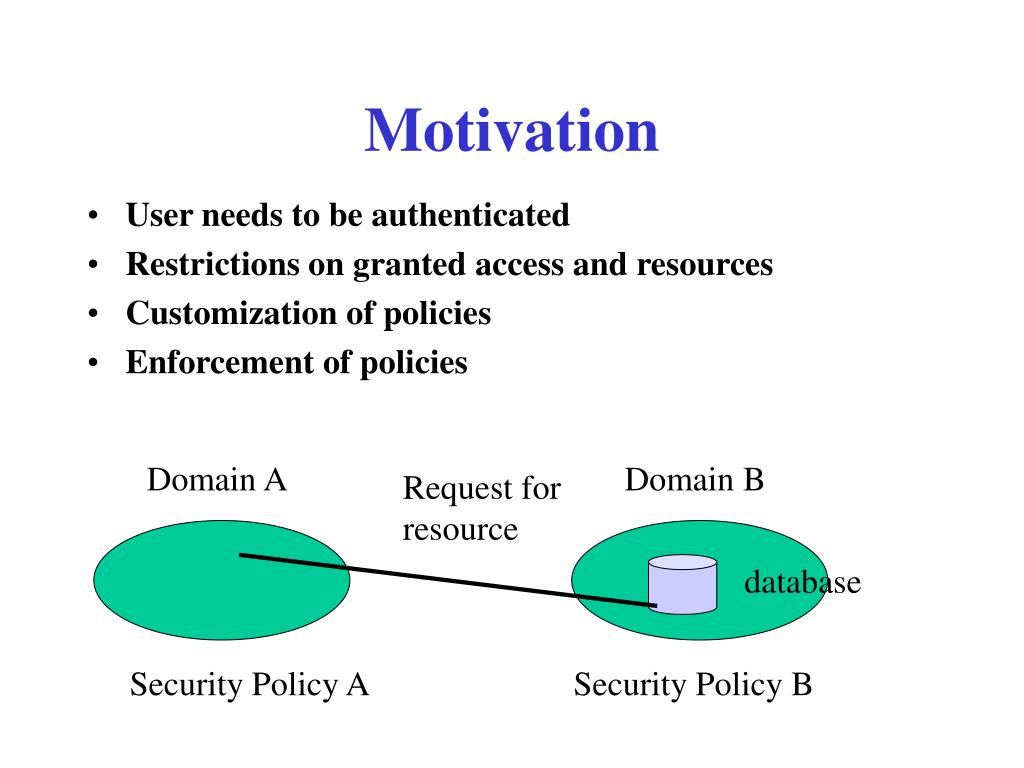

Motivation
  • User needs to be authenticated
  • Restrictions on granted access and resources
  • Customization of policies
  • Enforcement of policies

Domain A

Domain B

Request for resource

database

Security Policy A

Security Policy B

framework

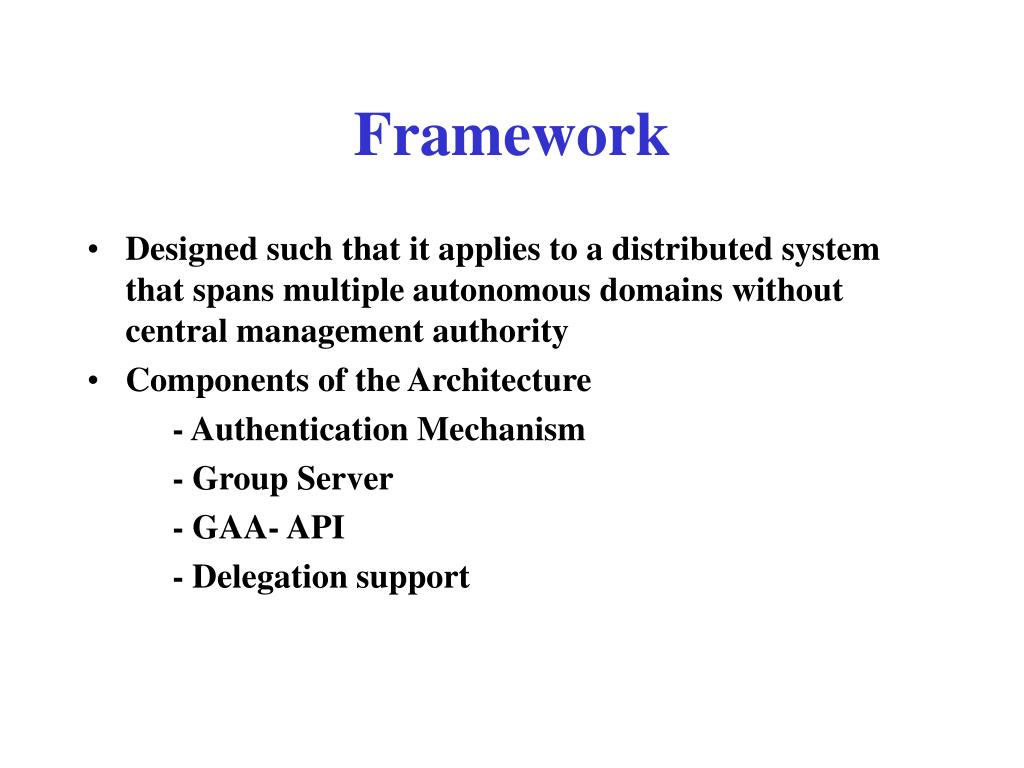

Framework
  • Designed such that it applies to a distributed system that spans multiple autonomous domains without central management authority
  • Components of the Architecture

- Authentication Mechanism

- Group Server

- GAA- API

- Delegation support

outline6

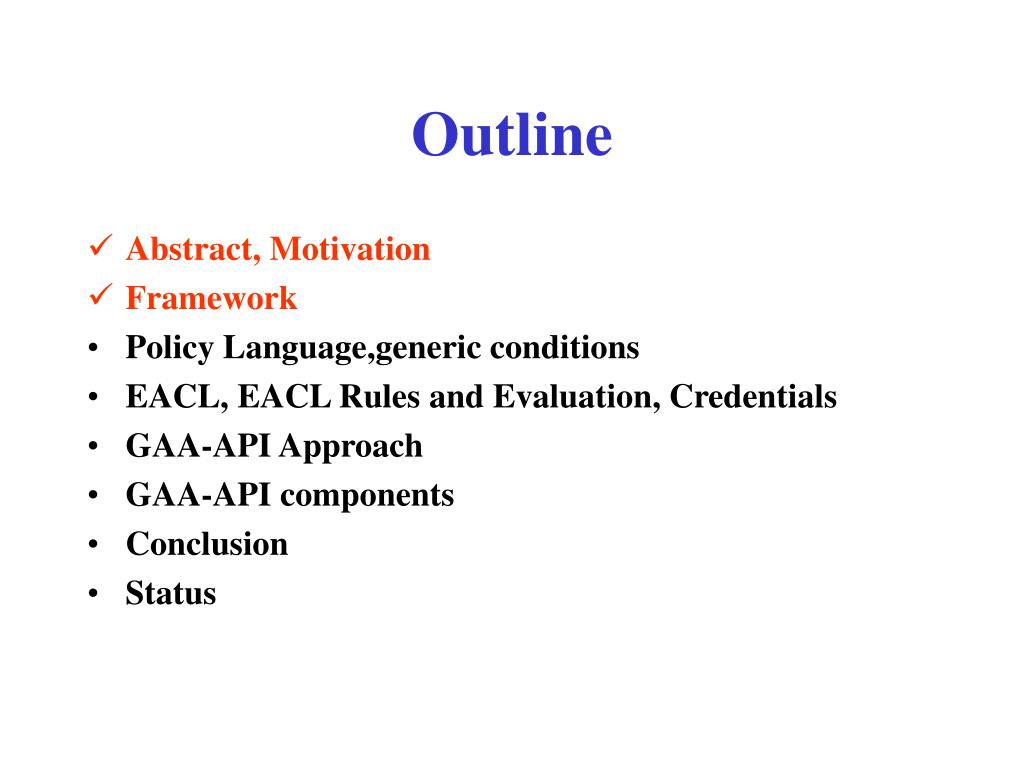

Outline
  • Abstract, Motivation
  • Framework
  • Policy Language,generic conditions
  • EACL, EACL Rules and Evaluation, Credentials
  • GAA-API Approach
  • GAA-API components
  • Conclusion
  • Status
policy language

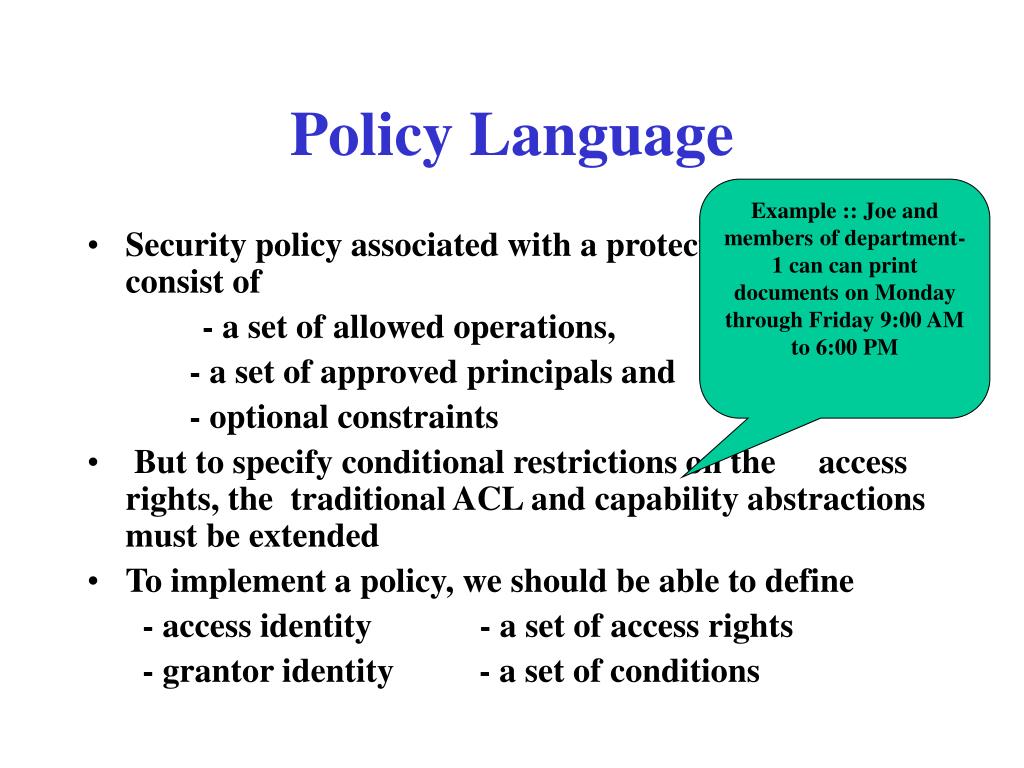

Policy Language

Example :: Joe and members of department-1 can can print documents on Monday through Friday 9:00 AM to 6:00 PM

  • Security policy associated with a protected resource consist of

- a set of allowed operations,

- a set of approved principals and

- optional constraints

  • But to specify conditional restrictions on the access rights, the traditional ACL and capability abstractions must be extended
  • To implement a policy, we should be able to define

- access identity - a set of access rights

- grantor identity - a set of conditions

policy language8

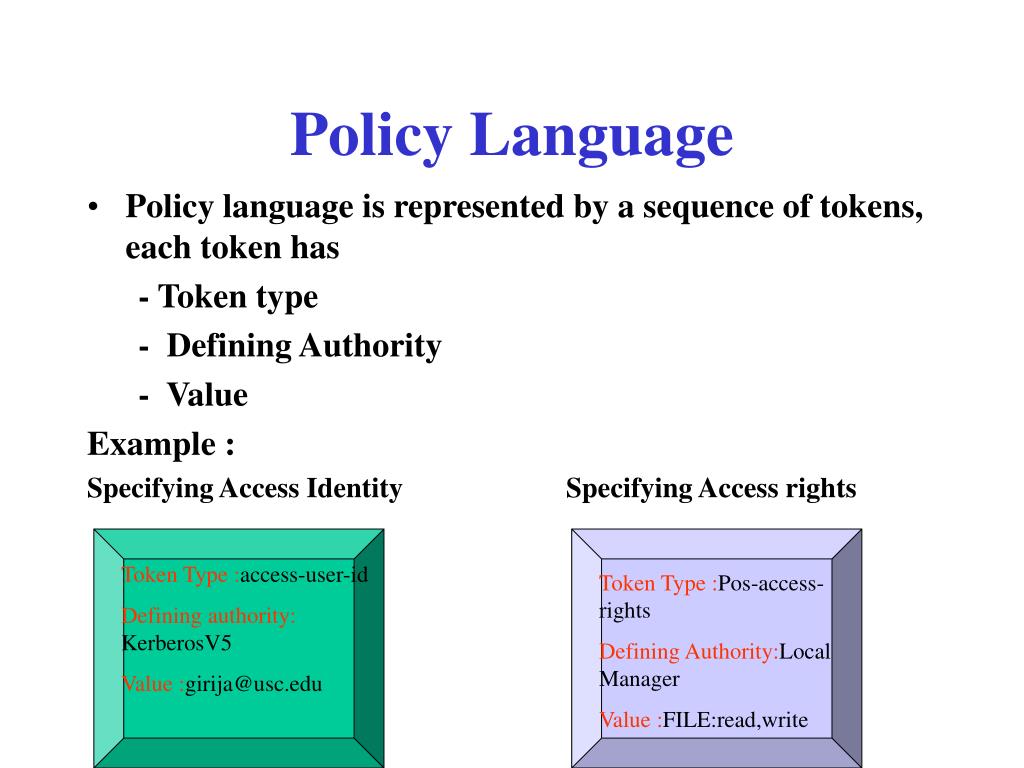

Policy Language
  • Policy language is represented by a sequence of tokens, each token has

- Token type

- Defining Authority

- Value

Example :

Specifying Access Identity Specifying Access rights

Token Type:access-user-id

Defining authority: KerberosV5

Value :[email protected]

Token Type :Pos-access-rights

Defining Authority:Local Manager

Value :FILE:read,write

generic conditions

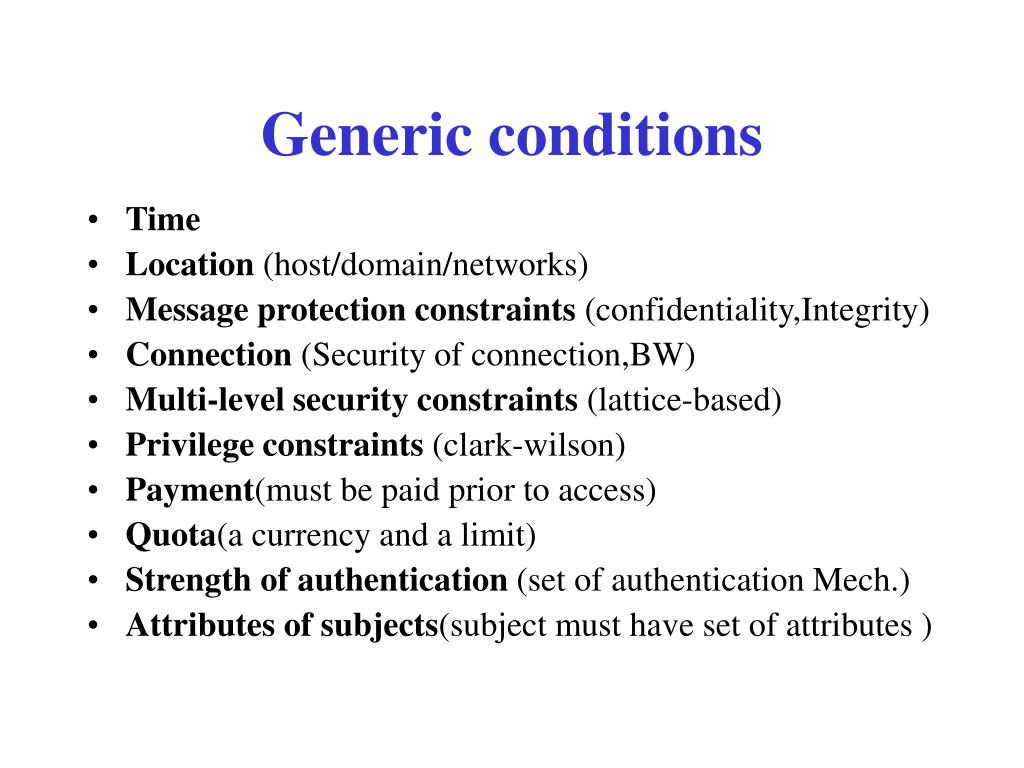

Generic conditions
  • Time
  • Location (host/domain/networks)
  • Message protection constraints (confidentiality,Integrity)
  • Connection (Security of connection,BW)
  • Multi-level security constraints (lattice-based)
  • Privilege constraints (clark-wilson)
  • Payment(must be paid prior to access)
  • Quota(a currency and a limit)
  • Strength of authentication (set of authentication Mech.)
  • Attributes of subjects(subject must have set of attributes )
slide10
EACL
  • Extends the conventional ACL concept by allowing on to specify conditional authorization policies
  • Implemented as conditions on authentication and authorization credentials

Token Type:access-id-GROUPDefining Authority:DCEValue:15

Token Type:pos-access-rights Defining Authority:local-manager Value:FILE:read FILE:write

Token Type:location Defining Authority:system-managerValue:*.USC.EDU

eacl rules and evaluation

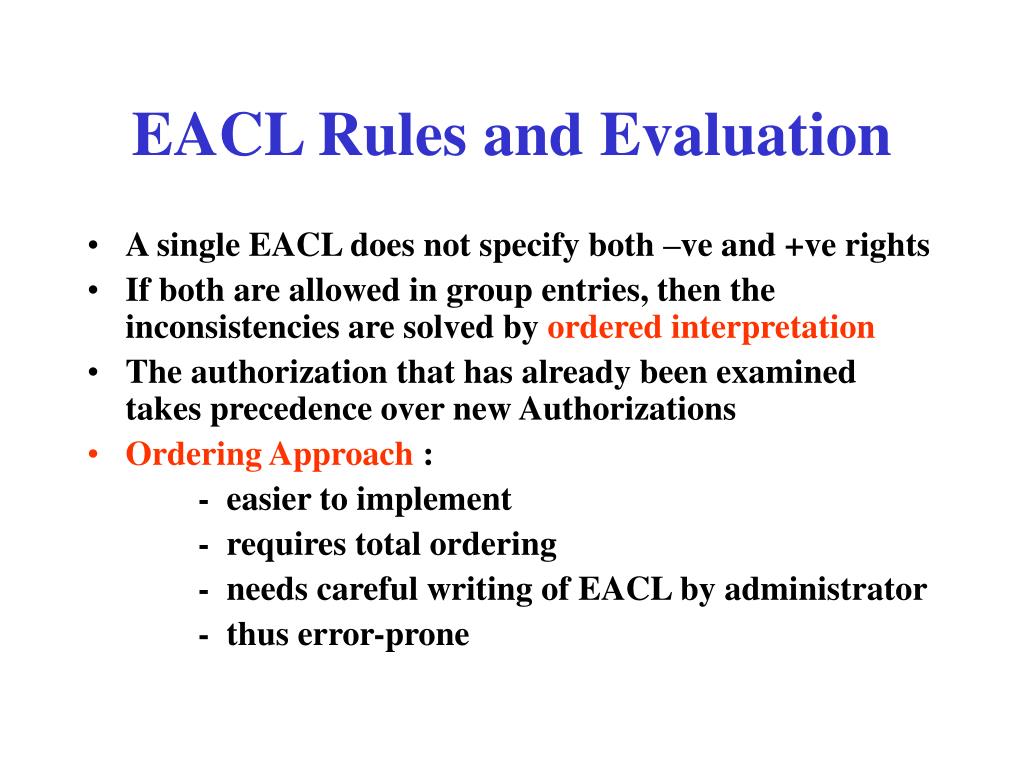

EACL Rules and Evaluation
  • A single EACL does not specify both –ve and +ve rights
  • If both are allowed in group entries, then the inconsistencies are solved by ordered interpretation
  • The authorization that has already been examined takes precedence over new Authorizations
  • Ordering Approach :

- easier to implement

- requires total ordering

- needs careful writing of EACL by administrator

- thus error-prone

credential evaluation

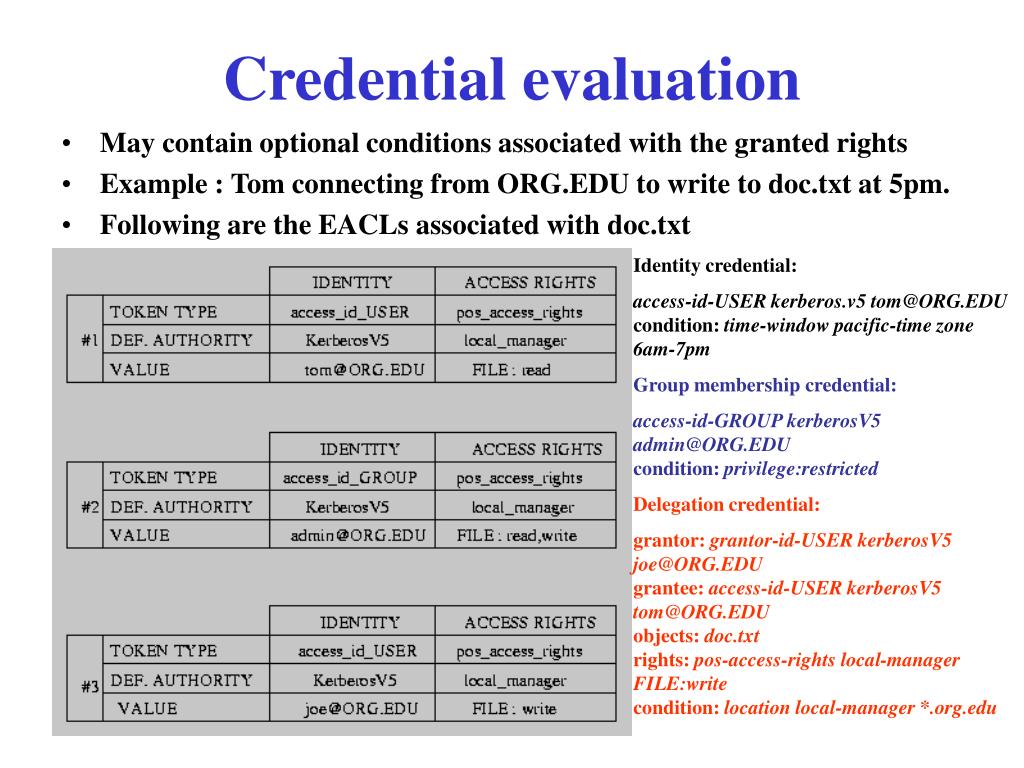

Credential evaluation
  • May contain optional conditions associated with the granted rights
  • Example : Tom connecting from ORG.EDU to write to doc.txt at 5pm.
  • Following are the EACLs associated with doc.txt

Identity credential:

access-id-USER kerberos.v5 [email protected]: time-window pacific-time zone 6am-7pm

Group membership credential:

access-id-GROUP kerberosV5 [email protected]: privilege:restricted

Delegation credential:

grantor: grantor-id-USER kerberosV5 [email protected]: access-id-USER kerberosV5 [email protected]: doc.txtrights: pos-access-rights local-manager FILE:writecondition: location local-manager *.org.edu

outline13
Outline
  • Abstract, Motivation
  • Framework
  • Policy Language,generic conditions
  • EACL, EACL Rules and Evaluation, Credentials
  • GAA-API Approach
  • GAA-API components
  • Conclusion
  • Status
approach

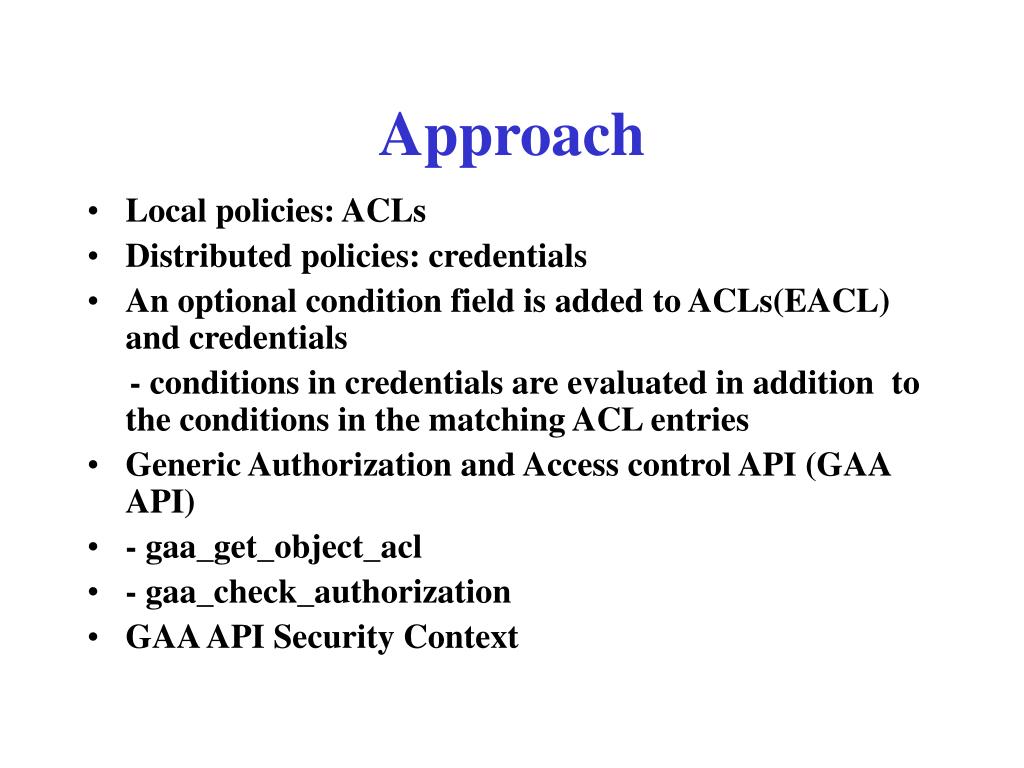

Approach
  • Local policies: ACLs
  • Distributed policies: credentials
  • An optional condition field is added to ACLs(EACL) and credentials

- conditions in credentials are evaluated in addition to the conditions in the matching ACL entries

  • Generic Authorization and Access control API (GAA API)
  • - gaa_get_object_acl
  • - gaa_check_authorization
  • GAA API Security Context
approach contd

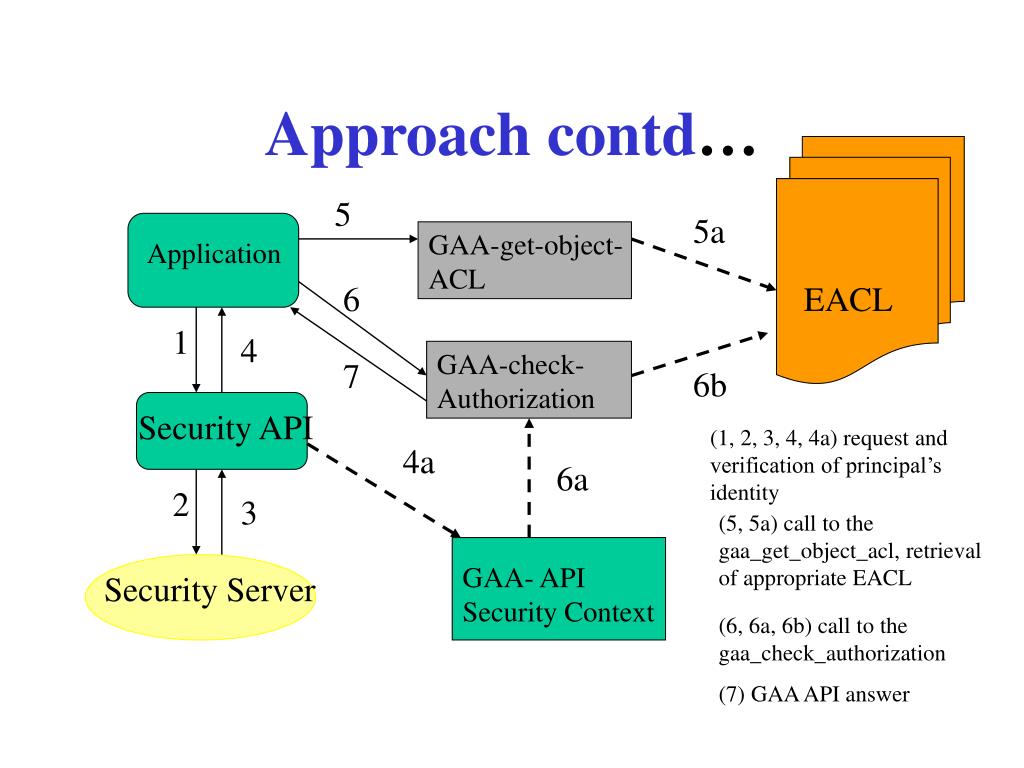

Approach contd…

5

5a

GAA-get-object-ACL

Application

6

EACL

1

4

GAA-check-Authorization

7

6b

Security API

(1, 2, 3, 4, 4a) request and verification of principal’s identity

4a

6a

2

3

(5, 5a) call to the gaa_get_object_acl, retrieval of appropriate EACL

GAA- API Security Context

Security Server

(6, 6a, 6b) call to the gaa_check_authorization

(7) GAA API answer

gaa get object acl

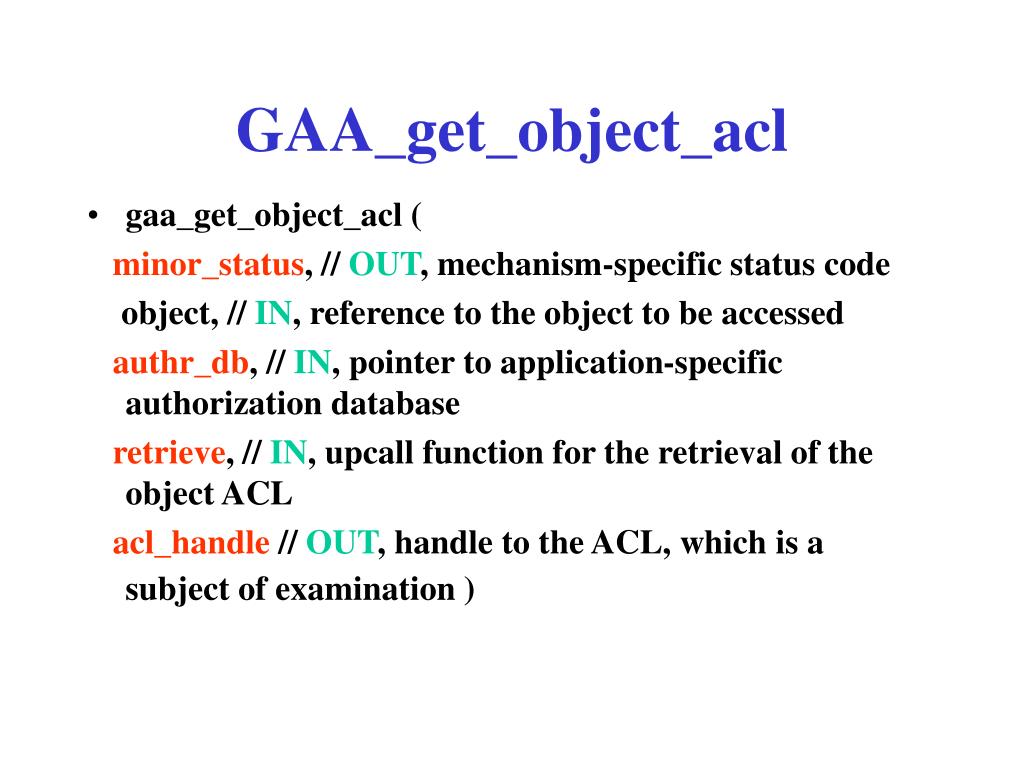

GAA_get_object_acl
  • gaa_get_object_acl (

minor_status, // OUT, mechanism-specific status code

object, // IN, reference to the object to be accessed

authr_db, // IN, pointer to application-specific authorization database

retrieve, // IN, upcall function for the retrieval of the object ACL

acl_handle // OUT, handle to the ACL, which is a subject of examination)

gaa check authorization

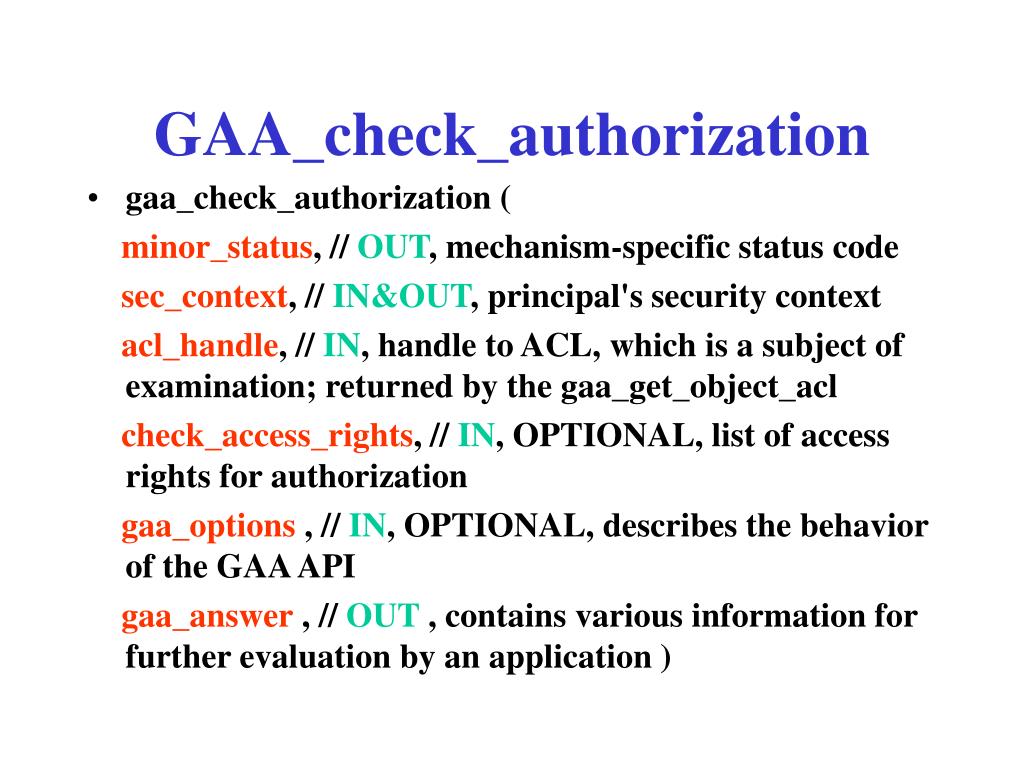

GAA_check_authorization
  • gaa_check_authorization (

minor_status, // OUT, mechanism-specific status code

sec_context, // IN&OUT, principal\'s security context

acl_handle, // IN, handle to ACL, which is a subject of examination; returned by the gaa_get_object_acl

check_access_rights, // IN, OPTIONAL, list of access rights for authorization

gaa_options , // IN, OPTIONAL, describes the behavior of the GAA API

gaa_answer , // OUT , contains various information for further evaluation by an application )

gaa api gaa answer

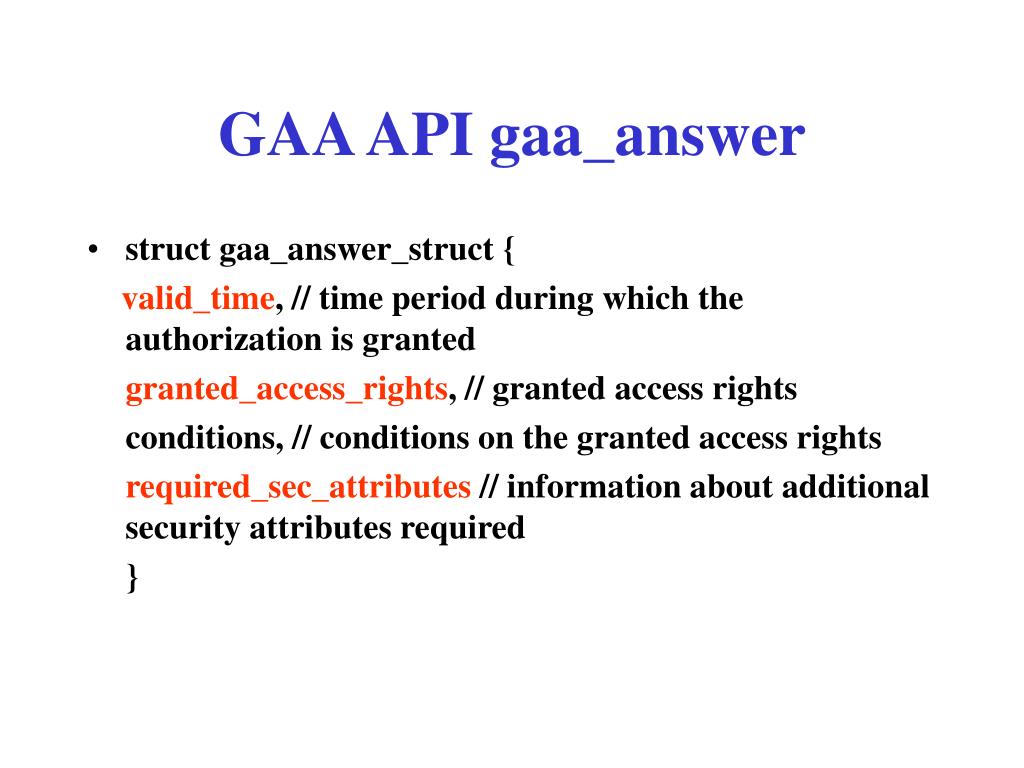

GAA API gaa_answer
  • struct gaa_answer_struct {

valid_time, // time period during which the authorization is granted

granted_access_rights, // granted access rights

conditions, // conditions on the granted access rights

required_sec_attributes // information about additional security attributes required

}

gaa error code

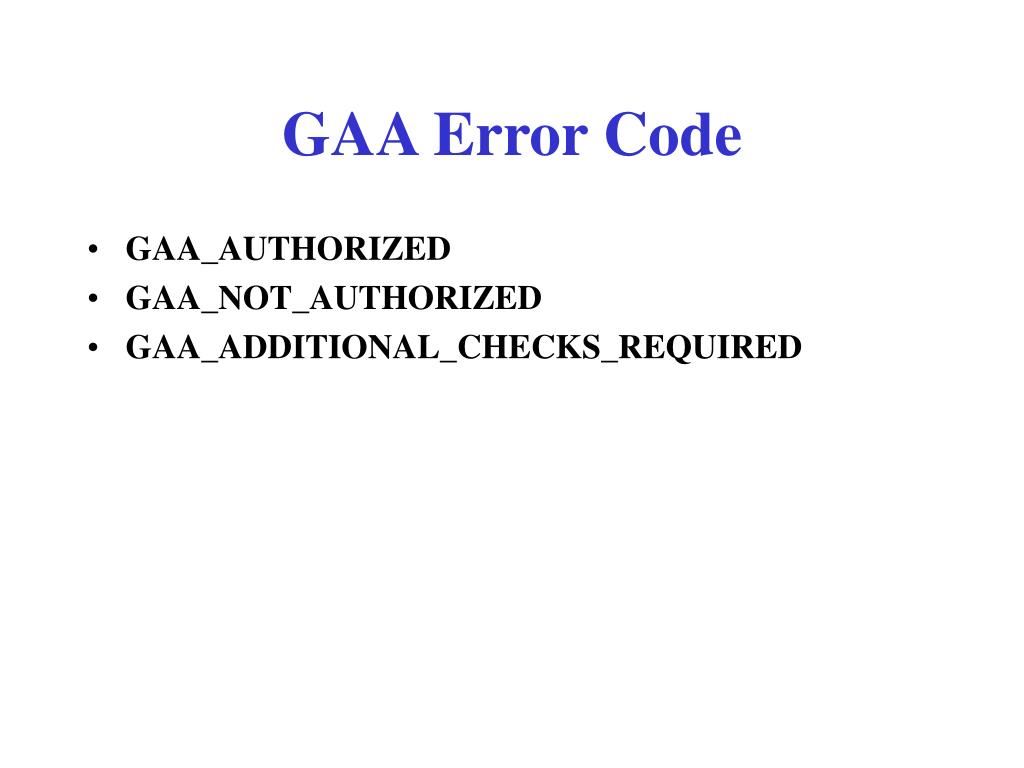

GAA Error Code
  • GAA_AUTHORIZED
  • GAA_NOT_AUTHORIZED
  • GAA_ADDITIONAL_CHECKS_REQUIRED
gaa security context
GAA security context
  • struct gaa_sec_context { identity_cred // identity credentials

authorized_cred // delegated credentials, capabilities

group_memb // grantee is a member of listed groups

group_nonmemb // grantee is NOT a member of listed groups

attributes // miscellaneous attributes attached to the grantee

unevaluated_cred // unevaluated credentials

connection_state // per-connection context

condition_evaluation // evaluate application-specific conditions

pull_cred // obtains the necessary credentials

cred_evaluate // parse the acquired credentials }

conclusions

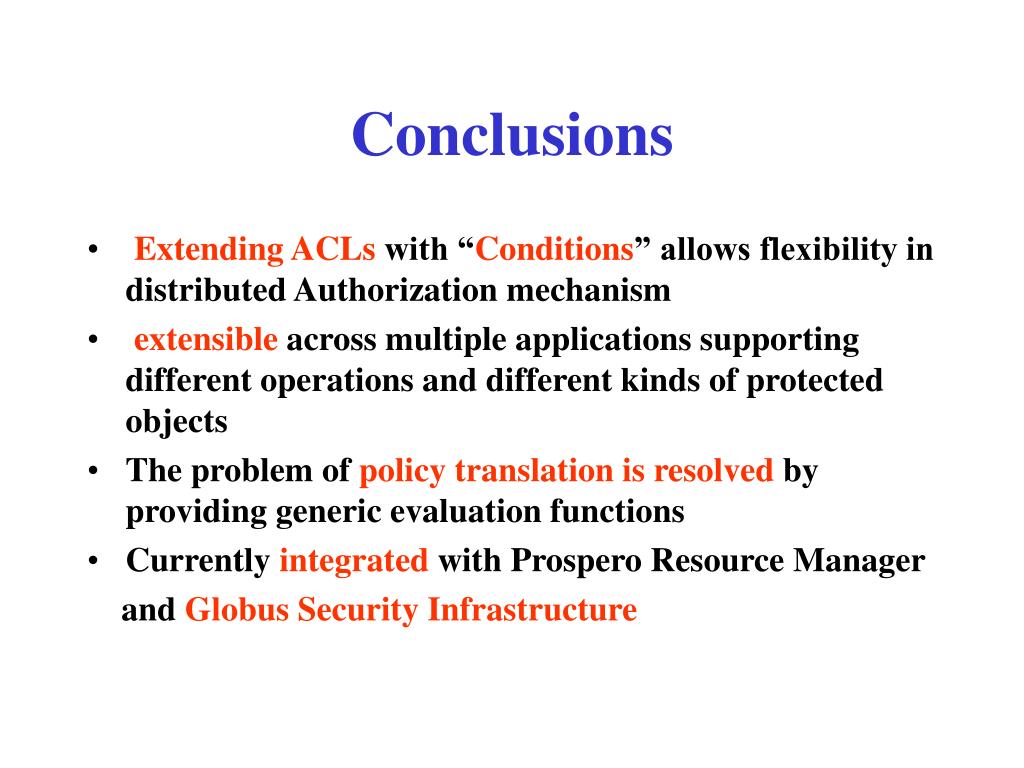

Conclusions
  • Extending ACLs with “Conditions” allows flexibility in distributed Authorization mechanism
  • extensible across multiple applications supporting different operations and different kinds of protected objects
  • The problem of policy translation is resolved by providing generic evaluation functions
  • Currently integrated with Prospero Resource Manager

and Globus Security Infrastructure

status

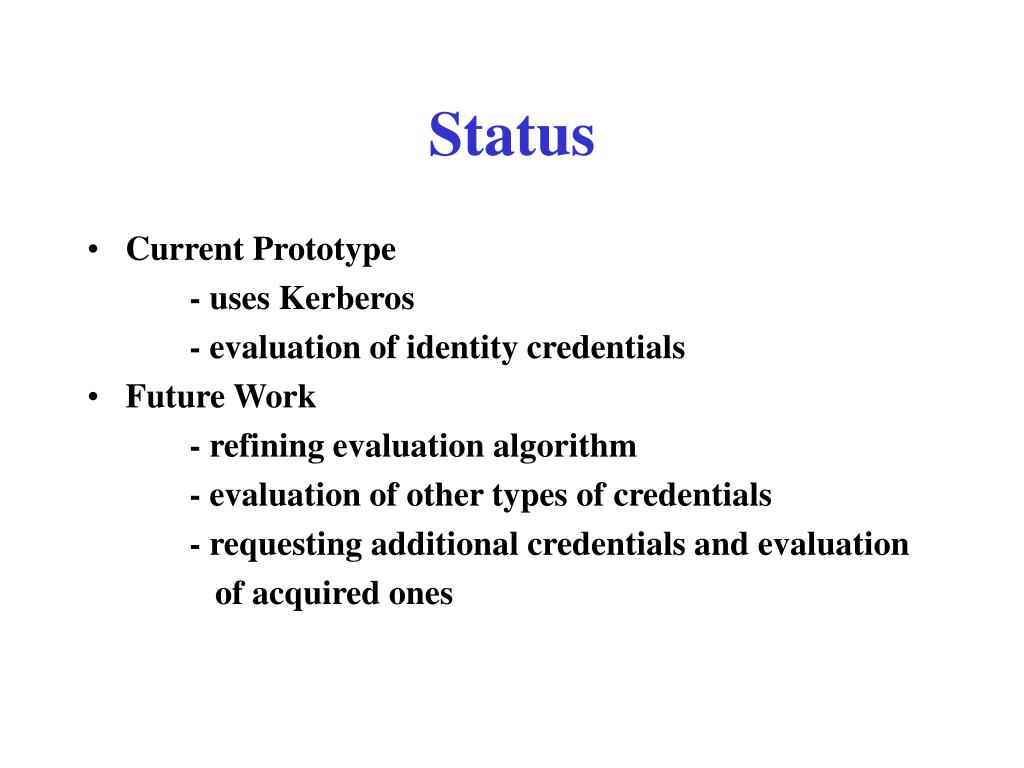

Status
  • Current Prototype

- uses Kerberos

- evaluation of identity credentials

  • Future Work

- refining evaluation algorithm

- evaluation of other types of credentials

- requesting additional credentials and evaluation

of acquired ones

clark wilson

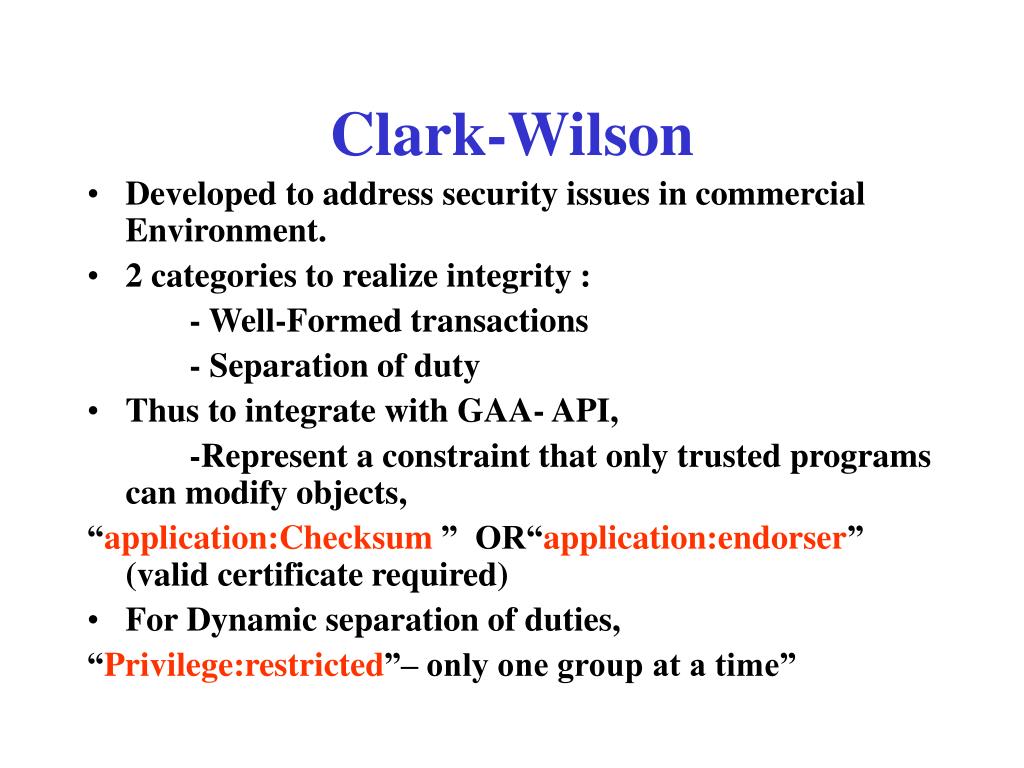

Clark-Wilson
  • Developed to address security issues in commercial Environment.
  • 2 categories to realize integrity :

- Well-Formed transactions

- Separation of duty

  • Thus to integrate with GAA- API,

-Represent a constraint that only trusted programs can modify objects,

“application:Checksum ” OR“application:endorser” (valid certificate required)

  • For Dynamic separation of duties,

“Privilege:restricted”– only one group at a time”

lattice based policies

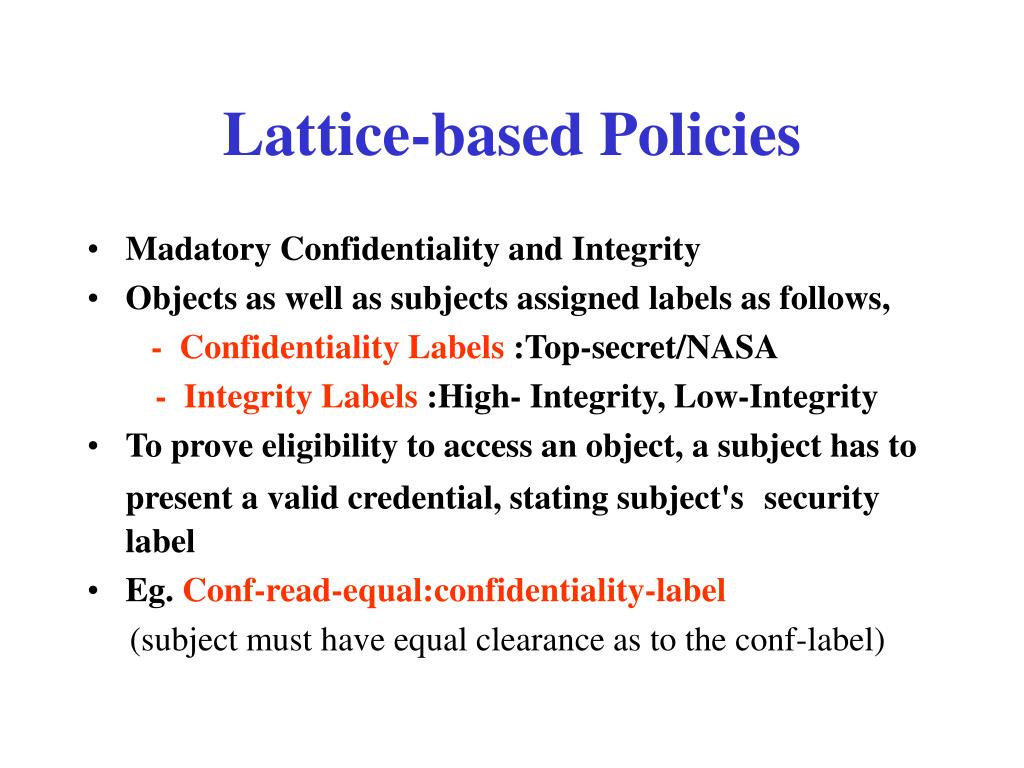

Lattice-based Policies
  • Madatory Confidentiality and Integrity
  • Objects as well as subjects assigned labels as follows,

- Confidentiality Labels :Top-secret/NASA

- Integrity Labels :High- Integrity, Low-Integrity

  • To prove eligibility to access an object, a subject has to present a valid credential, stating subject\'s security label
  • Eg. Conf-read-equal:confidentiality-label

(subject must have equal clearance as to the conf-label)
