  1. Environment Restriction Slicing of EFSMs Kelly Androutsopoulos CREST (Center for Research in Evolution, Search and Testing) University College of London Email: K.Androutsopoulos@cs.ucl.ac.uk Joint work with: David Binkley, David Clark, Nicolas Gold, Mark Harman, Kevin Lano and Zheng Li

  2. System Extended Finite State Machines (EFSMs) • Widely used to model for e.g. embedded systems, safety critical systems, discrete-event control devices Responses Stimuli Environment

  3. Reuse with Restricted Operational Environment • Example: Car Air Conditioning System • ‘Basic model’ car air conditioning system and ‘luxurious model’ that contains climate control functionality. • Example: Vending Machine • Allows a user to insert coins and vends tea with the option of large cups, small cups, sugar and double sugar. Assume deploying this model in an environment where the sugar button is disabled.

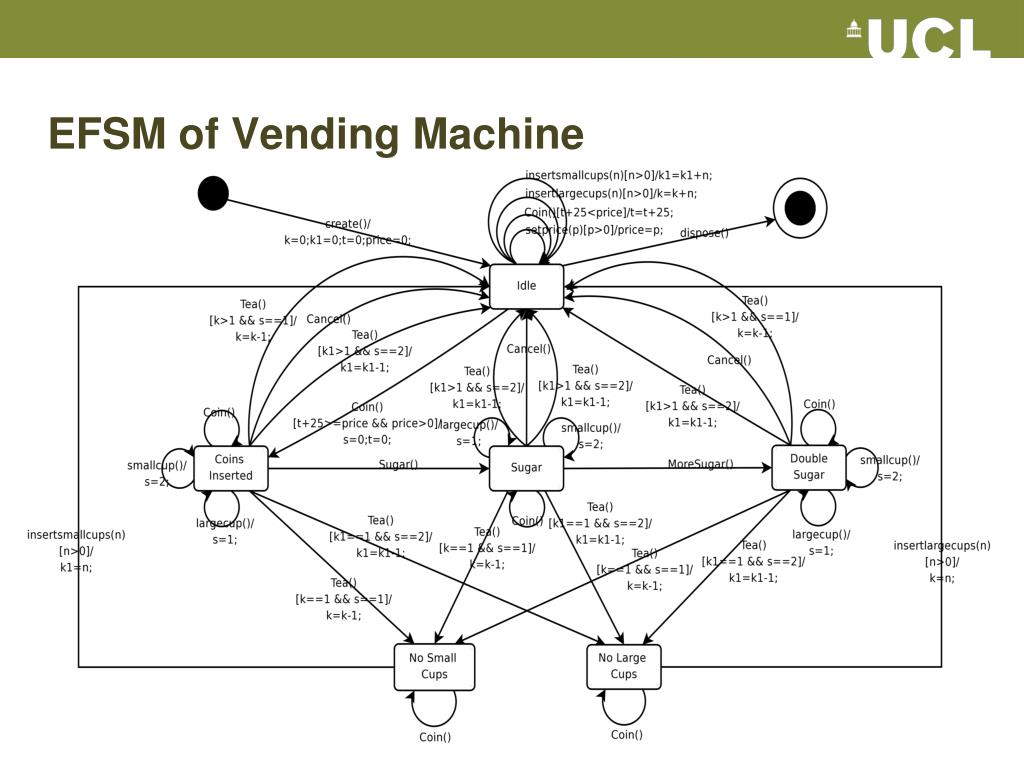

  4. EFSM of Vending Machine

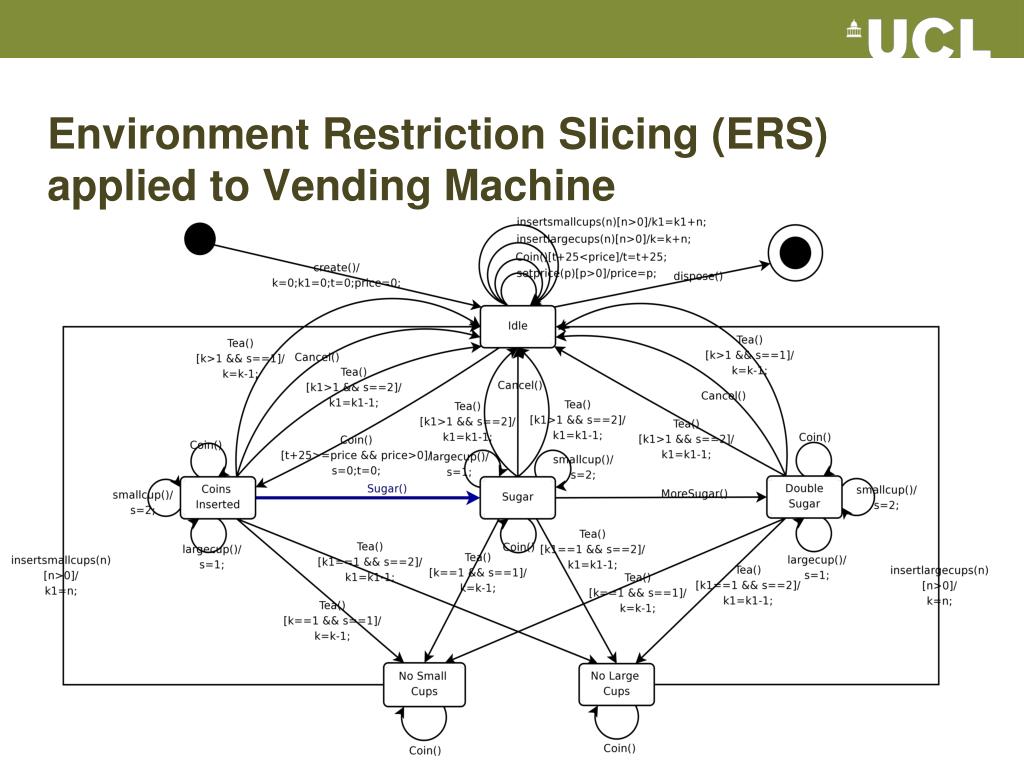

  5. Environment Restriction Slicing (ERS) applied to Vending Machine

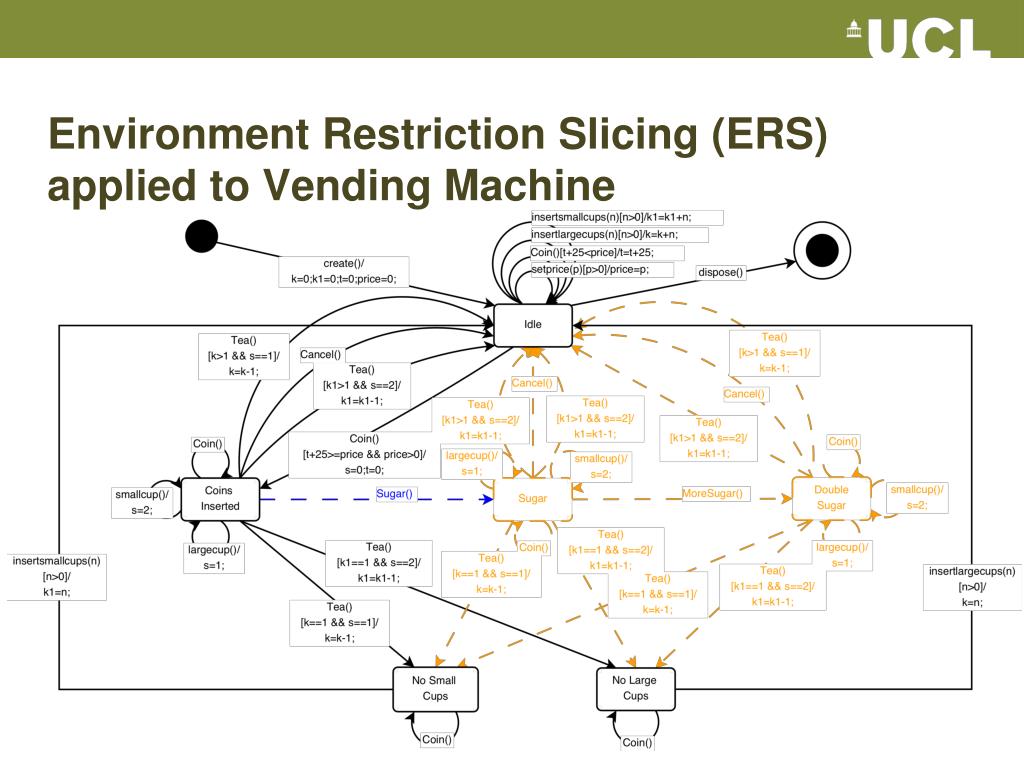

  6. Environment Restriction Slicing (ERS) applied to Vending Machine

  7. Aid Property Verification Production Cell Deposit belt • State space > 3000 • Assume we want to prove property P: • The feed belt motor is off if there is a blank on the elevating rotary table. • P affects only 4 events. • Model can be reduced by ERS to 4 states and 8 transitions. Robot Feed belt Elevating Rotary table

  8. ERS definitions • Definition (Slicing Criterion): • An ignore set I which is a set of events that no longer occur in the new environment. • Definition (Event Sequence Set Filter): • Sequence-set filter function • Definition (Environment Restriction Slice): • A slice of an EFSM M=(S,T,A,Si) for ignore set I is a reduced EFSM M’ that is semantically indistinguishable from M on all event sequences from fi(A*,I), where A* is all possible event sequences in the environment.

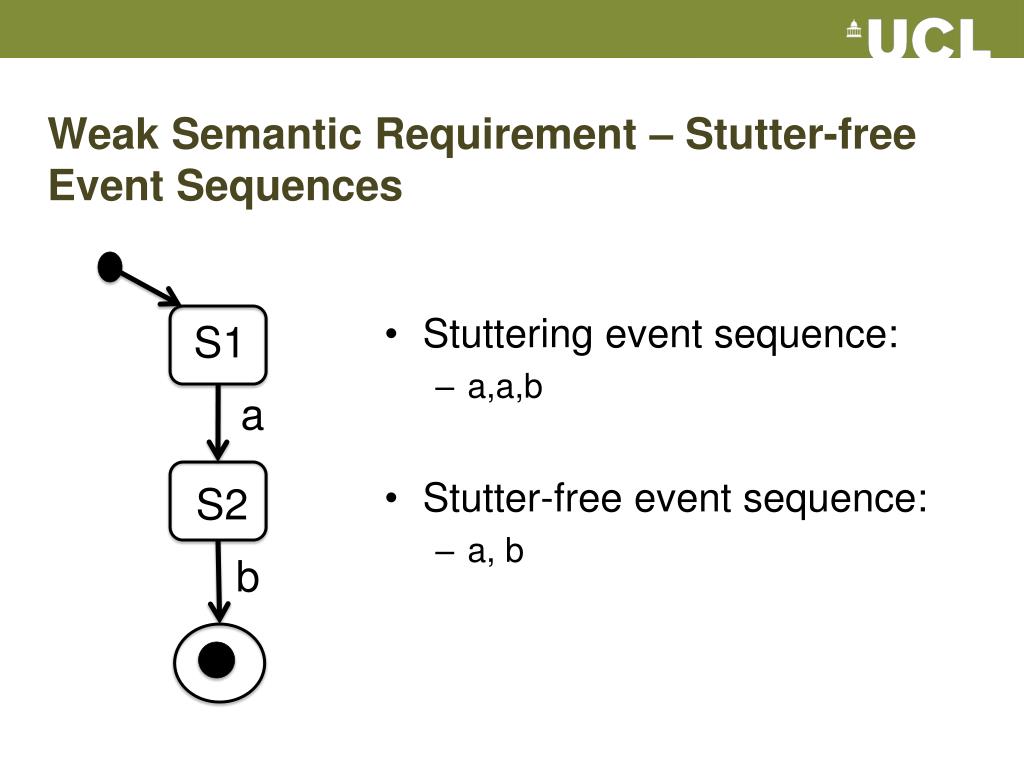

  9. Weak Semantic Requirement – Stutter-free Event Sequences • Stuttering event sequence: • a,a,b • Stutter-free event sequence: • a, b S1 a S2 b

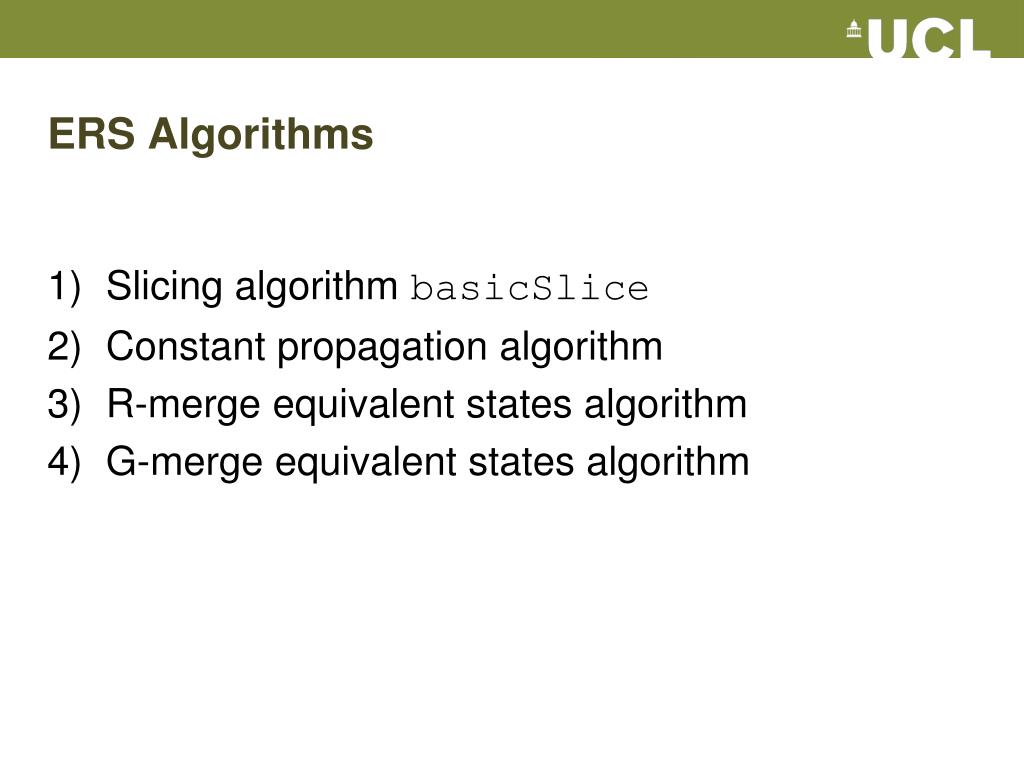

  10. ERS Algorithms • Slicing algorithm basicSlice • Constant propagation algorithm • R-merge equivalent states algorithm • G-merge equivalent states algorithm

  11. basicSlice Algorithm (A1) • Slicing criterion: Ignore set I • Algorithm: • Deletes all transitions whose trigger event corresponds to events in I. • Then, removes all states and transitions that are no longer reachable from an initial state.

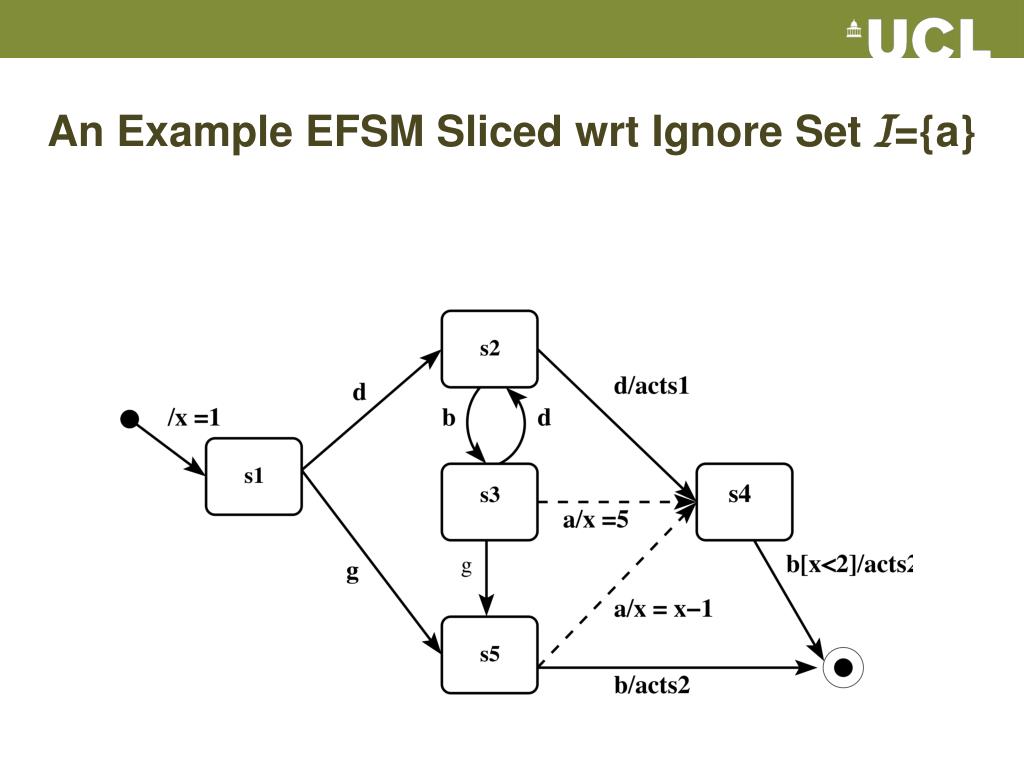

  12. An Example EFSM Sliced wrt Ignore Set I={a}

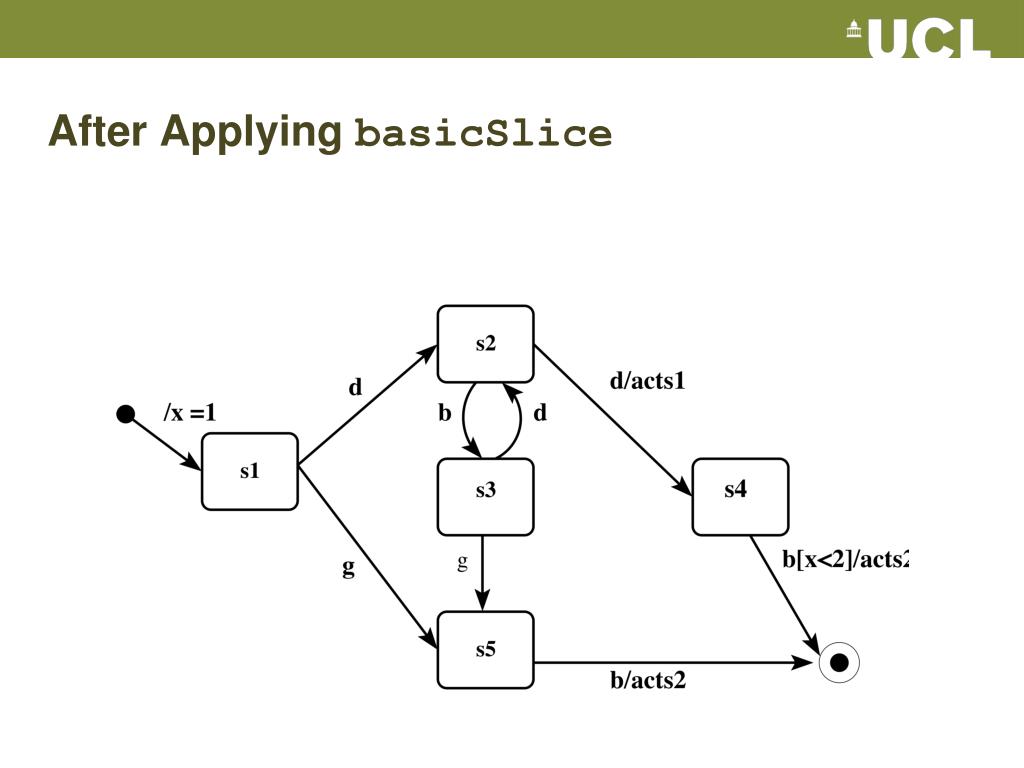

  13. After Applying basicSlice

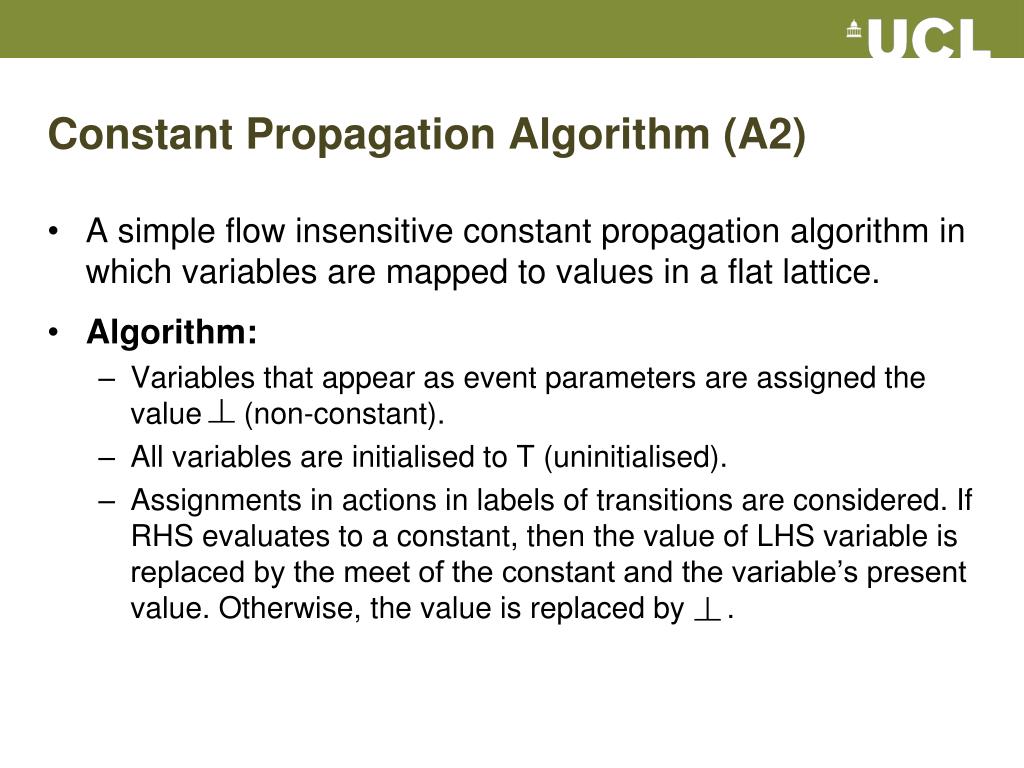

  14. Constant Propagation Algorithm (A2) • A simple flow insensitive constant propagation algorithm in which variables are mapped to values in a flat lattice. • Algorithm: • Variables that appear as event parameters are assigned the value (non-constant). • All variables are initialised to T (uninitialised). • Assignments in actions in labels of transitions are considered. If RHS evaluates to a constant, then the value of LHS variable is replaced by the meet of the constant and the variable’s present value. Otherwise, the value is replaced by .

  15. After Applying basicSlice

  16. After Applying Constant Propagation

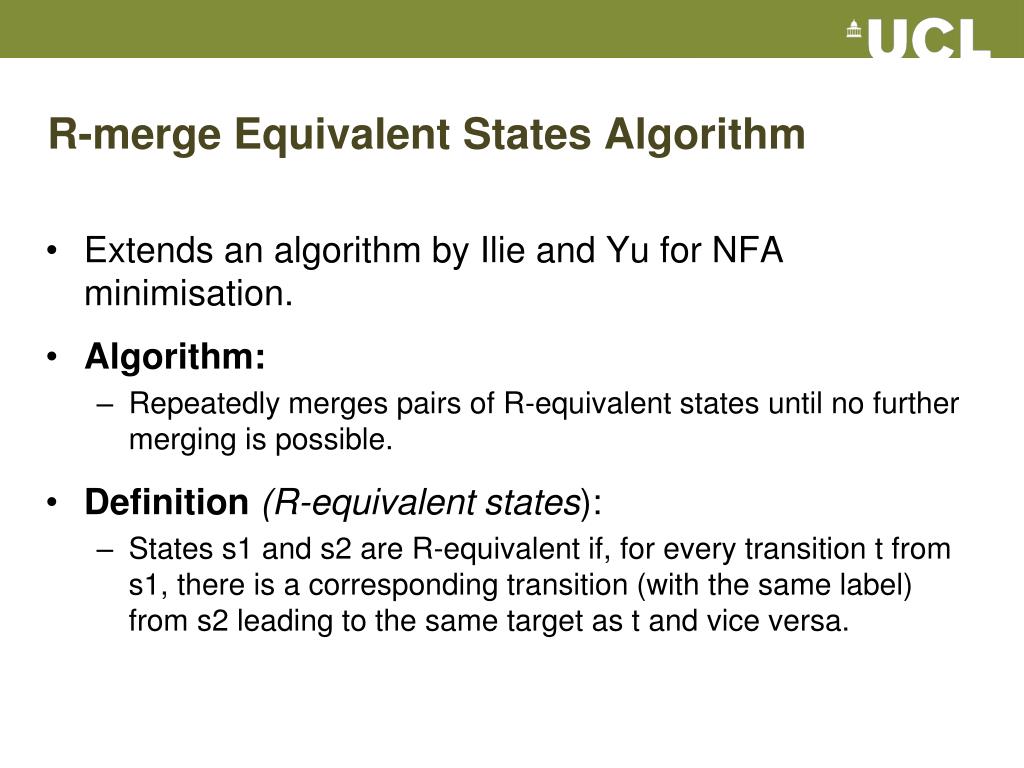

  17. R-merge Equivalent States Algorithm • Extends an algorithm by Ilie and Yu for NFA minimisation. • Algorithm: • Repeatedly merges pairs of R-equivalent states until no further merging is possible. • Definition (R-equivalent states): • States s1 and s2 are R-equivalent if, for every transition t from s1, there is a corresponding transition (with the same label) from s2 leading to the same target as t and vice versa.

  18. After Applying Constant Propagation

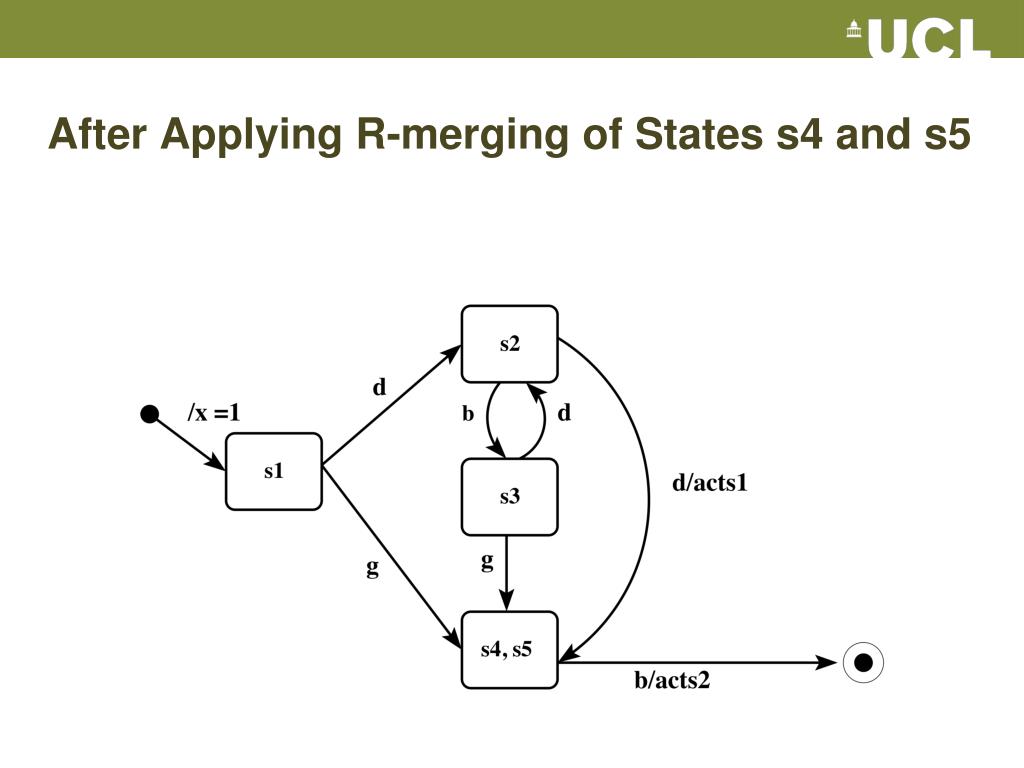

  19. After Applying R-merging of States s4 and s5

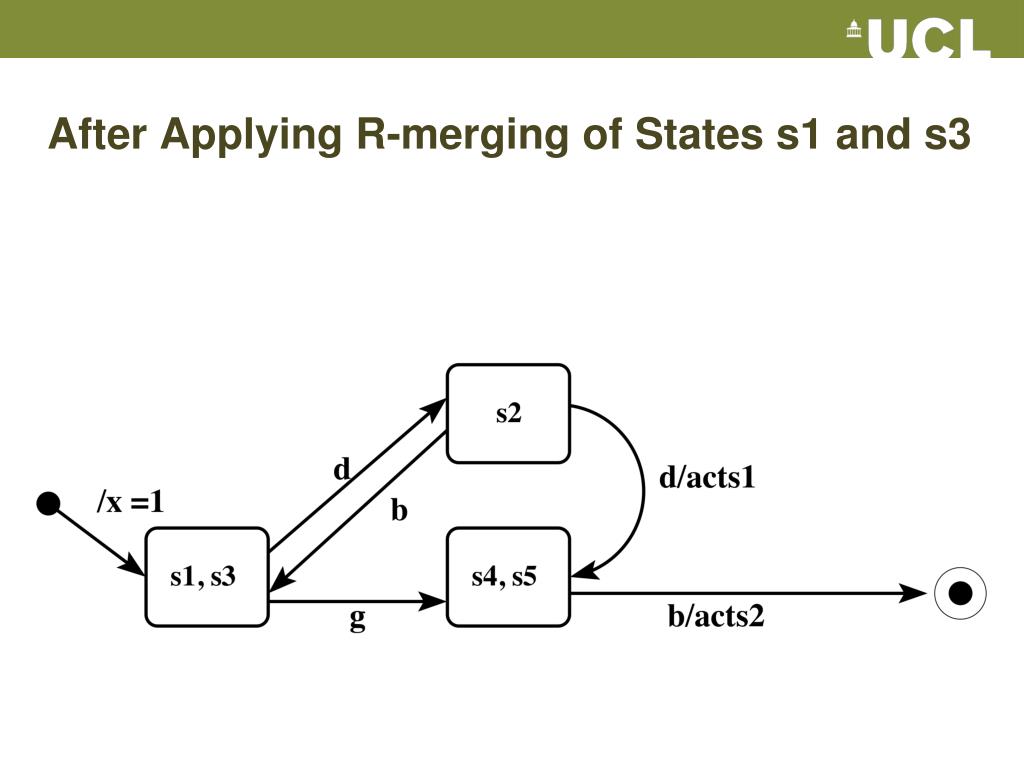

  20. After Applying R-merging of States s1 and s3

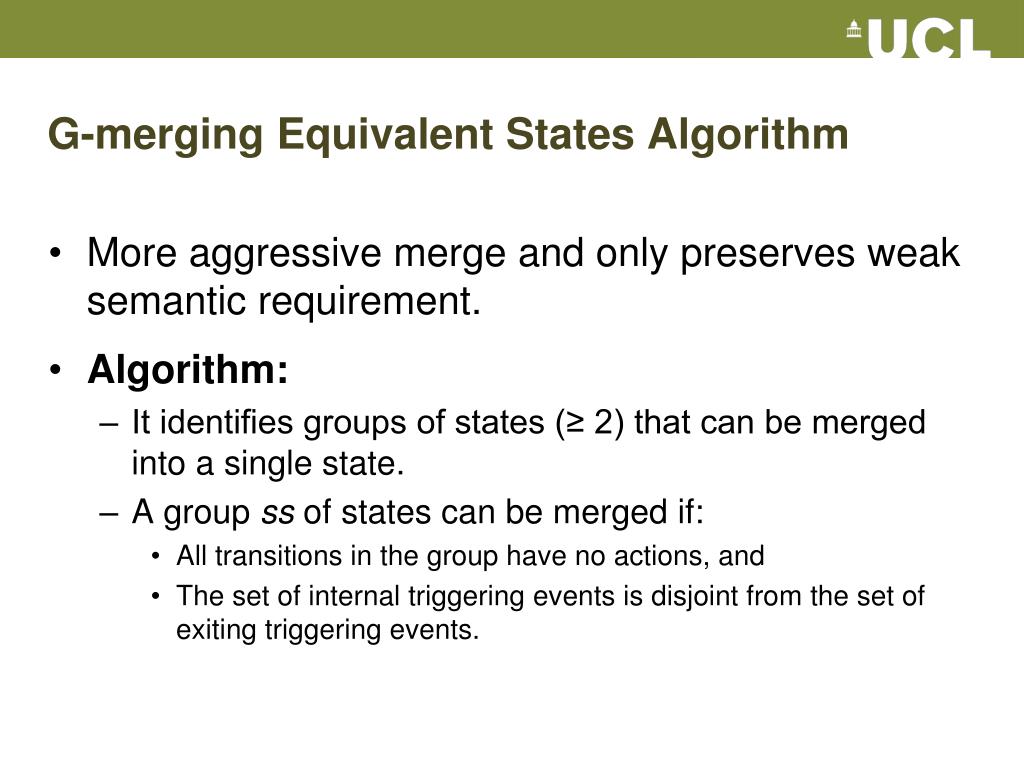

  21. G-merging Equivalent States Algorithm • More aggressive merge and only preserves weak semantic requirement. • Algorithm: • It identifies groups of states (≥ 2) that can be merged into a single state. • A group ss of states can be merged if: • All transitions in the group have no actions, and • The set of internal triggering events is disjoint from the set of exiting triggering events.

  22. After Applying R-merging of States s1 and s3

  23. After Applying G-merge, Combining s1,s3 and s4,s5

  24. Empirical Results:Experimental Models

  25. Empirical Results: Average Slice Size when Ignoring n Events

  26. Empirical Results: All slice sizes with I set to each of the 142 events for algorithms A1-A4

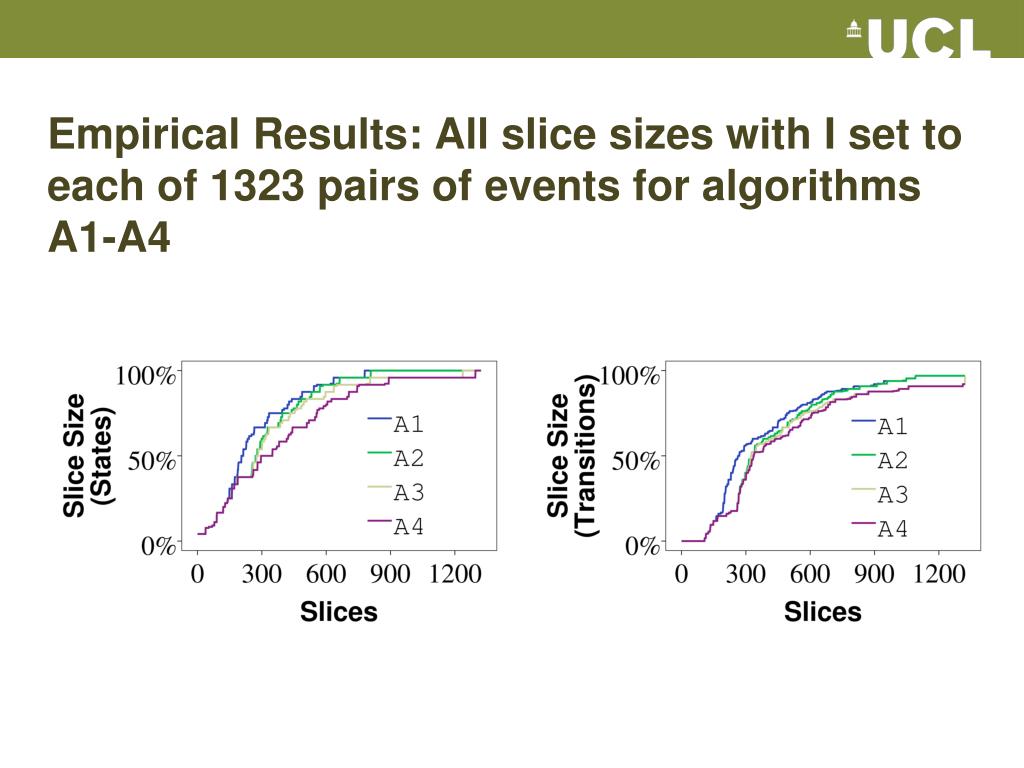

  27. Empirical Results: All slice sizes with I set to each of 1323 pairs of events for algorithms A1-A4

  28. Empirical Results: All slice sizes for algorithms A1-A4 using all possible ignore set containing all but one (n-1) events.

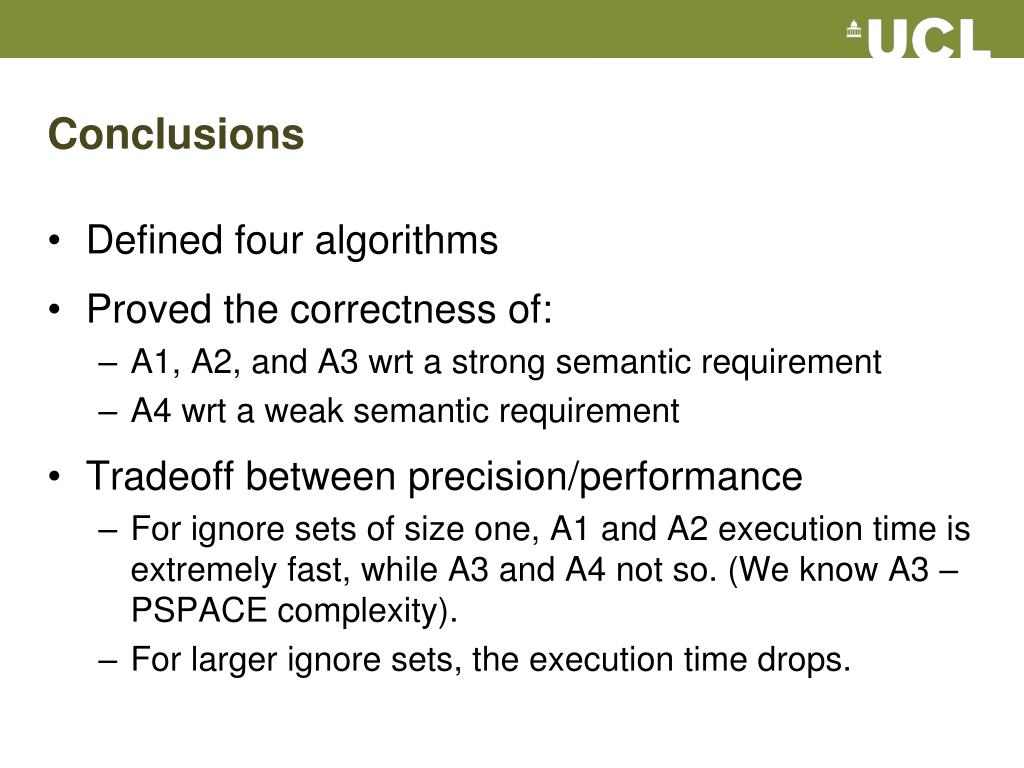

  29. Conclusions • Defined four algorithms • Proved the correctness of: • A1, A2, and A3 wrt a strong semantic requirement • A4 wrt a weak semantic requirement • Tradeoff between precision/performance • For ignore sets of size one, A1 and A2 execution time is extremely fast, while A3 and A4 not so. (We know A3 – PSPACE complexity). • For larger ignore sets, the execution time drops.
