Presentation Transcript


Serge rutman director display dtv r d home products group intel

Beyond the Couch Potato

Serge Rutman

Director Display & DTV R&D

Home Products Group, Intel


The dtv opportunity articulated 3 5 years ago

The DTV opportunity (ARTICULATED 3.5 YEARS AGO)

Ultimate digital information

presentation device

smart TV

FEATURES

A discontinuity created by the

imminent analogue to digital transition in the TV market offers

a chance to open a vast new market to Intel microprocessors.

- interactive content

- 500x data delivery

- broadcast SW dist.

reprogrammable general purpose intelligence in (PC) receivers

digital transmission, imbedded MIPS

analogue colour transmission s scheme

stereo audio

video over the air

ATSC standard

High Def.

(READABLE!)

?

Colour

Ongoing efforts:

- Intercast (data over NTSC VBI)

- DVB broadcast

- hybrid app technology

- SW MPEG

Black & White

19401950196019701980199020002010

  • Introduce new (PC) differentiators to the TV market:

    • - intelligence level (MIPS) - local filtering (only present what the user wants)

    • - personalization (learn the user’s habits)- quantity of digital storage

    • - I/O devices (physical & virtual)- object detail capability (3D etc.)


Dtv research program mission 2 year old foil

DTV research Program mission:(2 year old foil)

Substantiate the notion that:

As DIGITAL TV market develops

the DTV paradigm is redefined from

a passive audio+video delivery mechanism

to a new medium for

non-linear, interactive programming

“experienced BEST” on

Intel inside(TM), DTV receiver-equipped PC


Dtv technical background us atsc terrestrial

DTV Technical Background(US, ATSC, terrestrial)

  • Geographic coverage same as NTSC

  • Video/audio quality substantially improved via use of DIGITAL Codecs: MPEG2 video, AC3 audio

  • Digital, packetized broadcast transmission allows delivery of ANY kind of bits @ 19Mb/sec

  • Several image formats aspect ratios & refresh rates

  • Initially broadcasters get an additional 6Mhz channel for simulcast (concurrent analogue and digital service

  • later the analogue service ends, freeing up RF spectrum


What s changing

What’s changing

  • Analogue -> Digital

    • fidelity improved

    • efficiency improved (more channels in same spectrum)

    • bits are bits - more choices in content

  • Receiver Capabilities RAPIDLY increasing

    • intelligence - once you have enough computer to decoded MPEG2 & AC3 you have a decent computer. Not much more cost to make it reprogrammable

    • rendering (eg. 3D)

    • storage (use disk as a content “cache”).

    • interesting I/O (eg. joystick, camera, stereo displays...)

    • multiple concurrent sources of content (eg. TV & Net & DVD)

  • New media (Internet) encroaching on broadcasting


What s staying the same

What’s staying the same

  • Fundamental strength of the broadcast medium remains efficient concurrent delivery from “1 to millions”

  • Mostly a “Couch Potato Medium” - passive, viewed by several people in living room, has to be easy to use & bulletproof.

  • Not much NEW money in the broadcast industry to pay for aggressive deployment new equipment (head end and receiver)

  • Today’s business models are advertising based

  • Many competing service providers NOT interested in making access to competitors service easy


Serge rutman director display dtv r d home products group intel

More choices at the SMART receiver then size of display & volume.Multiple, mixed sources of for data: HYBRID applications.

today

A

EDIT:

select

1of N

A

NTSC

decode

B

A

B

R

O

A

D

C

A

S

T

C

A

tomorrow

A

A

CPU

(reprog)

EDIT:

combine

N

C+X1+X2

B

C

B

X1

X2

Y2

Y 1+Y2

Y1

WEB

hybrid

apps

local storage

?


Some metrics

Some metrics

  • degree of Video On Demand-ness

    • receiver autonomously caches most likely to be requested content

    • carouselling

  • ability to channel surf fast a.k.a. stream acquisition latency

  • cool picture/bit

  • level of Viewer choice

  • ease of navigation - next generation EPGs

  • degree of choice at head-end vs. receiver (provider vs. user interests)


How to validate the vision santa clara dtv capability circa 97 98

How to validate the vision - Santa Clara DTV Capability (circa ‘97-98)

FCC

DTV

license

antenna

DTV add-in

RNB

various

display

upconvert

8VSB mod.

Video

Audio

Data

PC

PC server

MUX

Win’95 drivers

AFD MPEG SW

AC3 audio

various data viewers


Center for datacasting innovation configuration on 10 25 99

Center for Datacasting Innovation configuration on 10/25/99

3rd Party

Content

Equipment can be

located here, as

appropriate

Real Time

Satellite Link

Non-Real Time

FTP, Tape, HD,CD-ROM...

KICU

Transmission

Facility

KICU DTV

Transmitter

Auditorium

where you are now

Intel SW Tools

& MUX

Data file

Server

Micro Wave link

Video & audio

Sencore

Data file

Server

T1

Intel SW

Tools

1st floor demo area

Server

KICU

Ch 36 - Analog

Ch 52- DTV

Tiernan HD video Encoder

DVS HD Storage

Philips

Token

MUX

8 VSB RF link

SkyStream

DBN-25

MUX

C.D.I. SC12 lab

Dolby AC3 Encoder

Panasonic D5

Tape Deck

Fiber link

C.D.I. KICU lab

Video

Philips SD video Encoder

Audio

Philips HD

Camera

Intel Experimental DTV

Transmitter

KICU Studio Facility

Intel SC12 Facility

Intel RNB Facility


Kicu dtv coverage

KICU DTV coverage


A hard constraint author once for multiple transports and platforms

A hard constraint - Author Once for Multiple Transports and Platforms

Many of These

Goal:

Do This Once

Transport

Client

Hardware/

Software

Client

Framework

Transmission

Facility

ContentCreation


Some details on data broadcasting

Some details on Data Broadcasting

  • The DTV pipe was designed for the “old TV app”, so…

  • The DTV standard contained sufficient detail for delivering digital, compressed Video + Audio…

  • and a note was made that “other ancillary data” was feasible

  • Not a great state of affairs for a “computer guy” with all sorts of ideas for alternative uses for the medium

  • For that reason the S13 ATSC technology group was formed

  • And the standard will have a robust way to deliver ALL kinds of data to ALL kinds of receivers


What does dtv data pipe look like

what does DTV “data pipe” look like?

  • 19Mb/sec raw, per channel. MANY channels.

  • multiple image encoding formats

  • 3 profiles of usage:

    • guaranteed auxiliary broadcast (dedicate some BW to a stream of digital data), analogous to current VBI use 1k-5Mbit

    • opportunistic (use the “spare bits” during low motion periods, stills, subtitles etc. to deliver data at variable bit rate). Could carry both program-related and unrelated data

    • full BW (utilize a whole channel for very high-speed, bulk data delivery)

19Mb/s

BW

% viewers awake

6:00am 12:00pm 6:00pm 12:00am


What changes when tv broadcast goes digital bits are bits not video bits

What changes when TV broadcast goes digital?Bits are Bits, not video bits.

  • Meaning and encoding of information are decoupled

  • The new medium enables broadcast delivery of ALL TYPES of digital information, beyond pictures and sound

  • EVERY receiver contains a computer

    • RAM and MIPS at least for decoding of MPEG2 & AC3

    • opinions on what kind of computer vary widely :-)

    • users get more choices

  • comparable to transition of audio distribution from LP to CD, which created a new, interactive medium - the CD ROM


Data broadcast applications taxonomy

data broadcast applications taxonomy

  • The range spans orders of magnitude along the axes of Bandwidth & number of users.

  • Other significant characteristics include:

    • reliability of delivery (executable file with 1 bit missing is worthless (or worse!) while a missing pixel does not substantially impact image quality

    • size and duration of the “atomic object” (pager message vs. encyclopedia)

    • latency (emergency message vs. scheduled morning news)

    • real-time vs. time-shifted use (page vs. science lesson)


Some application examples

some application examples:

  • watch-pagers (connected anywhere for critical messages)

  • stock tickers (personalized,valuable real-time data)

  • “your world news” (personalized news)

  • “virtual school house” (personalized, interactive education & information access)*

  • SW distribution (fresh bits with out disks, shrink-wrap, trucks, or shelf-space)

  • “I want to see this ad” (greatly improve targeting adds to willing potential consumers)

* this is a personal favourite of mine - objectively good for ALL, and a great fit for the PC/ATV combination. Anyone that wants to help build it please see me!


Bw vs number of users approx log log

BW vs. number of users (approx. log/log)

19

MB/s

“virtual

school house”

“your world”

news

BW

SW

download

stock tickers

“ad”

watch-pagers

10

Kb/s

10

USERS

10M

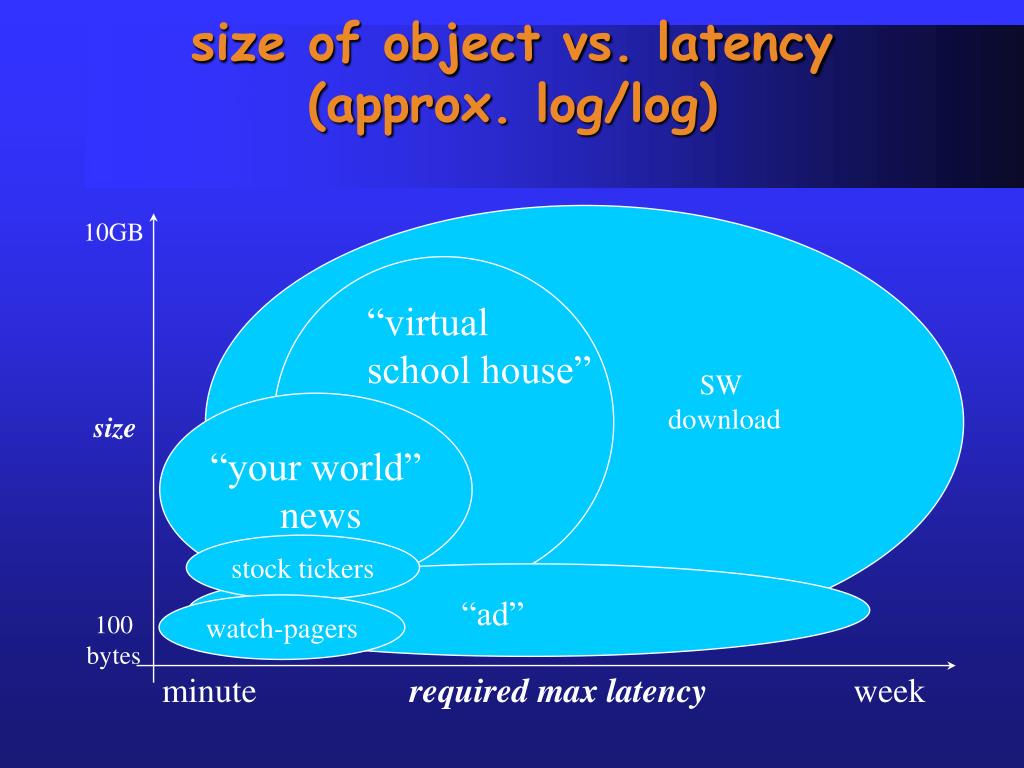

Size of object vs latency approx log log

size of object vs. latency (approx. log/log)

10GB

“virtual

school house”

SW

download

“your world”

news

size

stock tickers

“ad”

watch-pagers

100

bytes

minute

required max latency

week


What changed since last cs448 fall 98

What changed since last cs448 (Fall ‘98)

  • Close to 100 station on air with digital services

  • 100-200k DTV receivers deployed

  • PC DTV receiver add-ins available from multiple vendors offered at $200-300 from multiple vendors

  • ATVEF developed as a voluntary authoring spec for web-enhanced DTV content

  • ATSC’s data broadcasting standard in ratification

  • Industry acknowledges that NEW $$ likely to come from data broadcasting & enhanced content

  • combination of new & old biz models - AOL merges with Time Warner

  • data broadcasting and interactive TV startups sprouting like mushrooms
