Presentation Transcript


Microsoft deployment toolkit 2012 u1 meets orchestrator

Microsoft Deployment Toolkit 2012 U1 Meets Orchestrator

Name

Title

email

DMVMUG User Conference 2013 – Reston, VA


Microsoft deployment toolkit 2012 u1 meets orchestrator

  • Rhonda Layfield

  • 30 + years in IT

  • 6x Setup & Deployment MVP

  • International Presenter

  • Trainer

  • Consultant

  • @DeploymentDr.com

  • www.DeploymentDr.com


Mdt 2012 update 1 overview what s new

MDT 2012 Update 1 Overview “What’s New”

  • New to MDT 2012

  • New OSs Supported

  • New Features

  • New Deployment Wizard

  • Monitoring Clients

  • Remote Control

  • GPO Packs

  • Unified Extensible Firmware Interface (UEFI)

  • MST 2012 Update 1


New oss supported

New OSs Supported

  • MDT Now Supports Deploying ThinPC and POSReady

    • ThinPC – Embedded Standard Win7

      • 1GHz Processor

      • 1GB RAM

      • 16GB Hard Disk Space

      • Citrix or Terminal Services Client

    • POSReady

      • Point of Sales – Cash Registers

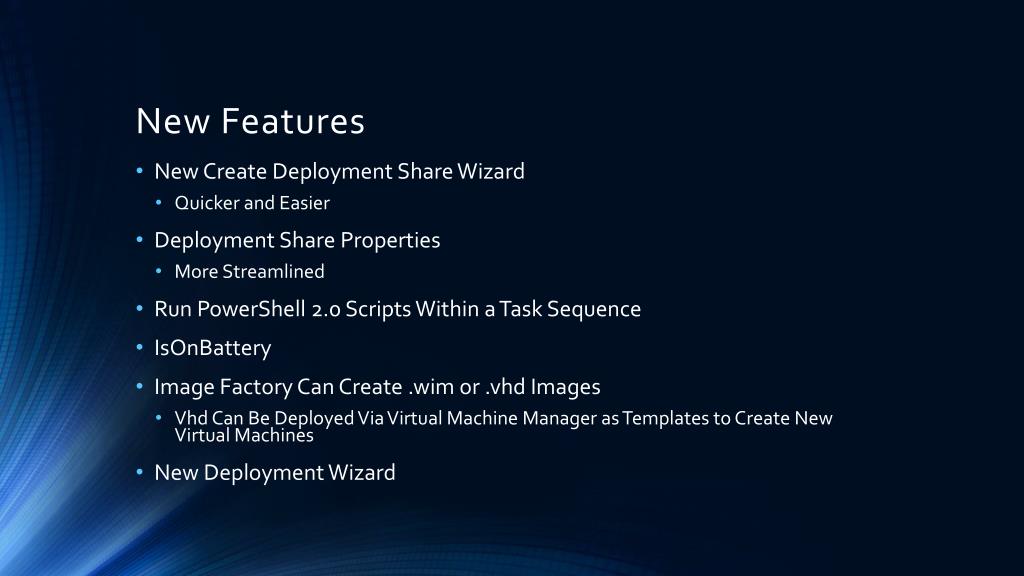

New features

New Features

  • New Create Deployment Share Wizard

    • Quicker and Easier

  • Deployment Share Properties

    • More Streamlined

  • Run PowerShell 2.0 Scripts Within a Task Sequence

  • IsOnBattery

  • Image Factory Can Create .wim or .vhdImages

    • VhdCan Be Deployed Via Virtual Machine Manager as Templates to Create New Virtual Machines

  • New Deployment Wizard

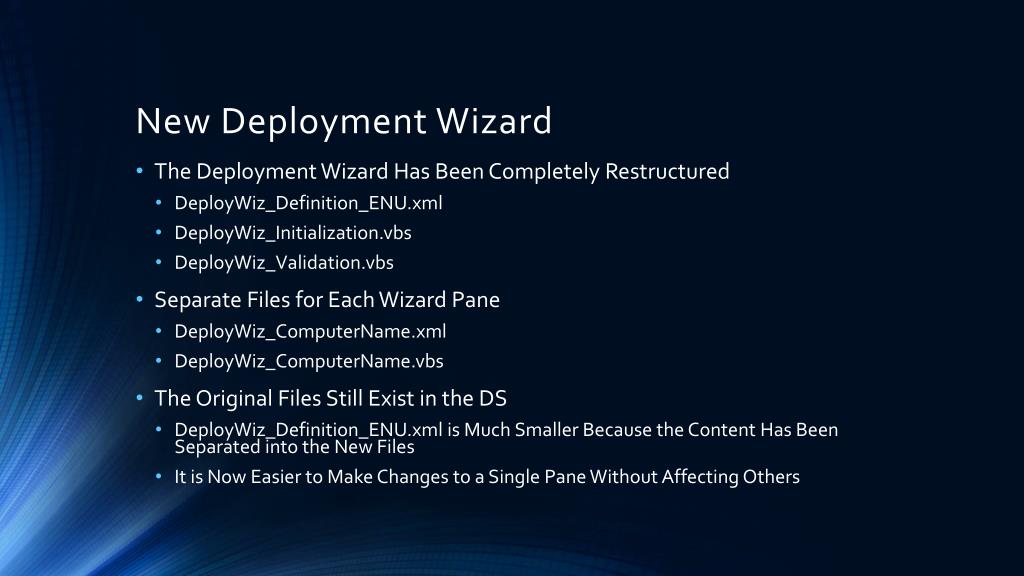

New deployment w izard

New Deployment Wizard

  • The Deployment Wizard Has Been Completely Restructured

    • DeployWiz_Definition_ENU.xml

    • DeployWiz_Initialization.vbs

    • DeployWiz_Validation.vbs

  • Separate Files for Each Wizard Pane

    • DeployWiz_ComputerName.xml

    • DeployWiz_ComputerName.vbs

  • The Original Files Still Exist in the DS

    • DeployWiz_Definition_ENU.xml is Much Smaller Because the Content Has Been Separated into the New Files

    • It is Now Easier to Make Changes to a Single Pane Without Affecting Others


Deployment shares

Deployment Shares


Monitoring and remote c ontrol

Monitoring and Remote Control

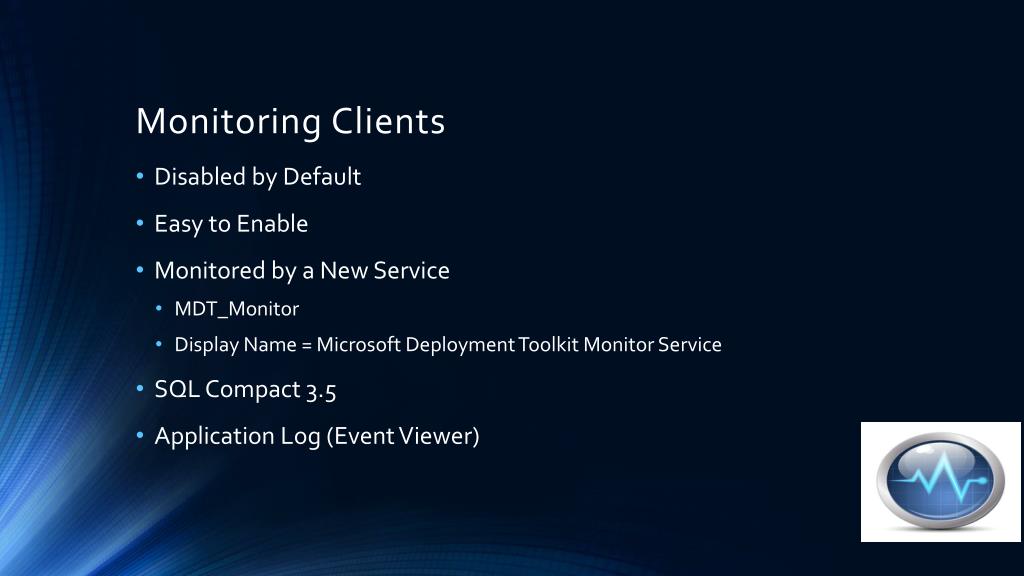

Monitoring clients

Monitoring Clients

  • Disabled by Default

  • Easy to Enable

  • Monitored by a New Service

    • MDT_Monitor

    • Display Name = Microsoft Deployment Toolkit Monitor Service

  • SQL Compact 3.5

  • Application Log (Event Viewer)


Remote control

Remote Control

  • Diagnostics and Recovery Toolset – DaRT

    • DaRT 8 Supported for Windows 8

    • DaRT 7 Still Supported for Windows 7

  • Normally Considered a Recovery Tool; the Diagnostics Tools Are Awesome

  • But It’s Not Easy to Find

  • Download:

    • Microsoft Desktop Optimization Pack (MDOP)

    • DaRT is one of the tools you’ll be getting

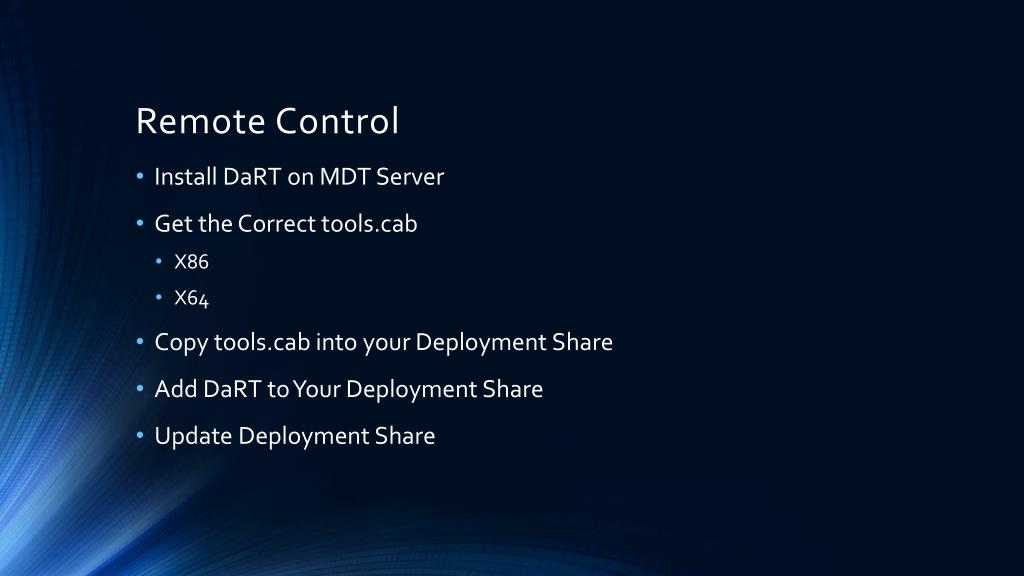

Remote control1

Remote Control

  • Install DaRT on MDT Server

  • Get the Correct tools.cab

    • X86

    • X64

  • Copy tools.cab into your Deployment Share

  • Add DaRT to Your Deployment Share

  • Update Deployment Share


Group policy packs

Group Policy Packs


Gpos and security

GPOs and Security

  • Group Policies are Normally Applied when a Machine Joins a Domain

  • But There Can Be Times when You Want the GPOs Deployed with the New Image

  • 4 GPO Packs Are Built into MDT 2012

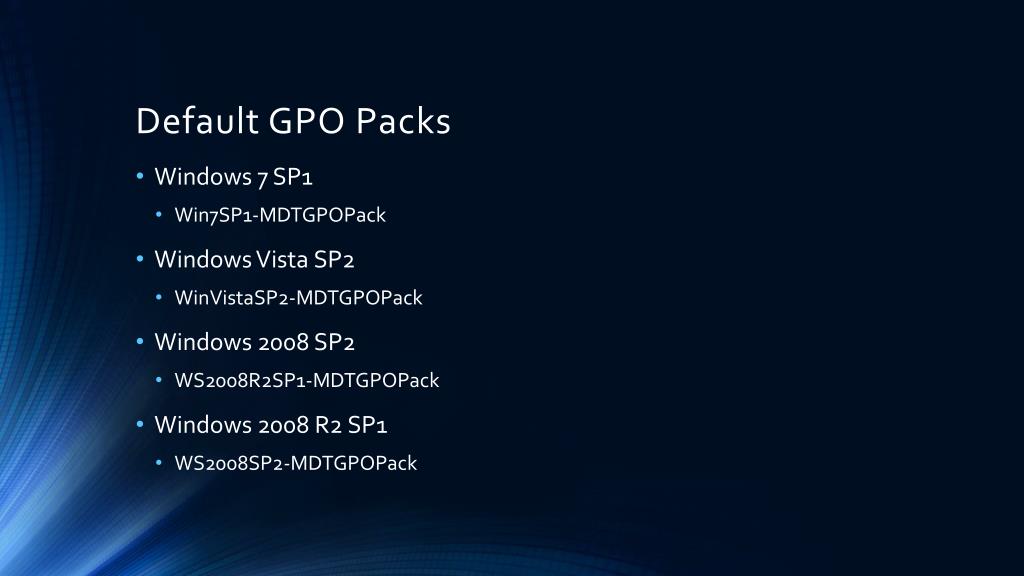

Default gpo packs

Default GPO Packs

  • Windows 7 SP1

    • Win7SP1-MDTGPOPack

  • Windows Vista SP2

    • WinVistaSP2-MDTGPOPack

  • Windows 2008 SP2

    • WS2008R2SP1-MDTGPOPack

  • Windows 2008 R2 SP1

    • WS2008SP2-MDTGPOPack

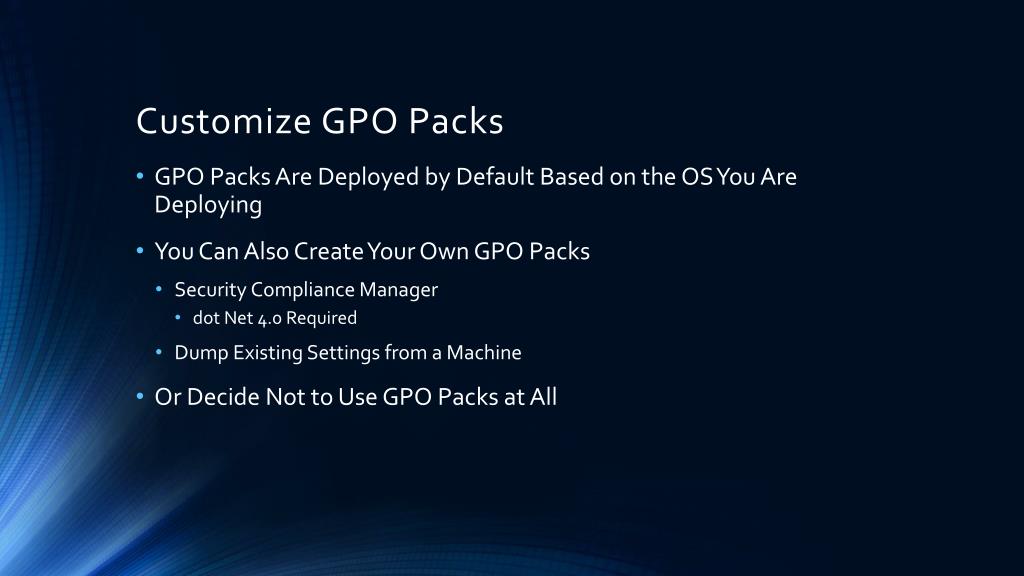

Customize gpo packs

Customize GPO Packs

  • GPO Packs Are Deployed by Default Based on the OS You Are Deploying

  • You Can Also Create Your Own GPO Packs

    • Security Compliance Manager

      • dot Net 4.0 Required

    • Dump Existing Settings from a Machine

  • Or Decide Not to Use GPO Packs at All


Gpo packs

GPO Packs


Microsoft deployment toolkit 2012 u1 meets orchestrator

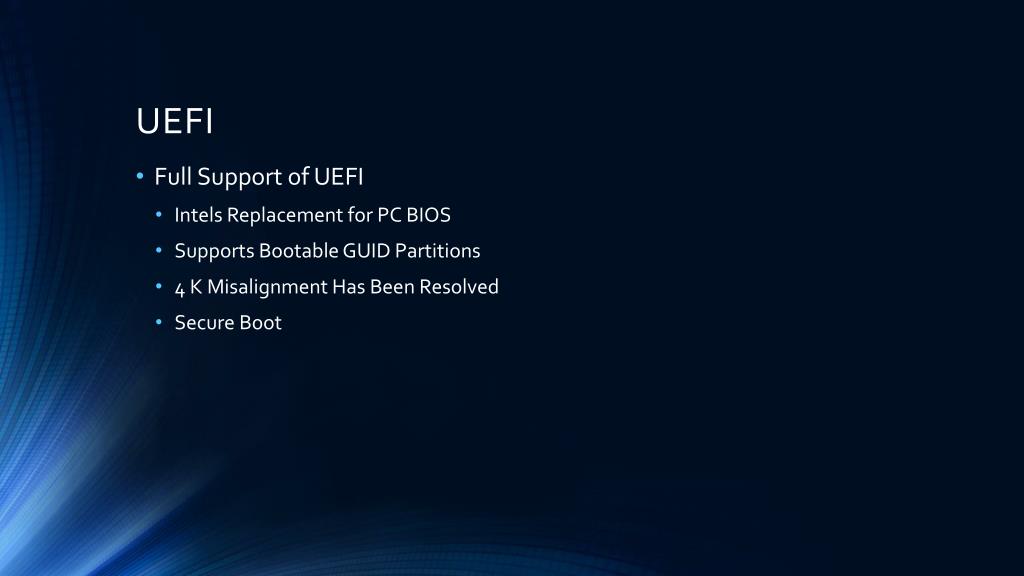

UEFI


Microsoft deployment toolkit 2012 u1 meets orchestrator

UEFI

  • Full Support of UEFI

    • Intels Replacement for PC BIOS

    • Supports Bootable GUID Partitions

    • 4 K Misalignment Has Been Resolved

    • Secure Boot


Guid partition tables gpt

GUID Partition Tables (GPT)

  • MBR Partition Tables Restricted Disk Partition Sizes to a Maximum of 2.19 TB

  • MBR Supports Only 4 Partitions

    • 4 Primary

    • 3 Primary and 1 Extended (Break It Up Into Logicals)

  • GPT Allows a Maximum Disk and Partition Size of 9.4 ZB

    • 1 Zettabyte= 1 Billion Terabytes

    • Supports Up to 128 Volumes


4k misalignment resolved

4K Misalignment Resolved

  • Legacy Drives Support 512-Byte Physical Sectors

  • Windows OSs Use 4K Logical Block Sizes

    • Virtual Memory Pages and File Systems Like NTFS

4K

512

512

512

512

512

512

512

512

512

512

512

512

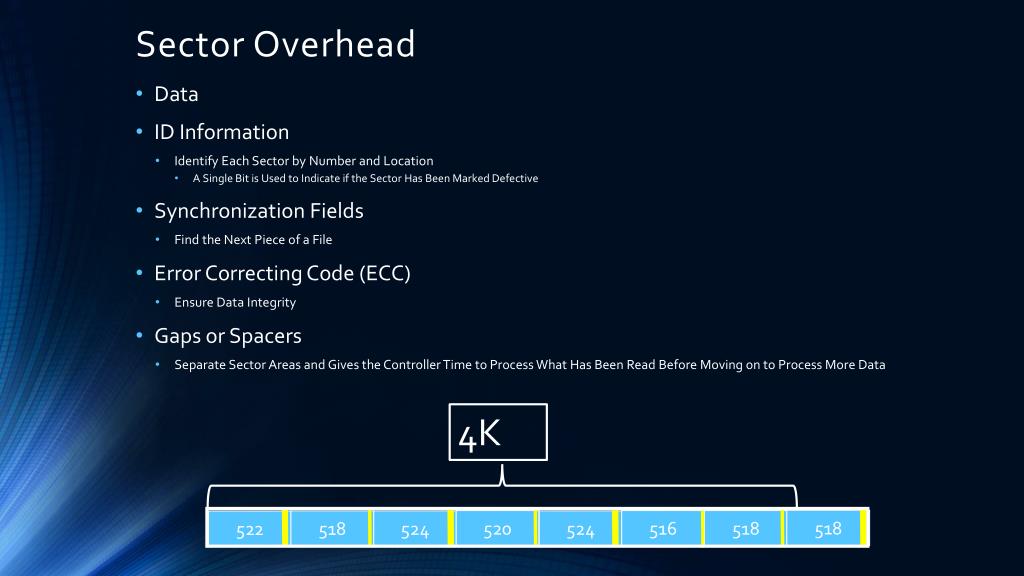

Sector overhead

Sector Overhead

  • Data

  • ID Information

    • Identify Each Sector by Number and Location

      • A Single Bit is Used to Indicate if the Sector Has Been Marked Defective

  • Synchronization Fields

    • Find the Next Piece of a File

  • Error Correcting Code (ECC)

    • Ensure Data Integrity

  • Gaps or Spacers

    • Separate Sector Areas and Gives the Controller Time to Process What Has Been Read Before Moving on to Process More Data

4K

518

520

516

518

518

524

524

522

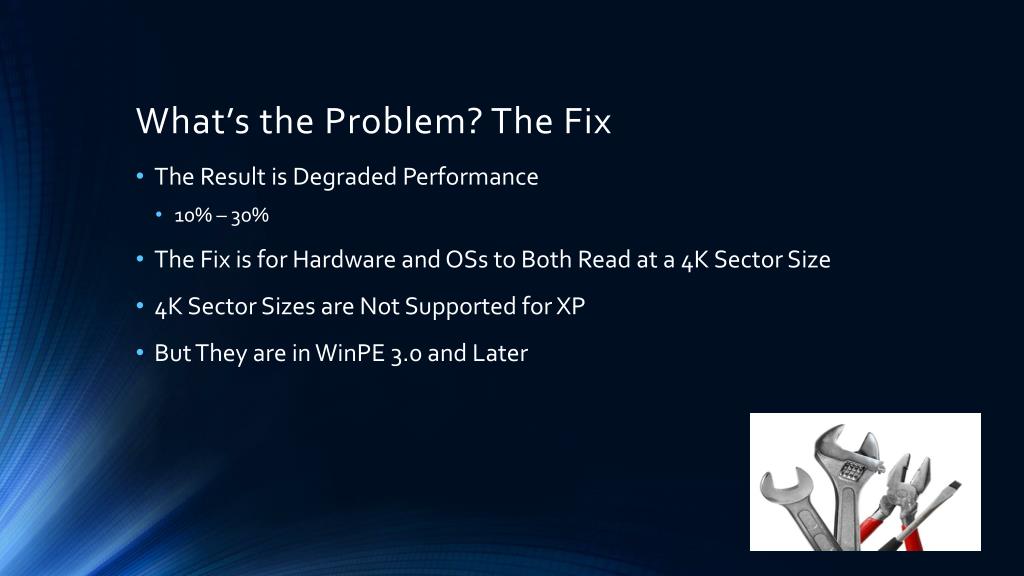

What s the problem the fix

What’s the Problem? The Fix

  • The Result is Degraded Performance

    • 10% – 30%

  • The Fix is for Hardware and OSs to Both Read at a 4K Sector Size

  • 4K Sector Sizes are Not Supported for XP

  • But They are in WinPE 3.0 and Later


Mdt 2012 update 1

MDT 2012 Update 1

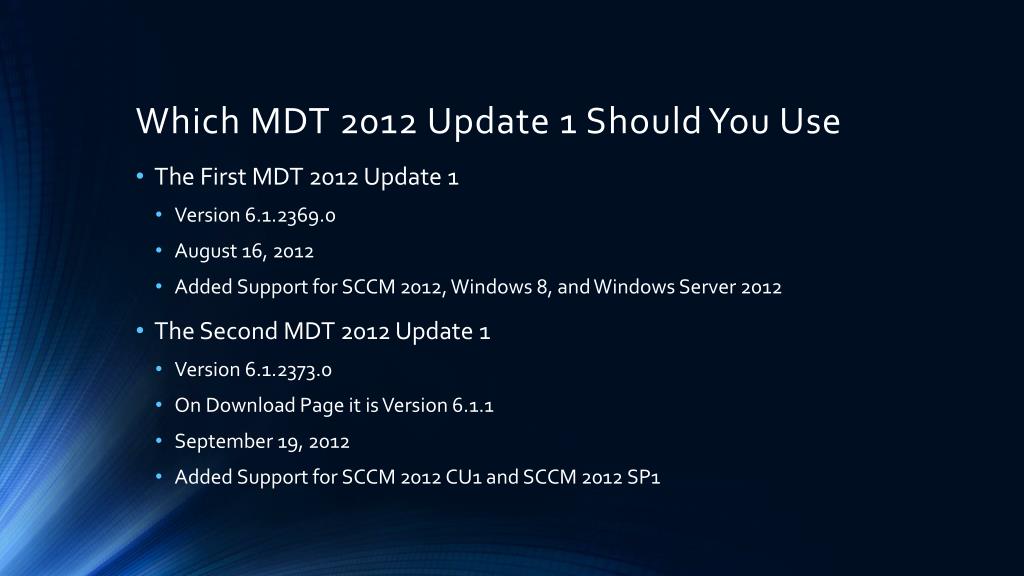

Which mdt 2012 update 1 should you use

Which MDT 2012 Update 1 Should You Use

  • The First MDT 2012 Update 1

    • Version 6.1.2369.0

    • August 16, 2012

    • Added Support for SCCM 2012, Windows 8, and Windows Server 2012

  • The Second MDT 2012 Update 1

    • Version 6.1.2373.0

    • On Download Page it is Version 6.1.1

    • September 19, 2012

    • Added Support for SCCM 2012 CU1 and SCCM 2012 SP1


New to update 1

New to Update 1

  • System Center 2012 Orchestrator RunbooksCan Be Run as a Task in a Task Sequence

  • PowerShell 3.0 Supported

  • The Roles and Features for Windows 8 Installation Logic Has Been Improved

  • Boot from VHD is Easier

  • New Support for Configuration Manager Monitoring


Orchestrator

Orchestrator


Microsoft deployment toolkit 2012 u1 meets orchestrator

Please don’t forget your evaluations …

Speaker Blog:www.DeploymentDr.com

Email: [email protected]

Need more information on DMVMUG

Visit www.dmvmug.com

Questions?
