  1. ADAQAAn Accelerator Data Acquisition & Analysis FrameworkBolko Beutner, Helge Brands, Rasmus Ischebeck • The Past • Accelerator Data Acquisition • Design Ideas • The Present • Available Tools • Demo • The Future • Data Acquisition with Large Data Sets at 100 Hz Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 1

  2. What Came Before… • (my personal collection of accelerator data acquisition) • TESLA Test Facility at DESY, Hamburg • Access to accelerator process variables from MATLAB, C++ (read/write) • Easy to write data acquisition software, scan parameters, record variables… • Data stored in .MAT, ASCII & ROOT files • No common data format • Experts required to set up scan, analyze data… • SLAC LINAC at Stanford, California • VAX-based control system • Scan software to determine the dependency of a variable on a parameter • On-line display & fits • Writes MATLAB 4 files for further analysis Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 2

  3. Design Goals • Have a universal scan and data acquisition software • Well-tested scan core • Universal GUI to set up scan easily • Specialized GUIs for easy access for regularly performed scans • Error checking and treatment • Common HDF5-based file format for easy access from any data analysis code • Automatic generation of logbook entries • Link to auxiliary information on accelerator configuration • Synchronized data acquisition Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 3

  4. Data File Format • Hierarchical format to store Instruments • Based on HDF5 • Readable from Matlab, Root, Mathematica… Rasmus Ischebeck www.nexusformat.org 4

  5. Accelerator Data Acquisition • Many accelerator measurements consist of the following tasks: • Control 0…N actuators • Acquire 1…M measurements • Analyze data • Important features • On-line analysis • Reasonable error handling • Robust code for use by other persons than the programmer Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 5

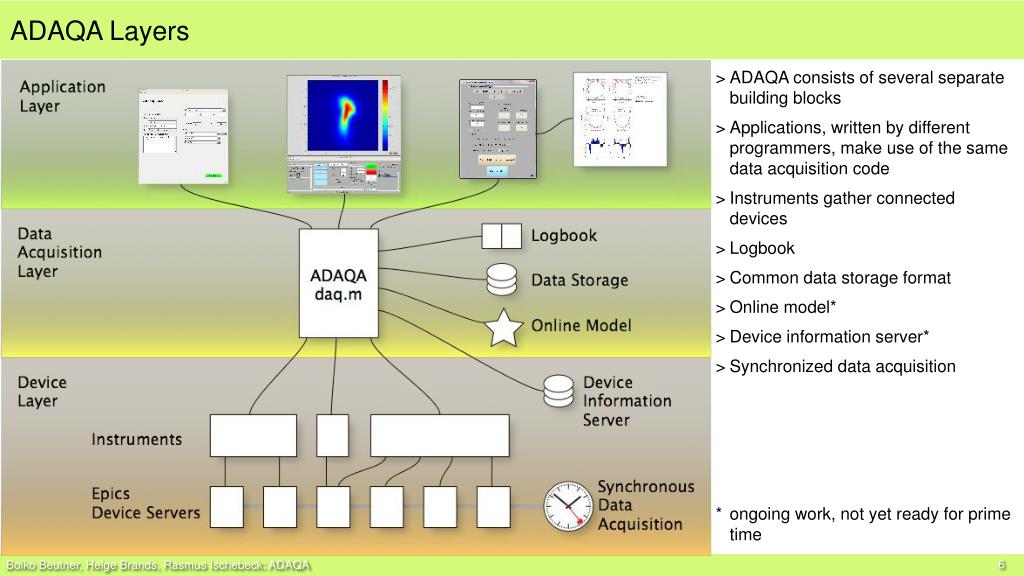

  6. ADAQA Layers • ADAQA consists of several separate building blocks • Applications, written by different programmers, make use of the same data acquisition code • Instruments gather connected devices • Logbook • Common data storage format • Online model* • Device information server* • Synchronized data acquisition • ongoing work, not yet ready for prime time Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 6

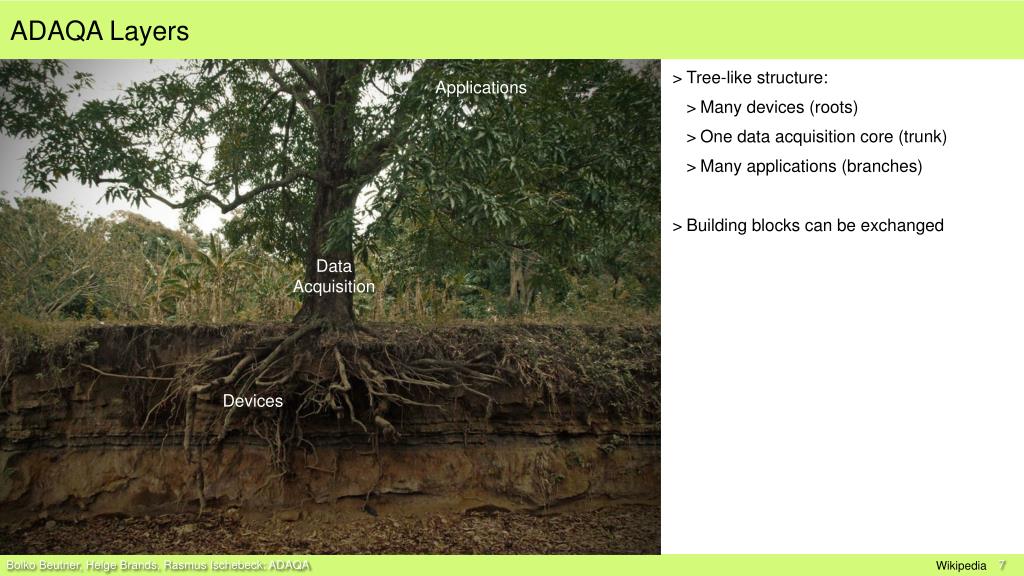

  7. ADAQA Layers • Tree-like structure: • Many devices (roots) • One data acquisition core (trunk) • Many applications (branches) • Building blocks can be exchanged Applications Data Acquisition Devices Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA Wikipedia 7

  8. Synchronized Data Acquisition • All VME crates for diagnostics are equipped with an Event Receiver • Connected with a star topology network to the Event Generator • Supported for: • BPMs, Bunching monitor, RF, … • Ongoing work: • Laser shutter, oscilloscopes, cameras Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA Sven Nordquist 8

  9. ADAQA Applications • ScreenMonitorTool • General Purpose Scan Tools • Specialised Scan Tools • Slice Emittance • Optics Matching • Slit Scan • … • “Do it yourself! - Scan Tools

  10. ScreenMonitorTool • General purpose camera display andanalysis tool • In every day use for different kinds of cameras and screen monitors Dione and Saturn http://www.ciclops.org

  11. General Purpose Scan Tool

  12. the future…

  13. Scan Templates • Scans can be stored in Template files • The last scan is always stored as template • “Repeat Last Scan…”-Button • Data files are scan templates as well • All scans can be exactly repeated • Templates can handed over to the scan tool at startup • example: extracted charge vs. gun phase scan

  14. Specialised Scan Tools

  15. Specialised Scan Tools

  16. Automatised logbook entries

  17. Scan Tools Summary • General and specialised scan tools are possible with ADAQA • a wide variety of tools is available • Common data format • Templates • data files are templates – for all tools • Actions • e.g. automatic screen insertion or background subtraction • Analysis functions • Automatic logbook entries

  18. Do it yourself! - Scan Tools knob{1} = LoadKnobDefinition('ManagementKnob'); % setup Knob and Instrument knob{1}.SetpointValues = [1, 2.4, 3, 3.78, 92]; % scan setpoints instrument{1} = LoadInstrumentDefinition('SwissFEL_Meeting_Demo'); Setup.Function = 'scan'; % define scan setup Setup.Repeat = 10; % “shots” per scan step Info.Author = 'Beutner'; % human readable info Info.Title = 'SwissFEL Meeting Demo'; Info.Purpose = 'this is a small scan tool for demo...'; [DAQFileName, Setup, knob, instrument, Info] = ... daq(Setup,knob,instrument,Info); % execute scan % …insert your analysis code here…

  19. Image based measurements: today control room IOC EPICS Control+Data camera workstation AFS Helge Brands

  20. Image based measurements: today control room IOC EPICS Control+Data camera workstation • Problems: • available buffers on IOC are not used • „lost“ of measured data • high frequencies can‘t be reached • high CPU load on workstations AFS Helge Brands

  21. Image based measurements : future control room IOC EPICS Control+Preview camera workstation Results DATA Results+Data AFS Compute-Node Helge Brands

  22. Why? • less radiation • higher recording speed (10Hz/100Hz) • independent of the workstation (CPU and memory) • system is similar to SLS (Tomcat, in operation, 1* PCO Edge) Helge Brands

  23. Why? • less radiation • higher recording speed (10Hz/100Hz) • independent of the workstation (CPU and memory) • system is similar to SLS (Tomcat, in operation, 1* PCO Edge) BUT Helge Brands

  24. Technical values more storage needed example: ~30TB/week Helge Brands

  25. Specs Helge Brands

  26. Current situation • WHLA: each Camera-IOC has 1GB/s (enough for 10Hz) • 3 PCO Edge in operation + 1 PCO Edge in preperation • upload to AFS max 50MB/s • software is ready for 100Hz • needed network speed 10GBit/s for 100 Hz • other GIGE cameras can be used too • additional compute nodes should be planned • storage policies are needed Helge Brands

  27. ADAQA ADAQA • Project started in 2008, always between 5 and 10 developers • Written mostly in Matlab • 89093 lines of code (including code sourced from MathWorks Central and other external sources) • Performed 22775 scans, resulting in 558 GB of data • A joint project between the Controls, Beam Dynamics & Diagnostics Sections at PSI Diagnostics Beam Dynamics Controls Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA 31

  28. Outlook • We are looking forward to many new applications for SwissFEL! • Thank You to: • all ADAQA programmers and users, in particular Eduard Prat, Marta Divall, Peter Peier, Marc Guetg, Gian Luca Orlandi, Bennie Smit & Thomas Schietinger • support from Jan Chrin & Babak Kalantari Bolko Beutner, Helge Brands, Rasmus Ischebeck: ADAQA Sven Nordquist 32
