Sweep Command in SW

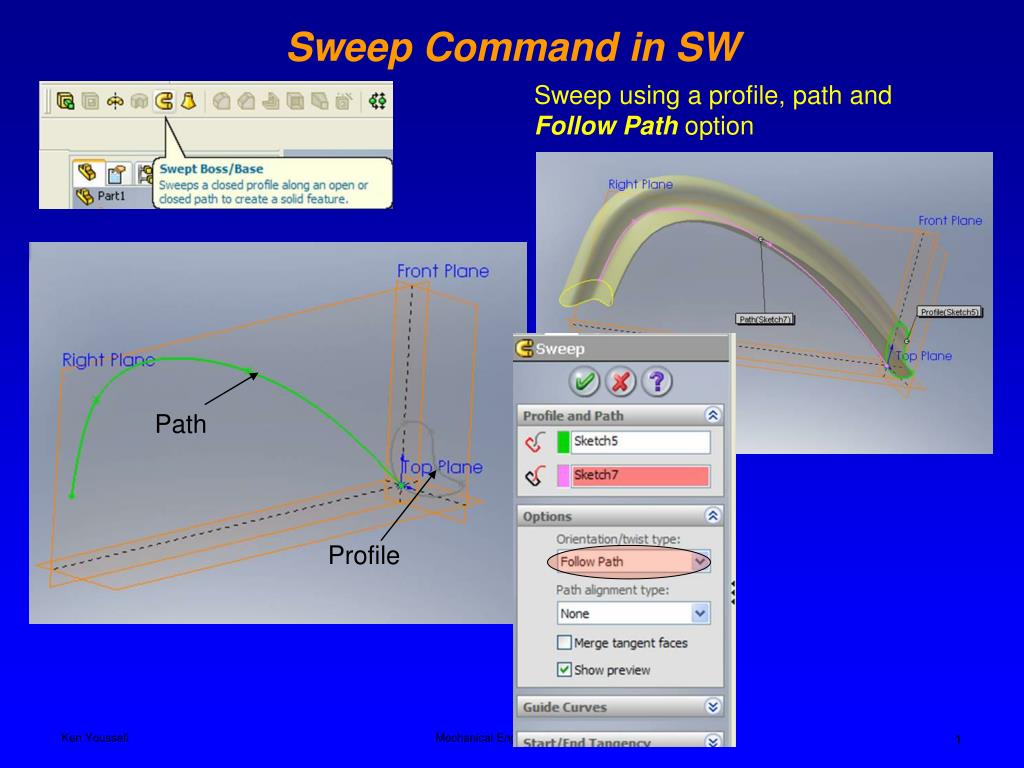

1. Path Profile Sweep Command in SW Sweep using a profile, path and Follow Path option Mechanical Engineering Dept.

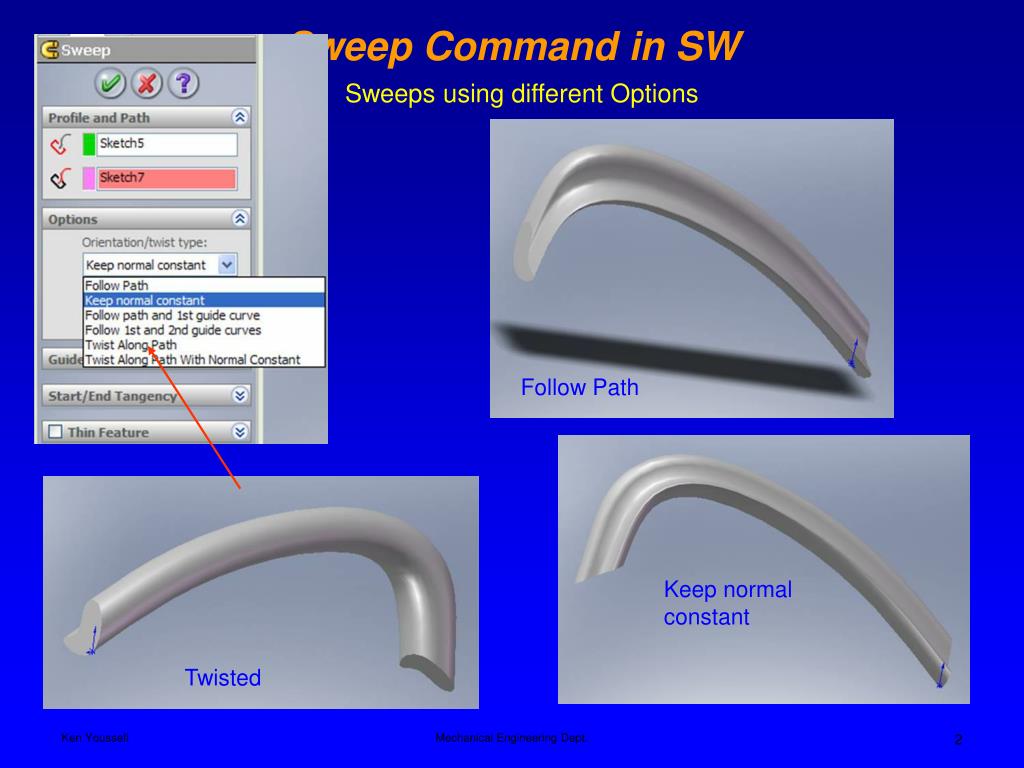

2. Follow Path Keep normal constant Twisted Sweep Command in SW Sweeps using different Options Mechanical Engineering Dept.

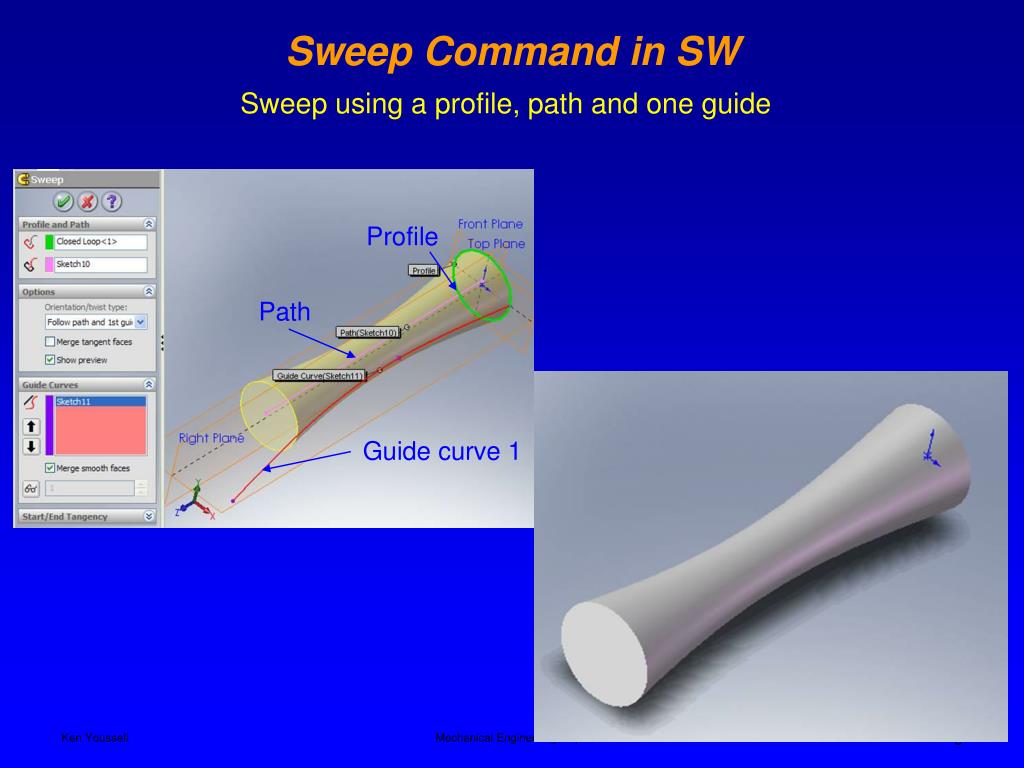

3. Sweep Command in SW Sweep using a profile, path and one guide Profile Path Guide curve 1 Mechanical Engineering Dept.

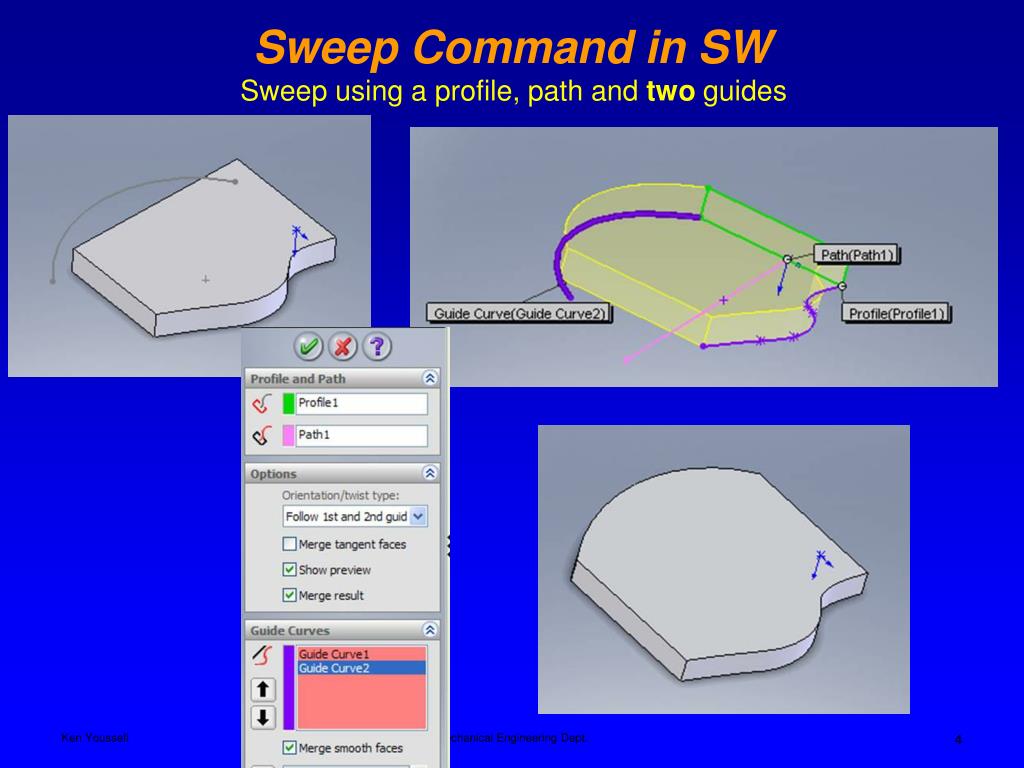

4. Sweep Command in SW Sweep using a profile, path and two guides Mechanical Engineering Dept.

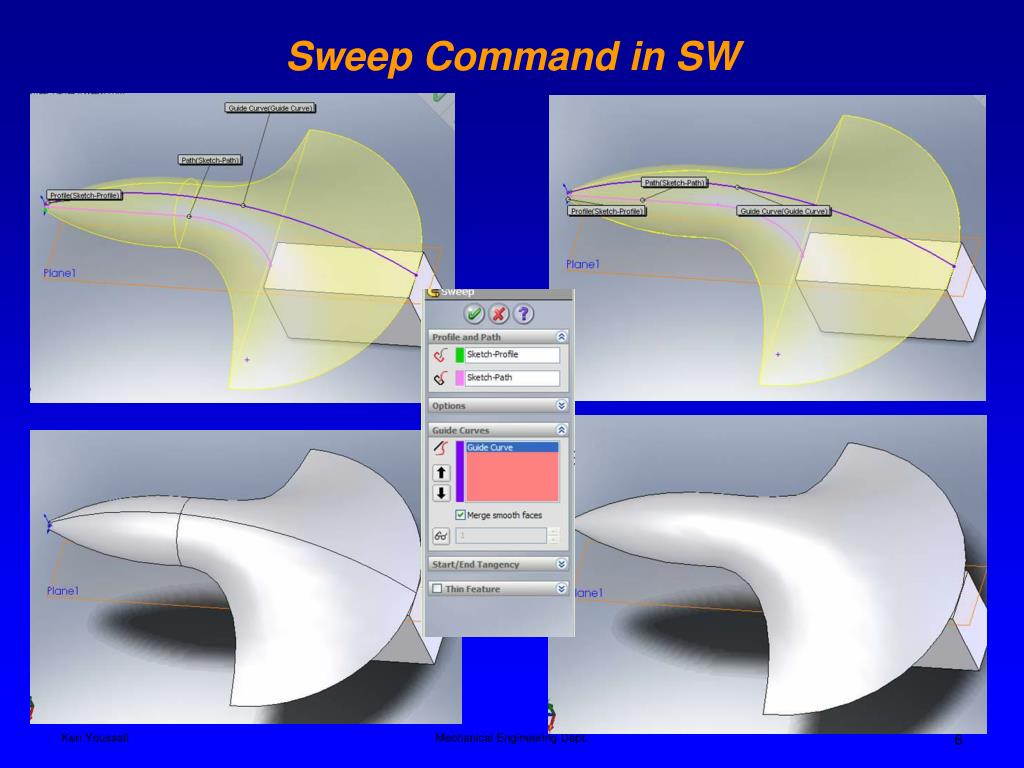

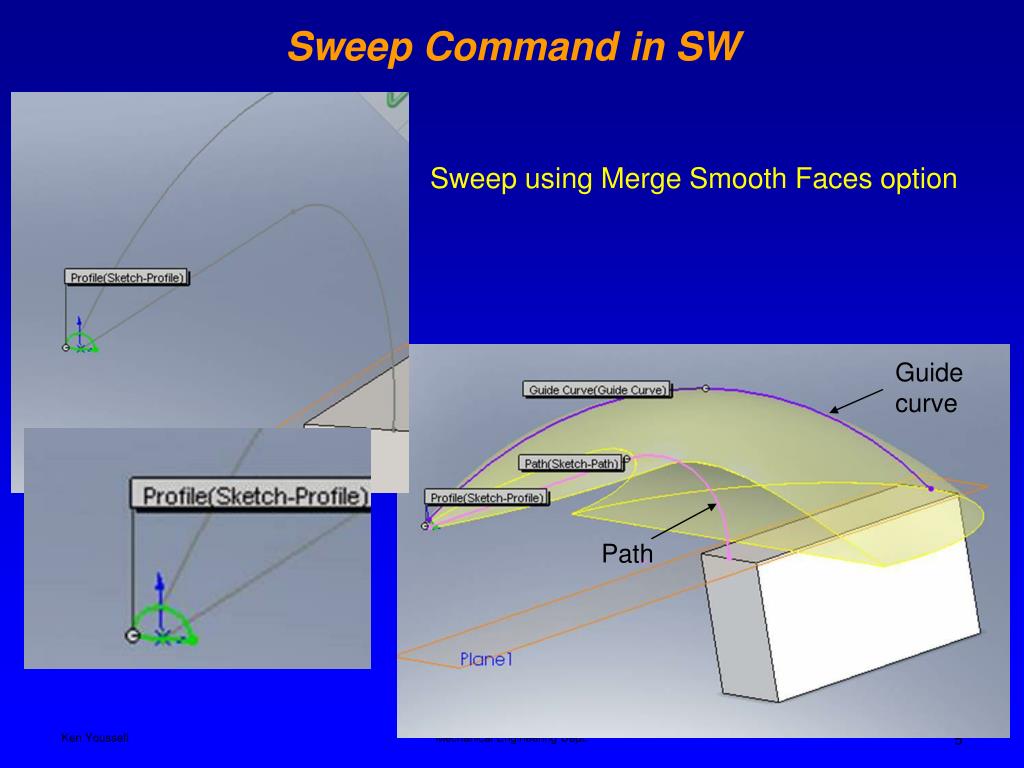

5. Sweep Command in SW Sweep using Merge Smooth Faces option Guide curve Path Mechanical Engineering Dept.

6. Sweep Command in SW Mechanical Engineering Dept.

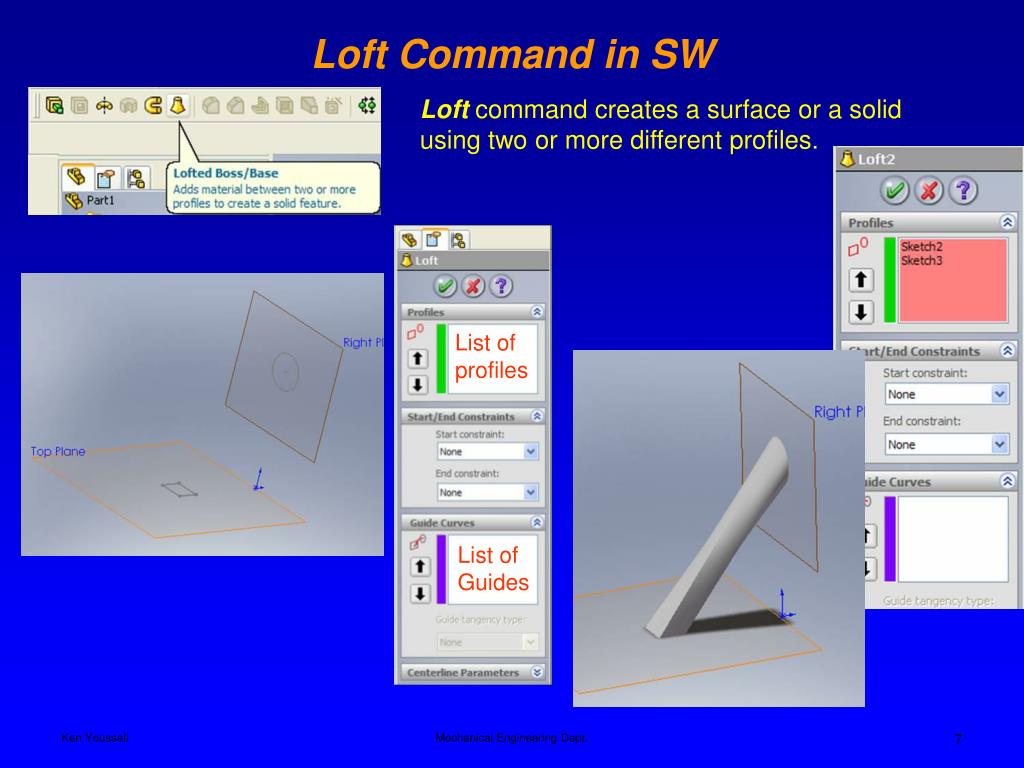

7. List of profiles List of Guides Loft Command in SW Loft command creates a surface or a solid using two or more different profiles. Mechanical Engineering Dept.

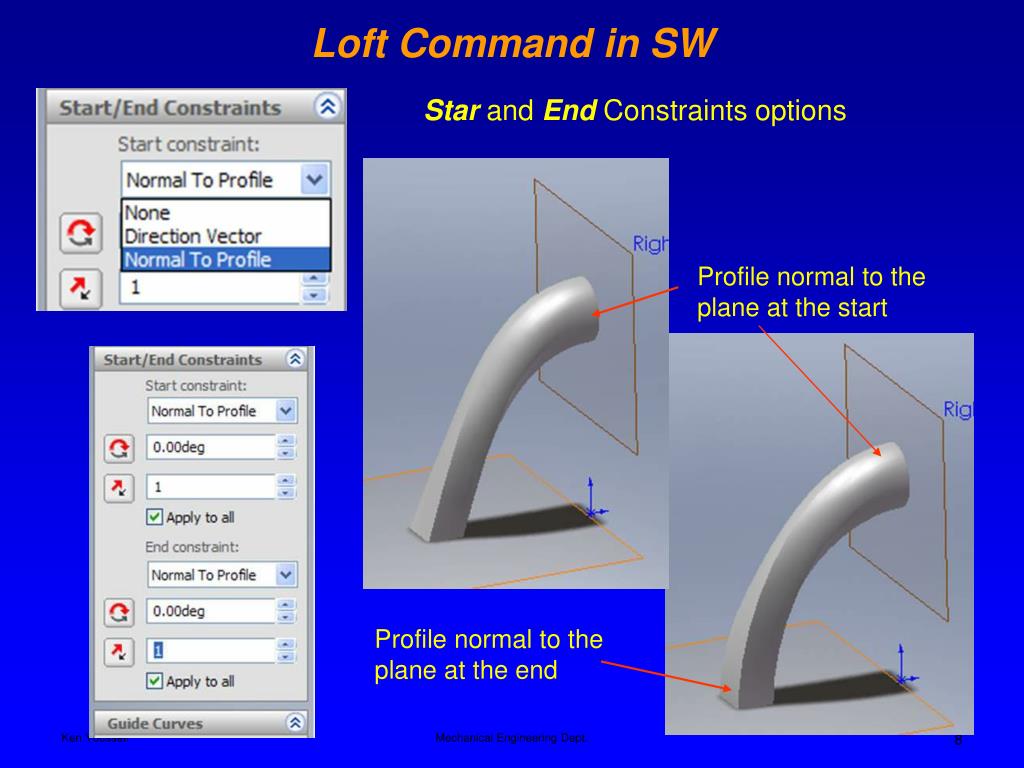

8. Profile normal to the plane at the start Loft Command in SW Star and End Constraints options Profile normal to the plane at the end Mechanical Engineering Dept.

9. Loft Command in SW Loft using a single Guide Curve. Profile Guide Profile Mechanical Engineering Dept.

10. Guides 1,2 Guides 1,2,3 Guides 1,2,3,4 Loft Command in SW Loft using many Guide Curves. Guide 3 Guide 4 Guide 2 Guide 1 Mechanical Engineering Dept.

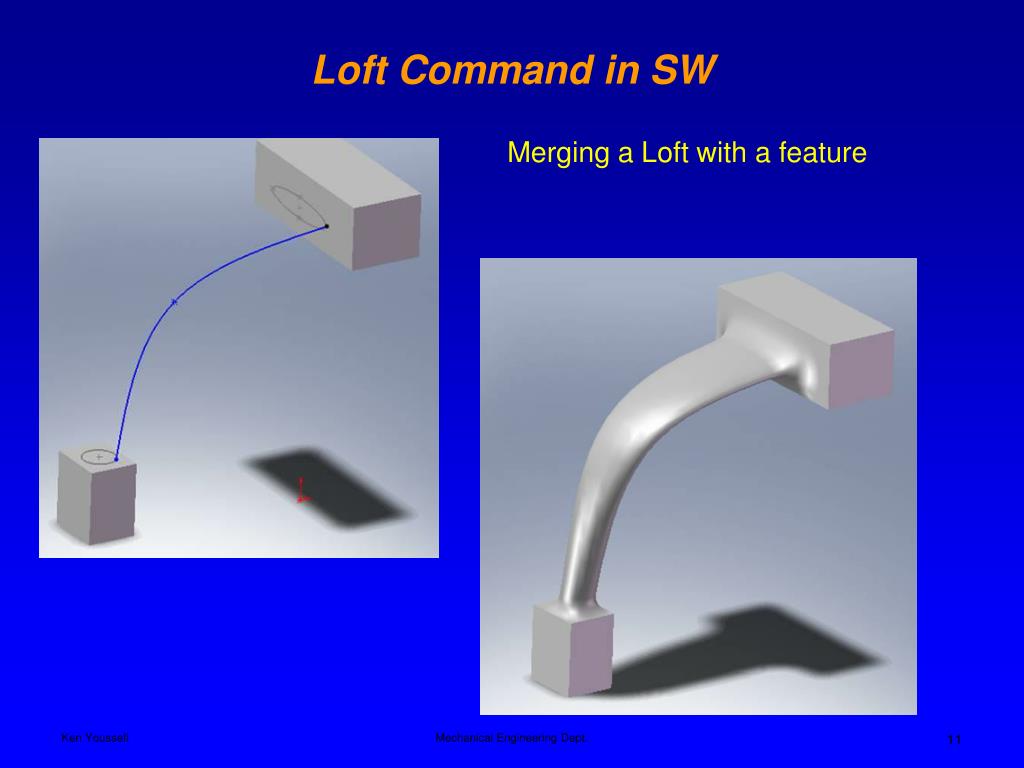

11. Loft Command in SW Merging a Loft with a feature Mechanical Engineering Dept.

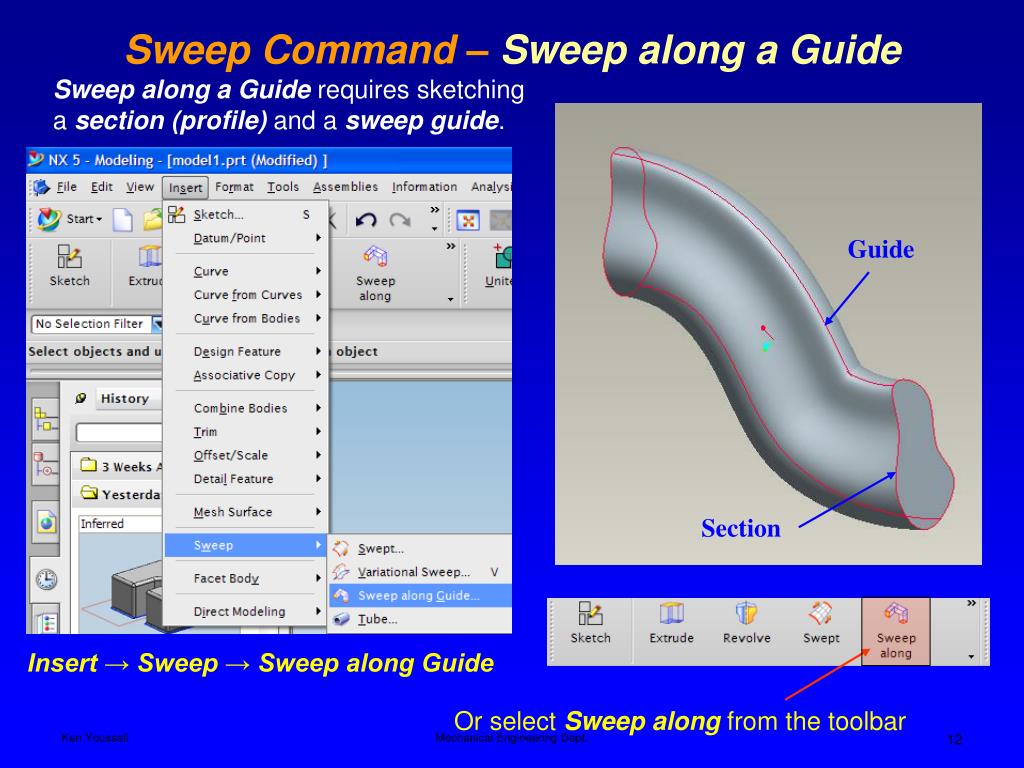

12. Insert → Sweep → Sweep along Guide Or select Sweep along from the toolbar Sweep Command – Sweep along a Guide Sweep along a Guide requires sketching a section (profile) and a sweep guide. Guide Section Mechanical Engineering Dept.

13. The offset could be used to hollow out the object First Offset set at 2 mm Sweep Command – Sweep along a Guide Select Guide string and OK. Mechanical Engineering Dept.

14. Sweep Command – Swept Swept command creates a solid body or a sheet by sweeping one or more section strings along one, two, or three guide strings Sweep and blend using up to three guides. Mechanical Engineering Dept.

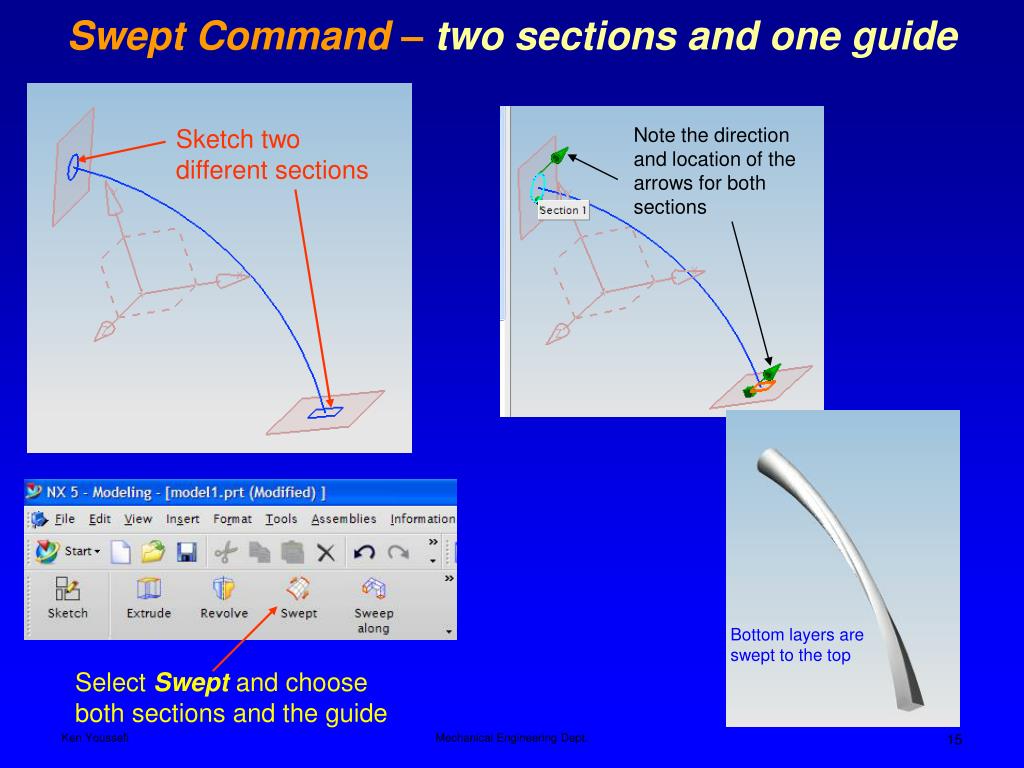

15. Note the direction and location of the arrows for both sections Select Swept and choose both sections and the guide Swept Command – two sections and one guide Sketch two different sections Bottom layers are swept to the top Mechanical Engineering Dept.

16. To change the alignment manually, select By Point from Alignment Method Swept Command – two sections and one guide The 4 alignment line could be manipulated by dragging the 4 end points Mechanical Engineering Dept.

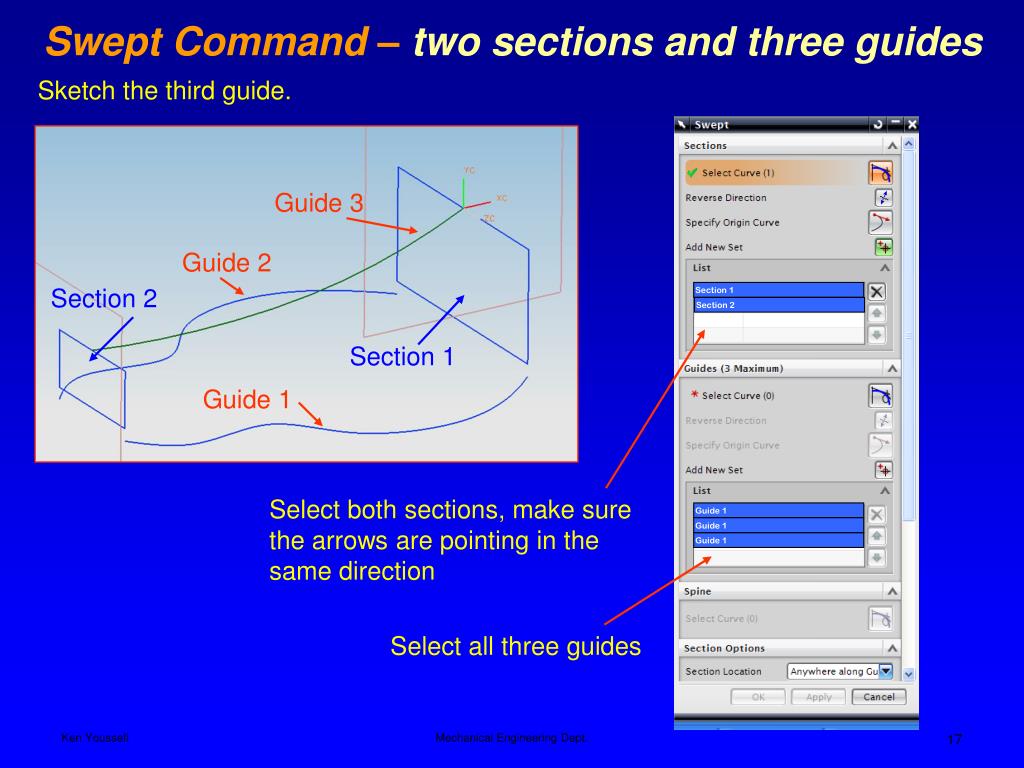

17. Guide 2 Section 2 Section 1 Guide 1 Select both sections, make sure the arrows are pointing in the same direction Section 1 Section 2 Guide 1 Guide 1 Guide 1 Select all three guides Swept Command – two sections and three guides Sketch the third guide. Guide 3 Mechanical Engineering Dept.

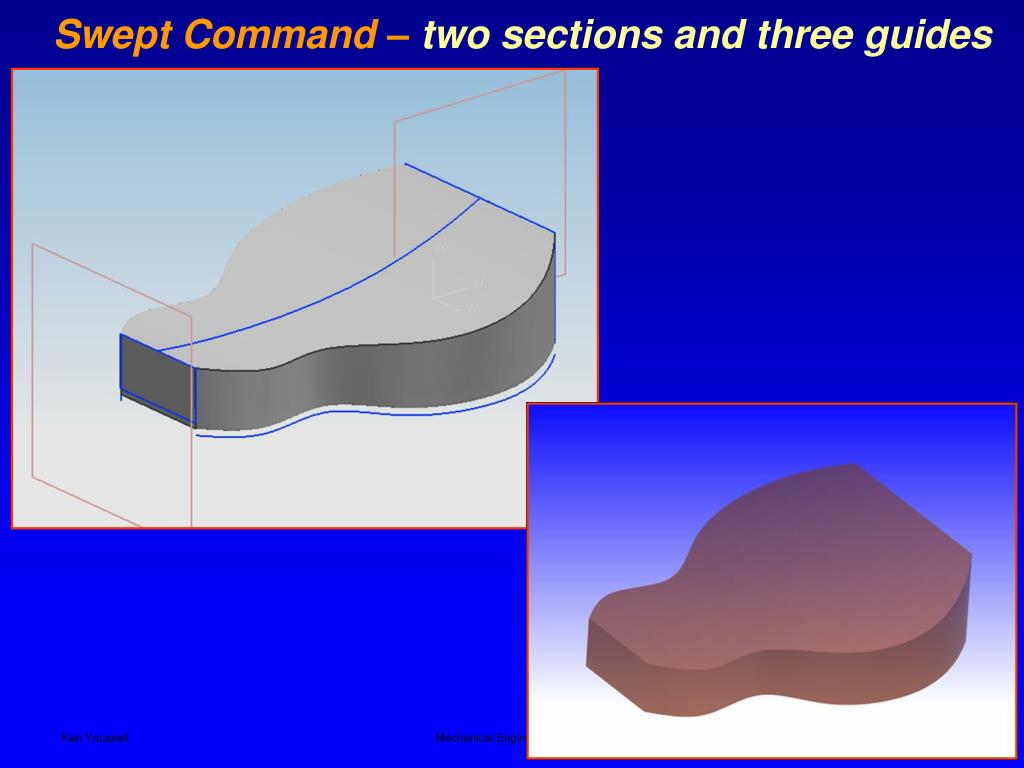

18. Swept Command – two sections and three guides Mechanical Engineering Dept.

19. Sweep Command – Variational Sweep Use this command to create a solid or sheet body feature that sweeps a master cross section variably along a path.The master cross section should be created using the Sketch on Path option in the Sketcher. Mechanical Engineering Dept.

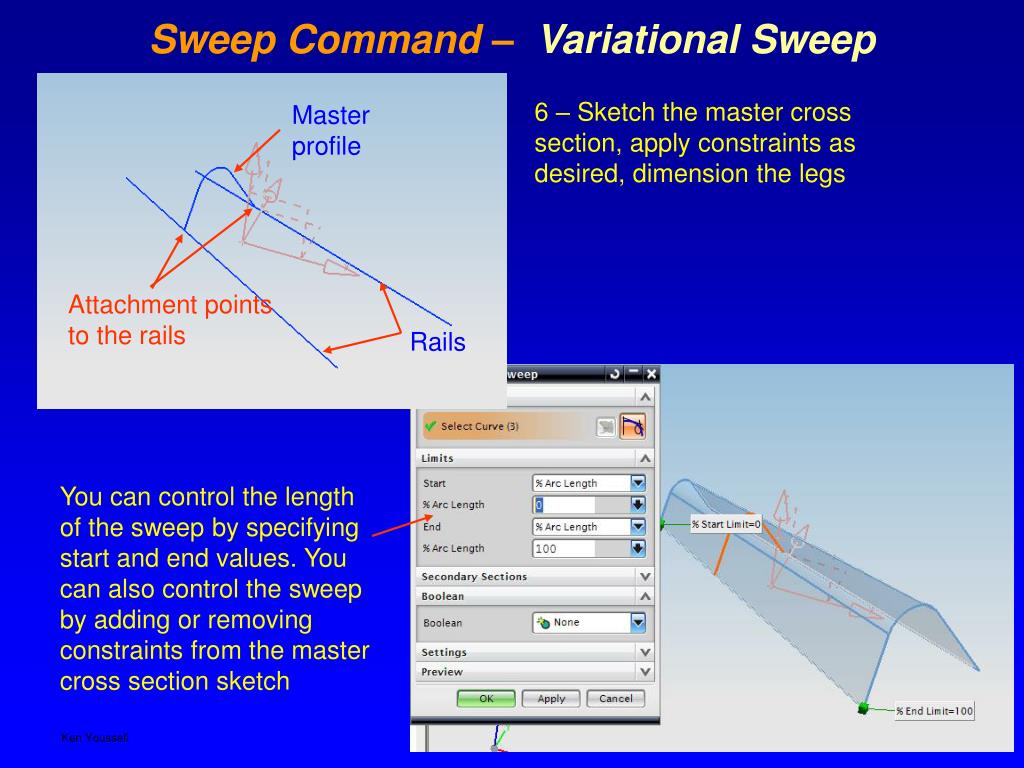

20. You can control the length of the sweep by specifying start and end values. You can also control the sweep by adding or removing constraints from the master cross section sketch Sweep Command – Variational Sweep 6 – Sketch the master cross section, apply constraints as desired, dimension the legs Master profile Attachment points to the rails Rails Mechanical Engineering Dept.

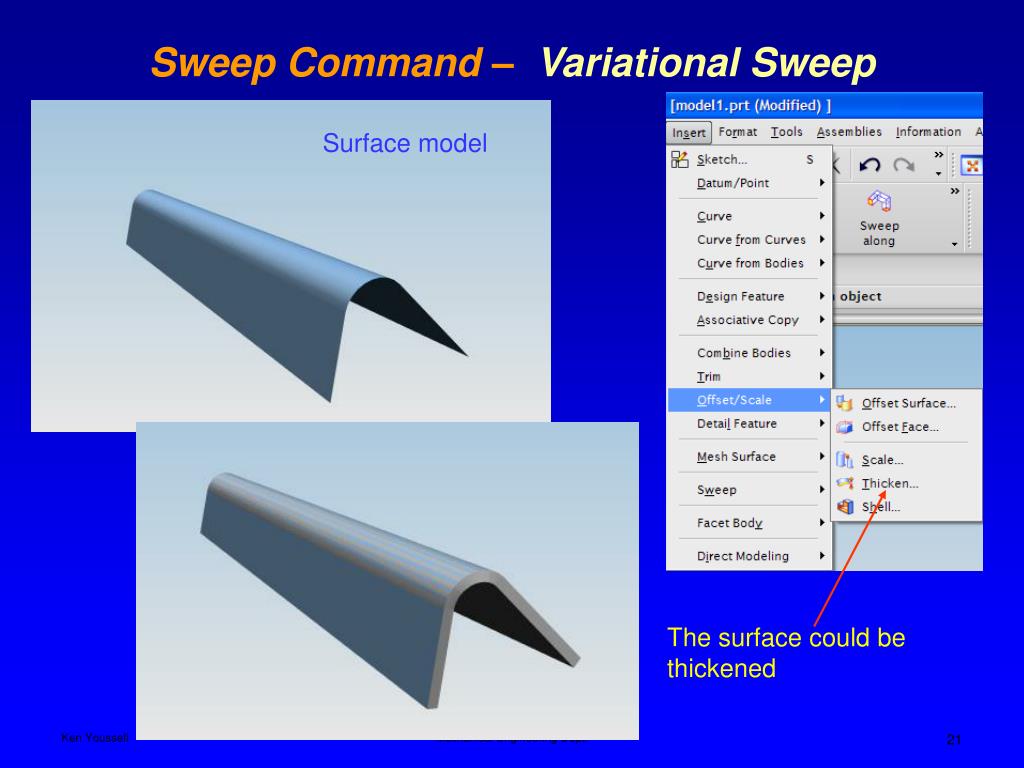

21. The surface could be thickened Sweep Command – Variational Sweep Surface model Mechanical Engineering Dept.
