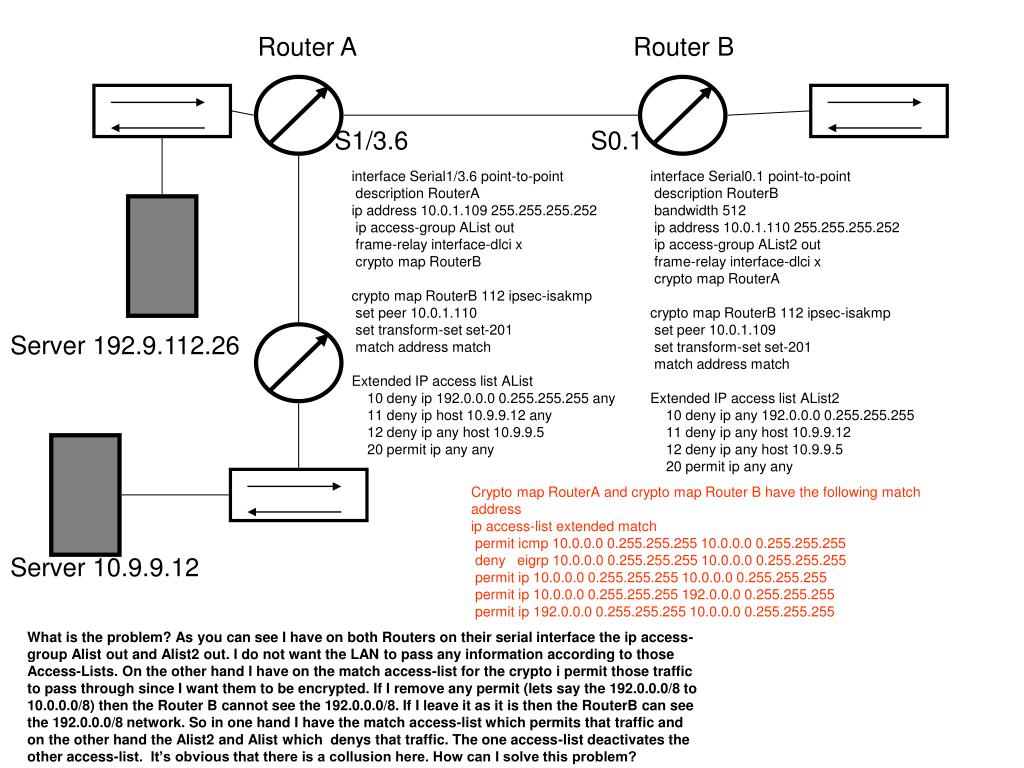

Router A. Router B. S1/3.6. S0.1. interface Serial1/3.6 point-to-point description RouterA ip address 10.0.1.109 255.255.255.252 ip access-group AList out frame-relay interface-dlci x crypto map RouterB crypto map RouterB 112 ipsec-isakmp set peer 10.0.1.110
