  1. ISO/OSI Model • Open Systems Interconnection • Developed by the International Organization for Standardization (ISO) • Seven layers • A theoretical system delivered too late! • TCP/IP is the de facto standard

  2. OSI LayersAll People Seem To Need Data ProcessingPlease Do Not Throw Sausage Pizza Away. • Application • Presentation • Session • Transport • Network • Data Link • Physical

  3. Communications Across Layers • Peer to peer processes • Each layer only sees it’s peer layer • Virtual communication between layers

  4. Communication Between Layers Envelopes – Each layer wraps the information passed to it in an appropriate header and trailer if required. Headers are added to layers 2-6 Trailers added to layer 2

  5. OSI Layers Figure 3-2

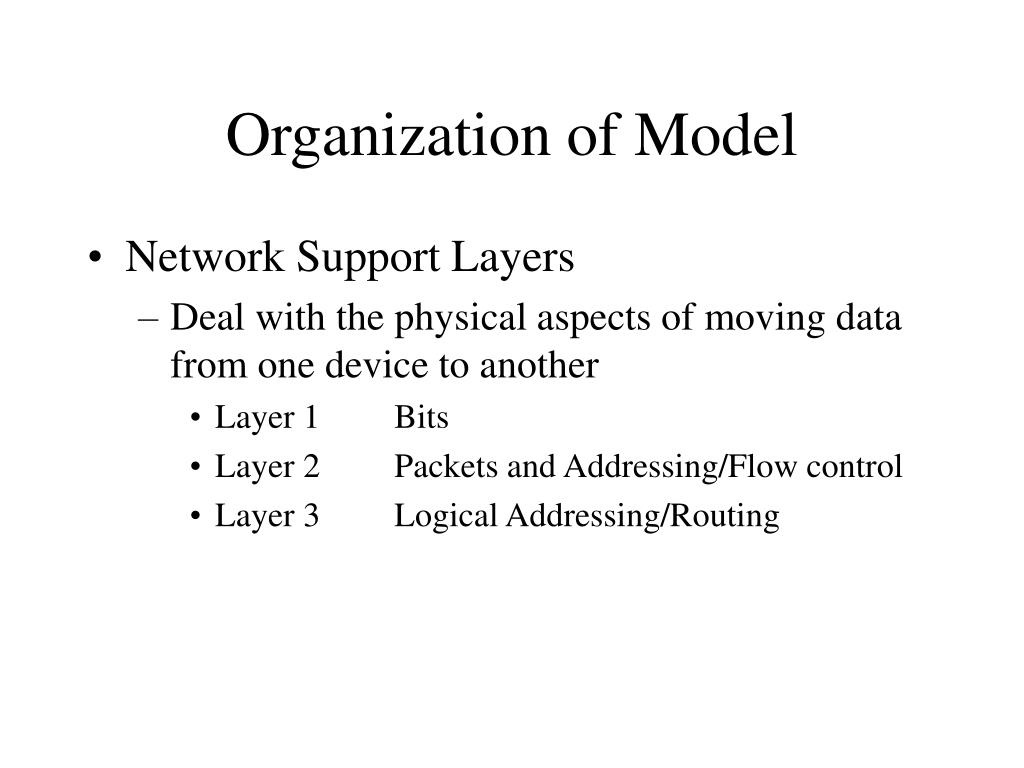

  6. Organization of Model • Network Support Layers • Deal with the physical aspects of moving data from one device to another • Layer 1 Bits • Layer 2 Packets and Addressing/Flow control • Layer 3 Logical Addressing/Routing

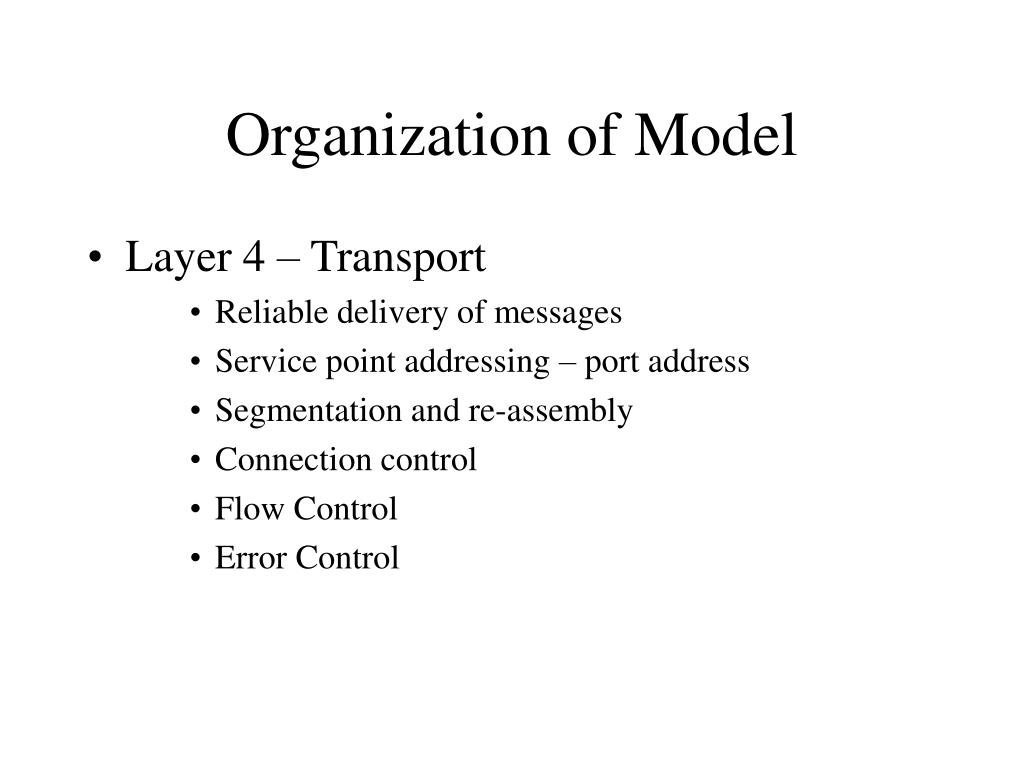

  7. Organization of Model • Layer 4 – Transport • Reliable delivery of messages • Service point addressing – port address • Segmentation and re-assembly • Connection control • Flow Control • Error Control

  8. Organization of Model • Layer 5 – Session • Dialog Controller • Synchronization • Layer 6 - Presentation • Translation • Encryption • Compression

  9. Organization of Model • Layer 7 – Application • User Access to Network Services • X.400 Message handling – email • X.500 Directory Services • FTAM

  10. An Exchange Using the OSI Model Figure 3-3

  11. Figure 3-4 Physical Layer

  12. Figure 3-5 Data Link Layer

  13. Figure 3-6 Data Link Layer Example

  14. Figure 3-7 Network Layer

  15. Network Layer Example Figure 3-8

  16. Figure 3-8-continued Network Layer Example

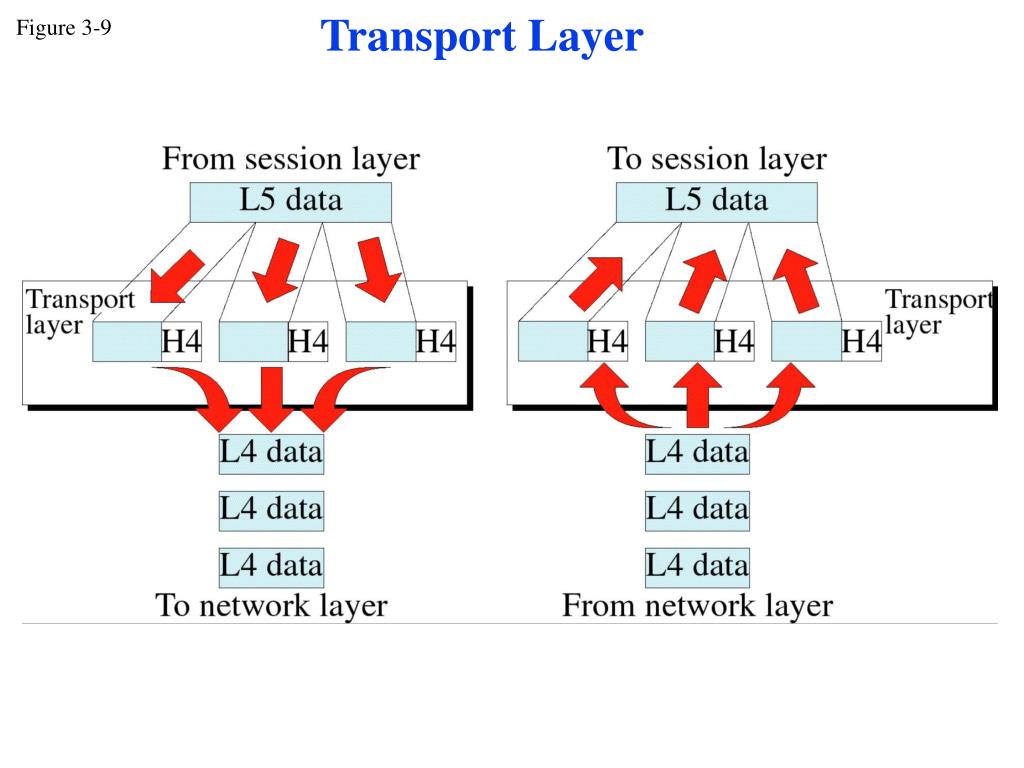

  17. Transport Layer Figure 3-9

  18. Figure 3-10 Transport Layer Example

  19. Figure 3-10-continued Transport Layer Example

  20. Figure 3-11 Session Layer

  21. Figure 3-12 Presentation Layer

  22. Figure 3-13 Application Layer

  23. Figure 3-14 Summary of Layer Functions The McGraw-Hill Companies, Inc., 1998 WCB/McGraw-Hill

  24. OSI v TCP/IP
