Presentation Transcript


Ancp protocol draft ietf ancp protocol 08

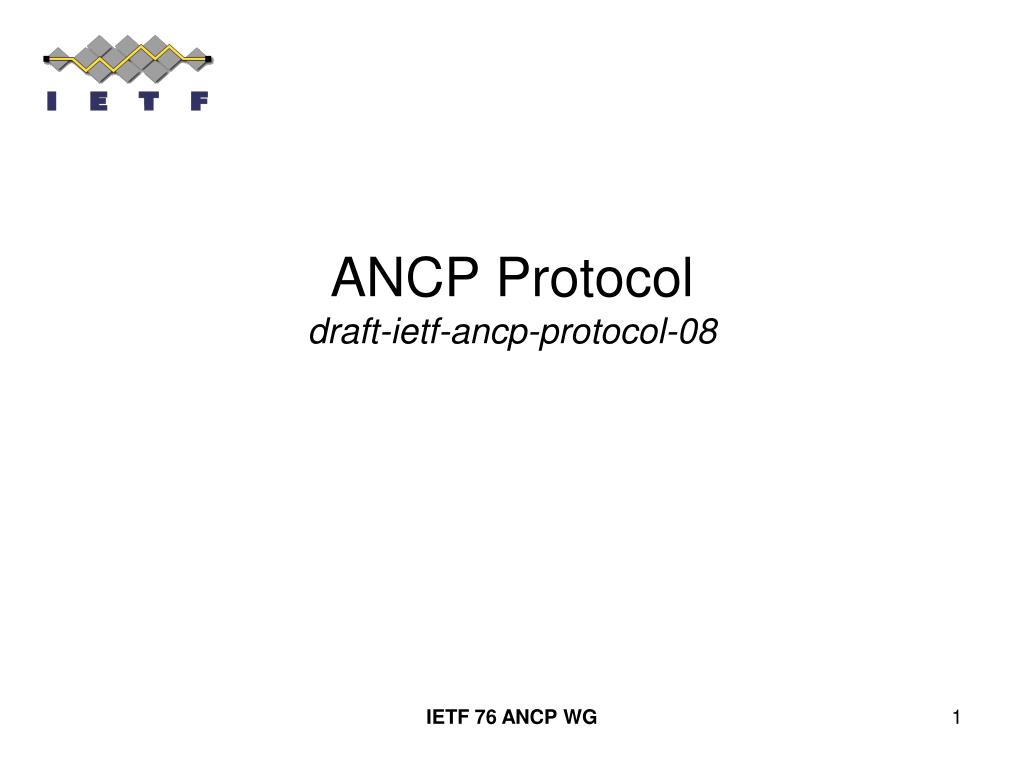

ANCP Protocol draft-ietf-ancp-protocol-08

IETF 76 ANCP WG

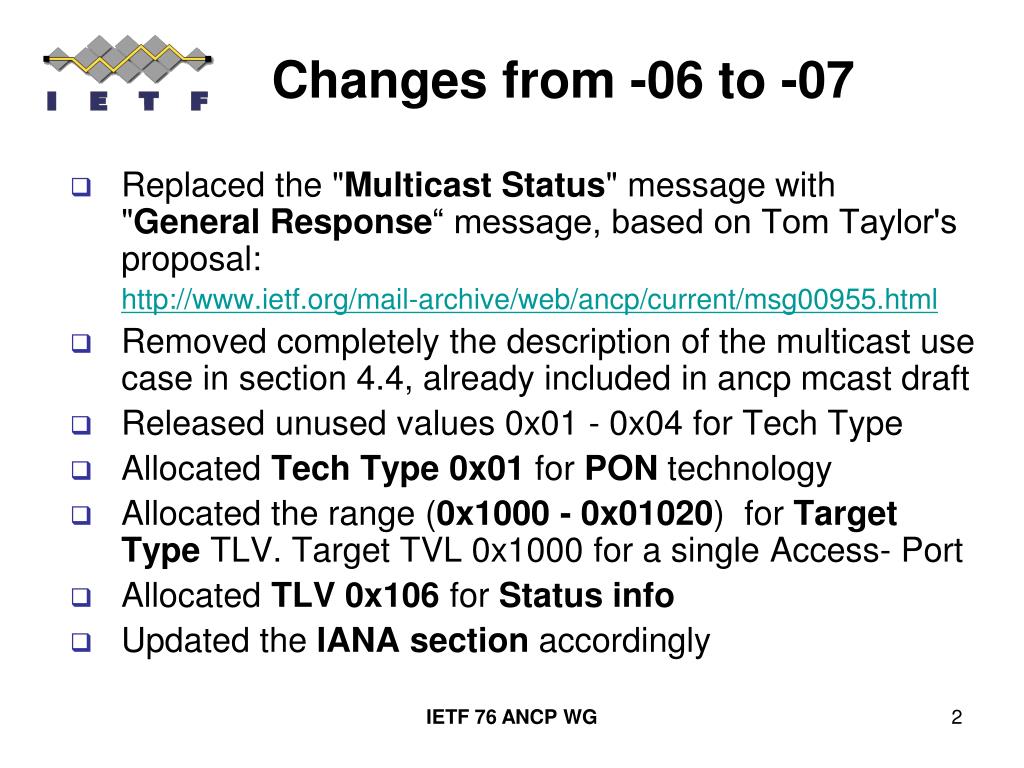

Changes from 06 to 07

Changes from -06 to -07

  • Replaced the "Multicast Status" message with "General Response“ message, based on Tom Taylor's proposal:

    http://www.ietf.org/mail-archive/web/ancp/current/msg00955.html

  • Removed completely the description of the multicast use case in section 4.4, already included in ancp mcast draft

  • Released unused values 0x01 - 0x04 for Tech Type

  • Allocated Tech Type 0x01 for PON technology

  • Allocated the range (0x1000 - 0x01020) for Target Type TLV. Target TVL 0x1000 for a single Access- Port

  • Allocated TLV 0x106 for Status info

  • Updated the IANA section accordingly

IETF 76 ANCP WG

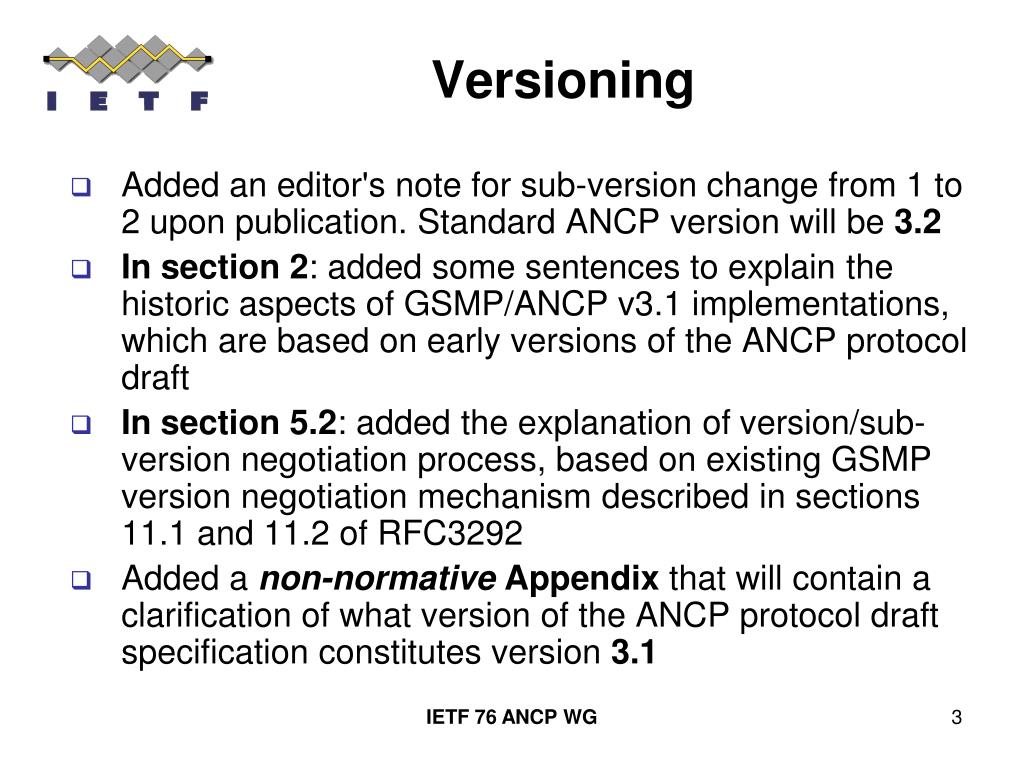

Versioning

Versioning

  • Added an editor's note for sub-version change from 1 to 2 upon publication. Standard ANCP version will be 3.2

  • In section 2: added some sentences to explain the historic aspects of GSMP/ANCP v3.1 implementations, which are based on early versions of the ANCP protocol draft

  • In section 5.2: added the explanation of version/sub-version negotiation process, based on existing GSMP version negotiation mechanism described in sections 11.1 and 11.2 of RFC3292

  • Added a non-normativeAppendix that will contain a clarification of what version of the ANCP protocol draft specification constitutes version 3.1

IETF 76 ANCP WG


Changes from 07 to 08

Changes from -07 to -08

  • Re-inserted the two possible options to select the Partition ID:

    AN and NAS MAY agree on the partition ID using one of the following possible options:

    1 - The partition ID could be configured on the AN and learnt by NAS in the adjacency message;

    2 - The partition ID could be statically configured on the NAS as part of configuring the neighbor information.

  • Updated Thomas Haag’s contact information

IETF 76 ANCP WG


Next steps

Next steps

  • Ready for Last Call?

IETF 76 ANCP WG
