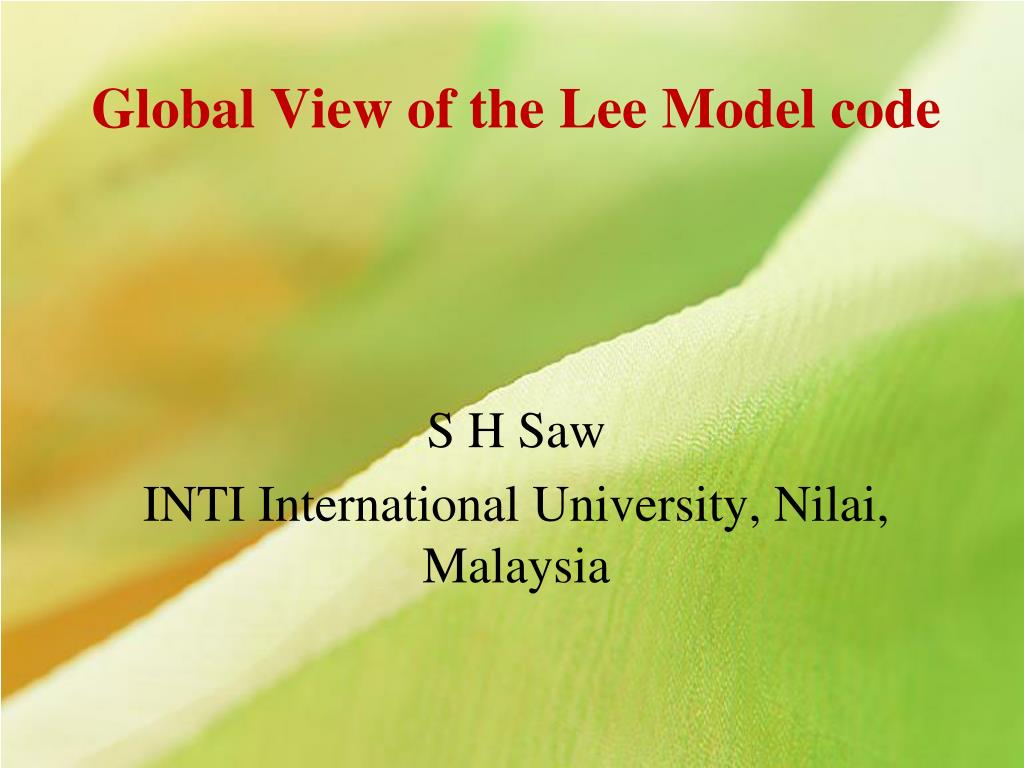

Global view of the lee model code

Global View of the Lee Model code

S H Saw

INTI International University, Nilai, Malaysia

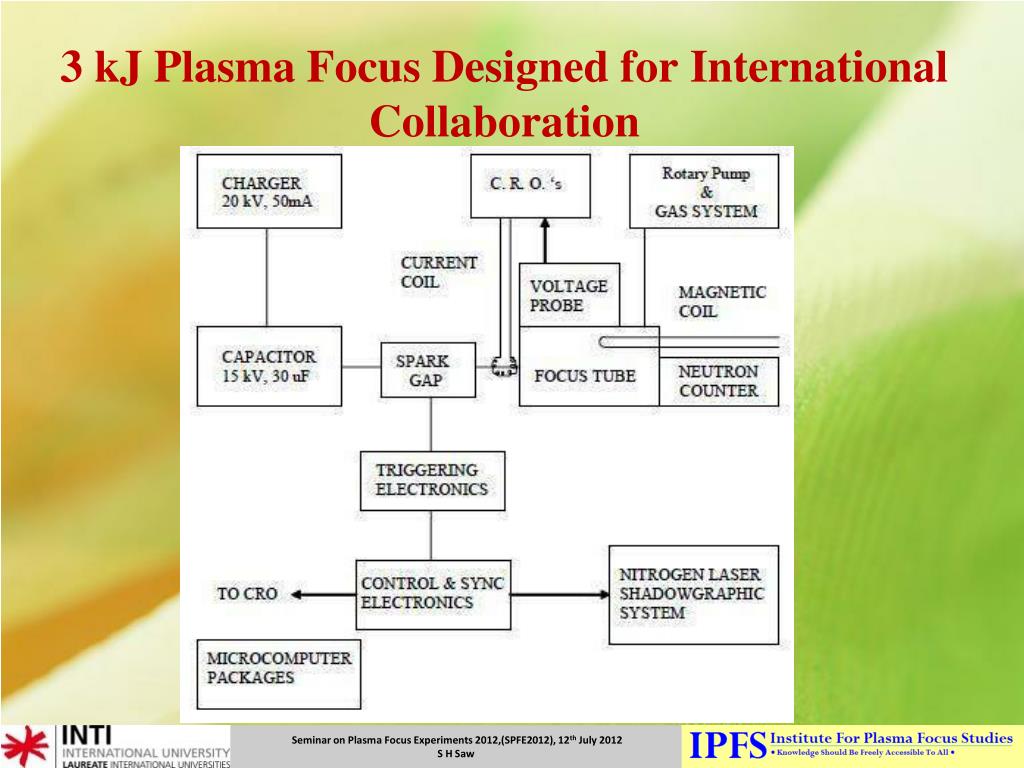

3 kj plasma focus designed for international collaboration
3 kJ Plasma Focus Designed for International Collaboration




The code
The Code

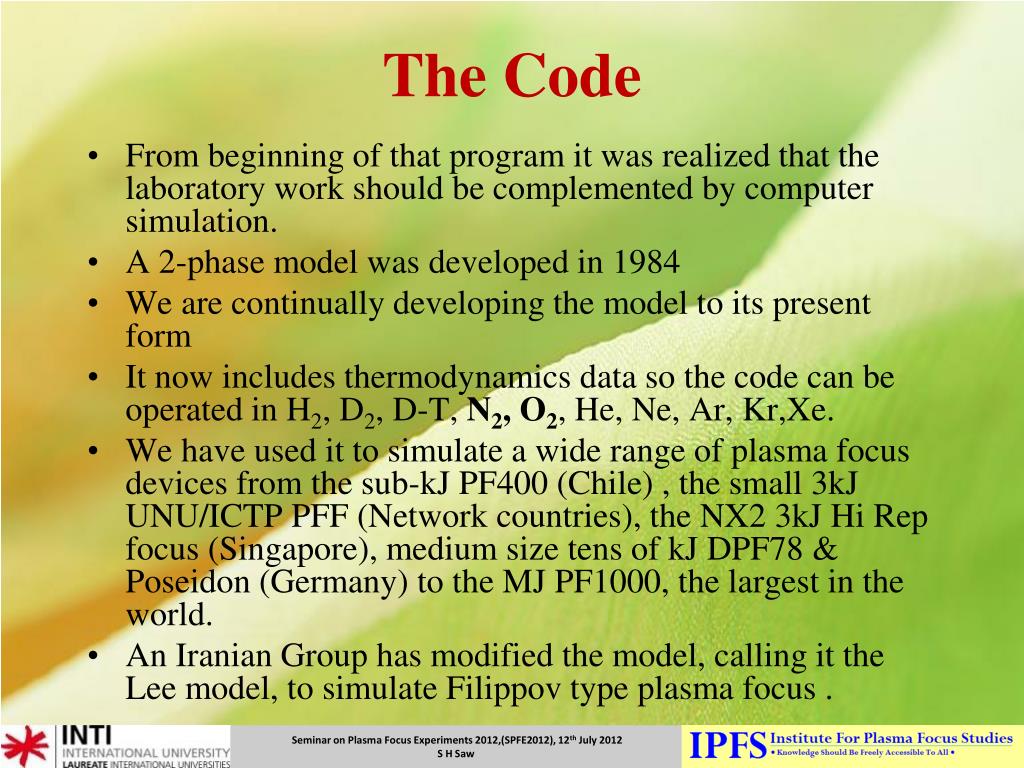

  • From beginning of that program it was realized that the laboratory work should be complemented by computer simulation.

  • A 2-phase model was developed in 1984

  • We are continually developing the model to its present form

  • It now includes thermodynamics data so the code can be operated in H2, D2, D-T, N2, O2, He, Ne, Ar, Kr,Xe.

  • We have used it to simulate a wide range of plasma focus devices from the sub-kJ PF400 (Chile) , the small 3kJ UNU/ICTP PFF (Network countries), the NX2 3kJ Hi Rep focus (Singapore), medium size tens of kJ DPF78 & Poseidon (Germany) to the MJ PF1000, the largest in the world.

  • An Iranian Group has modified the model, calling it the Lee model, to simulate Filippov type plasma focus .

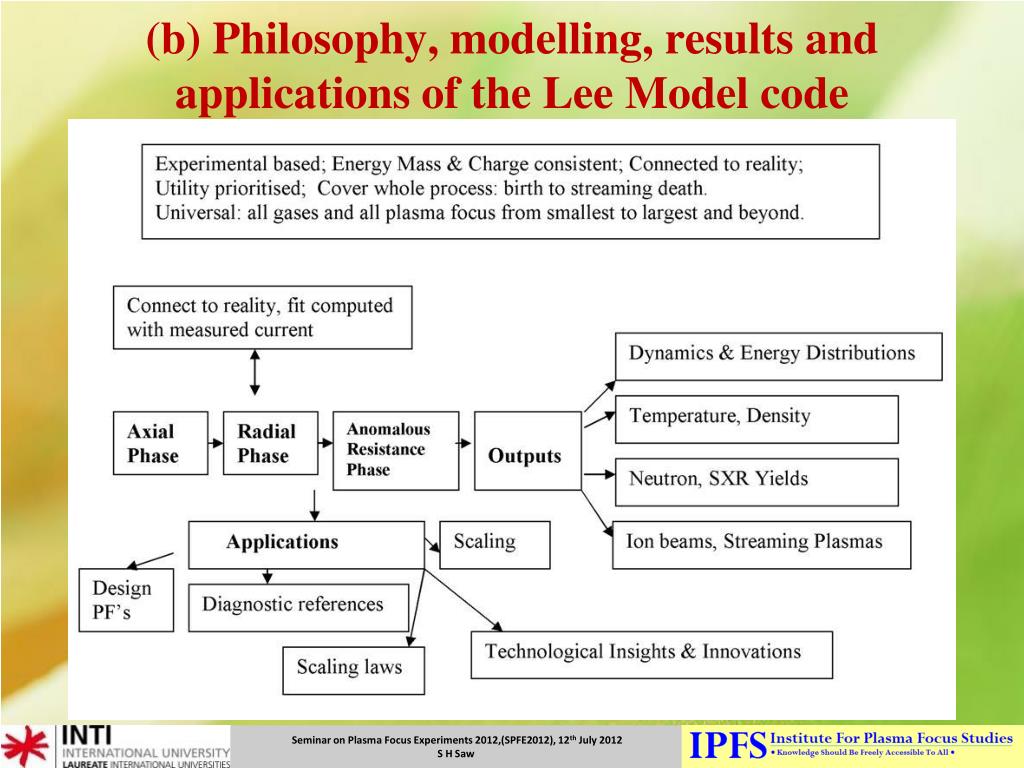

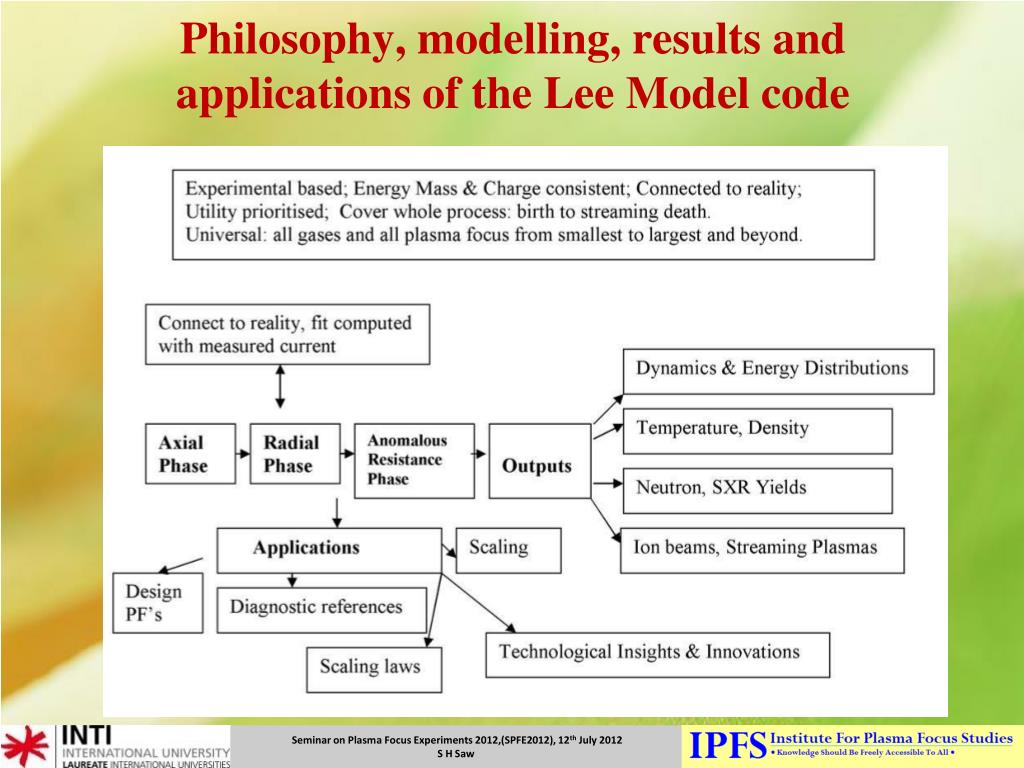

Philosophy of our modelling

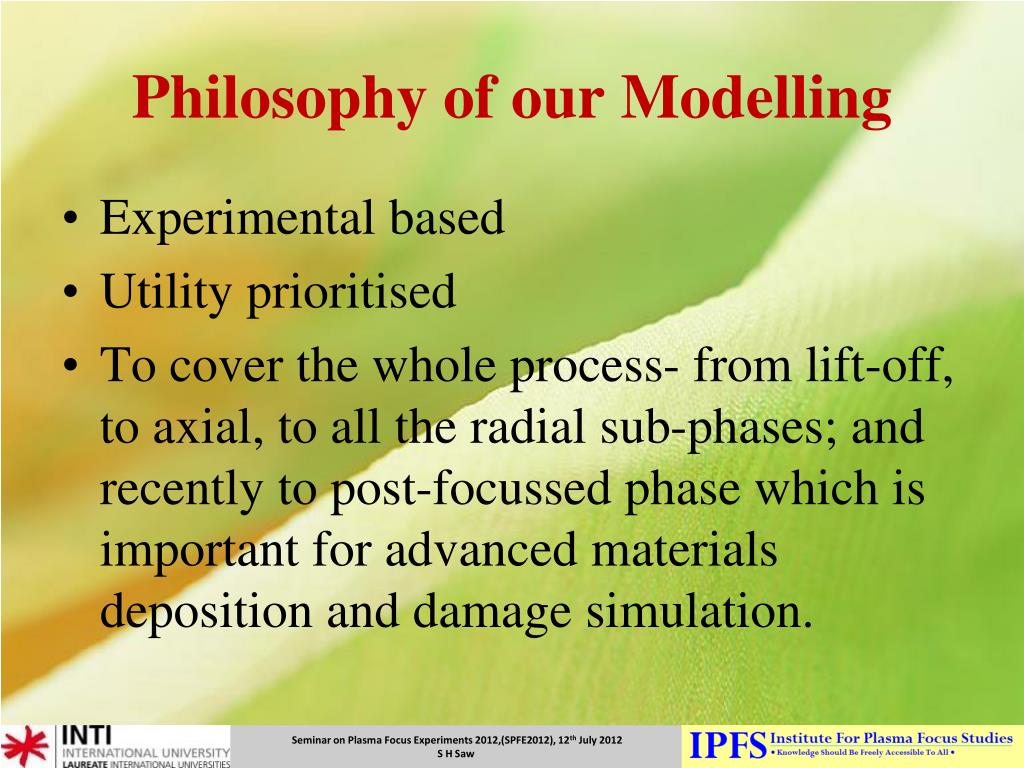

Philosophy of our Modelling

  • Experimental based

  • Utility prioritised

  • To cover the whole process- from lift-off, to axial, to all the radial sub-phases; and recently to post-focussed phase which is important for advanced materials deposition and damage simulation.

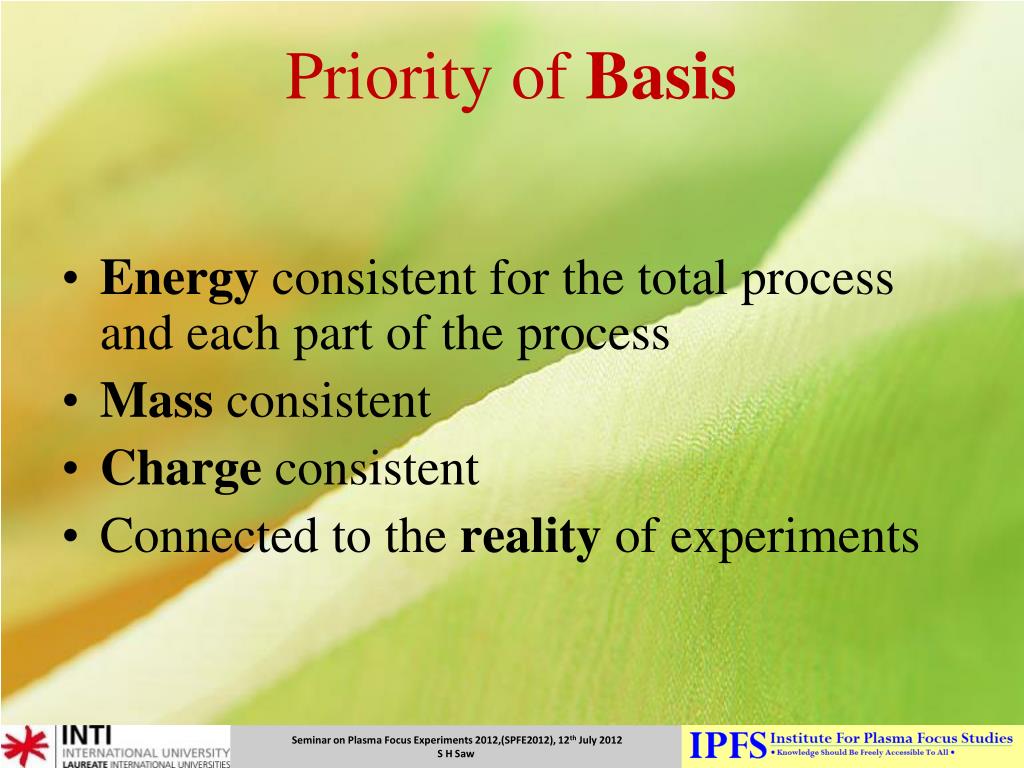

Priority of basis
Priority of Basis

  • Energy consistent for the total process and each part of the process

  • Mass consistent

  • Charge consistent

  • Connected to the reality of experiments


Priority of results
Priority of Results

  • Applicable to all PF machines, existing and hypothetical

  • Current Waveform accuracy

  • Dynamics in agreement with experiments

  • Consistency of Energy distribution

  • Realistic Yields of neutrons, SXR, other radiations; Ions and Plasma Stream; in conformity with experiments

  • Widest Scaling of the yields

  • Insightful definition of scaling properties

  • Design of new devices; e.g. Hi V & C-S

  • Design of new experiments



Numerical experiments
Numerical Experiments Model code

  • Range of activities using the code is so wide

  • Not theoretical

  • Not simulation

  • The only correct description is:

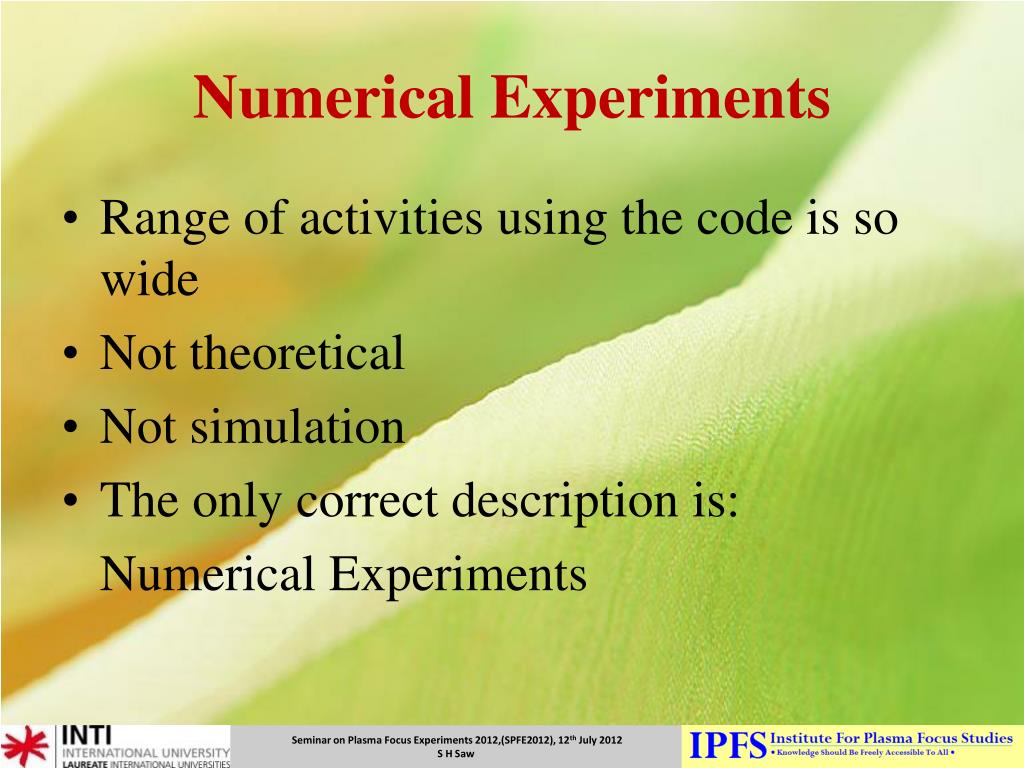

    Numerical Experiments


Pf1000
PF1000 Model code

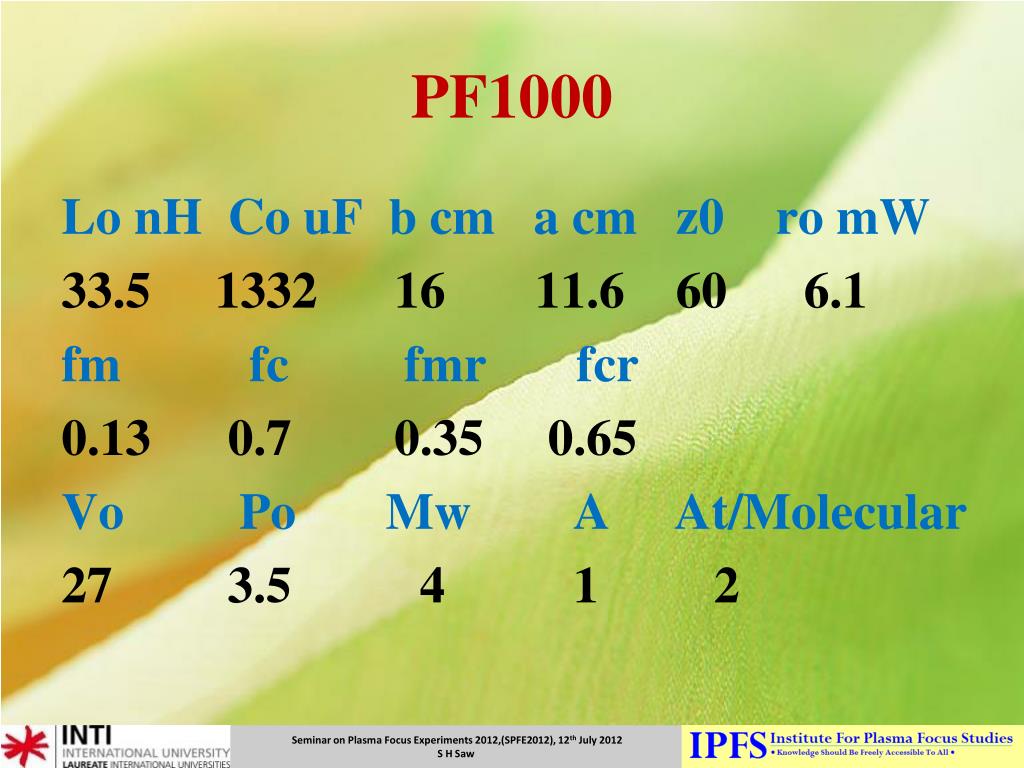

Lo nH Co uF b cm a cm z0 ro mW

33.5 1332 16 11.6 60 6.1

fm fc fmr fcr

0.13 0.7 0.35 0.65

Vo Po Mw A At/Molecular

27 3.5 4 1 2

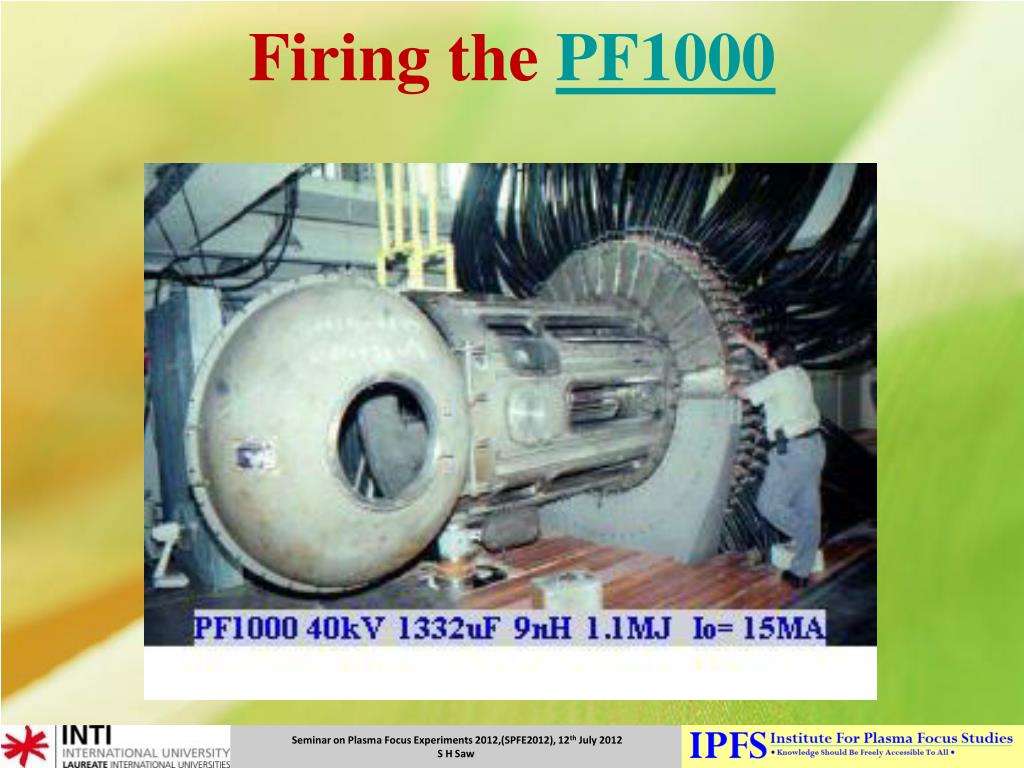

Firing the pf1000
Firing the Model codePF1000

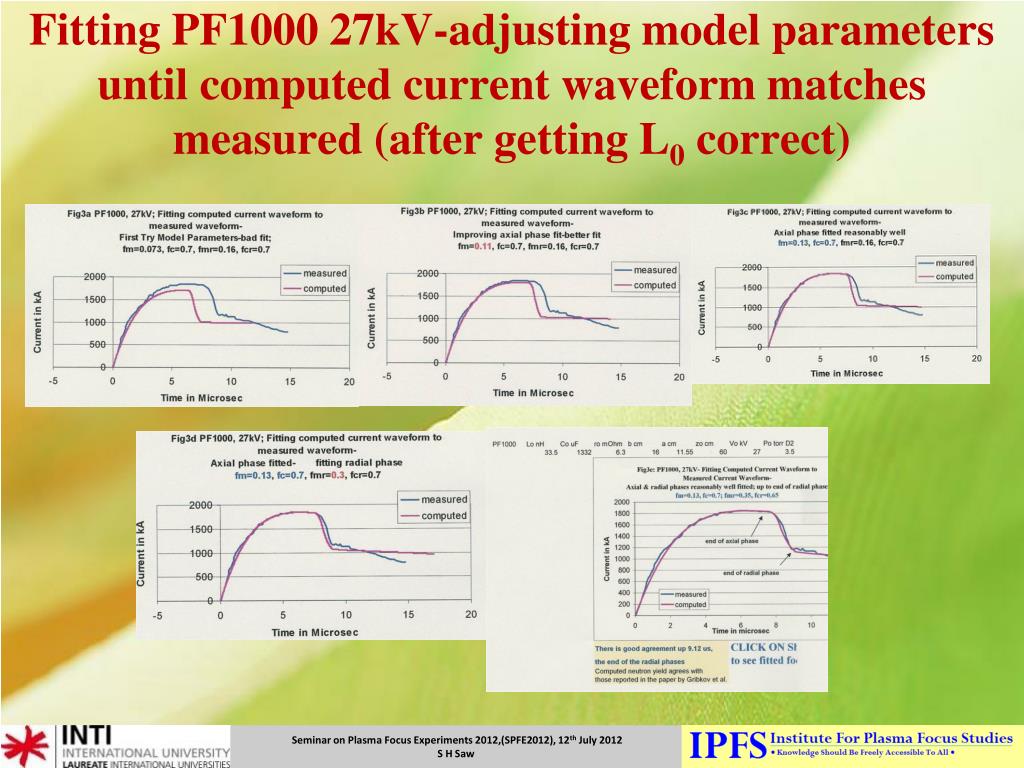

Fitting PF1000 27kV-adjusting model parameters until computed current waveform matches measured (after getting L0 correct)

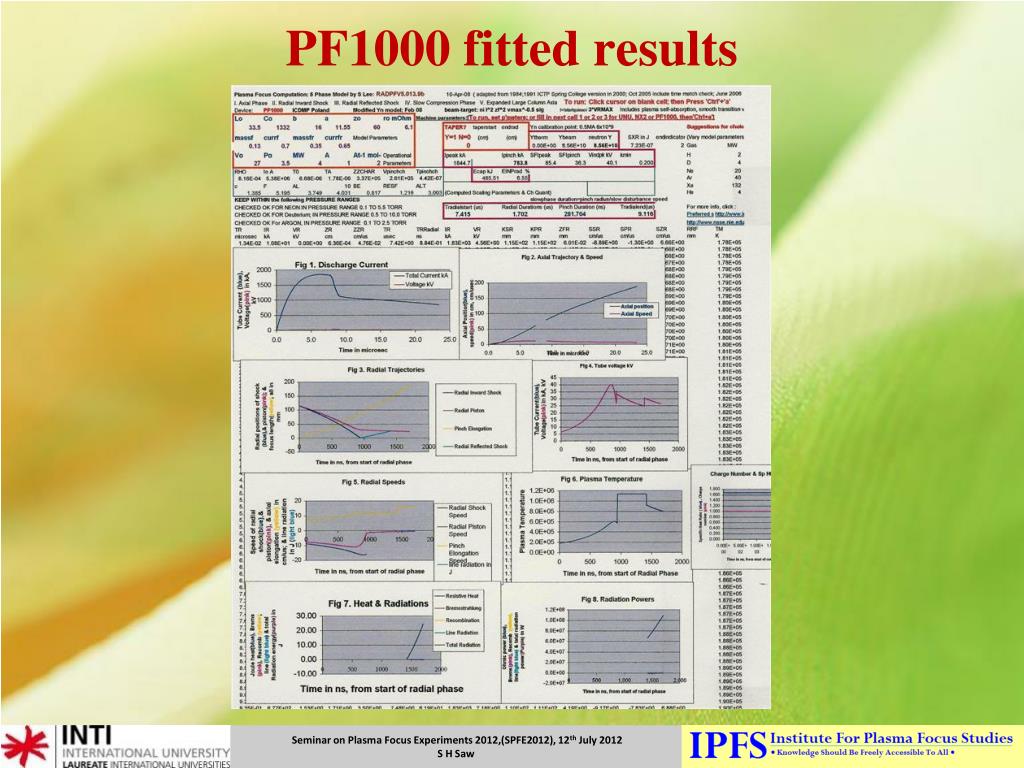

Pf1000 fitted results
PF1000 fitted results computed current waveform matches measured (after getting L

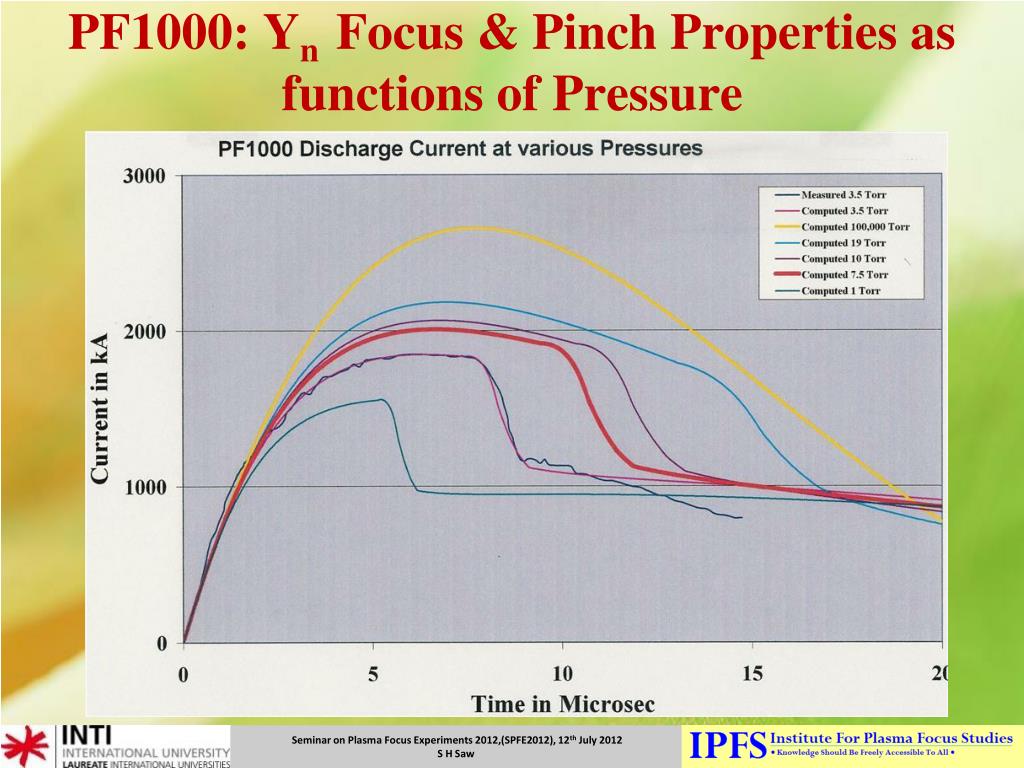

Pf1000 y n focus pinch properties as functions of pressure
PF1000: Y computed current waveform matches measured (after getting Ln Focus & Pinch Properties as functions of Pressure


Plasma focus numerical experiments leading technology
Plasma Focus- Numerical Experiments leading Technology computed current waveform matches measured (after getting L

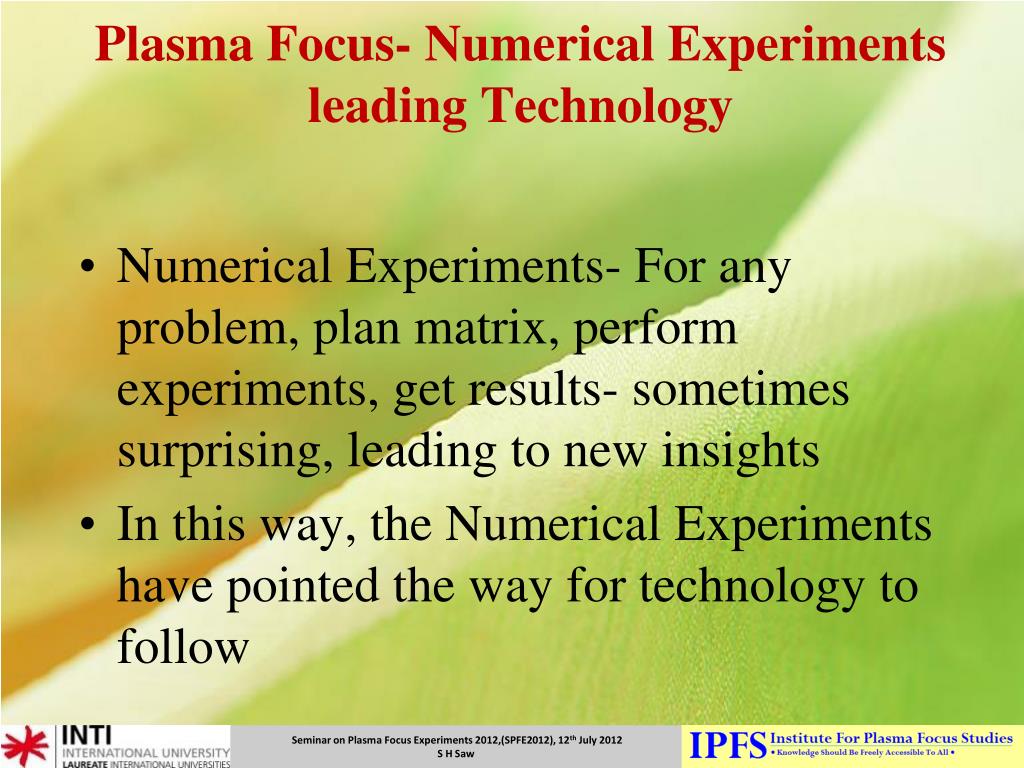

  • Numerical Experiments- For any problem, plan matrix, perform experiments, get results- sometimes surprising, leading to new insights

  • In this way, the Numerical Experiments have pointed the way for technology to follow


Ne showing the way for experiments and technology
NE showing the way for experiments and technology computed current waveform matches measured (after getting L

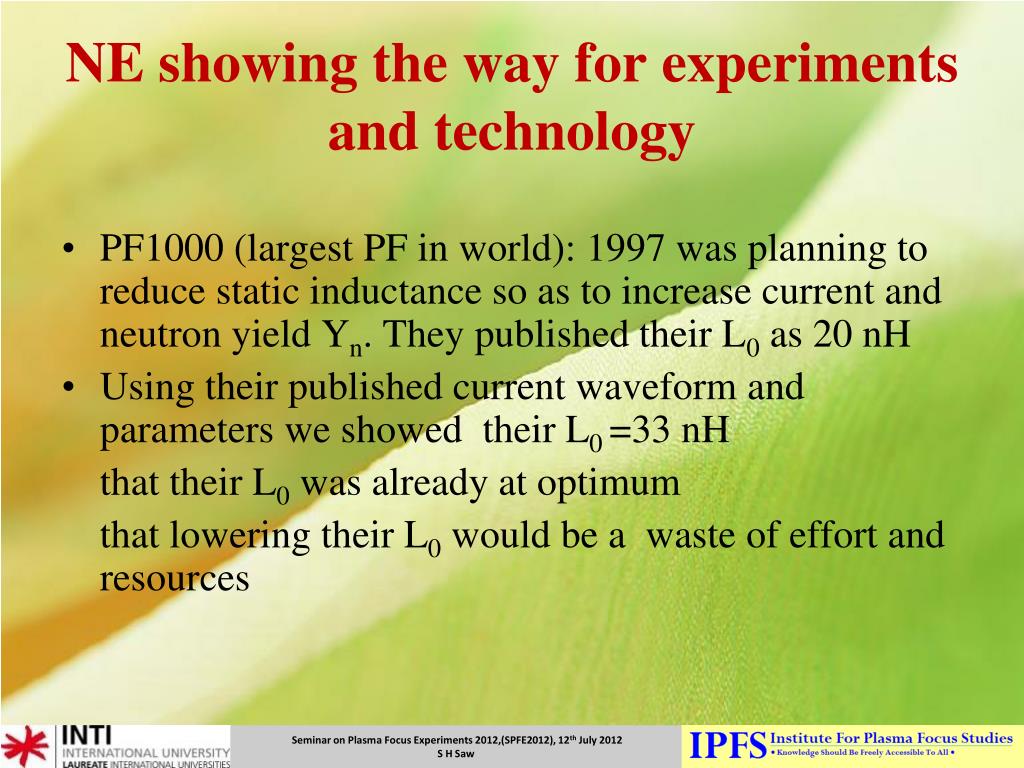

  • PF1000 (largest PF in world): 1997 was planning to reduce static inductance so as to increase current and neutron yield Yn. They published their L0 as 20 nH

  • Using their published current waveform and parameters we showed their L0 =33 nH

    that their L0 was already at optimum

    that lowering their L0 would be a waste of effort and resources


New general insight for every pf there is a minimum l 0 below which yield no longer increase

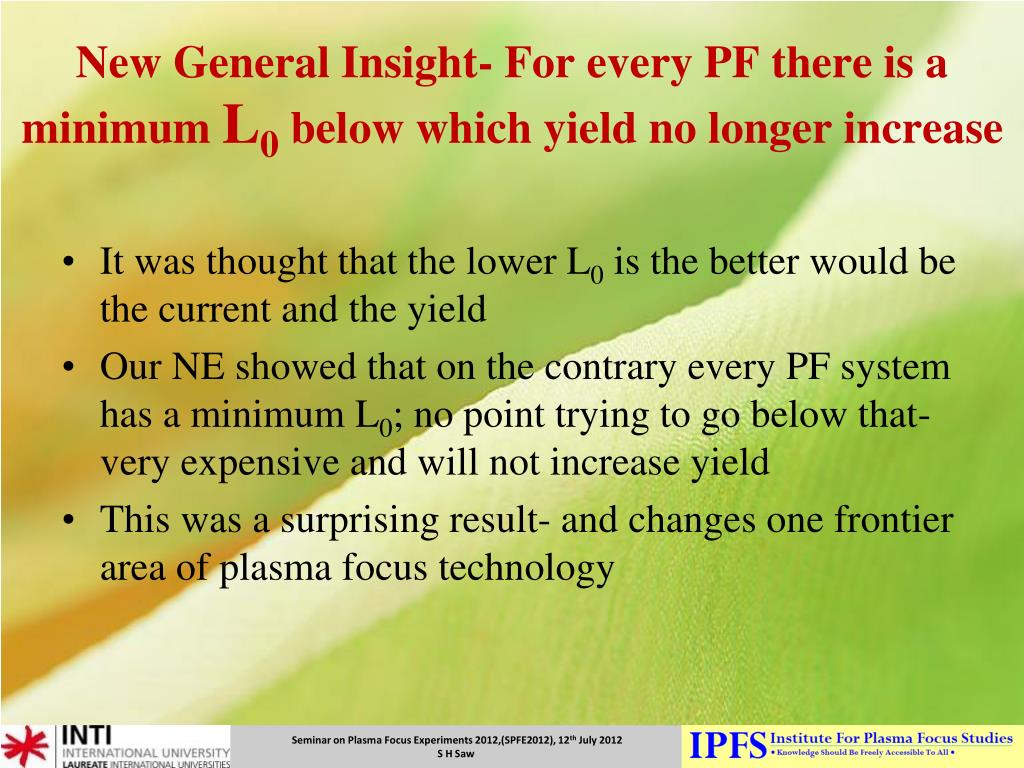

New General Insight- For every PF there is a minimum computed current waveform matches measured (after getting LL0 below which yield no longer increase

  • It was thought that the lower L0 is the better would be the current and the yield

  • Our NE showed that on the contrary every PF system has a minimum L0; no point trying to go below that- very expensive and will not increase yield

  • This was a surprising result- and changes one frontier area of plasma focus technology


Determination of Pinch Current computed current waveform matches measured (after getting L- by fitting a measured current trace with reliable neutron yield to the computed current trace.

  • by fitting a measured current trace with reliable neutron yield to the computed current trace.

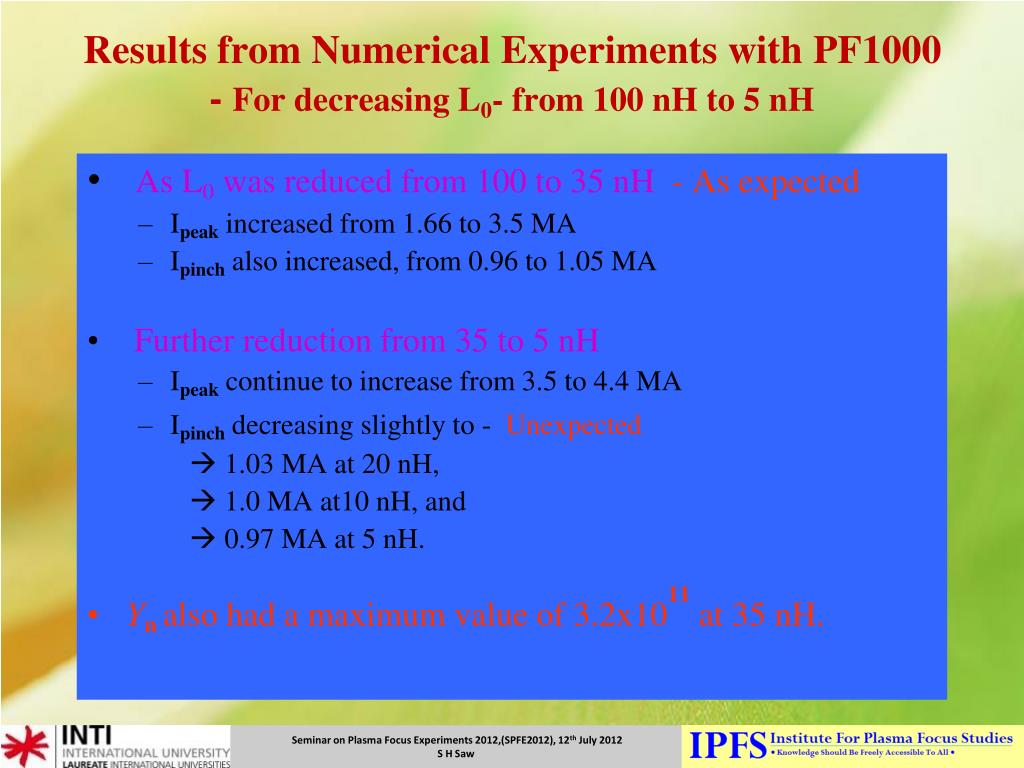

Results from numerical experiments with pf1000 for decreasing l 0 from 100 nh to 5 nh
Results from Numerical Experiments with PF1000 computed current waveform matches measured (after getting L- For decreasing L0- from 100 nH to 5 nH

  • As L0was reduced from 100 to 35 nH - As expected

    • Ipeak increased from 1.66 to 3.5 MA

    • Ipinch also increased, from 0.96 to 1.05 MA

  • Further reduction from 35 to 5 nH

    • Ipeak continue to increase from 3.5 to 4.4 MA

    • Ipinch decreasing slightly to - Unexpected

       1.03 MA at 20 nH,

       1.0 MA at10 nH, and

       0.97 MA at 5 nH.

  • Ynalso had a maximum value of 3.2x1011 at 35 nH.


Pinch current limitation effect 1 3

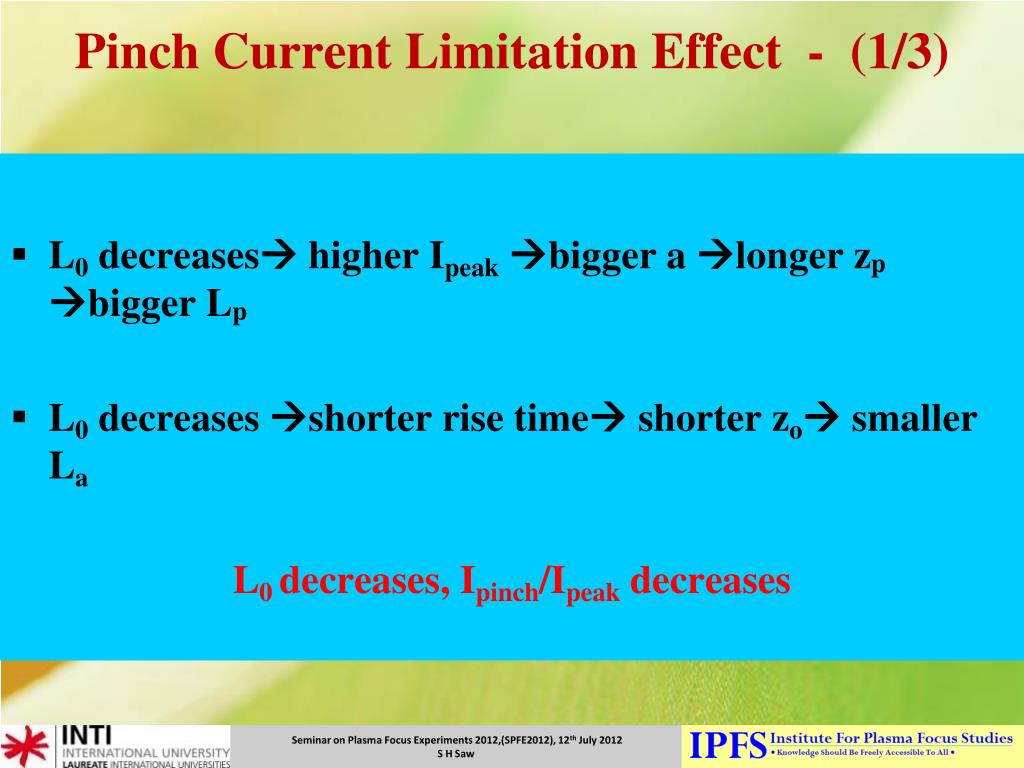

Pinch Current Limitation Effect - (1/3) computed current waveform matches measured (after getting L

  • L0 decreases higher Ipeakbigger a longer zp bigger Lp

  • L0 decreases shorter rise time shorter zo smaller La

    L0 decreases, Ipinch/Ipeak decreases


Pinch current limitation effect 2 3
Pinch Current Limitation Effect - (2/3) computed current waveform matches measured (after getting L

  • L0 decreases, L-C interaction time of capacitor decreases

  • L0 decreases, duration of current drop increases due to bigger a

    Capacitor bank is more and more coupled to the inductive energy transfer

Effect is more pronounced at lower L0


Pinch current limitation effect 3 3

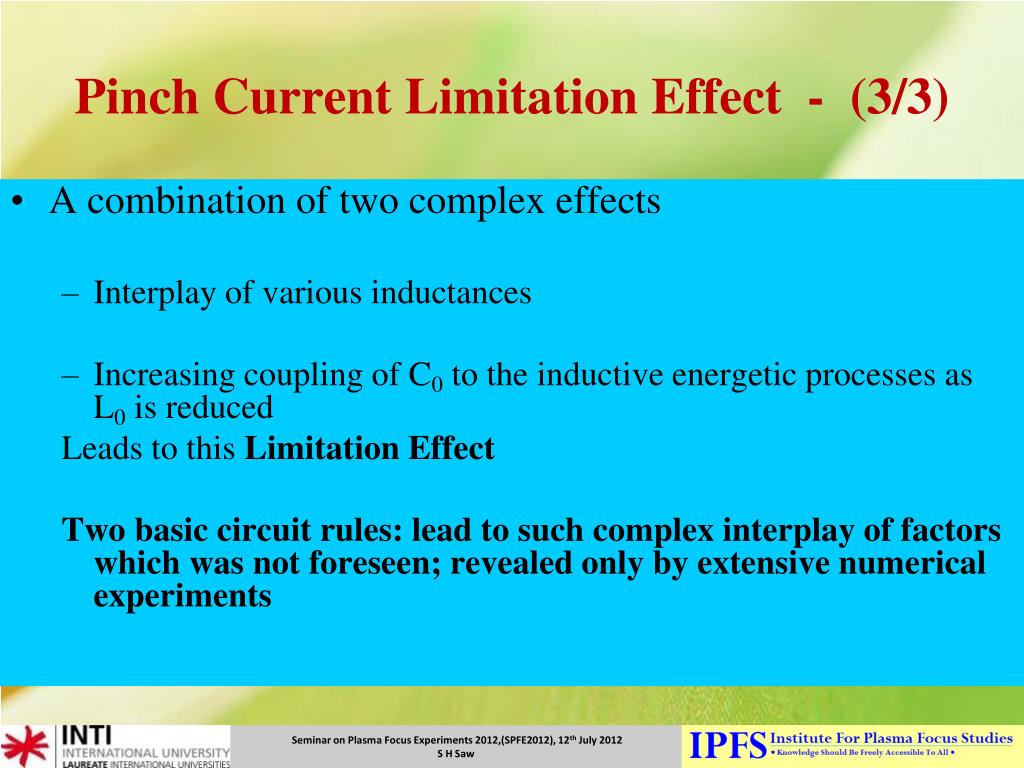

Pinch Current Limitation Effect - (3/3) computed current waveform matches measured (after getting L

  • A combination of two complex effects

    • Interplay of various inductances

    • Increasing coupling of C0 to the inductive energetic processes as L0 is reduced

      Leads to this Limitation Effect

      Two basic circuit rules: lead to such complex interplay of factors which was not foreseen; revealed only by extensive numerical experiments


Neutron yield scaling laws and neutron saturation problem
Neutron yield scaling laws and neutron saturation problem computed current waveform matches measured (after getting L

  • One of most exciting properties of plasma focus is

  • Early experiments show: Yn~E02

  • Prospect was raised in those early research years that, breakeven could be attained at several tens of MJ .

  • However quickly shown that as E0 approaches 1 MJ, a neutron saturation effect was observed; Yn does not increase as much as expected, as E0 was progressively raised towards 1 MJ.

  • Question: Is there a fundamental reason for Yn


S Lee & S H Saw computed current waveform matches measured (after getting L, J Fusion Energy, 27 292-295 (2008)

S Lee, Plasma Phys. Control. Fusion, 50 (2008) 105005

S H Saw&S Lee.. Nuclear & Renewable Energy Sources Ankara, Turkey, 28 & 29 Sepr 2009.

S Lee Appl Phys Lett 95, 151503 (2009)

Cause: Due to constant dynamic resistance relative to decreasing generator impedance

Global Scaling LawScaling deterioration observed in numerical experiments (small black crosses) compared to measurements on various machines (larger coloured crosses) Neutron ‘saturation’ is more aptly portrayed as a scaling deterioration-Conclusion of IPFS-INTI UC research


Scaling for large plasma focus
Scaling for large Plasma Focus computed current waveform matches measured (after getting L

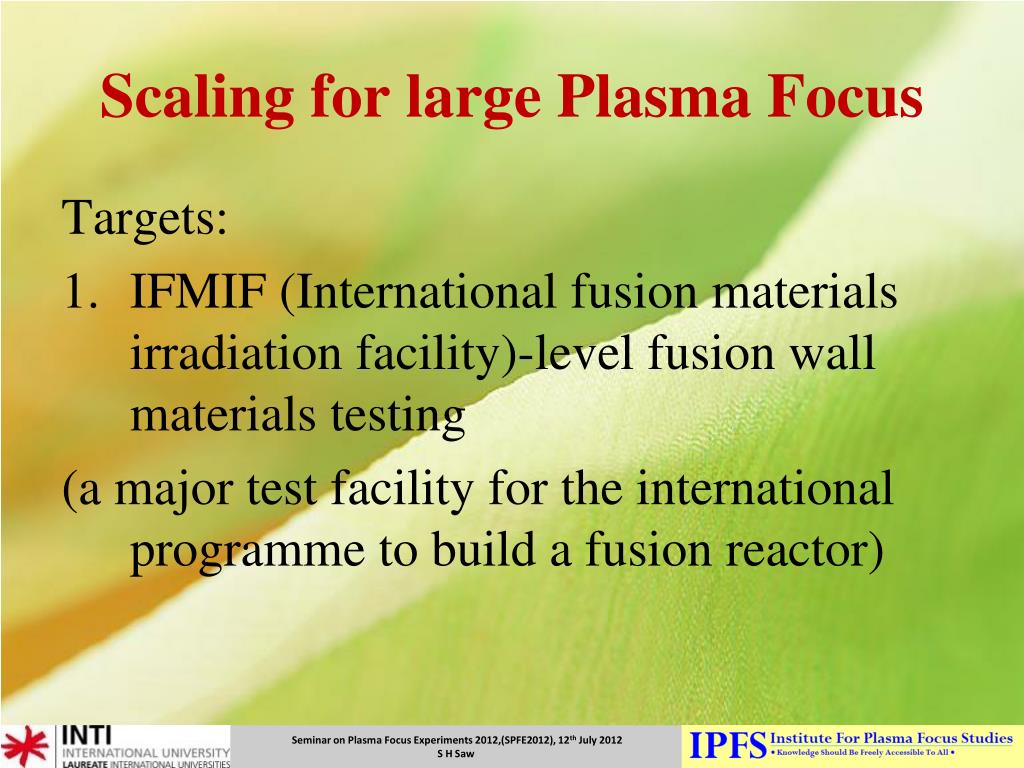

Targets:

  • IFMIF (International fusion materials irradiation facility)-level fusion wall materials testing

    (a major test facility for the international programme to build a fusion reactor)

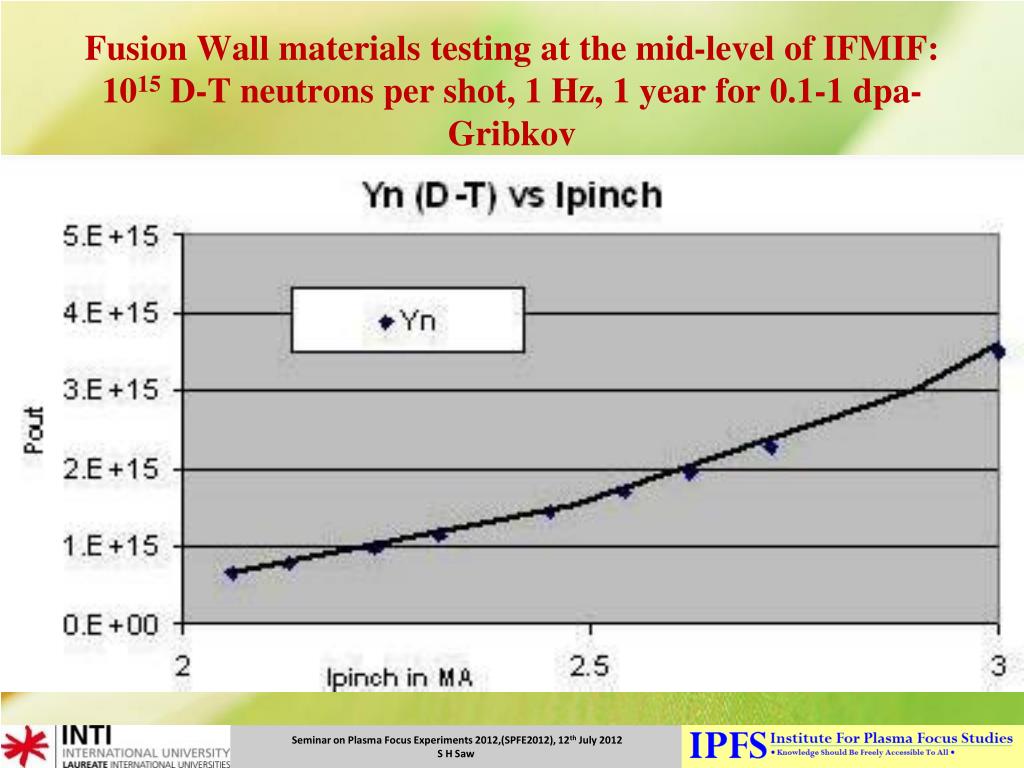

Fusion Wall materials testing at the mid-level of IFMIF: 10 computed current waveform matches measured (after getting L15 D-T neutrons per shot, 1 Hz, 1 year for 0.1-1 dpa- Gribkov

IPFS numerical Experiments:


Fast capacitor bank 10x pf1000 fully modelled 1 5x10 15 d t neutrons per shot

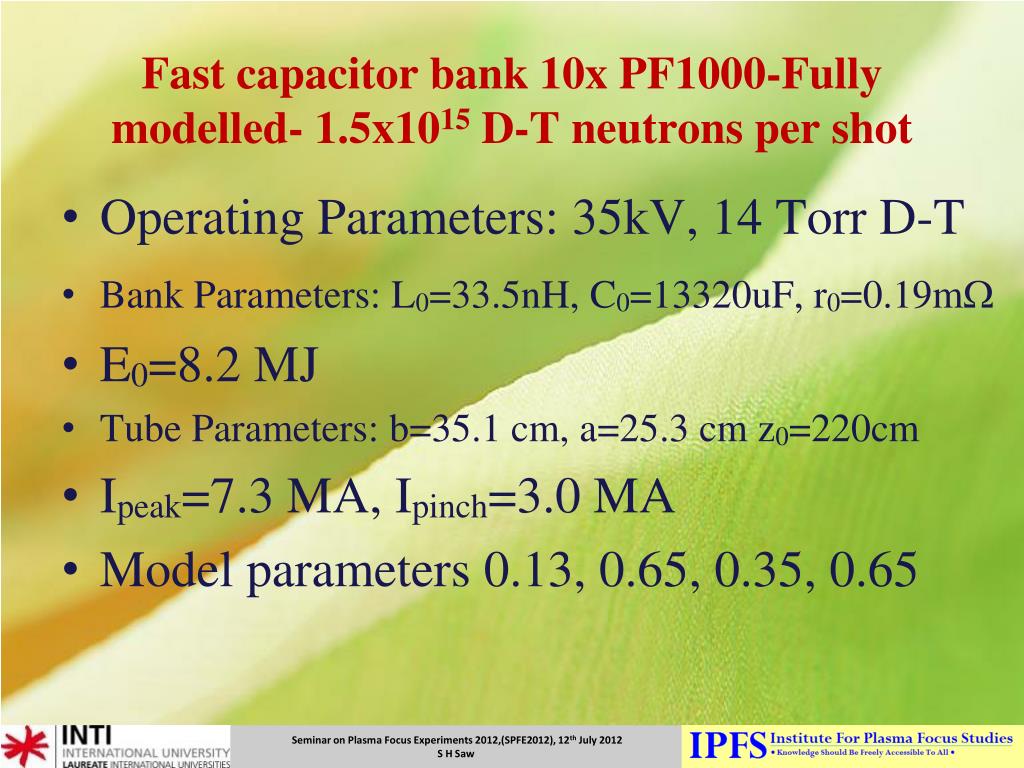

Fast capacitor bank 10x PF1000-Fully computed current waveform matches measured (after getting Lmodelled- 1.5x1015 D-T neutrons per shot

  • Operating Parameters: 35kV, 14 Torr D-T

  • Bank Parameters: L0=33.5nH, C0=13320uF, r0=0.19mW

  • E0=8.2 MJ

  • Tube Parameters: b=35.1 cm, a=25.3 cm z0=220cm

  • Ipeak=7.3 MA, Ipinch=3.0 MA

  • Model parameters 0.13, 0.65, 0.35, 0.65

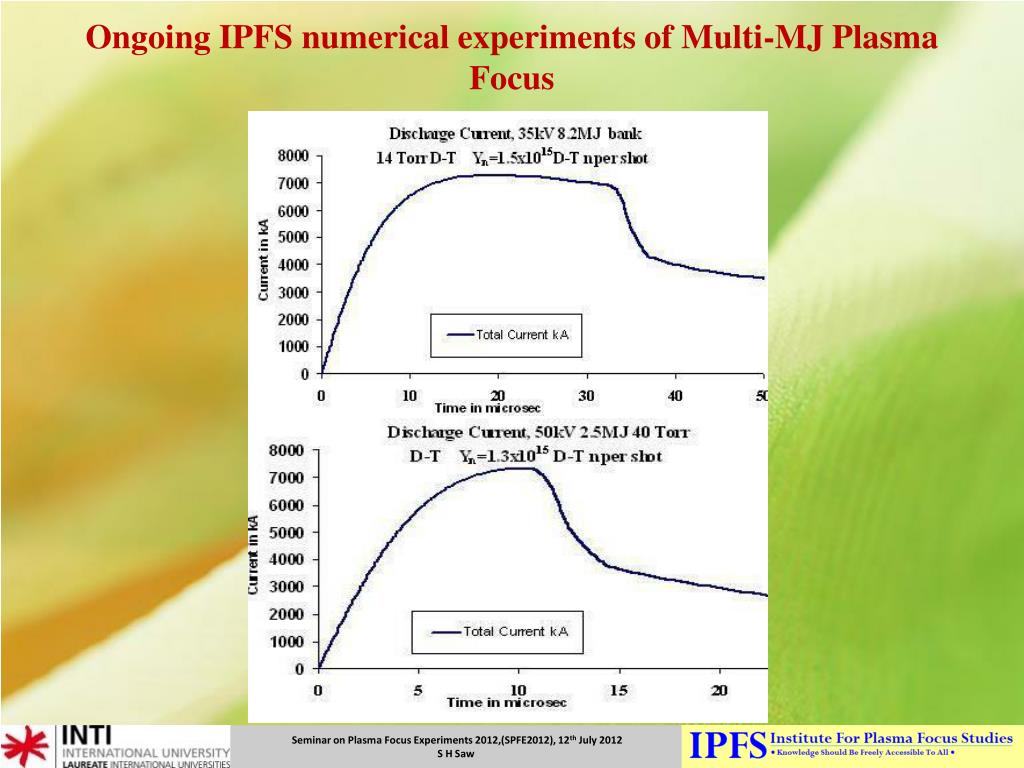

Ongoing ipfs numerical experiments of multi mj plasma focus

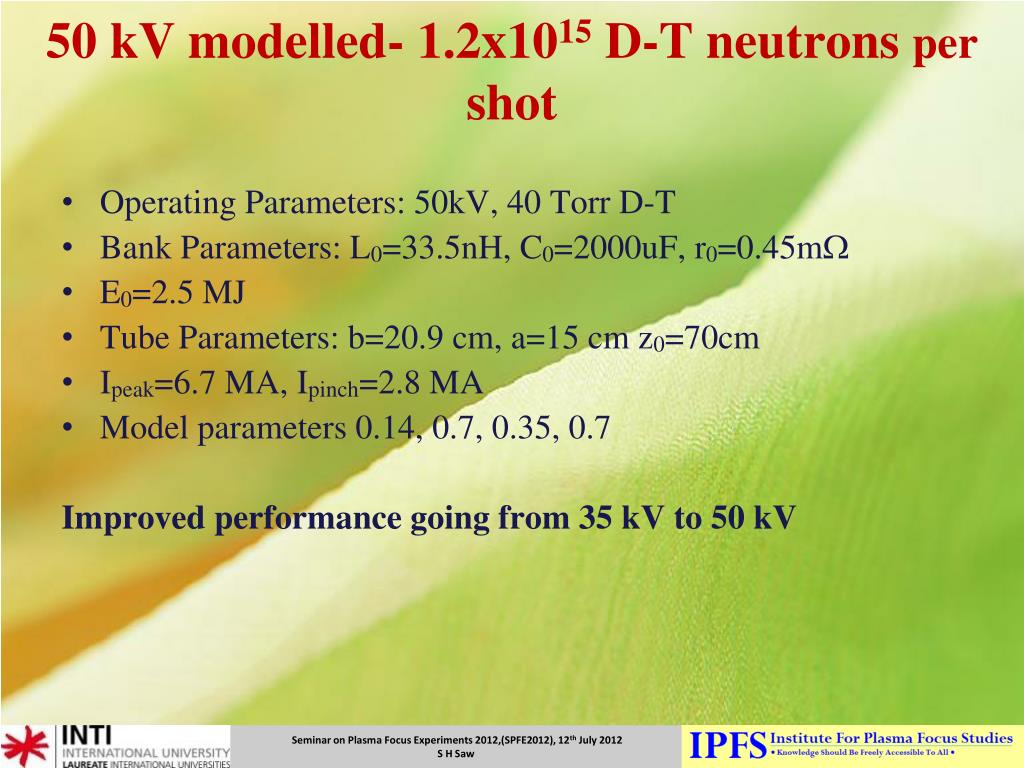

Ongoing IPFS numerical experiments of Multi-MJ Plasma Focus computed current waveform matches measured (after getting L


50 kv modelled 1 2x10 15 d t neutrons per shot
50 kV computed current waveform matches measured (after getting Lmodelled- 1.2x1015 D-T neutrons per shot

  • Operating Parameters: 50kV, 40 Torr D-T

  • Bank Parameters: L0=33.5nH, C0=2000uF, r0=0.45mW

  • E0=2.5 MJ

  • Tube Parameters: b=20.9 cm, a=15 cm z0=70cm

  • Ipeak=6.7 MA, Ipinch=2.8 MA

  • Model parameters 0.14, 0.7, 0.35, 0.7

    Improved performance going from 35 kV to 50 kV


Ifmif scale device
IFMIF-scale device computed current waveform matches measured (after getting L

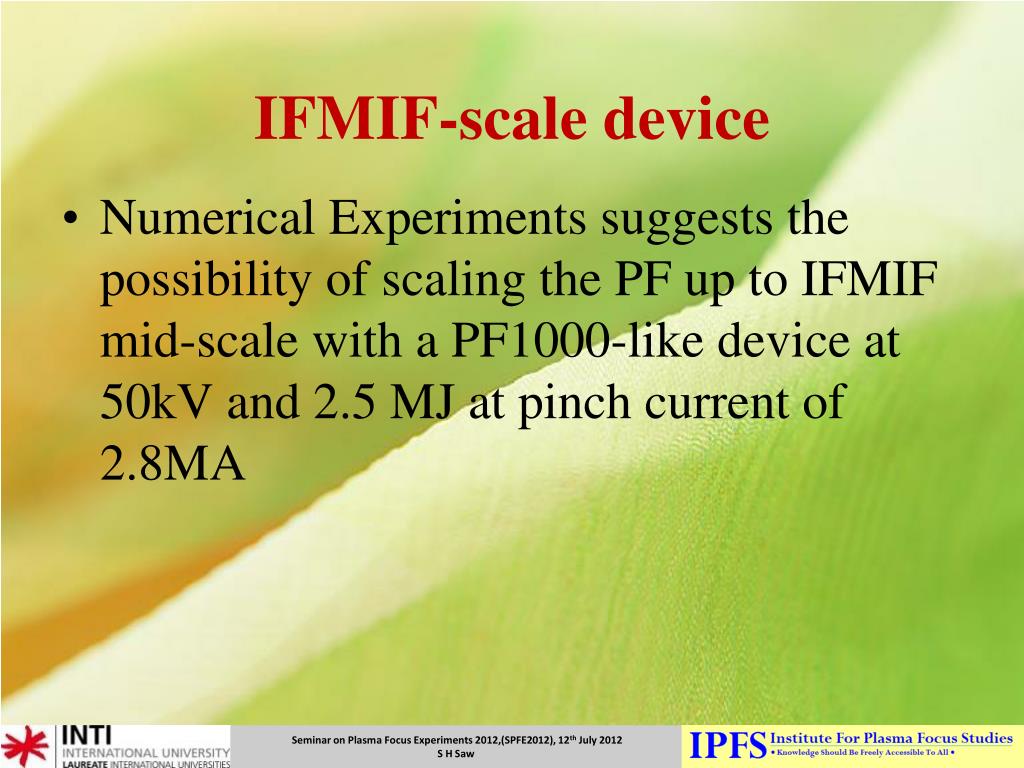

  • Numerical Experiments suggests the possibility of scaling the PF up to IFMIF mid-scale with a PF1000-like device at 50kV and 2.5 MJ at pinch current of 2.8MA

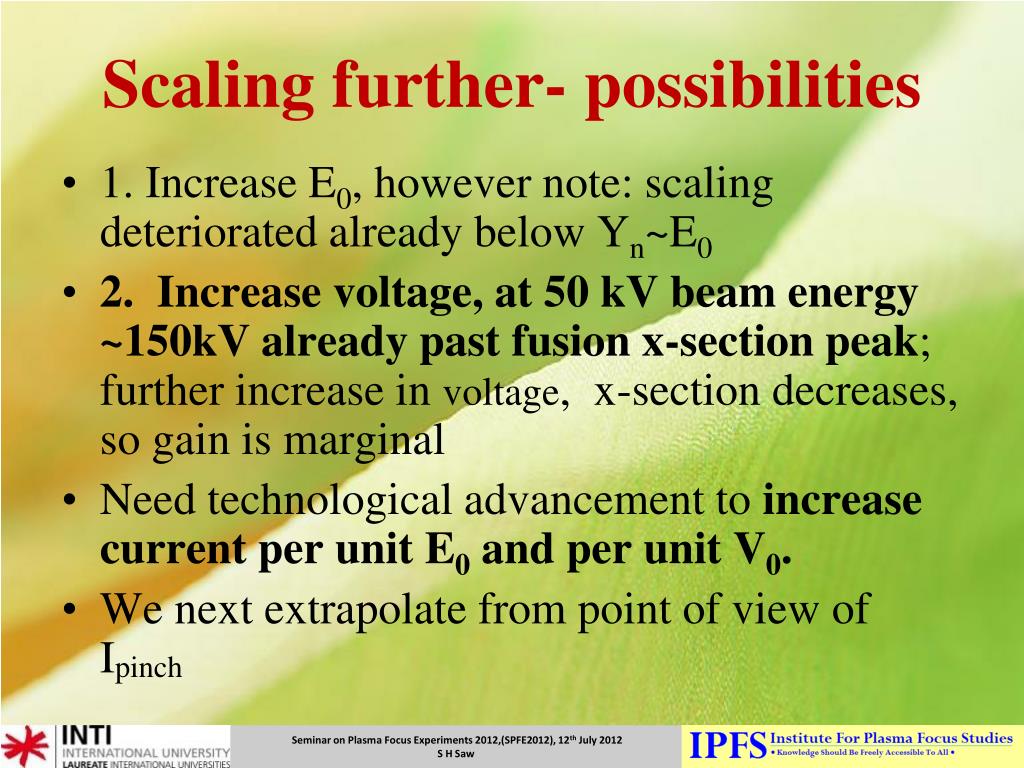

Scaling further possibilities
Scaling further- possibilities computed current waveform matches measured (after getting L

  • 1. Increase E0, however note: scaling deteriorated already below Yn~E0

  • 2. Increase voltage, at 50 kV beam energy ~150kV already past fusion x-section peak; further increase in voltage, x-section decreases, so gain is marginal

  • Need technological advancement to increase current per unit E0 and per unit V0.

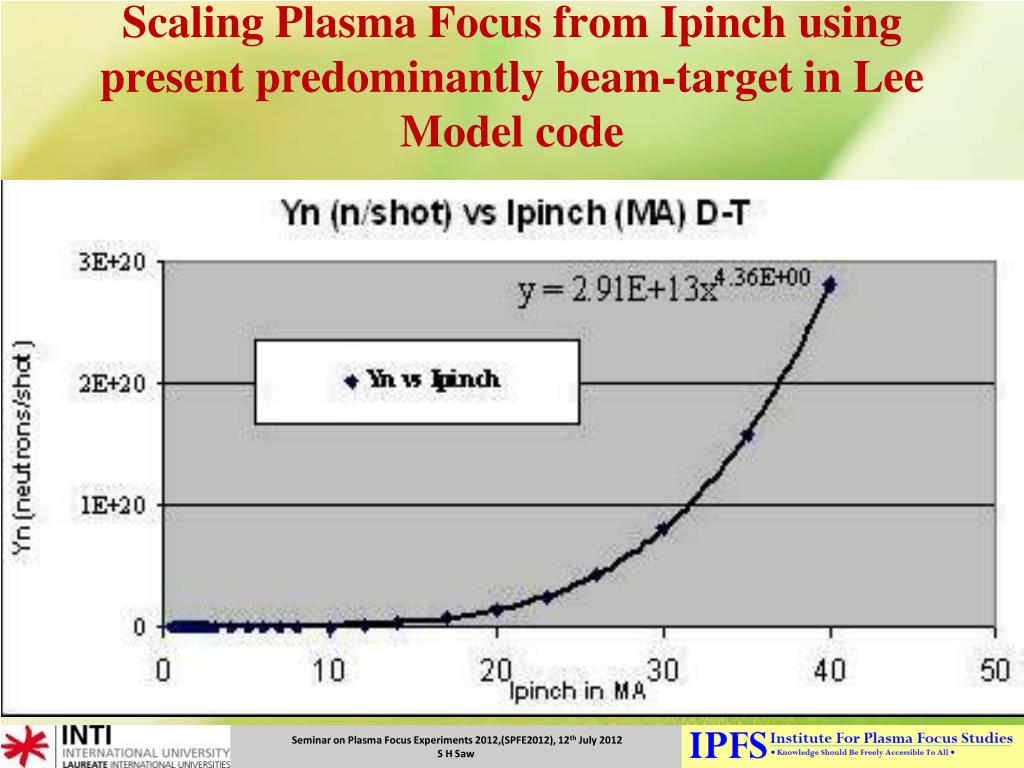

  • We next extrapolate from point of view of Ipinch



Sxr scaling laws
SXR Scaling Laws beam-target in Lee Model code

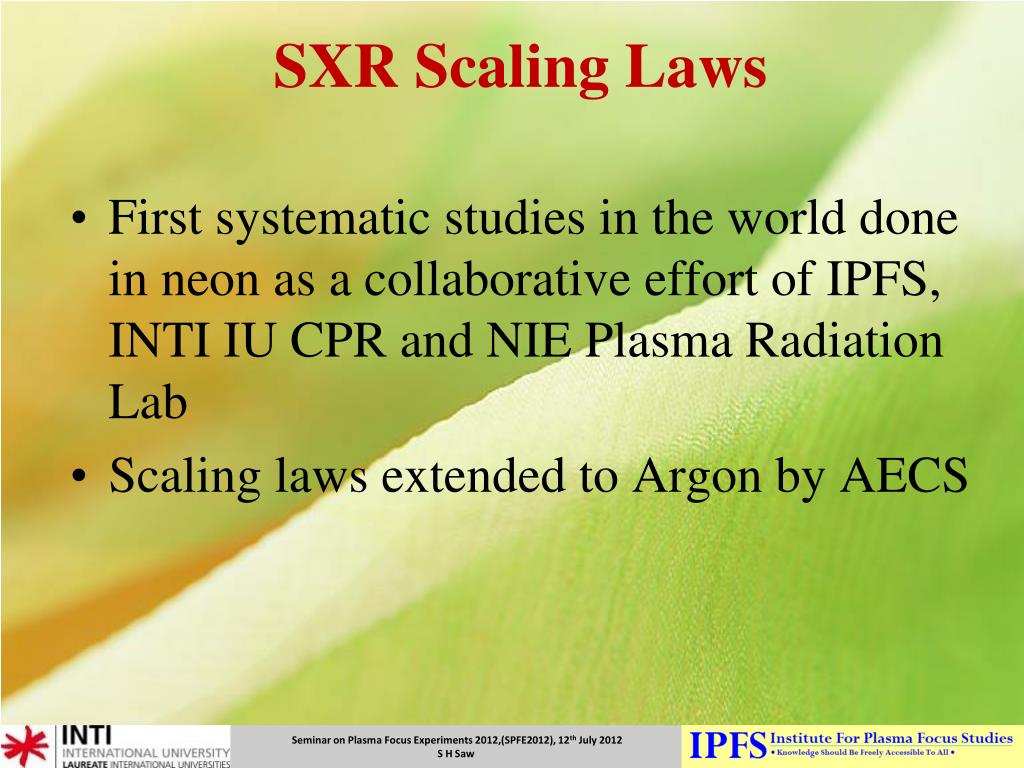

  • First systematic studies in the world done in neon as a collaborative effort of IPFS, INTI IU CPR and NIE Plasma Radiation Lab

  • Scaling laws extended to Argon by AECS


Special characteristics of sxr for applications

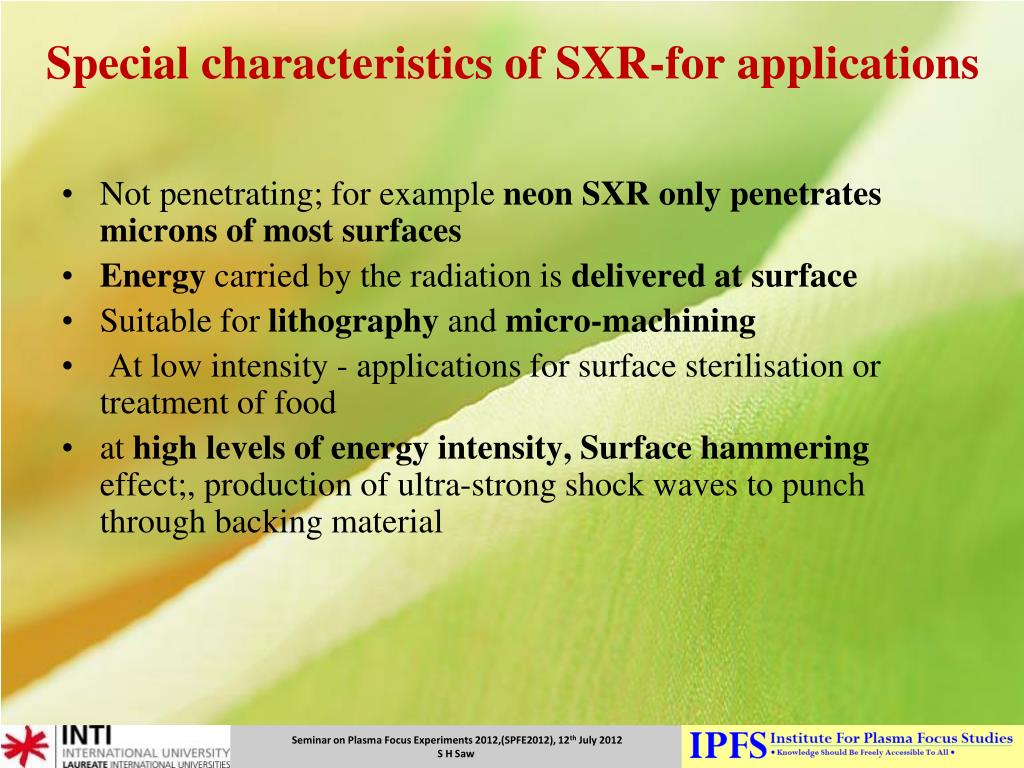

Special characteristics of SXR-for applications beam-target in Lee Model code

  • Not penetrating; for example neon SXR only penetrates microns of most surfaces

  • Energy carried by the radiation is delivered at surface

  • Suitable for lithography and micro-machining

  • At low intensity - applications for surface sterilisation or treatment of food

  • at high levels of energy intensity, Surface hammering effect;, production of ultra-strong shock waves to punch through backing material

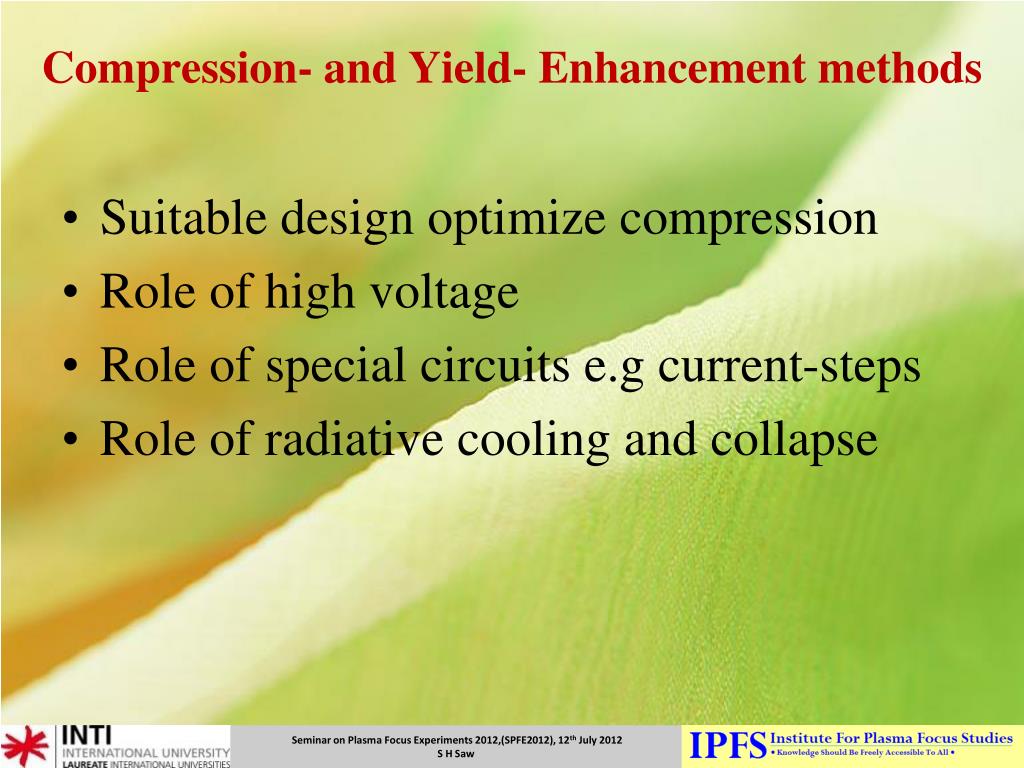

Compression and yield enhancement methods
Compression- and Yield- Enhancement methods beam-target in Lee Model code

  • Suitable design optimize compression

  • Role of high voltage

  • Role of special circuits e.g current-steps

  • Role of radiative cooling and collapse


Latest development

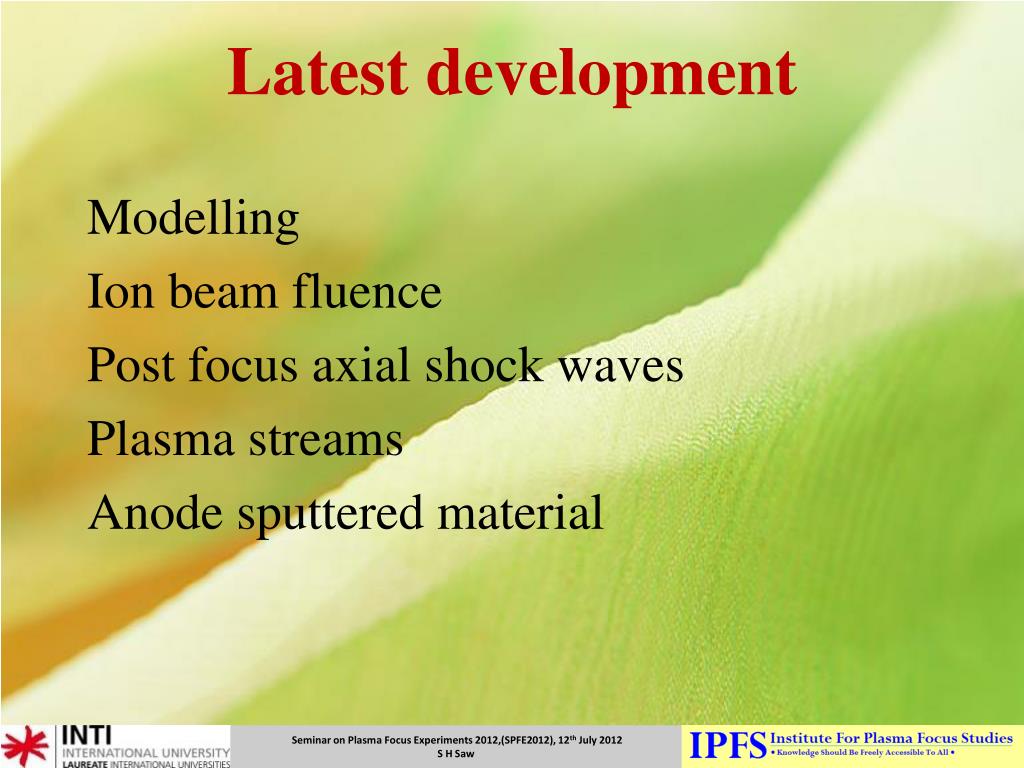

Latest development beam-target in Lee Model code

Modelling

Ion beam fluence

Post focus axial shock waves

Plasma streams

Anode sputtered material


Ion beam post pinch plasma stream calculations some preliminary results inti iu iaea collaboration

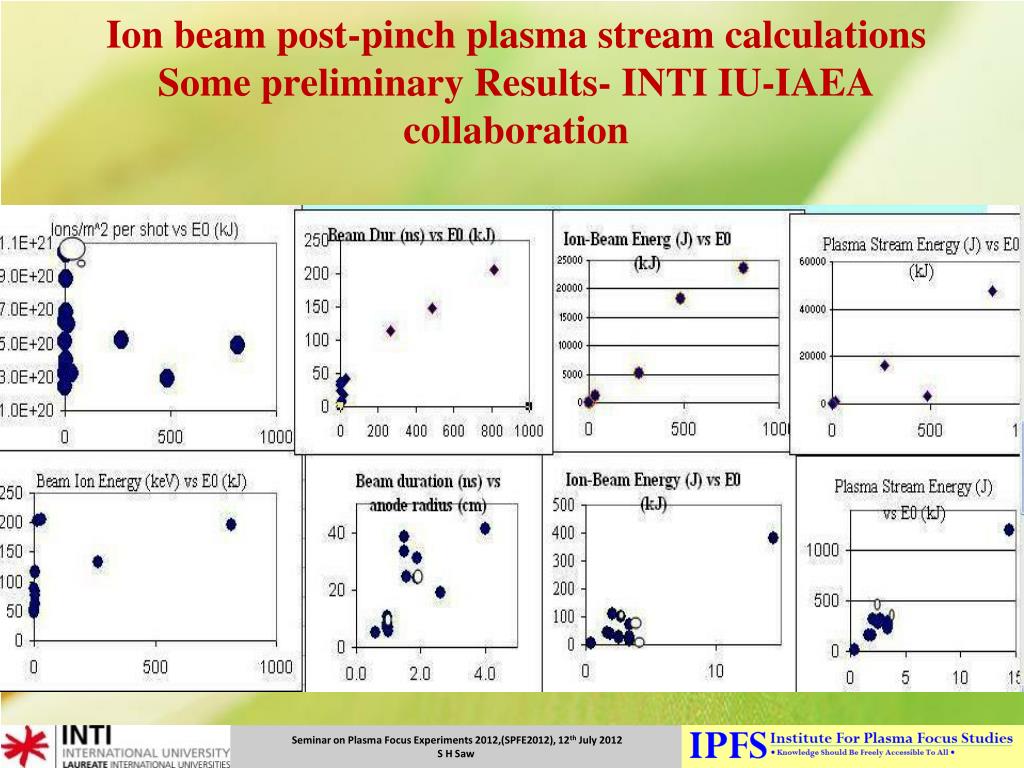

Ion beam post-pinch plasma stream calculations beam-target in Lee Model codeSome preliminary Results- INTI IU-IAEA collaboration


6 developing the most powerful training and research system for the dawning of the fusion age
6. Developing the most powerful training and research system for the dawning of the Fusion Age.

Integrate:

6a the proven most effective hardware system of the UNU/ICTP PFF with

6b the proven most effective numerical experiment system Lee Model code

with emphasis on dynamics, radiation and materials applications.


Into the fusion era plasma focus for training research
Into the fusion era: Plasma focus for training/Research for the dawning of the Fusion Age

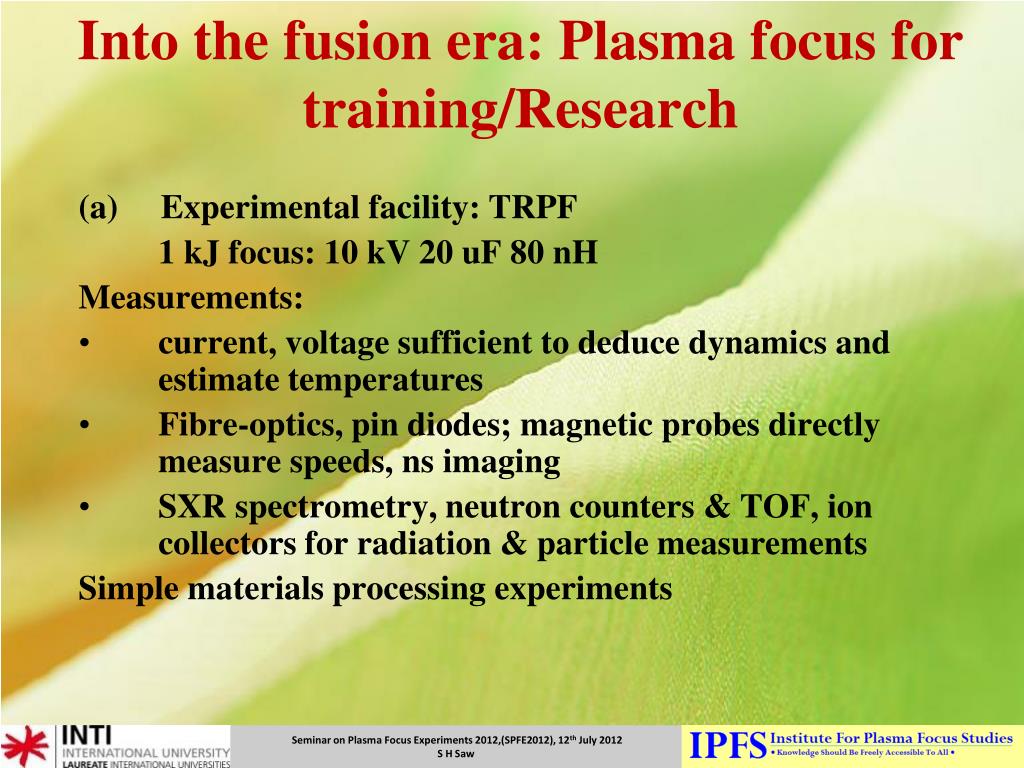

(a) Experimental facility: TRPF

1 kJ focus: 10 kV 20 uF 80 nH

Measurements:

  • current, voltage sufficient to deduce dynamics and estimate temperatures

  • Fibre-optics, pin diodes; magnetic probes directly measure speeds, ns imaging

  • SXR spectrometry, neutron counters & TOF, ion collectors for radiation & particle measurements

    Simple materials processing experiments


Into the fusion era plasma focus for research training
Into the fusion era: Plasma focus for research training for the dawning of the Fusion Age

(b) Numerical Experiments code

To complement TRPF

  • Computes dynamics and energy distributions

  • Plasma pinch evolution, size and life time

  • Post focus Ion Beam, plasma stream and anode sputtered material

    Connection with reality: through fitting computed current to measured current trace

    Behaviour of plasma focus and yields as functions of pressure, gases, storage energies, circuit currents and pinch currents.

    Carry out above experiments with any plasma focus.

    Optimization of planned plasma focus

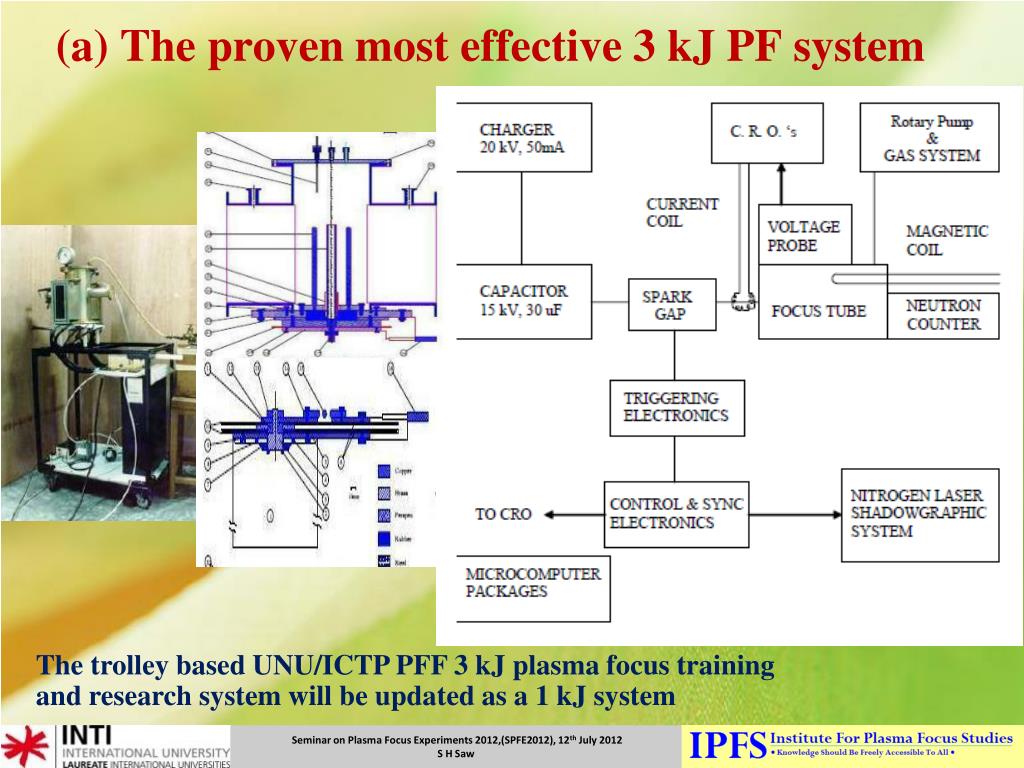

A the proven most effective 3 kj pf system
(a) The proven most effective 3 kJ PF system for the dawning of the Fusion Age

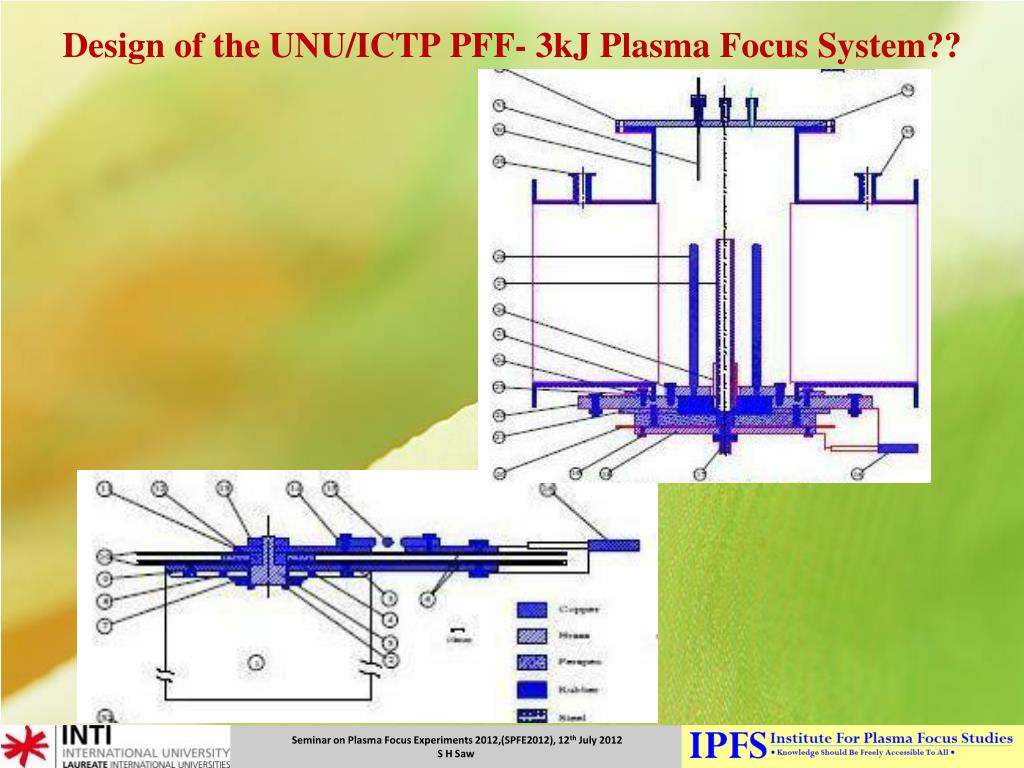

The trolley based UNU/ICTP PFF 3 kJ plasma focus training

and research system will be updated as a 1 kJ system


B the proven most effective and comprehensive model code

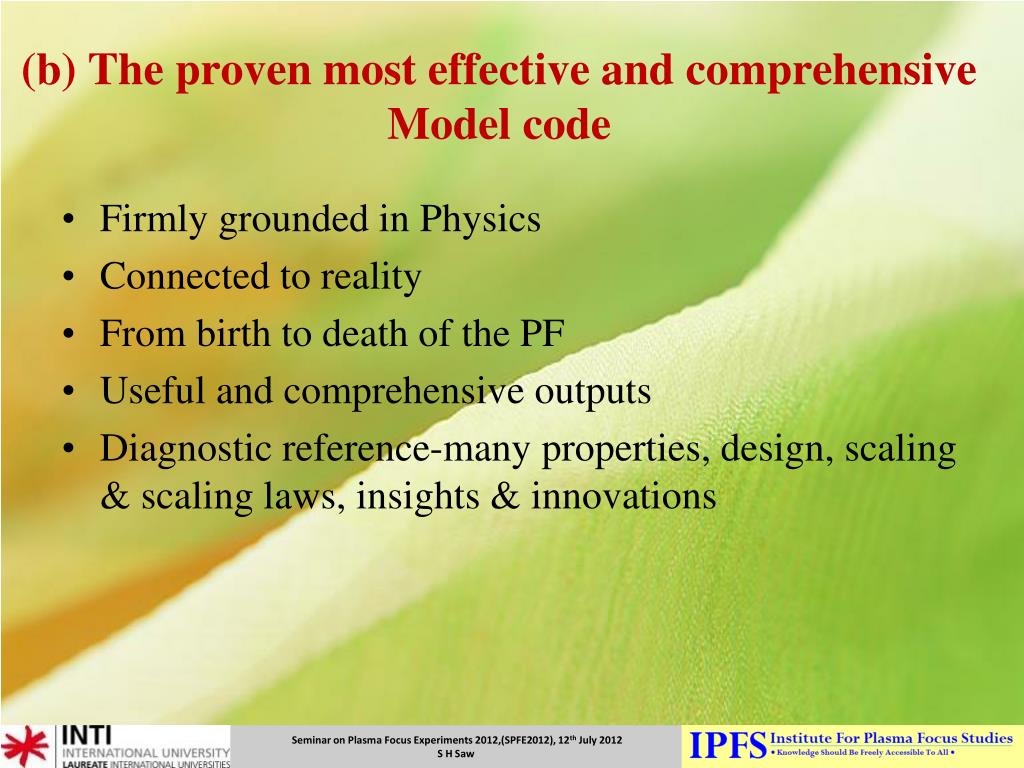

(b) for the dawning of the Fusion AgeThe proven most effective and comprehensive Model code

  • Firmly grounded in Physics

  • Connected to reality

  • From birth to death of the PF

  • Useful and comprehensive outputs

  • Diagnostic reference-many properties, design, scaling & scaling laws, insights & innovations
