Protocol level reconfigurations for autonomic management of distributed network services

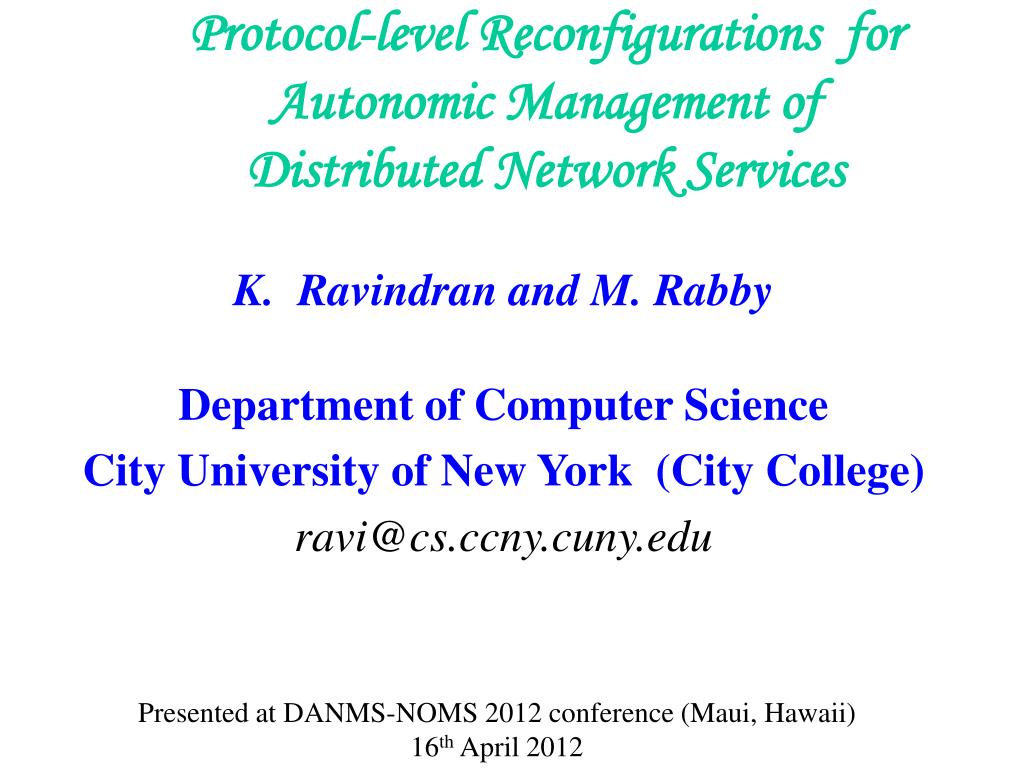

Protocol-level Reconfigurations forAutonomic Management ofDistributed Network Services

K. Ravindran and M. Rabby

Department of Computer Science

City University of New York (City College)

[email protected]

Presented at DANMS-NOMS 2012 conference (Maui, Hawaii)

16th April 2012

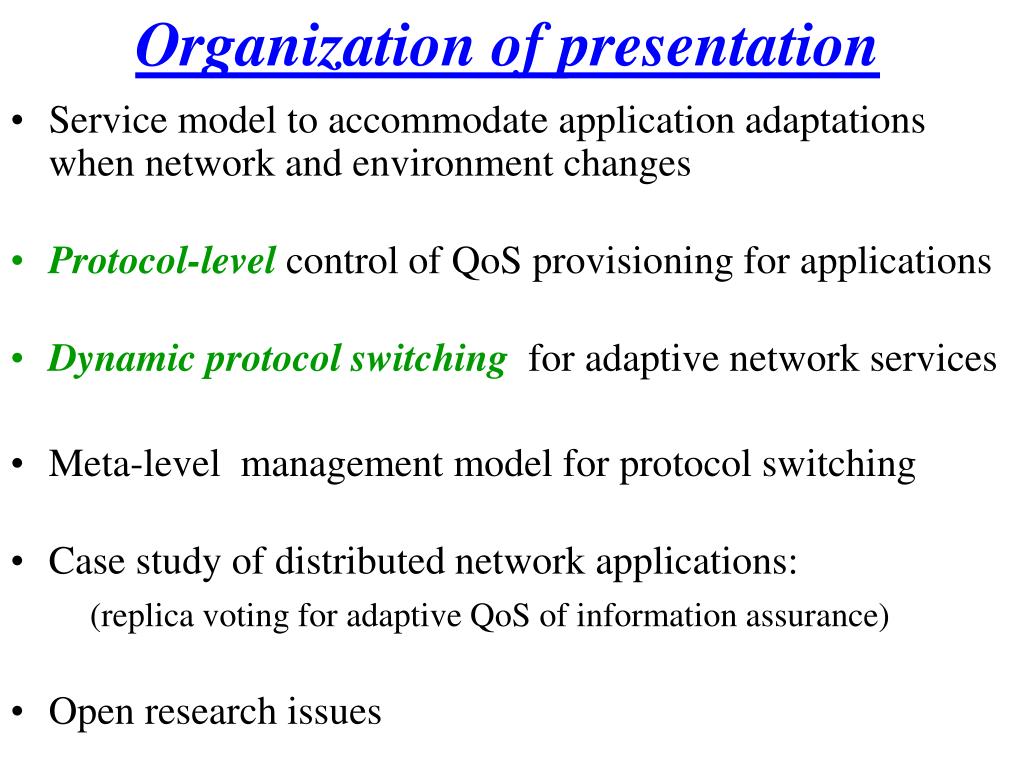

Organization of presentation

Organization of presentation

  • Service model to accommodate application adaptations when network and environment changes

  • Protocol-level control of QoS provisioning for applications

  • Dynamic protocol switching for adaptive network services

  • Meta-level management model for protocol switching

  • Case study of distributed network applications:

    (replica voting for adaptive QoS of information assurance)

  • Open research issues


Protocol level reconfigurations for autonomic management of distributed network services

OUR BASIC MODEL OF

SERVICE-ORIENTED NETWORKS


Adaptive distributed applications

Applications have the ability to:

^^ Determine the QoS received from

system infrastructure

^^ Adjust its operational behavior by

changing QoS expectations

Adaptive distributed applications

(e.g., airborne police networks,

edge-managed Internet paths)

system

infrastructure

notify resource

changes

Adjust QoS

expectation

Service-oriented protocol

Application

external

environment

incidence

of hostile

conditions

notify QoS

offering


Protocol level reconfigurations for autonomic management of distributed network services

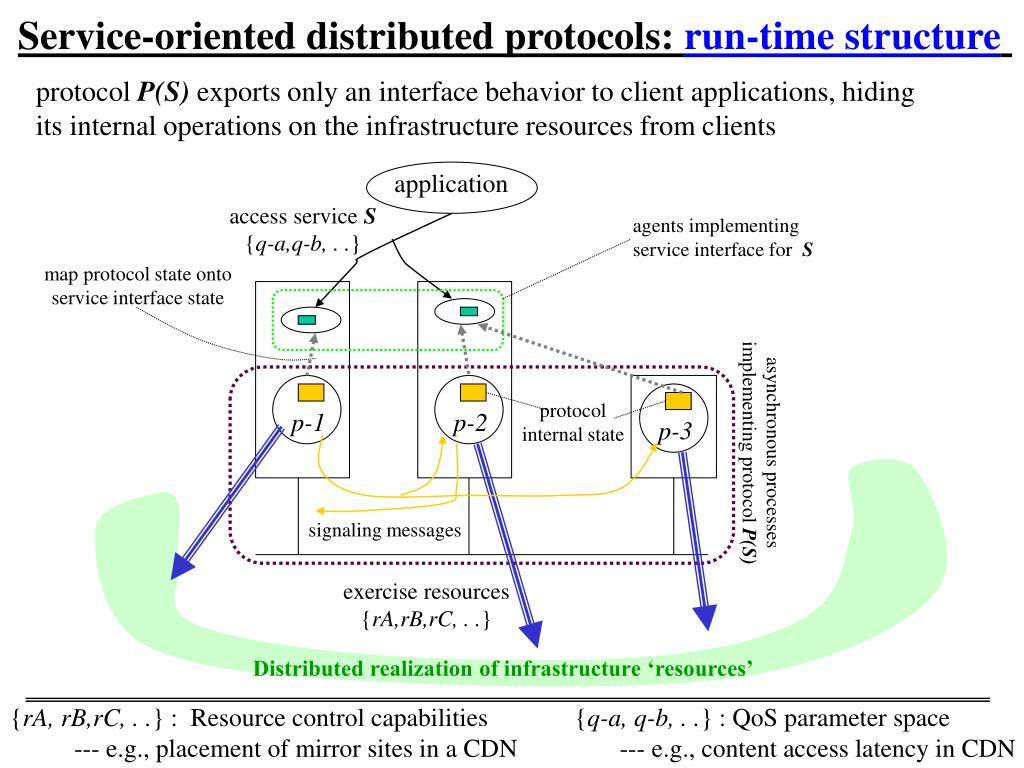

Service-oriented distributed protocols: run-time structure

protocol P(S) exports only an interface behavior to client applications, hiding

its internal operations on the infrastructure resources from clients

application

access service S

{q-a,q-b, . .}

agents implementing

service interface for S

map protocol state onto

service interface state

protocol

internal state

p-1

p-2

p-3

asynchronous processes

implementing protocol P(S)

signaling messages

exercise resources

{rA,rB,rC, . .}

Distributed realization of infrastructure ‘resources’

{rA, rB,rC, . .} : Resource control capabilities

--- e.g., placement of mirror sites in a CDN

{q-a, q-b, . .} : QoS parameter space

--- e.g., content access latency in CDN


What is our granularity of network service composition

PROTOCOL !!

What is our granularity of network service composition ?

  • A protocol exports only an interface behavior to client applications, hiding its

  • Internal operations on the infrastructure resources from clients

  • Examples: 1. ‘reliable data transfer’ service

  •  TCP is the underlying protocol

  • 2. ‘data fusion’ service

  •  multi-sensor voting is the underlying protocol

  • 3. ‘wide-area content distribution’

  •  content push/pull across mirror sites is the underlying protocol

  • Given a network application, different types/variants of protocols are possible

  • (they exercise network resources in different ways, while providing a given service

  • A protocol good in one operating region of network may not be good in another region

  • “one size does not fit all”

  • choose an appropriate protocol based on the currently prevailing resource

    and environment conditions (dynamic protocol switching)


Protocol level reconfigurations for autonomic management of distributed network services

Management view of distributed protocol services

Client application

invoke service S(a)

match QoS achieved (a’)

with desired QoS (a)

a: desired

QoS parameters

service interface

(realized by agents)

Service-level

management module

(SMM)

reconfiguration policies,

adaptation rules

service

binding

invoke

protocol

service

binding

P1(S)

P2(S)

.

.

.

.

NETWORK

SERVICE

PROVIDER

hostile external

environment

(e)

p33

p13

p22

p12

p21

p11

protocol selection,

QoS-to-resource mapping, . .

exercise resources

r=F(a,e)

. .

P1(S), P2(S) : Protocols capable of

providing service S

INFRASTRUCTURE

RESOURCES

pi1,pi2,pi3, . . : Distributed processes of

protocol Pi(S), exercising the

infrastructure resources --- i=1,2


Protocol level reconfigurations for autonomic management of distributed network services

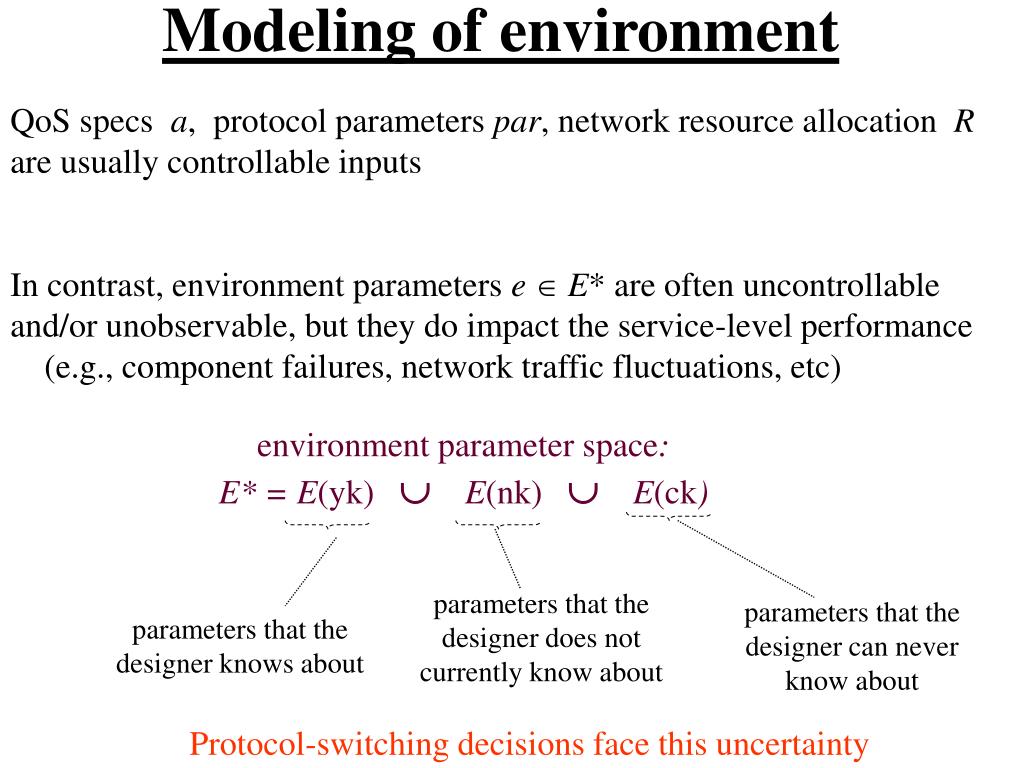

Modeling of environment

QoS specs a, protocol parameters par, network resource allocation R

are usually controllable inputs

In contrast, environment parameters e  E* are often uncontrollable

and/or unobservable, but they do impact the service-level performance

(e.g., component failures, network traffic fluctuations, etc)

environment parameter space:

E* = E(yk) E(nk)  E(ck)

parameters that the

designer does not

currently know about

parameters that the

designer can never

know about

parameters that the

designer knows about

Protocol-switching decisions face this uncertainty


What is the right protocol to offer a sustainable service assurance

What is the right protocol to offer asustainable service assurance ?

Service goals: Robustness against hostile environment conditions

 Max. performance with currently available resources

These two goals often conflict with each other !!

A highly robust protocol is heavy-weight, because it makes pessimistic assumptions

about the environment conditions

 protocol is geared to operate as if system failures are going to occur

at any time, and is hence inefficient under normal cases of operations

A protocol that makes optimisticassumptions about environment conditions achieves good performance under normal cases, but is less robust to failures

 protocol operates as if failures will never occur, and are only geared to

recover from a failure after-the-fact (so, recovery time may be unbounded)

Need both types of protocols, to meet the performance and robustness requirements


Protocol level reconfigurations for autonomic management of distributed network services

EXAMPLE APPLICATION 1:

CONTENT DISTRIBUTION NETWORK


Protocol level reconfigurations for autonomic management of distributed network services

CONTENT DISTRIBUTION NETWORK

U({p-a,

p-b})

client

2

environment (E*)

L: latency specs to

CDN system

L’: latency monitored

as system output

client traffic & mobility,

content dynamics, . .

client

3

latency monitor agent 3

content pages

p-a

content

updates

server

R

p-b

pa

pb

Application layer

[latency spec, content

publish-subscribe,

adaptation logic]

sub(Pb)

sub(Pa)

client

1

p-b

content

server

R

clients

c3

c1

c2

U({p-b})

agent 1

z

control logic

Content access

service interface

y

q

L

L’

Layered

View

pull pa,pb

push

pa,pb

u

z

Service-layer

[adaptive algorithm

for content push/pull

to/from proxy nodes]

q

y

x

u

U({p-a,

p-b})

w

x

w

v

v

agent 2

exercise resourcs

p-a

p-b

Infrastructure interface

z

Network infrastructure

[overlay tree as

distribution topology,

node/network resources]

q

Content-forwarding proxy node

y

u

Content push/pull-capable proxy node

Proxy-capable node & interconnection

w

x

U({x}):

update message for pages {x}

v

Local access link


Protocol level reconfigurations for autonomic management of distributed network services

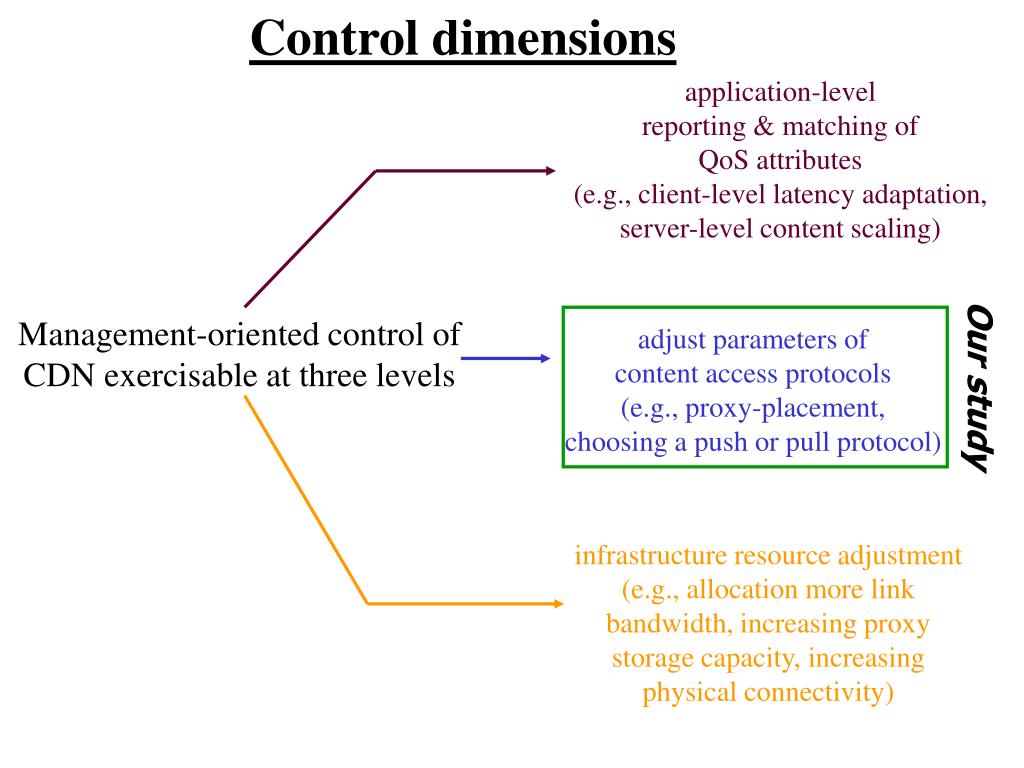

Control dimensions

application-level

reporting & matching of

QoS attributes

(e.g., client-level latency adaptation,

server-level content scaling)

Management-oriented control of

CDN exercisable at three levels

adjust parameters of

content access protocols

(e.g., proxy-placement,

choosing a push or pull protocol)

Our study

infrastructure resource adjustment

(e.g., allocation more link

bandwidth, increasing proxy

storage capacity, increasing

physical connectivity)


Protocol level reconfigurations for autonomic management of distributed network services

Client-driven update scheme (time-stamps without server query)

PULL protocol

client

proxy X(S)

server S

request(p)

GTS=1

(LTS=1,GTS=1)

lc >> ls

content(p)

(local copy)

lc:client access rate

request(p)

ls:server update rate

content(p)

TIME

request(p)

GTS=2

content(p)

update_TS(p,2)

(page changes)

(LTS=1,GTS=2)

request(p)

get_page(p)

update_page(p)

content(p)

(LTS=2,GTS=2)

request(p)

(updated local copy)

.

.

content(p)

GTS=3

(page changes)


Protocol level reconfigurations for autonomic management of distributed network services

Server-driven update scheme (PUSH protocol)

server S

client

proxy X(S)

lc << ls

(page changes)

(local copy)

update_page(p)

request(p)

content(p)

update_page(p)

TIME

update_page(p)

update_page(p)

update_page(p)

update_page(p)

request(p)

content(p)


Protocol level reconfigurations for autonomic management of distributed network services

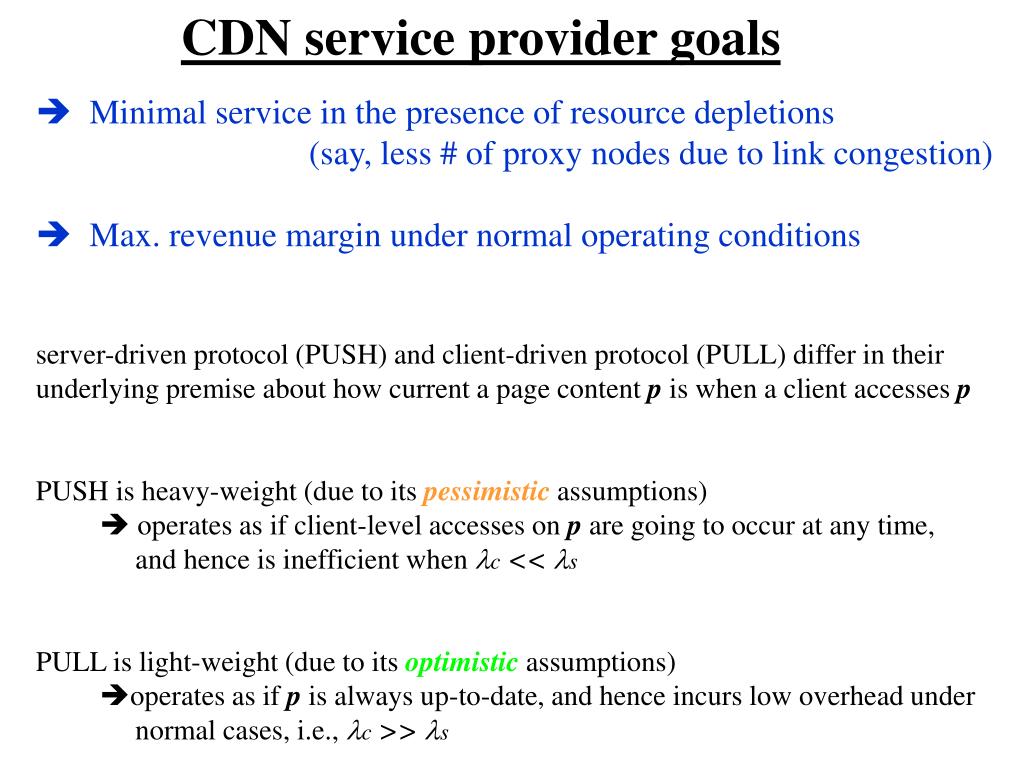

CDN service provider goals

 Minimal service in the presence of resource depletions

(say, less # of proxy nodes due to link congestion)

 Max. revenue margin under normal operating conditions

server-driven protocol (PUSH) and client-driven protocol (PULL) differ in their

underlying premise about how current a page content p is when a client accesses p

PUSH is heavy-weight (due to its pessimistic assumptions)

 operates as if client-level accesses on p are going to occur at any time,

and hence is inefficient when lc << ls

PULL is light-weight (due to its optimistic assumptions)

operates as if p is always up-to-date, and hence incurs low overhead under

normal cases, i.e., lc >> ls


Protocol level reconfigurations for autonomic management of distributed network services

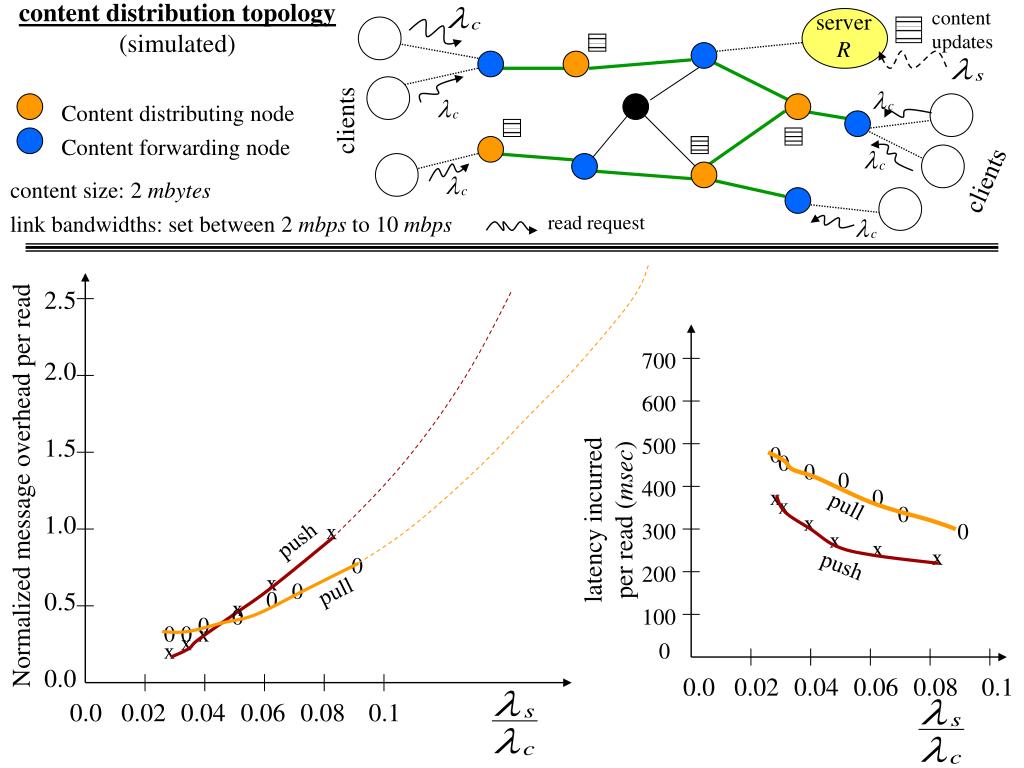

content distribution topology

(simulated)

content

updates

server

R

Content distributing node

clients

Content forwarding node

clients

content size: 2 mbytes

link bandwidths: set between 2 mbps to 10 mbps

read request

2.5

700

2.0

600

1.5

500

0

0

0

0

Normalized message overhead per read

400

x

0

latency incurred

per read (msec)

x

pull

0

1.0

x

x

300

0

push

x

x

x

0

push

200

x

0

pull

0.5

0

x

0

100

0

0

0

x

x

x

0

0.0

0.0

0.02

0.04

0.06

0.08

0.1

0.0

0.02

0.04

0.06

0.08

0.1


Protocol level reconfigurations for autonomic management of distributed network services

Situational-context based proxy protocol control

T(V’,E’)

G(V,E)

Base topology

(from network map of US carriers):

|V’|: 280 nodes;

226 client clusters

Average # of hops traversed

by a client request: 4

(a)

o

x

2.5

Normalized

cost-measure

(overhead)

o

A: greedy

x

o

2.0

o

x

1.5

x

A: genetic

1.0

0.5

0

5%

10%

20%

30%

A: Optimization algorithm

employed for computing

proxy placement

percentage of nodes used as content distributing proxies

(b)

client demographics, cloud leases,

QoE, node/link status, . .

parametric description of

client workloads & QoS specs

traffic

bursts

Context & Situational

assessment module

request arrivals

from clients i, j, k

(different content size/type)

li, lj, lk

task planning

& scheduling

Model-based

estimation of

overhead/latency

node/link

outages

set of nodes &

interconnects

[G(V,E), costs,

policy/rules, . .]

signal

g, stable e

task events

(based on combined

client request

arrival specs)

plug-in of

CDN model

CDN

simulator

Controller

place proxies

V”V’ to

reduce e

[tree T(V’,E’)

G(V,E), A]

schedule tasks

to resources at

proxy nodes

QoS

specs

g[L,O]

error

e= g-g’

[optimal methods for

“facility placement”

(greedy,

evolutionary, . .)]

observed

QoS g’

state feedback (node/link usage)


Protocol level reconfigurations for autonomic management of distributed network services

EXAMPLE APPLICATION 2:

MULTI-SENSOR DATA FUSION


Protocol level reconfigurations for autonomic management of distributed network services

Fault-tolerance in sensor data collection

Modified 2-phase commit protocol (M2PC)

environment (E*)

device attacks/faults,

network message loss,

device asynchrony, . .

USER

QoS-oriented spec:

data miss ratez

how often[TTC > D]??

Data fusion

application

deliver data

(say, d-2, later)

sensor devices,

data end-user

data delivery

service interface

(data integrity

& availability)

vote collator

(message-

transport

network)

replica voting

apparatus

propose

data

Replica voting

protocol

(fault detection,

asynchrony control)

Voting service

Layered View

YES

YES

NO

voter

2

voter

N

. .

voter

1

voter

3

faulty

d-1

d-2

d-3

d-N

maintenance of

device replicas

(device heterogeneity, message security)

raw data collected from

external world sensors (e.g., radar units)

infrastructure

YES/NO:

consent/dissent vote

N: degree of replication

fm: Max. # of devices that are assumed as vulnerable to failure

(1fm< N/2 )

fa: # of devices that actually fail (0 fa fm)

D: timeliness constraint on data; TTC: observed time-to-deliver data


Protocol level reconfigurations for autonomic management of distributed network services

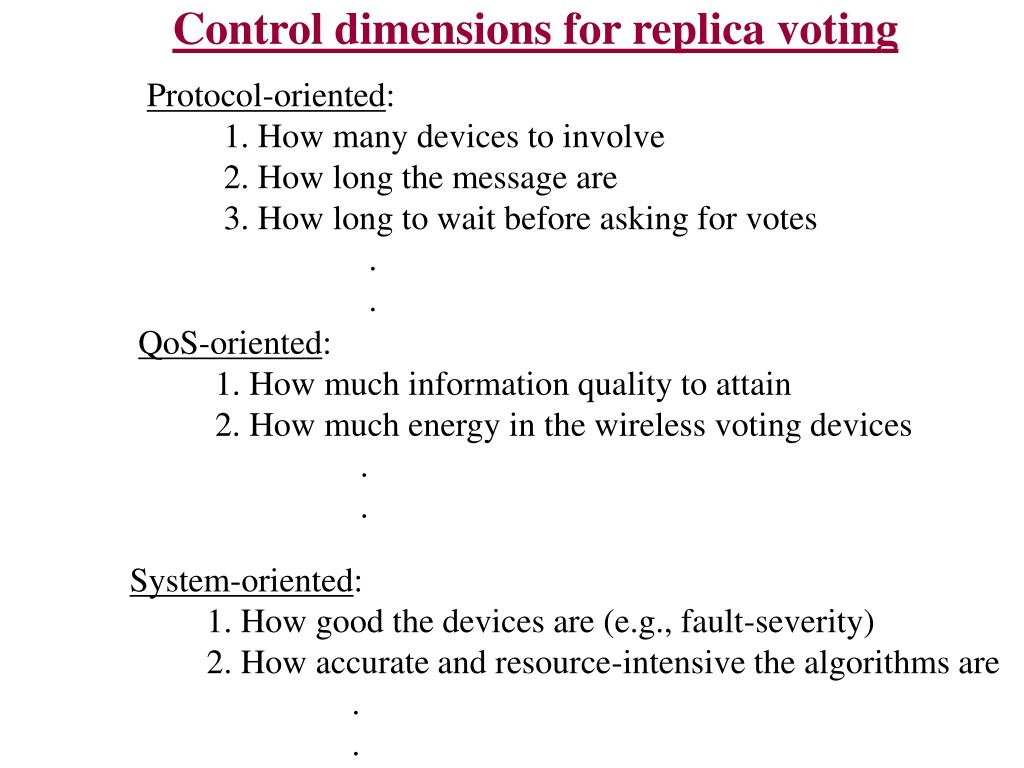

Control dimensions for replica voting

Protocol-oriented:

1. How many devices to involve

2. How long the message are

3. How long to wait before asking for votes

.

.

QoS-oriented:

1. How much information quality to attain

2. How much energy in the wireless voting devices

.

.

System-oriented:

1. How good the devices are (e.g., fault-severity)

2. How accurate and resource-intensive the algorithms are

.

.


Protocol level reconfigurations for autonomic management of distributed network services

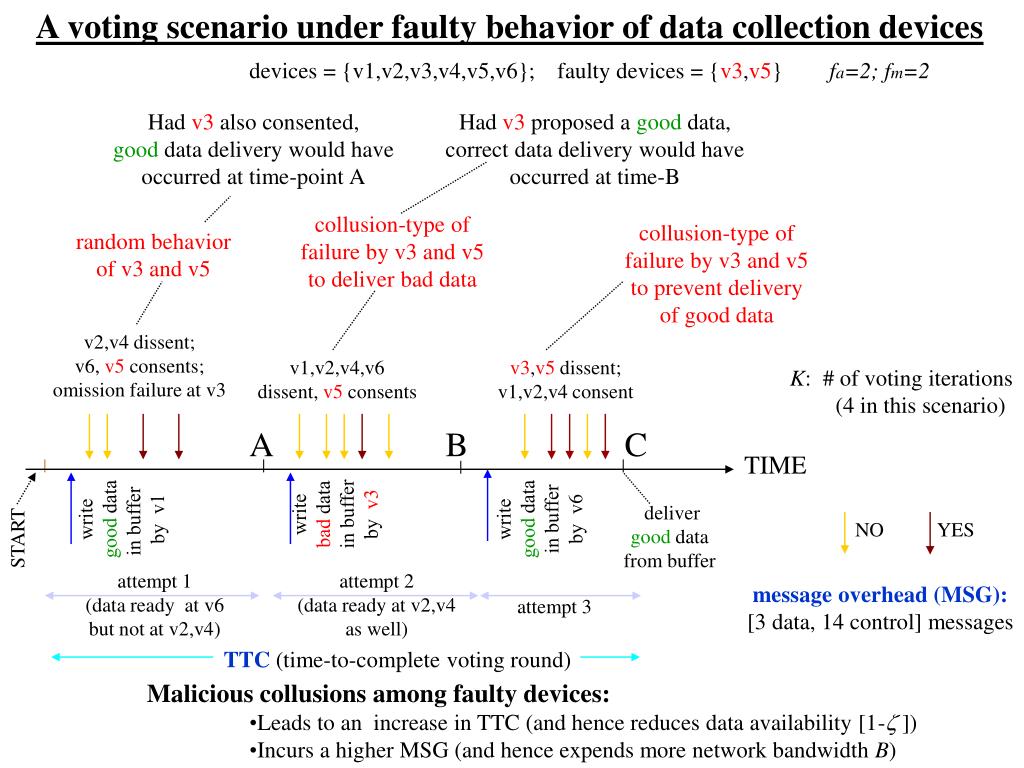

A voting scenario under faulty behavior of data collection devices

devices = {v1,v2,v3,v4,v5,v6}; faulty devices = {v3,v5}

fa=2; fm=2

Had v3 also consented,

good data delivery would have

occurred at time-point A

Had v3 proposed a good data,

correct data delivery would have

occurred at time-B

collusion-type of

failure by v3 and v5

to deliver bad data

collusion-type of

failure by v3 and v5

to prevent delivery of good data

random behavior

of v3 and v5

v2,v4 dissent;

v6, v5 consents;

omission failure at v3

v1,v2,v4,v6

dissent, v5 consents

v3,v5 dissent;

v1,v2,v4 consent

K: # of voting iterations

(4 in this scenario)

A

B

C

TIME

write

bad data

in buffer

by v3

write

good data

in buffer

by v1

write

good data

in buffer

by v6

deliver

good data

from buffer

NO

YES

START

attempt 1

(data ready at v6

but not at v2,v4)

attempt 2

(data ready at v2,v4

as well)

message overhead (MSG):

[3 data, 14 control] messages

attempt 3

TTC (time-to-complete voting round)

  • Malicious collusions among faulty devices:

    • Leads to an increase in TTC (and hence reduces data availability [1-z ])

    • Incurs a higher MSG (and hence expends more network bandwidth B)


Observations on m2pc scenario

Observations on M2PC scenario

^^ Large # of control message exchanges: worst-case overhead = (2fm+1).N

[too high when N is large, as in sensor networks]

 Not desirable in wireless network settings, since excessive message

transmissions incur a heavy drain on battery power of voter terminals

In the earlier scenario of N=6 and fa=2,

# of YES messages = 7, # of NO messages =12

^^ Integrity of data delivery is guaranteed even under severe failures

(i.e., a bad data is never delivered)

 Need solutions that reduce the number of control messages generated


Protocol level reconfigurations for autonomic management of distributed network services

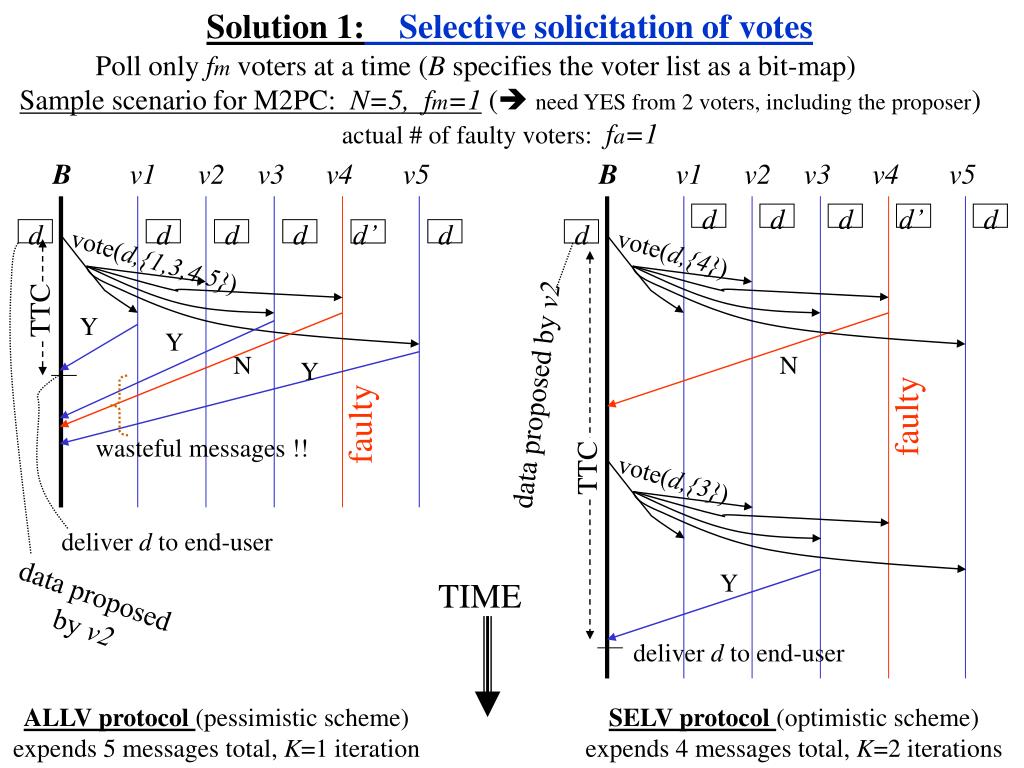

Solution 1: Selective solicitation of votes

d

d

d

d

d

d

d

d

d

vote(d,{4})

Poll only fm voters at a time (B specifies the voter list as a bit-map)

Sample scenario for M2PC: N=5, fm=1 ( need YES from 2 voters, including the proposer)

actual # of faulty voters: fa=1

B

v1

v2

v3

v4

v5

B

v1

v2

v3

v4

v5

d’

d’

d

vote(d,{1,3,4,5})

TTC

Y

Y

N

N

Y

data proposed by v2

faulty

faulty

wasteful messages !!

TTC

vote(d,{3})

deliver d to end-user

Y

TIME

data proposed

by v2

deliver d to end-user

ALLV protocol (pessimistic scheme)

expends 5 messages total, K=1 iteration

SELV protocol (optimistic scheme)

expends 4 messages total, K=2 iterations


Protocol level reconfigurations for autonomic management of distributed network services

Analytical results

N=8

(ALLV) = 7.0

fm

(SELV)

1

1.29

: mean number of

voting iterations per round

2

3.29

3

6.20

N=7

(ALLV) = 6.0

fm

(SELV)

1

1.33

2

3.53

3

6.95

N=9

(ALLV) = 8.0

fm

(SELV)

1

1.25

2

3.11

3

5.70

4

9.16

N=6

(ALLV) = 5.0

N=5

(ALLV) = 4.0

fm

(SELV)

fm

(SELV)

1

1.40

1

1.50

2

3.90

2

4.50


Protocol level reconfigurations for autonomic management of distributed network services

Solution 2:

Implicit Consent Explicit Dissent(IC-M2PC) mode of voting

NO NEWS IS GOOD NEWS !!

A voter consents by keeping quiet; dissents by sending NO message

(in earlier scenario, saving of 7 YES messages)

IC-M2PC mode lowers control message overhead significantly when:

^^s(Tp) is small many voters generate data at around the same time Tp

^^fm« N/2  only a very few voters are bad (but we don’t

know who they are !!)

worst-case control message overhead: O(fm .N ) for 0 < c < 1.0

c

Employ implicit forms of vote inference

depends on choice of vote solicitation time


Protocol level performance and correctness issues

Protocol-level performance and correctness issues

Under strenuous failure conditions, the basic form of

IC-M2PC entails safety risks (i.e., possibility of delivering incorrect data)

normal-caseperformanceis meaningless unless the protocols are

augmented to handle correctness problems may occasionally occur !!


Protocol level reconfigurations for autonomic management of distributed network services

IC-M2PC mode

2.T

net

T : maximum message

transfer delay

net

buffer

manager

voter 1

(good)

voter 2

(good)

voter 3

(bad)

M2PC mode(reference protocol)

VOT_RQ

(d’)

d’

d1

d2

buffer

manager

voter 1

(good)

voter 2

(good)

voter 3

(bad)

NO

NO

VOT_RQ

(d’)

d1

d’

d2

decide to

deliver d’ to user

NO

YES

‘safety’ violation !!

NO

decide to

not deliver d’ to user

optimistic protocol

(i.e., ‘NO NEWS IS GOOD NEWS’)

^^ very efficient, when message loss is small, delays have

low variance, and fm << N/2 --- as in normal cases

^^ need voting history checks after every M rounds before

actual data delivery, where M > 1

message overhead:O(N.fm/M); TTC is somewhat high

message overhead:O(N^2); TTC is low


Protocol level reconfigurations for autonomic management of distributed network services

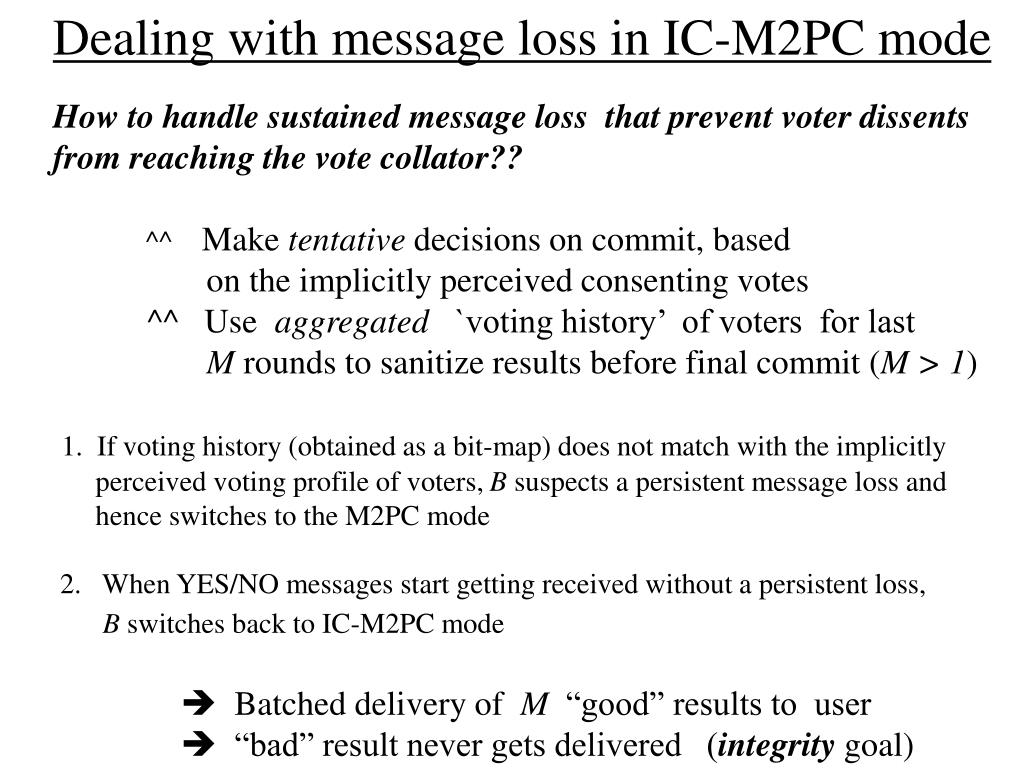

Dealing with message loss in IC-M2PC mode

How to handle sustained message loss that prevent voter dissents

from reaching the vote collator??

^^ Make tentative decisions on commit, based

on the implicitly perceived consenting votes

^^ Use aggregated `voting history’ of voters for last

M rounds to sanitize results before final commit (M > 1)

1. If voting history (obtained as a bit-map) does not match with the implicitly

perceived voting profile of voters, B suspects a persistent message loss and

hence switches to the M2PC mode

2. When YES/NO messages start getting received without a persistent loss,

B switches back to IC-M2PC mode

 Batched delivery of M “good” results to user

 “bad” result never gets delivered (integrity goal)


Protocol level reconfigurations for autonomic management of distributed network services

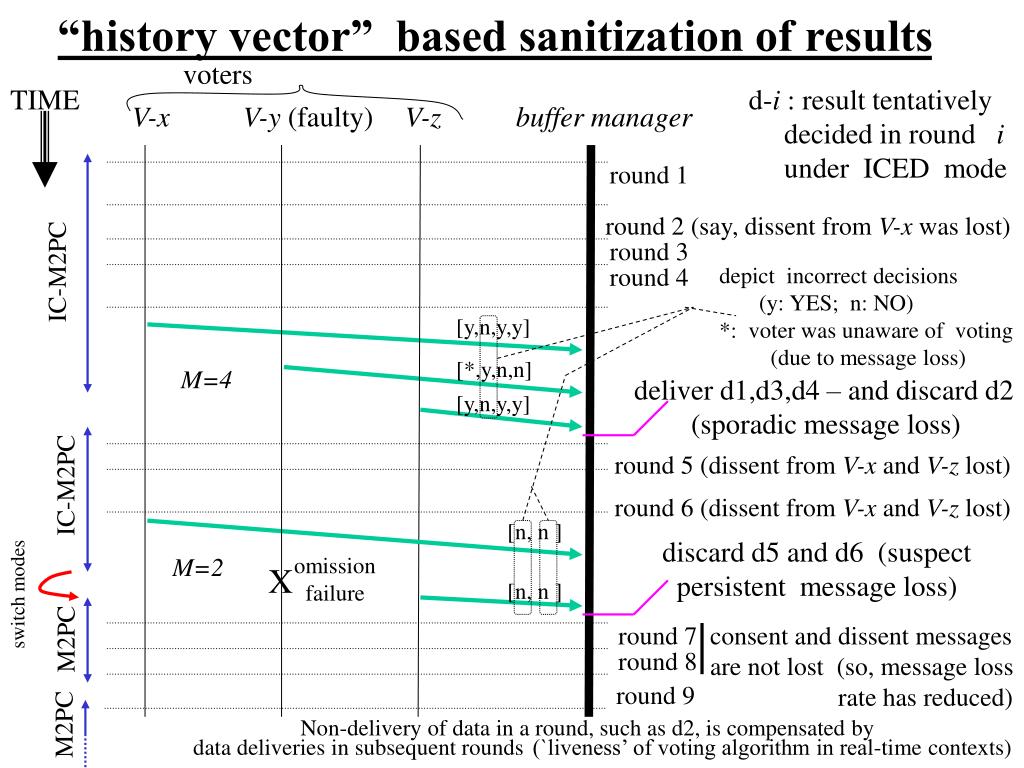

“history vector” based sanitization of results

voters

TIME

d-i : result tentatively

decided in round i

under ICEDmode

V-x

V-y (faulty)

V-z

buffer manager

round 1

round 2 (say, dissent from V-x was lost)

round 3

IC-M2PC

round 4

depict incorrect decisions

(y: YES; n: NO)

*: voter was unaware of voting

(due to message loss)

[y,n,y,y]

[*,y,n,n]

deliver d1,d3,d4 – and discard d2

(sporadic message loss)

[y,n,y,y]

round 5 (dissent from V-x and V-z lost)

IC-M2PC

round 6 (dissent from V-x and V-z lost)

[n, n ]

discard d5 and d6 (suspect

persistent message loss)

omission

failure

X

[n, n ]

switch modes

round 7

consent and dissent messages

are not lost (so, message loss

rate has reduced)

M2PC

round 8

round 9

M2PC

Non-delivery of data in a round, such as d2, is compensated by

data deliveries in subsequent rounds(`liveness’ of voting algorithm in real-time contexts)

M=4

M=2


Control actions during voting

Control actions during voting

num_YES/NO: # ofvoters from which

YES/NO responses are received

for data in proposal buffer tbuf

M2PC mode:

if (num_YES fm)

deliver data from tbuf to user

IC-M2PC mode

upon timeout 2T since start of current voting iteration

if (num_NO < N-fm)

optimistically treat data in tbuf as (tentatively) deliverable

if (# of rounds completed so far = M)

invoke “history vector”-based check for last M rounds

Both M2PC and IC-M2PC

if num_NO (N-fm)

discard data in tbuf

if (# of iterations completed so far < 2fm)

proceed to next iteration

else

declare a ‘data miss’ in current round


Protocol level reconfigurations for autonomic management of distributed network services

Experimental study to compare M2PC and IC-M2PC

IC-M2PC

M2PC

fm: Assumed # of faulty devices

N=10;

# of YES votes needed = 6;

s(Tp)=50 mec; m(Tp)=50 msec;

data size = 30 kbytes

control message size = 50 bytes

network loss l=0%

network loss l=2%

network loss l=4%

450

z

400

TTC (in msec)

z

z

300

z

z

z

z

z

x

x

x

z

z

x

z

x

x

x

200

x

z

x

x

x

x

150

0

DAT overhead

(# of data proposals)

3

z

x

z

x

z

x

z

x

x

z

z

x

z

x

x

x

2

z

x

x

z

z

x

z

z

1

0

25

x

x

CNTRL overhead

(votes, data/vote

requests, etc)

x

20

x

x

x

x

x

x

z

z

15

z

x

x

z

z

z

10

x

z

z

z

z

z

z

5

0

1

2

3

4

1

2

3

4

1

2

3

4

fm

fm

fm


Protocol level reconfigurations for autonomic management of distributed network services

analytical results of IC-M2PC from probabilistic estimates

To keep z < 2%,

fm=1-3 requires l < 4%;

fm=4 requires l <1.75%.

N=10, Q=5, s(Tp)=50 msec, Tw=125 msec

(Q: # of YES votes awaited in IC-M2PC mode)

0.25

Establishes the mapping of

agent-observed parameter z onto

infrastructure-internal parameters l and fa

0.20

fm=4

data miss rate

at end-user level

(z ) X 10^2 %

0.15

0.10

fm=3

0.05

fa: actual # of

failed devices

(we assume

that fa=fm)

fm=2

fm=1

0.0

0.0

0.02

0.04

0.06

0.08

message loss rate (l) X 10^2 %

Sample switching between M2PC and IC-M2PC modes

EXPLICITmode

30

EXPLICITmode

protocol mode

Number of

messages

20

10

IMPLICIT

mode

IMPLICIT

mode

IMPLICIT

mode

0

sustained

attacks

10%

changes in

network state

6%

message

loss rate in

network

2%

0

0%

0

168

337

509

680

856

1027

1203

Time (in seconds)


Protocol level reconfigurations for autonomic management of distributed network services

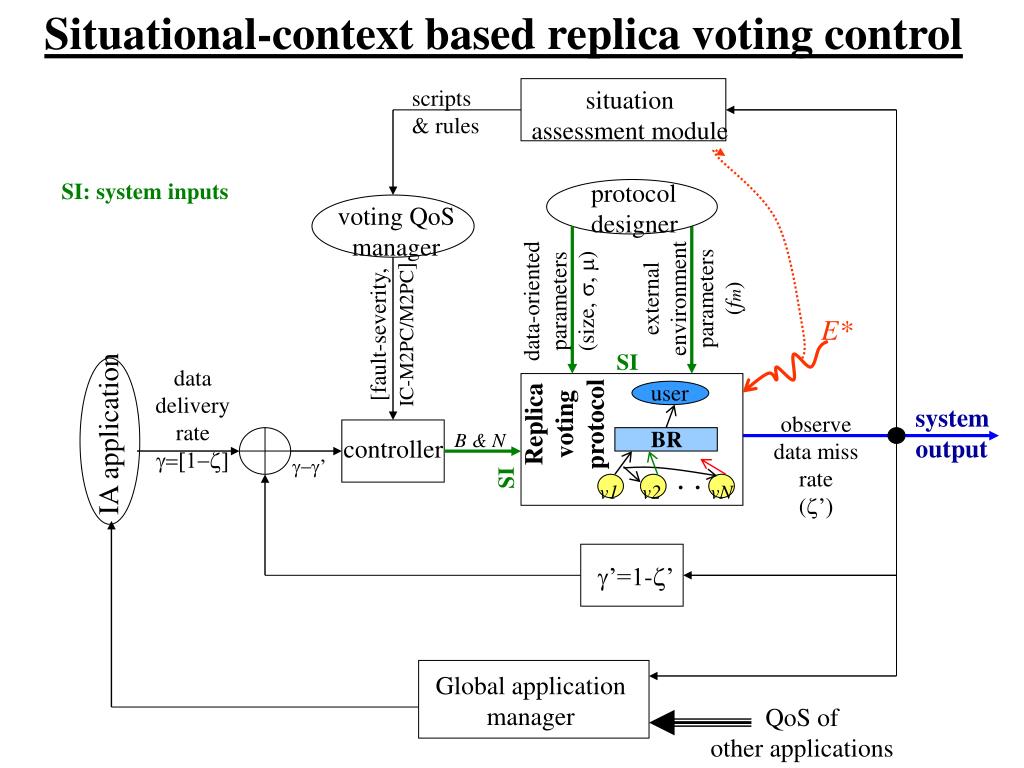

Situational-context based replica voting control

scripts

& rules

situation

assessment module

SI: system inputs

protocol

designer

voting QoS

manager

external

environment

parameters

(fm)

data-oriented

parameters

(size, s, m)

[fault-severity,

IC-M2PC/M2PC]

E*

SI

data

delivery

rate

g=[1-z]

Replica

voting

protocol

user

system

output

observe

data miss

rate

(z’)

IA application

BR

B & N

controller

g-g’

. .

SI

v1

v2

vN

g’=1-z’

Global application

manager

QoS of

other applications


Protocol level reconfigurations for autonomic management of distributed network services

OUR MANAGEMENT MODEL FOR

AUTONOMIC PROTOCOL SWITCHING

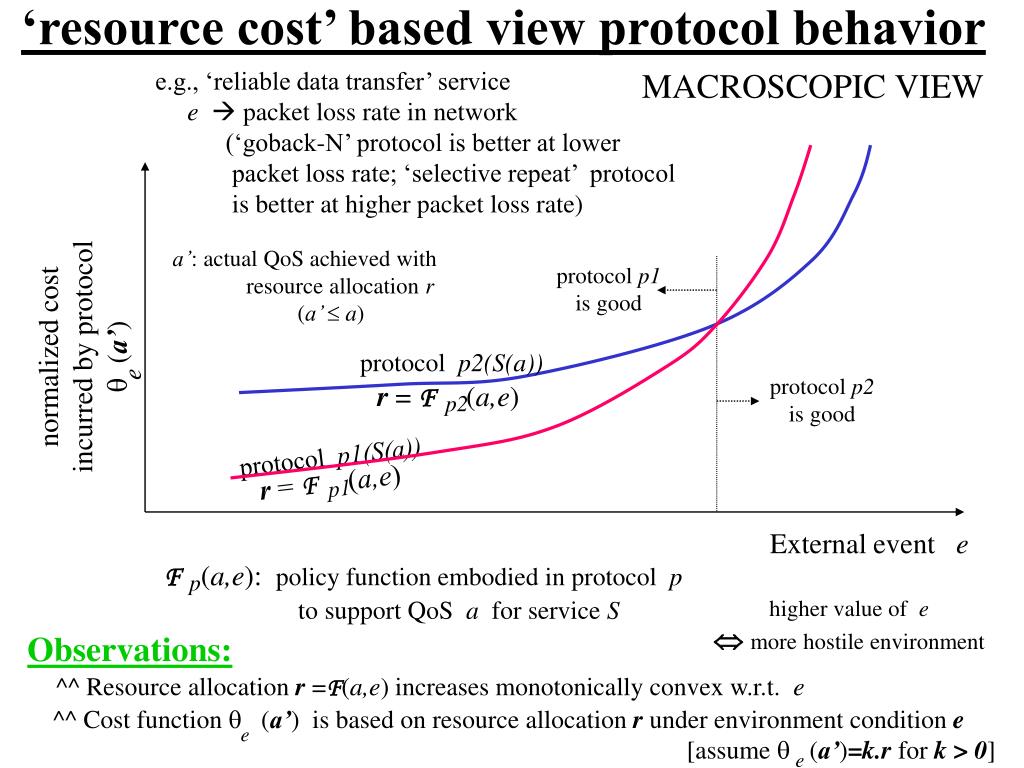

Resource cost based view protocol behavior

normalized cost

incurred by protocol

q (a’)

protocol p2(S(a))

e

r = F (a,e)

p2

protocol p1(S(a))

r = F (a,e)

p1

F (a,e): policy function embodied in protocol p

to support QoS a for service S

p

Observations:

^^ Resource allocation r =F(a,e) increases monotonically convex w.r.t. e

^^ Cost function q (a’) is based on resource allocation r under environment condition e

[assumeq (a’)=k.r for k > 0]

e

e

e.g., ‘reliable data transfer’ service

e packet loss rate in network

(‘goback-N’ protocol is better at lower

packet loss rate; ‘selective repeat’ protocol

is better at higher packet loss rate)

MACROSCOPIC VIEW

‘resource cost’ based view protocol behavior

a’: actual QoS achieved with

resource allocation r

(a’  a)

protocol p1

is good

protocol p2

is good

External event e

higher value of e

more hostile environment


Penalty measure for service degradation

Degree of service (un)availability is also modeled as a cost

penalty measure for “service degradation”

1.0

utility value of

network service

u(a’)

higher value of a

better QoS

0.0

0.0

service-level

QoS enforced

(a’)

Areq

Amin

Amax

penalty measured as

user-level dissatisfaction

a’

0.0

net penalty assigned to service = k1.[1-u(a,a’)] +k2.q (a’)fork1, k2 > 0

e

infrastructure resource cost for

providing service-level QoS a’

user displeasure due to the actual QoS a’

being lower than the desired QoS a

[r=F(a’,e)]


Protocol level reconfigurations for autonomic management of distributed network services

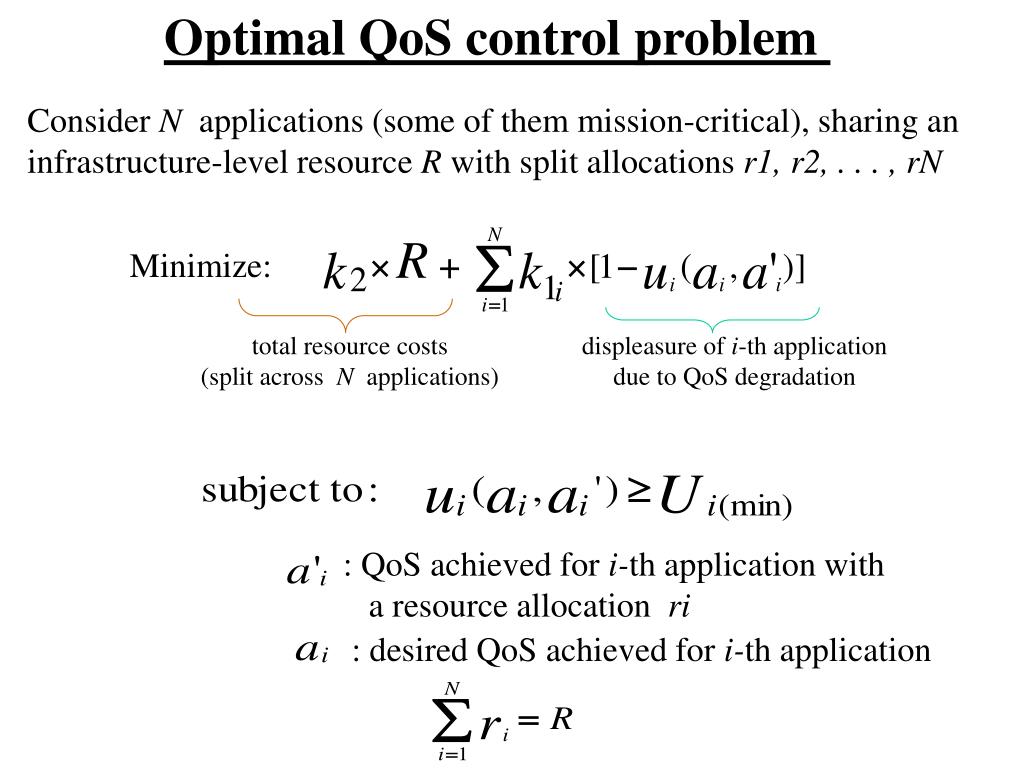

Optimal QoS control problem

Consider N applications (some of them mission-critical), sharing an

infrastructure-level resource R with split allocations r1, r2, . . . , rN

Minimize:

total resource costs

(split across N applications)

displeasure of i-th application

due to QoS degradation

: QoS achieved for i-th application with

a resource allocation ri

: desired QoS achieved for i-th application


Policy based realizations in our management model

Policy-based realizations in our management model

  • ‘outsourced’ implementation

    Network application requests policy-level

    decision from management module

    (say, a business marketing executive, or a military

    commander may be a part of management module)

  • User-interactive implementation

    Application-level user interacts with

    management module to load and/or

    modify policy functions


Protocol level reconfigurations for autonomic management of distributed network services

Design issues in supporting our management model^^ Prescription of ‘cost relations’ to estimate projected resource costs of various candidate protocols^^ Development of ‘protocol stubs’ that map the internal states of a protocol onto the service-level QoS parameters^^ Strategies to decide on protocol selection to provide a network service^^ Engineering analysis of protocol adaptation/reconfiguration overheads and ‘control-theoretic’ stability during service provisioning (i.e., QoS jitter at end-users) ^^ QoS and security considerations, wireless vs wired networks, etc


  • Login
