Geometry Review Warm up

Geometry Review Warm up. In your own words write a definition for the following terms: Point

ulric
Download Presentation

Geometry Review Warm up

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Geometry Review Warm up In your own words write a definition for the following terms: Point • the most fundamental object in geometry. It is represented by a dot and named by a capital letter. A point represents position only; it has zero size (that is, zero length, zero width, and zero height). Line • a basic undefined term of Geometry. Lines extend indefinitely and have no thickness or width. In a figure lines are often showed with arrows at each end. Lines are usually named by a lower case script letters or by two uppercase letters with a line with a double arrows above it. Plane • A flat surface extending in all directions. Any three noncollinear points lie on one and only one plane. So do any two distinct intersecting lines. A plane is a two-dimensional figure named with 3 capital letters (representing the names of 3 points not on the same line) and the word plane in front. Example: Plane ABC Collinear • points, segments or rays on the same line. Coplanar • points, lines, segments, or rays on the same plane.

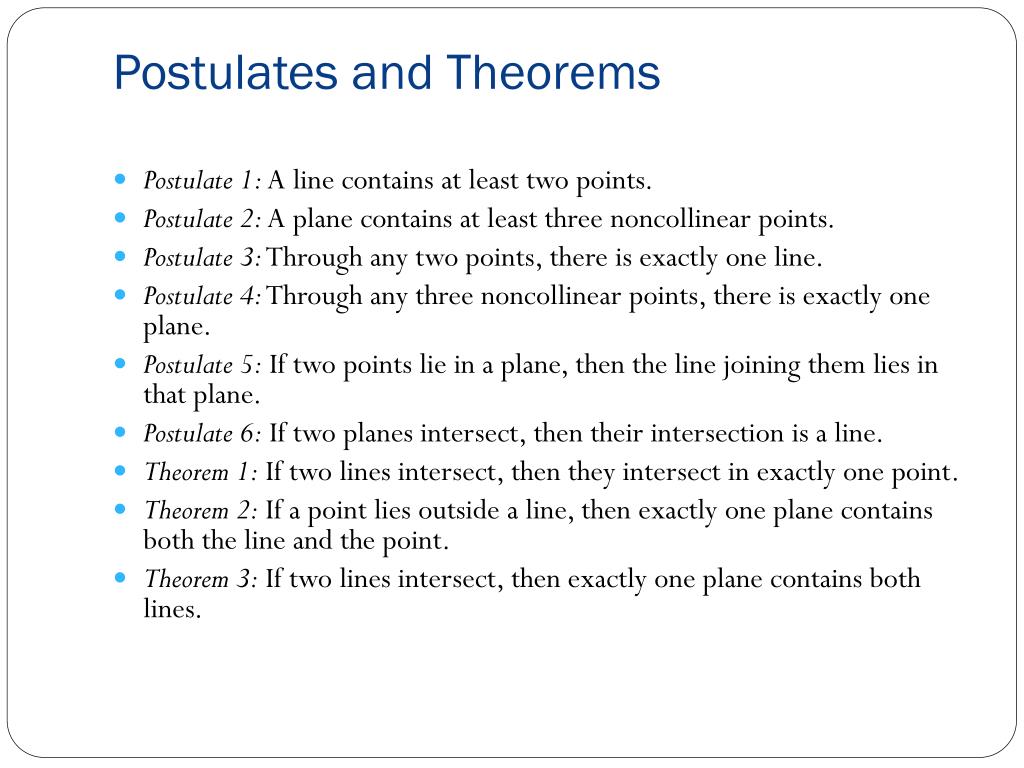

  2. Postulates and Theorems • Postulate 1: A line contains at least two points. • Postulate 2: A plane contains at least three noncollinear points. • Postulate 3: Through any two points, there is exactly one line. • Postulate 4: Through any three noncollinear points, there is exactly one plane. • Postulate 5: If two points lie in a plane, then the line joining them lies in that plane. • Postulate 6: If two planes intersect, then their intersection is a line. • Theorem 1: If two lines intersect, then they intersect in exactly one point. • Theorem 2: If a point lies outside a line, then exactly one plane contains both the line and the point. • Theorem 3: If two lines intersect, then exactly one plane contains both lines.

  3. (a) Through any three noncollinear points, there is exactly one plane (Postulate 4). • (b) Through any two points, there is exactly one line (Postulate 3). • (c) If two points lie in a plane, then the line joining them lies in that plane (Postulate 5). • (d) If two planes intersect, then their intersection is a line (Postulate 6). • (e) A line contains at least two points (Postulate 1). • (f) If two lines intersect, then exactly one plane contains both lines (Theorem 3). • (g) If a point lies outside a line, then exactly one plane contains both the line and the point (Theorem 2). • (h) If two lines intersect, then they intersect in exactly one point (Theorem 1).
