  1. ARAHAN

  2. 목차 1.네트워크 구성도 1-1.전체 구성도 1-2.외부 구성도 1-3.내부 구성도

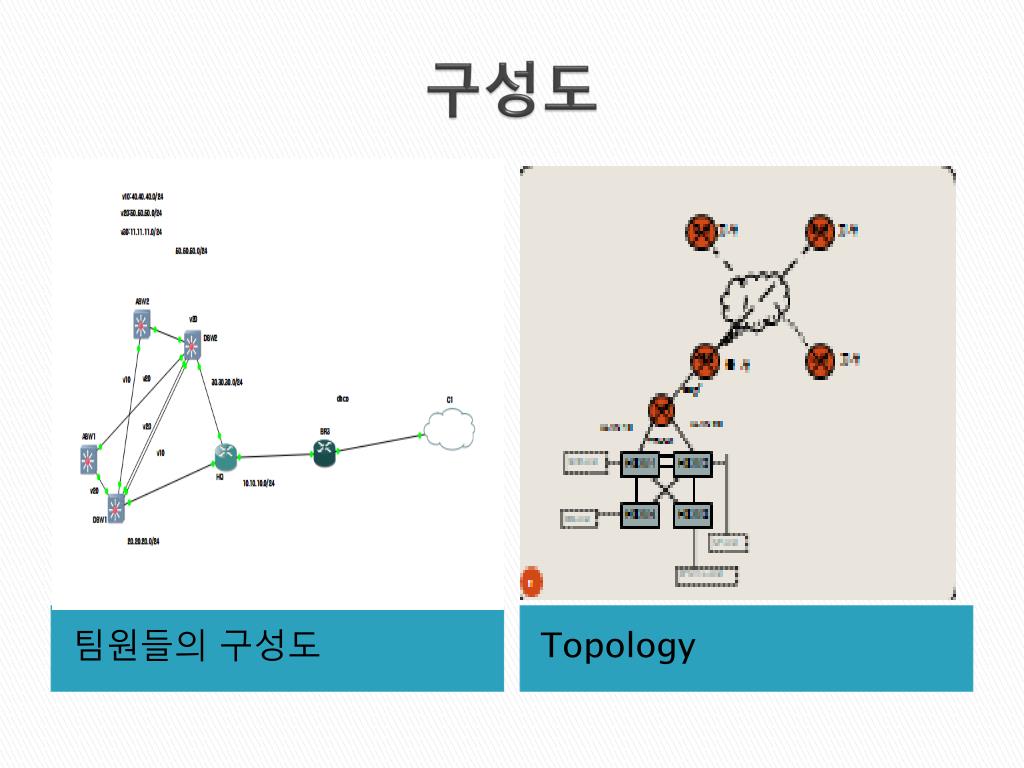

  3. 구성도 팀원들의 구성도 Topology

  4. 외부 vpn구성도 Vpn원리

  5. Int fa0/0 Int fa0/1 ospf routering nat

  6. enable secret level 1 5 $1$OPVB$jFGQMaIrcr80KsiWX4WHc1 enable secret level 2 5 $1$iJT3$WpU0Q3C4a6N7haSFMX33k0 enable secret 5 $1$uCeY$mFqZzhdp9Woc/BY7Z6eng1 aaa new-model aaa authentication login default local group radius aaa session-id common memory-size iomem5 username ict privilege 15 password 0 ict username client1 password 0 client1 username client2 privilege 2 password 0 client2 ip http server ip http authentication local no ip http secure-server

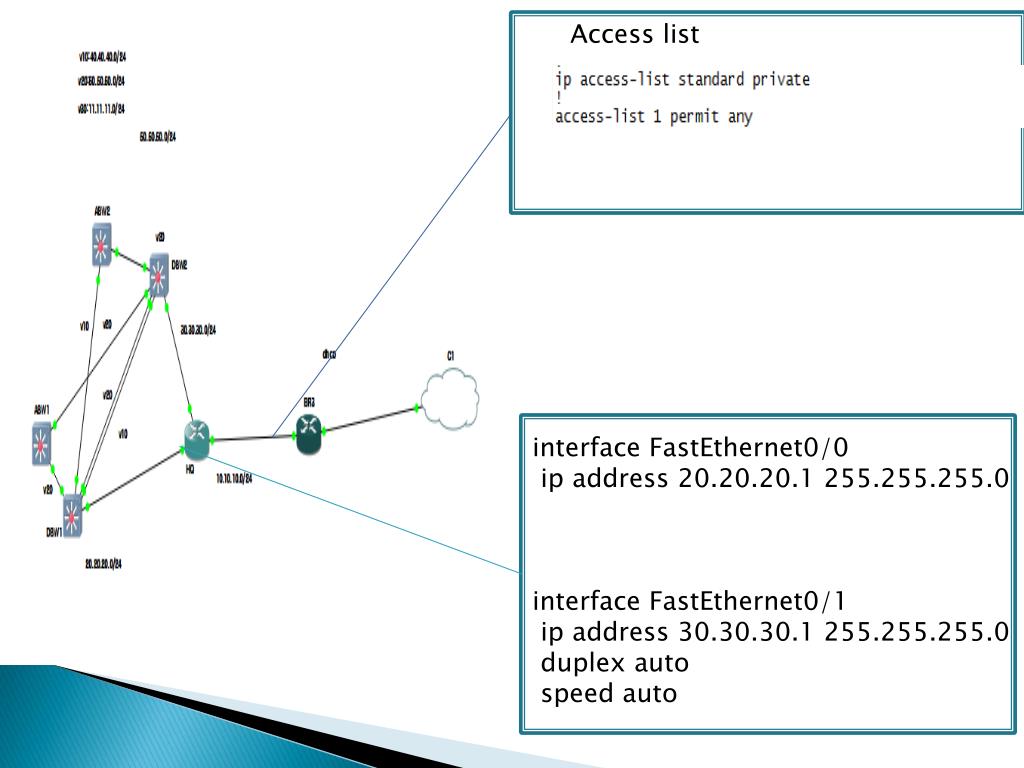

  7. Access list interface FastEthernet0/0 ip address 20.20.20.1 255.255.255.0 interface FastEthernet0/1 ip address 30.30.30.1 255.255.255.0 duplex auto speed auto

  8. 내부 구성도 구성도 원리

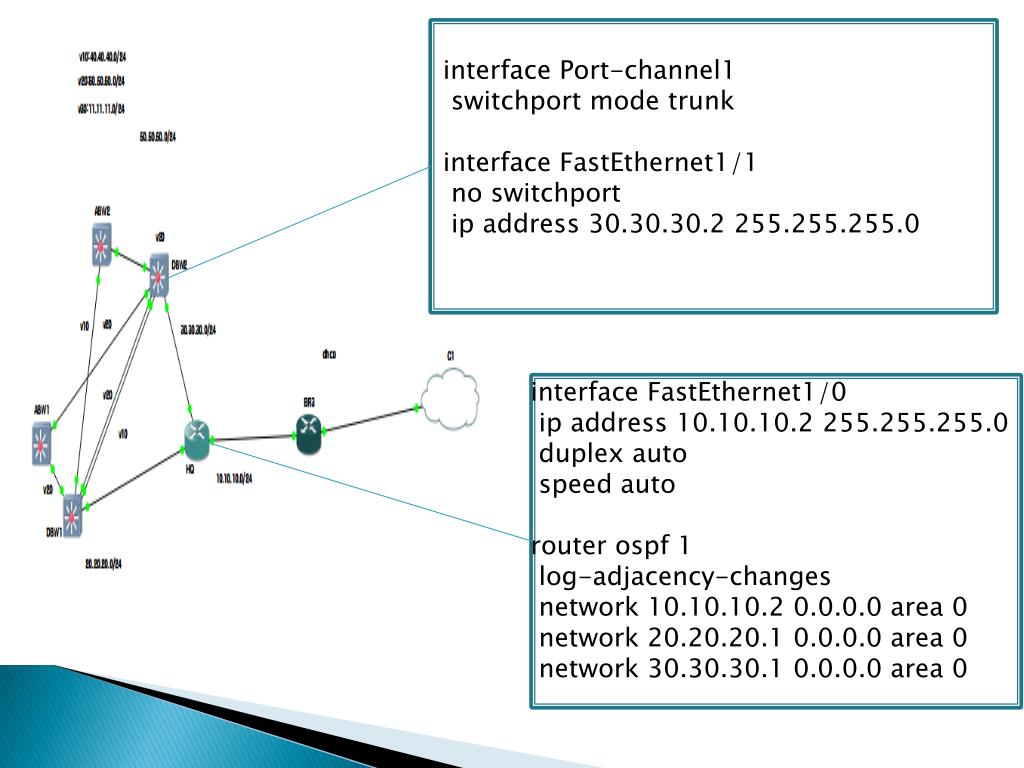

  9. interface Port-channel1 switchport mode trunk interface FastEthernet1/1 no switchport ip address 30.30.30.2 255.255.255.0 interface FastEthernet1/0 ip address 10.10.10.2 255.255.255.0 duplex auto speed auto router ospf 1 log-adjacency-changes network 10.10.10.2 0.0.0.0 area 0 network 20.20.20.1 0.0.0.0 area 0 network 30.30.30.1 0.0.0.0 area 0

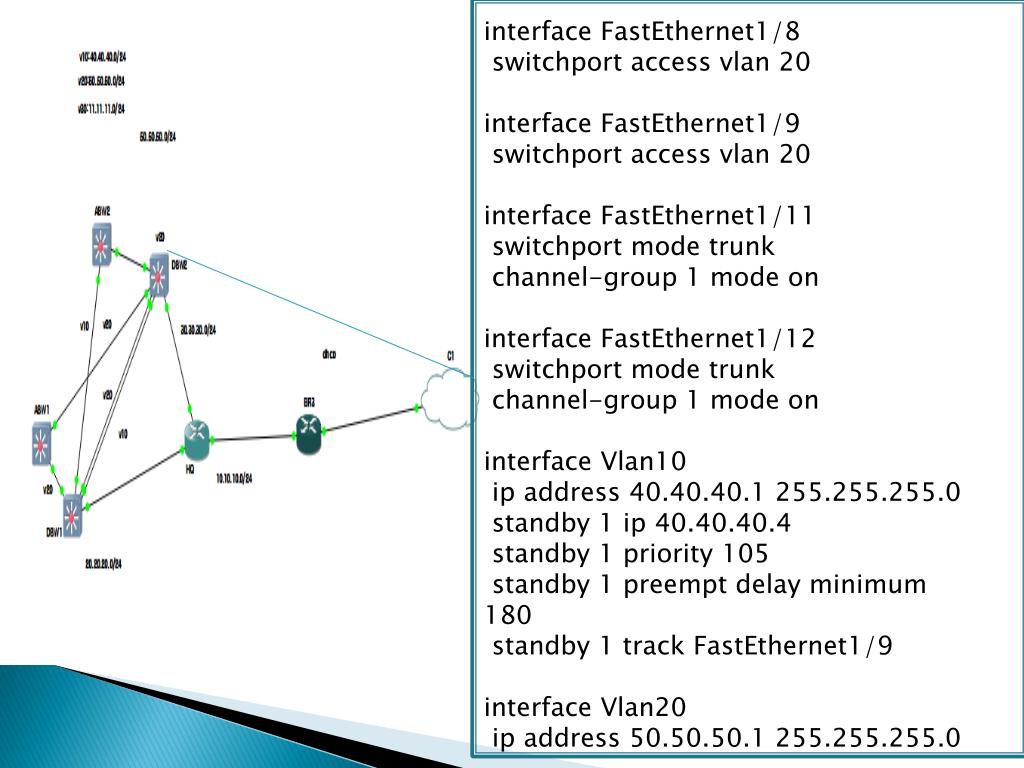

  10. interface FastEthernet1/8 switchport access vlan 20 interface FastEthernet1/9 switchport access vlan 20 interface FastEthernet1/11 switchport mode trunk channel-group 1 mode on interface FastEthernet1/12 switchport mode trunk channel-group 1 mode on interface Vlan10 ip address 40.40.40.1 255.255.255.0 standby 1 ip 40.40.40.4 standby 1 priority 105 standby 1 preempt delay minimum 180 standby 1 track FastEthernet1/9 interface Vlan20 ip address 50.50.50.1 255.255.255.0

  11. router ospf 1 log-adjacency-changes network 30.30.30.2 0.0.0.0 area 0 network 40.40.40.1 0.0.0.0 area 0 network 50.50.50.1 0.0.0.0 area 0 interface FastEthernet1/1 no switchport ip address 20.20.20.2 255.255.255.0 interface FastEthernet1/8 switchport access vlan20

  12. interface FastEthernet1/9 switchport access vlan 10 interface FastEthernet1/10 interface FastEthernet1/11 switchport mode trunk interface FastEthernet1/12 switchport mode trunk

  13. 2 255.255.255.0 interface Vlan10 ip address 40.40.40.3 255.255.255.0 standby 1 ip 40.40.40.4 standby 1 priority 105 standby 1 preempt delay minimum 60 standby 1 track FastEthernet1/9 ! interface Vlan20 ip address 50.50.50.2 255.255.255.0
