  1. Cryptography As A Service Barclays Crypto Application Gateway and Beyond 23rd May 2013 George French – Barclays Dan Cvrcek – Smart Architects Unrestricted distribution

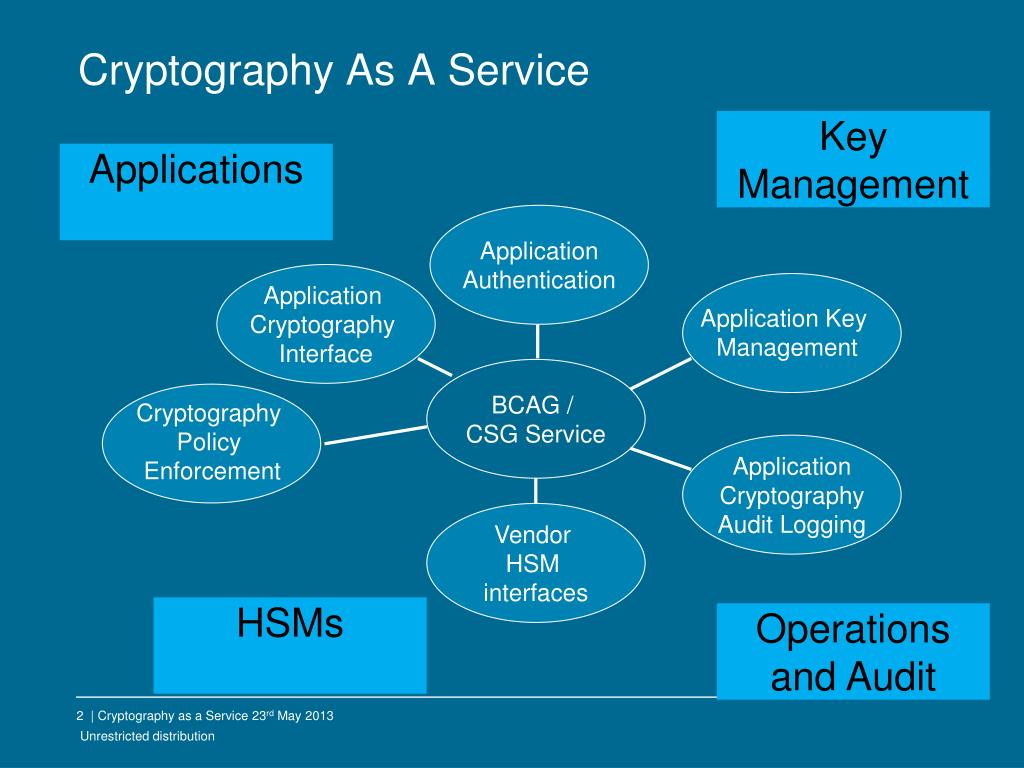

  2. Application • Authentication Application Cryptography Interface BCAG / CSG Service Application Cryptography Audit Logging • Vendor • HSM • interfaces Cryptography As A Service Key Management Applications • Application Key • Management • Cryptography • Policy • Enforcement HSMs Operations and Audit 2 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

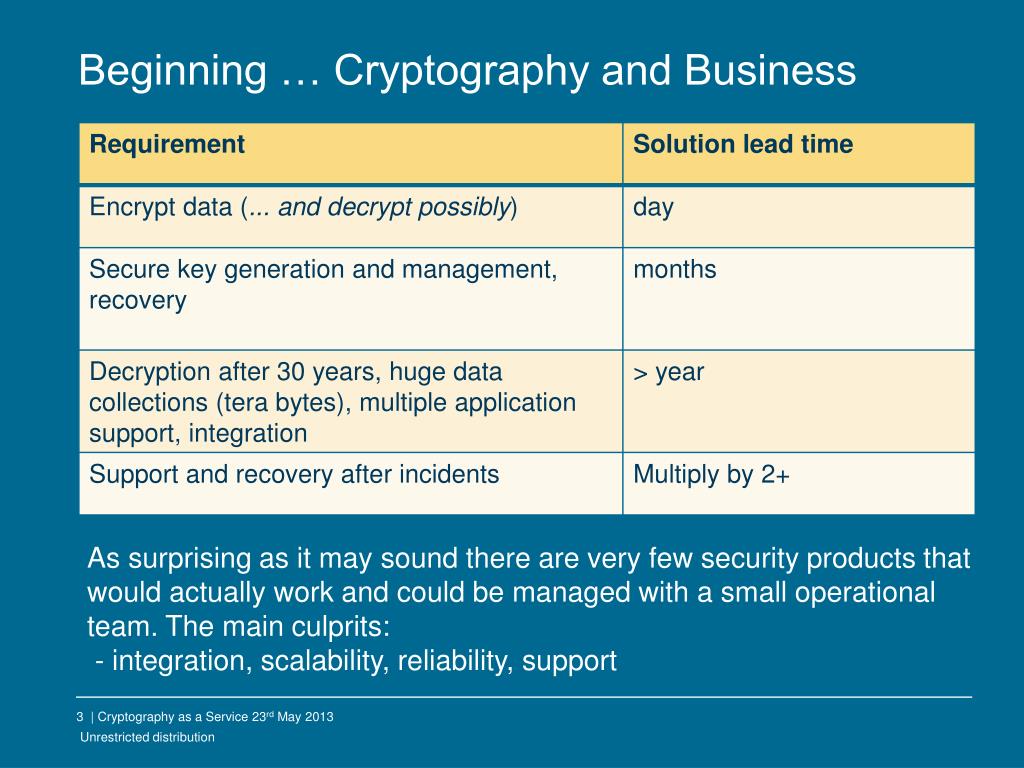

  3. Beginning … Cryptography and Business As surprising as it may sound there are very few security products that would actually work and could be managed with a small operational team. The main culprits: - integration, scalability, reliability, support 3 | Cryptography as a Service 23rdMay 2013 Unrestricted distribution

  4. Crypto Service Must Provide For … • Audit Cryptography is deployed as a control to mitigate a risk it is therefore necessary to be able to demonstrate that the control is effective. • Cryptographic Management • The problem with cryptography is the decryption process. • NEVER GIVE DEVELOPERS OPTIONS WHEN ENCRYPTING DATA • Centralised Management • Small teams even in multinational companies • Monitoring of usage / capacity • BAU operational tasks • Security audits • Information for business units 4 | Cryptography as a Service 23rdMay 2013 Unrestricted distribution

  5. Problem Space for The Use of Cryptography What we are trying to manage Business • Capturing Business Requirements • Provision of a defined operational model • Project/Bespoke development • Testing 5 | Cryptography as a Service 23rdMay 2013 Unrestricted distribution

  6. Problem Space for The Use of Cryptography What we are trying to manage Business Build • Requires Specialised knowledge • Meet requirements • Internal governance and standards compliance • Infrastructure build • Change management • Capturing Business Requirements • Provision of a defined service • Risk Mitigation • Bullet 6 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

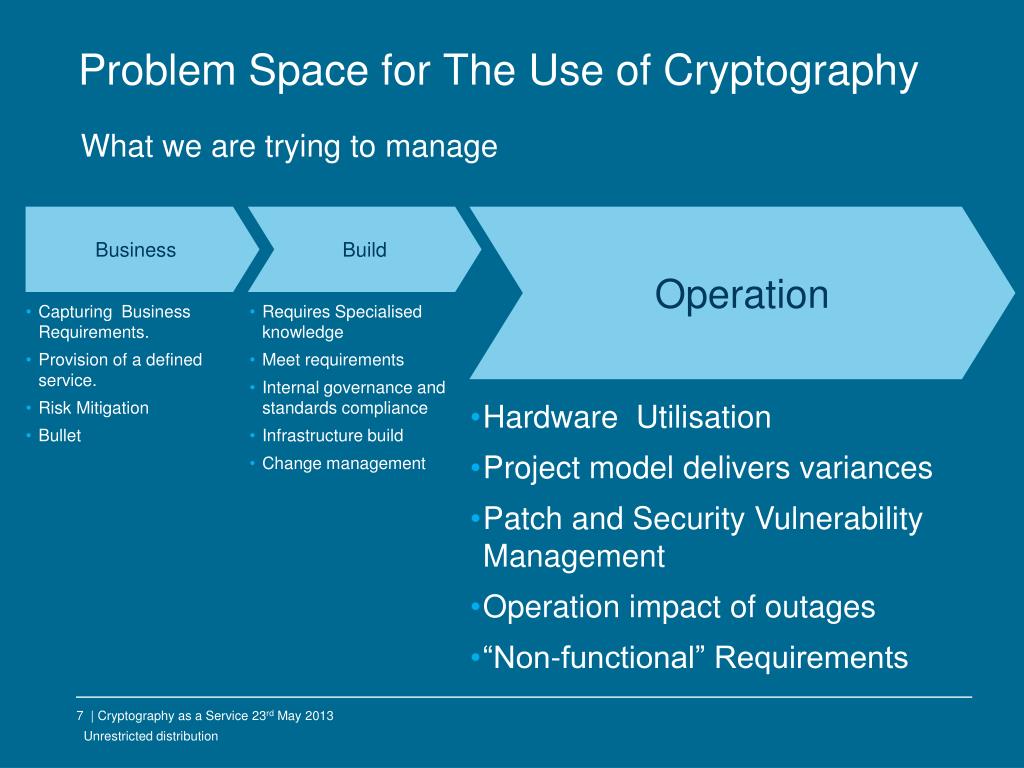

  7. Problem Space for The Use of Cryptography What we are trying to manage Business Build Operation • Capturing Business Requirements. • Provision of a defined service. • Risk Mitigation • Bullet • Requires Specialised knowledge • Meet requirements • Internal governance and standards compliance • Infrastructure build • Change management • Hardware Utilisation • Project model delivers variances • Patch and Security Vulnerability Management • Operation impact of outages • “Non-functional” Requirements 7 | Cryptography as a Service 23rdMay 2013 Unrestricted distribution

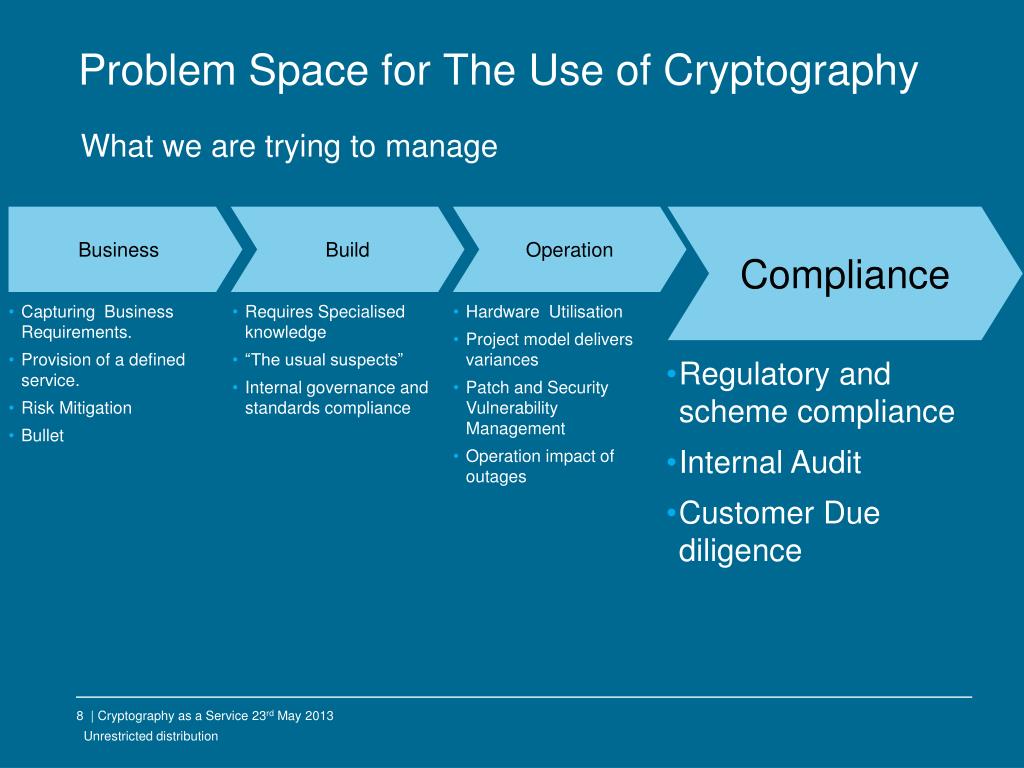

  8. Problem Space for The Use of Cryptography What we are trying to manage Business Build Operation Compliance • Capturing Business Requirements. • Provision of a defined service. • Risk Mitigation • Bullet • Requires Specialised knowledge • “The usual suspects” • Internal governance and standards compliance • Hardware Utilisation • Project model delivers variances • Patch and Security Vulnerability Management • Operation impact of outages • Regulatory and scheme compliance • Internal Audit • Customer Due diligence 8 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  9. Problem Space for The Use of Cryptography What we are trying to manage Business Build Operation Compliance • Capturing Business Requirements. • Provision of a defined service. • Risk Mitigation • Bullet • Requires Specialised knowledge • “The usual suspects” • Internal governance and standards compliance • Hardware Utilisation • Project model delivers variances • Patch and Security Vulnerability Management • Operation impact of outages • Regulatory and scheme compliance • Internal Audit • Customer Due diligence ... I know nothing short of impossible but here we go 9 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  10. BCAG Cryptographic Approach • Separating use from management and configuration • Use (business units): • Request system authentication credentials (e.g., password); • Do Crypto – e.g., Api.Encrypt(“CC_Number”, “ME”, “Main_DB”, <transaction>) • Management (BU and Crypto Operations): • Policy – what business functions (e.g., encrypt credit card number), how many parties (DB, web app, middleware, …). • Technical (Crypto Operations): • how many keys, algorithms, crypto modes, key lengths, key validity, and so on. 10 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  11. BCAG Business Approach • Pay for what you use • Centralised use of resources (people, hardware, network, …) • HSMs used “per operation”, not “per project”. • Commissioning of cryptographic system components by Crypto Operations • skills; • volume; and • single place for deployment and management -> strategy. • Decoupling components (i.e., HSM) from applications • Eliminate vendor lock-in; and • Introduce service-based architecture with replaceable products. 11 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

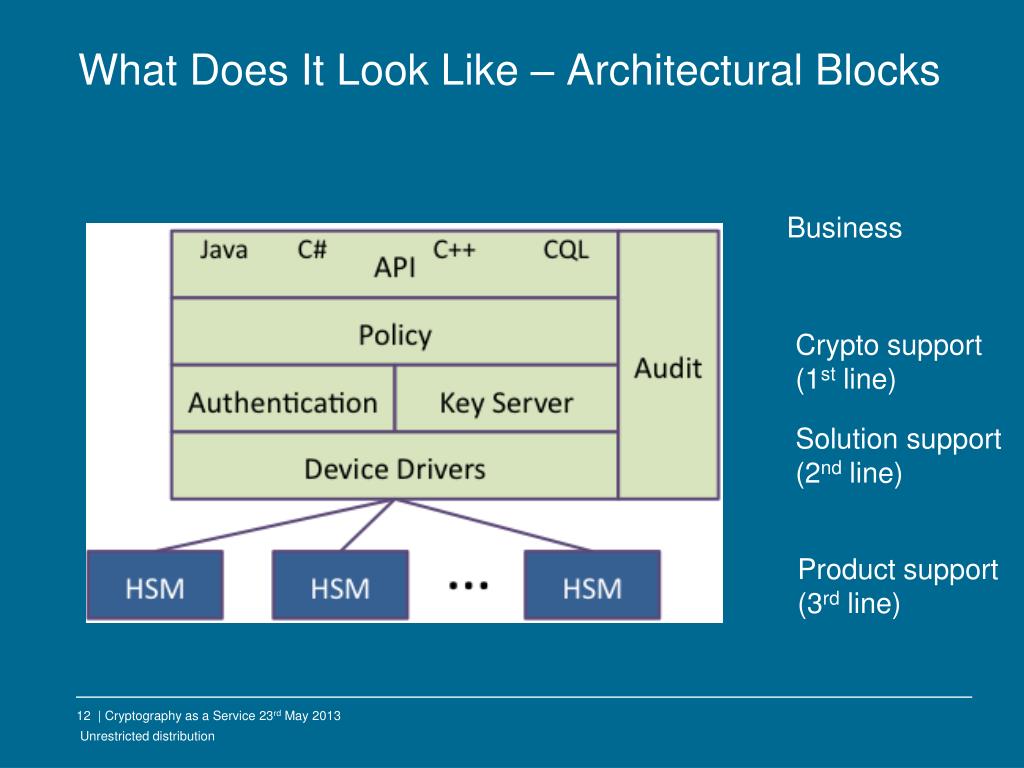

  12. What Does It Look Like – Architectural Blocks Business Crypto support (1st line) Solution support (2nd line) Product support (3rd line) 12 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

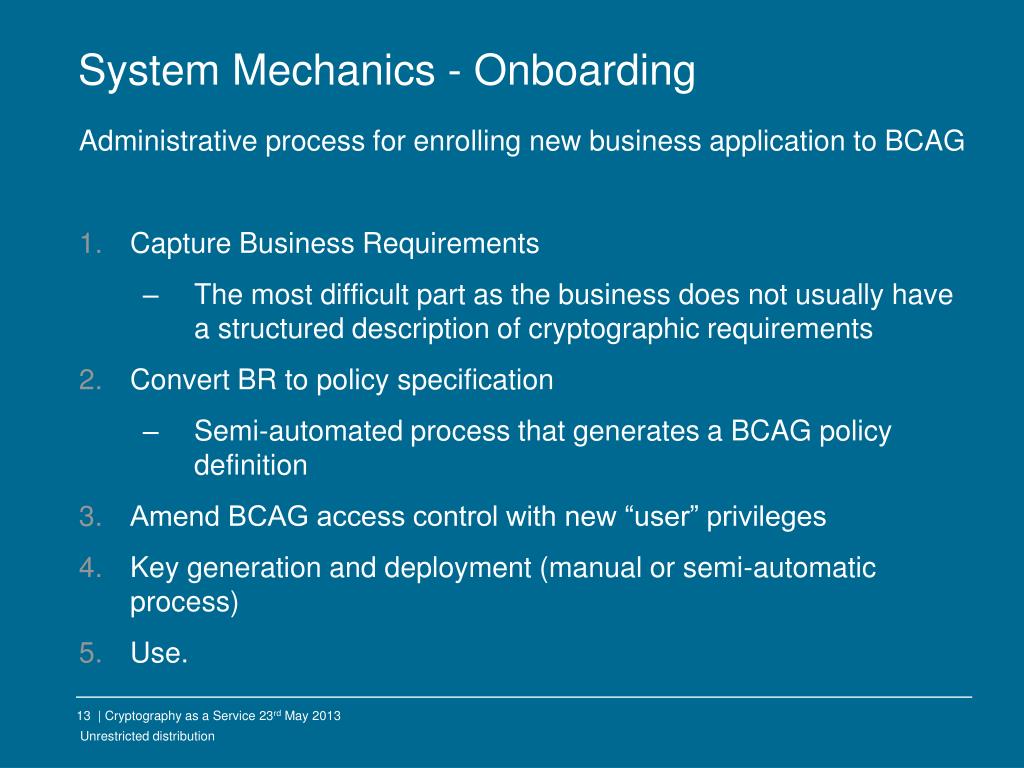

  13. System Mechanics - Onboarding • Administrative process for enrolling new business application to BCAG • Capture Business Requirements • The most difficult part as the business does not usually have a structured description of cryptographic requirements • Convert BR to policy specification • Semi-automated process that generates a BCAG policy definition • Amend BCAG access control with new “user” privileges • Key generation and deployment (manual or semi-automatic process) • Use. 13 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  14. Mechanics - Operation And 3 pieces of information that have to align: Authentication details = username and password Policy = username and authorised operations and key locator data Crypto Key definitions = key value and key locator data 14 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

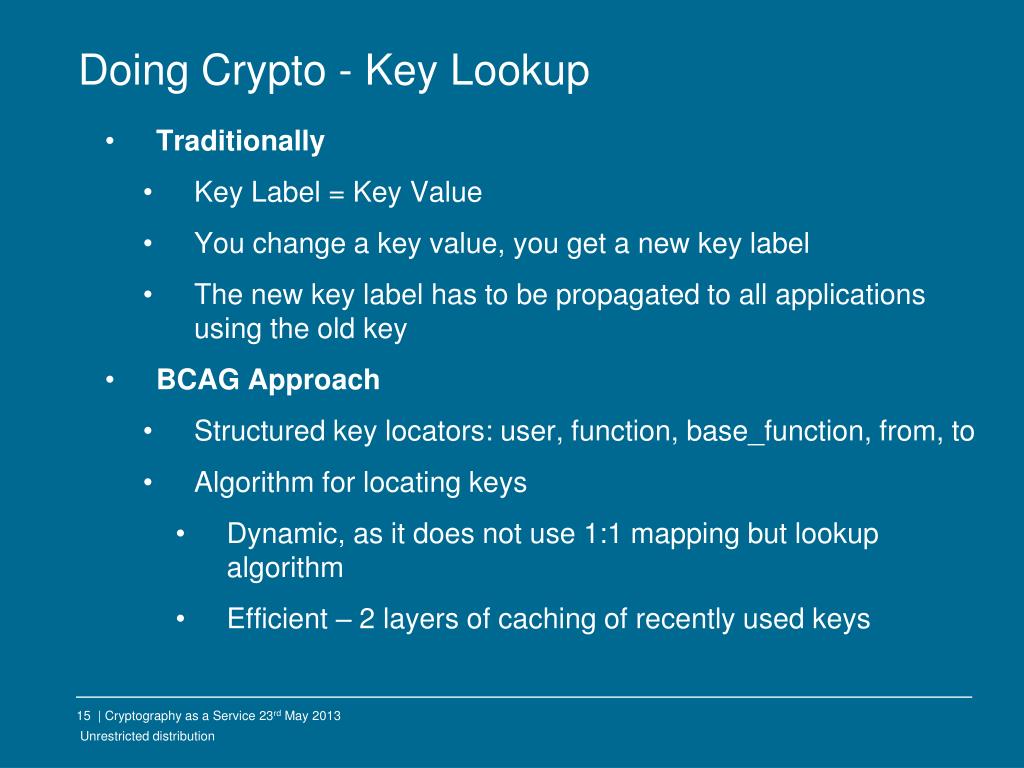

  15. Doing Crypto - Key Lookup • Traditionally • Key Label = Key Value • You change a key value, you get a new key label • The new key label has to be propagated to all applications using the old key • BCAG Approach • Structured key locators: user, function, base_function, from, to • Algorithm for locating keys • Dynamic, as it does not use 1:1 mapping but lookup algorithm • Efficient – 2 layers of caching of recently used keys 15 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  16. Key Lookup – BCAG 16 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

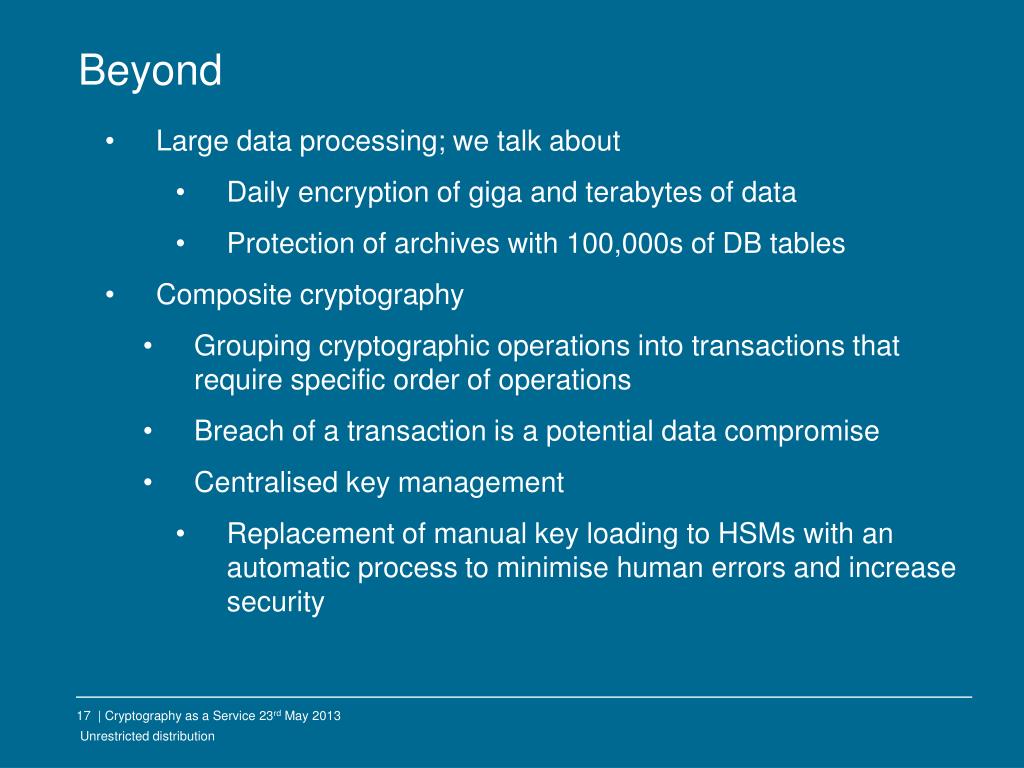

  17. Beyond • Large data processing; we talk about • Daily encryption of giga and terabytes of data • Protection of archives with 100,000s of DB tables • Composite cryptography • Grouping cryptographic operations into transactions that require specific order of operations • Breach of a transaction is a potential data compromise • Centralised key management • Replacement of manual key loading to HSMs with an automatic process to minimise human errors and increase security 17 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  18. Beyond … banking • Platform for mobile app cryptography • Platform for financial services for future applications • Providing API and system for banking transactions to developers without actually building a bank • Being able to build own virtual Central Bank with a few button clicks • All this requires something like BCAG to: • Access to payment schemes (VISA, MasterCard) • Strong cryptographic system able to ensure pre-defined security properties (like cheating, counterfeiting … within the model of a virtual world) • In some cases compliance with financial regulations 18 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

  19. Thank you for your attention! • Dan@SmartArchitects.co.uk • George.French@Barclays.com

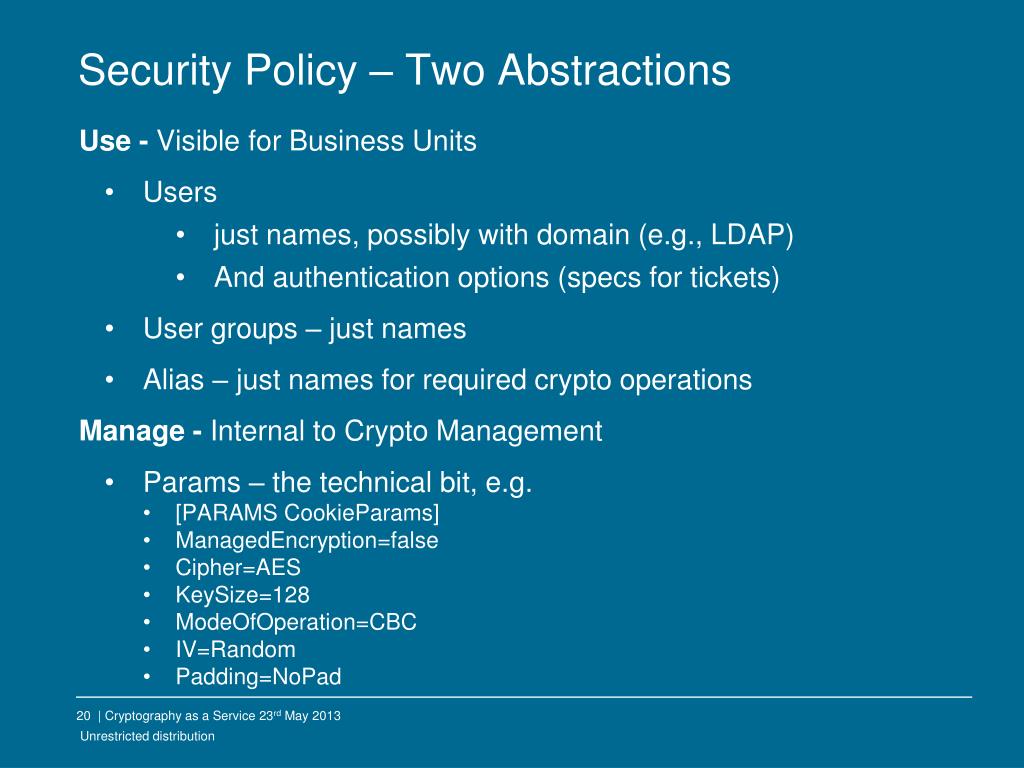

  20. Security Policy – Two Abstractions • Use - Visible for Business Units • Users • just names, possibly with domain (e.g., LDAP) • And authentication options (specs for tickets) • User groups – just names • Alias – just names for required crypto operations • Manage - Internal to Crypto Management • Params – the technical bit, e.g. • [PARAMS CookieParams] • ManagedEncryption=false • Cipher=AES • KeySize=128 • ModeOfOperation=CBC • IV=Random • Padding=NoPad 20 | Cryptography as a Service 23rd May 2013 Unrestricted distribution

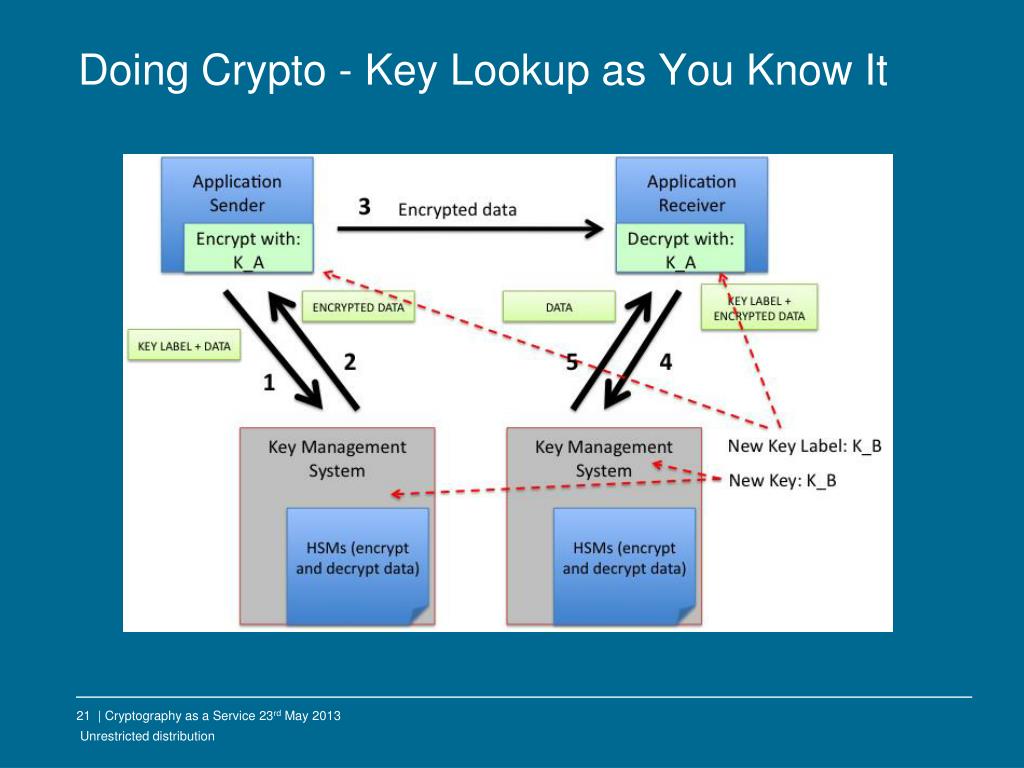

  21. Doing Crypto - Key Lookup as You Know It 21 | Cryptography as a Service 23rd May 2013 Unrestricted distribution
