  1. ES3 Takes the Provenance Challenge JAMES FREW Donald Bren School ofEnvironmental Science and Management University of California, Santa Barbara frew@bren.ucsb.edu

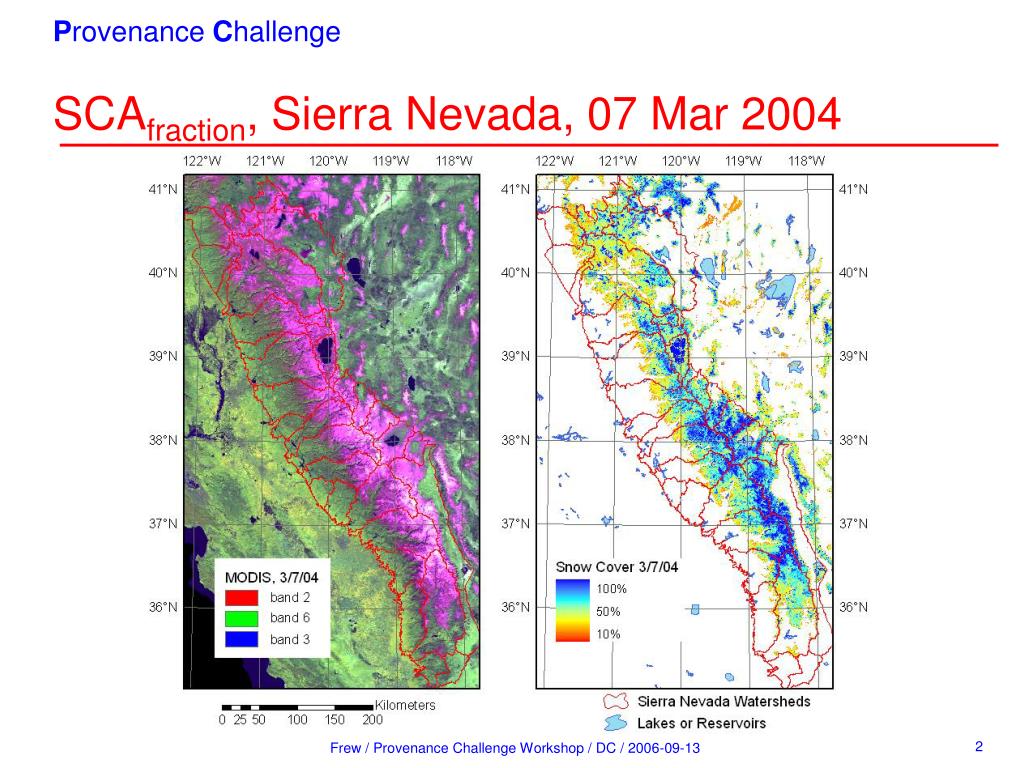

  2. SCAfraction, Sierra Nevada, 07 Mar 2004

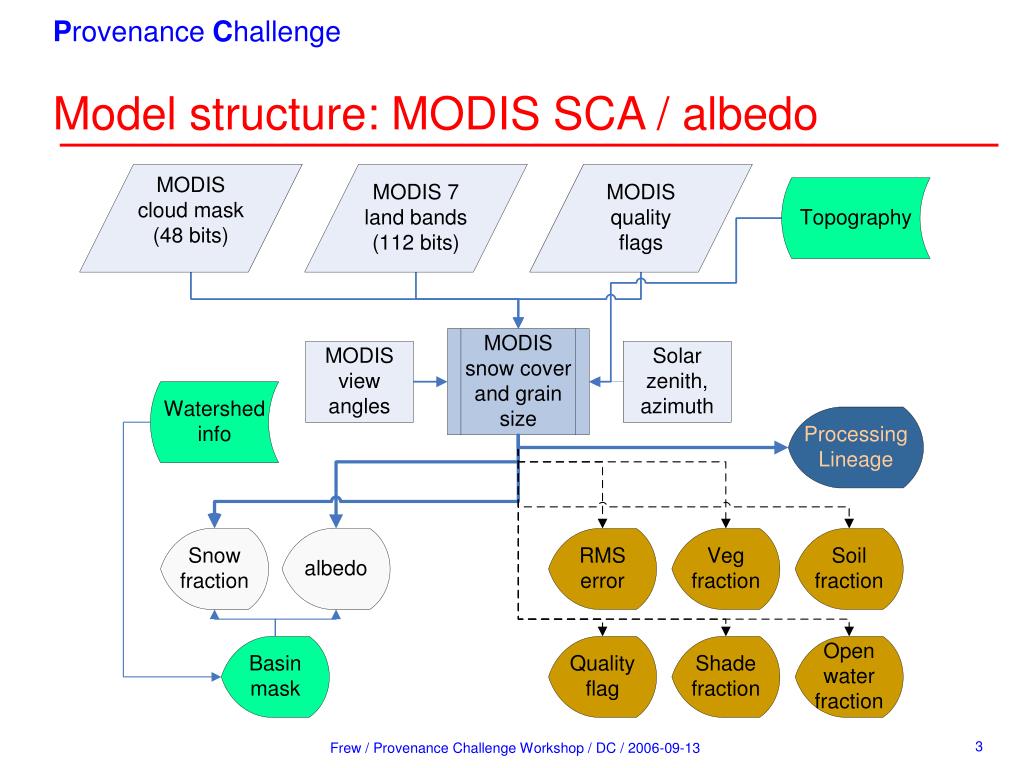

  3. Model structure: MODIS SCA / albedo

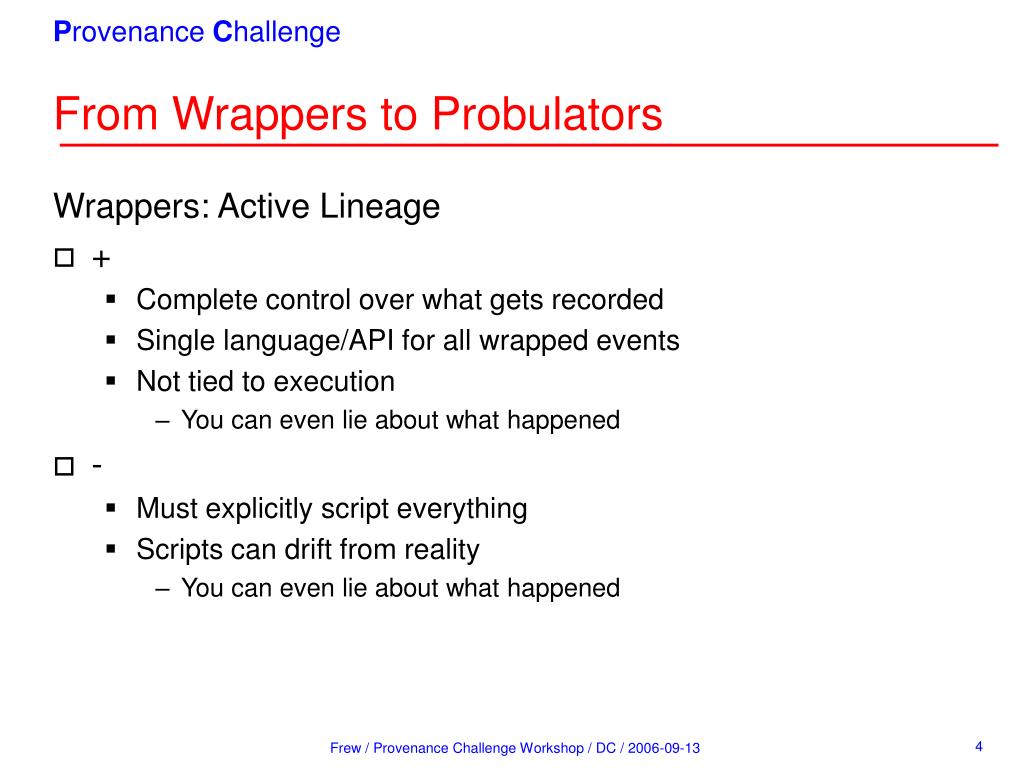

  4. From Wrappers to Probulators Wrappers: Active Lineage • + • Complete control over what gets recorded • Single language/API for all wrapped events • Not tied to execution • You can even lie about what happened • - • Must explicitly script everything • Scripts can drift from reality • You can even lie about what happened

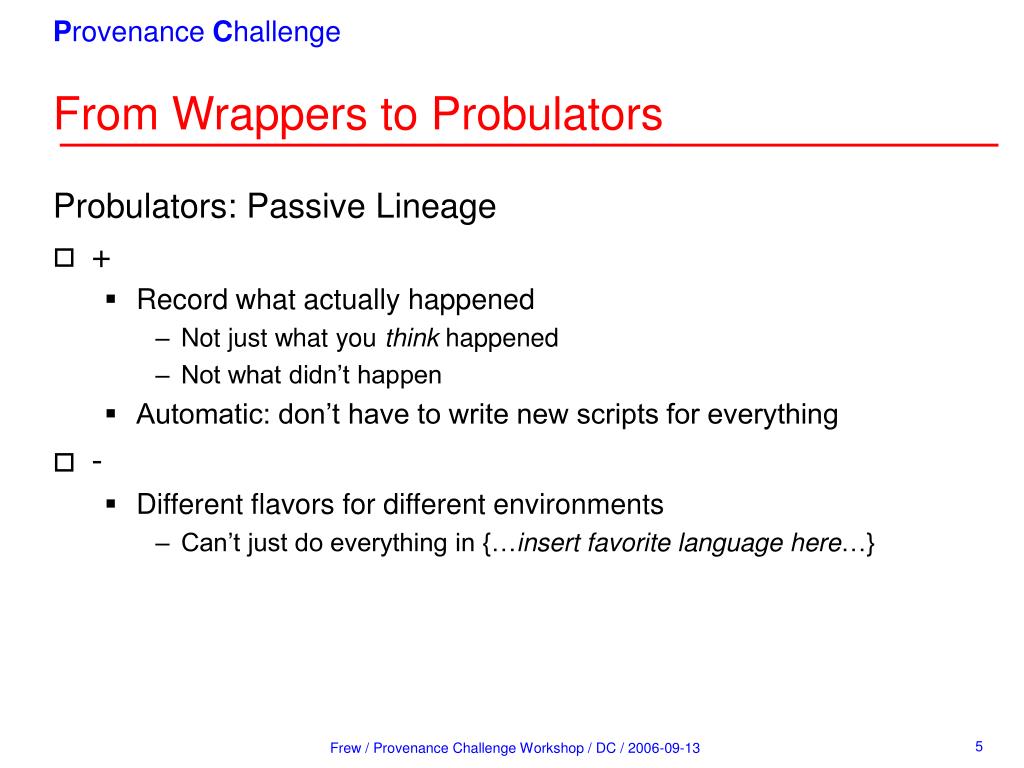

  5. From Wrappers to Probulators Probulators: Passive Lineage • + • Record what actually happened • Not just what you think happened • Not what didn’t happen • Automatic: don’t have to write new scripts for everything • - • Different flavors for different environments • Can’t just do everything in {…insert favorite language here…}

  6. Probulator flavors • Instrumentation • Insert lineage capture instructions directly into science codes • e.g. “I just created file ‘foo’” • Typical implementation: preprocessor/precompiler • Overriding • Replace standard routines/libraries with lineage-capturing versions • e.g. open(…) → snoopy_open(…) • Typical implementation: modify execution environment • environment variables • configuration files • Passive monitoring • Trace program execution • e.g. “called open() with args = foo, bar, …” • Typical implementation: strace’d shell

  7. ES3 Lineage Architecture

  8. Probulating IDL: Instrumenting the code ;edit pro modscag_cleanse,prefix=prefix,ns=ns,nl=nl HELP, NAMES="*", OUTPUT=ES3_ENVIROMENT & ES3_LOG, $ ENTER="modscag_cleanse", ENVIROMENT=ES3_ENVIROMENT ; clean up {under,over}flow of MODSCAG run ; ; Input: prefix = prefix for all of the MODSCAG output filenames ; ns = number of samples ; nl = number of lines ; Output: rewrite of the MODSCAG files ; ; t.h.painter / 1.19.2005 ; open snow file ES3_openr,1,string(prefix,'snow.pic') snow=fltarr(ns,nl) readu,1,snow [ blah blah blah ] HELP, NAMES="*", OUTPUT=ES3_ENVIROMENT & ES3_LOG, LEAVE="modscag_cleanse", $ ENVIROMENT=ES3_ENVIROMENT END ; modscag_cleanse

  9. Probulating IDL: Results <init time="20050522T234606Z” pid="31002" stime="20050522T234604Z" pstime="20050522T234256Z" ppid="30920" language="idl" user="haavar" hostname="spitting-duck.bren.ucsb.edu"> <enviroment> <variable name="!PATH" value="/home/haavar/probulator//idl: /home/rsi/idl_6.1/lib/hook: […] </enviroment> <mount-points> <mount share="dab15:/ed15/rsi" type="nfs">/home/rsi</mount> </mount-points> </init> <enter region="modscag_cleanse"> <enviroment> <variable type="INT" name="NL" value="2"/> <variable type="INT" name="NS" value="2"/> […] </enviroment> </enter> <exec time="20050522T234610Z" routine="OPENR"> <io> <file read="true">/home/haavar/painter/data/tillsnow.pic</file> </io> </exec>]

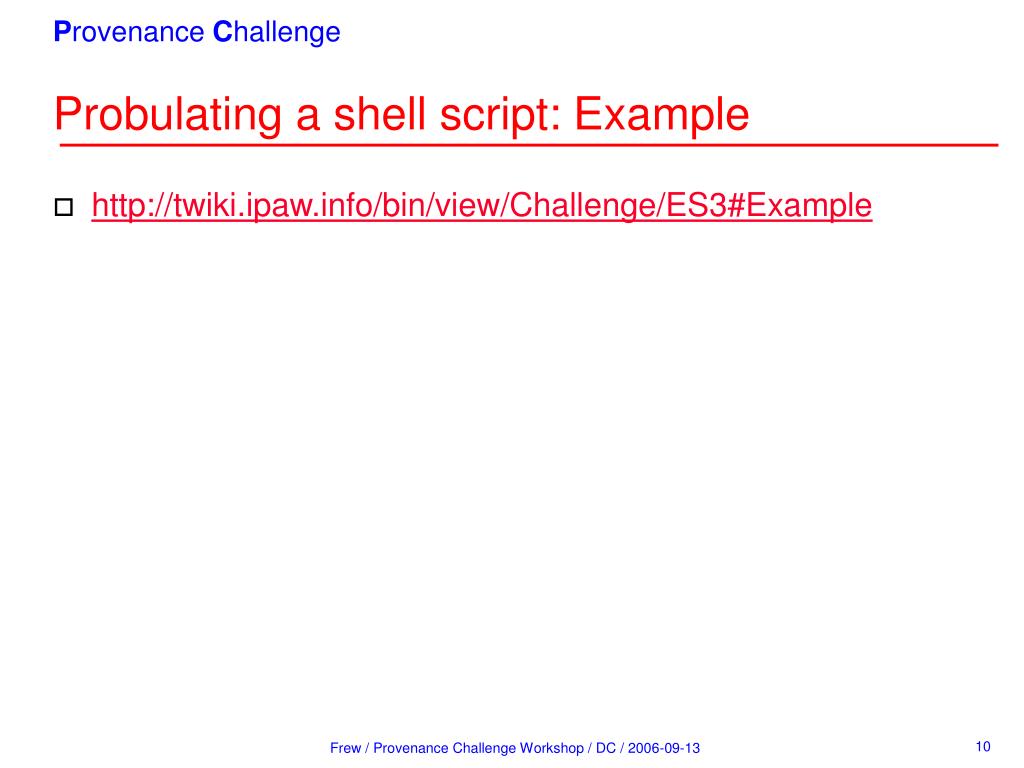

  10. Probulating a shell script: Example • http://twiki.ipaw.info/bin/view/Challenge/ES3#Example
