Presentation Transcript
Dfd s data and information management system a brief introduction l.jpg

DFD’s Data and Information Management Systema Brief Introduction

Joint WGISS Subgroup Meetings

ICS Task Team Session

Toulouse, May 14th,2003

Bernhard Buckl DLR/DFD

[email protected]


Data information and management system overview l.jpg
Data Information and Management SystemOverview

  • Production control organizes the workflow for various processing systems generating raw or value-added products.

DIMS supports the production, cataloguing, archiving, ordering and distribution of earth observation products

  • A cornerstone is the product library which is the source of processing inputand the destination of the processing output. It provides a complete and consistent reference of the configured products.

  • Based on the product library, order management handles the business process ordering throughout the system.

  • A unified operating tool supplies interactive monitoring and control of the DIMS components.

  • User information services provide the user access to DIMS. A WWW-based interface guides the user from directory information via inventory searches to the desired products which can be directly ordered.


Dims scope overall requirements l.jpg
DIMS ScopeOverall Requirements

  • Support of multi-mission data products

  • Support of complete product and order loop

  • Support of existing and producible products

  • Unified solution for distributed sites or institutions

  • Access to products of related systems (e.g. ENVISAT-PDS, EUMETSAT UMARF/EPS)

  • Flexible interfacing with processing systems(e.g. ingestion processing, processing on request)

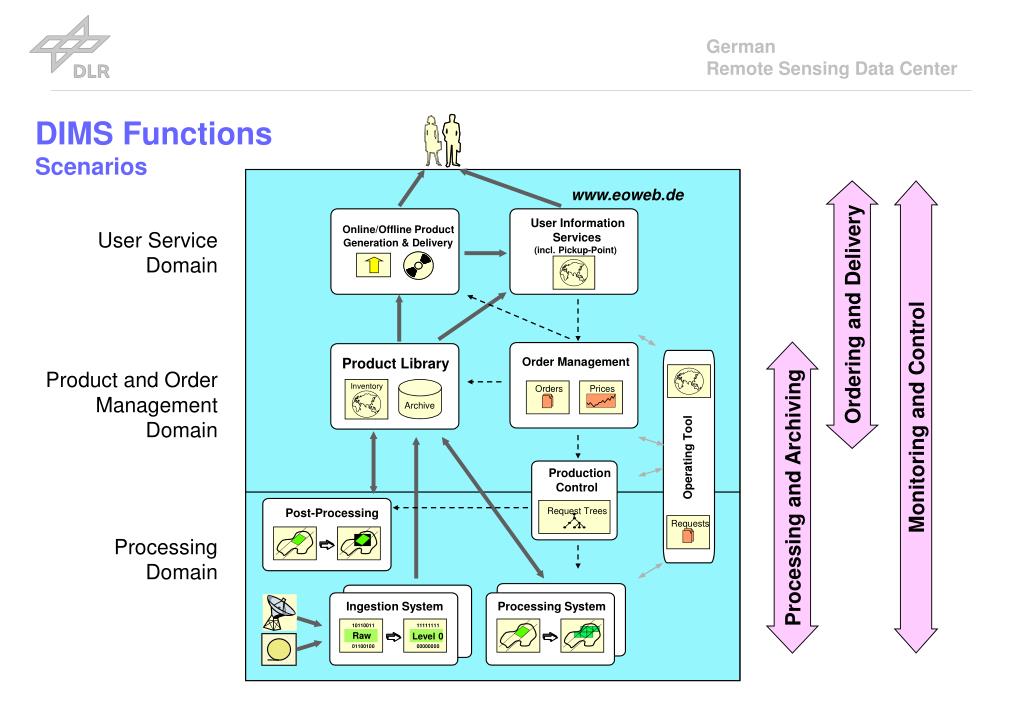

Dims functions scenarios l.jpg

www.eoweb.de

User Information

Services

Online/Offline Product

(incl. Pickup-Point)

Generation & Delivery

Ordering and Delivery

Product Library

Order Management

Inventory

Archive

Orders

Prices

Monitoring and Control

Operating Tool

Production

Processing and Archiving

Control

Request Trees

Post-Processing

Requests

Ingestion System

Processing System

10110011

11111111

00010101

00010101

10111001

10111001

Raw

Level 0

01100100

00000000

DIMS FunctionsScenarios

User Service

Domain

Product and OrderManagement

Domain

Processing

Domain


Slide5 l.jpg

Web Gateway

Production Control

Product Library

Ordering Control

UIS Loader

Inventory

Order Accounting

Orders

Archive

Prices

Operating Tool

Request Trees

Requests

Ingestion System

Processing System

Online/Offline Product

Generation & Delivery

10110011

11111111

Post-Processing

Raw

Level 0

00010101

00010101

10111001

10111001

01100100

00000000

DIMS System CharacteristicsApplication Services Overview

User Information Services

ISIS Server

MUIS Servers

ISIS Interface

MUIS Interface

Product Management

Order Management

Production Management

Processing Systems

Post-Processing Systems


Dims product library product i o item information file iif l.jpg

Product Library

  • <commandOption>

  • Insert/Update/Register

<IIF>

<item>

...

</item>

<item>

...

</item>

...

</IIF>

  • <fileInformation>

  • File Locations & Names

  • <components>

  • ItemReferences to other Items

  • <parameters>

  • Coverage Information

  • Processing Information

  • Item Status (e.g. reliability)

ProcessingSystem

NDVI Product

Inventory

Archive

Browse

Primary

  • <specificParameters>

  • Item Type Specific Metadata

DIMS Product LibraryProduct I/O - Item Information File (IIF)

Output

Input

IIF

IIF

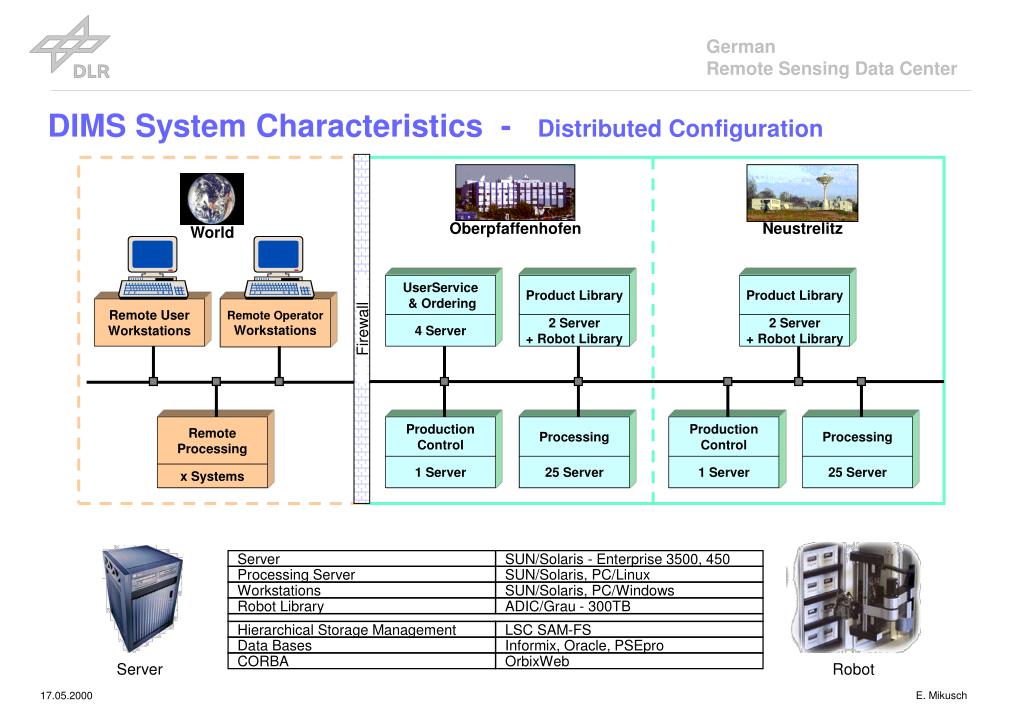

Dims system characteristics distributed configuration l.jpg

World

Oberpfaffenhofen

Neustrelitz

UserService & Ordering

ProductionControl

ProductionControl

Remote UserWorkstations

Remote OperatorWorkstations

4 Server

1 Server

1 Server

Firewall

RemoteProcessing

Processing

Processing

Product Library

Product Library

25 Server

25 Server

2 Server

+ Robot Library

2 Server

+ Robot Library

x Systems

Server

SUN/Solaris - Enterprise 3500, 450

Processing Server

SUN/Solaris, PC/Linux

Workstations

SUN/Solaris, PC/Windows

Robot Library

ADIC/Grau - 300TB

Hierarchical Storage Management

LSC SAM-FS

Data Bases

Informix, Oracle, PSEpro

CORBA

OrbixWeb

Server

Robot

DIMS System Characteristics - Distributed Configuration

E. Mikusch


Dims system characteristics basic architecture based on corba and java l.jpg

Inventory

ProductionControl

Product Library

Specific Application

BusinessService

Trigger

Session

Queue

Logging

XMLSupport

GUI

Post-ProcessingSystem

JDBC

NativeMethods

Swing

I/O

Archive

Java Virtual Machine

Orders

Prices

Request Trees

700

600

SUN/Solaris

LINUX

Windows

500

OrderManagement

300

240

  • Reusable basic components used to build up an application component

  • Numerous Java standard components 

  • Interoperability between components

  • Generic components added 

  • Relocatable distributed DIMS services

  • Platform independent communication

  • Platform independent software

Requests

DIMS System CharacteristicsBasic Architecture based on CORBA and Java

CORBA

ProcessingSystem

Operating


Dims multi mission support examples l.jpg

EUMETSATUMARF/EPS

ESAENVISAT/PDS

ESAMulti-Mission

DIMS Multi-Mission Support - Examples

SRTM PAF

DIMS

MODIS PAF

ENVISAT VA

WDC

Ozone SAF

TerraSAR-X PGS

EPS EUMETSAT Polar System

PAF Processing and Archiving Facility

PDS Payload Data Handling Segment

SAF Satellite Application Facility

UMARF Unified Meteorological Archive and Retrieval Facility

VA Value Added

Others ...

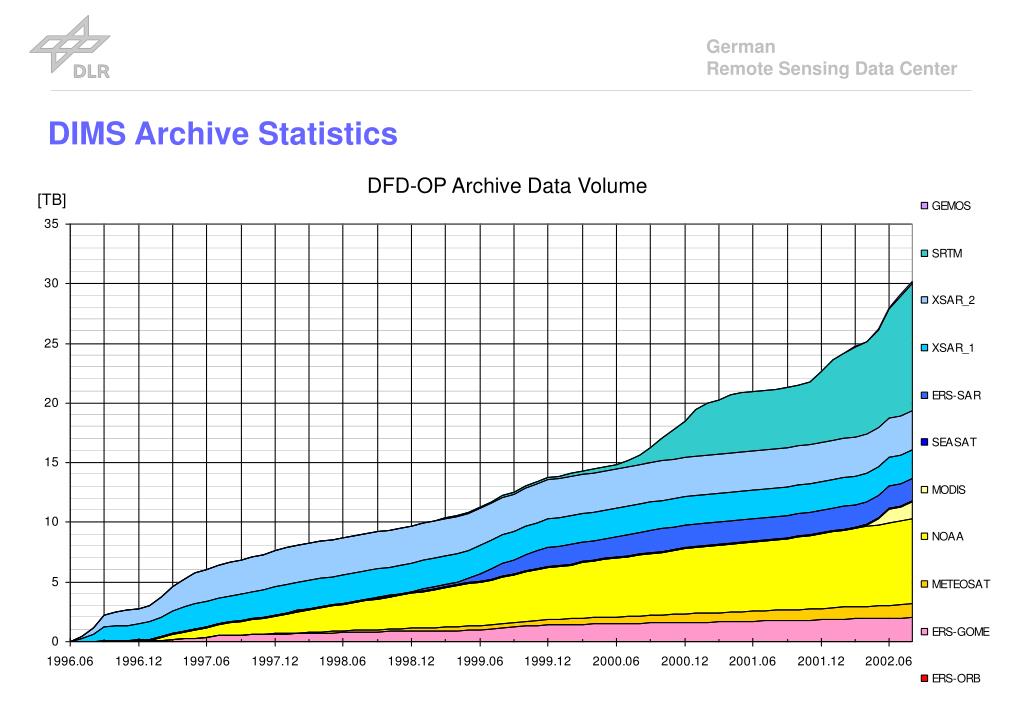

Dims archive statistics l.jpg
DIMS Archive Statistics

DFD-OP Archive Data Volume

[TB]


Data information and management system conclusion l.jpg
Data Information and Management SystemConclusion

  • Further extensions which will be made in the following areas:

    • Near real-time distribution

    • Interactive post-processing

    • Interface to GISs (WCS)

    • Support of future products and interface to mission planning

    • Adapt metadata schema to ISO 19115 (tbc)
