  1. Hamming Code Circuit(Detection) Mike Ra Caroline Choi Thuy Nguyen Christopher Gobok Advisor: Dave Parent May 11, 2005

  2. Agenda • Introduction to Hamming Code • Project Specifications • Project Details (Schematic, Layout, etc.) • Cost Analysis • Conclusion/Lessons Learned

  3. What is Hamming Code? • Error detection scheme • Utilizes multiple parity bits to generate a “codeword” that corresponds to the error bit. (Consistent with other error correction and detection schemes, where there is an increase in overhead). • Correction is possible through hardware or software

  4. Block Diagram 4 4 7 DECODER ENCODER 3

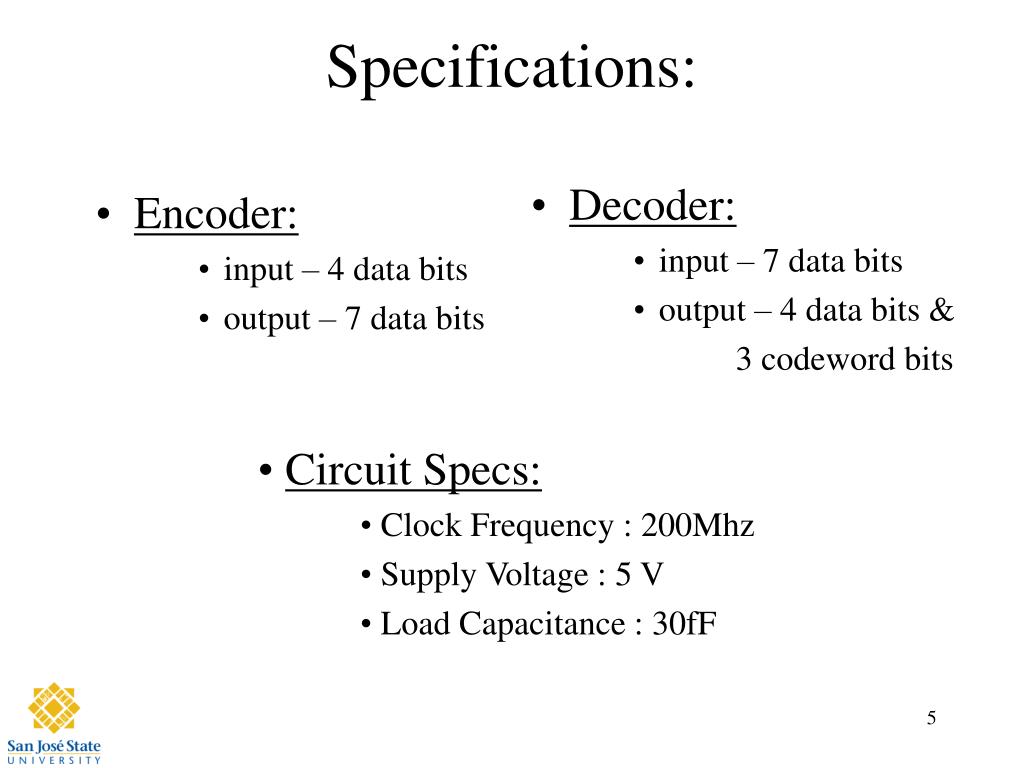

  5. Specifications: • Decoder: • input – 7 data bits • output – 4 data bits & • 3 codeword bits • Encoder: • input – 4 data bits • output – 7 data bits • Circuit Specs: • Clock Frequency : 200Mhz • Supply Voltage : 5 V • Load Capacitance : 30fF

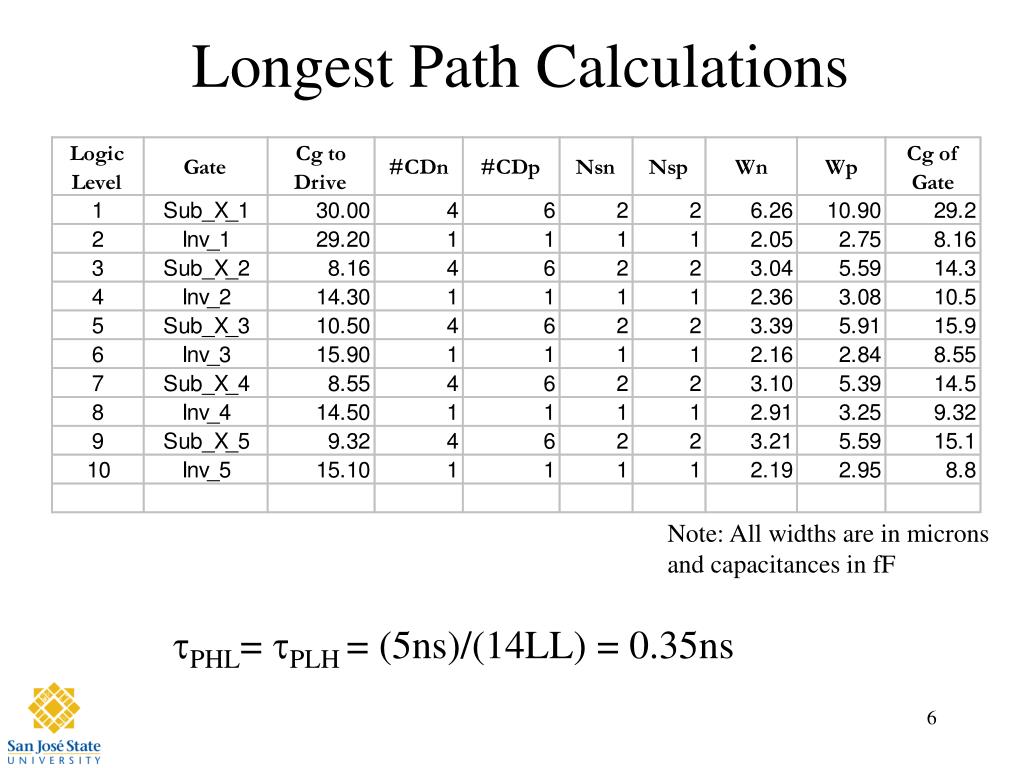

  6. Longest Path Calculations Note: All widths are in microns and capacitances in fF tPHL= tPLH = (5ns)/(14LL) = 0.35ns

  7. Schematic

  8. Layout

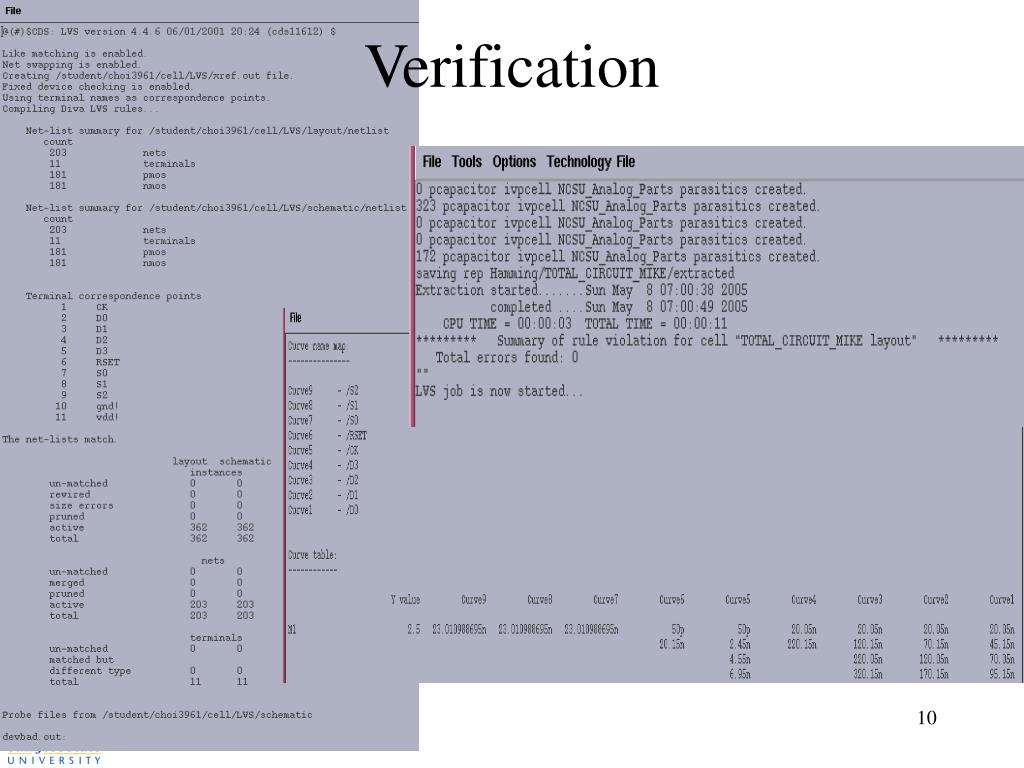

  9. Verification

  10. Verification

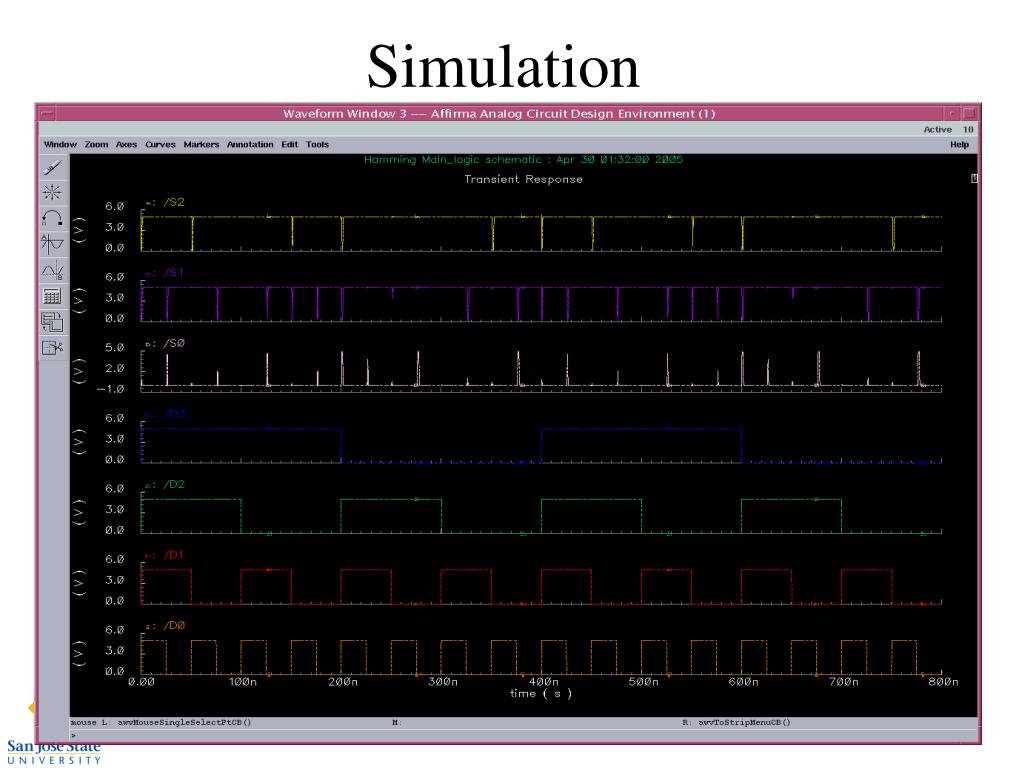

  11. Simulation

  12. Simulation

  13. Cost Analysis # of hours spent Verifying logic 12 Verifying timing 25 Layout 40 Post extracted timing 3 ------------------ Total = 80 hours @ a rate of $150/hr, this project would have cost $12,000!

  14. Summary • Complete Circuit: • Clock Frequency : 315 Mhz • Area : 289.95 x 151.5 microns • Power : 3.78 mW • Load Capacitance : 30 fF

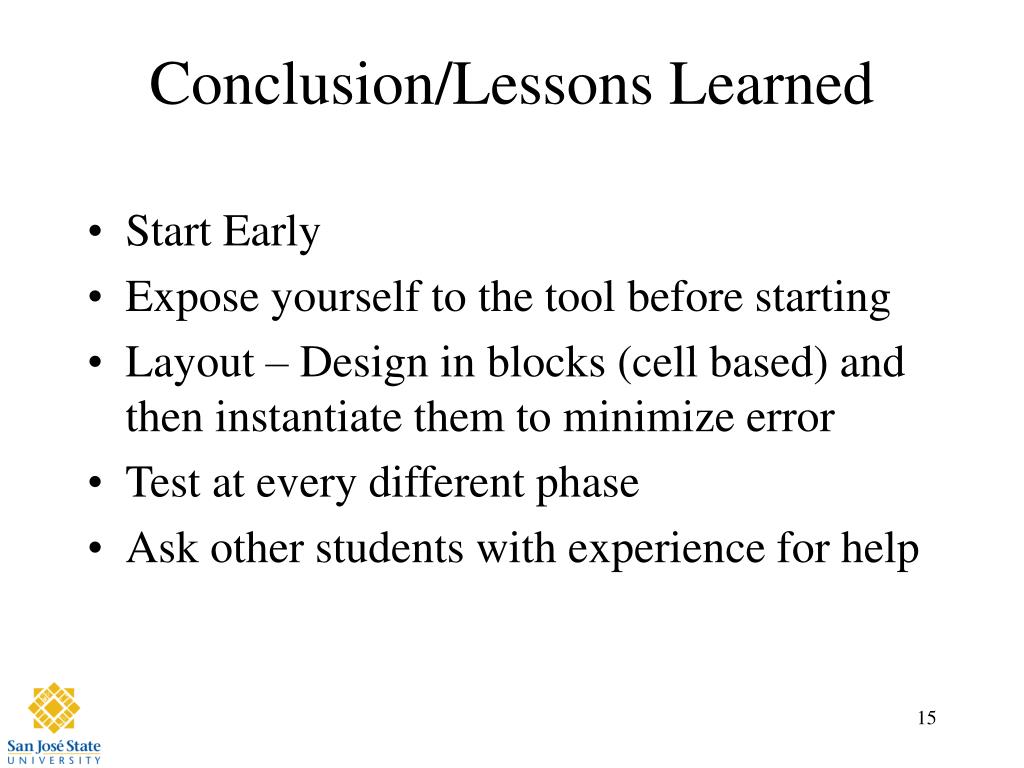

  15. Conclusion/Lessons Learned • Start Early • Expose yourself to the tool before starting • Layout – Design in blocks (cell based) and then instantiate them to minimize error • Test at every different phase • Ask other students with experience for help

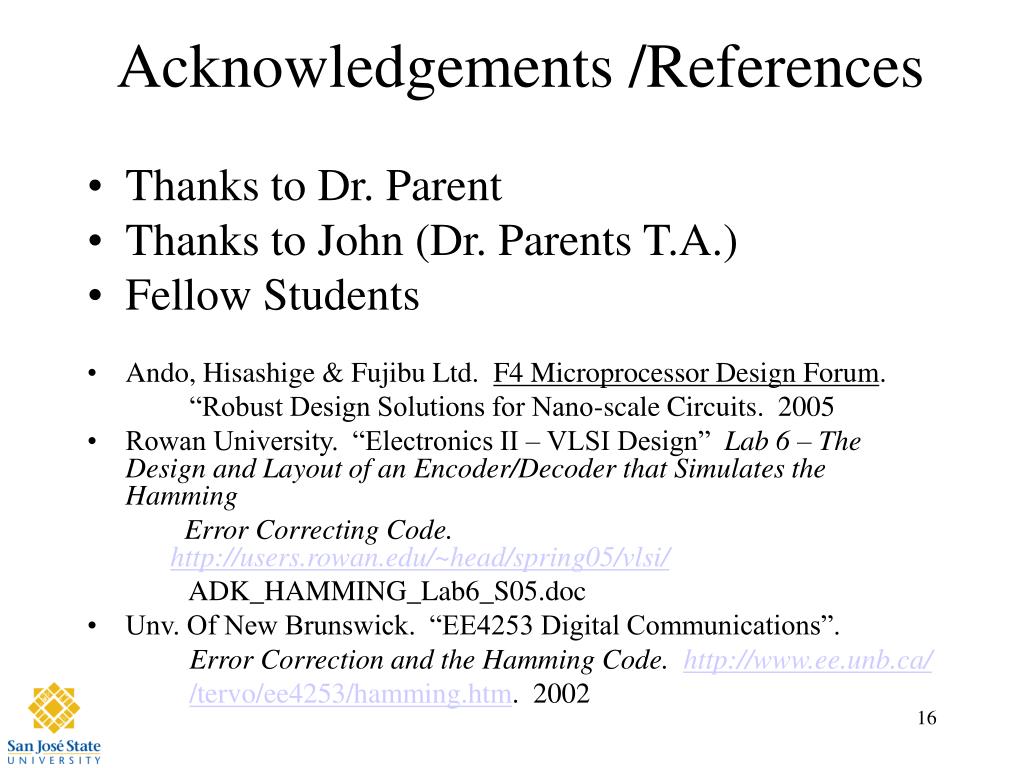

  16. Acknowledgements /References • Thanks to Dr. Parent • Thanks to John (Dr. Parents T.A.) • Fellow Students • Ando, Hisashige & Fujibu Ltd. F4 Microprocessor Design Forum. “Robust Design Solutions for Nano-scale Circuits. 2005 • Rowan University. “Electronics II – VLSI Design” Lab 6 – The Design and Layout of an Encoder/Decoder that Simulates the Hamming Error Correcting Code. http://users.rowan.edu/~head/spring05/vlsi/ ADK_HAMMING_Lab6_S05.doc • Unv. Of New Brunswick. “EE4253 Digital Communications”. Error Correction and the Hamming Code. http://www.ee.unb.ca/ /tervo/ee4253/hamming.htm. 2002
