Application of Optical Simulations from the Perspective

of a Device and Module Designer

Charles Haggans

Photonic Technologies

CIENA Corporation

Linthicum, MD 9/9/99


Outline l.jpg

Outline

  • Review challenges for cost-effective utilization of optical simulations in a device and module development environment

    • observations on efficient use

    • examples

      • optical disk surface structure design

      • photosensitive fiber and fiber Bragg grating design

  • Discuss future needs for modeling and analysis of optical devices in optical communication systems


What makes a problem attractive for simulation in an industrial setting 1 l.jpg

What makes a problem attractive for simulation in an industrial setting? (1)

  • Understanding desired for process where empirical studies are expensive or impossible

    • Ideally, it should be possible to obtain an optimized design at a fraction of the cost of an empirical optimization (designed experiment)

  • Performance measurement, material characterization, and fabrication infrastructure in place to validate simulation and prove knowledge gained through exercise of simulation

    • Development efforts utilizing simulations may involve fabrication processes that are not well characterized


What makes a problem attractive for simulation in an industrial setting 2 l.jpg

What makes a problem attractive for simulation in an industrial setting? (2)

  • Simulation applied to core area of business

    • Relatively long time scale to complete, demonstrate utility

      • timeframe of many months vs. few months

      • tool for design of family of components vs. single component

    • Opportunity to provide strategic advantage


Some observations for successful simulation application in an industrial environment l.jpg

Some observations for successful simulation application in an industrial environment

  • Simulation development is closely tied to simulation validation

  • Simulation developers understand measurements (and preferably make some measurements)

  • Simulation developers are part of product/technology development team, so that changes in program direction are seamlessly communicated

  • Simulation developers have some priority in receiving test resources, validation experiments, and feedback with respect to program direction


Application of design simulations l.jpg

Application of Design Simulations

Characterization of input material properties

develop and apply characterization techniques

Device performance simulation

develop and exercise simulation

Simulation Validation

Design Generation

Measured device performance

develop and apply measurement techniques

Configuration/development of fabrication process

develop and apply repeatable fabrication process (fabricate devices)

Characterization of fabricated device structure

develop and apply characterization techniques


Pitfalls in application of simulations l.jpg

Pitfalls in application of simulations

  • Are you solving the right problem? (has the problem been defined correctly?)

  • Can the “knobs” that you are including in the simulation be “turned” in the manufacturing process in a controlled manner?


Outline8 l.jpg

Outline

  • Review challenges for cost-effective utilization of optical simulations in a device and module development environment

    • observations on efficient use

    • examples

      • free-space (optical disk surface structure design)

      • waveguide (photosensitive fiber and fiber Bragg grating design)

  • Discuss future needs for modeling and analysis of optical devices in optical communication systems


Example 1 optical disk surface structure design l.jpg

Example 1:Optical disk surface structure design

  • Problem: Design surface structure for optimized tracking signal

  • Motivation: Constantly evolving formats, inefficiency and expense of empirical disk design

  • State-of-the-art at start of project: Scalar diffraction for focused beams, vector plane-wave diffraction for periodic diffractive structures

  • Objective: Simulate head-medium interface (focused beam interacting with structured surface coated with absorbing materials)


Example 1 optical disk surface structure design10 l.jpg

Example 1:Optical disk surface structure design

  • Simulation approach: hybrid FDTD

  • Collaborators: Rick Ziolkowski, Justin Judkins (University of Arizona), Jim Kwiecien, Paul Mallak, Chad Sandstrom, Todd Ethen, Tim Badar (3M Company/Imation)

  • Results summarized in Applied Optics, 10, p. 2477-2487 (1996).


Example 1 optical disk surface structure design11 l.jpg

Example 1:Optical disk surface structure design

Simulation Approach


Example 1 optical disk surface structure design12 l.jpg

Example 1:Optical disk surface structure design

Sources of Error in Simulation Validation


Outline13 l.jpg

Outline

  • Review challenges for cost-effective utilization of optical simulations in a device and module development environment

    • observations on efficient use

    • examples

      • optical disk surface structure design

      • photosensitive fiber and fiber Bragg grating design

  • Discuss future needs for modeling and analysis of optical devices in optical communication systems


Example 2 photosensitive fiber and fiber bragg grating design l.jpg

Example 2: Photosensitive fiber and fiber Bragg grating design

  • Problem: Develop photosensitive fiber and fiber Bragg grating design tool

  • Application: Generate fiber designs for reduced cladding-mode coupling, increase applicability of Bragg gratings as narrow-band filters

  • Following results summarized in:

    • Journal of Lightwave Technology, 16, 902-909 (1998)

    • IEEE Photonic Technology Letters, 10, 690-692 (1998)


Example 2 photosensitive fiber and fiber bragg grating design15 l.jpg

Example 2: Photosensitive fiber and fiber Bragg grating design

  • Initial result: gave filter design capability for fundamental-to-fundamental mode coupling

  • Secondary result: gave tool for investigating undesirable out-of-band spectral structure (cladding mode coupling)

  • Strategic result: utilized tool to explore parameter space for novel designs


Example 2 photosensitive fiber and fiber bragg grating design16 l.jpg

Example 2: Photosensitive fiber and fiber Bragg grating design

  • Simulation approach: Coupled-mode theory with solution of fiber modes under weakly-guiding approximation

  • Collaborators: Jim Onstott, Wayne Varner, Harmeet Singh, Trevor MacDougall, Ed Dowd, Alessandra Chiareli (3M Company)


Impact of fiber type on cladding mode coupling l.jpg

Impact of fiber type on cladding-mode coupling

Conventional Matched-Clad

Photosensitive Clad

Narrow Depressed-Clad

Increasing Azimuthal Asymmetry

(grating tilt)


Band rejection filter tilted fiber grating with low backreflection l.jpg

Band rejection filter (tilted fiber grating)with low backreflection


Challenges for realizing computational design in fabricated grating l.jpg

Challenges for realizing computational design in fabricated grating

  • Fiber characterization

  • Photoinduced index change features and characterization

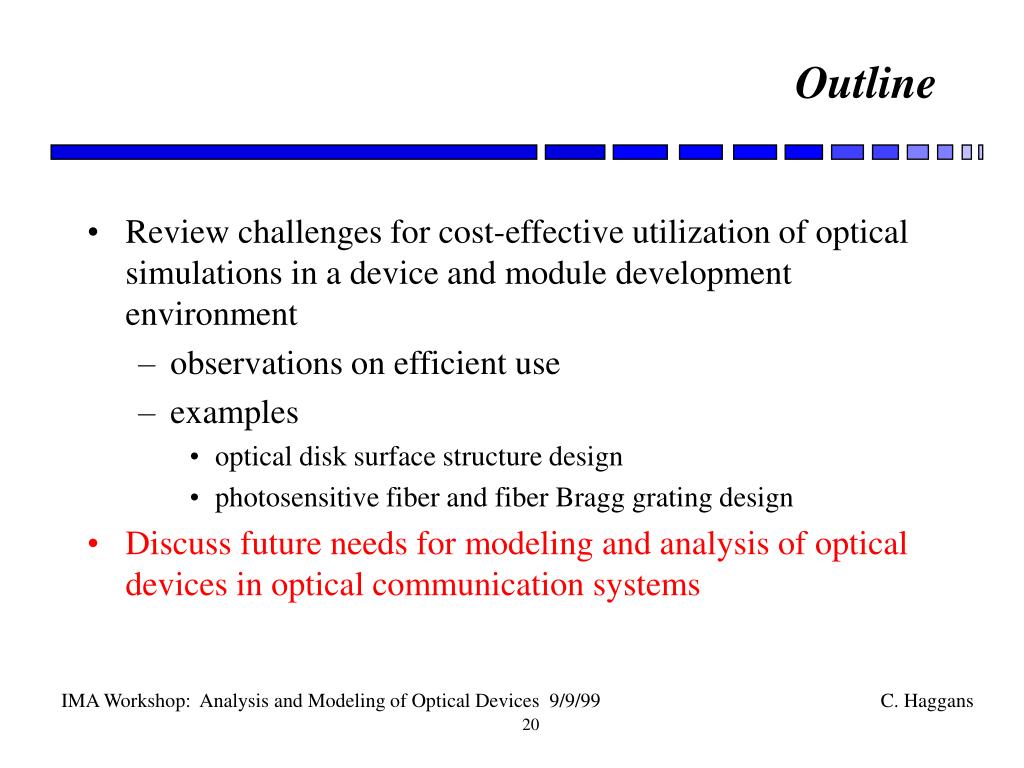

Outline20 l.jpg

Outline

  • Review challenges for cost-effective utilization of optical simulations in a device and module development environment

    • observations on efficient use

    • examples

      • optical disk surface structure design

      • photosensitive fiber and fiber Bragg grating design

  • Discuss future needs for modeling and analysis of optical devices in optical communication systems


Evolution of modeling and analysis of optical devices l.jpg

Evolution of modeling and analysis of optical devices

  • Standard capability: Amplitude and phase response vs. device geometry for chosen material set

  • Advanced capability: response vs. temperature, polarization, material properties, mechanical deformation

  • Assessment of long-term device reliability

  • Design optimization for cost reduction, manufacturability, streamlining design process


Future needs for modeling and analysis of optical devices l.jpg

Future needs for modeling and analysis of optical devices

  • low cost, high reliability switches

  • reconfigurable/tunable filters

  • compensation for system impairments


Conclusion l.jpg

Conclusion

  • Reviewed challenges for cost-effective utilization of optical simulations in a device and module development environment

    • observations on efficient use

    • examples

      • free-space (optical disk surface structure design)

      • waveguide (photosensitive fiber and fiber Bragg grating design)

  • Discussed future needs for modeling and analysis of optical devices in optical communication systems
