  1. RADIOLOGY

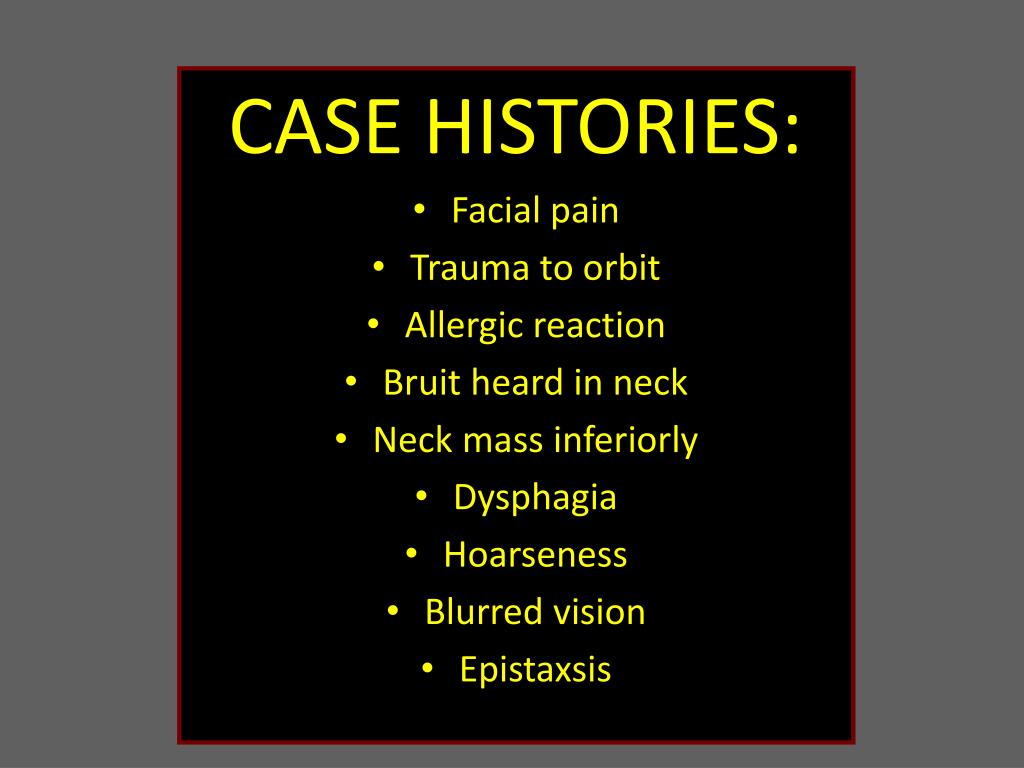

  2. CASE HISTORIES: • Facial pain • Trauma to orbit • Allergic reaction • Bruit heard in neck • Neck mass inferiorly • Dysphagia • Hoarseness • Blurred vision • Epistaxsis

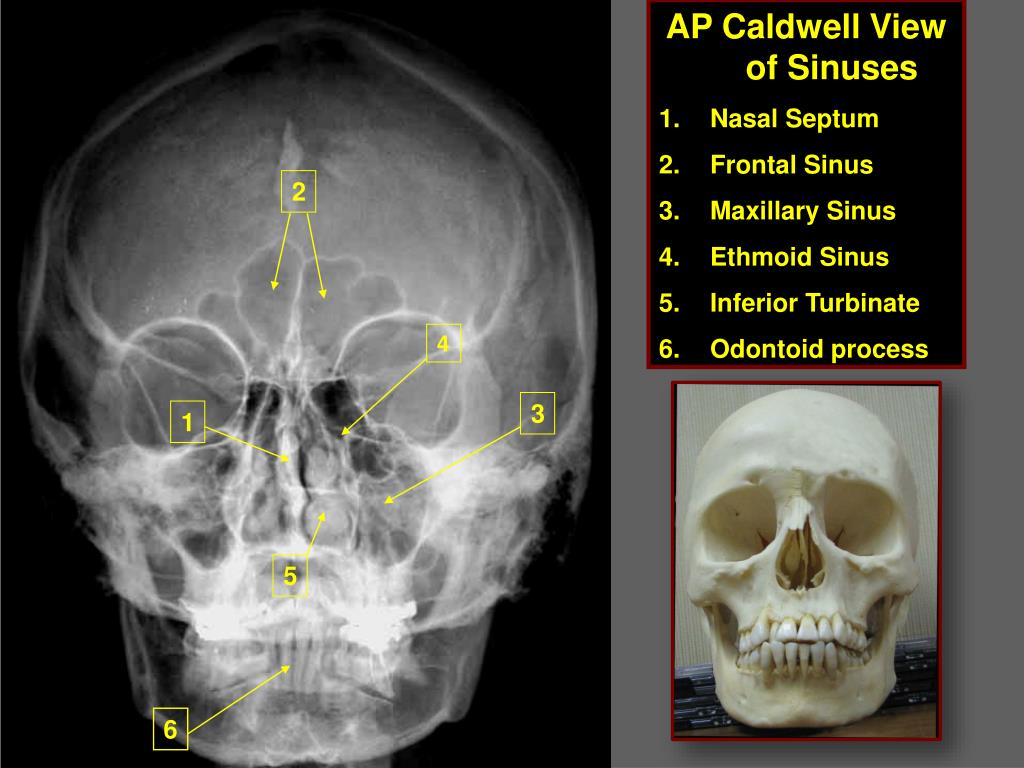

  3. AP Caldwell View of Sinuses Nasal Septum Frontal Sinus Maxillary Sinus Ethmoid Sinus Inferior Turbinate Odontoid process 2 4 3 1 5 6

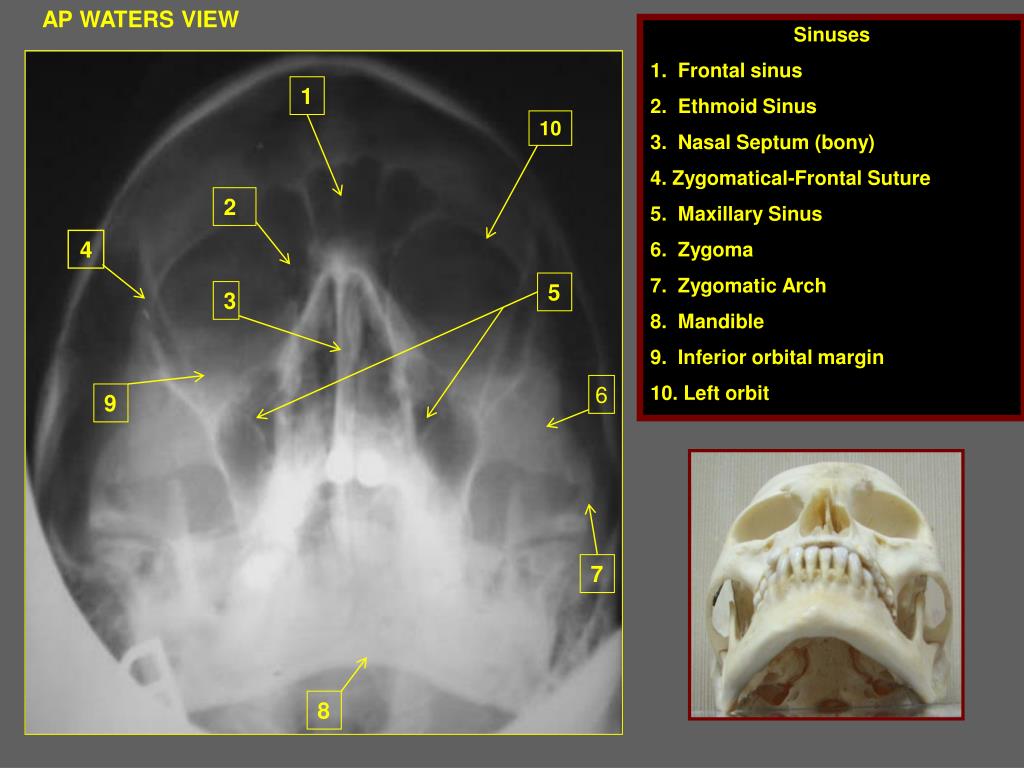

  4. AP WATERS VIEW Sinuses 1. Frontal sinus 2. Ethmoid Sinus 3. Nasal Septum (bony) 4. Zygomatical-Frontal Suture 5. Maxillary Sinus 6. Zygoma 7. Zygomatic Arch 8. Mandible 9. Inferior orbital margin 10. Left orbit 1 10 2 4 5 3 6 9 7 8

  5. Lateral Sinus & Skull 1. Frontal Sinus 2. Maxillary Sinus 3. Ethmoid Sinus 4. Spenoid Sinus 5. Sella Turcica 6. Occipital Bone 7. Mastoid Air Cells 8. Floor of posterior fossa 9. Anterior arch of C-1 10. Mandible 11.Coronal Suture 11 1 3 5 7 2 4 6 9 8 10

  6. AP Townes SKULL 1. Parietal bone 2. Lambdoid suture 3. Foramen magnum 4. Petrous temporal bone 5. Mandible 6. Mastoid air cells 1 1 2 3 4 6 5

  7. Base of the Skull • 1. Lat. ptyergoid plate • 2. Ethmoid Sinus • 3. Odontoid Process • 4. Sphenoid Sinus • 5. Foramen ovale • 6. Maxillary Sinus • 7. Mastoid air cells • 8. Ant arch of C-1 • 9. Margin of foramen magnum • 10. Ext auditory canal 6 2 1 5 4 10 8 3 7 9

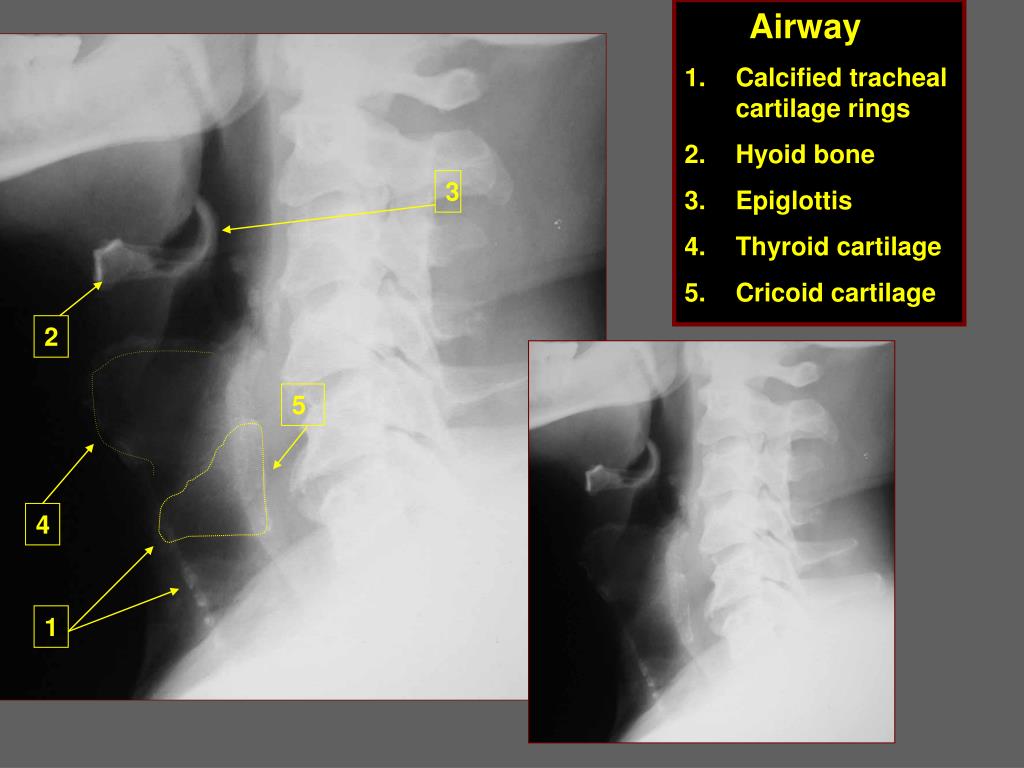

  8. Airway • Calcified tracheal cartilage rings • Hyoid bone • Epiglottis • Thyroid cartilage • Cricoid cartilage 3 2 5 4 1

  9. 1 • Lateral Neck • Stylo-hyoid ligament • Hyoid bone • Thyroid cartilage • Cricoid cartilage 2 3 4

  10. 3 • Lateral Neck • Hard pallate • Soft pallate • Nasopharynx • Oropharynx 1 2 4 4

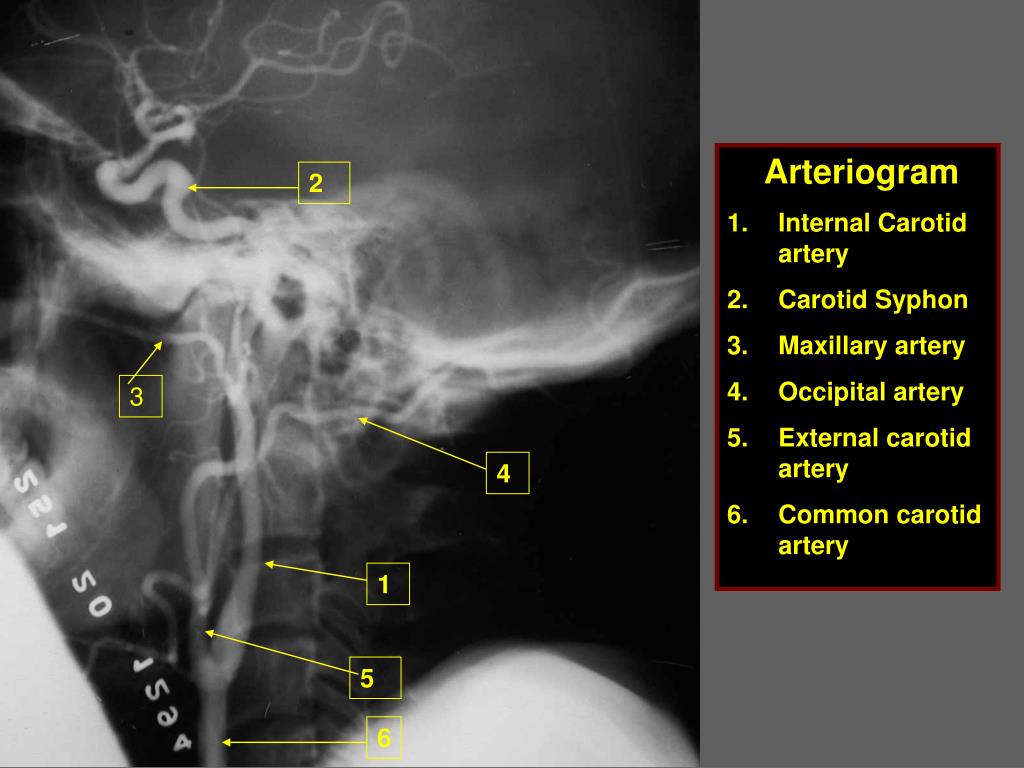

  11. Arteriogram • Internal Carotid artery • Carotid Syphon • Maxillary artery • Occipital artery • External carotid artery • Common carotid artery 2 3 4 1 5 6

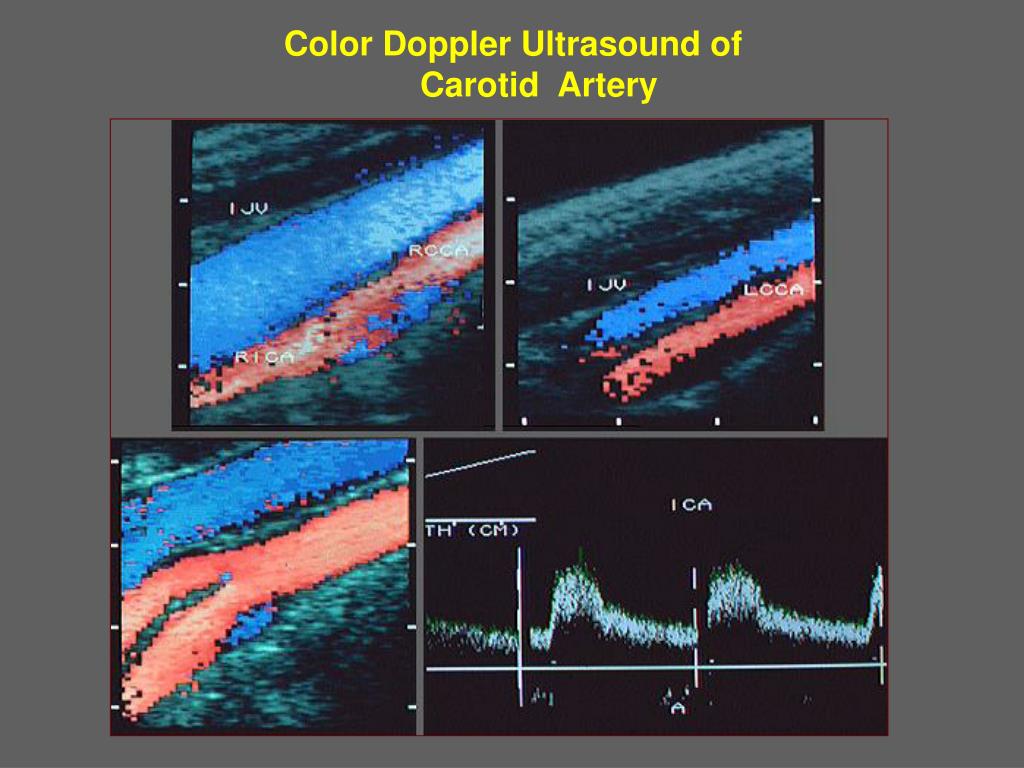

  12. Color Doppler Ultrasound of Carotid Artery

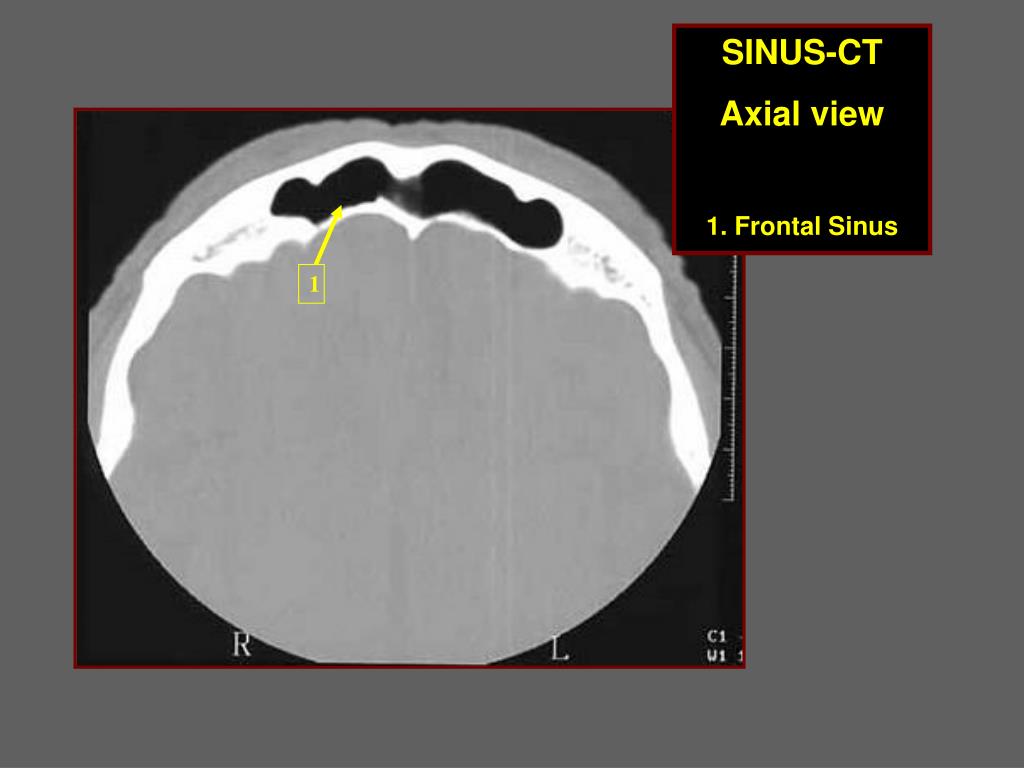

  13. SINUS-CT Axial view 1. Frontal Sinus 1

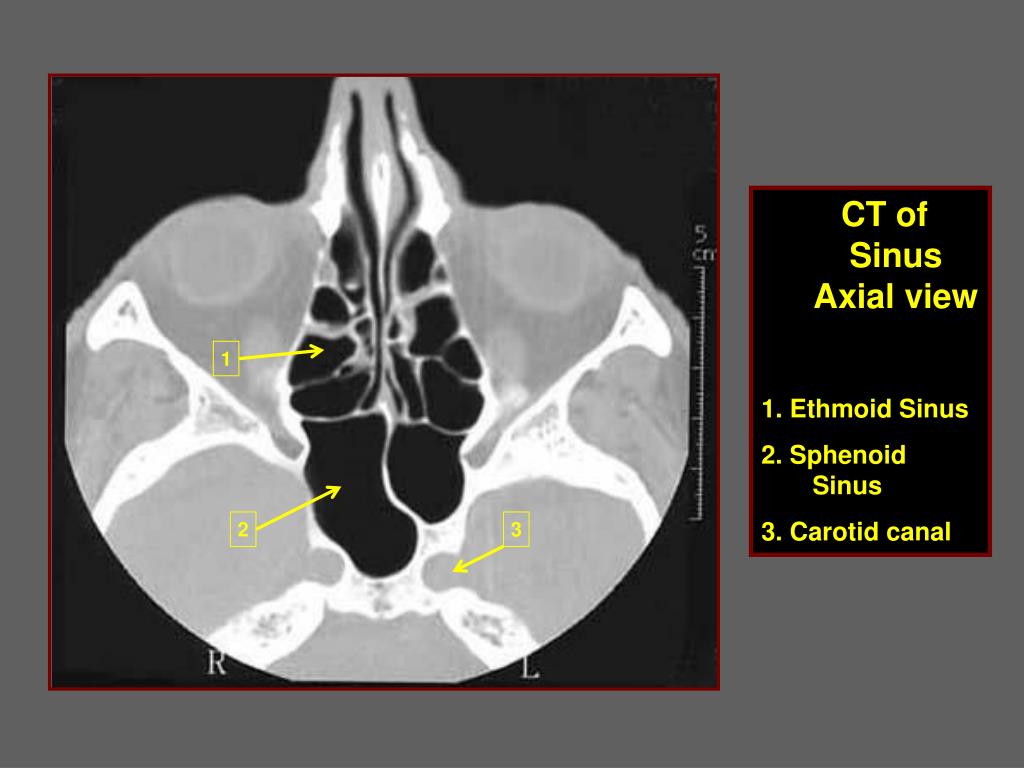

  14. CT of Sinus Axial view 1. Ethmoid Sinus 2. Sphenoid Sinus 3. Carotid canal 1 2 3

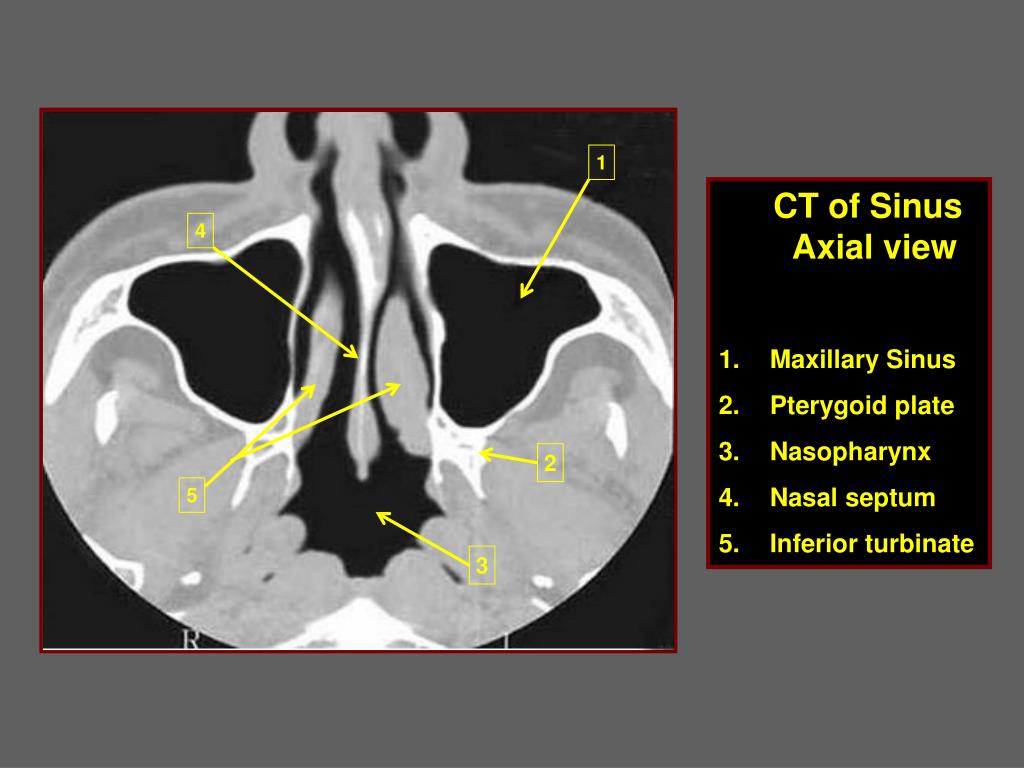

  15. 1 • CT of Sinus Axial view • Maxillary Sinus • Pterygoid plate • Nasopharynx • Nasal septum • Inferior turbinate 4 2 5 3

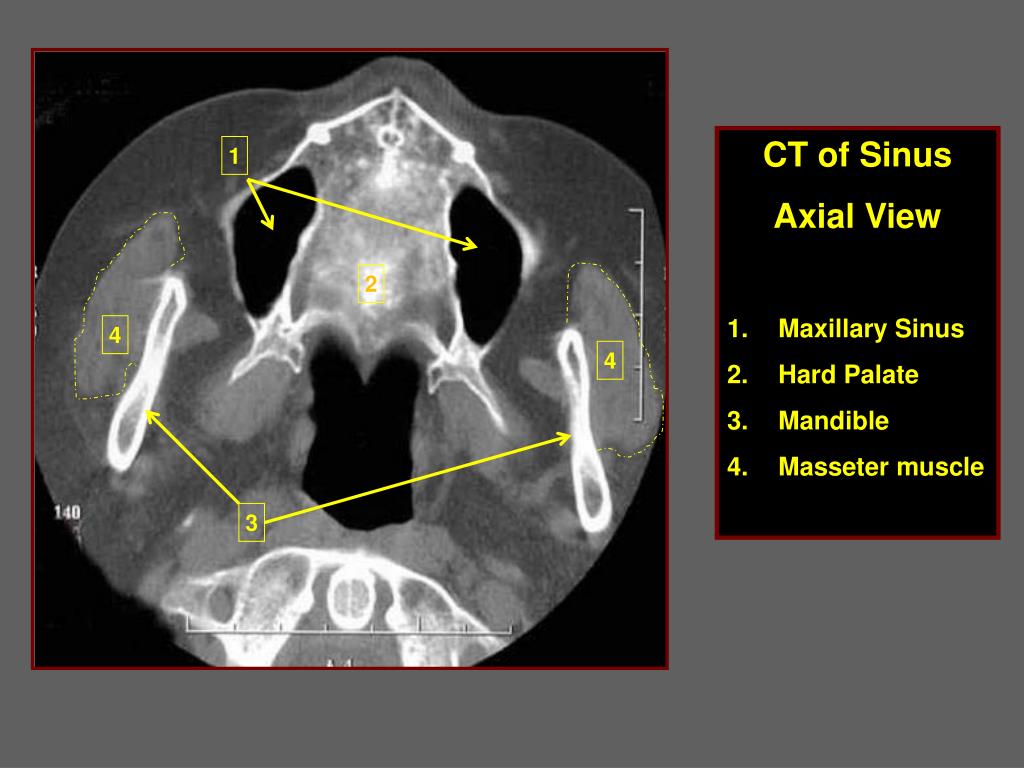

  16. CT of Sinus • Axial View • Maxillary Sinus • Hard Palate • Mandible • Masseter muscle 1 2 4 4 3 3

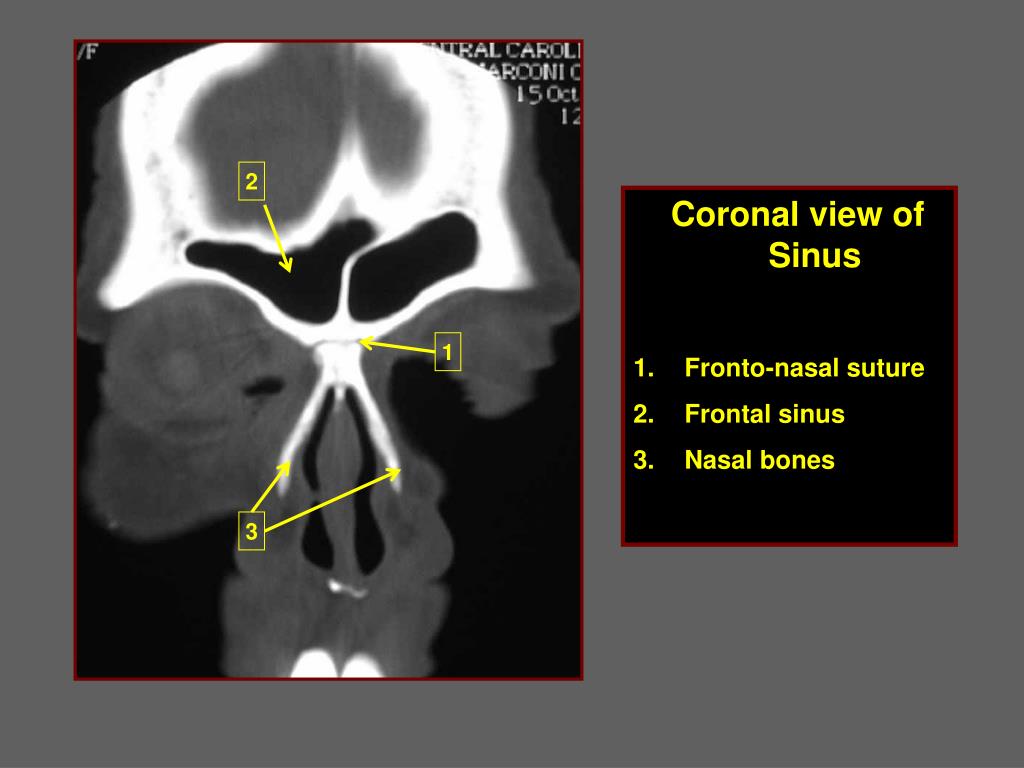

  17. 2 • Coronal view of Sinus • Fronto-nasal suture • Frontal sinus • Nasal bones 1 3

  18. 1 3 Coronal view of sinus 1. Ethmoid sinus 2. Inferior turbinate 3. Middle turbinate 2

  19. 1 • Coronal view of sinus • Maxillary sinus • Nasal Septum 2

  20. Coronal View of sinus • Sphenoid sinus • Hard Palatte 1 2

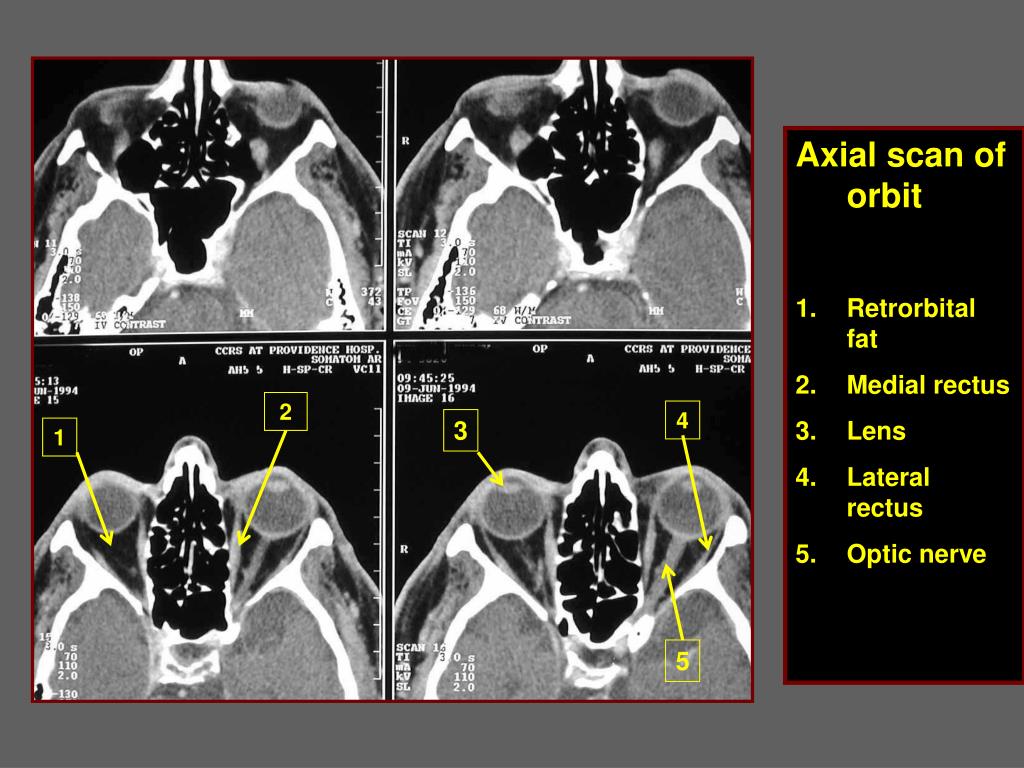

  21. Axial scan of orbit • Retrorbital fat • Medial rectus • Lens • Lateral rectus • Optic nerve 2 4 3 1 5

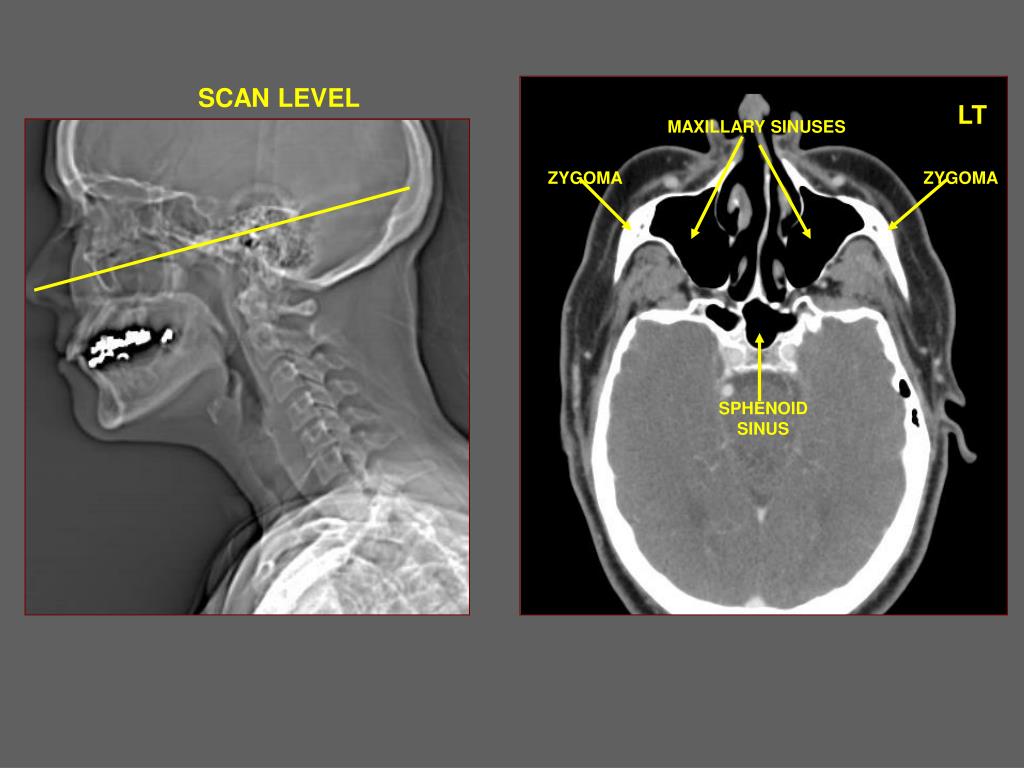

  22. SCAN LEVEL LT MAXILLARY SINUSES ZYGOMA ZYGOMA SPHENOID SINUS

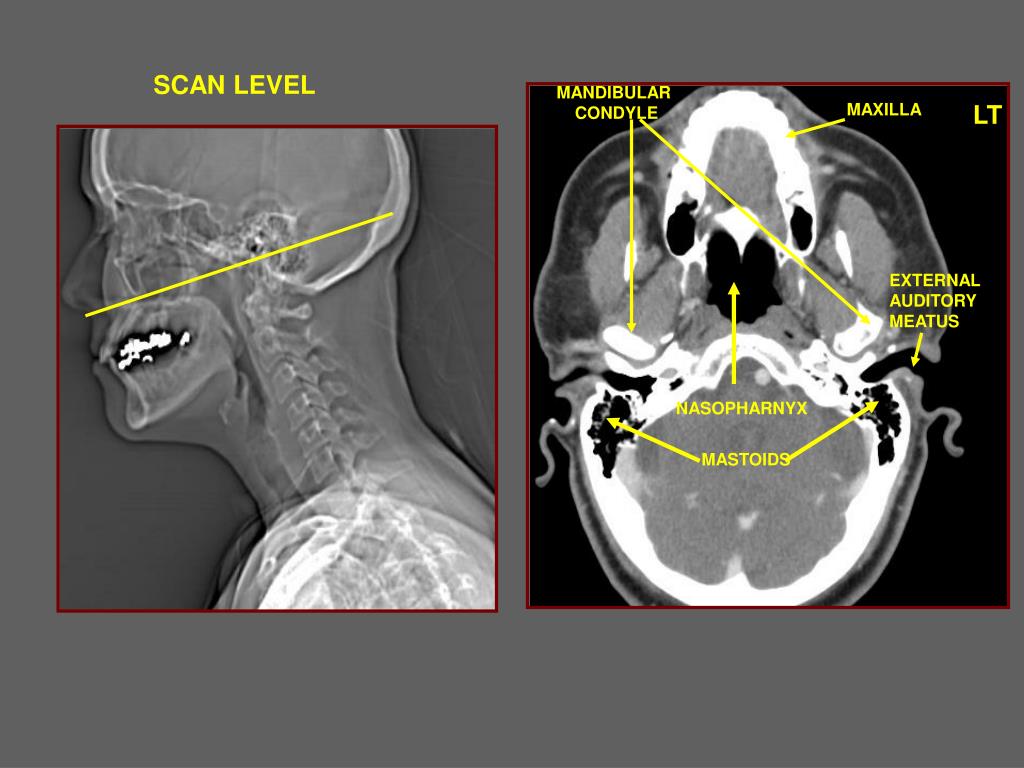

  23. SCAN LEVEL MANDIBULAR CONDYLE MAXILLA LT EXTERNAL AUDITORY MEATUS NASOPHARNYX MASTOIDS

  24. MANDIBLE LT SCAN LEVEL MASSETER MUSCLE MASSETER MUSCLE PTERYGOID MUSCLES PAROTID GLAND

  25. SCAN LEVEL SUBMANDIBULAR GLAND LT EPIGLOTTIS STERNOCLEIOMASTOID MUSCLE SUBCUTANEOUS FAT

  26. SCAN LEVEL LT HYOID BONE JUGULAR VEIN JUGULAR VEIN COMMON CAROTID ARTERIES

  27. SCAN LEVEL LT STERNOCLEIDOMASTOID MUSCLE THYROID CARTILAGE VOCAL CORD

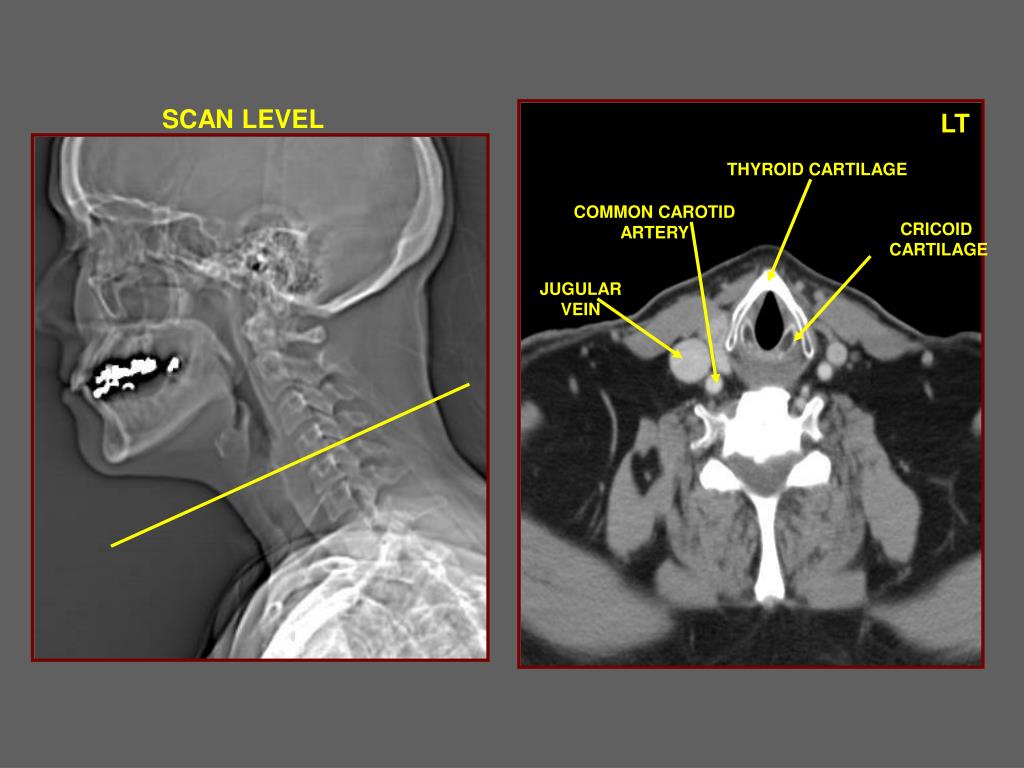

  28. SCAN LEVEL LT THYROID CARTILAGE COMMON CAROTID ARTERY CRICOID CARTILAGE JUGULAR VEIN

  29. LT SCAN LEVEL THYROID GLAND CLAVICLE CLAVICLE FAT FAT ESOPHAGUS TRACHEA

  30. CASE HISTORIES: • Facial pain • Trauma to orbit • Allergic reaction • Bruit heard in neck • Neck mass inferiorly • Dysphagia • Hoarseness • Blurred vision • Epistaxsis

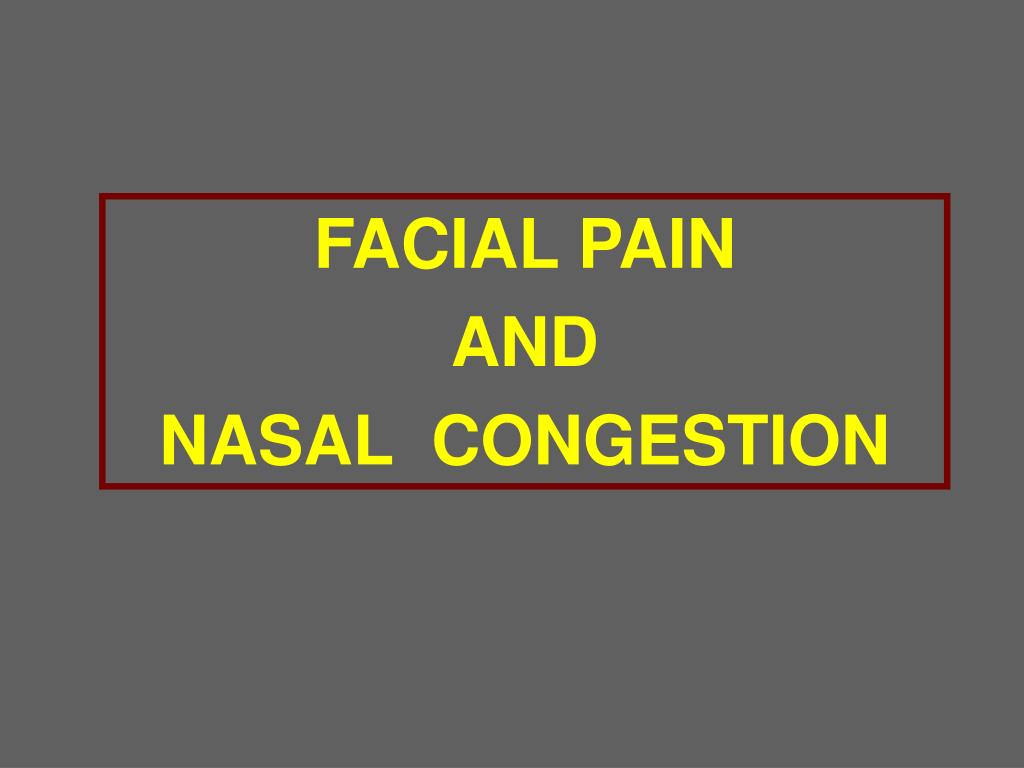

  31. FACIAL PAIN AND NASAL CONGESTION

  32. TRAUMA TO ORBIT

  33. PT WITH ALLERGIC REACTION

  34. ASYMTOMATIC BRUIT ON PHYSICAL EXAM

  35. Arteriogram • Internal Carotid artery • Carotid Syphon • Maxillary artery • Occipital artery • External carotid artery • Common carotid artery 2 3 4 1 5 6
