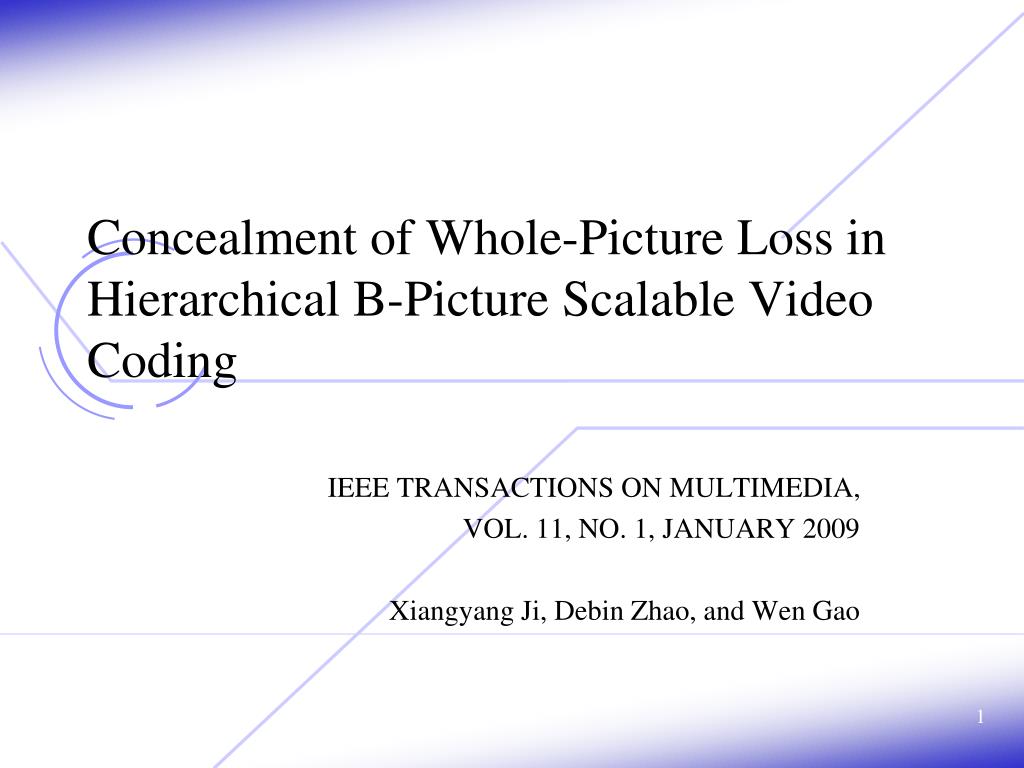

  1. Concealment of Whole-Picture Loss in Hierarchical B-Picture Scalable Video Coding IEEE TRANSACTIONS ON MULTIMEDIA, VOL. 11, NO. 1, JANUARY 2009 XiangyangJi, Debin Zhao, and Wen Gao

  2. Outline • Introduction • Proposed Error Concealment Strategy • Experimental Results • Conclusion

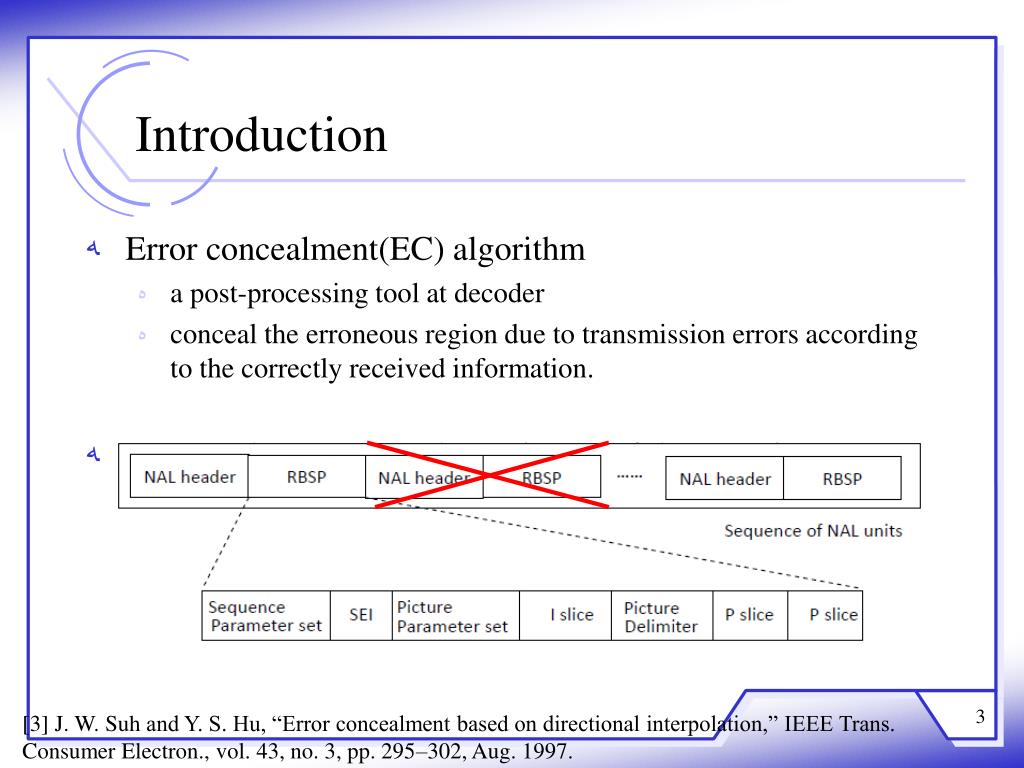

  3. Introduction • Error concealment(EC) algorithm • a post-processing tool at decoder • conceal the erroneous region due to transmission errors according to the correctly received information. • Temporal error concealment is one of the most important approaches to combat transmission errors. • temporal replacement (TR) [3]: each damaged macroblock is directly replaced by the co-located one in the temporally previous picture with zero motion. [3] J. W. Suh and Y. S. Hu, “Error concealment based on directional interpolation,” IEEE Trans. Consumer Electron., vol. 43, no. 3, pp. 295–302, Aug. 1997.

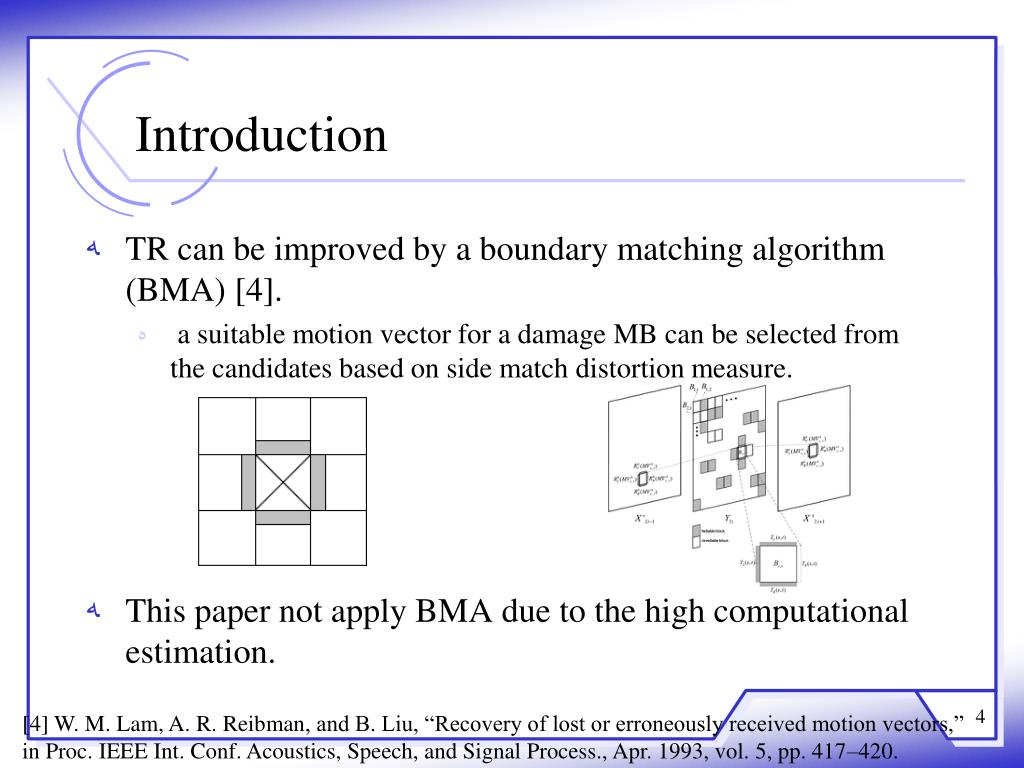

  4. Introduction • TR can be improved by a boundary matching algorithm (BMA) [4]. • a suitable motion vector for a damage MB can be selected from the candidates based on side match distortion measure. • This paper not apply BMA due to the high computational estimation. [4] W. M. Lam, A. R. Reibman, and B. Liu, “Recovery of lost or erroneously received motion vectors,” in Proc. IEEE Int. Conf. Acoustics, Speech, and Signal Process., Apr. 1993, vol. 5, pp. 417–420.

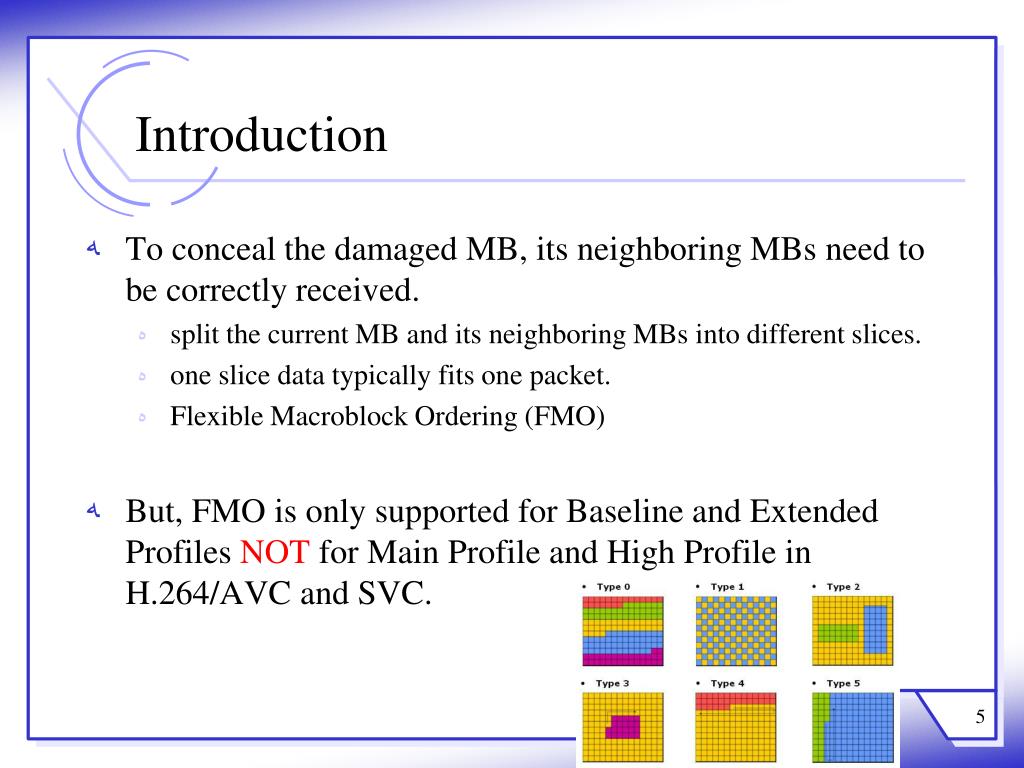

  5. Introduction • To conceal the damaged MB, its neighboring MBs need to be correctly received. • split the current MB and its neighboring MBs into different slices. • one slice data typically fits one packet. • Flexible MacroblockOrdering(FMO) • But, FMO is only supported for Baseline and Extended Profiles NOTfor Main Profile and High Profile in H.264/AVC and SVC.

  6. Purpose • Tackle the whole-picture loss problem. • The advantage of the temporal relationship can be taken when hierarchical B-picture coding is used to support temporal scalability.

  7. Proposed Strategy • Take the temporal relationship among the adjacent video pictures into account. • The motion information of the lost picture is derived simply and efficiently based on the principle of temporal direct mode (TDM).

  8. Proposed Strategy • The MV of the damaged MB can be derived from the MVs of the co-located MBs. • temporally neighboring left and/or right B-pictures at next higher temporal level. • This method could also be used to conceal lost key picture as a P-picture.

  9. Outline • Introduction • Proposed Error Concealment Strategy • Hierarchical B-Picture Coding • Motion Parameters Recovery Based on the Enhanced TDM (ETDM_EC) • Further Improvement on Motion Parameters Recovery (WTDM_EC) • Experimental Results • Conclusion

  10. Hierarchical B-Picture Coding

  11. B-Picture Prediction (1/2) • A B-picture allows two prediction blocks from List 0 and List 1 reference buffers which contain an arbitrary set of reference pictures in forward and/or backward directions [16]. • At encoder, its motion-compensated prediction signal can be obtained by [16] A. M. Tourapis, F.Wu, and S. Li, “Direct mode coding for bipredictive slices in the H.264 standard,” IEEE Trans. Circuits Syst. Video Technol., vol. 15, no. 1, pp. 119–126, Jan. 2005.

  12. B-Picture Prediction (2/2) • At decoder, for a block Sin the lost picture , which is concealed as a B-picture, its prediction signal can be achieved by

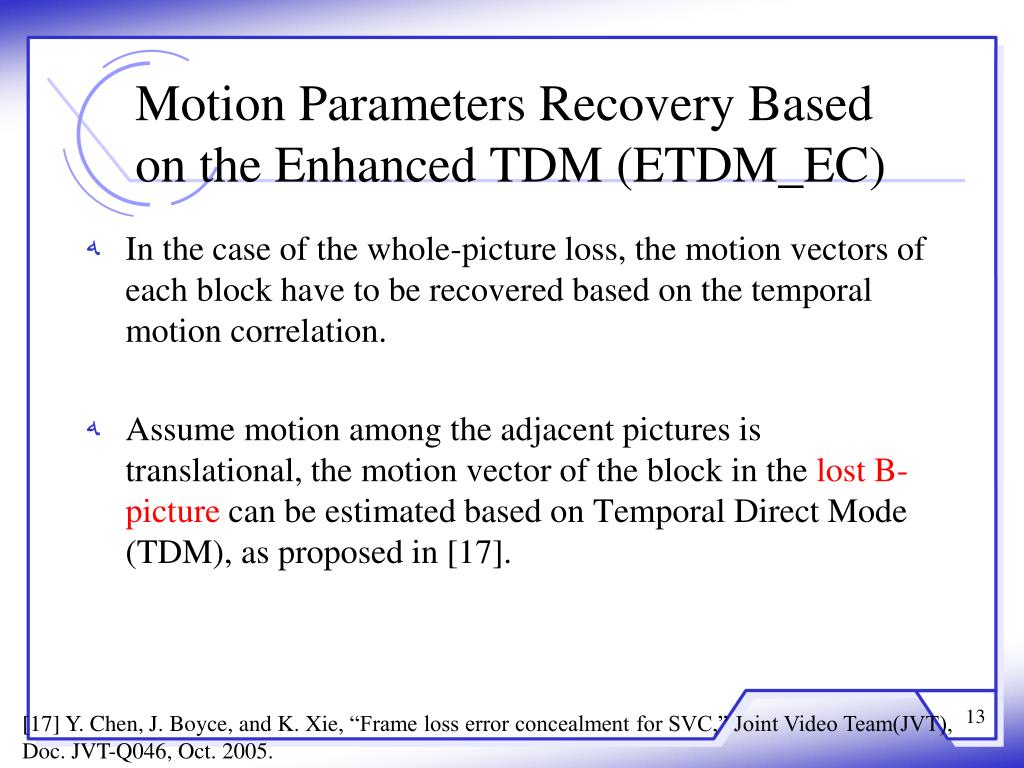

  13. Motion Parameters Recovery Based on the Enhanced TDM (ETDM_EC) • In the case of the whole-picture loss, the motion vectors of each block have to be recovered based on the temporal motion correlation. • Assume motion among the adjacent pictures is translational, the motion vector of the block in the lost B-picture can be estimated based on Temporal Direct Mode (TDM), as proposed in [17]. [17] Y. Chen, J. Boyce, and K. Xie, “Frame loss error concealment for SVC,” Joint Video Team(JVT), Doc. JVT-Q046, Oct. 2005.

  14. Temporal Direct Mode (TDM) (1/2) • of the co-located block in point to the temporally most recent List 0 picture. (4)

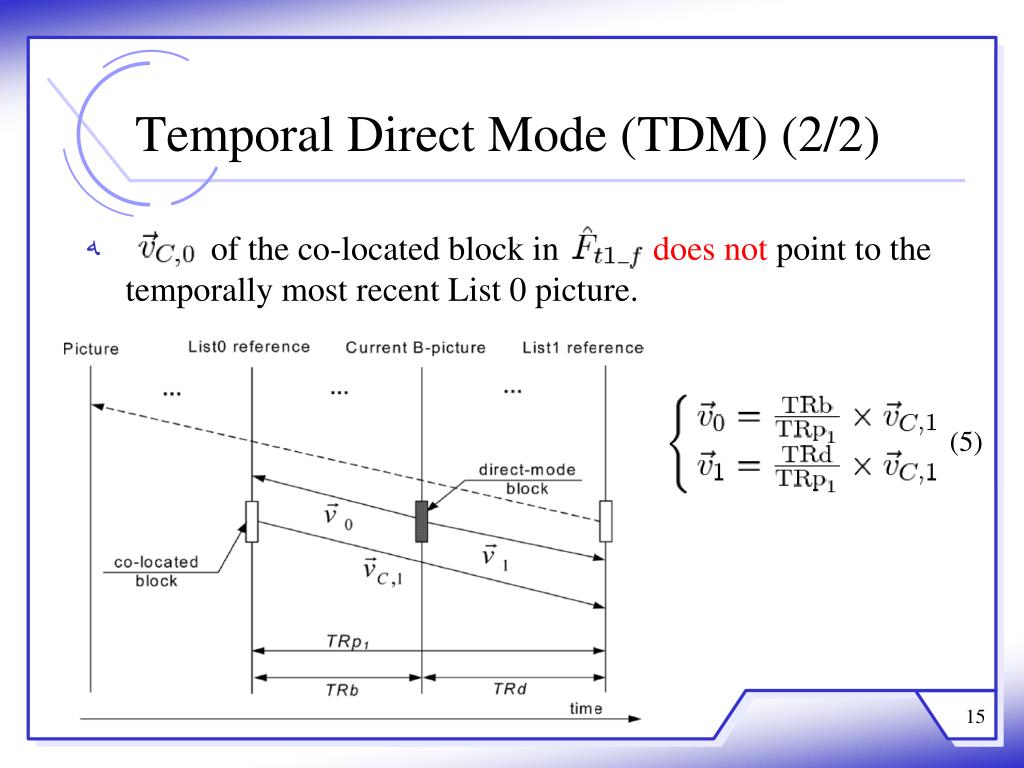

  15. Temporal Direct Mode (TDM) (2/2) • of the co-located block in does not point to the temporally most recent List 0 picture. (5)

  16. TDM- Cases • If the picture pointed by or of the co-located block in the corresponding or picture, can not be accessed. (4) (5)

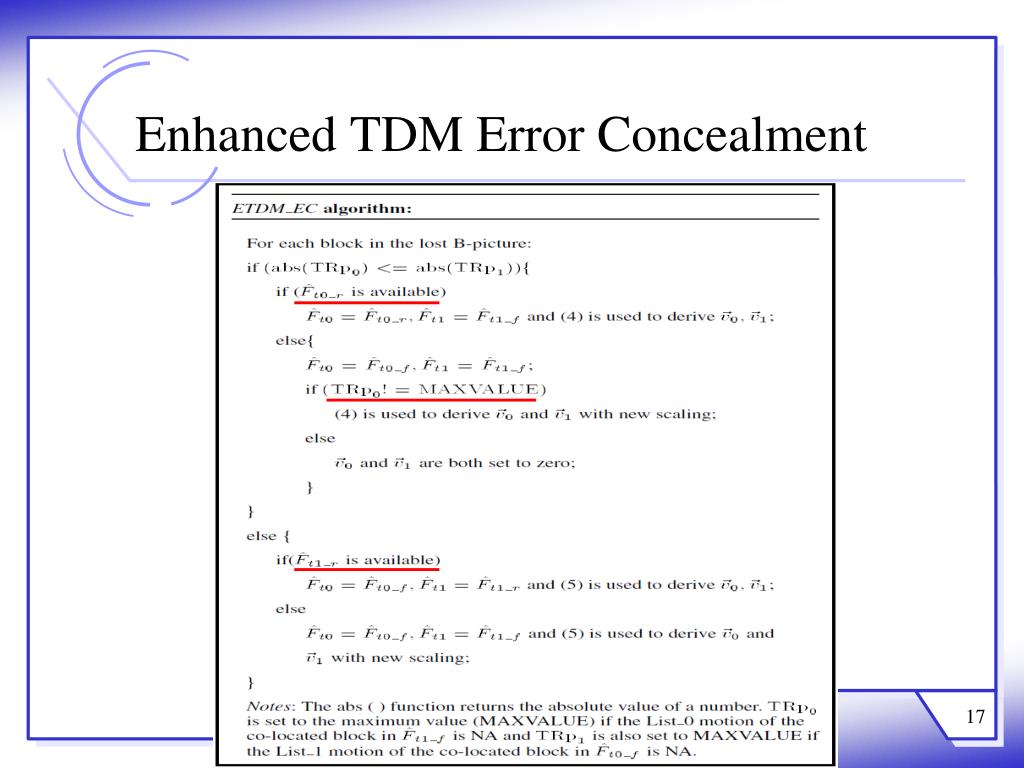

  17. Enhanced TDM Error Concealment

  18. Further Improvement on Motion Parameters Recovery (WTDM_EC) • For a lost B-picture which is not at the highest temporal level. • the temporal motion relationship tends to considerably weaken as the temporal distances become longer. • If the key picture is lost and recovered as a P-picture, the motion vectors of its block usually can not be derived based on TDM.

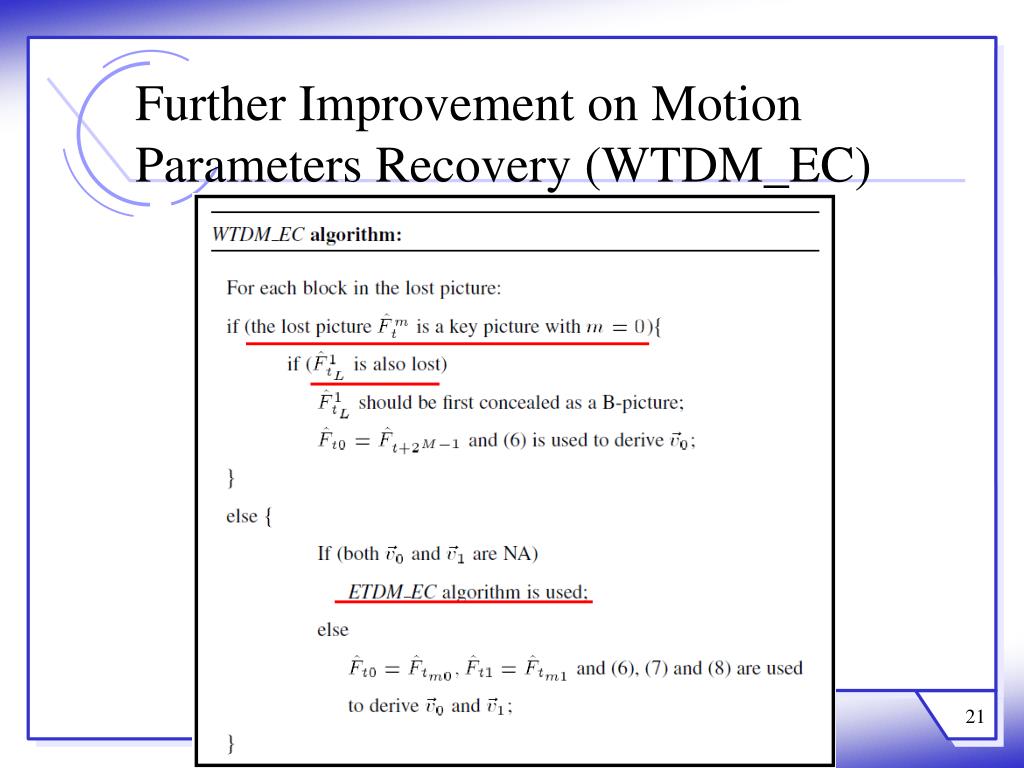

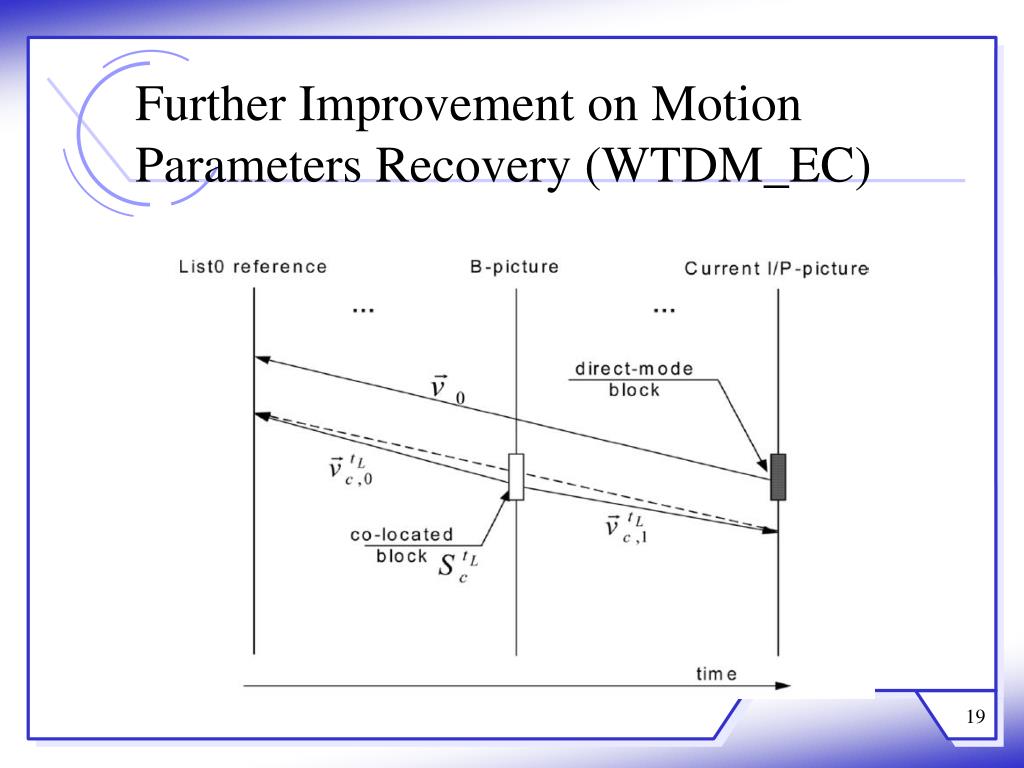

  19. Further Improvement on Motion Parameters Recovery (WTDM_EC)

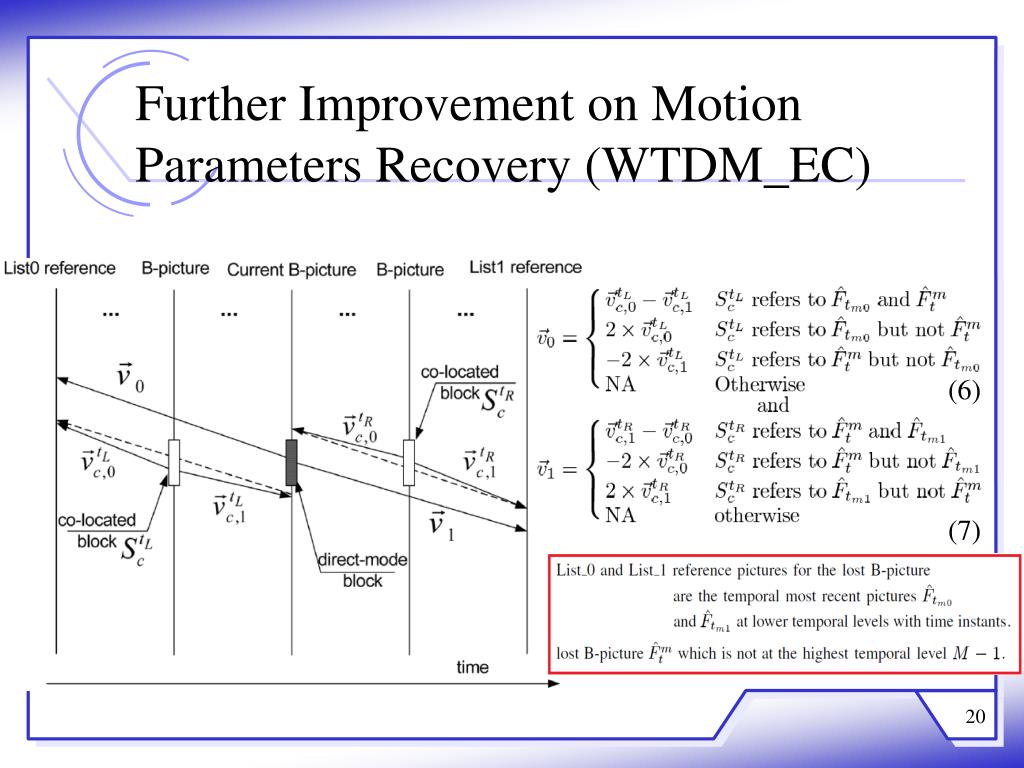

  20. Further Improvement on Motion Parameters Recovery (WTDM_EC) (6) (7)

  21. Further Improvement on Motion Parameters Recovery (WTDM_EC)

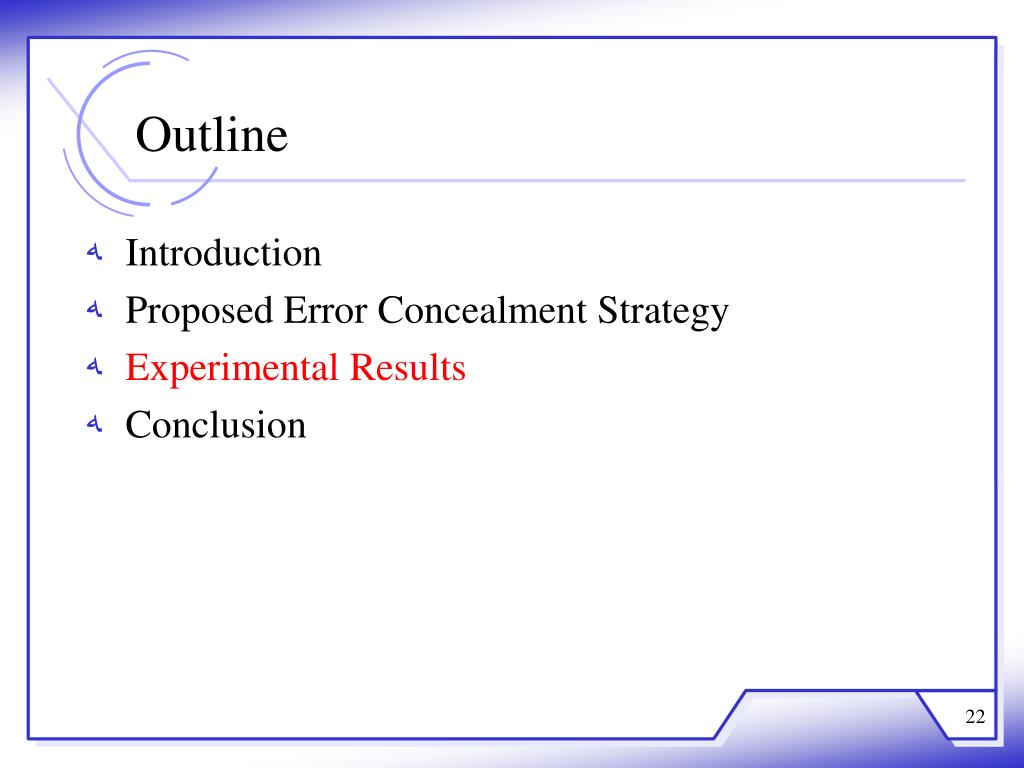

  22. Outline • Introduction • Proposed Error Concealment Strategy • Experimental Results • Conclusion

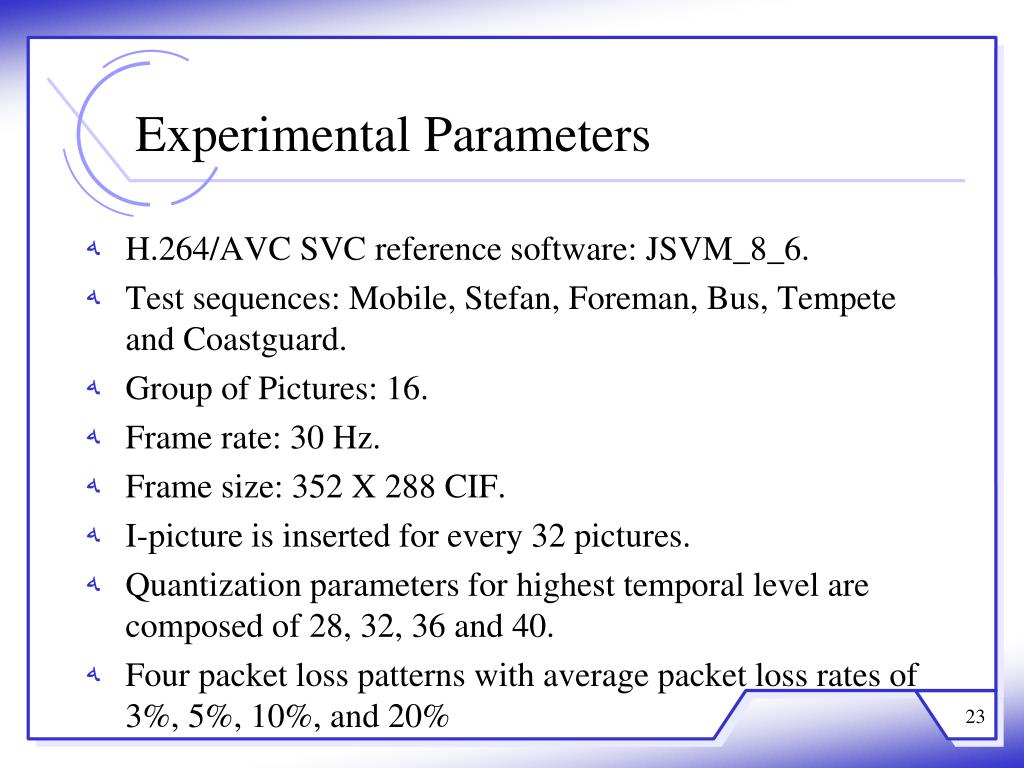

  23. Experimental Parameters • H.264/AVC SVC reference software: JSVM_8_6. • Test sequences: Mobile, Stefan, Foreman, Bus, Tempete and Coastguard. • Group of Pictures: 16. • Frame rate: 30 Hz. • Frame size: 352 X 288 CIF. • I-picture is inserted for every 32 pictures. • Quantization parameters for highest temporal level are composed of 28, 32, 36 and 40. • Four packet loss patterns with average packet loss rates of 3%, 5%, 10%, and 20%

  24. Rate Distortion Curves (1/2)

  25. Rate Distortion Curves (2/2)

  26. Quality Gain of Proposed Strategy

  27. Mobile (1/5) • 195th frame, temporal level 4 Anchor_EC Proposed Strategy Correct

  28. Mobile (2/5) • 230th frame , temporal level 3 ETDM_EC Anchor_EC WTDM_EC Correct

  29. Mobile (3/5) • 156thframe , temporal level 2 ETDM_EC Anchor_EC WTDM_EC Correct

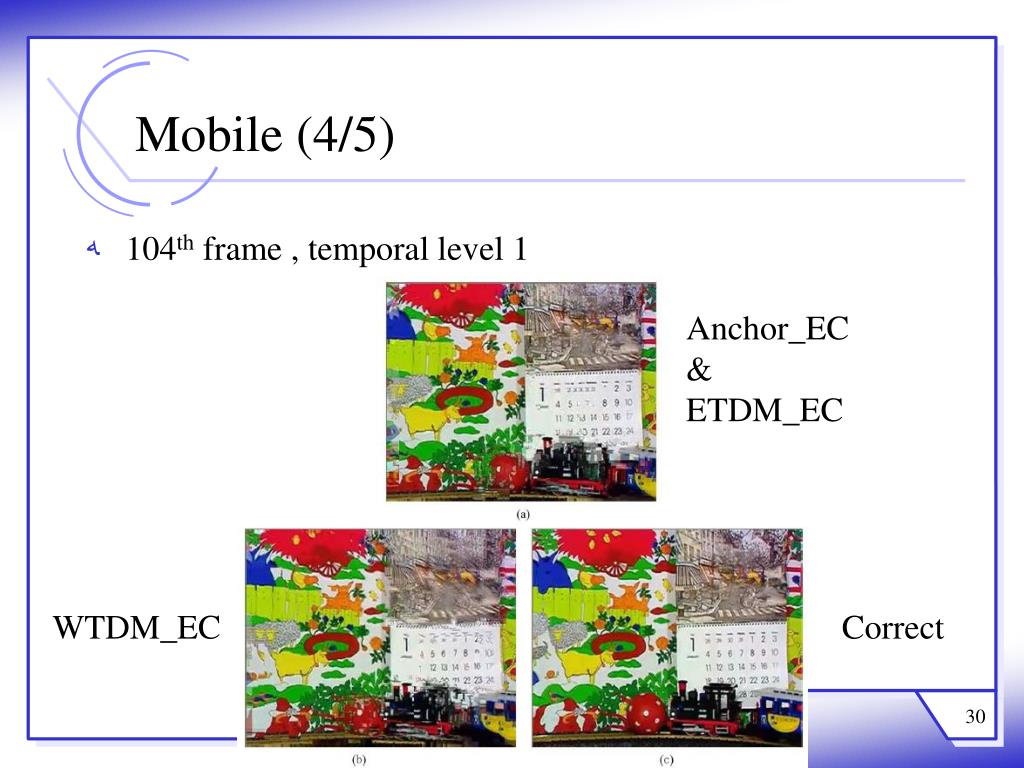

  30. Mobile (4/5) • 104thframe , temporal level 1 Anchor_EC & ETDM_EC WTDM_EC Correct

  31. Mobile (5/5) • 256th key frame Anchor_EC & ETDM_EC WTDM_EC Correct

  32. Outline • Introduction • Proposed Error Concealment Strategy • Experimental Results • Conclusion

  33. Conclusion • The proposed algorithm derive the motion vector of the damaged block in the lost picture by utilizing the motion information in the temporally neighboring. • The proposed method also can be easily extended to the slice loss case with the error resilient tool like FMO. • The further improvement on motion parameters recovery perhaps introduce an extra delay for video decoding within one GOP.
