T a c americas houston

T.A.C. Americas Houston

Project Engineering

HEADSTART Automation Tool Training

Systems Integration Training Module PE 4


T a c americas houston1

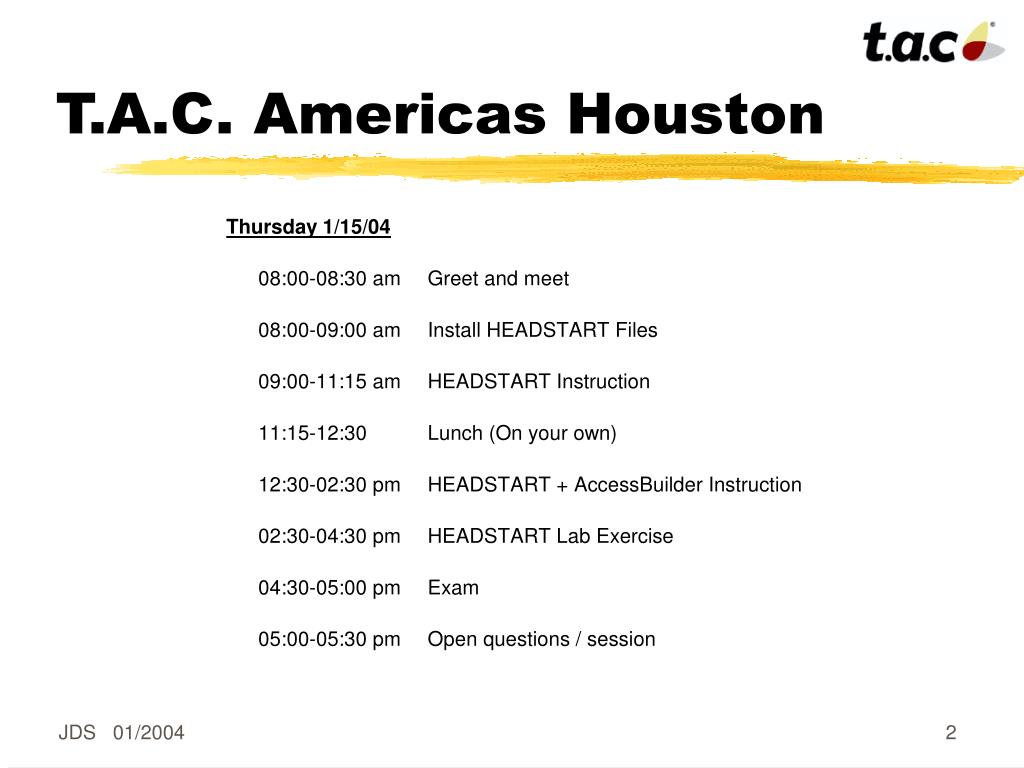

T.A.C. Americas Houston


Whats in store today

Whats in Store Today

  • Visio Review / Questions

  • Install HEADSTART Files

  • Introduce HEADSTART

  • Demo HEADSTART

  • Demo ACCESSBUILDER

  • Practice what we preach - Lab

  • Exam


But first

But First ……

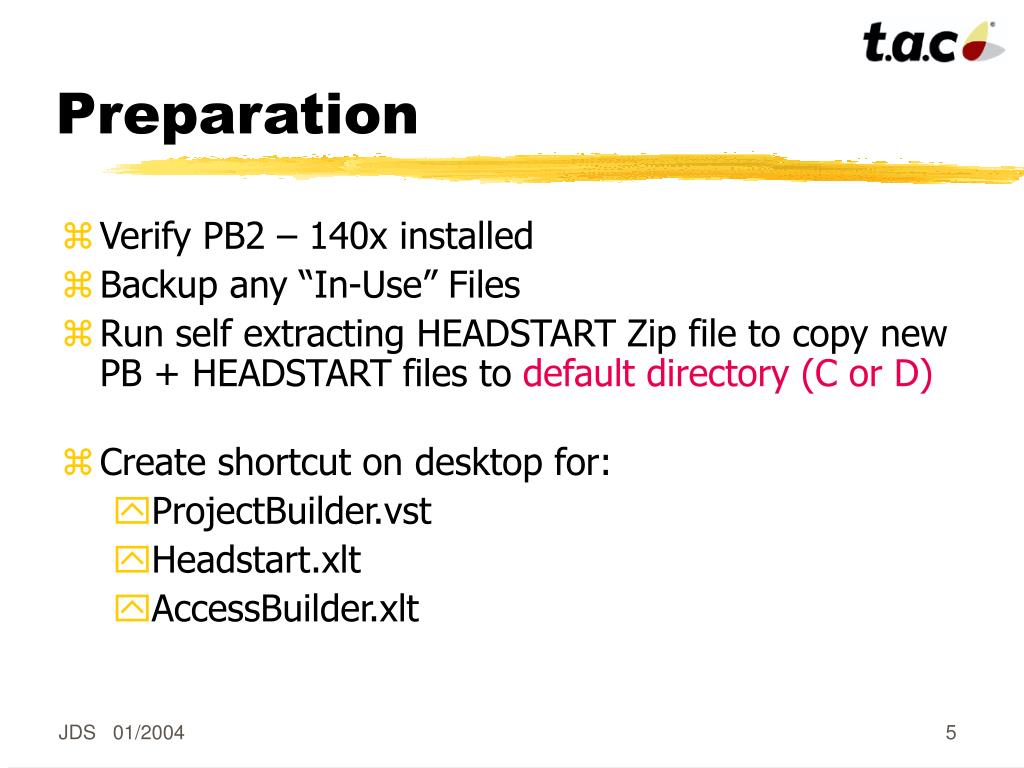

Preparation

Preparation

  • Verify PB2 – 140x installed

  • Backup any “In-Use” Files

  • Run self extracting HEADSTART Zip file to copy new PB + HEADSTART files to default directory (C or D)

  • Create shortcut on desktop for:

    • ProjectBuilder.vst

    • Headstart.xlt

    • AccessBuilder.xlt

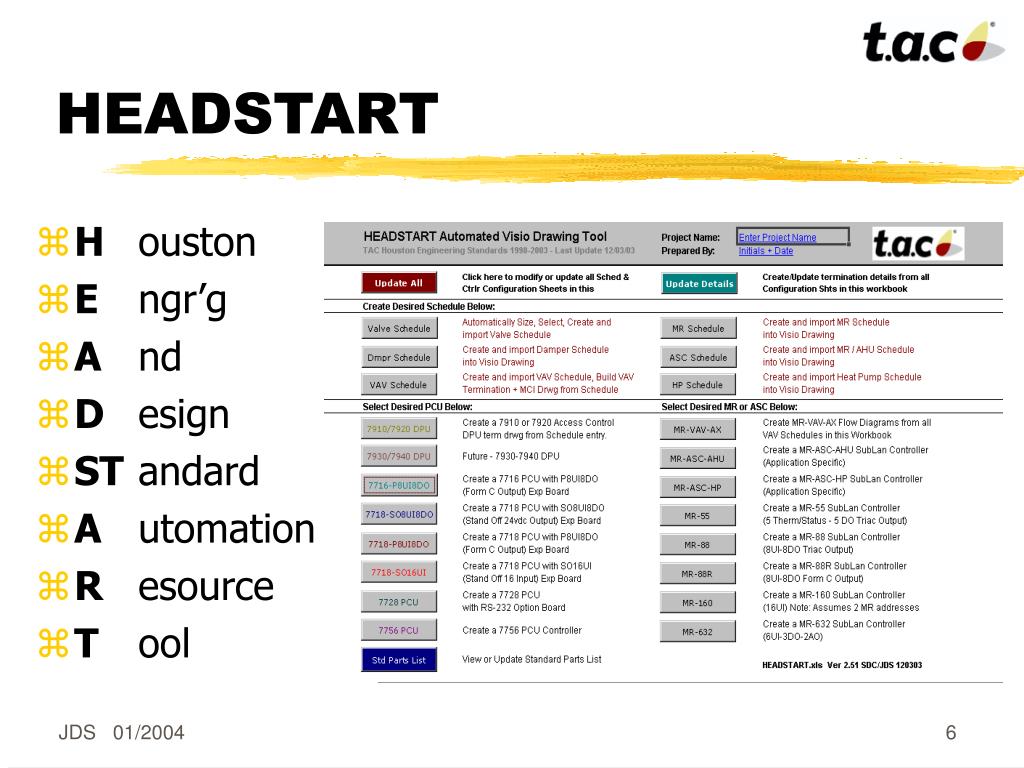

Headstart

HEADSTART

  • H ouston

  • Engr’g

  • And

  • Design

  • STandard

  • Automation

  • Resource

  • Tool


Headstart advantages

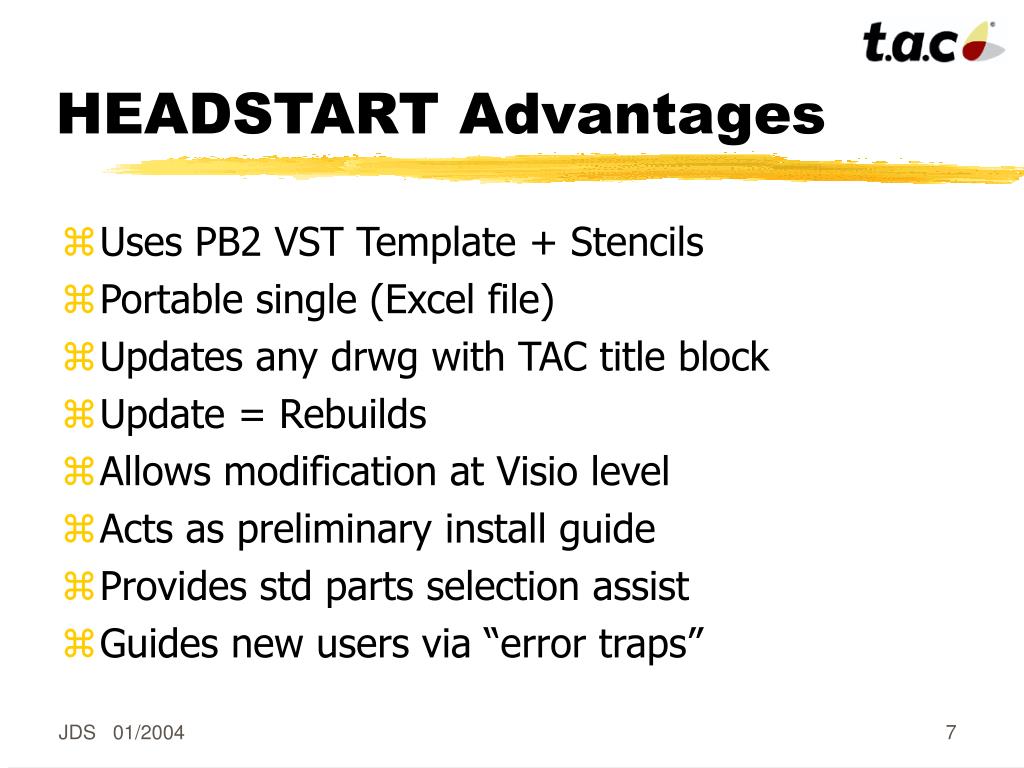

HEADSTART Advantages

  • Uses PB2 VST Template + Stencils

  • Portable single (Excel file)

  • Updates any drwg with TAC title block

  • Update = Rebuilds

  • Allows modification at Visio level

  • Acts as preliminary install guide

  • Provides std parts selection assist

  • Guides new users via “error traps”


Headstart features

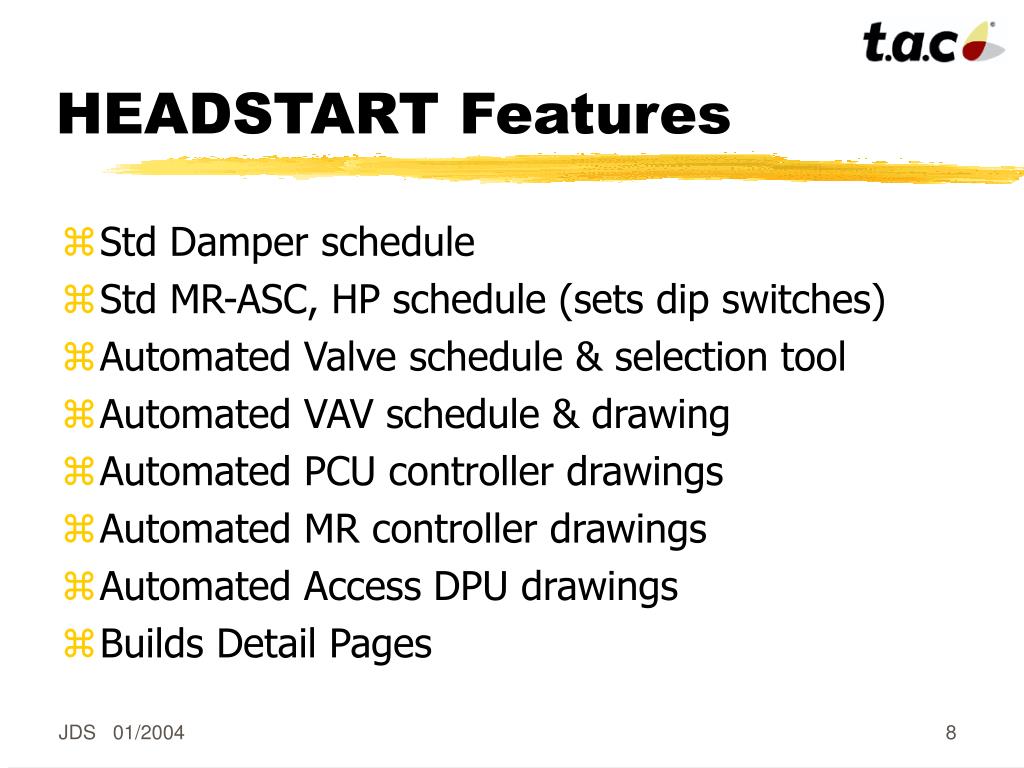

HEADSTART Features

  • Std Damper schedule

  • Std MR-ASC, HP schedule (sets dip switches)

  • Automated Valve schedule & selection tool

  • Automated VAV schedule & drawing

  • Automated PCU controller drawings

  • Automated MR controller drawings

  • Automated Access DPU drawings

  • Builds Detail Pages


Headstart files

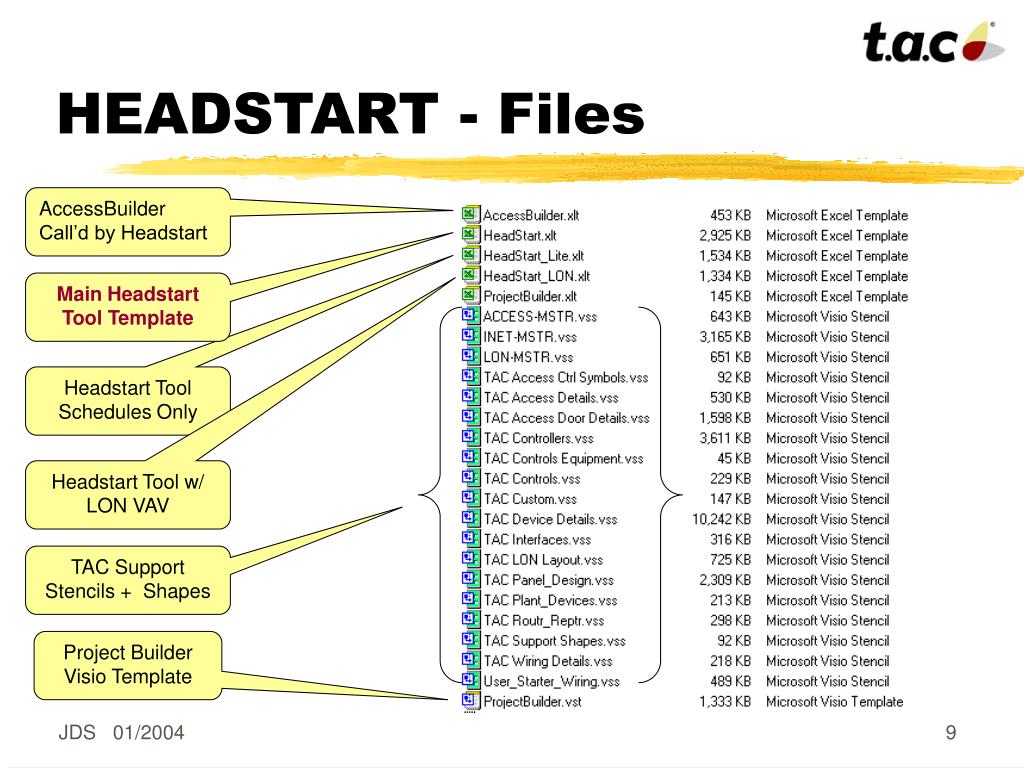

HEADSTART - Files

AccessBuilder

Call’d by Headstart

Main Headstart

Tool Template

Headstart Tool

Schedules Only

Headstart Tool w/ LON VAV

TAC Support Stencils + Shapes

Project Builder Visio Template


Headstart format

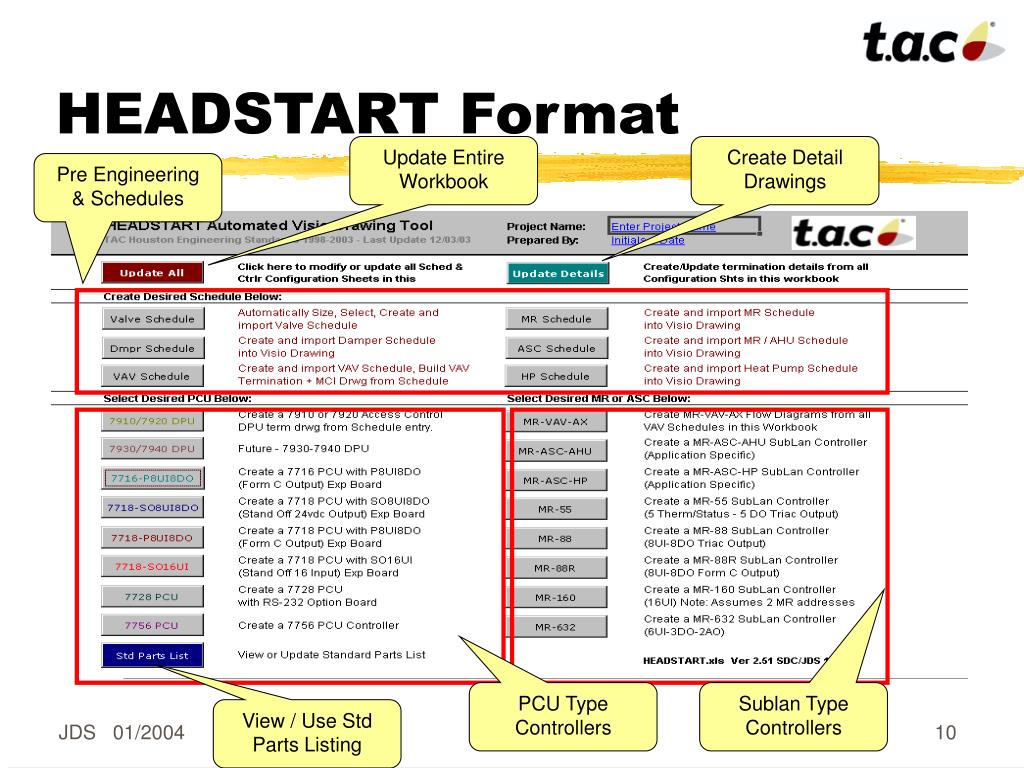

HEADSTART Format

Update Entire Workbook

Create Detail Drawings

Pre Engineering & Schedules

PCU Type Controllers

Sublan Type Controllers

View / Use Std Parts Listing


Headstart instructions

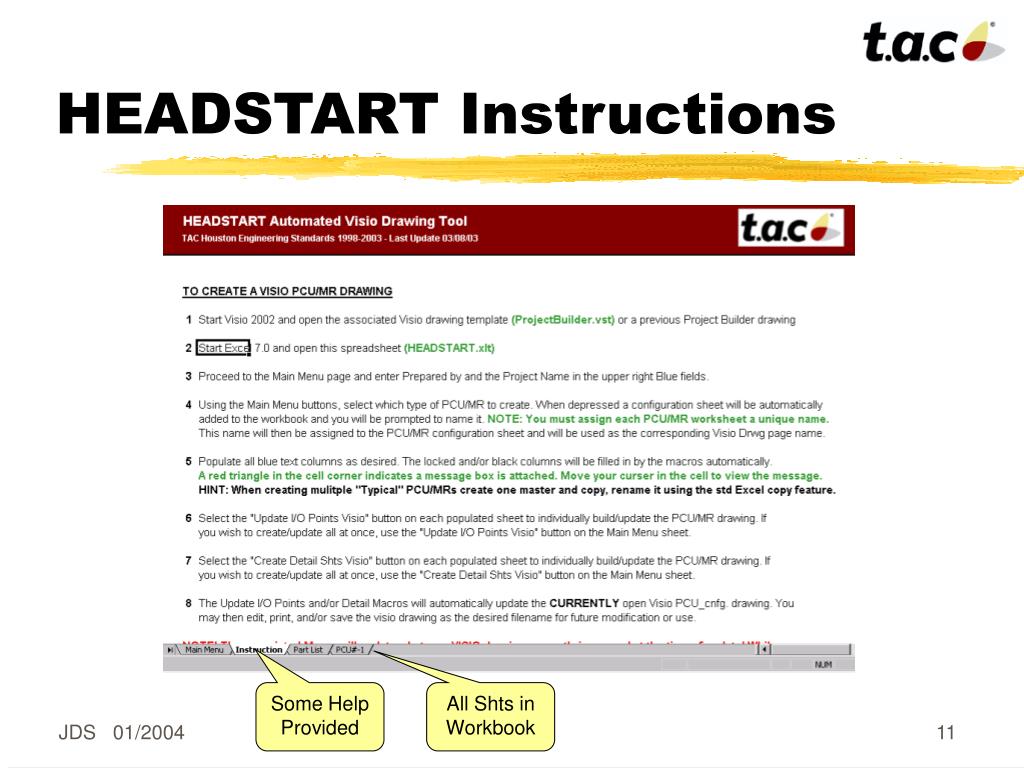

HEADSTART Instructions

Some Help Provided

All Shts in Workbook

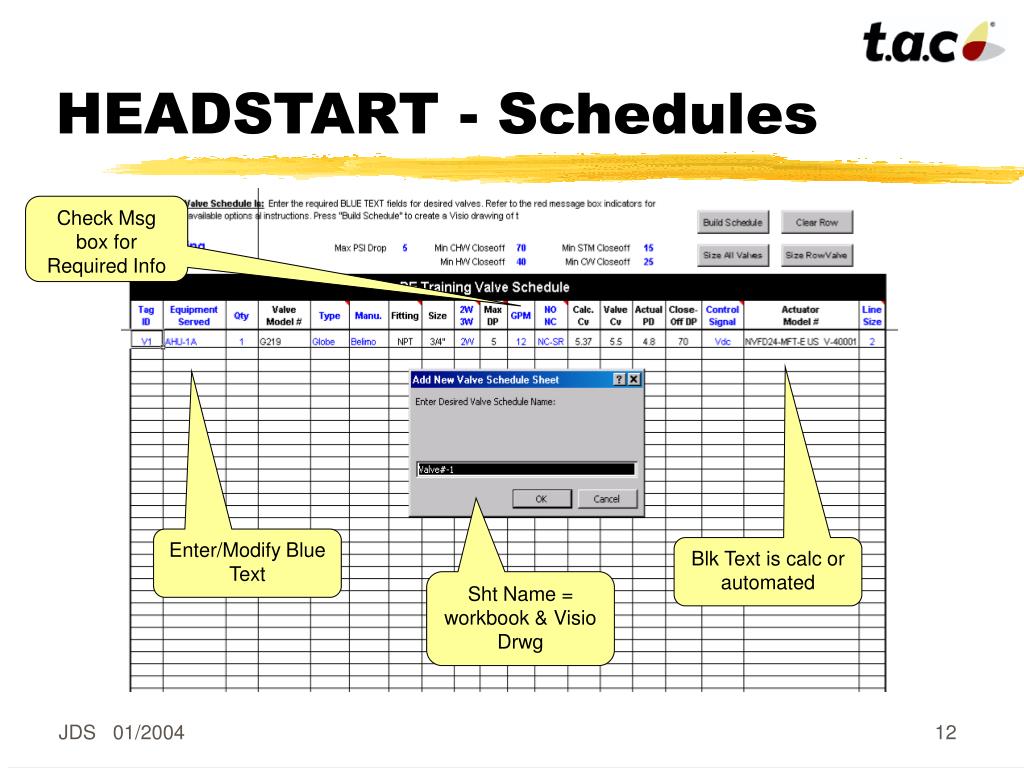

Headstart schedules

HEADSTART - Schedules

Check Msg box for Required Info

Enter/Modify Blue Text

Blk Text is calc or automated

Sht Name = workbook & Visio Drwg

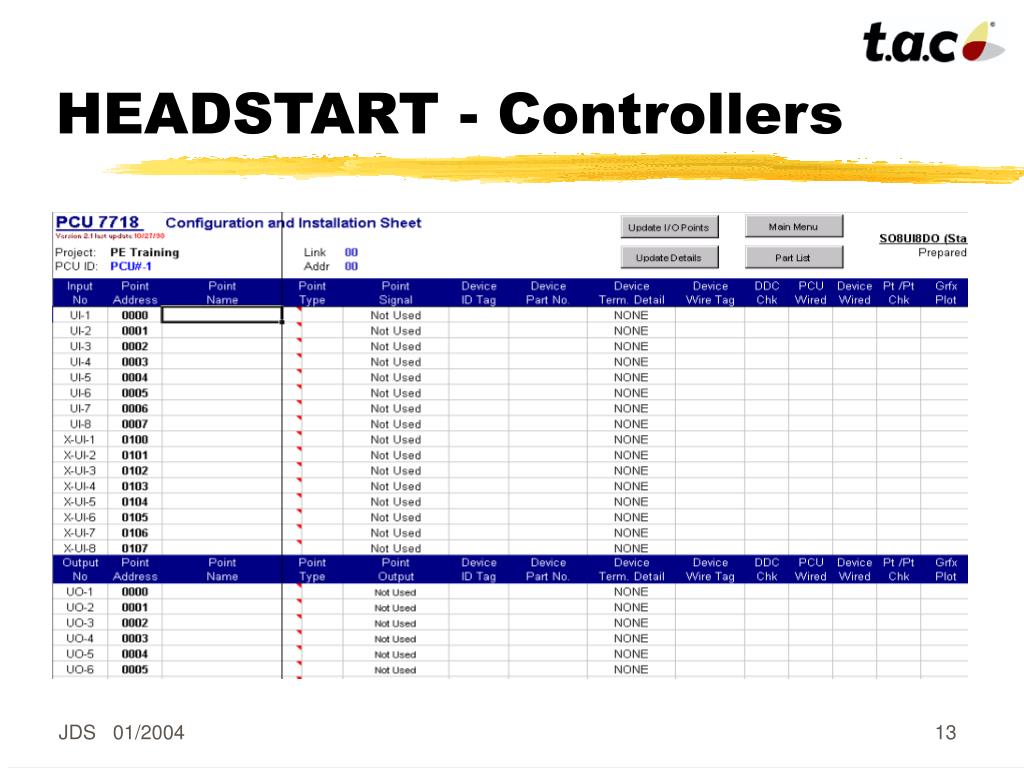

Headstart controllers

HEADSTART - Controllers


Headstart comm sheet

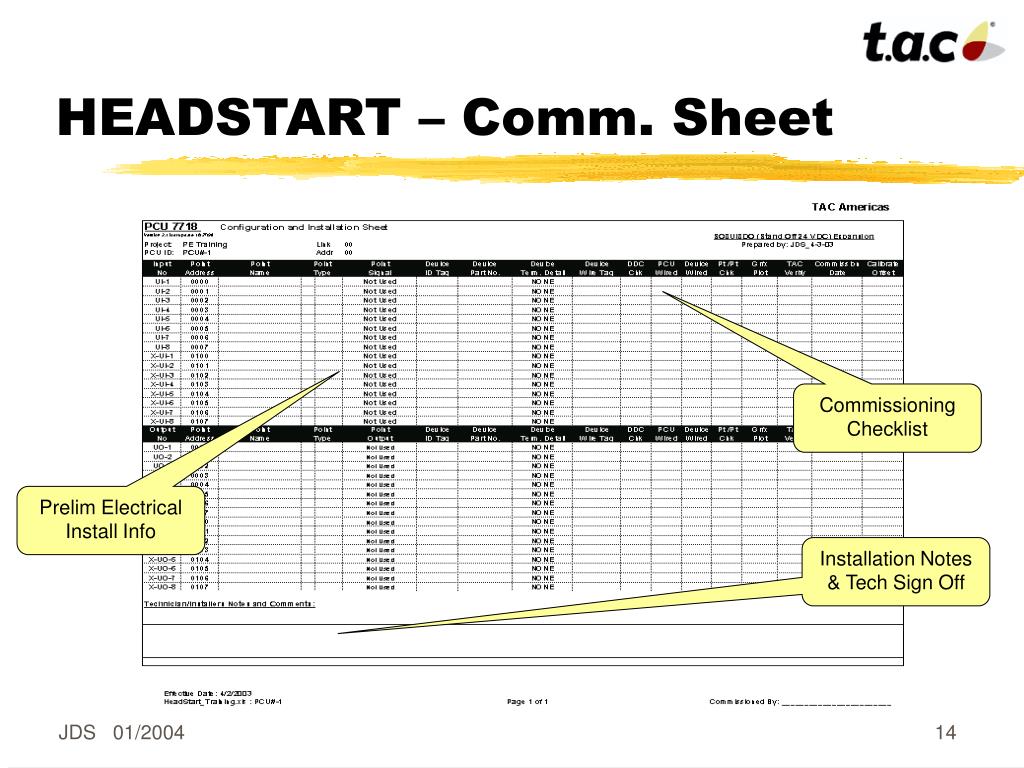

HEADSTART – Comm. Sheet

Commissioning Checklist

Prelim Electrical Install Info

Installation Notes & Tech Sign Off

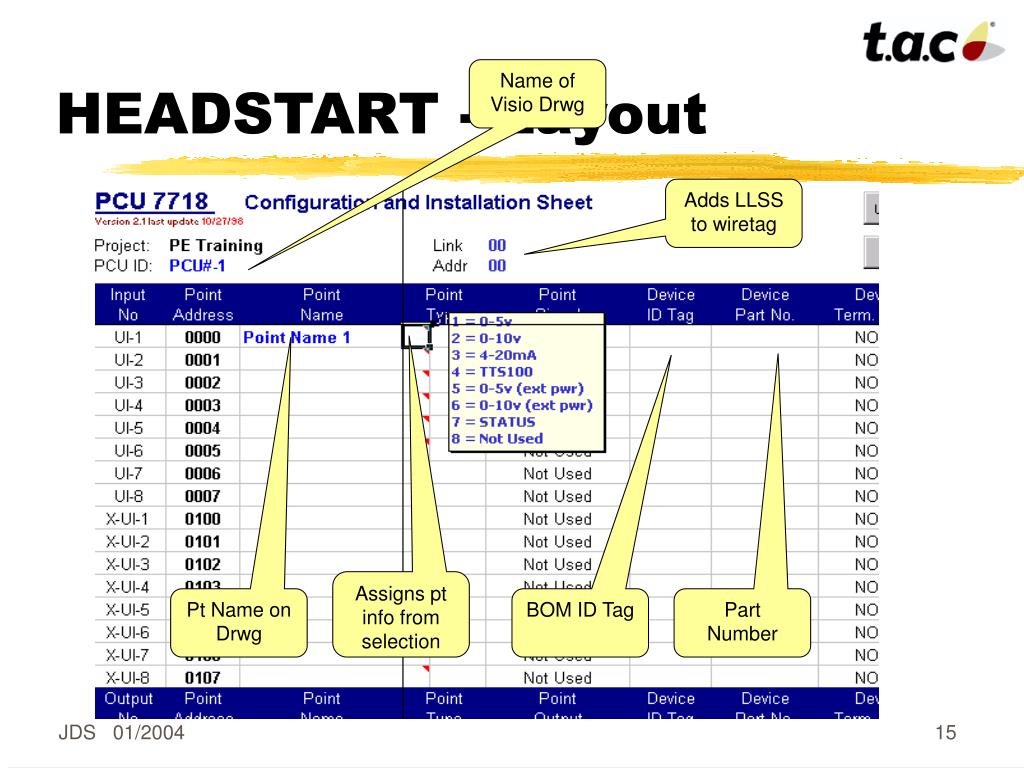

Headstart layout

HEADSTART - Layout

Name of Visio Drwg

Adds LLSS to wiretag

Assigns pt info from selection

Pt Name on Drwg

BOM ID Tag

Part Number

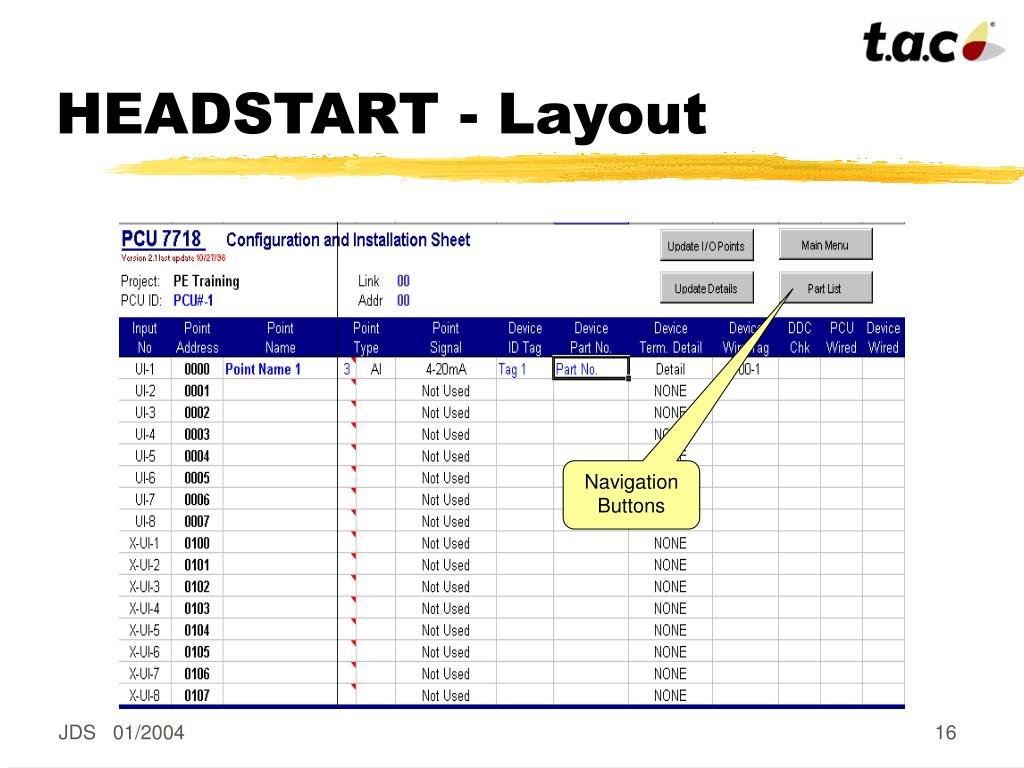

Headstart layout1

HEADSTART - Layout

Navigation Buttons


Headstart parts selection

HEADSTART - Parts Selection

Applies to Vista or Inet

Filter by Category

Description

Cooresp Detail

Where to buy

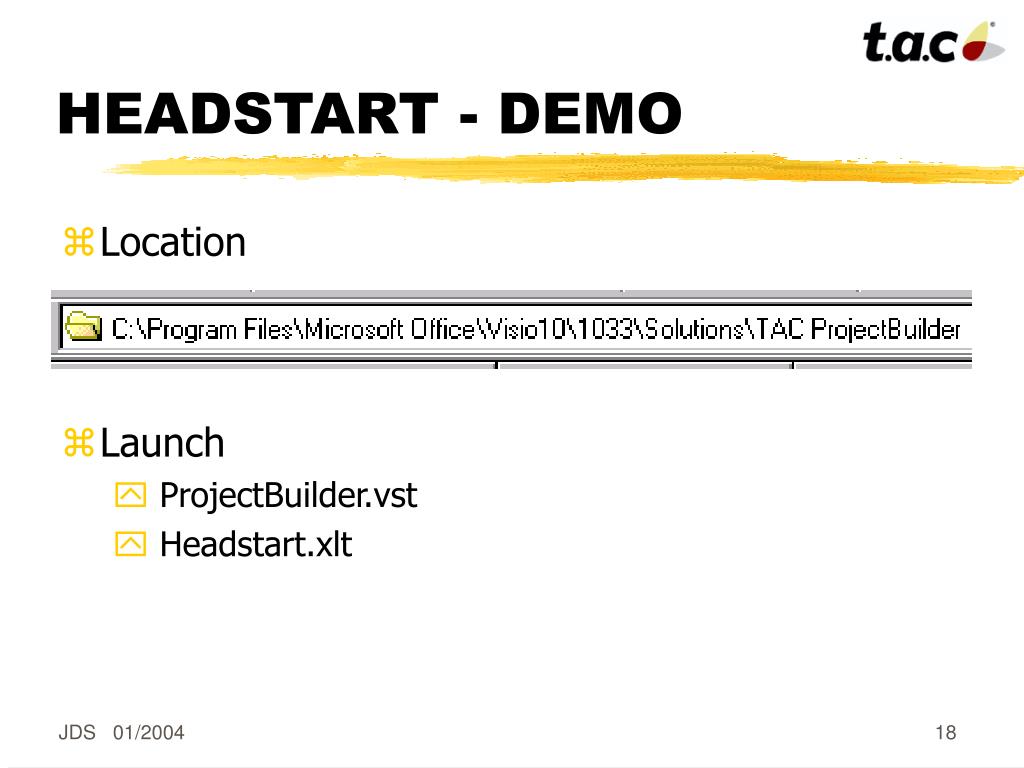

Headstart demo

HEADSTART - DEMO

  • Location

  • Launch

    • ProjectBuilder.vst

    • Headstart.xlt


Lunch 11 15 12 30

Lunch 11:15 – 12:30

  • On your own

  • Please return on time


Headstart1

HEADSTART

  • WELCOME BACK!

  • Review

  • Questions ?

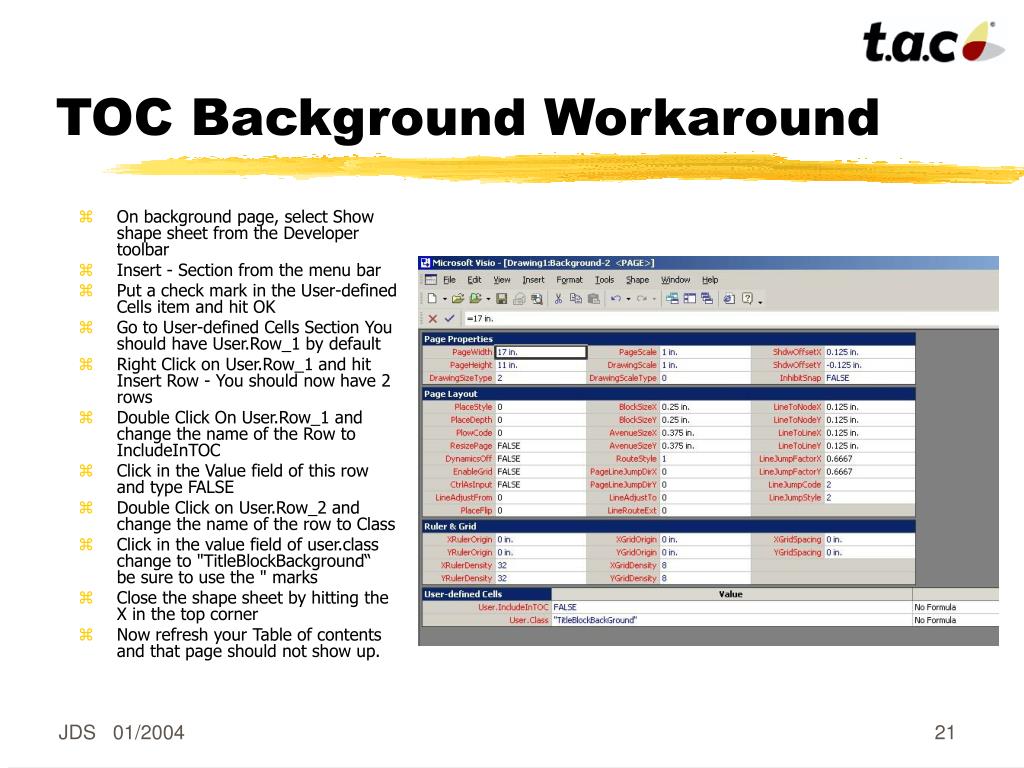

Toc background workaround

TOC Background Workaround

  • On background page, select Show shape sheet from the Developer toolbar

  • Insert - Section from the menu bar

  • Put a check mark in the User-defined Cells item and hit OK

  • Go to User-defined Cells Section You should have User.Row_1 by default

  • Right Click on User.Row_1 and hit Insert Row - You should now have 2 rows

  • Double Click On User.Row_1 and change the name of the Row to IncludeInTOC

  • Click in the Value field of this row and type FALSE

  • Double Click on User.Row_2 and change the name of the row to Class

  • Click in the value field of user.class change to "TitleBlockBackground“ be sure to use the " marks

  • Close the shape sheet by hitting the X in the top corner

  • Now refresh your Table of contents and that page should not show up.


Headstart access bldr

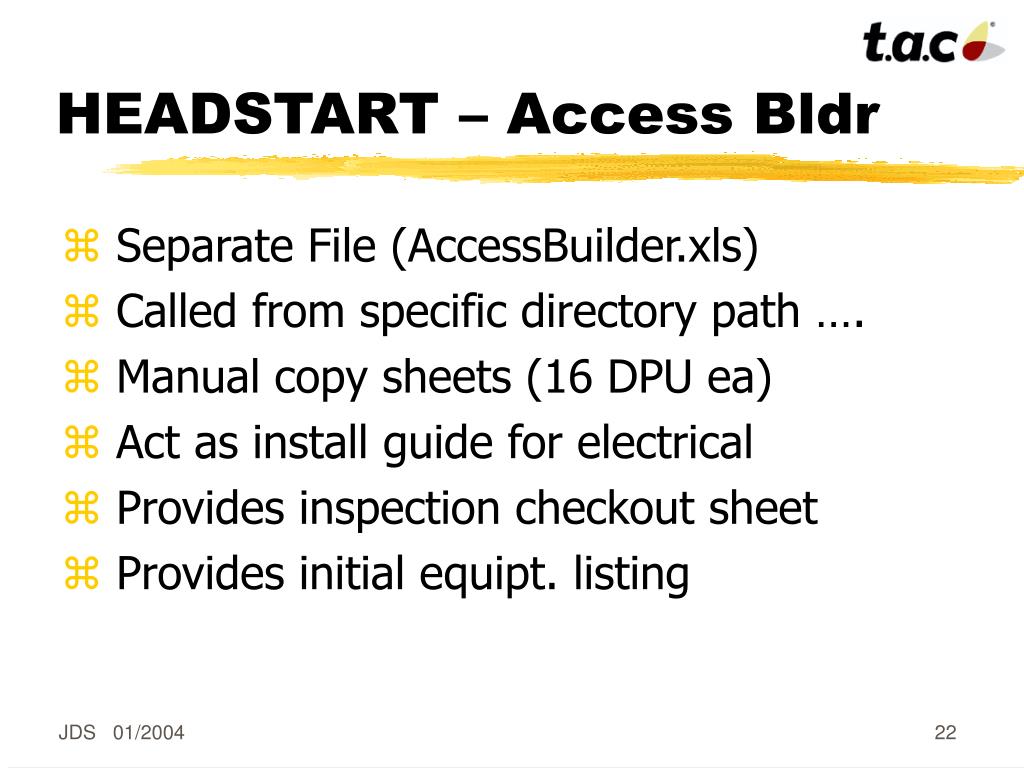

HEADSTART – Access Bldr

  • Separate File (AccessBuilder.xls)

  • Called from specific directory path ….

  • Manual copy sheets (16 DPU ea)

  • Act as install guide for electrical

  • Provides inspection checkout sheet

  • Provides initial equipt. listing

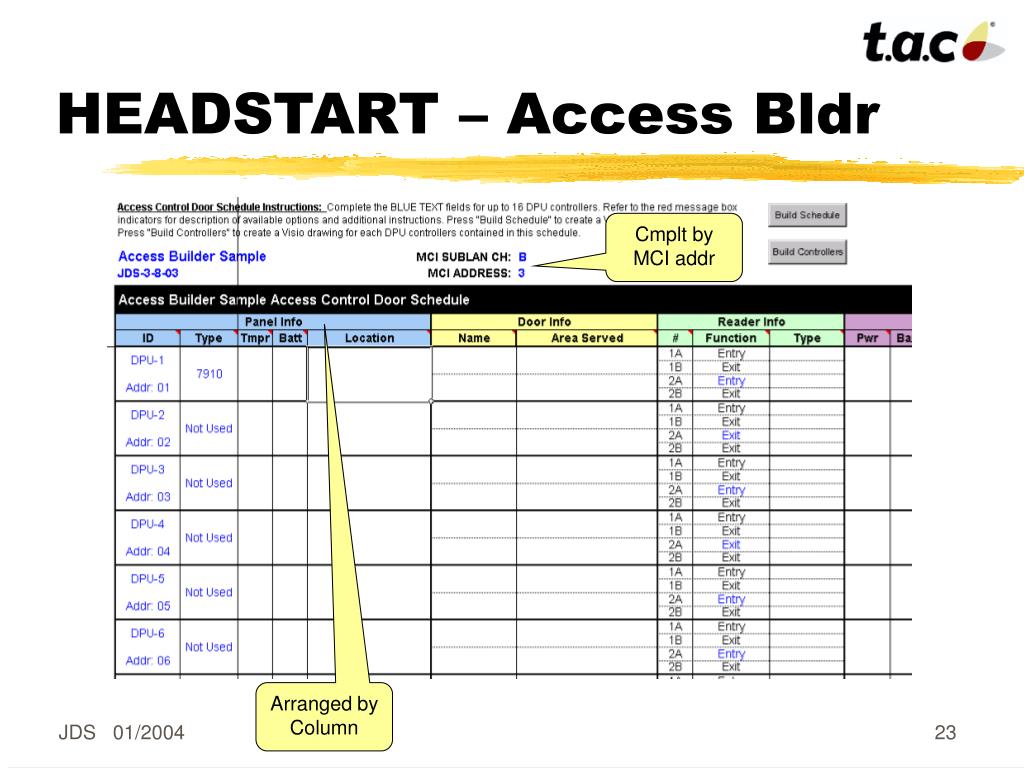

Headstart access bldr1

HEADSTART – Access Bldr

Cmplt by MCI addr

Arranged by Column

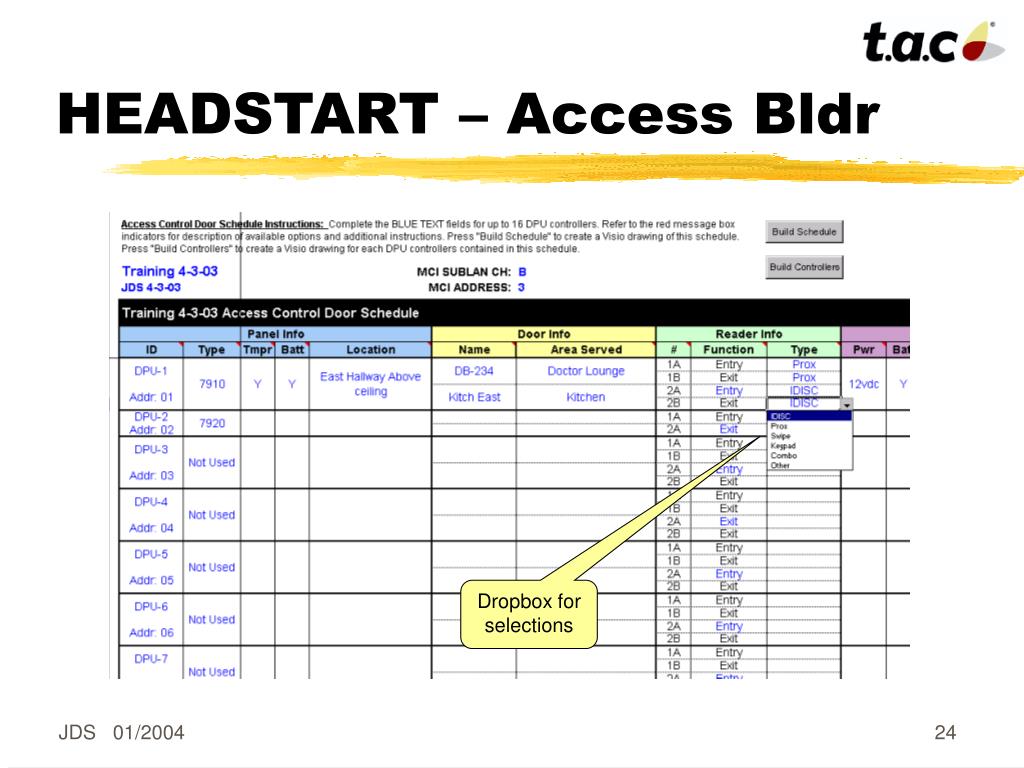

Headstart access bldr2

HEADSTART – Access Bldr

Dropbox for selections

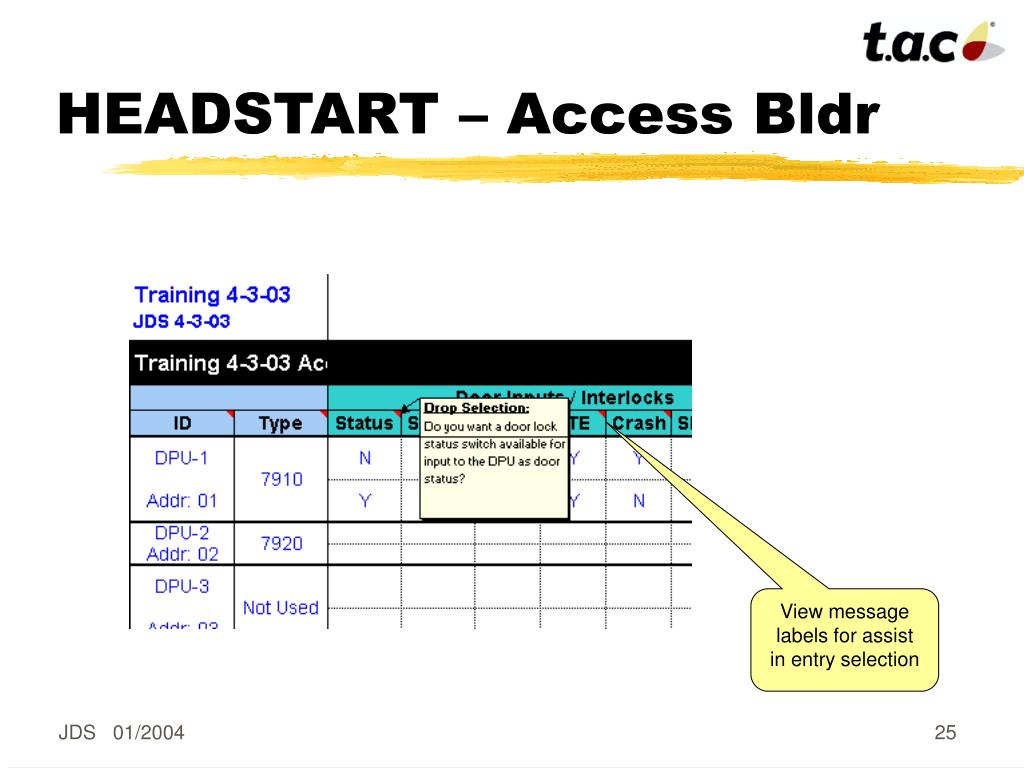

Headstart access bldr3

HEADSTART – Access Bldr

View message labels for assist in entry selection


Headstart access bldr4

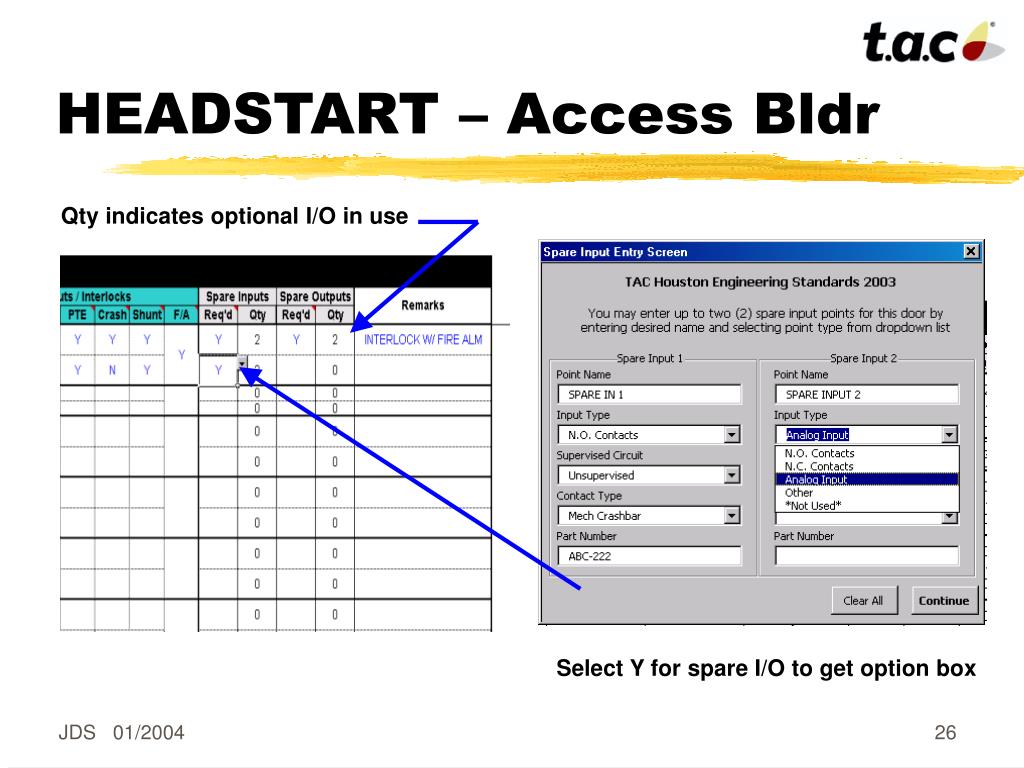

HEADSTART – Access Bldr

Qty indicates optional I/O in use

Select Y for spare I/O to get option box


Accessbuilder demo

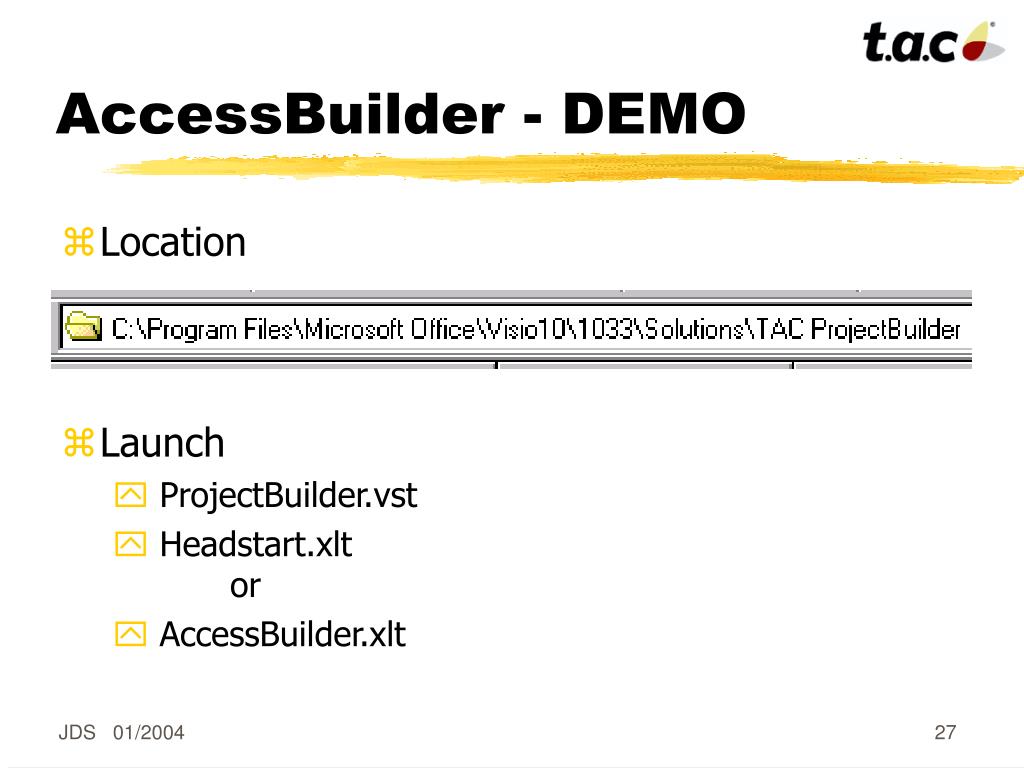

AccessBuilder - DEMO

  • Location

  • Launch

    • ProjectBuilder.vst

    • Headstart.xlt or

    • AccessBuilder.xlt


Access builder

Access Builder

  • Questions ?????


Headstart lab

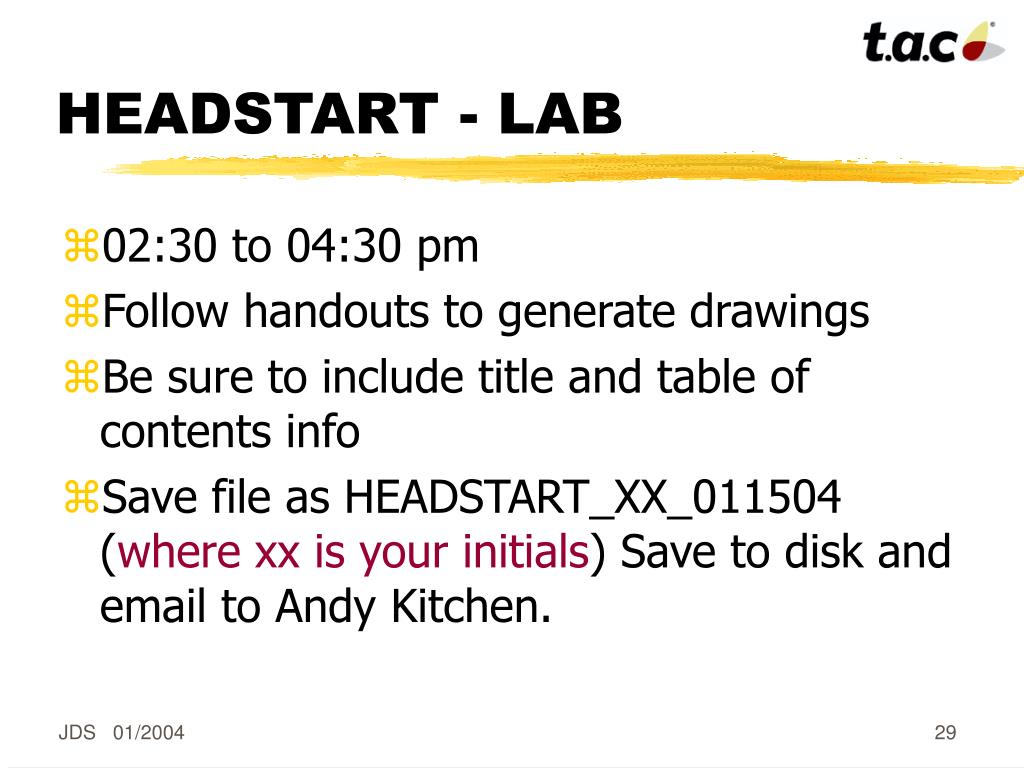

HEADSTART - LAB

  • 02:30 to 04:30 pm

  • Follow handouts to generate drawings

  • Be sure to include title and table of contents info

  • Save file as HEADSTART_XX_011504 (where xx is your initials) Save to disk and email to Andy Kitchen.

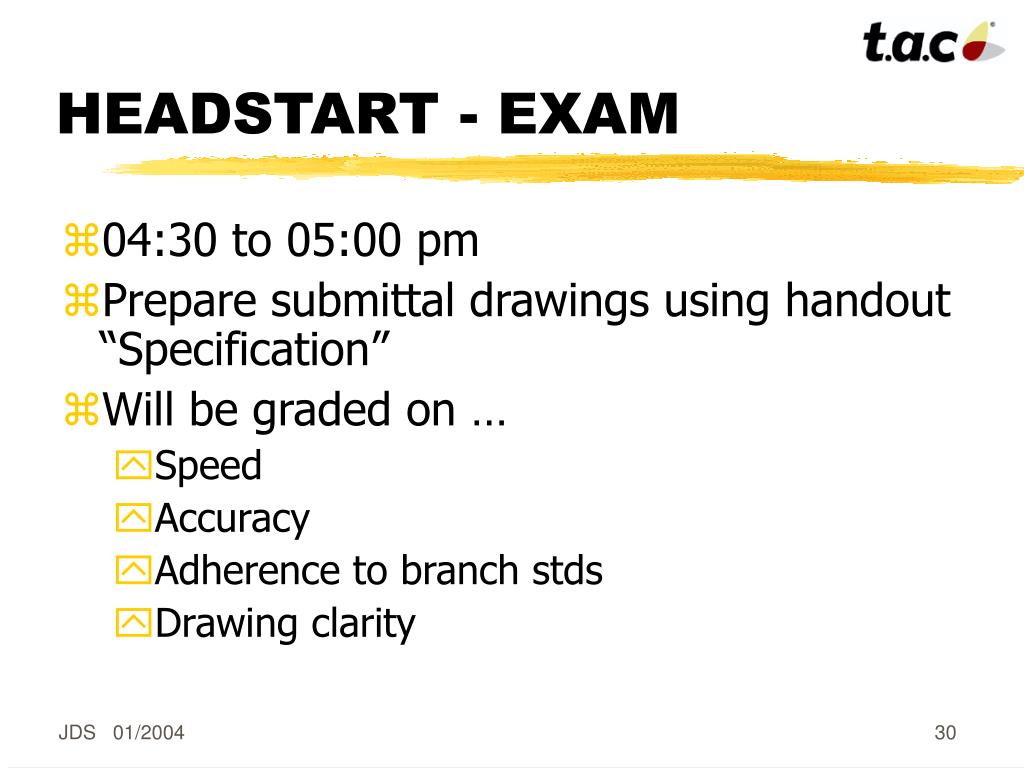

Headstart exam

HEADSTART - EXAM

  • 04:30 to 05:00 pm

  • Prepare submittal drawings using handout “Specification”

  • Will be graded on …

    • Speed

    • Accuracy

    • Adherence to branch stds

    • Drawing clarity


T a c americas houston2

T.A.C. Americas Houston

End of Presentation

HEADSTART

Automation Tool Training

Systems Integration Training Module PE 4
