Chapter 47 circulatory and respiratory systems

Chapter 47: Circulatory and Respiratory Systems

47-1 The Circulatory System

47-2 Blood

47-3 The Respiratory System


Chapter 47 circulatory and respiratory systems

47-1 The Circulatory System

I. The Heart (THORACIC cavity, behind STERNUM)

  • Moves blood  PULMONARY and SYSTEMIC loops.

(1) Pericardium (promotes LONGEVITY of cardiac tissue)

  • MEMBRANE surrounds heart  makes LUBRICANT to REDUCE friction.


Chapter 47 circulatory and respiratory systems

Critical Thinking

(1)Some babies are born with a HOLE in the septum between the two atria. Based on what you know about BLOOD FLOW through the heart, explain why this condition would be HARMFUL to the baby.


Chapter 47 circulatory and respiratory systems

(2) Septum (wall of tissue, PREVENTS mixing of blood)

  • SEPARATES heart into 2 sides (4 chambers).


Chapter 47 circulatory and respiratory systems

(3) Atrium (Atria, RECEIVE blood returning from the lungs or body)

  • Smaller, RECEIVING chambers (NOTE: RA contains SA node).


Chapter 47 circulatory and respiratory systems

(4) Ventricle (PUMP blood to the lungs or the body’s circuits)

  • Thicker, more muscular PUMPING chambers.


Chapter 47 circulatory and respiratory systems

(5) Atrioventricular (AV) Valves [Tricuspid (R) and Mitral Valves (L)]

  • ONE-way flaps of tissue separating EACH atrium from ITS ventricle.


Chapter 47 circulatory and respiratory systems

(6) Semilunar (SL) Valve [Pulmonary (R) and Aortic Valves (L)]

  • Prevent blood from flowing BACK into ventricles when ventricle relaxes.


Chapter 47 circulatory and respiratory systems

Critical Thinking

(2)One function of the cardiovascular system is to help maintain a uniform BODY TEMPERATURE. Explain HOW the constant circulation of blood throughout the body MAY accomplish this task.


Chapter 47 circulatory and respiratory systems

(B) Circulation in the Heart

  • SVC/IVC  RA RV PA  LUNGS PV LA LV  AA/DA  BODY

(1) Aorta (THICKEST artery)

  • Receives O-blood from LV, and pumps out to SYSTEMIC loops.


Chapter 47 circulatory and respiratory systems

(C) Control of the Heartbeat

  • A wave of ELECTRICAL impulses spreads so ATRIA and VENTRICLES contract in a RHYTHM.

(1) Sinoatrial Node (SA) [“Pacemaker”, located in RIGHT ATRIUM]

  • Specialized cardiac cells initiate their OWN electrical impulse and contract [i.e., regulating the RATE of the heartbeat].


Chapter 47 circulatory and respiratory systems

(2) Atrioventricular Node (AV) [Located in the SEPTUM between ATRIA]

  • Relays SA electrical impulse to VENTRICLES, causing CONTRACTION a fraction of a second AFTER atria (1 FULL heartbeat).


Chapter 47 circulatory and respiratory systems

(3) Systole (Heartbeat Phase 1 of 2; Blood LEAVES ventricles TO arteries)

  • Ventricles CONTRACT, CLOSING AV valves and OPENING SL valves which EXIT heart.


Chapter 47 circulatory and respiratory systems

(4) Diastole (Heartbeat Phase 2 of 2; Blood ENTERS atria TO ventricles)

  • Ventricle RELAX, allowing back pressure of blood to CLOSE SL valves and OPEN AV valves.


Chapter 47 circulatory and respiratory systems

(D) Blood Vessels (e.g., arteries, veins, capillaries)

  • Blood is contained WITHIN either heart OR blood vessels at ALL times (CLOSED LOOP)


Chapter 47 circulatory and respiratory systems

(E) Arteries (have higher BP than veins) and Blood Pressure

  • Each beat FORCES blood through blood vessels THROUGHOUT body.


Chapter 47 circulatory and respiratory systems

(1) Arteries (carry blood AWAY from heart)

  • Large, MUSCULAR, elastic vessels begin with aorta (LARGEST artery) and split into smaller ARTERIOLES (and ultimately to capillaries).


Chapter 47 circulatory and respiratory systems

(2) Blood Pressure (high BP risks RUPTURING an artery)

  • The force that BLOOD exerts against WALLS of a blood vessel.


Chapter 47 circulatory and respiratory systems

(3) Systolic and Diastolic Blood Pressure

  • Pressure during V contraction (Systolic) and V relaxation (Diastolic). [Average is 120 mmHg/ 80 mmHg]


Chapter 47 circulatory and respiratory systems

(4) Hypertension (sustained High Blood Pressure)

  • STRAIN on WALLS of arteries  INCREASES chance vessel will BURST.


Chapter 47 circulatory and respiratory systems

(F) Capillaries and Veins

  • Gas EXCHANGE at CAPILLARIES, then blood returns BACK to S/I VENA CAVA via veins.


Chapter 47 circulatory and respiratory systems

(1) Arterioles (arterioles-CAPILLARIES-venules)

  • Connect LARGER arteries with tiny CAPILLARIES.


Chapter 47 circulatory and respiratory systems

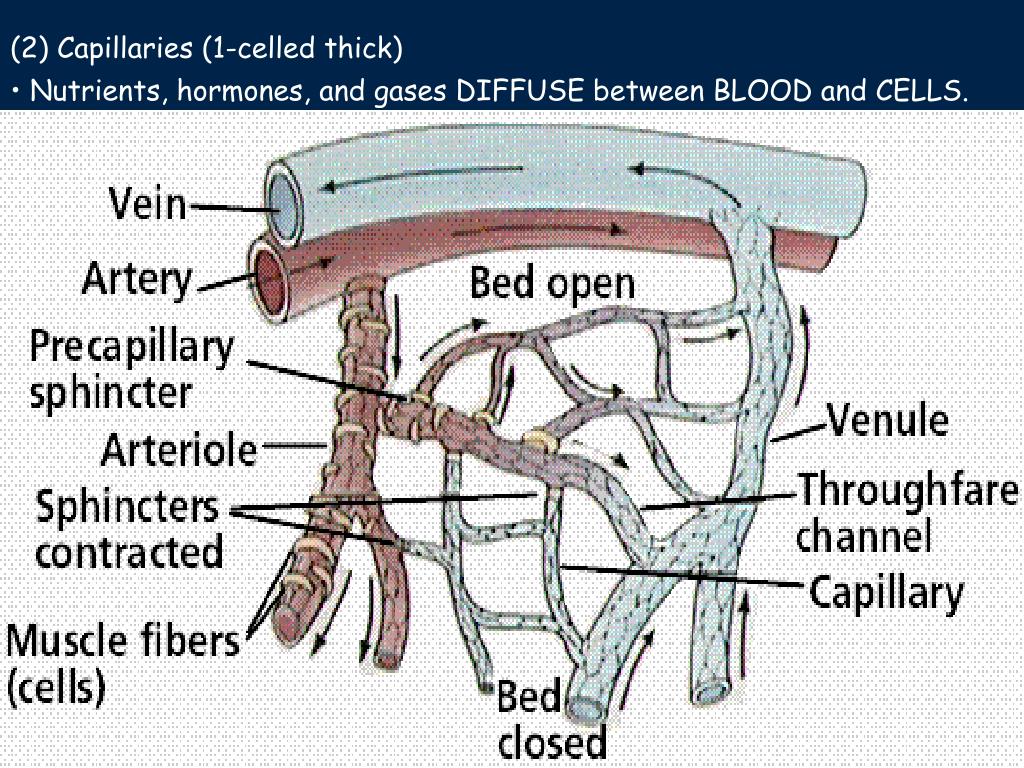

(2) Capillaries (1-celled thick)

  • Nutrients, hormones, and gases DIFFUSE between BLOOD and CELLS.


Chapter 47 circulatory and respiratory systems

(3) Venules and Veins (thinner, less muscular and WITH valves)

  • Venules unite into LARGER veins, returning BACK to HEART.


Chapter 47 circulatory and respiratory systems

(4) Inferior Vena Cava (IVC) and Superior Vena Cava (SVC)

  • 2 LARGEST veins (with LOWEST BP) return d-blood from body to RA.


Chapter 47 circulatory and respiratory systems

II. Patterns of Circulation

  • 2 LOOPS improve DELIVERY rate;

(1) Pulmonary Circulation

  • Between HEART and LUNGS.

(2) Systemic Circulation

  • Between HEART and BODY TISSUES.


Chapter 47 circulatory and respiratory systems

(A) Pulmonary Circulation

  • D-Blood: Body SVC/IVC  RA RV PA  LUNGS PV  O-Blood

(1) Pulmonary Veins (RETURN blood from LUNGS back to LA)

  • ONLY veins carrying O-Blood in body.


Chapter 47 circulatory and respiratory systems

(B) Systemic Circulation

  • LA LV  AA/DA  ALL BODY SYSTEMS.


Chapter 47 circulatory and respiratory systems

Critical Thinking

(3)Why might it be possible that a person could turn PALE when they are frightened?


Chapter 47 circulatory and respiratory systems

(1) Coronary Circulation (a SUBSYSTEM of systemic circulation)

  • Heart gets its own LOOP!


Chapter 47 circulatory and respiratory systems

(2) Atherosclerosis (or if an artery becomes BLOCKED)

  • BUILDUP of fatty material on INTERIOR walls of coronary artery (BLOCKAGE can result in a coronary thrombosis )


Chapter 47 circulatory and respiratory systems

(3) Renal Circulation (a second SUBSYSTEM)

  • Kidney LOOP FILTER wastes from our blood.


Chapter 47 circulatory and respiratory systems

(4) Hepatic Portal Circulation (a third SUBSYSTEM)

  • Liver and Small Intestine LOOP  Nutrients are mixed with O-blood


Chapter 47 circulatory and respiratory systems

II. Lymphatic System (also part of the circulatory system, BUT NO pump)

  • A 1-WAY system of vessels (with VALVES) that DRAIN FLUIDS from tissues BACK into blood stream.


Chapter 47 circulatory and respiratory systems

(1) Lymph (GETS CHECKED AT LYMPH NODES)

  • Yellowish fluid drained from tissues into lymphatic vessels.


Chapter 47 circulatory and respiratory systems

(2) Lymphocytes (stored in LYMPH NODES by the immune system)

  • WBCs TRAP microorganisms and tissue debris.


Chapter 47 circulatory and respiratory systems

47-2 Blood

I. Composition of Blood (55% Liquid, 45% Solid Cells)

  • 4-5 L in ADULT body; ~ RBCs, WBCs, platelets, and plasma.


Chapter 47 circulatory and respiratory systems

(A) Plasma (yellowish LIQUID of blood)

  • 90% water, glucose, proteins, antibodies, hormones, and wastes.


Chapter 47 circulatory and respiratory systems

Critical Thinking

(4) Even a small increase or decrease in blood volume has an effect on BLOOD PRESSURE. When an accident victim suffers significant blood LOSS, the person is transferred with PLASMA rather than whole blood. Why might plasma be effective in meeting the IMMEDIATE threat to life?


Chapter 47 circulatory and respiratory systems

(B) Red Blood Cells (a.k.a. Erythrocytes)

  • Made in RED bone marrow, SHORT span (120 days), only 1 type of cell.

(1) Erythrocytes (NO nucleus, CANNOT divide)

  • Biconcave with HEMOGLOBIN core, ~ transports OXYGEN.


Chapter 47 circulatory and respiratory systems

(2) Hemoglobin

  • Fe-containing protein has AFFINITY for O2 across ALVEOLUS.


Chapter 47 circulatory and respiratory systems

(C) White Blood Cells (a.k.a. Leukocytes AND Lymphocytes)

  • Class of IMMUNE CELLS prevent disease and pathogen infection. (e.g., virus, bacteria, protozoan, fungus)


Chapter 47 circulatory and respiratory systems

(1) Leukocytes (made in RED marrow, lymph nodes, and spleen)

  • Live up to YEARS; SEVERAL types that CAN divide (have NUCLEUS).


Chapter 47 circulatory and respiratory systems

(2) Phagocytes (e.g., Macrophage, Dendritic Cells)

  • Amoeba-like cells that ENGULF foreign invaders and debris.


Chapter 47 circulatory and respiratory systems

(D) Platelets (cell FRAGMENTS formed in RED marrow)

  • PLUG damaged blood vessels; ~ release “CLOTTING factors,” resulting in “FIBRIN NET.”


Chapter 47 circulatory and respiratory systems

(1) Fibrin

  • Long protein NET traps RBCs and hardens to form a CLOT then a SCAB.


Chapter 47 circulatory and respiratory systems

II. Blood Types

  • Determined by ANTIGEN present on SURFACE of RBCs.


Chapter 47 circulatory and respiratory systems

(1) Blood Types (A, B, AB, O)

  • 4 groups based on ANTIGENS present, directs antibody production.


Chapter 47 circulatory and respiratory systems

(2) Antigen (either protein or glycoprotein)

  • SURFACE MARKER acts as NAME-TAG  its IDENTITY to other cells.


Chapter 47 circulatory and respiratory systems

(A) A-B-O System

  • INCOMPATIBLE combinations result in AGGLUTINATION (clumping of RBCs, smothered in antibodies).


Chapter 47 circulatory and respiratory systems

(B) Rh System (85% is Rh +, 15% is Rh-)

  • A 2nd type of antigen found on RBCs and can cause PROBLEMS if MOTHER is Rh – and CHILD is Rh +.


Chapter 47 circulatory and respiratory systems

(1) Rh Factor (named after Rhesus Monkey)

  • A MOTHER who is “–” will NOT recognize a “+” baby’s RBC and will ATTACK it if NOT prevented from encountering FOREIGN antigen.


Chapter 47 circulatory and respiratory systems

47-3 Respiratory System

I. The Lungs (ATMOSPHERE-BLOOD-ATMOSPHERE)

  • RL (3 lobes), LL (2 lobes)  inside THORACIC cavity, lined with PLEURA (secretes lubricant).


Chapter 47 circulatory and respiratory systems

Critical Thinking

(5)Polio is a disease that paralyzes muscles by affecting the nerves that make them move. Before the polio vaccine was developed, many people afflicted with polio died to a LACK of respiration. Some of the survivors had to be placed in an “iron lung” that breathed for them. From what you know about the respiratory system, explain why people stricken with polio could no longer breathe on their own.


Chapter 47 circulatory and respiratory systems

(1) External Respiration (OUTSIDE the body)

  • Exchange of gases between ATMOSPHERE and BLOOD.


Chapter 47 circulatory and respiratory systems

(2) Internal Respiration (INSIDE the body)

  • Exchange of gases between BLOOD and CELLS.


Chapter 47 circulatory and respiratory systems

(A) The Passage of Air

  • Air is filtered, warmed, and moistened by HAIRS and MUCUS membranes.


Chapter 47 circulatory and respiratory systems

(1) Epiglottis

  • Flap of cartilage COVERS trachea when swallowing, PREVENTS food from ENTERING TRACHEA.


Chapter 47 circulatory and respiratory systems

(2) Trachea (a.k.a. windpipe, BRANCHES into bronchi)

  • Cartilaginous tube LINED with ciliated epithelium AND mucus.


Chapter 47 circulatory and respiratory systems

(3) Larynx (UPPER region of trachea)

  • 2 LIGAMENTS (vocal cords) produce sound when AIR is forced BY them.


Chapter 47 circulatory and respiratory systems

(4) Bronchi & Bronchioles (i.e., bronchi BRANCH to bronchioles)

  • Smooth muscle & cartilage tubes LINED with ciliated cells and mucus.


Chapter 47 circulatory and respiratory systems

(5) Alveoli (the END of a bronchiole)

  • Clusters of AIR SACS where GAS EXCHANCE occurs between AIR and BLOOD; [~ 300 million inside each lung provide a surface area 40x skin]


Chapter 47 circulatory and respiratory systems

Critical Thinking

(6) A person with anemia has TOO FEW red blood cells. The most common symptom is a LACK of energy. Why might anemia result in this symptom?


Chapter 47 circulatory and respiratory systems

II. Gas Exchange and Transport (requires CONCENTRATION gradient)

  • Gases exchanged [O2 and CO2] between ALVEOLI and BLOOD of capillaries by DIFFUSION.


Chapter 47 circulatory and respiratory systems

(A) Gas Exchange in the Lungs (regulated by DIFFUSION)

  • O2 diffuses from AIR SACS INTO BLOOD, and CO2 diffuses from BLOOD INTO AIR SACS (and OUT through lungs).


Chapter 47 circulatory and respiratory systems

(B) Hemoglobin and Gas Exchange

  • 97% of O2 with Hb, 3% dissolved in plasma   8% CO2 dissolves in plasma, 25% binds to Hb, and 67% reacts to become BICARBONATE IONS

  • [At lungs, REVERSES into CO2 and H2O].


Chapter 47 circulatory and respiratory systems

III. Mechanism of Breathing (moving air INTO and OUT of lungs)

  • EXPANDABLE rib cage, muscular DIAPHRAGM, and an OPENING to air.


Chapter 47 circulatory and respiratory systems

(1) Inspiration (i.e., inhalation INCREASES volume of thoracic cage)

  • Diaphragm FLATTENS, pushing DOWN on abdomen, lifting ribs UP and OUT. [Result  Change in air pressure, drawing air INTO lungs.]


Chapter 47 circulatory and respiratory systems

(2) Expiration (i.e., exhalation DECREASES volume of thoracic cage)

  • Diaphragm and rib muscles RELAX, lungs recoil and DEFLATE. [Result  Pressure difference forces air OUT of lungs.]


Chapter 47 circulatory and respiratory systems

(A) Regulation of Breathing (breathing RATE ~ cellular METABOLISM)

  • Cerebrum and brain stem SHARE regulation by monitoring [CO2] in blood (if CO2 too HIGH INCREASES breathing RATE)


Chapter 47 circulatory and respiratory systems

Extra Slides AND Answers for Critical Thinking Questions

(1) The blood on the right side of the heart (deoxygenated blood) would mix with blood on the left side (oxygenated blood). As a result, cells would not get enough oxygen.

(2) Blood circulates very closet to every cell in the body, absorbing heat where the body is warmer than the blood and releasing heat where the body is cooler than the blood. Thus, blood distributes heat throughout the body, contributing to a uniform body temperature.

(3) Blood flow to the skin is reduced, and blood flow to muscles and glands is increased. Thus, a person may appear pale when frightened.

(4) The accident victim’s loss of blood volume and the loss of body fluid can cause the victim to go into shock. Transfusing plasma replenishes the fluid, helps stabilize the patient, and can be done quickly without taking time to type. The small number of antibodies the plasma contains become harmlessly diluted in the patient’s own blood.

(5) Polio can result in paralysis of the diaphragm and the muscles that control the rib cage. If these muscles cannot move, then the person cannot breathe.


Chapter 47 circulatory and respiratory systems

(6) The fewer red blood cells there are, the less hemoglobin there is. The smaller the amount of hemoglobin, the smaller the amount of oxygen that can be transported. A smaller amount of oxygen means a decreased level of aerobic respiration and less energy (ATP).


  • Login
