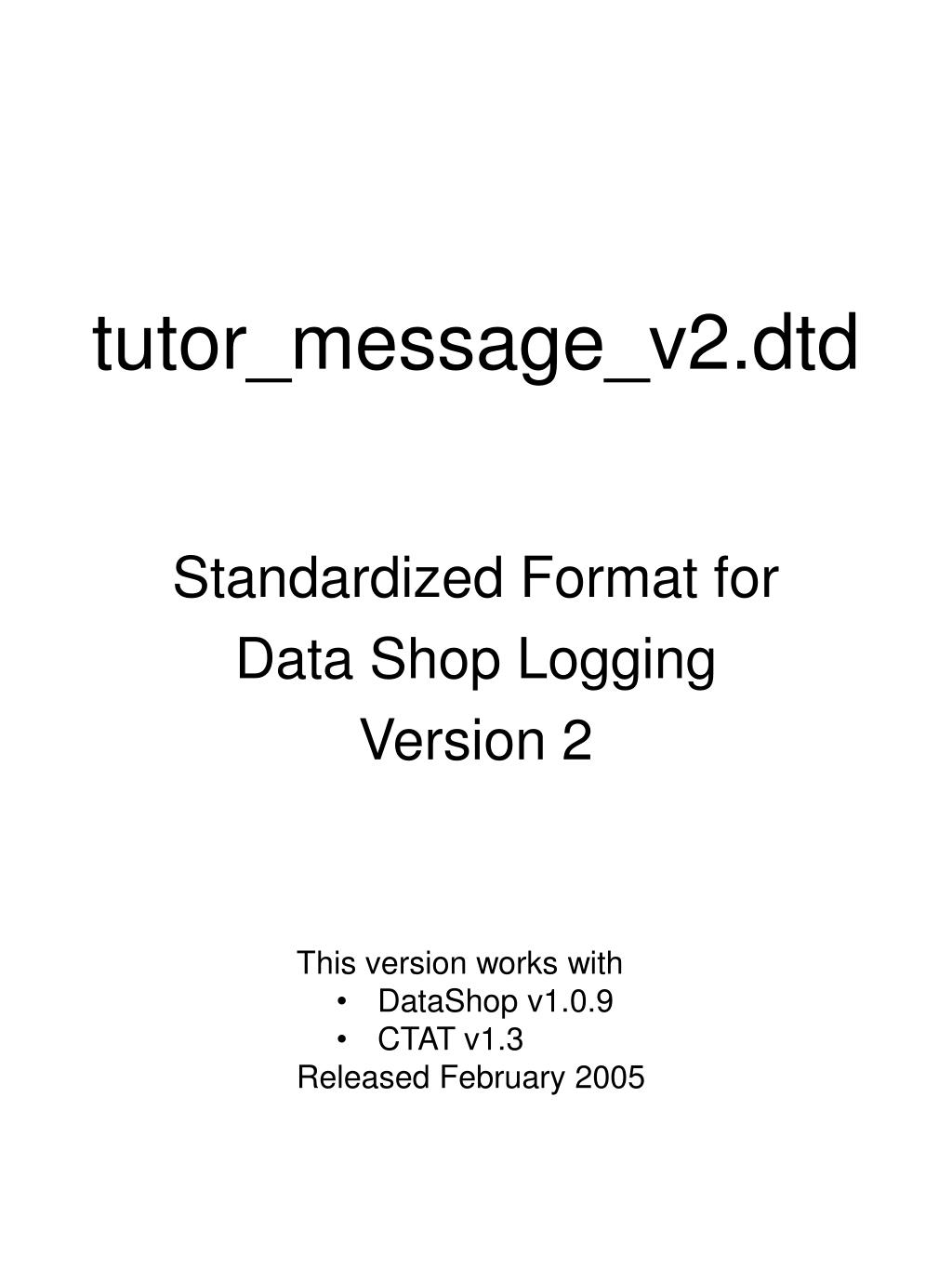

Tutor message v2 dtd

tutor_message_v2.dtd

Standardized Format for

Data Shop Logging

Version 2

  • This version works with

    • DataShop v1.0.9

    • CTAT v1.3

  • Released February 2005

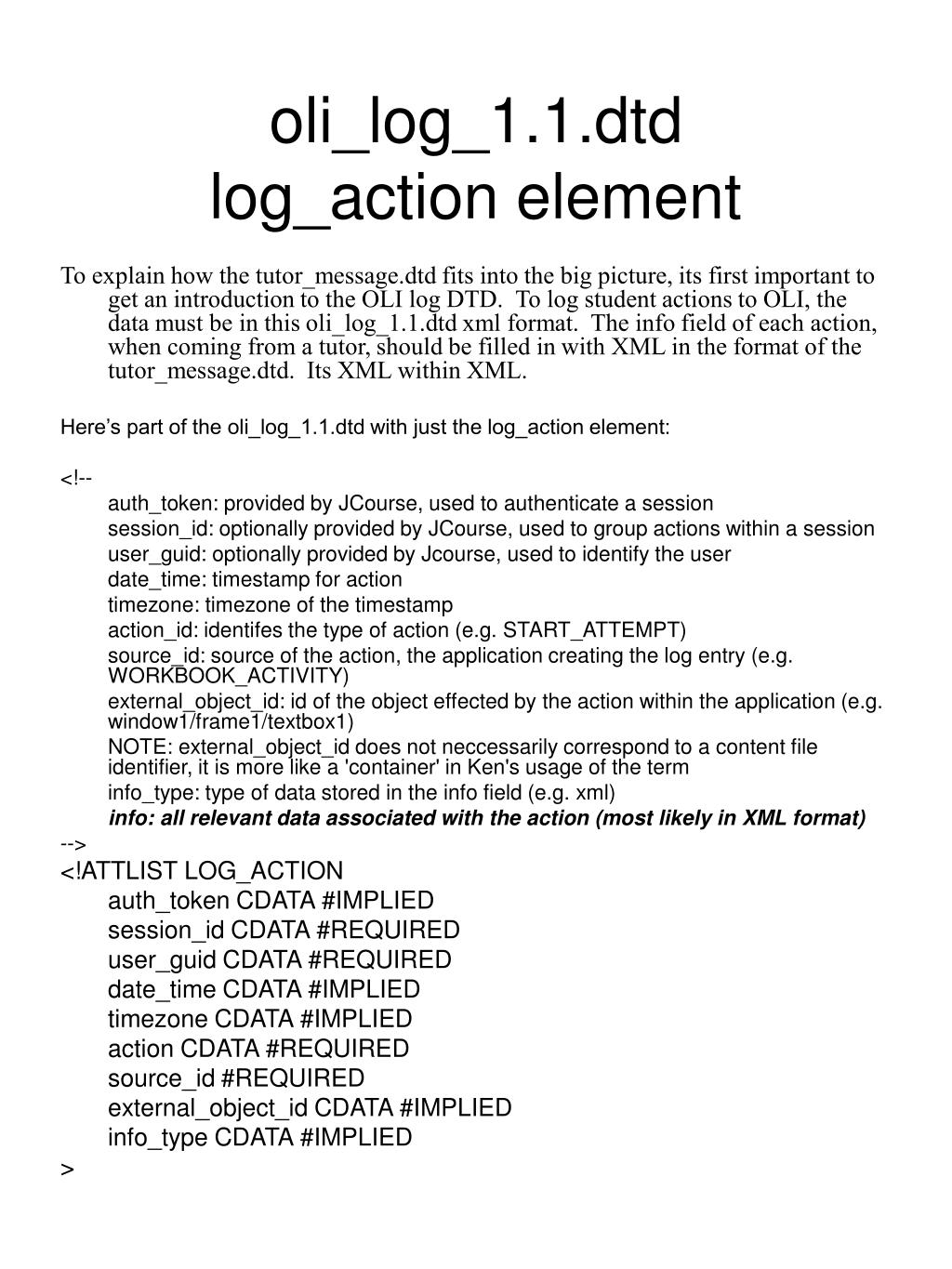

Oli log 1 1 dtd log action element

oli_log_1.1.dtdlog_action element

To explain how the tutor_message.dtd fits into the big picture, its first important to get an introduction to the OLI log DTD. To log student actions to OLI, the data must be in this oli_log_1.1.dtd xml format. The info field of each action, when coming from a tutor, should be filled in with XML in the format of the tutor_message.dtd. Its XML within XML.

Here’s part of the oli_log_1.1.dtd with just the log_action element:

<!--

auth_token: provided by JCourse, used to authenticate a session

session_id: optionally provided by JCourse, used to group actions within a session

user_guid: optionally provided by Jcourse, used to identify the user

date_time: timestamp for action

timezone: timezone of the timestamp

action_id: identifes the type of action (e.g. START_ATTEMPT)

source_id: source of the action, the application creating the log entry (e.g. WORKBOOK_ACTIVITY)

external_object_id: id of the object effected by the action within the application (e.g. window1/frame1/textbox1)

NOTE: external_object_id does not neccessarily correspond to a content file identifier, it is more like a 'container' in Ken's usage of the term

info_type: type of data stored in the info field (e.g. xml)

info: all relevant data associated with the action (most likely in XML format)

-->

<!ATTLIST LOG_ACTION

auth_token CDATA #IMPLIED

session_id CDATA #REQUIRED

user_guid CDATA #REQUIRED

date_time CDATA #IMPLIED

timezone CDATA #IMPLIED

action CDATA #REQUIRED

source_id #REQUIRED

external_object_id CDATA #IMPLIED

info_type CDATA #IMPLIED

>


Tutor message v2 dtd

log_action

auth_token

session_id

user_guid

date_time

timezone

action_id

source_id

external_obj_id

info_type

tutor_message_sequence


Tutor message v2 dtd

tool_message

tutor_message

message

curriculum_message

tutor_related_message_sequence

version_number=“2”


Tutor message v2 dtd

tool_message

attempt_id

meta (0 or 1)

user_id

session_id

time

time_zone

problem_name (0 or 1)

semantic_event

id

semantic_event_id

name

trigger

event_descriptor (0+)

event_id

(1+)

ui_event

id

selection (0+)

id

type

action (0+)

id

input (0+)

id


Tutor message v2 dtd

meta (0 or 1)

user_id

session_id

time

time_zone

problem_name (0 or 1)

semantic_event

id

semantic_event_id

name

trigger

event_descriptor (0+)

event_id

(1+)

ui_event

id

selection (0+)

id

type

action_evaluation (0+)

current_hint_number

total_hints_available

action (0+)

id

tutor_advice (0+)

input (0+)

id

skill (0+)

probability

production (0+)

tutor_message

attempt_id


Tutor message v2 dtd

meta (0 or 1)

user_id

session_id

time

time_zone

skill (0+)

probability

production (0+)

curriculum_message

attempt_id

name

school_name (0 or 1)

course_name (0 or 1)

unit_name (0 or 1)

section_name (0 or 1)

problem_name (0 or 1)

dfa (0+)


Tutor message v2 dtd

property (0+)

name

message

attempt_id

entry (0 or 1)


Tutor message v2 xml

tutor_message_v2.xml

Sample XML File

from Chemistry Stoichiometry

Flash Tutor Demo

of Winter Workshop 2005


Tutor message v2 dtd

log_action

auth_token

session_id

user_guid=“student1”

date_time=“2005/02/22 06:43:47.00284”

timezone=“US/Eastern”

action_id=“START_TUTOR”

source_id=“PACT_CTAT”

external_obj_id

info_type=“tutor_message.dtd”

tutor_message_sequence


Tutor message v2 dtd

tool_message

attempt_id=“0CEF2E07”

problem_name

ChemPT1

event_descriptor

selection

../../../../webcontent/flash/ChemPT1.brd

semantic_event

id=“5B86A043“

name

=“START_TUTOR”

action

START_TUTOR


Tutor message v2 dtd

curriculum_message

attempt_id=“0CEF2E07”

name=“START_PROBLEM”

school_name

CMU

course_name

Winter_Workshop01

unit_name

Chemistry_Stoichiometry

section_name

Problem_Set_1

problem_name

ChemPT1


Tutor message v2 dtd

tool_message

attempt_id=“0CEF2E07”

event_descriptor

event_descriptor

problem_name

ChemPT1

selection

Numerator1Value

semantic_event

id=“0FB7AE5D”

name=“ATTEMPT”

action (0+)

UpdateTextField

input (0+)

1000


Tutor message v2 dtd

event_descriptor

problem_name

ChemPT1

selection

Numerator1Value

semantic_event

id=“0F957AB5”

semantic_event_id

=“0FB7AE5D”

name=“RESULT”

action (0+)

UpdateTextField

input (0+)

1

tutor_message

attempt_id=“0CEF2E07”

action_evaluation

INCORRECT

tutor_advice

“1000” should be in this term's ratio,

but look at the units you need to cancel in the first term.

Will placing 1000 mg in the numerator cancel in the first term?

skill

Set-Numerator-Unit-of-Unit-Conversion Chemistry-Skills


Tutor message v2 dtd

tool_message

attempt_id=“0CEF2E07”

problem_name

ChemPT1

event_descriptor

event_descriptor

selection

hint_button

semantic_event

id=“7BF61B95”

name=“HINT”

action

ButtonPressed


Tutor message v2 dtd

event_descriptor

problem_name

ChemPT1

selection

Numerator1Value

semantic_event

id=“6813D817”

semantic_event_id

=“7BF61B95”

name=“HINT_MSG”

action

UpdateTextField

input

1

tutor_message

attempt_id=“0CEF2E07”

action_evaluation

HINT

tutor_advice

current_hint_number=“1”

total_hints_available=“3”

Your goal here is to convert the units of the first term.

skill

Set-Numerator-Unit-of-Unit-Conversion Chemistry-Skills


Tutor message v2 dtd

<?xml version="1.0" encoding="UTF-8"?>

<tutor_related_message_sequence version_number="2">

<tool_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE">

<problem_name>ChemPT1</problem_name>

<semantic_event id="5B86A043-5AA5-DED9-5EB5-416AF7FE8A95" name="START_TUTOR" />

<event_descriptor>

<selection>../../../../webcontent/flash/ChemPT1.brd</selection>

<action>START_TUTOR</action>

<input> </input>

</event_descriptor>

</tool_message>

<curriculum_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE" name="START_PROBLEM">

<school_name>CMU</school_name>

<course_name>Winter_Workshop01</course_name>

<unit_name>Chemistry_Stoichiometry</unit_name>

<section_name>Problem_Set_1</section_name>

<problem_name>ChemPT1</problem_name>

</curriculum_message>

<tool_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE">

<problem_name>ChemPT1</problem_name>

<semantic_event id="0FB7AE5D-B8B9-3AAA-0B01-26CAA3302205" name="ATTEMPT" />

<event_descriptor>

<selection>Numerator1Value</selection>

<action>UpdateTextField</action>

<input>1000</input>

</event_descriptor>

</tool_message>

<tutor_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE">

<problem_name>ChemPT1</problem_name>

<semantic_event id="0F957AB5-B828-4FC5-515F-008876A7FB42"

semantic_event_id="0FB7AE5D-B8B9-3AAA-0B01-26CAA3302205"

name="RESULT" />

<event_descriptor>

<selection>Numerator1Value</selection>

<action>UpdateTextField</action>

<input>1000</input>

</event_descriptor>

<action_evaluation>INCORRECT</action_evaluation>

<tutor_advice>"1000" should be in this term's ratio, but look at the units you need to cancel in the first term. Will placing 1000 mg in the numerator cancel in the first term?</tutor_advice>

<skill>Set-Numerator-Unit-of-Unit-Conversion Chemistry-Skills</skill>

</tutor_message>

<tool_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE">

<problem_name>ChemPT1</problem_name>

<semantic_event id="7BF61B95-3477-0D20-1E8B-2F4A2FAC5FE0" name="HINT_REQUEST" />

<event_descriptor>

<selection>hint_button</selection>

<action>ButtonPressed</action>

</event_descriptor>

</tool_message>

<tutor_message attempt_id="0CEF2E07-24DE-BFDA-9BAB-957C3AE236CE">

<problem_name>ChemPT1</problem_name>

<semantic_event id="6813D817-C307-78DA-28FC-50857C633458"

semantic_event_id="7BF61B95-3477-0D20-1E8B-2F4A2FAC5FE0"

name="HINT_MSG" />

<event_descriptor>

<selection>Numerator1Value</selection>

<action>UpdateTextField</action>

<input>1</input>

</event_descriptor>

<action_evaluation current_hint_number="1" total_hints_available="3">HINT</action_evaluation>

<tutor_advice>Your goal here is to convert the units of the first term.</tutor_advice>

<skill>Set-Numerator-Unit-of-Unit-Conversion Chemistry-Skills</skill>

</tutor_message>

</tutor_related_message_sequence>
