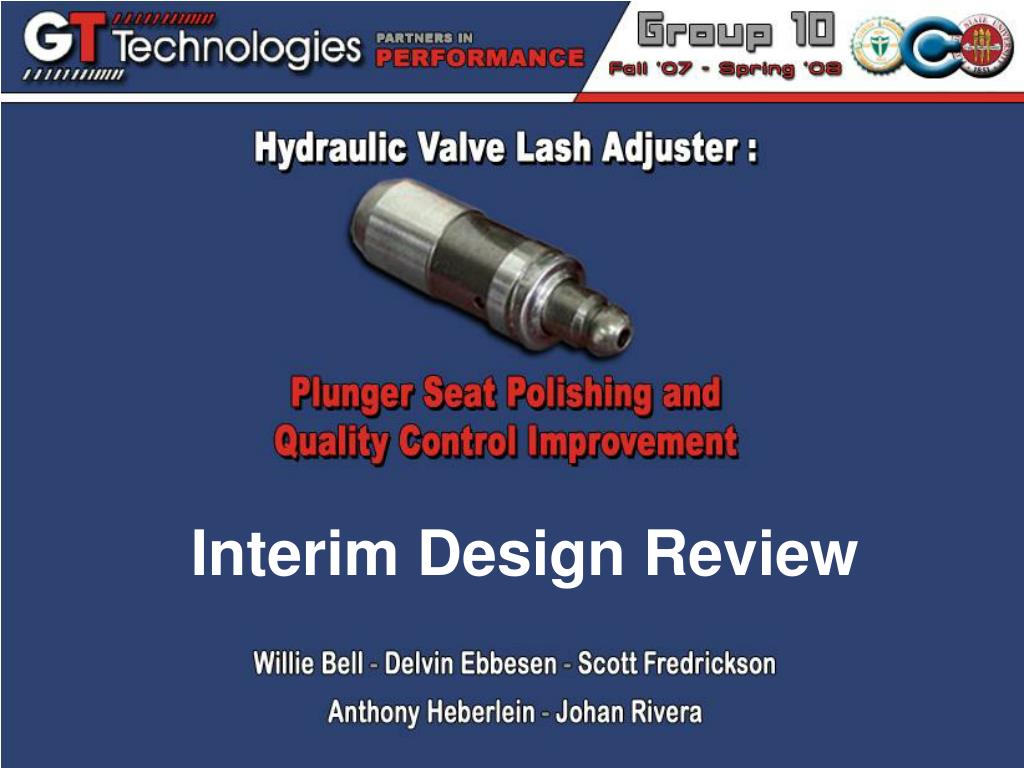

  1. Interim Design Review

  2. Outline • Review of project • Define Product Failure • Measuring the Surface • Failure detection vs. Failure prevention • Possible machines • Testing procedure • Future for us

  3. The Hydraulic Lash Adjuster (Revisited) Courtesy of Indonesian Mitsubishi Owner’s Club http://www.idmoc.com/Images/News/hla1.gif

  4. Plunger seat Highlighted

  5. Technical Specifications • Acceptable flow rate: Unknown • Surface Clearance: < 0.000035 in. • Surface quality: Free from defects detrimental to the function of the component when assembled and tested • Radius of Plunger seat polish: 0.006”

  6. Unpolished seat Polished Seat

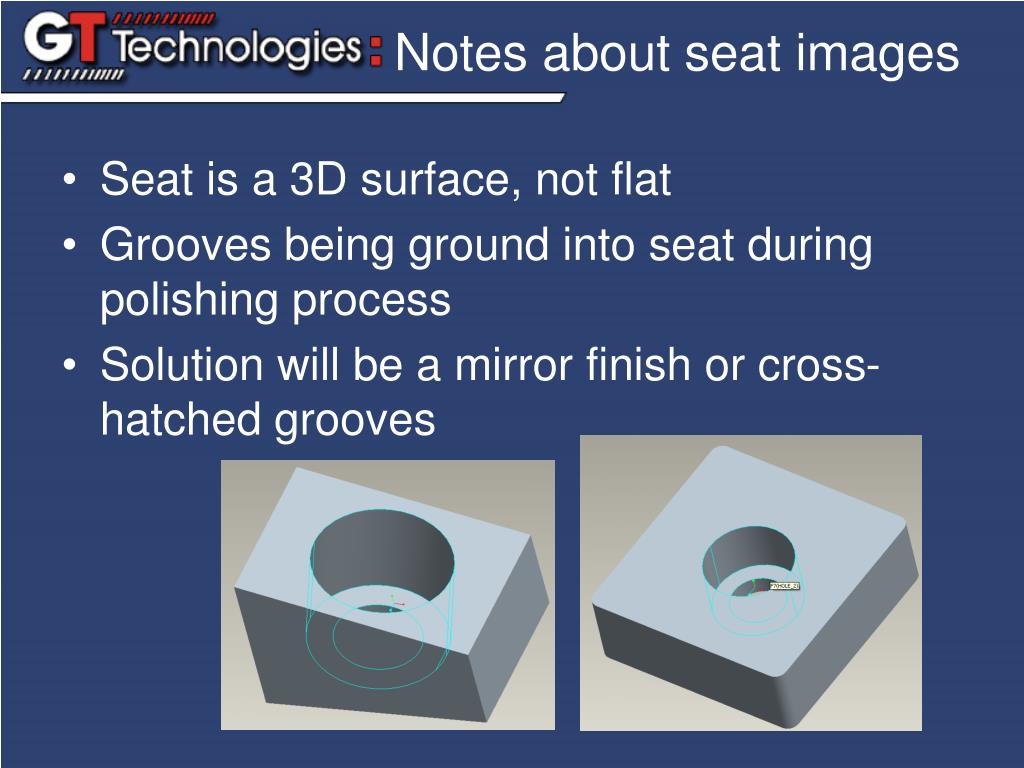

  7. Notes about seat images • Seat is a 3D surface, not flat • Grooves being ground into seat during polishing process • Solution will be a mirror finish or cross-hatched grooves

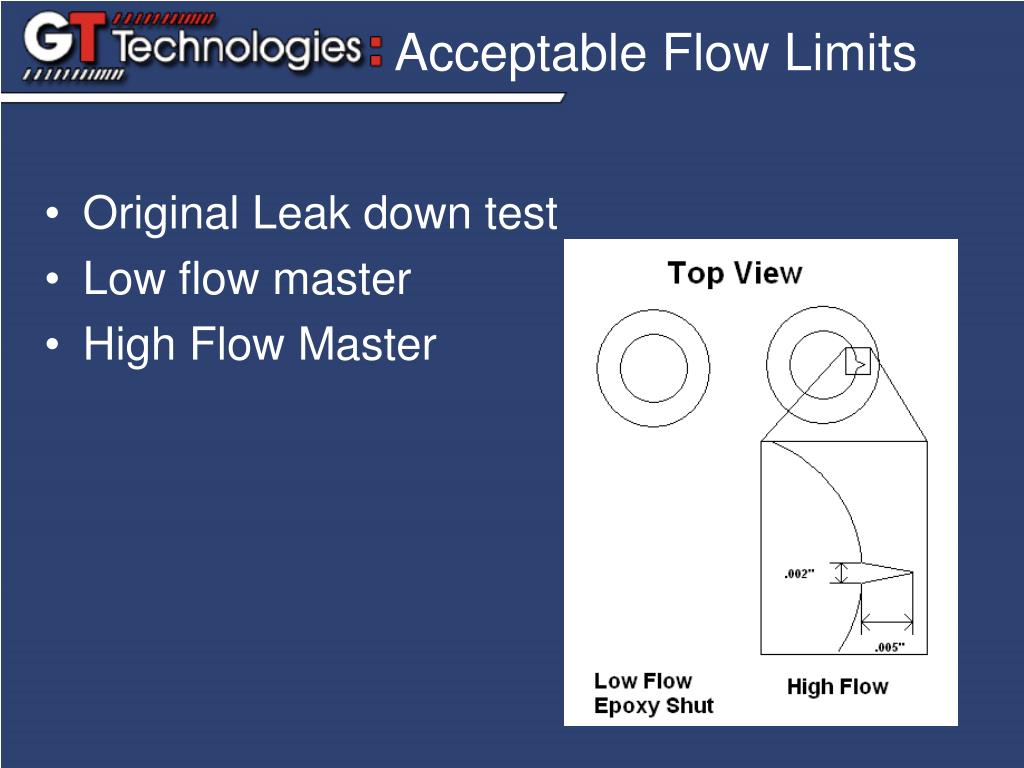

  8. Acceptable Flow Limits • Original Leak down test • Low flow master • High Flow Master

  9. http://www.sciencegl.com/Forensic_comparator/image_comparator.htmhttp://www.sciencegl.com/Forensic_comparator/image_comparator.htm

  10. How to measure the surface DYMEK - Veeco (Wyko) - Optical Profiler Ebay item: 320102008057 Price: $24,500.00 UBM – AutoScan Automated Surface Profiler

  11. This Semester • Which testing device will be used • Develop theory of what causes grooves • Which of the 8 elements will be tested • Test plan for the Spring • Research materials for testing

  12. Questions? • http://www.eng.fsu.edu/~willibe/gt10
