Heaven a hierarchical storage and archive environment for multidimensional array dbms

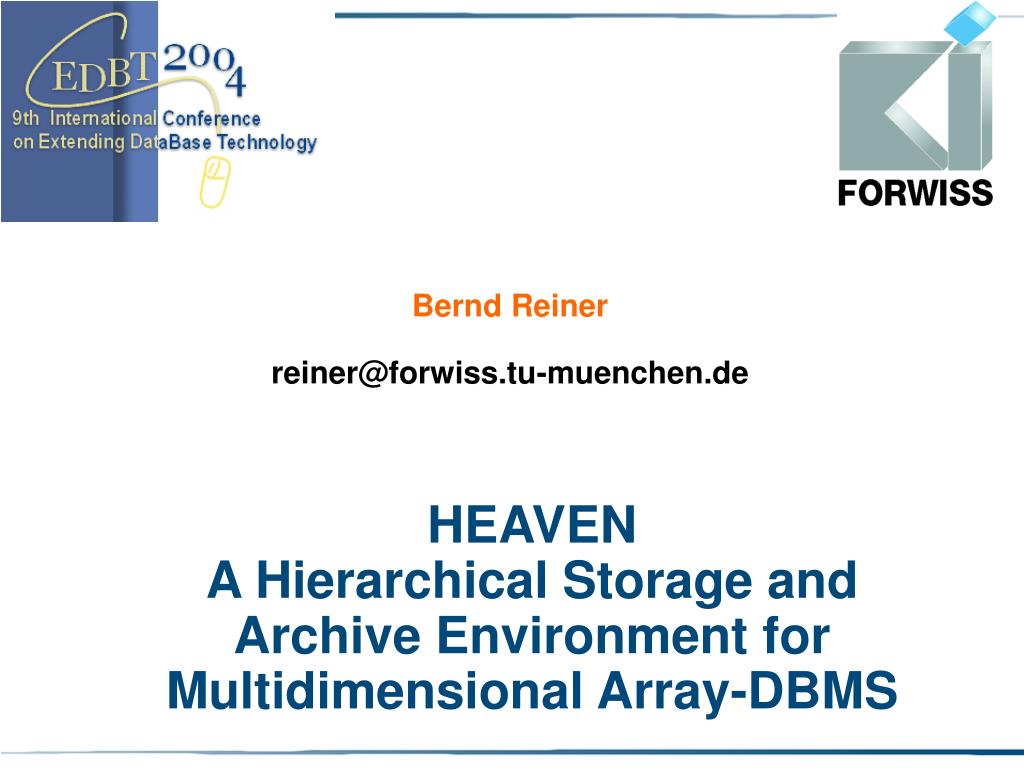

HEAVENA Hierarchical Storage and Archive Environment for Multidimensional Array-DBMS

Bernd Reiner

[email protected]

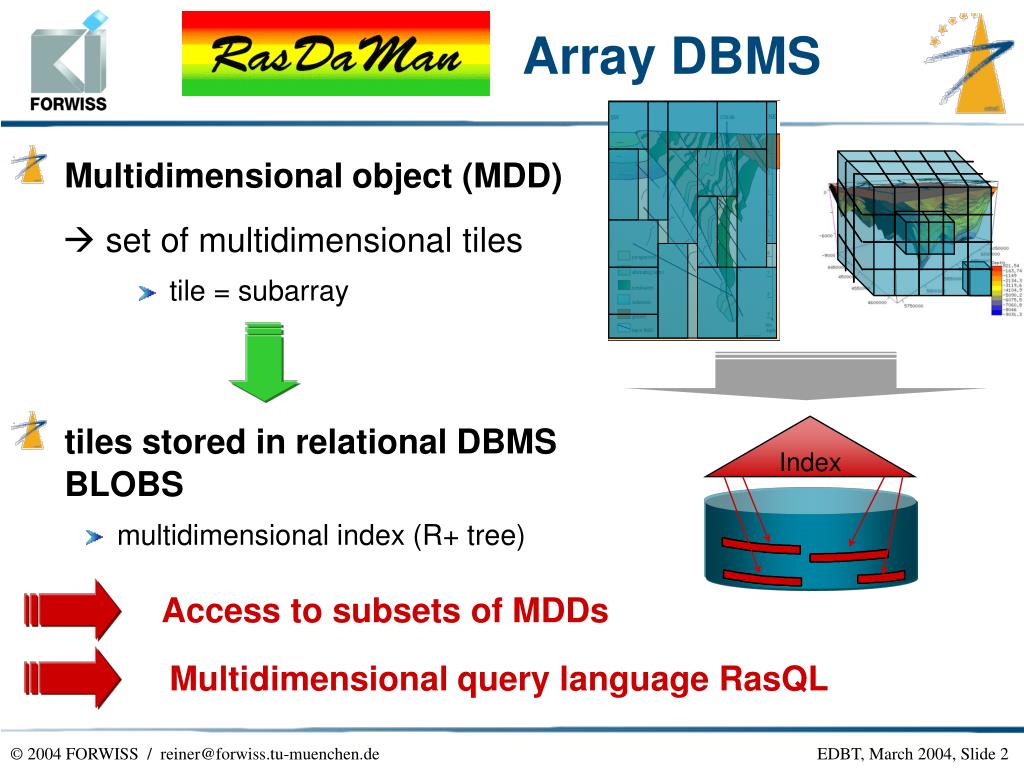

Array dbms

set of multidimensional tiles

  • tile = subarray

  • tiles stored in relational DBMS BLOBS

    • multidimensional index (R+ tree)

Index

Access to subsets of MDDs

Multidimensional query language RasQL

Array DBMS

  • Multidimensional object (MDD)

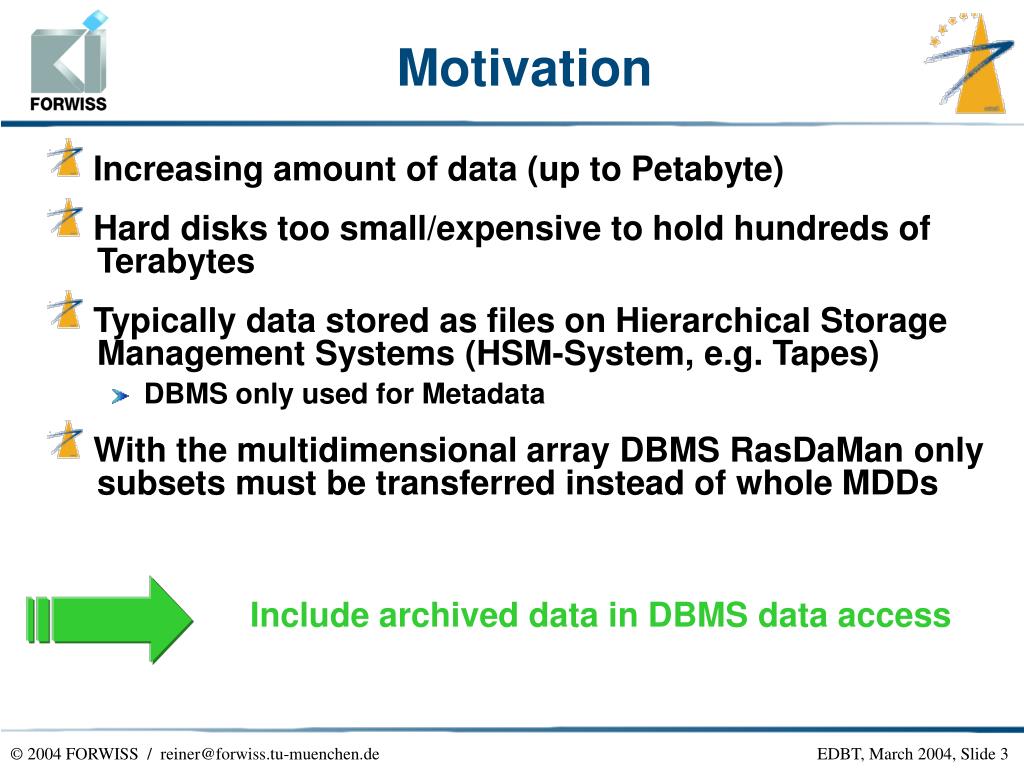

Motivation
Motivation

  • Increasing amount of data (up to Petabyte)

  • Hard disks too small/expensive to hold hundreds of Terabytes

  • Typically data stored as files on Hierarchical Storage Management Systems (HSM-System, e.g. Tapes)

    • DBMS only used for Metadata

  • With the multidimensional array DBMS RasDaMan only subsets must be transferred instead of whole MDDs

Include archived data in DBMS data access


System architecture

Client

RasQL

Hierarchical StorageManagement System

RasDaManServer

Tertiary Storage Manager

File Storage Manager

SQL

DBMS

Oracle / DB2

Offline Storage

HSM

HSM

migrate

migrate

export

export

import

import

DBMS

(on HDD)

Cache

Cache

stage

stage

Nearline

Online

Offline

System Architecture

MultidimensionalArray DBMS

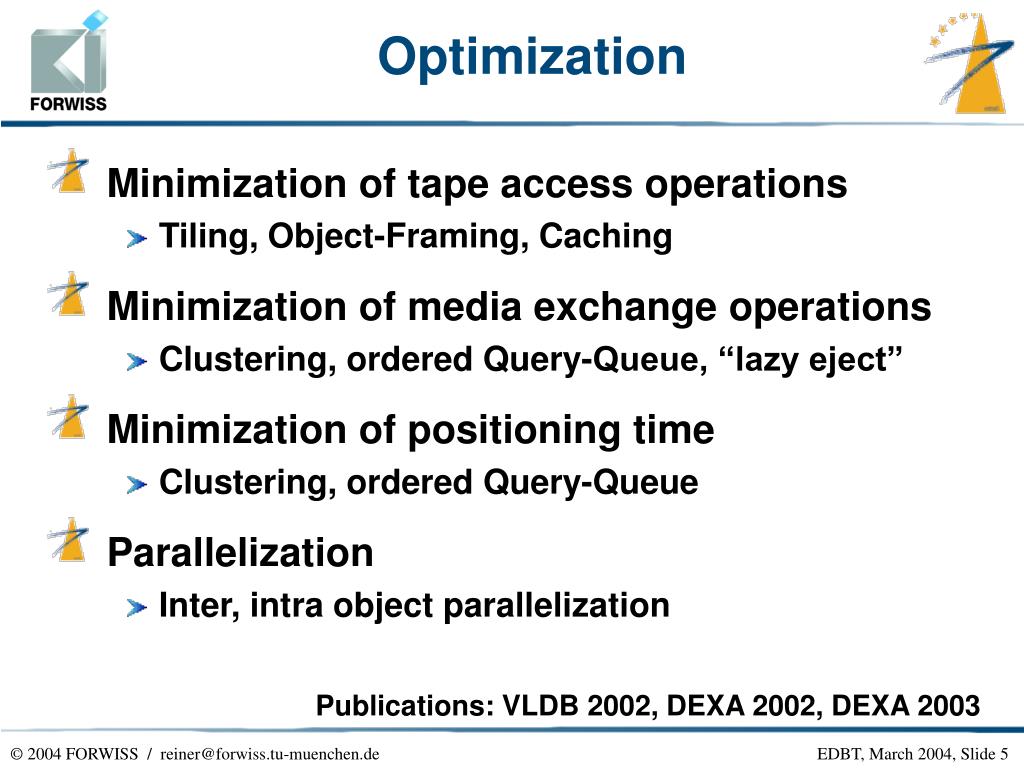

Optimization
Optimization

  • Minimization of tape access operations

    • Tiling, Object-Framing, Caching

  • Minimization of media exchange operations

    • Clustering, ordered Query-Queue, “lazy eject”

  • Minimization of positioning time

    • Clustering, ordered Query-Queue

  • Parallelization

    • Inter, intra object parallelization

Publications: VLDB 2002, DEXA 2002, DEXA 2003

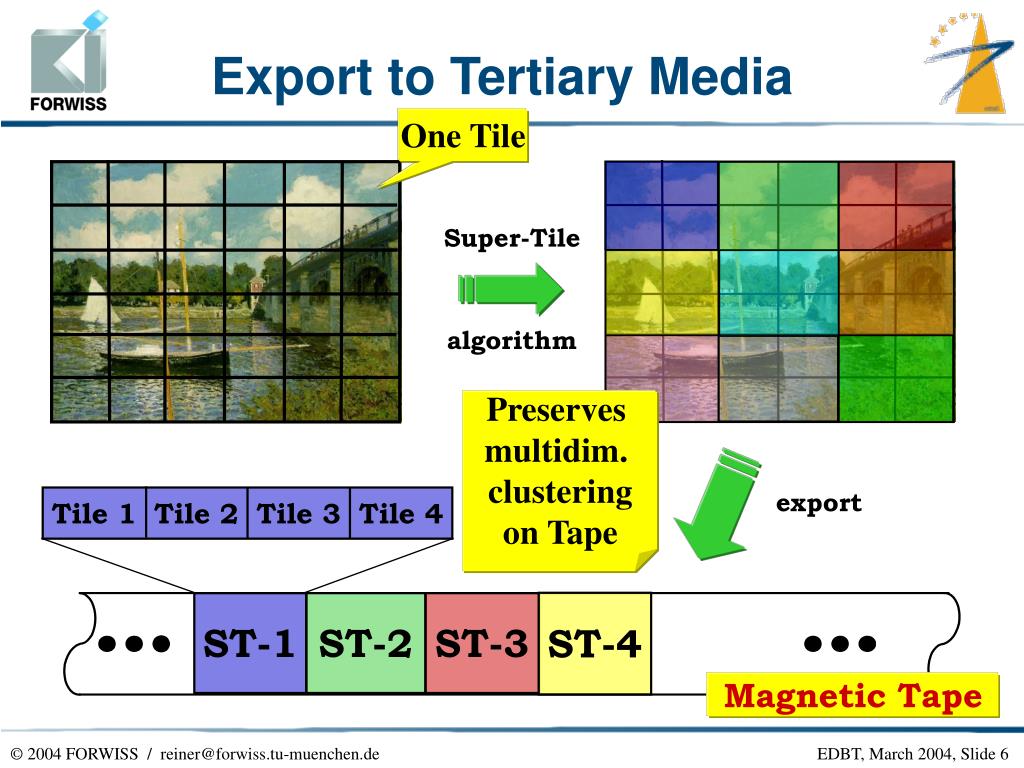

Export to tertiary media

One Tile

Super-Tile

algorithm

export

Tile 1

Tile 2

Tile 3

Tile 4

ST-4

ST-1

ST-2

ST-3

Magnetic Tape

Export to Tertiary Media

Preserves

multidim.

clusteringon Tape


Import from tertiary media

compute

Super-Tiles

RasDaMan

viewer

ImportSuper-Tiles

Import from Tertiary Media


Object framing
Object-Framing

  • Reducing tape access


Data retrieval from hsm

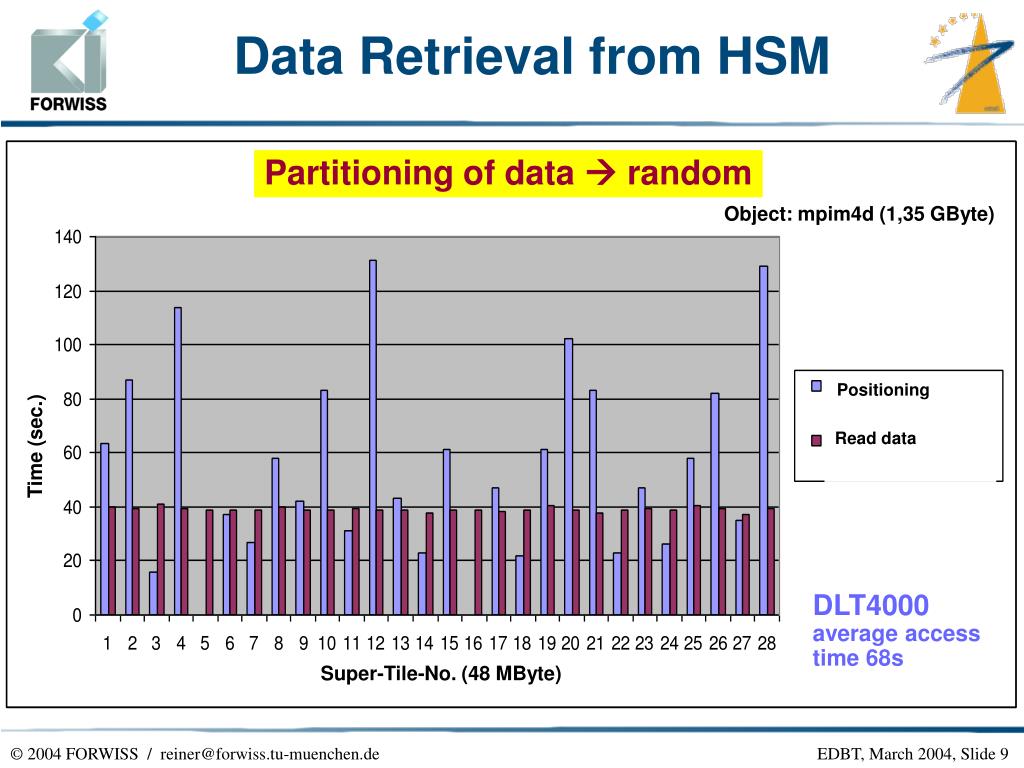

Data Retrieval from HSM

Partitioning of data  random

Object: mpim4d (1,35 GByte)

Positioning

Time (sec.)

Read data

DLT4000average accesstime 68s

Super-Tile-No. (48 MByte)

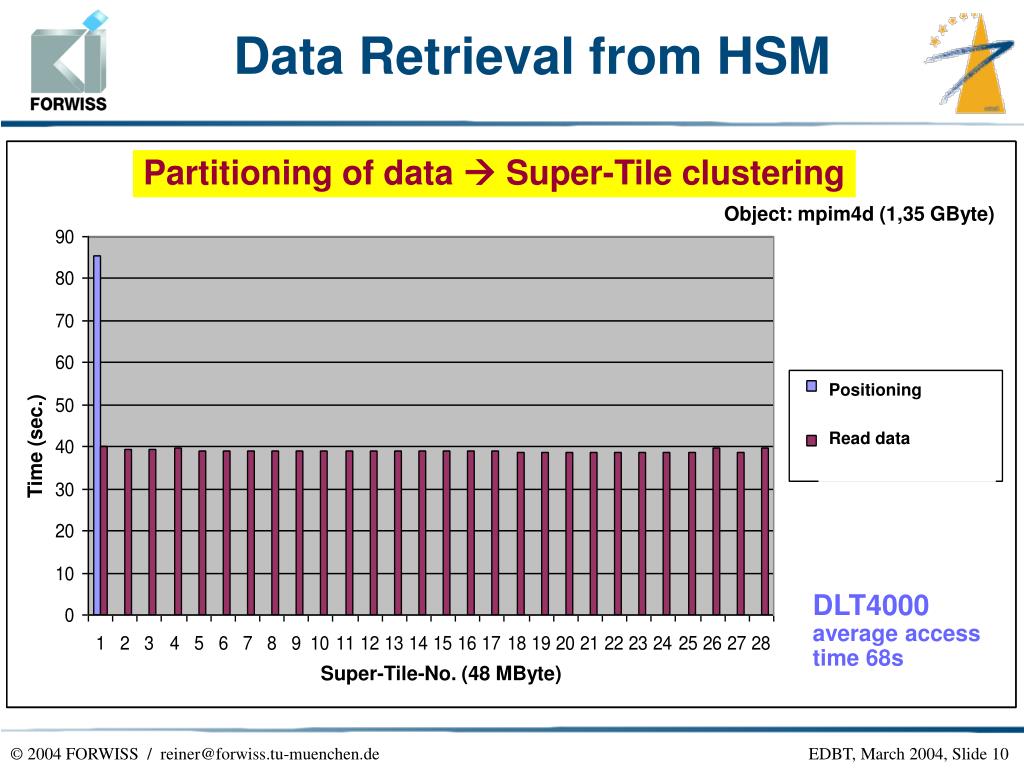

Data retrieval from hsm1
Data Retrieval from HSM

Partitioning of data  Super-Tile clustering

Object: mpim4d (1,35 GByte)

Positioning

Time (sec.)

Read data

DLT4000average accesstime 68s

Super-Tile-No. (48 MByte)



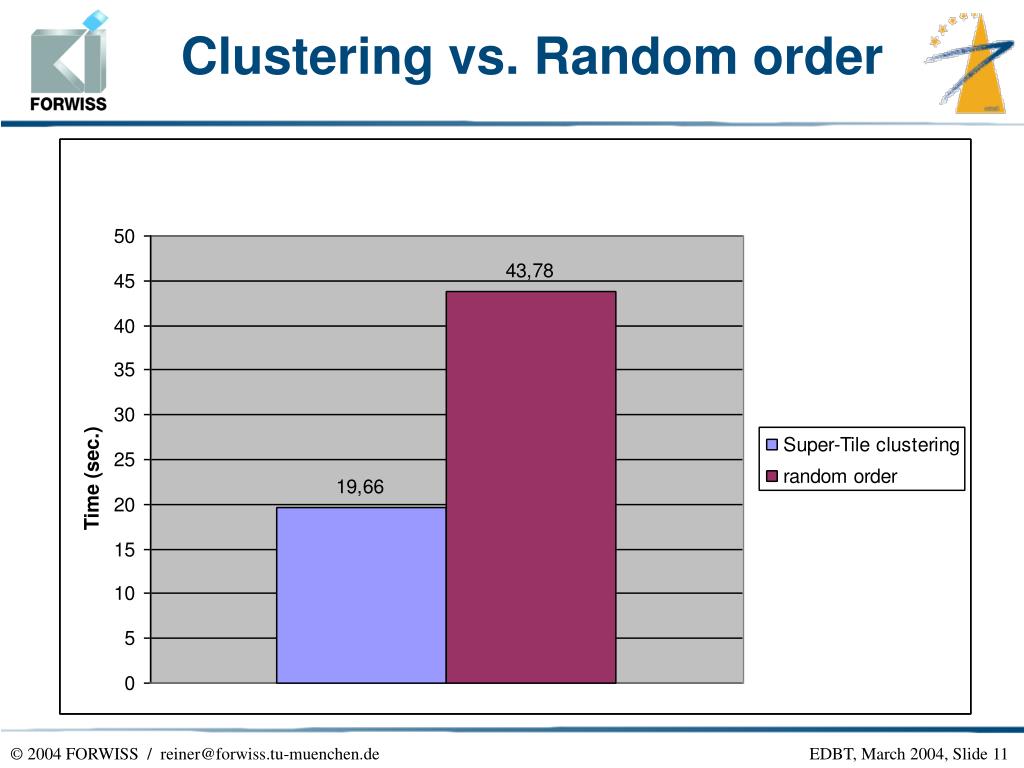

ad
