Presentation Transcript
a faraday cage is a container made of conductor shields interior from emi noise
A Faraday Cage is a container made of conductor, shields interior from EMI Noise

But why does it work?

the cage is named after faraday but why it works begins with coulomb

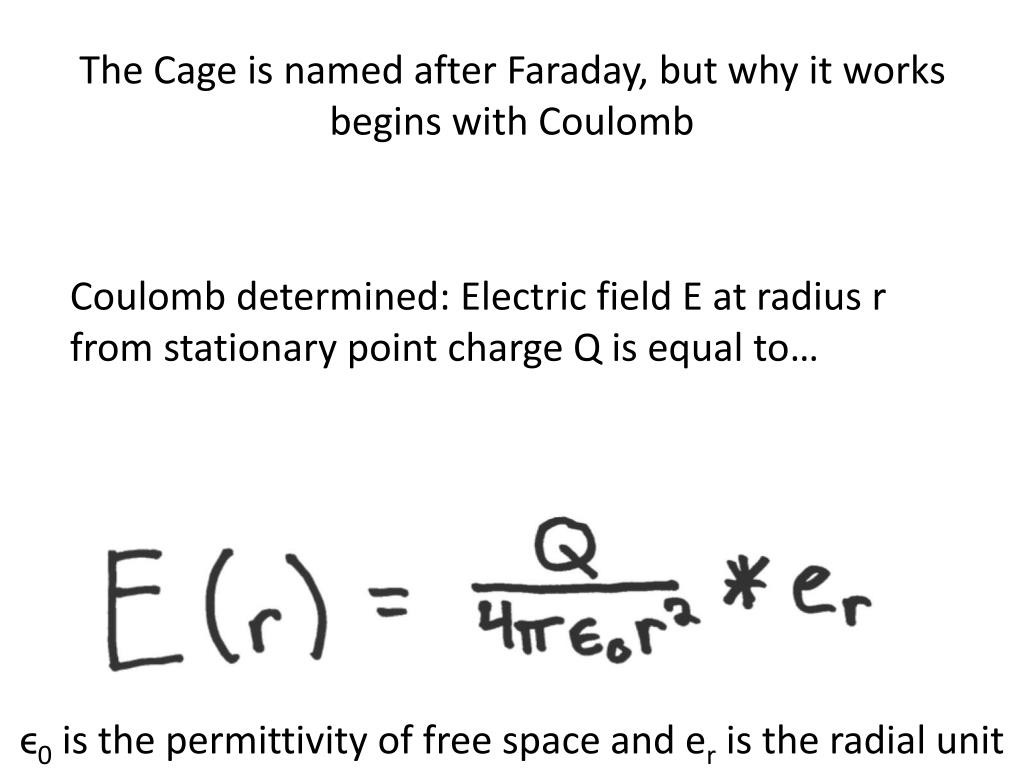

The Cage is named after Faraday, but why it works begins with Coulomb

Coulomb determined: Electric field E at radius r from stationary point charge Q is equal to…

ϵ0 is the permittivity of free space and er is the radial unit vector

rules that govern barrier effect of faraday cage

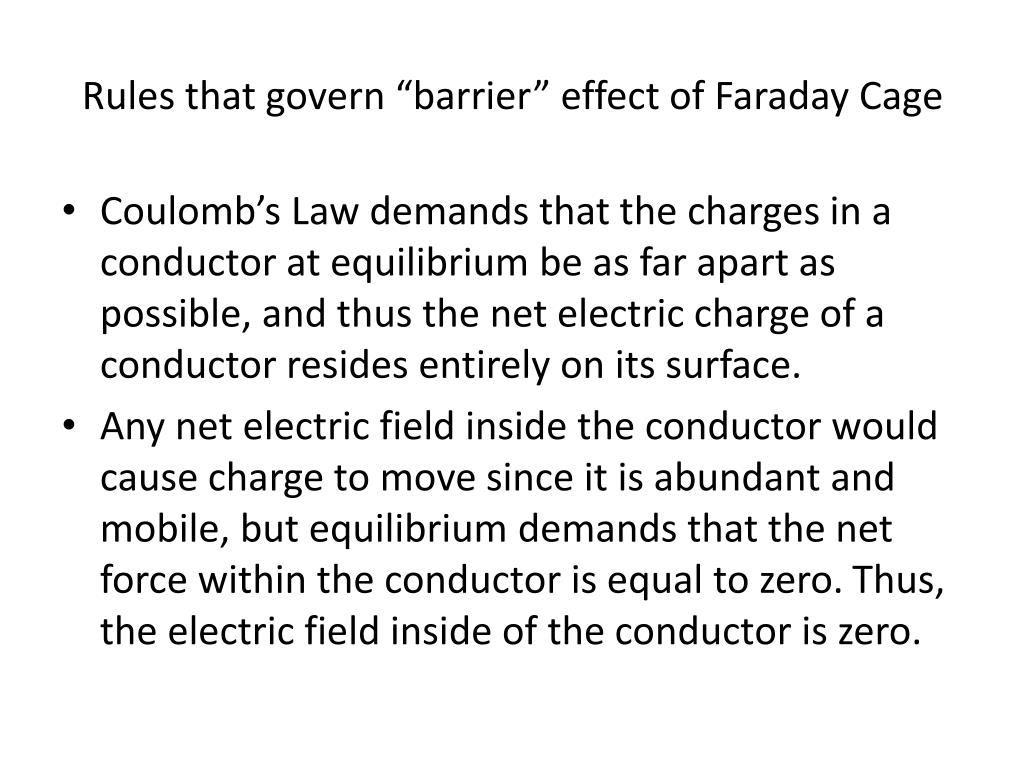

Rules that govern “barrier” effect of Faraday Cage
  • Coulomb’s Law demands that the charges in a conductor at equilibrium be as far apart as possible, and thus the net electric charge of a conductor resides entirely on its surface.
  • Any net electric field inside the conductor would cause charge to move since it is abundant and mobile, but equilibrium demands that the net force within the conductor is equal to zero. Thus, the electric field inside of the conductor is zero.
when an external field is applied exterior charges in conductor redistribute
When an external field is applied, exterior charges in conductor redistribute…

…in such a way that the interior fields within the conductor cancel out to zero

many faraday cages have holes but still act as a barrier how big can holes be
Many Faraday cages have holes, but still act as a barrier. How big can holes be?

Holes must be sufficiently smaller than the wavelength (λ) of the signal to block it, which relates to frequency (f) with this equation:

c= speed of light. You usually want holes smaller than 1/10 of wavelength

slide6

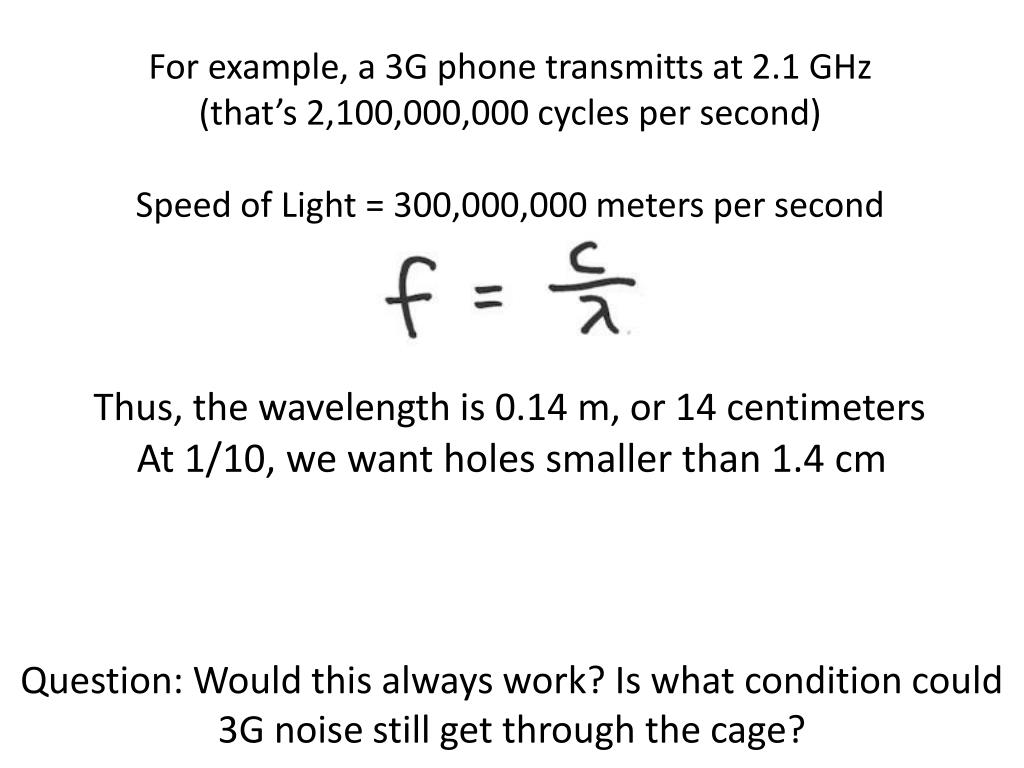

For example, a 3G phone transmitts at 2.1 GHz(that’s 2,100,000,000 cycles per second)Speed of Light = 300,000,000 meters per second

Thus, the wavelength is 0.14 m, or 14 centimeters

At 1/10, we want holes smaller than 1.4 cm

Question: Would this always work? Is what condition could

3G noise still get through the cage?

slide7
One way to improve the EMI barrier capability of a Faraday cage is to connect it to electrical ground …

…this could help keep cage at equilibrium
