Presentation Transcript

What is stoichiometry
What is stoichiometry?

  • Stoichiometry is the quantitative study of reactants and products in a chemical reaction.


What you should expect
What You Should Expect

  • Given : Amount of reactants

  • Question:how much of products can be formed.

  • Example

  • 2 A + 2B 3C

  • Given 20.0 grams of A and sufficient B, how many grams of C can be produced?


What do you need
What do you need?

You will need to use

  • molar ratios,

  • molar masses,

  • balancing and interpreting equations, and

  • conversions between grams and moles.

    Note: This type of problem is often called "mass-mass."


Steps involved in solving mass mass stoichiometry problems
Steps Involved in Solving Mass-Mass Stoichiometry Problems

  • Balance the chemical equation correctly

  • Using the molar mass of the given substance, convert the mass given to moles.

  • Construct a molar proportion (two molar ratios set equal to each other)

  • Using the molar mass of the unknown substance, convert the moles just calculated to mass.

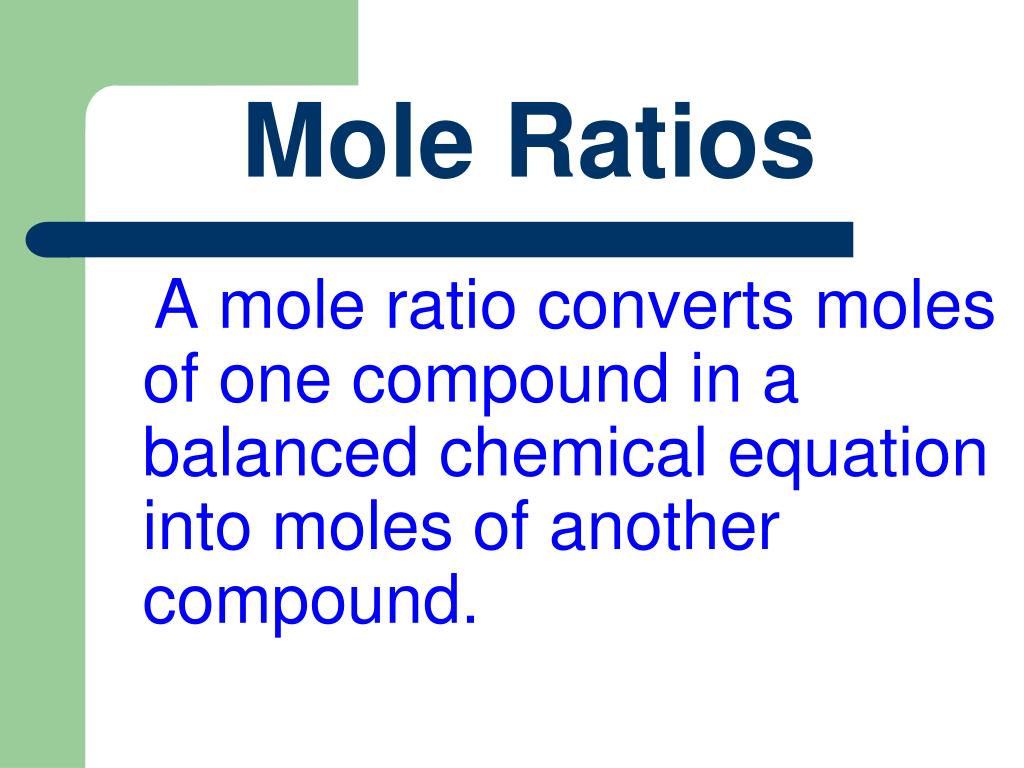

Mole ratios
Mole Ratios Problems

A mole ratio converts moles of one compound in a balanced chemical equation into moles of another compound.

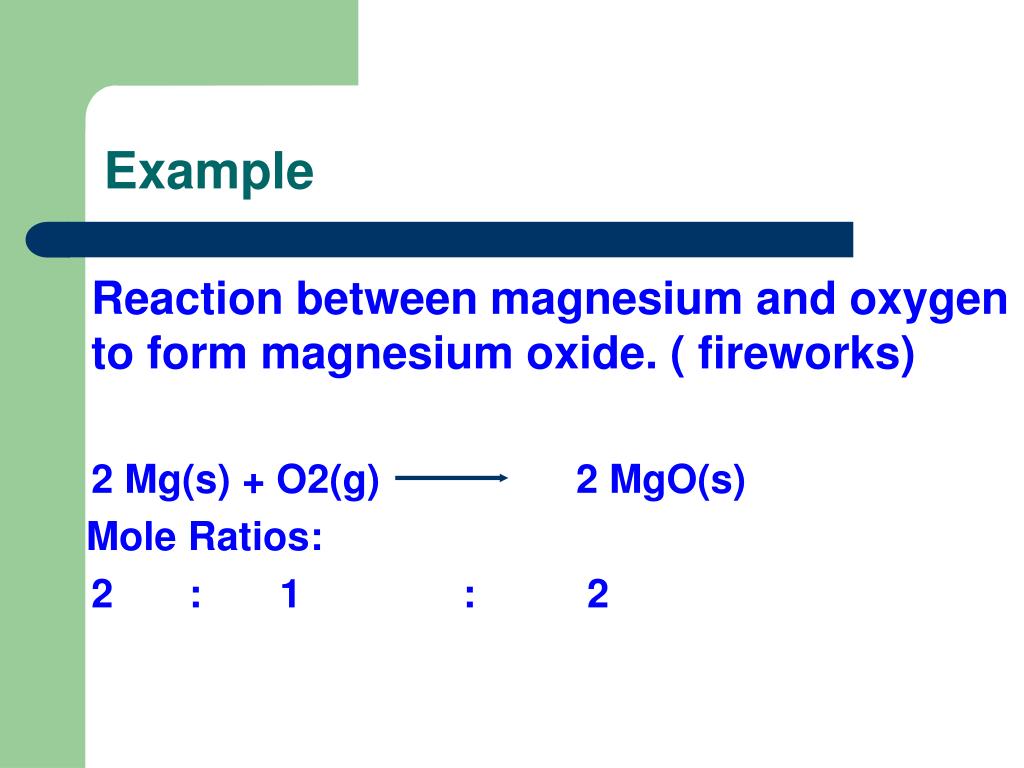

Example
Example Problems

Reaction between magnesium and oxygen to form magnesium oxide. ( fireworks)

2 Mg(s) + O2(g) 2 MgO(s)

Mole Ratios:

2 : 1 : 2


Practice problems
Practice Problems Problems

1) N2 + 3 H2 ---> 2 NH3

Write the mole ratios for N2 to H2 and NH3 to H2.

2) A can of butane lighter fluid contains 1.20 moles of butane (C4H10). Calculate the number of moles of carbon dioxide given off when this butane is burned.


Mole mole problems
Mole-Mole Problems Problems

Using the practice question 2) above:

Equation of reaction

2C4H10 + 13O2 8CO2 + 10H2O

Mole ratio

C4H10 CO2

1 : 4 [ bases]

1.2 : X [ problem]

By cross-multiplication, X = 4.8 mols of CO2 given off


Mole mass problems
Mole-Mass Problems Problems

  • Problem 1: 1.50 mol of KClO3 decomposes. How many grams of O2 will be produced? [k = 39, Cl = 35.5, O = 16]

    2 KClO3 2 KCl + 3 O2


Three steps get your correct answer
Three steps…Get Your Correct Answer Problems

  • Use mole ratio

  • Get the answer in moles and then

  • Convert to Mass. [Simple Arithmetic]

    Hello!

    If you are given a mass in the problem, you will need to convert this to moles first. Ok?


Let s go
Let’s go! Problems

2 KClO3 2 KCl + 3 O2

2 : 3

1.50 : X

X = 2.25mol

Convert to mass

2.25 mol x 32.0 g/mol = 72.0 grams

Cool!

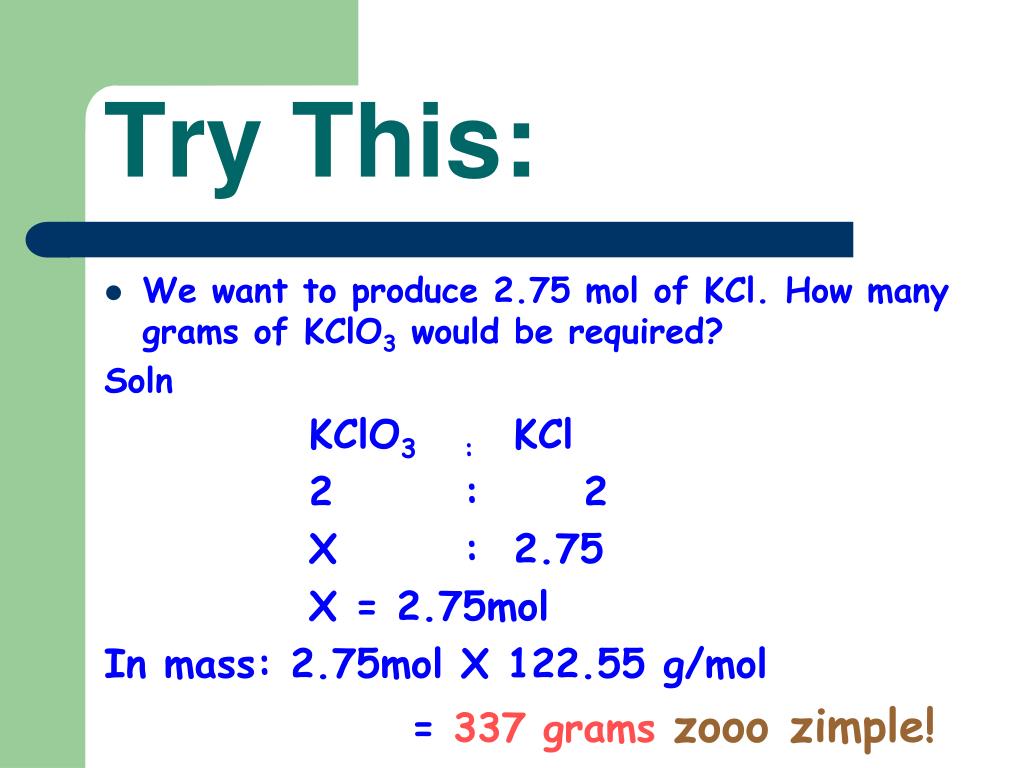

Try this
Try This: Problems

  • We want to produce 2.75 mol of KCl. How many grams of KClO3 would be required?

    Soln

    KClO3 : KCl

    2 : 2

    X : 2.75

    X = 2.75mol

    In mass: 2.75mol X 122.55 g/mol

    = 337 grams zooo zimple!


Mass mass problems
Mass-Mass ProblemsProblems

There are four steps involved in solving these problems:

  • Make sure you are working with a properly balanced equation.

  • Convert grams of the substance given in the problem to moles.

  • Construct two ratios - one from the problem and one from the equation and set them equal. Solve for "x," which is usually found in the ratio from the problem.

  • Convert moles of the substance just solved for into grams.


Mass volume problems
Mass-Volume ProblemsProblems

Just follow mass-mass problem to the penultimate level


Like this
Like this: Problems

There are four steps involved in solving these problems:

  • Make sure you are working with a properly balanced equation.

  • Convert grams of the substance given in the problem to moles.

  • Construct two ratios - one from the problem and one from the equation and set them equal. Solve for "x," which is usually found in the ratio from the problem.

  • Convert moles of the substance just solved for into Volume.

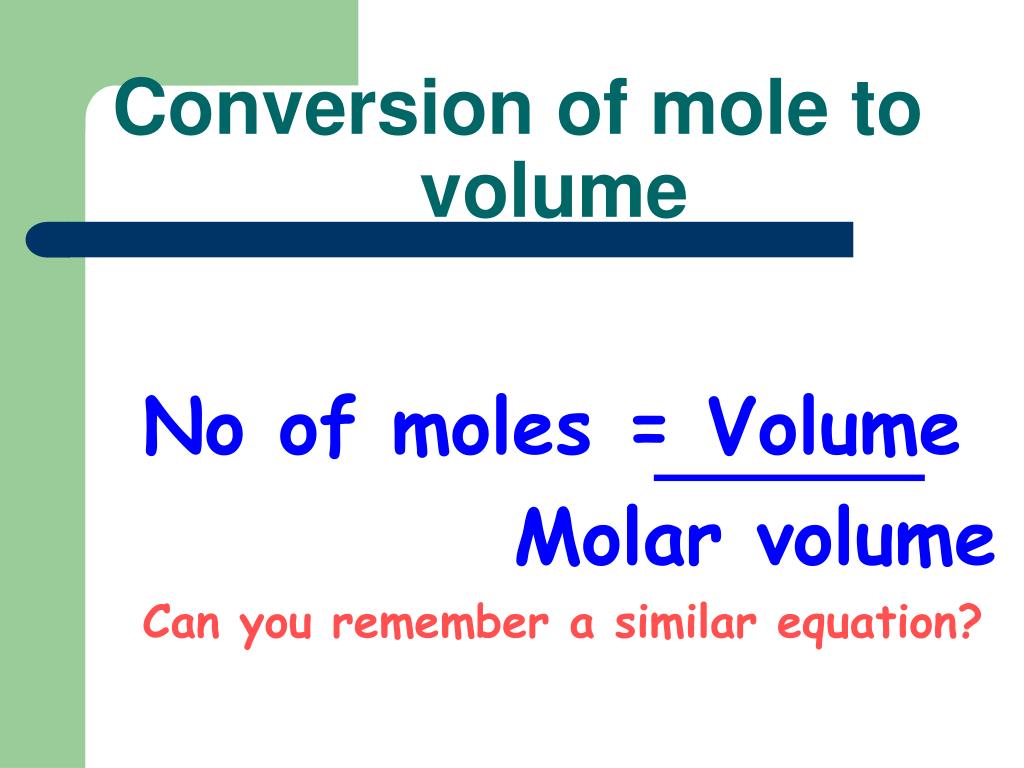

Conversion of mole to volume
Conversion of mole to volume Problems

No of moles = Volume

Molar volume

Can you remember a similar equation?


Molar volume
Molar Problemsvolume

The molar volume is the volume occupied by one mole of ideal gas at STP. Its value is: 22.4dm3


Practice problems1
Practice Problems Problems

Calculate the volume of carbon dioxide formed at STP in ‘dm3' by the complete thermal decomposition of 3.125 g of pure calcium carbonate (Relative atomic mass of Ca=40, C=12, O=16)

Solution:

Convert the mass to mole:

Molar mass of CaCO3 = 40 + 12 + (16 x 3) = 100gmol-1

Mole = mass/molar mass

3.125/100 = 0.03125mol


Practice problems2
Practice Problems Problems

As per the equation,

Mole ratio 1 : 1

problem 0.03125mol X

X = 0.03125mol of CO2

Convert mole to volume [slide 17]

Volume = (0.03125 x 22.4)dm3

=0.7dm3
