Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

Depicting LAMP probabilities and uncertainty in best category forecast

New LAMP web page product

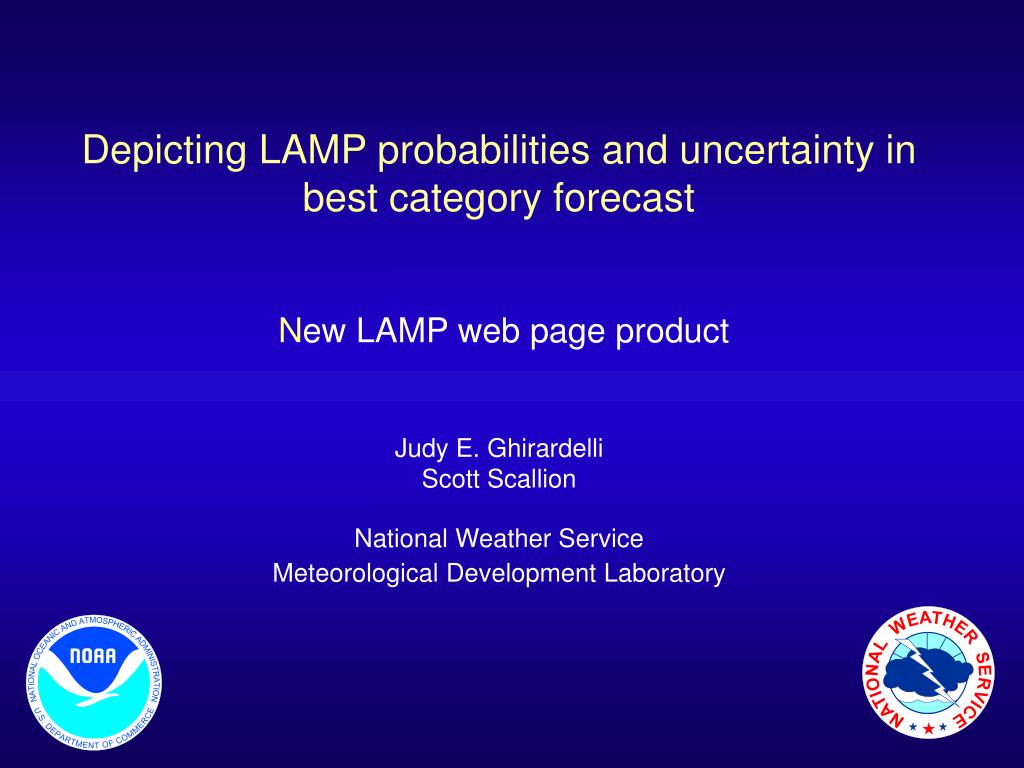

Judy E. Ghirardelli

Scott Scallion

National Weather Service

Meteorological Development Laboratory


How we make our best category selection in lamp

How we make our “best category” selection in LAMP

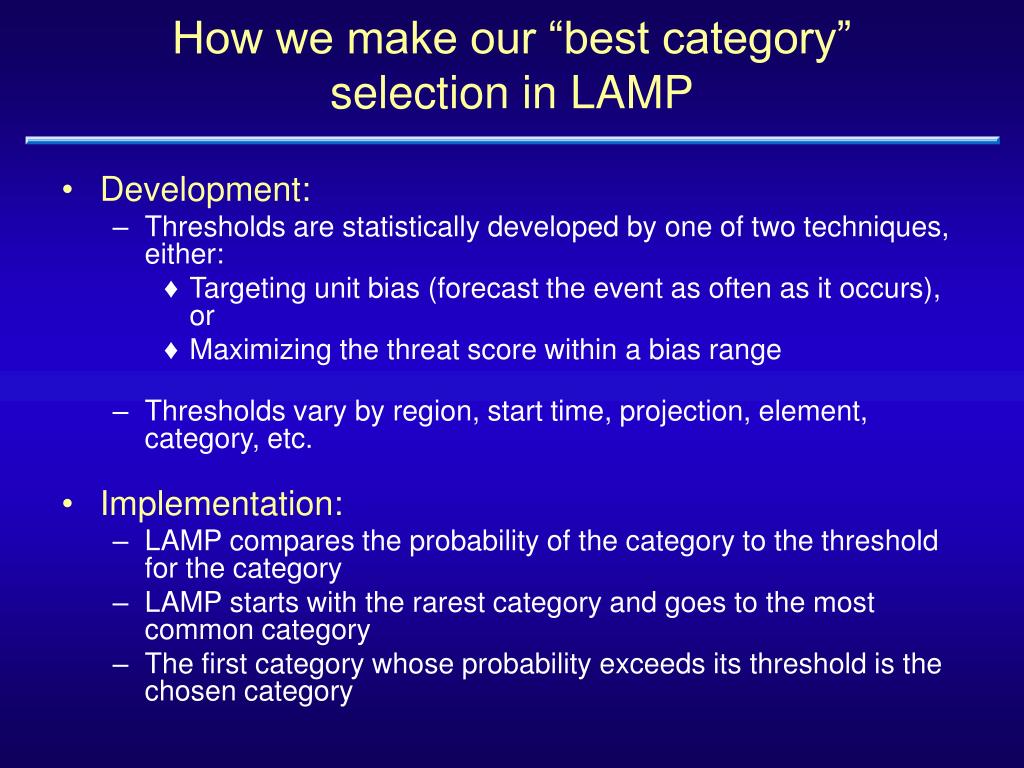

  • Development:

    • Thresholds are statistically developed by one of two techniques, either:

      • Targeting unit bias (forecast the event as often as it occurs), or

      • Maximizing the threat score within a bias range

    • Thresholds vary by region, start time, projection, element, category, etc.

  • Implementation:

    • LAMP compares the probability of the category to the threshold for the category

    • LAMP starts with the rarest category and goes to the most common category

    • The first category whose probability exceeds its threshold is the chosen category

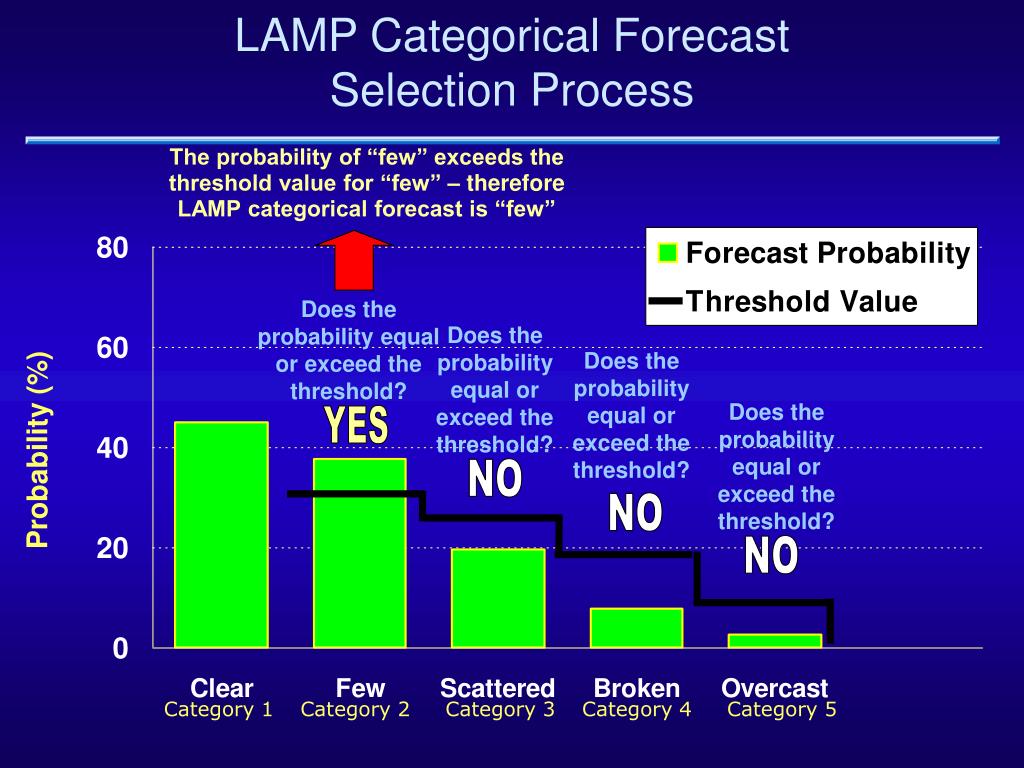

Lamp categorical forecast selection process

LAMP Categorical Forecast Selection Process

The probability of “few” exceeds the threshold value for “few” – therefore LAMP categorical forecast is “few”

Does the probability equal or exceed the threshold?

Does the probability equal or exceed the threshold?

Does the probability equal or exceed the threshold?

Does the probability equal or exceed the threshold?

YES

Probability (%)

NO

NO

NO

Category 1

Category 2

Category 3

Category 4

Category 5


Depicting probabilistic information

Depicting Probabilistic Information

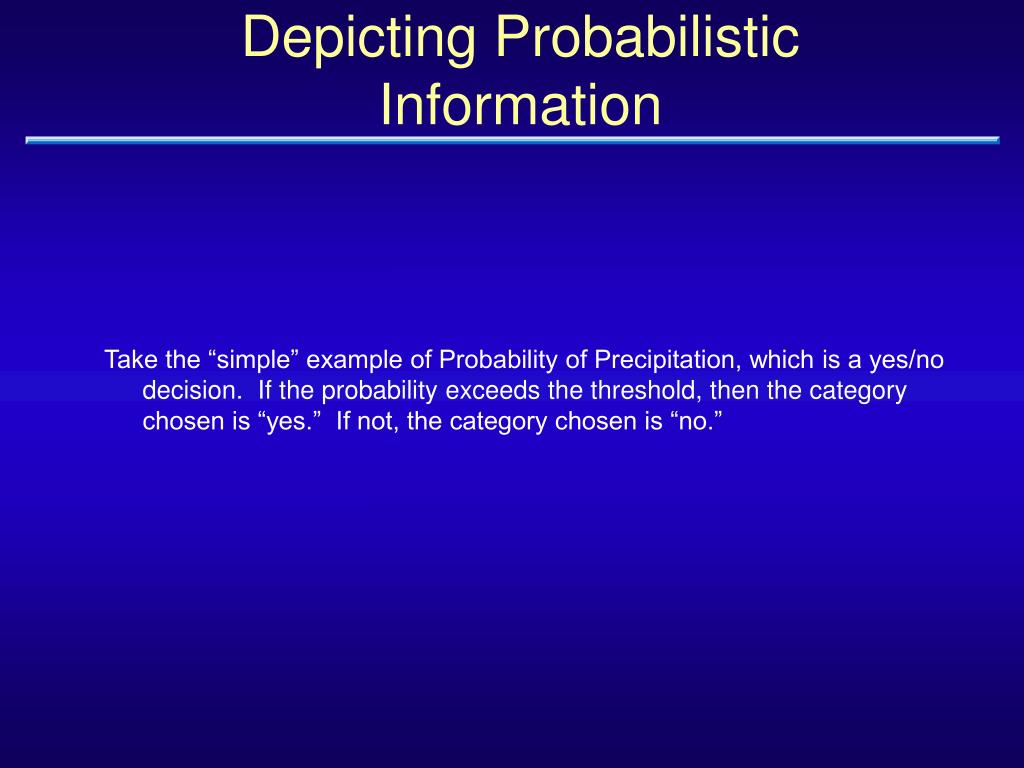

Take the “simple” example of Probability of Precipitation, which is a yes/no decision. If the probability exceeds the threshold, then the category chosen is “yes.” If not, the category chosen is “no.”


Depicting probabilistic information1

Chicago – slight chance yes and slight chance no precip

Depicting Probabilistic Information

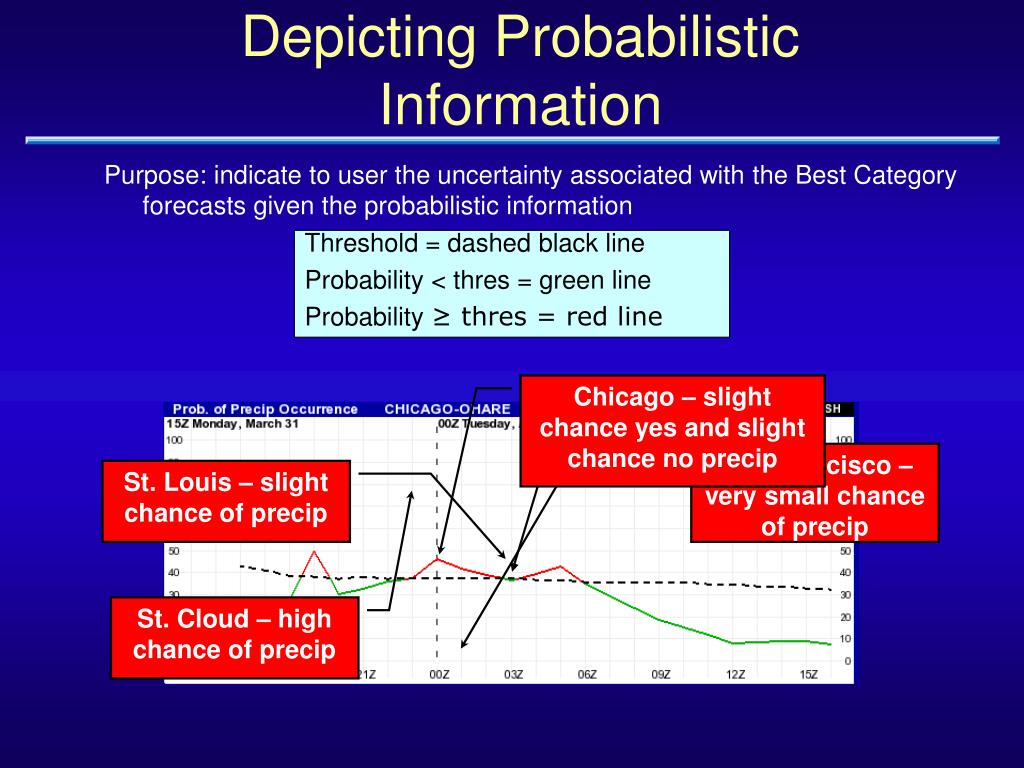

Purpose: indicate to user the uncertainty associated with the Best Category forecasts given the probabilistic information

Threshold = dashed black line

Probability < thres = green line

Probability ≥ thres = red line

San Francisco – very small chance of precip

St. Louis – slight chance of precip

St. Cloud – high chance of precip


Depicting probabilistic information2

Depicting Probabilistic Information

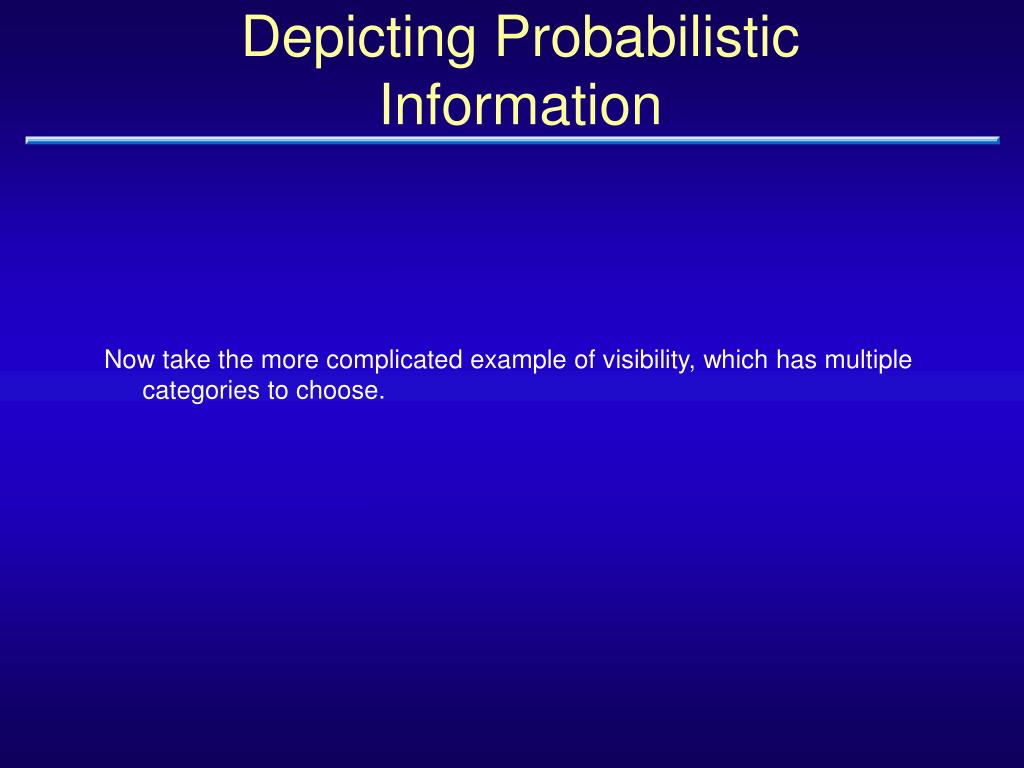

Now take the more complicated example of visibility, which has multiple categories to choose.


Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

LAMP Probabilities and Thresholds for Flight Categories

Threshold Plot Tab

Look at rarest of these categories first.

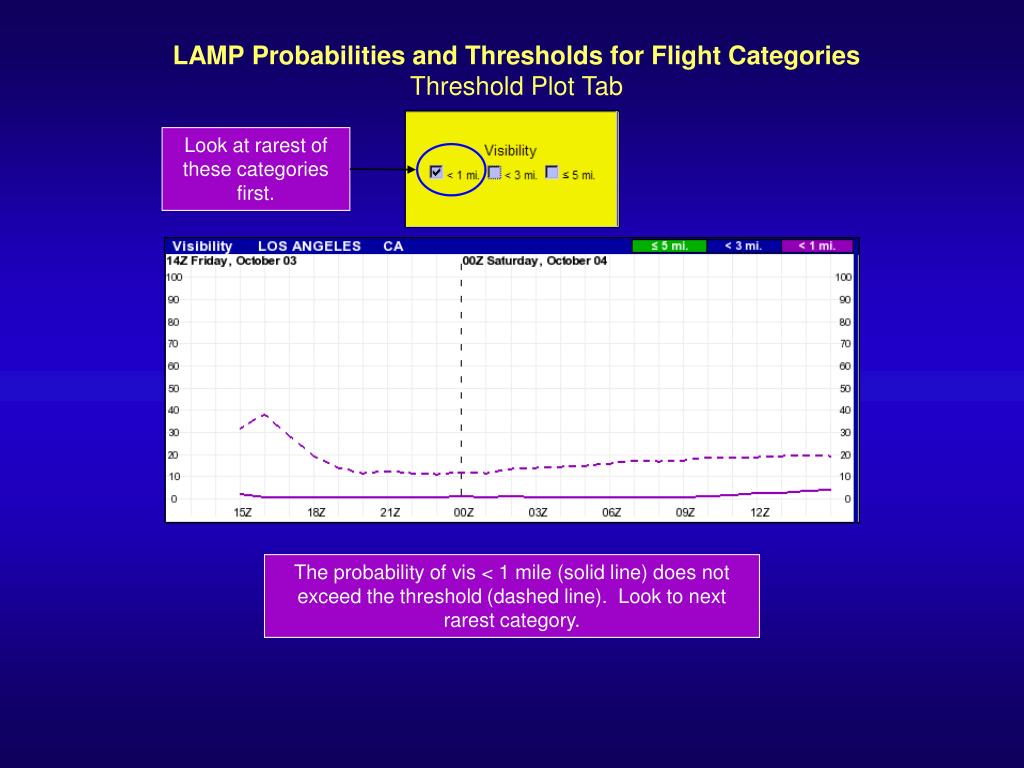

The probability of vis < 1 mile (solid line) does not exceed the threshold (dashed line). Look to next rarest category.


Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

LAMP Probabilities and Thresholds for Flight Categories

Threshold Plot Tab

Look at next rarest of these categories.

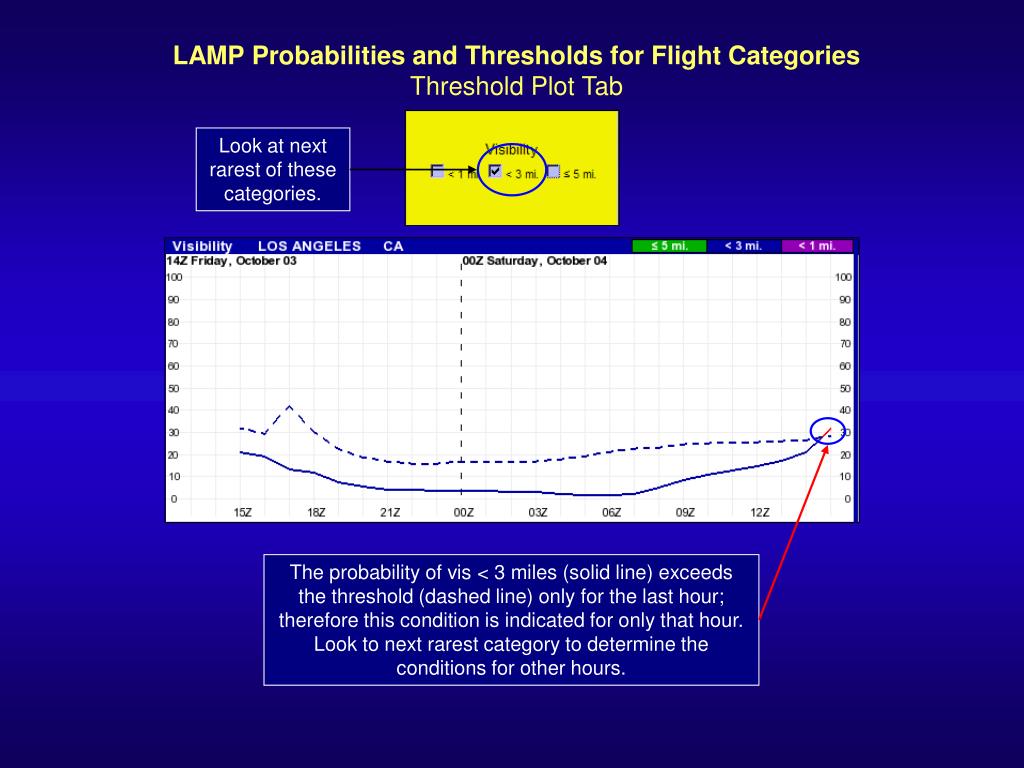

The probability of vis < 3 miles (solid line) exceeds the threshold (dashed line) only for the last hour; therefore this condition is indicated for only that hour. Look to next rarest category to determine the conditions for other hours.


Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

LAMP Probabilities and Thresholds for Flight Categories

Threshold Plot Tab

Look at next rarest of these categories.

The probability of vis ≤ 5 miles (solid line) DOES exceed the threshold (dashed line) at times; therefore this condition is indicated for those times.

Note that vis ≤ 5 is not chosen for the last hour, because a rarer condition (vis < 3 miles) was already indicated.


Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

LAMP Probabilities and Thresholds for Flight Categories

Threshold Plot Tab

Show all together.

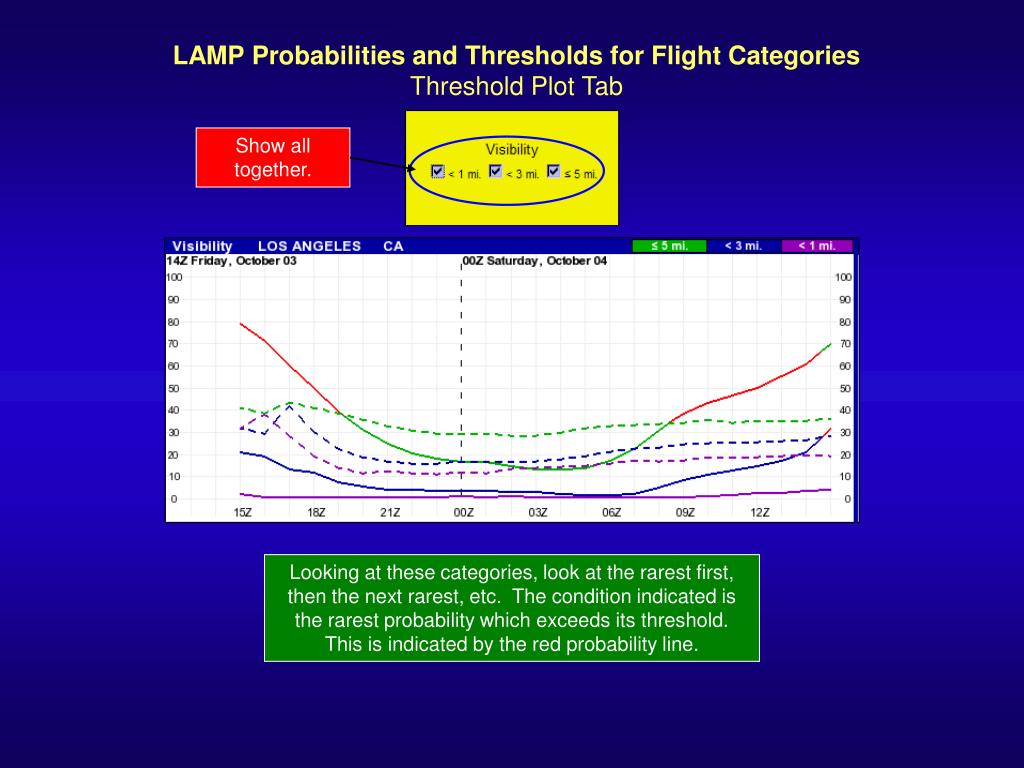

Looking at these categories, look at the rarest first, then the next rarest, etc. The condition indicated is the rarest probability which exceeds its threshold. This is indicated by the red probability line.


Depicting probabilistic information3

Depicting Probabilistic Information

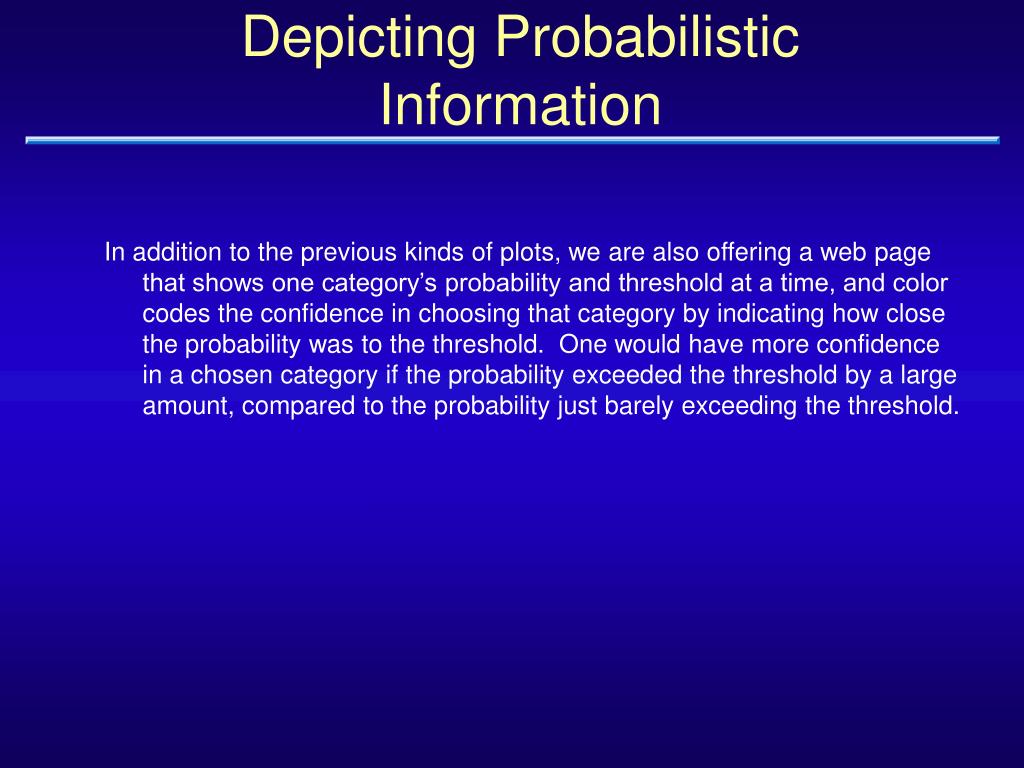

In addition to the previous kinds of plots, we are also offering a web page that shows one category’s probability and threshold at a time, and color codes the confidence in choosing that category by indicating how close the probability was to the threshold. One would have more confidence in a chosen category if the probability exceeded the threshold by a large amount, compared to the probability just barely exceeding the threshold.


Depicting lamp probabilities and uncertainty in best category forecast n ew lamp web page product

LAMP Probabilities and Thresholds for Flight Categories

Uncertainty Plot Tab – looking at vis ≤ 5 miles

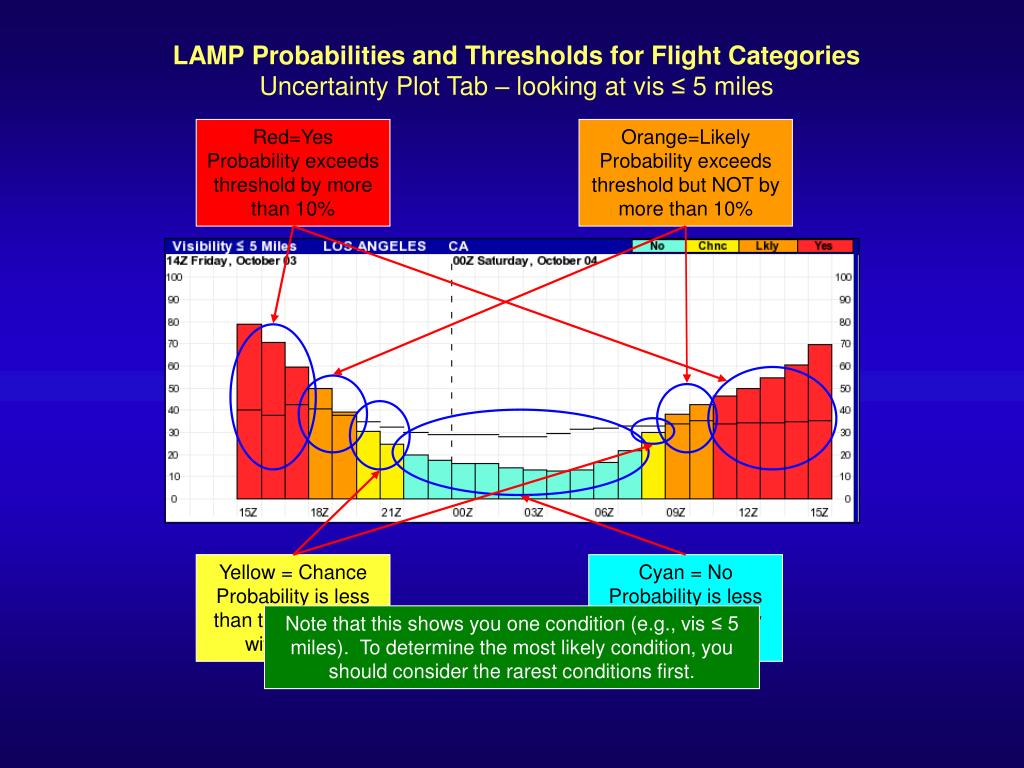

Red=YesProbability exceeds threshold by more than 10%

Orange=LikelyProbability exceeds threshold but NOT by more than 10%

Yellow = ChanceProbability is less than threshold but within 10%

Cyan = NoProbability is less than threshold by more than 10%

Note that this shows you one condition (e.g., vis ≤ 5 miles). To determine the most likely condition, you should consider the rarest conditions first.


Depicting probabilistic information4

Depicting Probabilistic Information

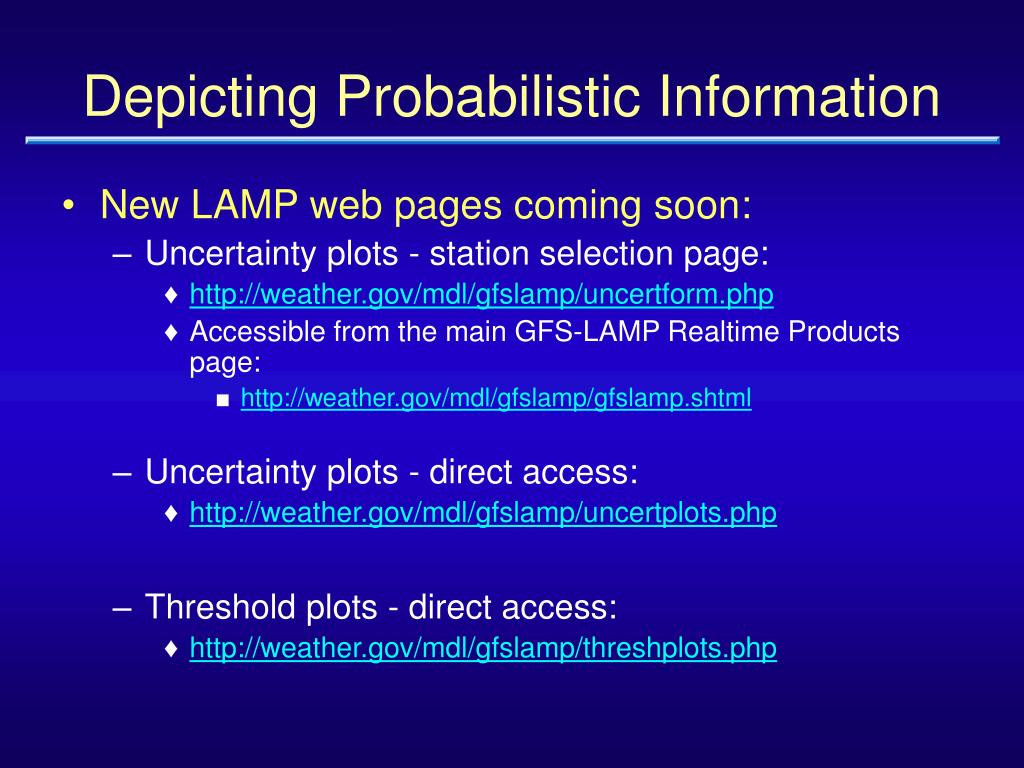

  • New LAMP web pages coming soon:

    • Uncertainty plots - station selection page:

      • http://weather.gov/mdl/gfslamp/uncertform.php

      • Accessible from the main GFS-LAMP Realtime Products page:

        • http://weather.gov/mdl/gfslamp/gfslamp.shtml

    • Uncertainty plots - direct access:

      • http://weather.gov/mdl/gfslamp/uncertplots.php

    • Threshold plots - direct access:

      • http://weather.gov/mdl/gfslamp/threshplots.php


Depicting probabilistic information5

Depicting Probabilistic Information

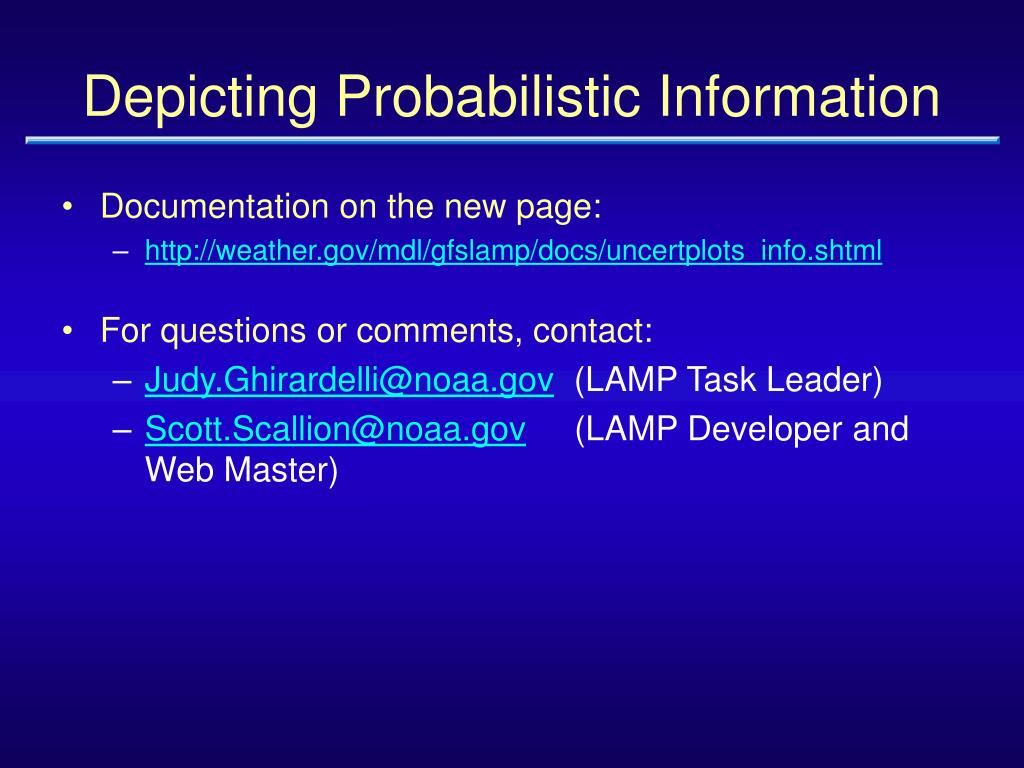

  • Documentation on the new page:

    • http://weather.gov/mdl/gfslamp/docs/uncertplots_info.shtml

  • For questions or comments, contact:

    • [email protected] (LAMP Task Leader)

    • [email protected] (LAMP Developer and Web Master)
