  1. Relevance Feedback based on Parameter Estimation of Target Distribution K. C. Sia and Irwin King Department of Computer Science & Engineering The Chinese University of Hong Kong 15 May IJCNN 2002

  2. Agenda • Introduction to content based image retrieval (CBIR) and relevance feedback (RF) • Former approaches • Tackling the problem • Parameter estimation of target distribution • Experiments • Future works and conclusion Relevance Feedback Based on Parameter Estimation of Target Distribution

  3. Content Based Image Retrieval • How to represent an image? • Feature extraction • Colour histogram (RGB) • Co-occurrence matrix texture analysis • Shape representation • Feature vector • Map images to points in hyper-space • Similarity is based on distance measure Relevance Feedback Based on Parameter Estimation of Target Distribution

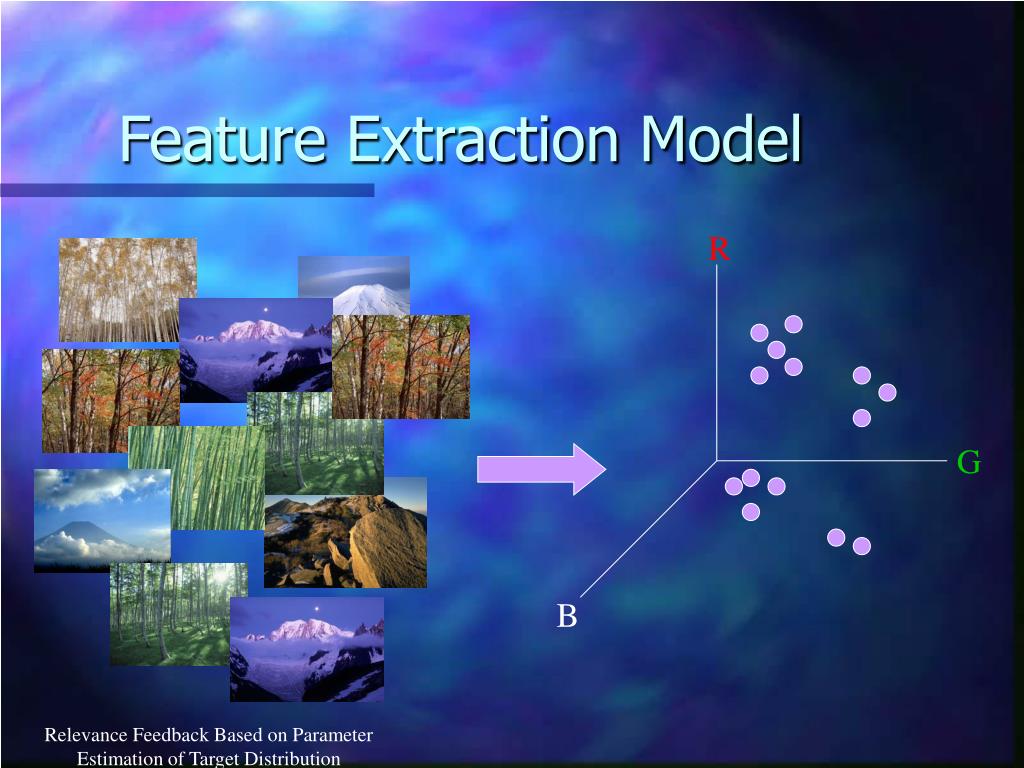

  4. R G B Feature Extraction Model Relevance Feedback Based on Parameter Estimation of Target Distribution

  5. Relevance Feedback • Relevance feedback • Architecture to capture user’s target of search • Learning process • Two steps • Feedback – how to learn from the user’s relevance feedback • Display – how to select the next set of documents and present to user Relevance Feedback Based on Parameter Estimation of Target Distribution

  6. 1st iteration Display UserFeedback Feedbackto system Estimation & Display selection 2nd iteration Display UserFeedback Relevance Feedback Based on Parameter Estimation of Target Distribution

  7. Former Approaches • Multimedia Analysis and Retrieval System (MARS) • Yong Rui et al. Relevance feedback: A powerful tool for interactive content-based image retrieval. - 1998 • Using weight to capture user’s preference • Pic-Hunter • Ingemar J. Cox et al. The Bayesian image retrieval system, pichunter, theory, implementation, and psychophysical experiments. - 2000 • Images are associated with a probability being the user’s target • Bayesian learning Relevance Feedback Based on Parameter Estimation of Target Distribution

  8. Comparison Relevance Feedback Based on Parameter Estimation of Target Distribution

  9. The Model • Feature Extraction • I - raw image data •  - set of feature extraction method • f - feature extraction operation • Images  data point in hyper-space (Rd) • Problem scope is narrowed down to a particular feature Relevance Feedback Based on Parameter Estimation of Target Distribution

  10. Feedback

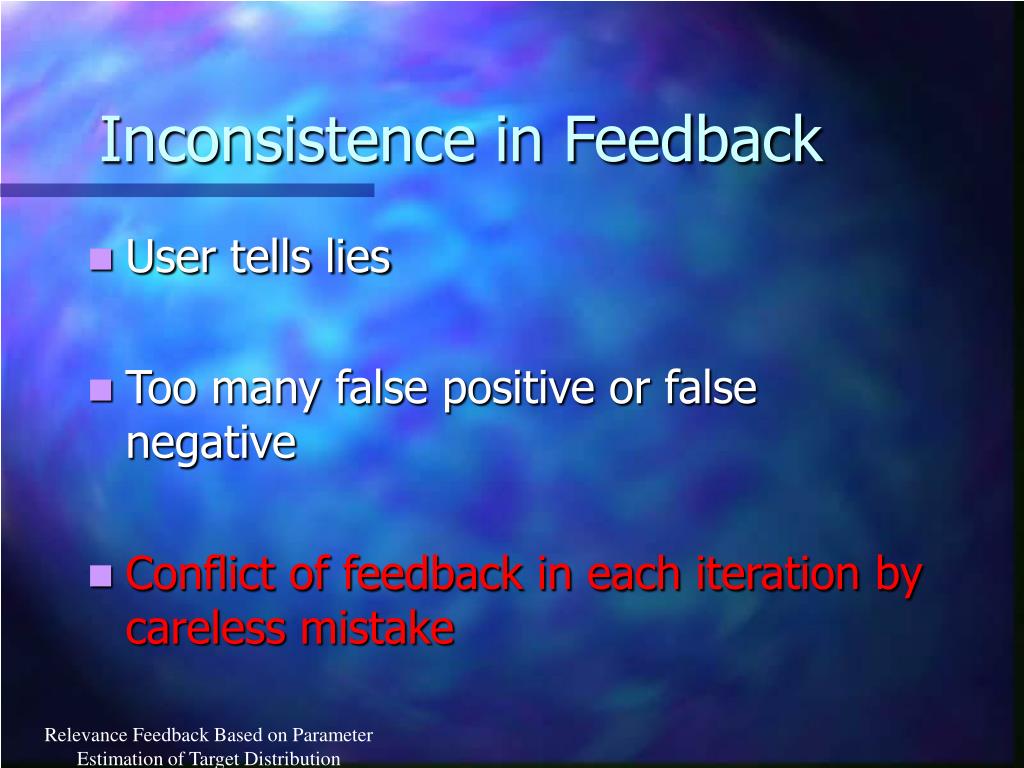

  11. Inconsistence in Feedback • User tells lies • Too many false positive or false negative • Conflict of feedback in each iteration by careless mistake Relevance Feedback Based on Parameter Estimation of Target Distribution

  12. Resolving Conflicts • How to deal with inconsistent user feedback? • Maintain a relevance measure for each data points • Relevance measure > 0 counted as relevant and use in estimation Relevance Feedback Based on Parameter Estimation of Target Distribution

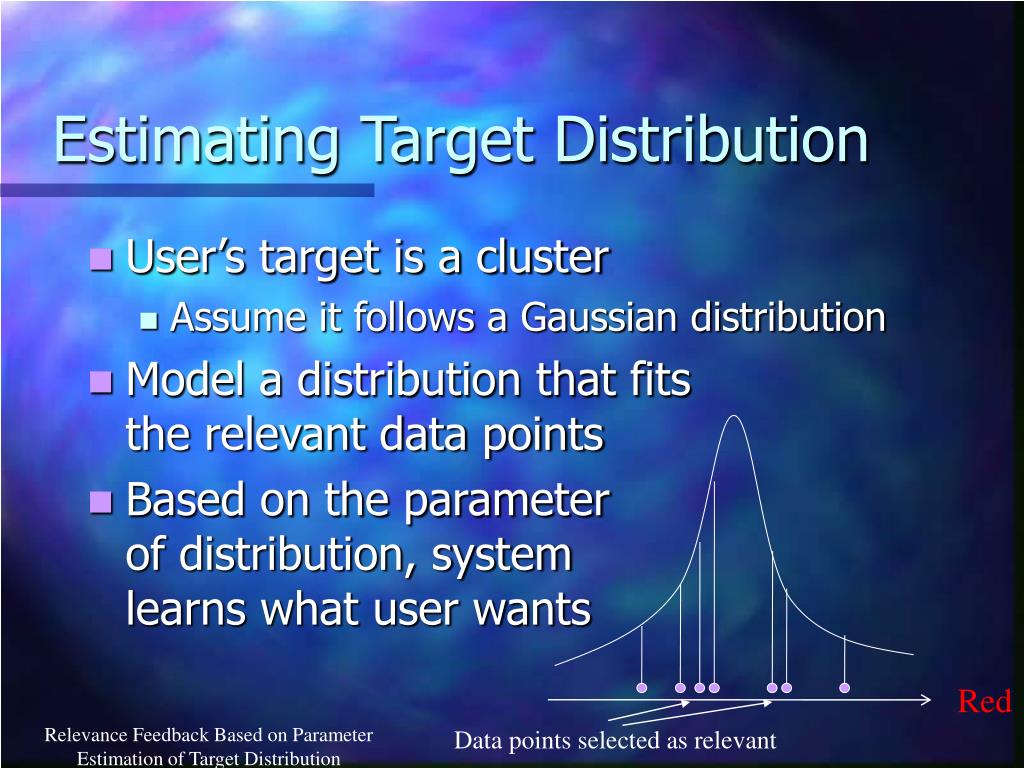

  13. Red Data points selected as relevant Estimating Target Distribution • User’s target is a cluster • Assume it follows a Gaussian distribution • Model a distribution that fits the relevant data points • Based on the parameterof distribution, systemlearns what user wants Relevance Feedback Based on Parameter Estimation of Target Distribution

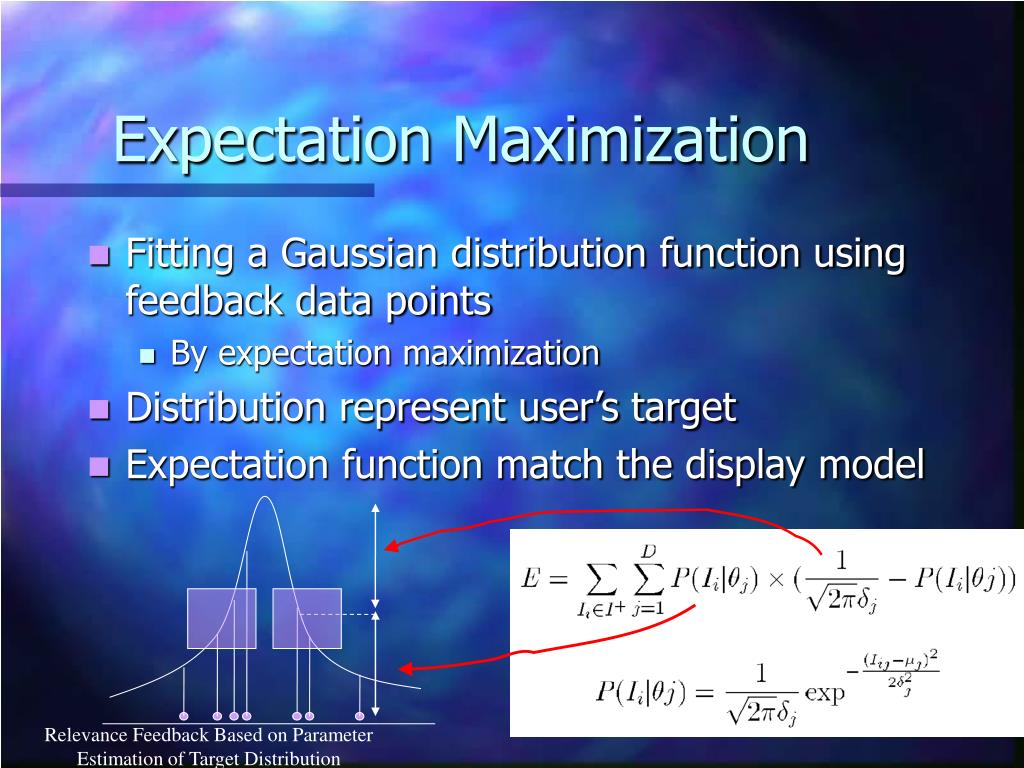

  14. Expectation Maximization • Fitting a Gaussian distribution function using feedback data points • By expectation maximization • Distribution represent user’s target • Expectation function match the display model Relevance Feedback Based on Parameter Estimation of Target Distribution

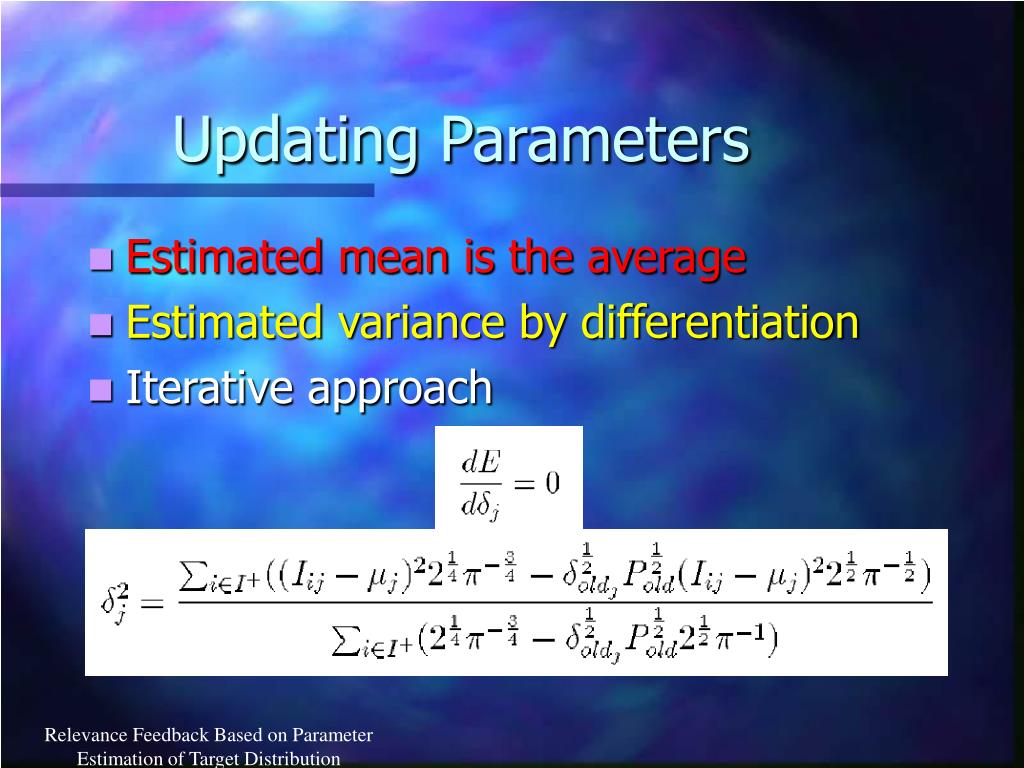

  15. Updating Parameters • Estimated mean is the average • Estimated variance by differentiation • Iterative approach Relevance Feedback Based on Parameter Estimation of Target Distribution

  16. Display

  17. Maximum Entropy Display • Why maximum entropy display? • Reason: fully utilize information contained in user feedback to reduce number of feedback iteration • Result: near boundary images will be selected to fine tune parameters Relevance Feedback Based on Parameter Estimation of Target Distribution

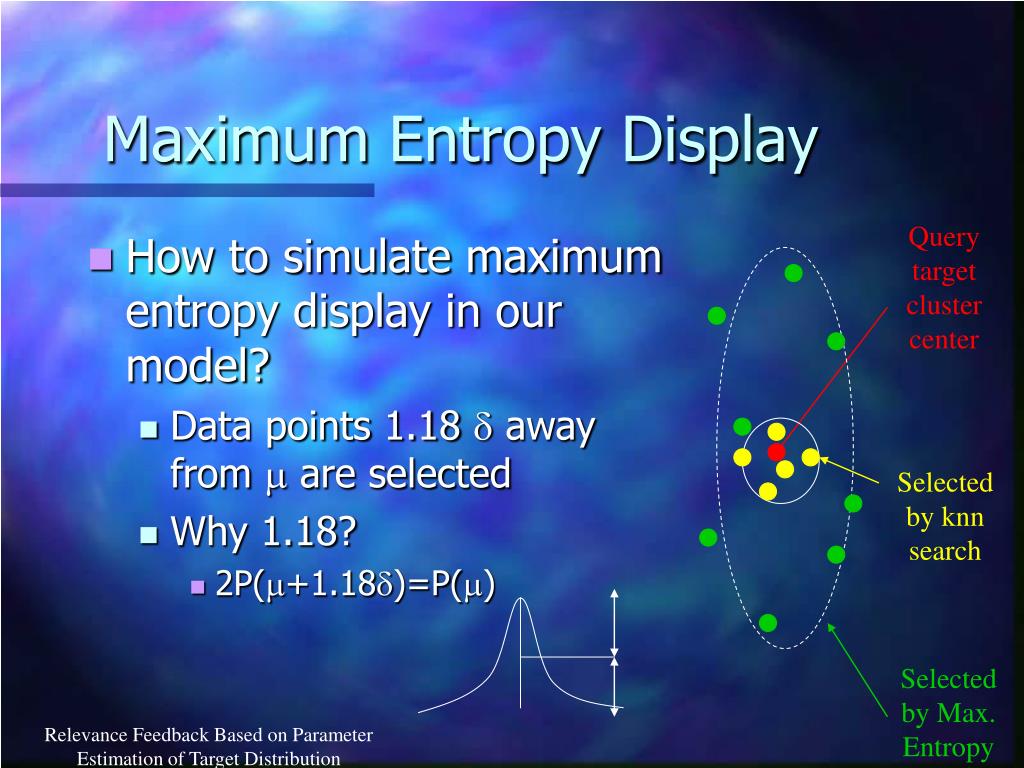

  18. Querytargetclustercenter Selectedby knnsearch Selectedby Max.Entropy Maximum Entropy Display • How to simulate maximumentropy display in ourmodel? • Data points 1.18  away from  are selected • Why 1.18? • 2P(+1.18)=P() Relevance Feedback Based on Parameter Estimation of Target Distribution

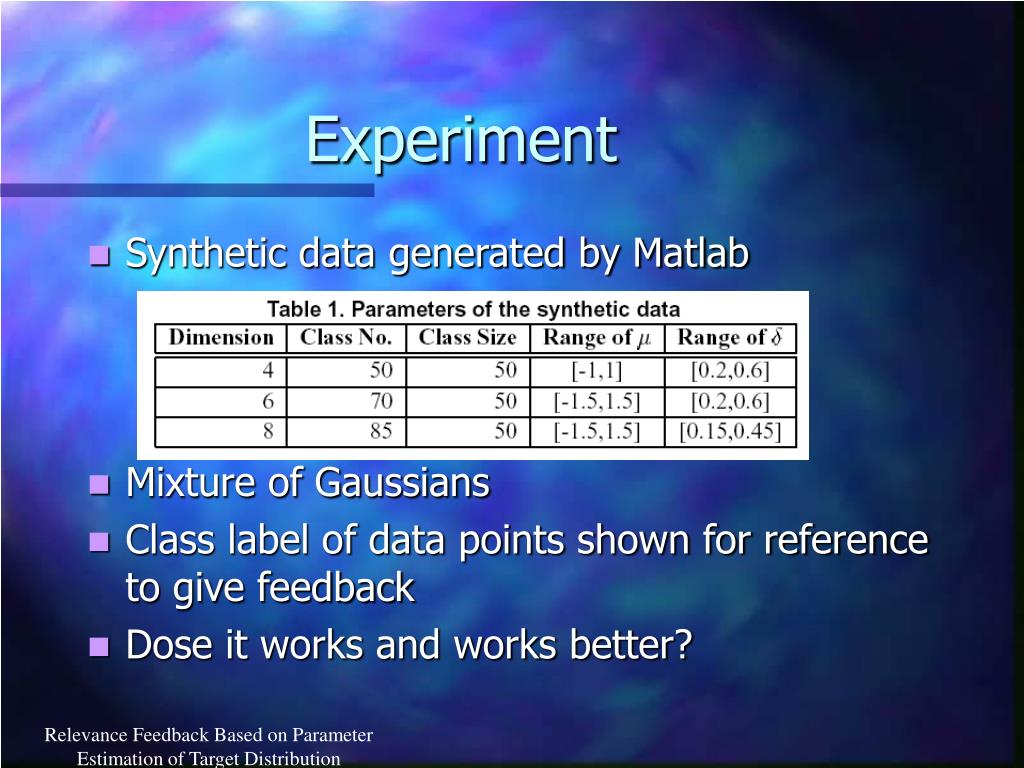

  19. Experiment • Synthetic data generated by Matlab • Mixture of Gaussians • Class label of data points shown for reference to give feedback • Dose it works and works better? Relevance Feedback Based on Parameter Estimation of Target Distribution

  20. Convergence • Is the estimated parameter (mean and variance) converge to the actual parameter of target distribution? • Is the maximum entropy display correctly done? Relevance Feedback Based on Parameter Estimation of Target Distribution

  21. Relevance Feedback Based on Parameter Estimation of Target Distribution

  22. Relevance Feedback Based on Parameter Estimation of Target Distribution

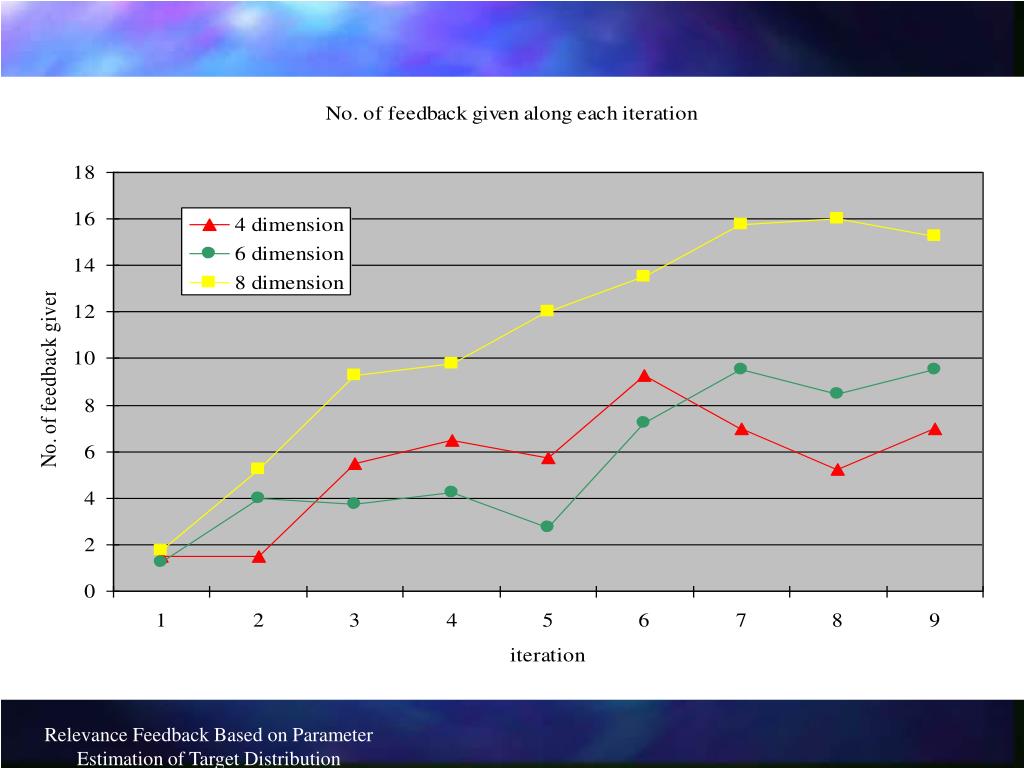

  23. Relevance Feedback Based on Parameter Estimation of Target Distribution

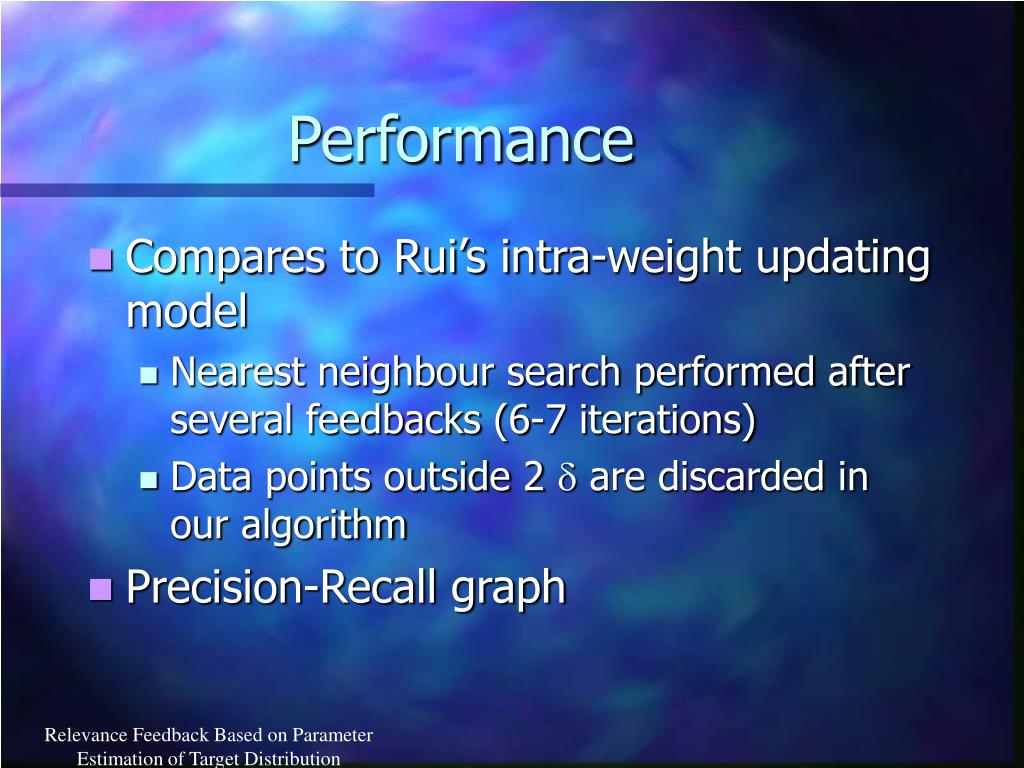

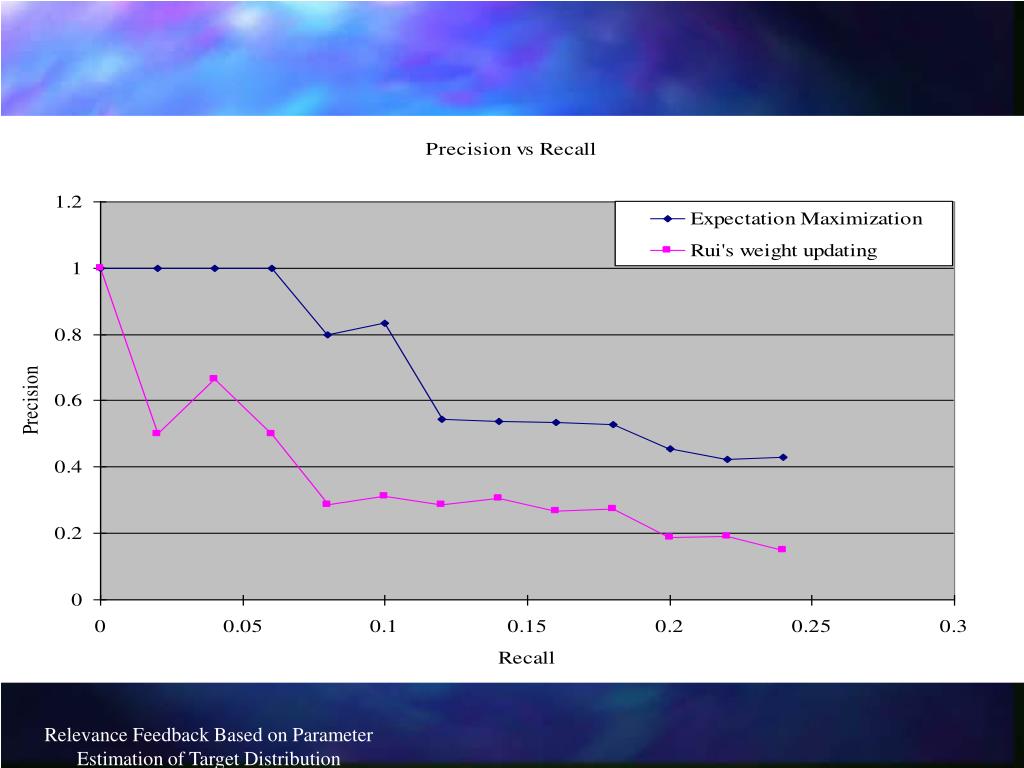

  24. Performance • Compares to Rui’s intra-weight updating model • Nearest neighbour search performed after several feedbacks (6-7 iterations) • Data points outside 2  are discarded in our algorithm • Precision-Recall graph Relevance Feedback Based on Parameter Estimation of Target Distribution

  25. Relevance Feedback Based on Parameter Estimation of Target Distribution

  26. Relevance Feedback Based on Parameter Estimation of Target Distribution

  27. Relevance Feedback Based on Parameter Estimation of Target Distribution

  28. Relevance Feedback Based on Parameter Estimation of Target Distribution

  29. Relevance Feedback Based on Parameter Estimation of Target Distribution

  30. Relevance Feedback Based on Parameter Estimation of Target Distribution

  31. Future Works • Modification to learn from information contained in non-relevant set • To capture correlation in different features • Apply in CBIR system for performance measurement Relevance Feedback Based on Parameter Estimation of Target Distribution

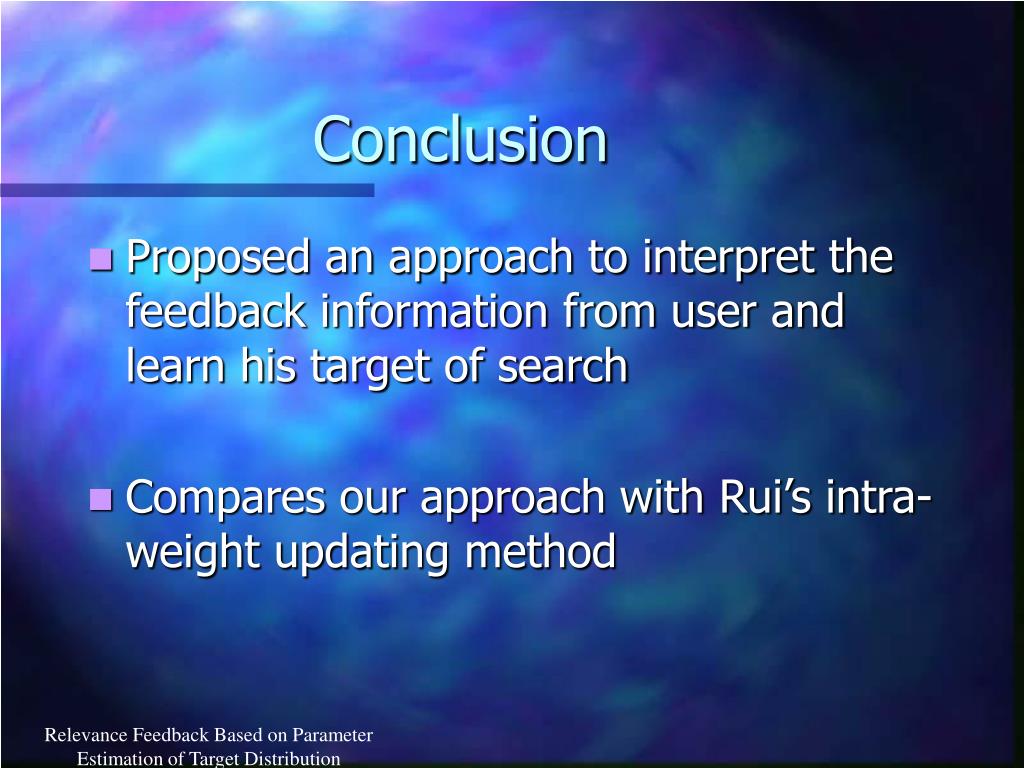

  32. Conclusion • Proposed an approach to interpret the feedback information from user and learn his target of search • Compares our approach with Rui’s intra-weight updating method Relevance Feedback Based on Parameter Estimation of Target Distribution

  33. END Presentation file available athttp://www.cse.cuhk.edu.hk/~kcsia/research/
