  1. February 01, 2008 KAWASAKI Kawasaki Hydraulic Deck Machinery

  2. HYDRAULIC MARINE MACHINERY KAWASAKI Deck machinery Steering gear Deck crane

  3. MARKETSHARE OF DECK MACHINERY Market Share of Deck Machinery in Japan KAWASAKI

  4. AMOUNT OF PRODUCTION KAWASAKI Amount of Production per Year Deck Machinery : approximately 150 ship sets/year

  5. AMOUNT OF PRODUCTION History & Total Sum of Production KAWASAKI History Steering Gear Deck Machinery Deck Crane Total Sum of Production Steering Gear Deck Machinery Deck Crane

  6. KAWASAKI AMOUNT OF PRODUCTION Total Sum of Production

  7. DECK MACHINERY HYDRAULIC DECK MACHINERY KAWASAKI ADVANCED SERIES & SILENT SYSTEM

  8. DECK MACHINERY Advanced Series KAWASAKI High pressure type hydraulic deck machinery Maximum pressure : 27.5MPa Silent system High pressure type hydraulic deck machinery Maximum pressure : 24.5MPa

  9. HYDRAULIC CIRCUIT DECK MACHINERY KAWASAKI Advanced Series ･Single Main System Parallel circuit Used for medium/large vessels ･Basic System Series circuit Used for small/medium vessels

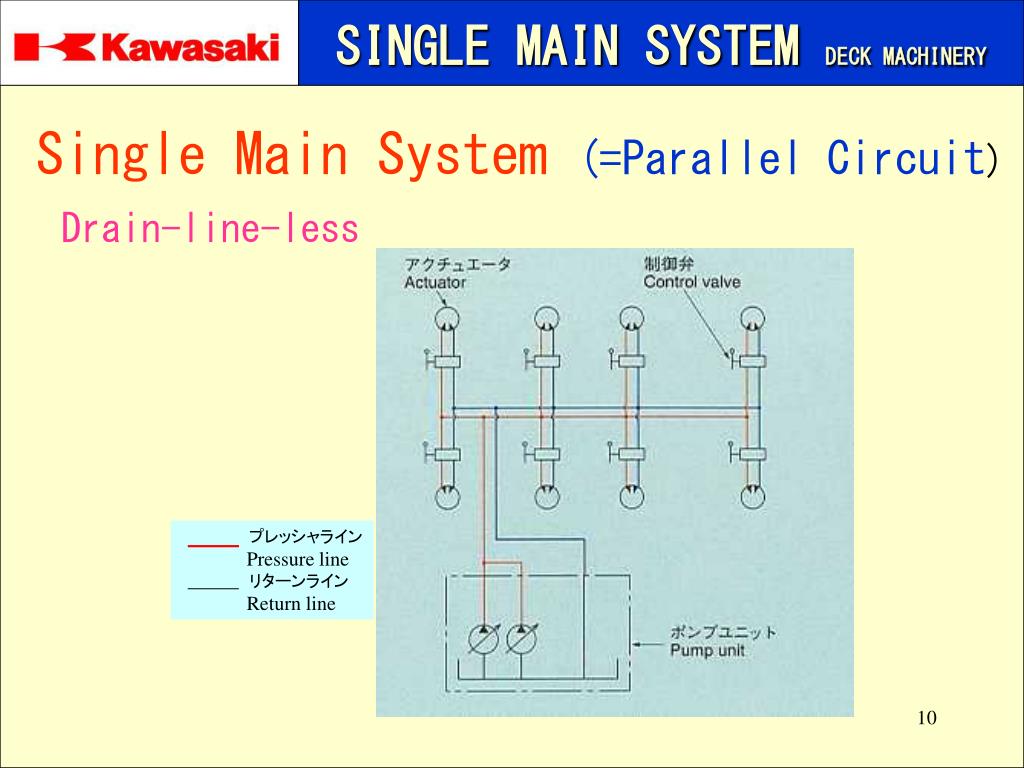

  10. SINGLE MAIN SYSTEM DECK MACHINERY 　　　　　　プレッシャライン Pressure line 　　　　　　リターンライン Return line Single Main System (=Parallel Circuit) KAWASAKI Drain-line-less

  11. SINGLE MAIN SYSTEM DECK MACHINERY Single Main System (=Parallel Circuit) KAWASAKI With Drain-line

  12. BASICSYSTEM DECK MACHINERY Basic System (=Series Circuit) KAWASAKI

  13. KAWASAKI SILENT SYSTEM DECK MACHINERY Silent System (=Series Circuit)

  14. FEATURES DECK MACHINERY Hydraulic Pump & Motor Made by Kawasaki Group KAWASAKI ←Pump : Kawasaki “K3VG(K3VL) Series” Variable Displacement Axial Piston Pump →Pump : Kawasaki Screw Pump Fixed Displacement Screw Pump ←Motor : Kawasaki “HM＊C Series” Variable Displacement Radial Piston Motor Made by KPM in UK

  15. FEATURES DECK MACHINERY KAWASAKI Long Life & Excellent Reliability The “K3VG(K3VL) Series” Pump with a nominal pressure of 34.3(31.4)MPa enjoys an excellent reputation for long service life and reliability.

  16. FEATURES DECK MACHINERY KAWASAKI Stepless Speed Control (High Efficiency) The “HM＊C Series” Motor with a constant horsepower control device allows stepless control of speed and high speed can be gained automatically at light loads. Speed Load

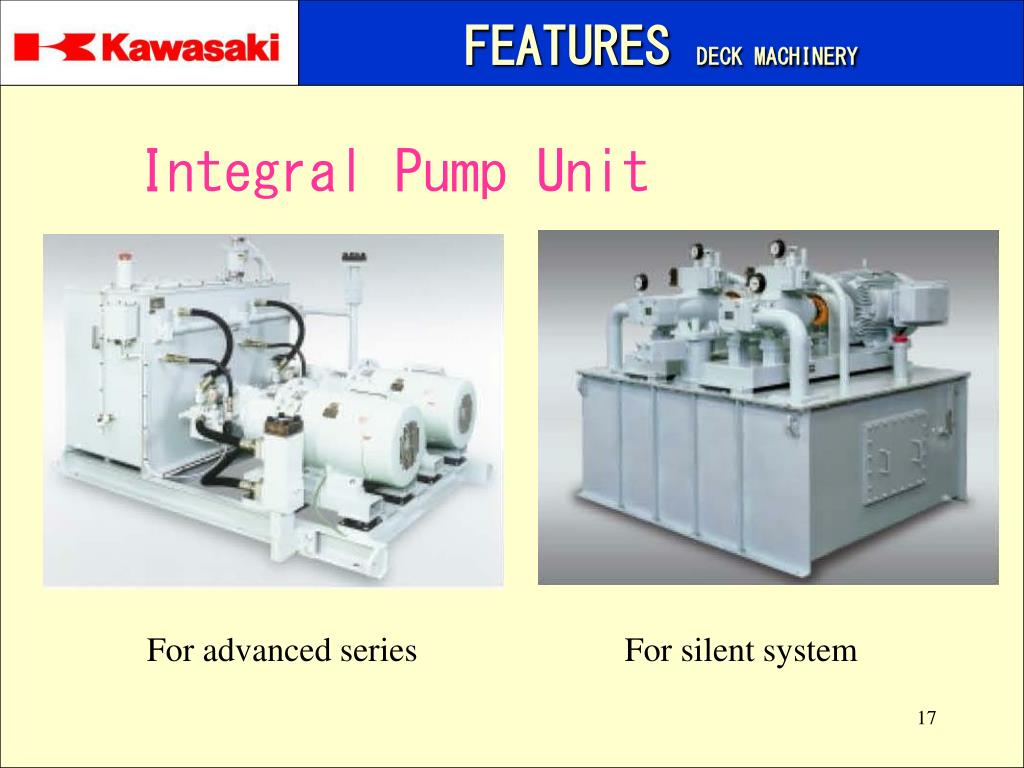

  17. FEATURES DECK MACHINERY KAWASAKI Integral Pump Unit For advanced series For silent system

  18. FEATURES DECK MACHINERY Hydraulic Oil Supply to Other Equipment. KAWASAKI Hatch Cover Opening /Closing System Ro/Ro Device

  19. WINDLASS DECK MACHINERY Standard Specifications of Windlass KAWASAKI

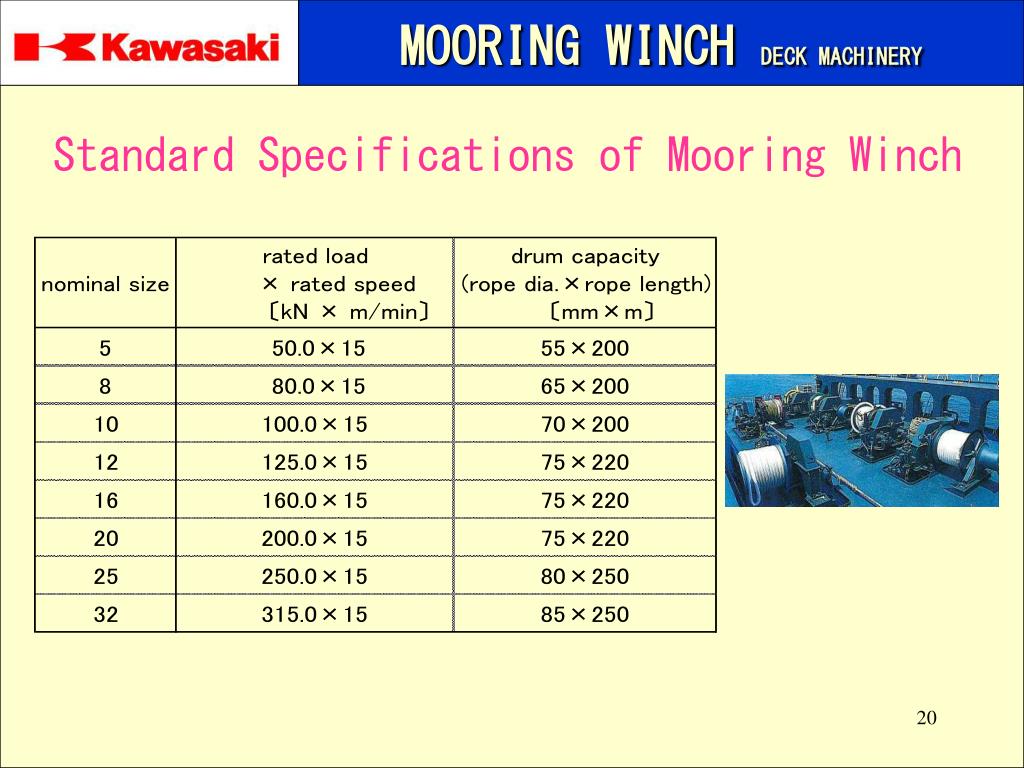

  20. MOORING WINCH DECK MACHINERY Standard Specifications of Mooring Winch KAWASAKI

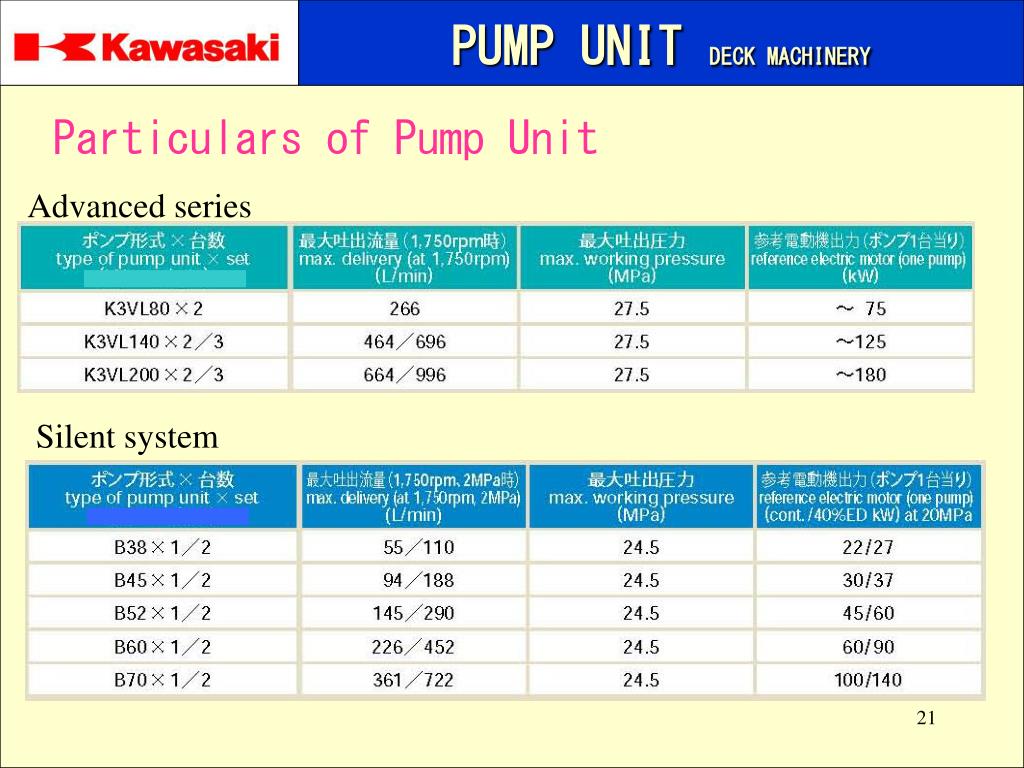

  21. PUMP UNIT DECK MACHINERY Particulars of Pump Unit KAWASAKI Advanced series Silent system

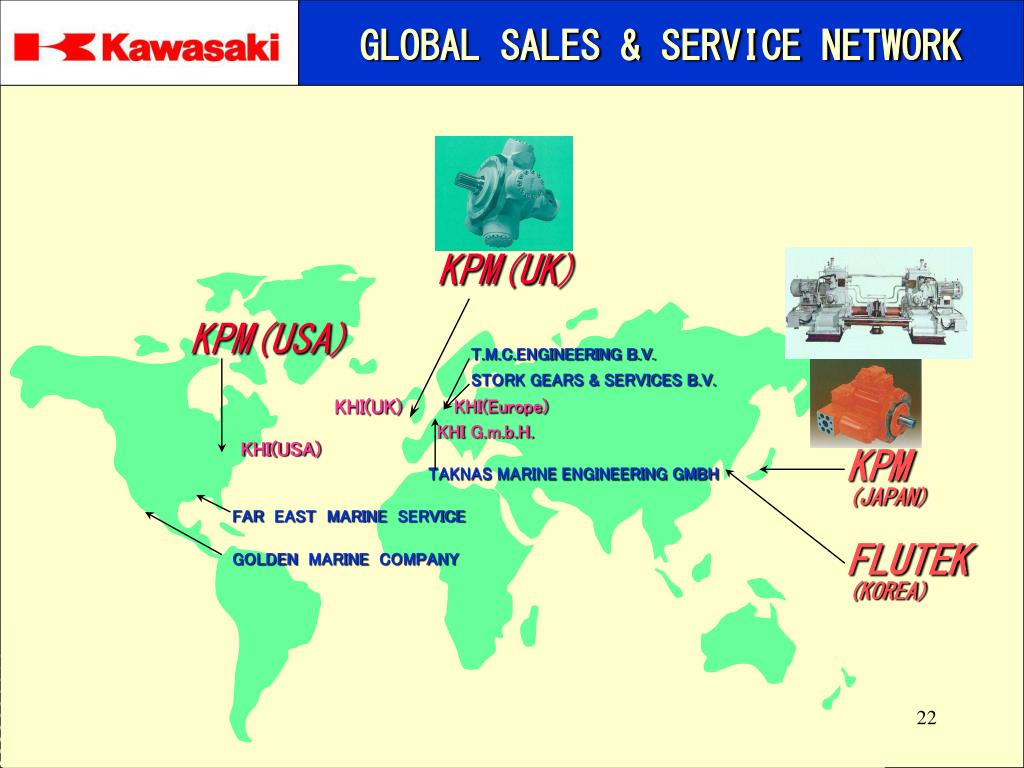

  22. GLOBAL SALES & SERVICE NETWORK KAWASAKI KPM(UK) KPM(USA) T.M.C.ENGINEERING B.V. STORK GEARS & SERVICES B.V. KHI(UK) KHI(Europe) KHIG.m.b.H. KHI(USA) KPM (JAPAN) TAKNAS MARINE ENGINEERING GMBH FAREASTMARINESERVICE FLUTEK (KOREA) GOLDENMARINECOMPANY
